Accsoon CineView Master 4K - Receiver only

Accsoon CineView Master 4K RX. A standalone receiver for a Master 4K system, with HDMI UHD and SDI Full HD outputs. Transmitter purchased separately. The system uses RTMS 4.0 and simultaneous 2.4/5/6 GHz transmission for a director, focus puller or remote monitoring station. It supports UHD 3840 × 2160 up to 60p, H.264/H.265, four wireless viewing devices…

More information

489 € with VAT 404.13 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon CineView Master 4K RX. A standalone receiver for a Master 4K system, with HDMI UHD and SDI Full HD outputs. Transmitter purchased separately. The system uses RTMS 4.0 and simultaneous 2.4/5/6 GHz transmission for a director, focus puller or remote monitoring station. It supports UHD 3840 × 2160 up to 60p, H.264/H.265, four wireless viewing devices per TX plus one wired iPhone/iPad, and latency below 25 ms at 1080p60 or below 35 ms at 4K60 in low-bitrate mode excluding the camera. Each unit has six antennas, a 1.05″ colour LCD, an aluminium housing and NP-F or 7.4–16.8 V DC power. The manufacturer’s 2.5 km measurement applies to 1080p60 low-bitrate mode under FCC conditions with clear line of sight and no interference; actual permitted operation and range depend on location. Batteries, power supplies and monitors are purchased separately.

ACCSOON CINEVIEW MASTER 4K · RX

4K at your monitor

A standalone receiver for a Master 4K system, with HDMI UHD and SDI Full HD outputs. Transmitter purchased separately.

UHD 4K602.4 / 5 / 6 GHzHDMI + SDI
Accsoon CineView Master 4K RX
A remote view for your crew · Accsoon CineView Master 4K

A remote view for your crew

The manufacturer photograph shows Master 4K on set. UHD up to 60p helps the director or focus puller assess detail without running a video cable across the set. Cameras, monitors and batteries shown are separate equipment.

Three bands, coordinated streams

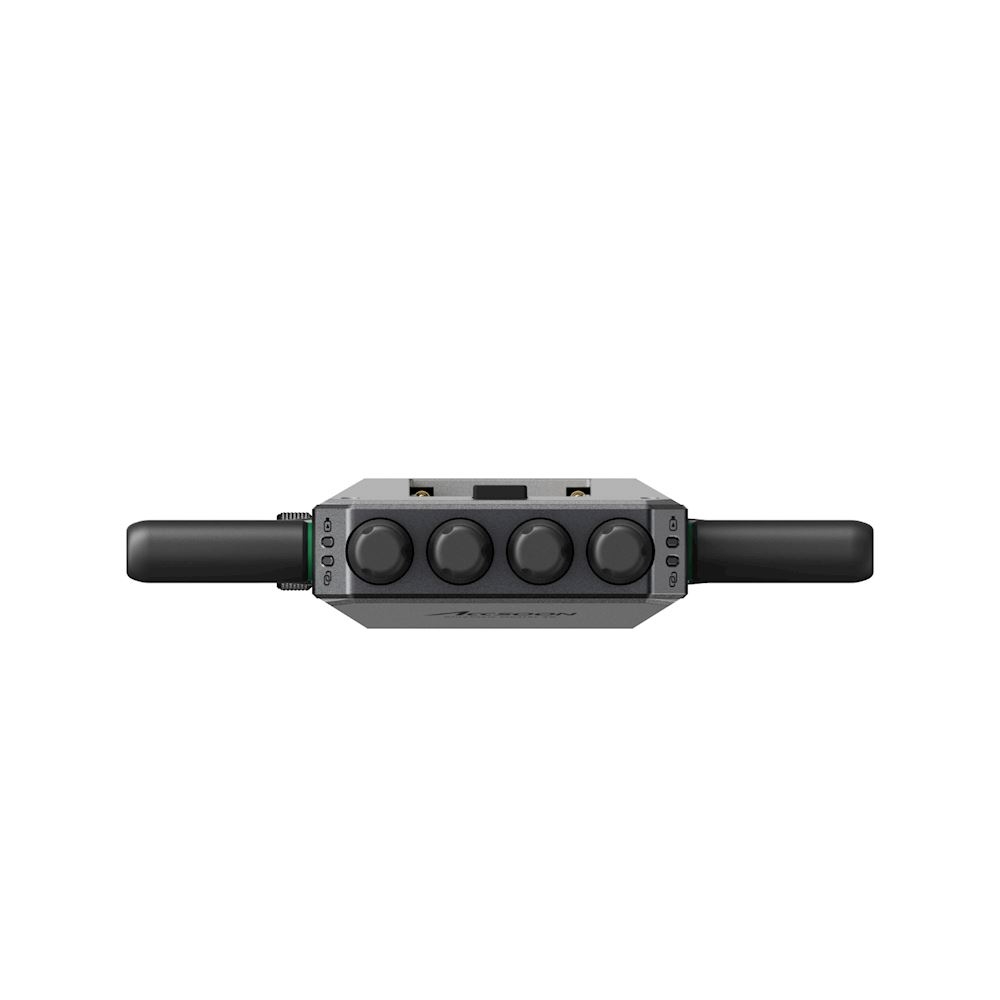

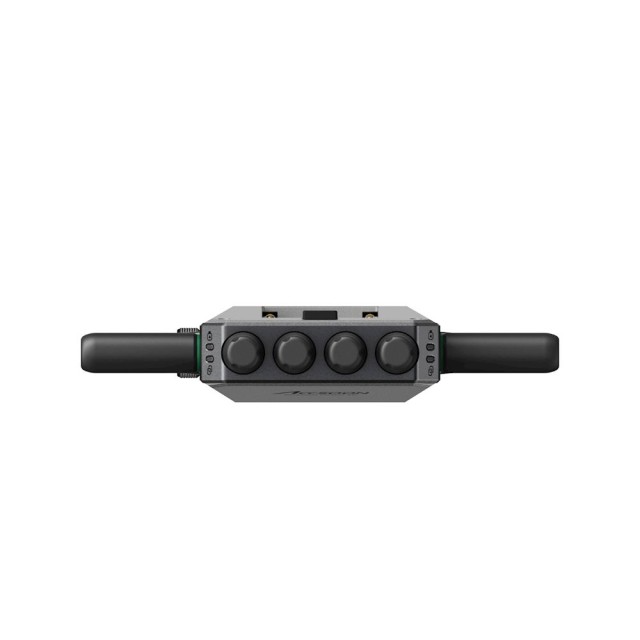

RTMS 4.0 coordinates transmission across 2.4, 5 and 6 GHz with DFS. The 8K-capable processor manages simultaneous streams; actual video remains UHD 4K60. Attach the six antennas correctly: four long 2.4/5 GHz antennas and two short 6 GHz antennas per unit.

Three bands, coordinated streams · Accsoon CineView Master 4K
One camera, several viewing paths · Accsoon CineView Master 4K

One camera, several viewing paths

The diagram shows TX input, wireless RX, TX HDMI loop output and USB-C video to iOS. One TX feeds four wireless viewing devices in total, mixing compatible receivers and mobiles, plus one wired iPhone/iPad. Each RX uses one wireless slot. RX HDMI outputs UHD up to 60p; SDI remains Full HD up to 60p. Mobile recording and Internet streaming run in Accsoon SEE. Match TX/RX group numbers. Extra devices shown are purchased separately. Only RX is included in this package; TX and mobile devices in the diagram illustrate the wider system.

Match the port to the signal

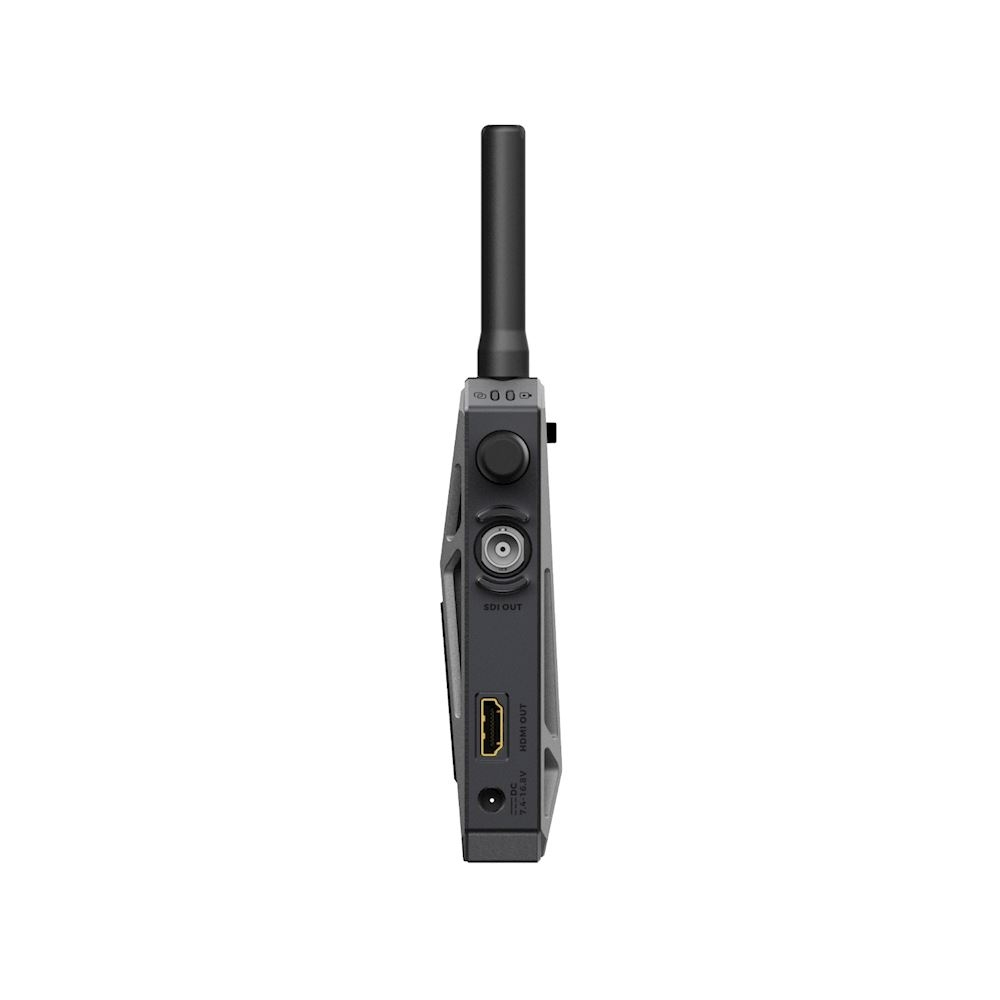

Above: TX with 3G-SDI input up to 1080p60, HDMI input/loop-out up to UHD 4K60, USB-C video to iPhone/iPad and DC input. Below: RX with 3G-SDI output up to 1080p60, HDMI output up to UHD 4K60 and DC input. RX has no USB video output. SDI input supports A/B; RX output uses A. HDMI loop-out follows the HDMI input format.

Match the port to the signal · Accsoon CineView Master 4K
Keep the 4K detail · Accsoon CineView Master 4K

Keep the 4K detail

The 4K stream serves wireless and wired iOS monitoring. This photograph shows Master 4K RX feeding a monitor via HDMI.

Set cooling for the location

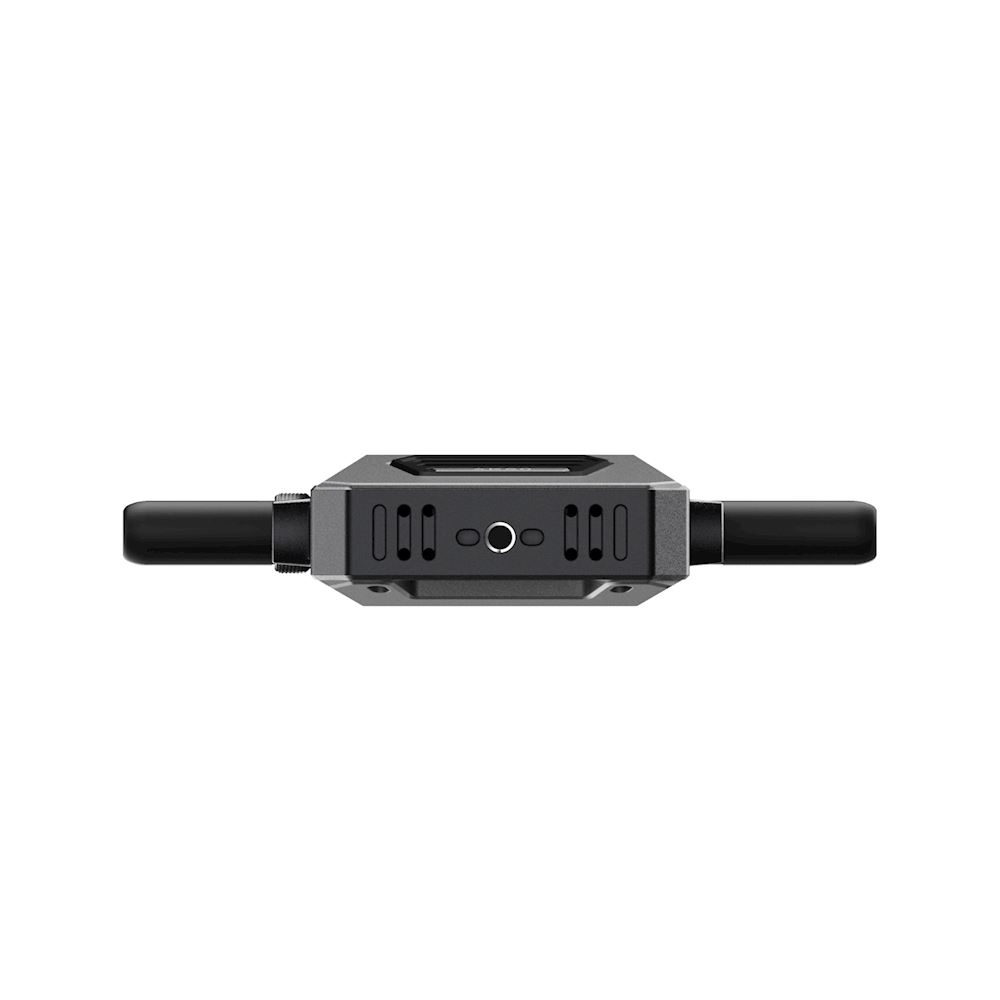

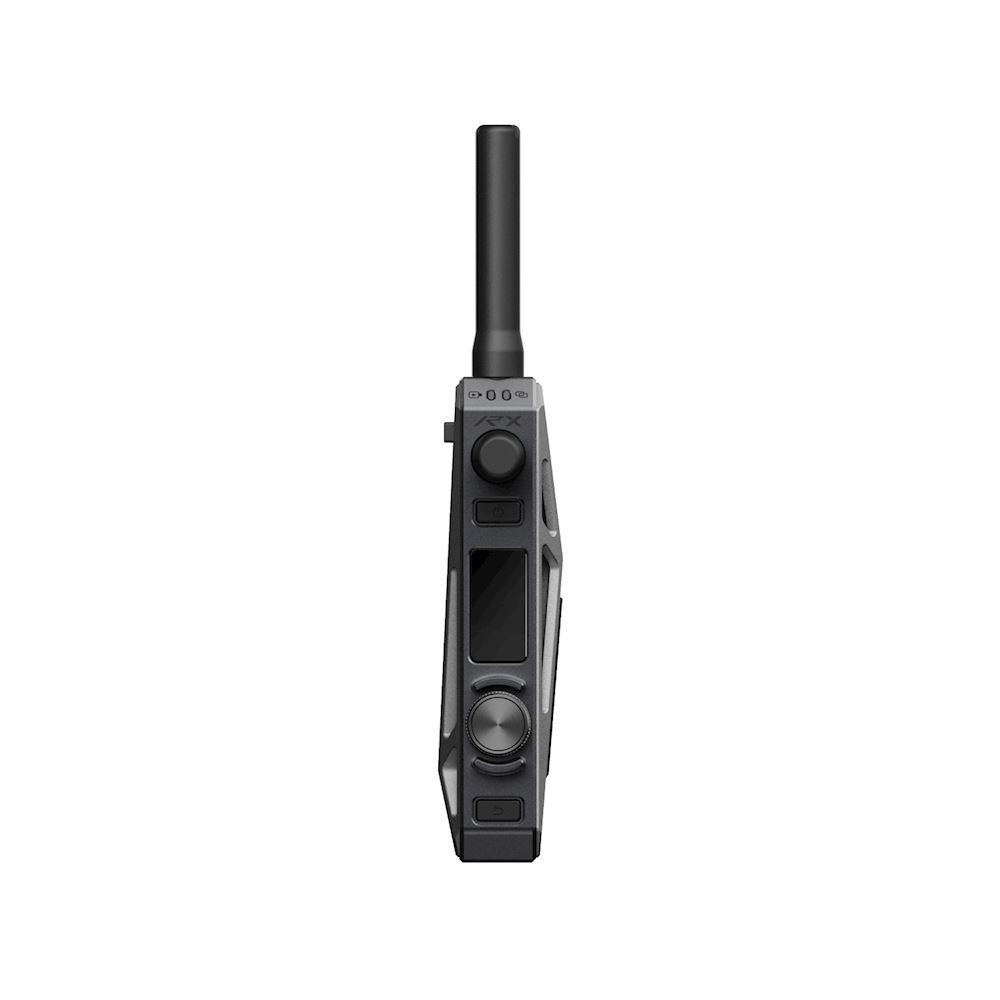

The aluminium unit has an active fan with Standard, Quiet and Off modes. Standard adjusts speed with temperature; Quiet limits its maximum speed. The 1.05″ colour LCD and rotary control show and adjust connection, format, channel and group settings. The anti-rotation 1/4″ mount secures the unit to a suitable rig. Body dimensions are 130 × 95 × 32 mm excluding antennas.

Set cooling for the location · Accsoon CineView Master 4K

Prepare the system

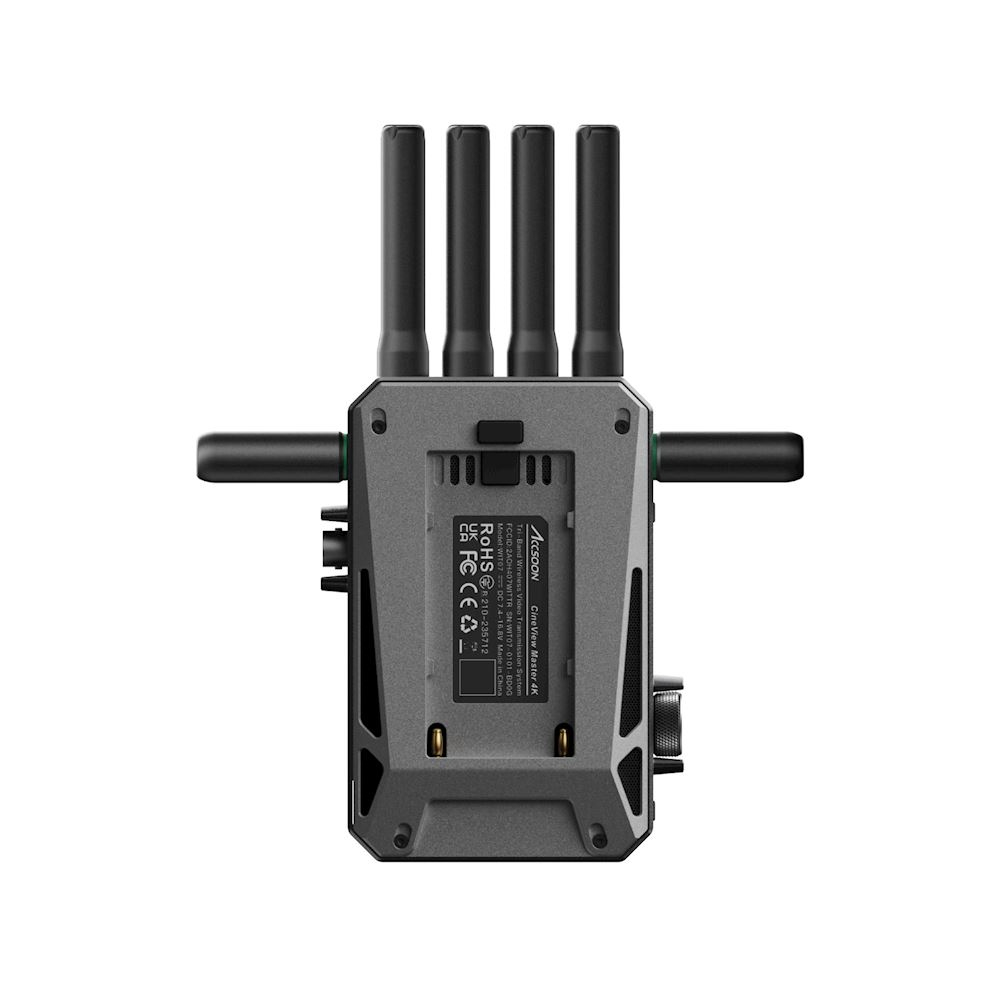

Power RX with NP-F550/750/970 or 7.4–16.8 V DC, 5.5 × 2.1 mm centre positive, using a source rated at least 2 A. Typical consumption is 5 W. For NP-F/DC hot swapping keep the alternate source connected. RX weighs 320 g without antennas. Master 4K TX, batteries, power supplies and signal cables are separate equipment.

PACKAGE CONTENT

  • Receiver CineView Master 4K RX ×1
  • Cold shoe adapter ×1
  • Long 2.4/5 GHz antenna ×4
  • Short 6 GHz antenna ×2
  • Allen key ×1
  • User manual ×1

SPECIFICATIONS

  • Package: RX
  • Wireless video: UHD 3840 × 2160; ≤60p; H.264/H.265
  • Bands / protocol: 2.4 + 5 + 6 GHz; DFS; RTMS 4.0
  • Processor: 8K-capable A/V processor; 4K60 video path
  • Range measurement: 2.5 km; 1080p60 low bitrate; FCC; clear LOS without interference
  • Latency: <25 ms 1080p60 / <35 ms 4K60; low bitrate; camera excluded
  • Viewing devices per TX: 4 wireless + 1 wired iPhone/iPad
  • Audio: Embedded HDMI/SDI; 48 kHz; 16/20/24 bit
  • Battery: NP-F550/750/970
  • DC: 7.4–16.8 V; ≥2 A; 5.5 × 2.1 mm; centre positive
  • LCD: 1.05″; full colour
  • Body dimensions: 130 × 95 × 32 mm; antennas excluded
  • Housing: Grey aluminium
  • Mount: 1/4″; anti-rotation
  • Antennas per unit: 6 detachable: 4 long + 2 short
  • Cooling: Active fan: Standard / Quiet / Off
  • Operating temperature: −10–40 °C
  • RX outputs: HDMI / 3G-SDI
  • RX HDMI OUT: UHD / 1080p: 23.98/24/25/29.97/30/50/59.94/60p; 720p50/60
  • RX SDI OUT: 1080p: 23.98/24/25/29.97/30/50/59.94/60; A; 720p50/60
  • RX typical consumption: 5 W
  • RX weight: 320 g; antennas excluded

WE RECOMMEND

The Accsoon CineView Master 4K Receiver is a professional wireless video receiver with 4K resolution support that uses standard NP-F batteries for power and offers a wide range of mounting options. For optimal use in a production environment, it is essential to pair it with high-quality chargers, mounting adapters for monitors, and protective carrying cases.

Power and Batteries - Accessories to ensure continuous operation of the receiver using NP-F batteries.

Mounting and Attachment - Components for securely attaching the receiver to monitors, gimbals, or camera rigs.

Monitors and cages - Protective cages and mounts for tablets that can be used as viewfinders in conjunction with a receiver.

Cabling and Connectivity - Connection cables for transmitting video signals from the receiver to the display device.

Protection and Transport - Durable cases for safe transport of the wireless system and its accessories.

Rigs and Support - Additional components for building complex camera setups.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Line-of-sight range2500m
Unit dimensions without antennas130x95x32mm
Weight per unit320g
Receivers in package1
Maximum transmission resolution3840x2160px
Maximum frame rate60fps
DC input voltage range7.4x16.8V
Operating temperature-10x40°C
Typical receiver power consumption5W
Frequency band2.4 GHz · 5 GHz · 6 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970
MaterialAluminium alloy
ColourGrey
Mounting interface1/4″-20
FunctionsActive cooling: Standard / Quiet / Off · Battery hot swap with DC connected
DC power connector5.5 × 2.1 mm socket, centre positive
Audio sampling frequency48 kHz
Audio bit depth16-bit · 20 bit · 24-bit
Output connectorBNC – female · HDMI type A – female
3G-SDI output levelA
Status Display TypeColour LCD
Compatible Wireless SystemCineView M7 Pro · CineView Master 4K
Video codecH.264 / H.265
Number of antennas per unit6
Colour LCD diagonal1.05″
Receiver weight without antennas320g
Minimum DC source current2A
Transmission protocolRTMS 4.0
Latency<25 ms (1080p60) / <35 ms (4K60)
InputWireless video reception
Output3G-SDI · HDMI
