Accsoon TopRig Support Rods

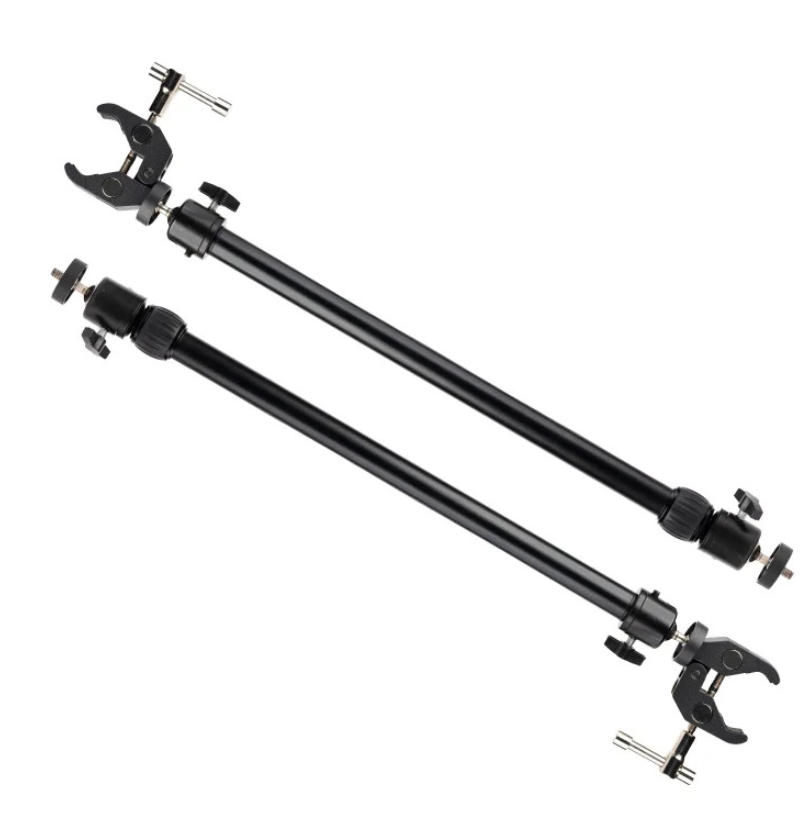

Accsoon TopRig Support Rods ACC-SR-01 is a pair of aluminium supports for TopRig S40 and S60 motorised sliders. The rods connect the slider to tripod legs and help stabilise the setup during camera travel or angled slider placement. Their adjustable 490–760 mm length accommodates the tripod arrangement; C-clamps accept 10–55 mm legs and the slider connection uses a 1/4″-20 thread. Articulated ends let you adjust the support direction. The package includes two supports with clamps and articulated fittings; the slider, tripod and camera are sold separately.

Accsoon TopRig Support Rods

STABLE SLIDER SUPPORT

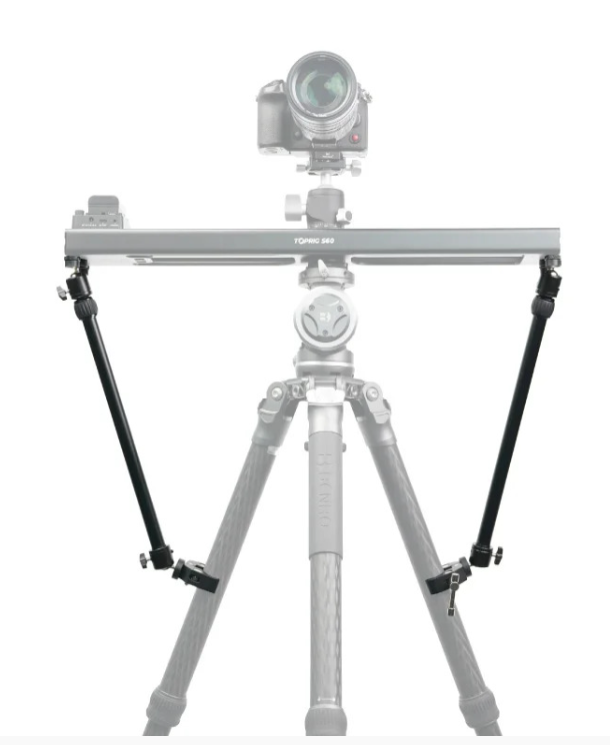

Two adjustable aluminium supports for TopRig S40 and S60 connect the slider to tripod legs, helping reduce setup tilt as the camera moves.

490–760 mm10–55 mm clampsS40 / S60

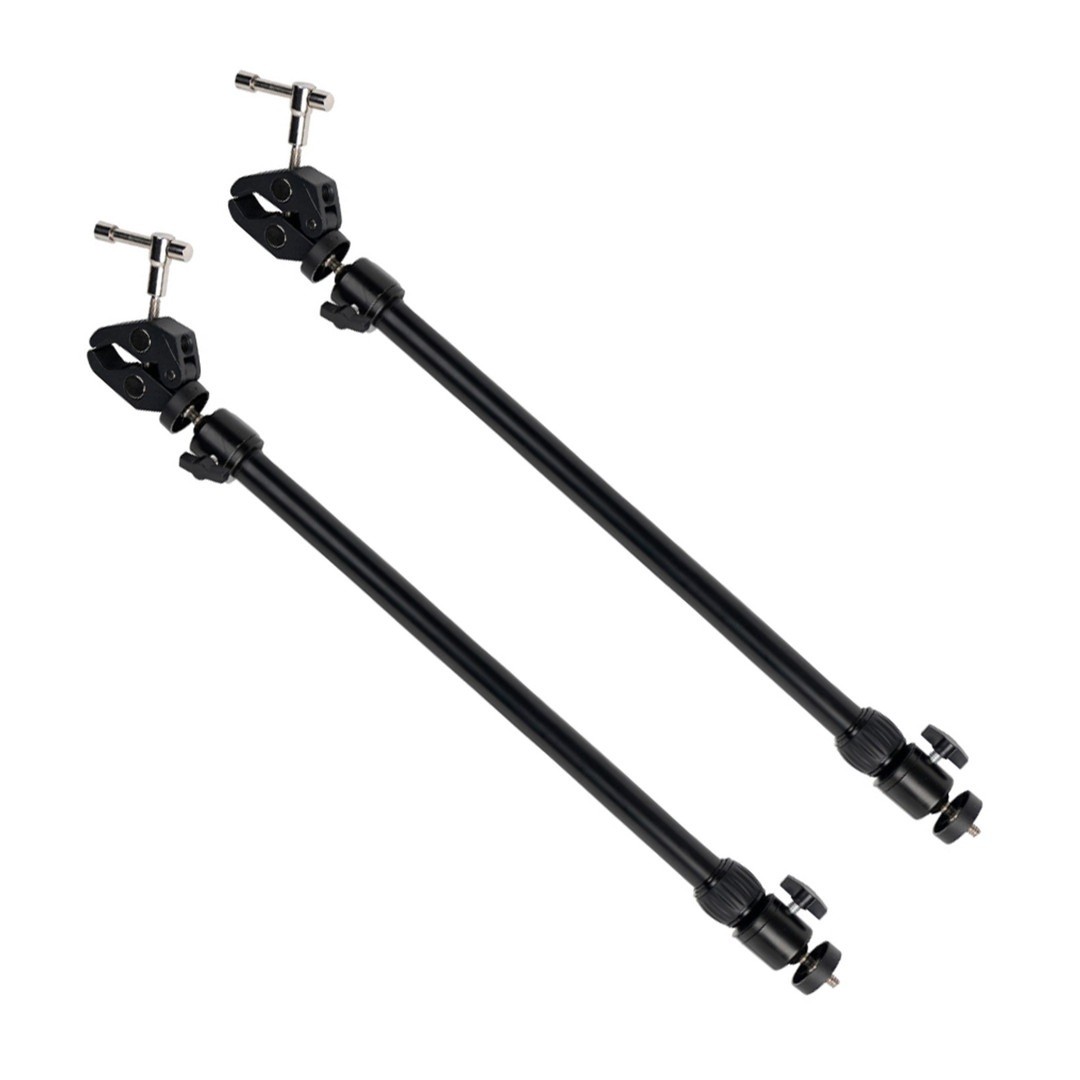

ADJUST THE SUPPORT LENGTH

The 490–760 mm range accommodates different tripod leg positions. Adjust each rod to the leg spacing and angle, then lock it securely. The pair provides support on both sides; the slider itself must still be properly secured to the tripod.

CLAMP AND 1/4″-20 THREAD

The C-clamp attaches to a tripod leg section measuring 10–55 mm. The other end uses a 1/4″-20 slider connection. Articulated fittings allow you to orient the rod; check that the clamping surface is suitable and all connections are tightened before use.

MOUNT TO TOPRIG

The manufacturer shows connections to mounting holes on the slider underside and side plate. Select an available point for your TopRig S40 or S60 position and orient the fitting towards the tripod leg. The slider mounting plate is not a separate item in this support kit.

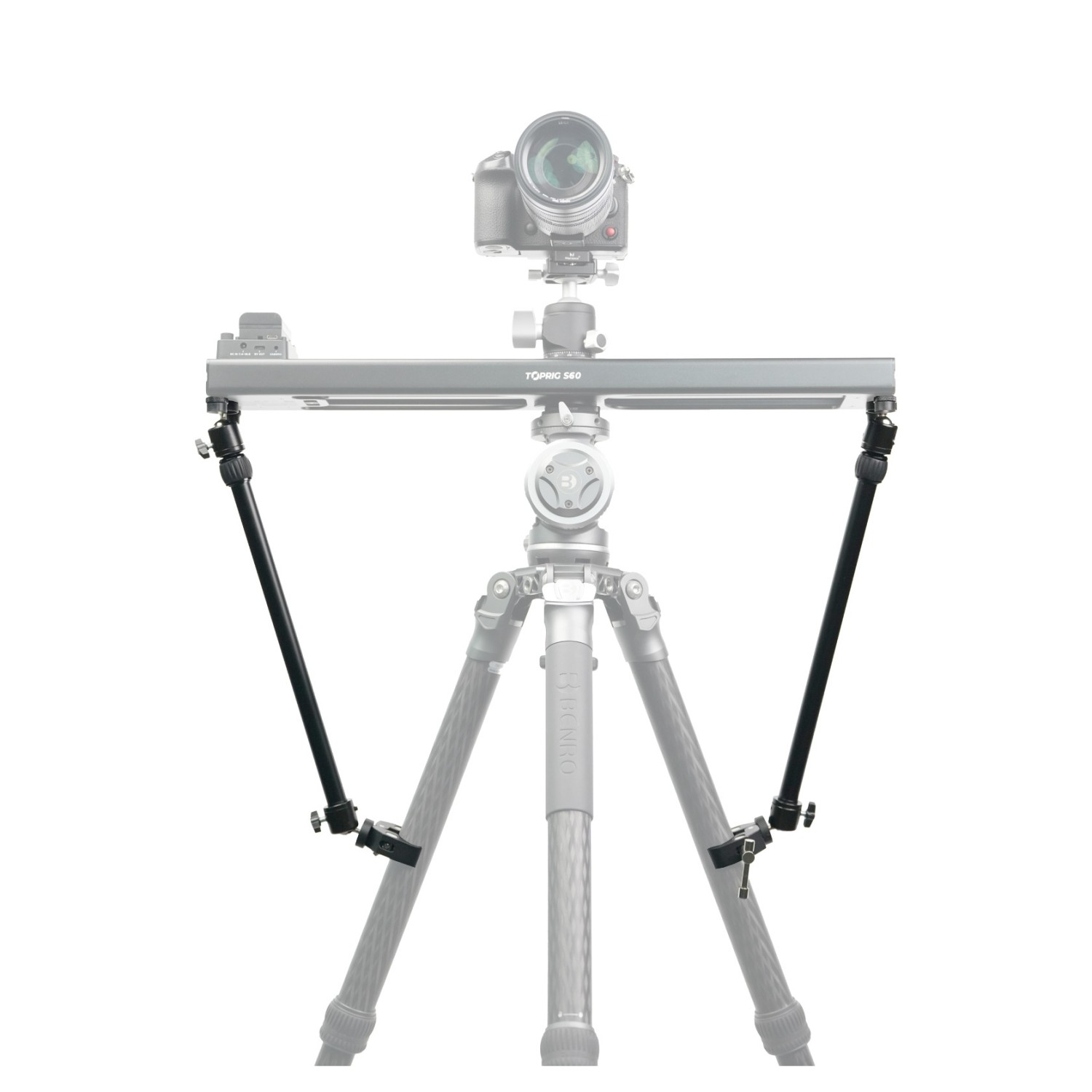

SUPPORT FOR ANGLED SHOTS

With the slider angled, the supports supplement its main mounting point and help reduce setup tilt during camera movement. Adjust both rods to the actual tripod geometry. The supports do not increase the manufacturer rated payload of the slider or tripod.

A COMPACT LOCATION SETUP

Official photographs show the rods with horizontal and angled tripod mounted sliders. Aluminium construction and adjustable length accommodate the setup without another separate support stand. Always ensure that the entire assembly is balanced on the actual surface.
