Accsoon V-Lock Adapter

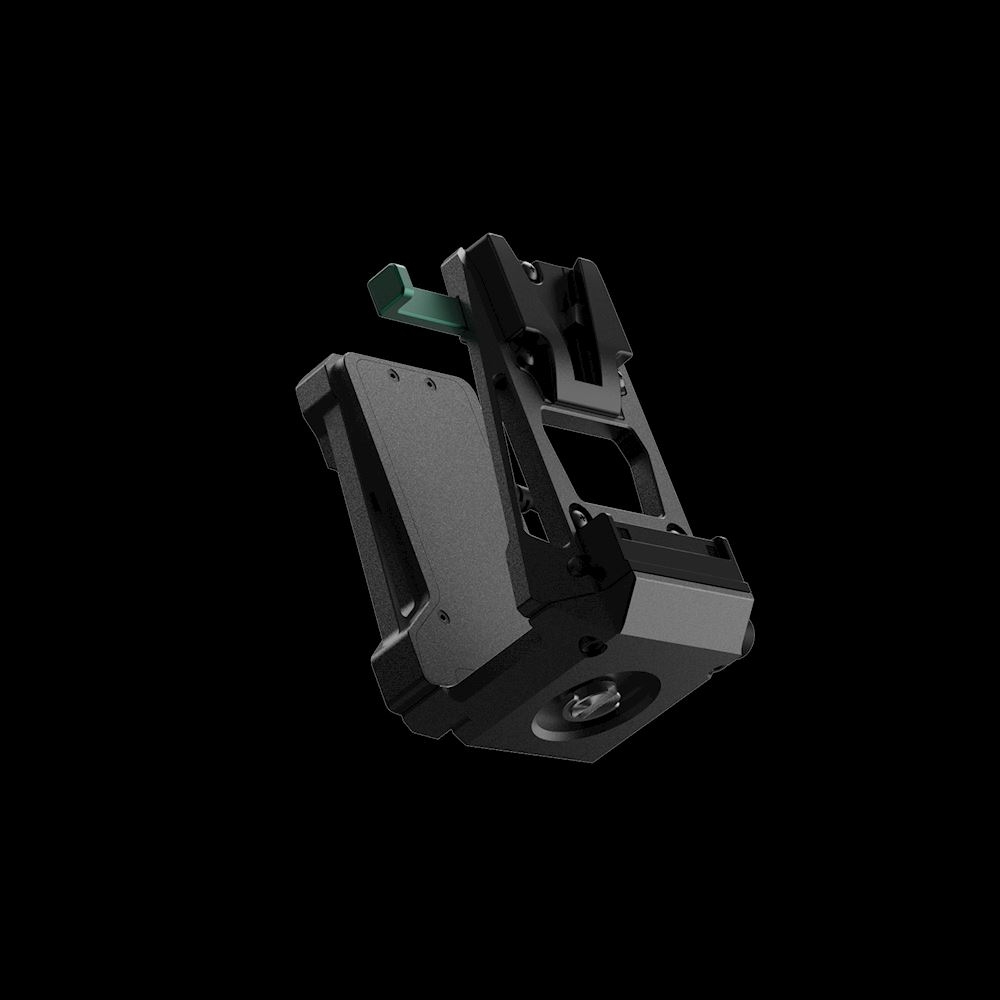

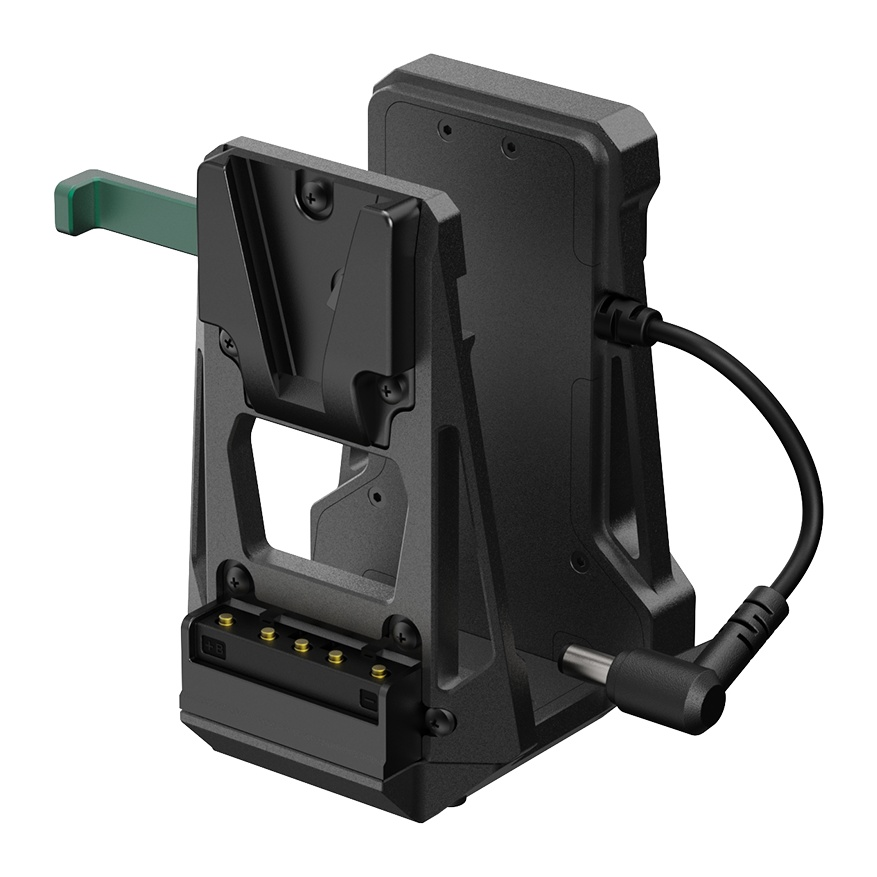

Accsoon V-Lock Adapter ACC-ACC32 connects a CineView Master 4K or CineView 2 SDI transmitter to a camera equipped with a compatible V-Mount plate. One V-Mount battery powers the camera through the adapter’s pass-through contacts and the transmitter through a captive 75 mm DC cable. The aluminium body also holds the transmitter behind the camera, eliminating its separate NP-F battery and an additional power lead. The adapter weighs 293 g and measures 106.3 × 68.3 × 89.1 mm. The package contains the adapter with its integrated cable; the transmitter, battery, camera and any required camera V-Mount plate are sold separately.

Accsoon V-Lock · ACC-ACC32

ONE BATTERY FOR YOUR RIG

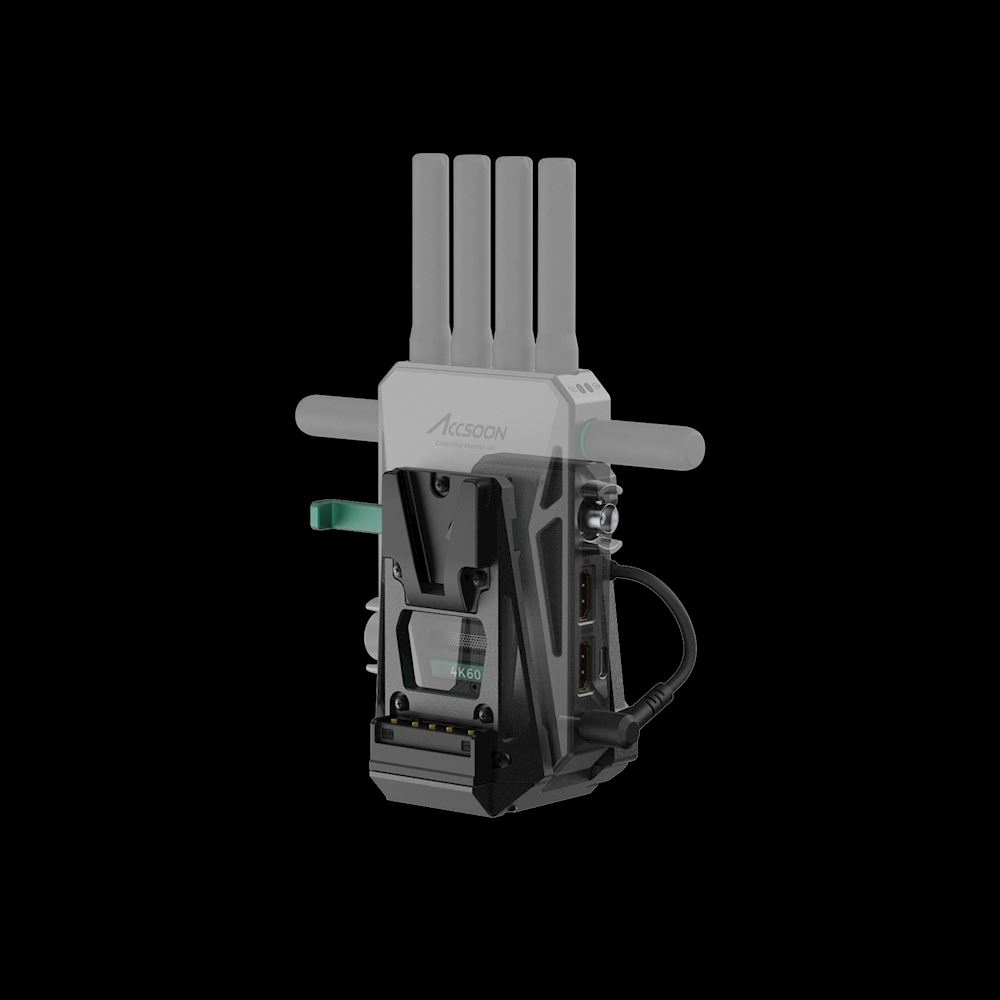

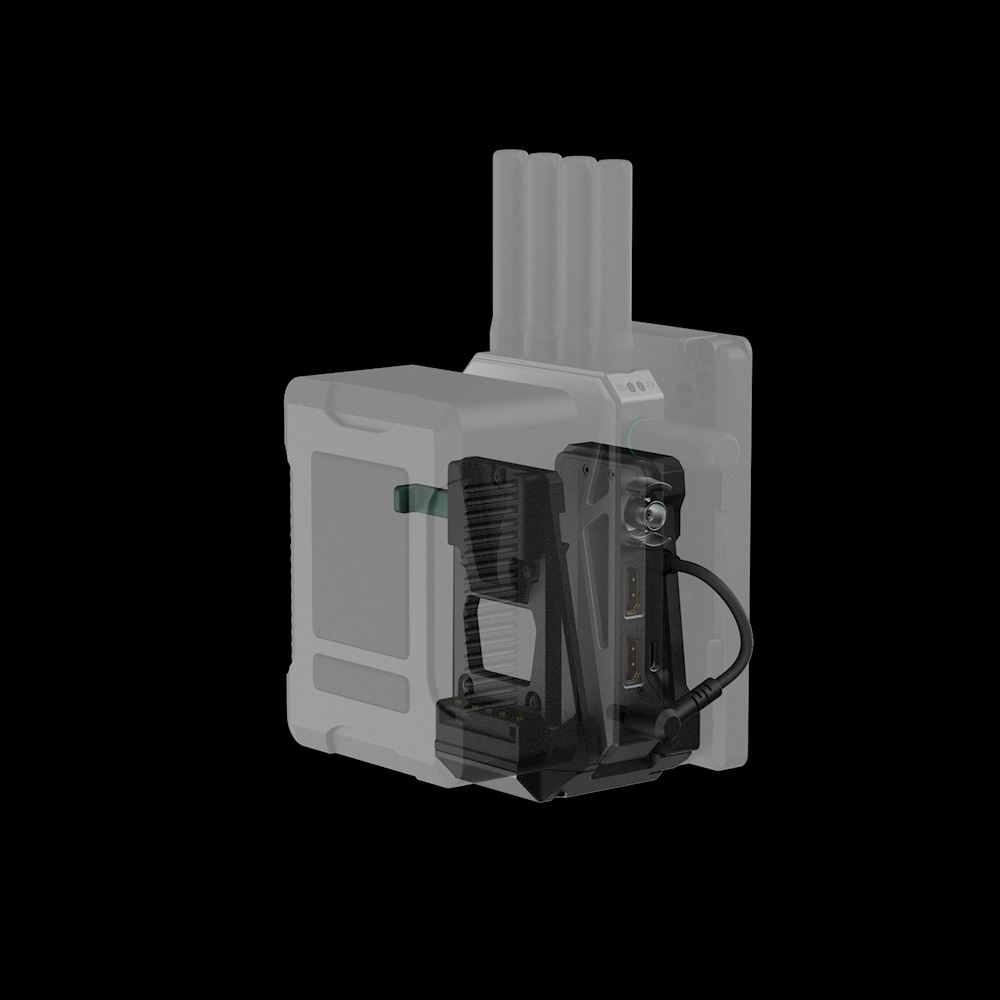

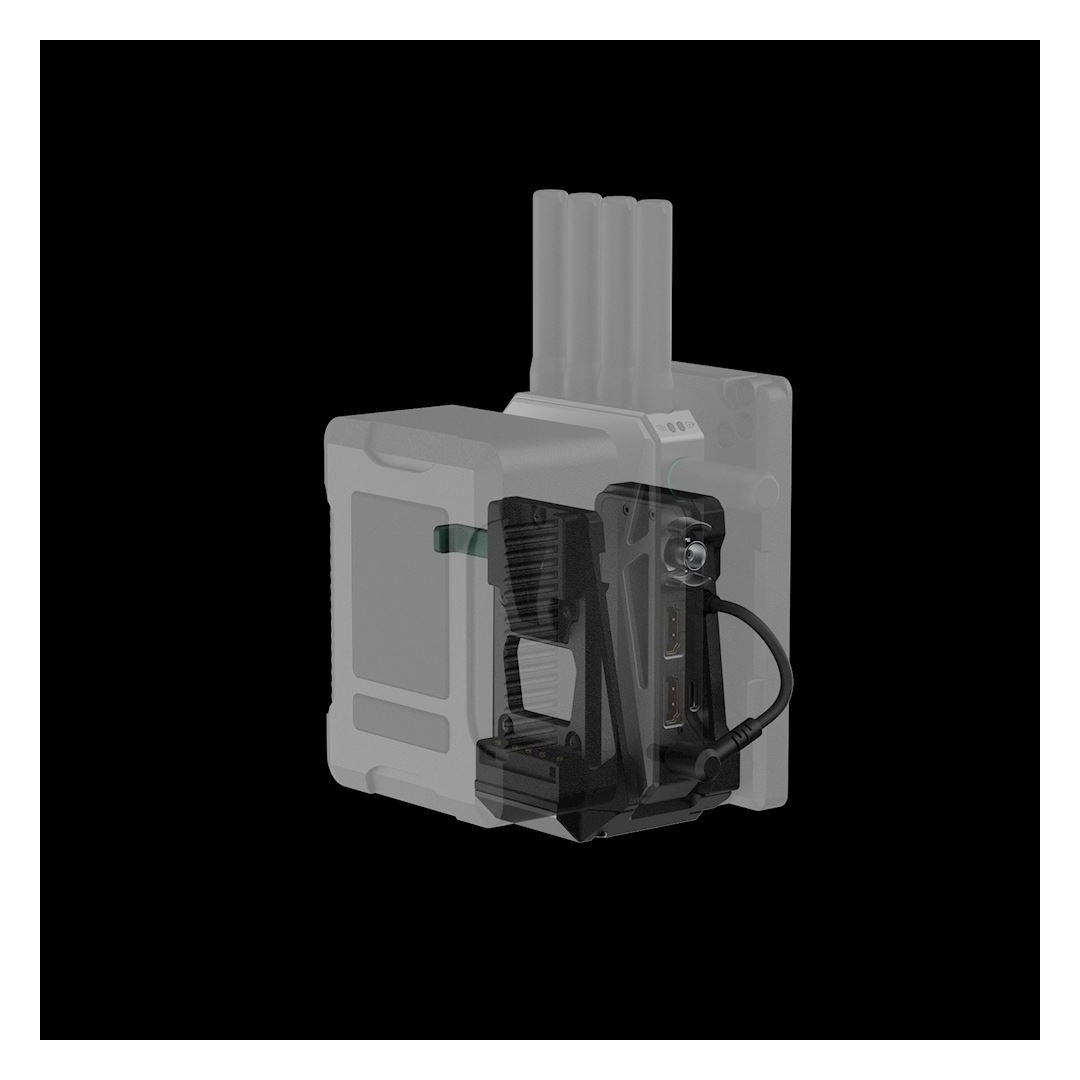

A V-Mount battery powers the camera and a compatible CineView transmitter. The adapter also holds the transmitter behind the camera and connects it with a short DC lead.

V-MountDC 75 mm293 g

CAMERA POWER PASS-THROUGH

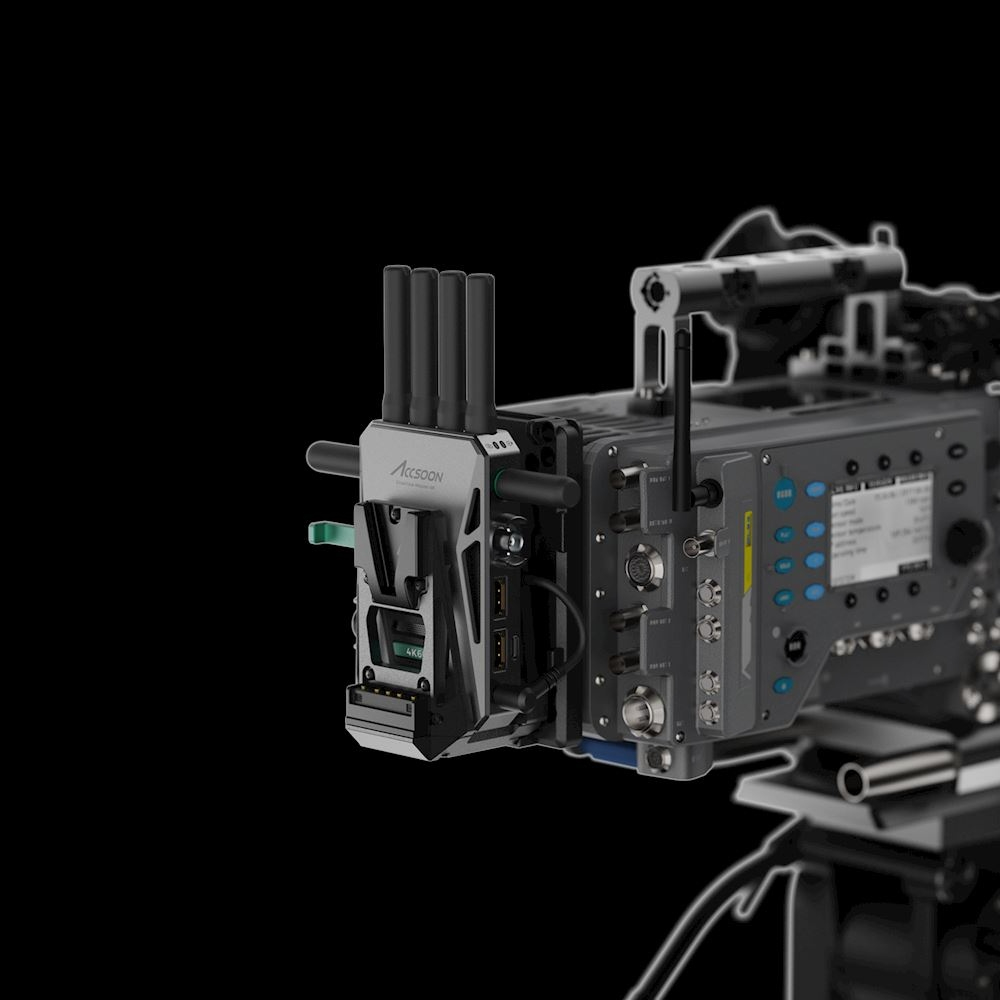

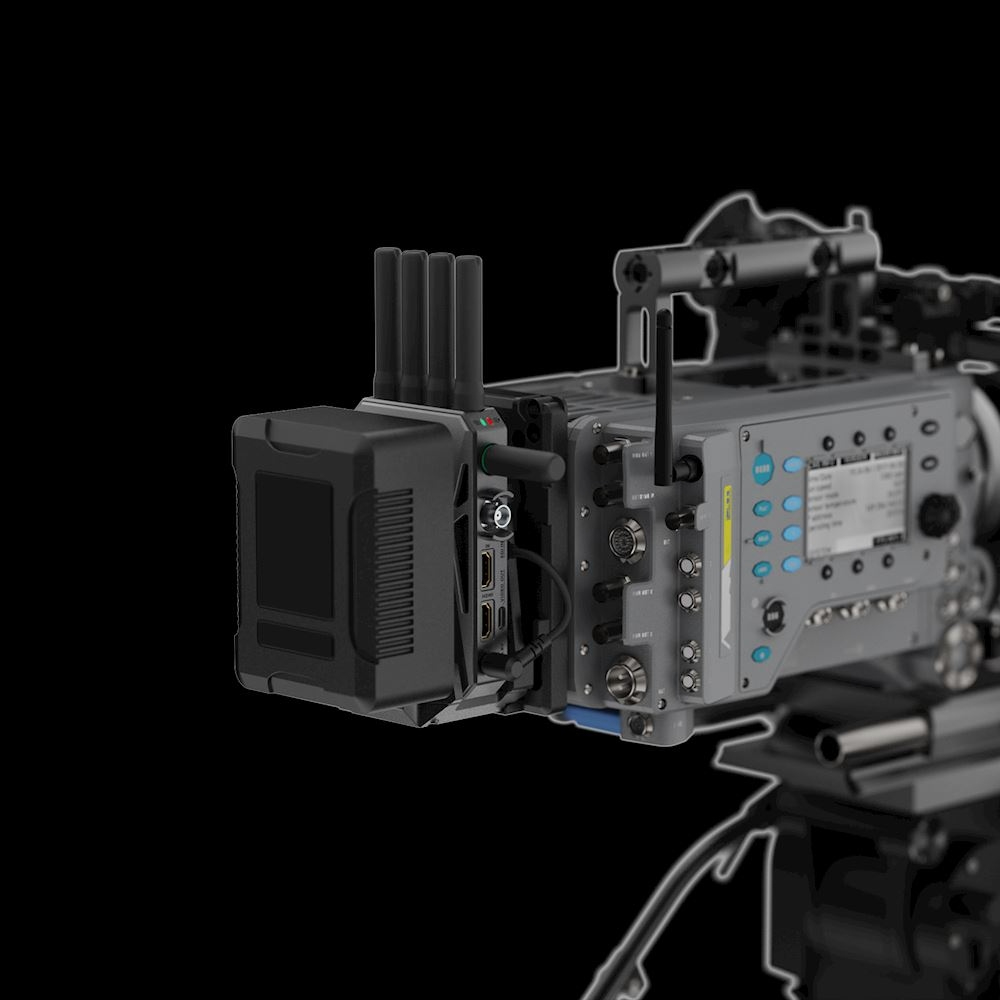

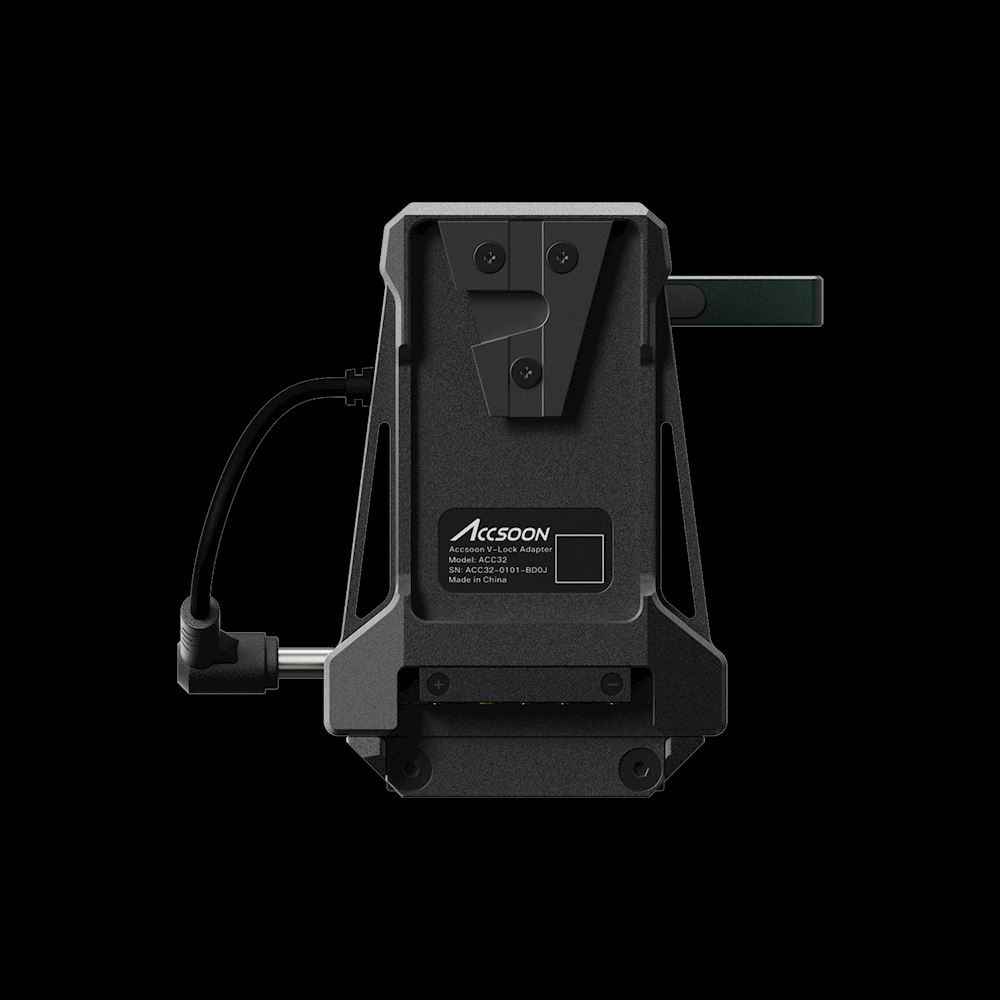

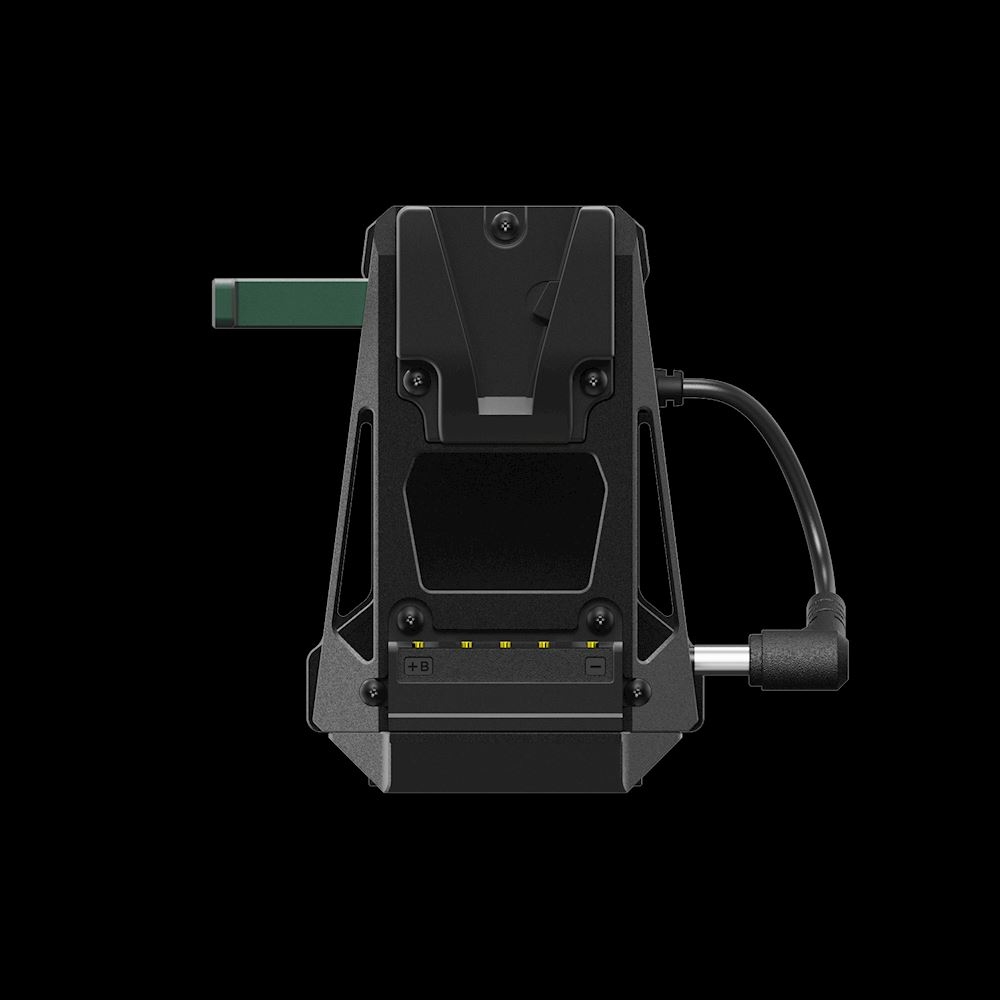

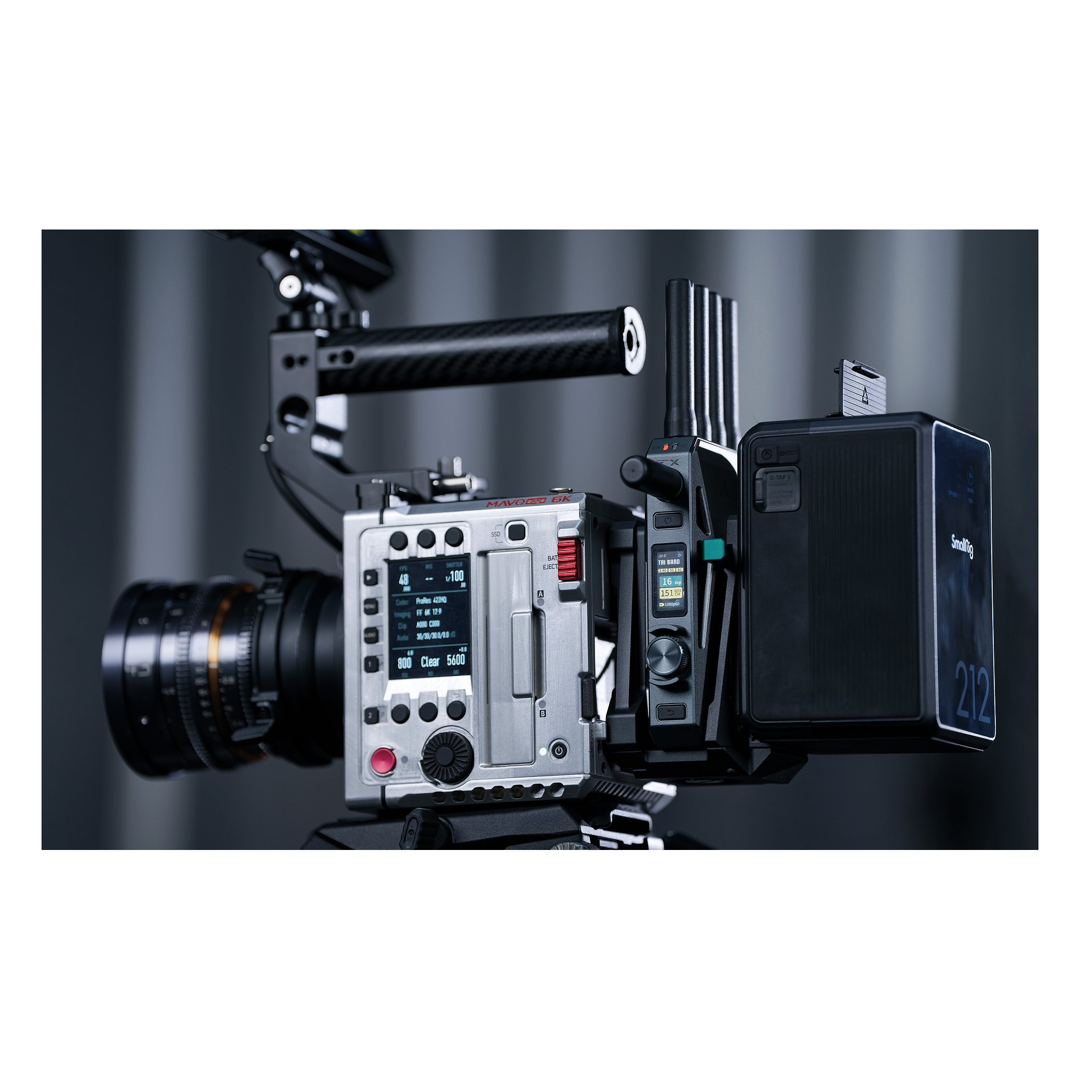

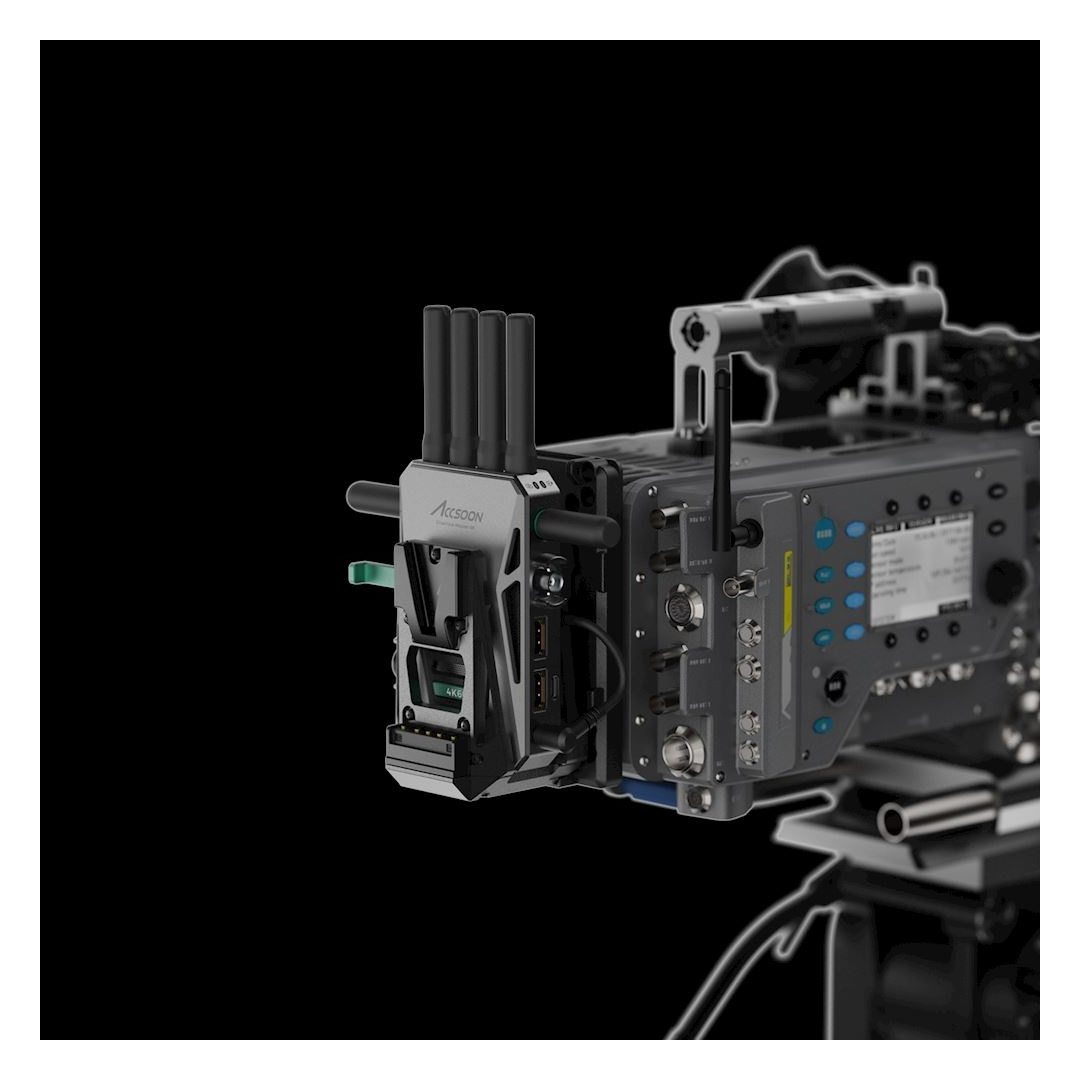

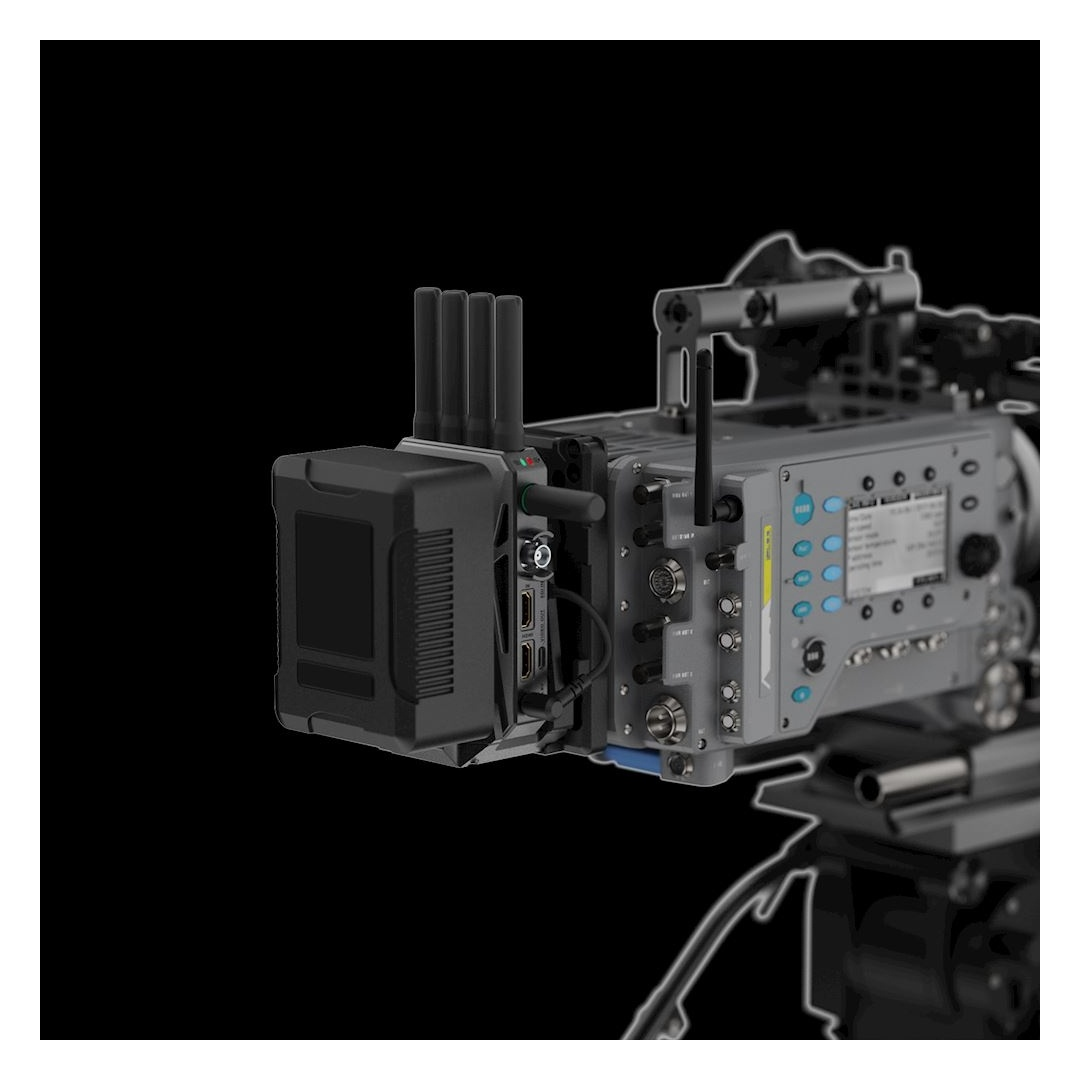

Fit the adapter between the camera’s V-Mount plate and the battery. Pass-through contacts supply the camera while the transmitter remains part of the same rig. Manufacturer photographs show cinema and broadcast camera installations; a camera without its own V-Mount interface requires a suitable camera plate.

SHORT DC CONNECTION

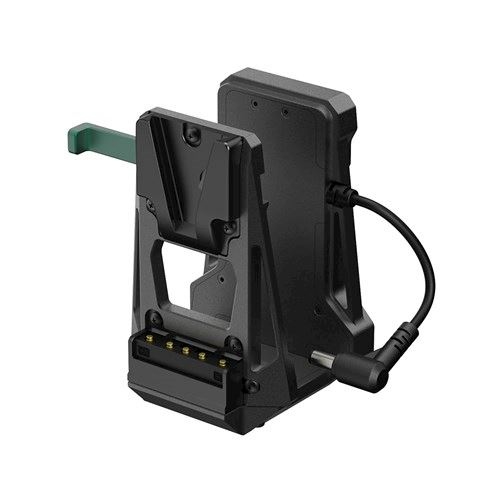

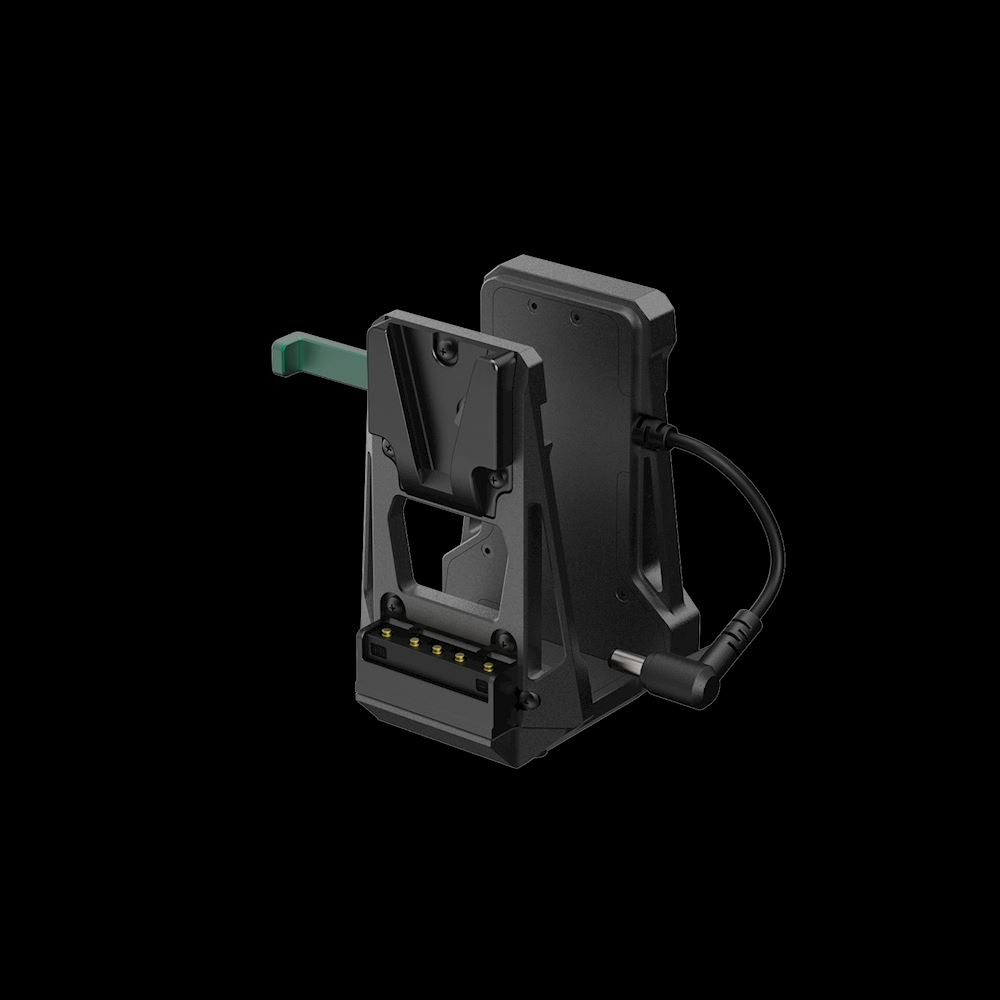

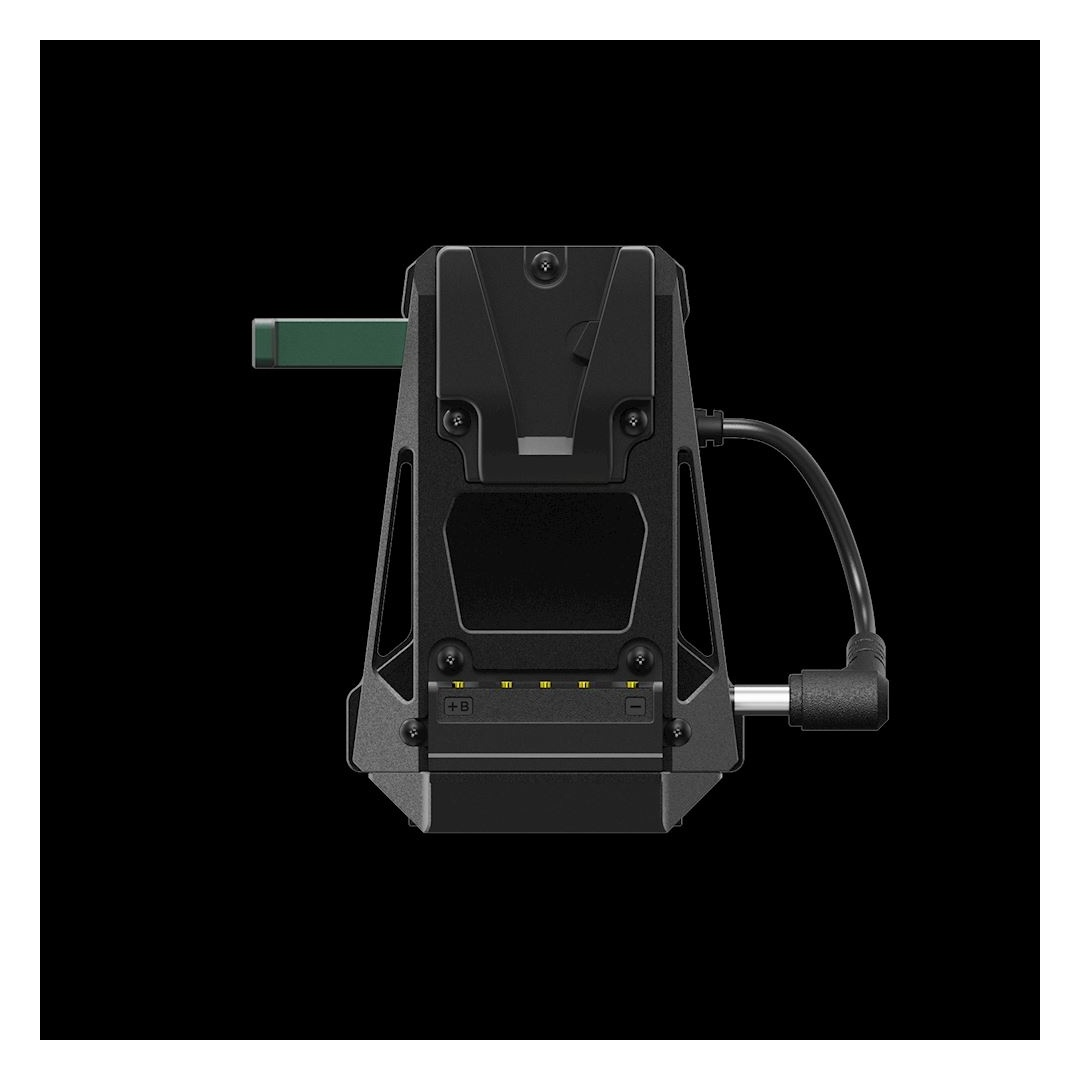

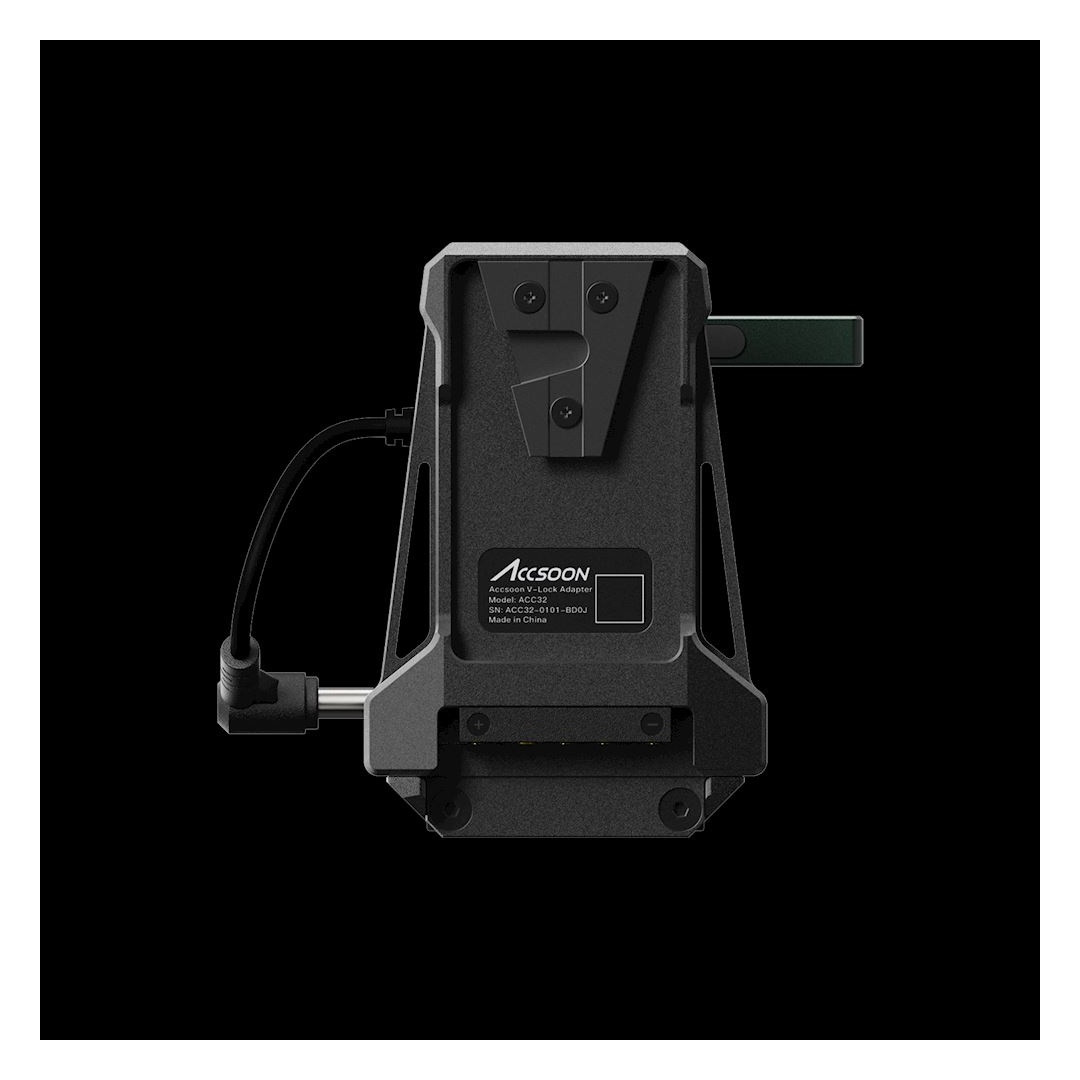

A captive 75 mm DC cable powers the attached transmitter directly from the V-Mount battery. The short lead keeps the connection close to the adapter and replaces the transmitter’s separate NP-F battery. The adapter provides one DC output; it is not a charger or a distribution plate with USB or D-Tap sockets.

TWO COMPATIBLE CINEVIEW RANGES

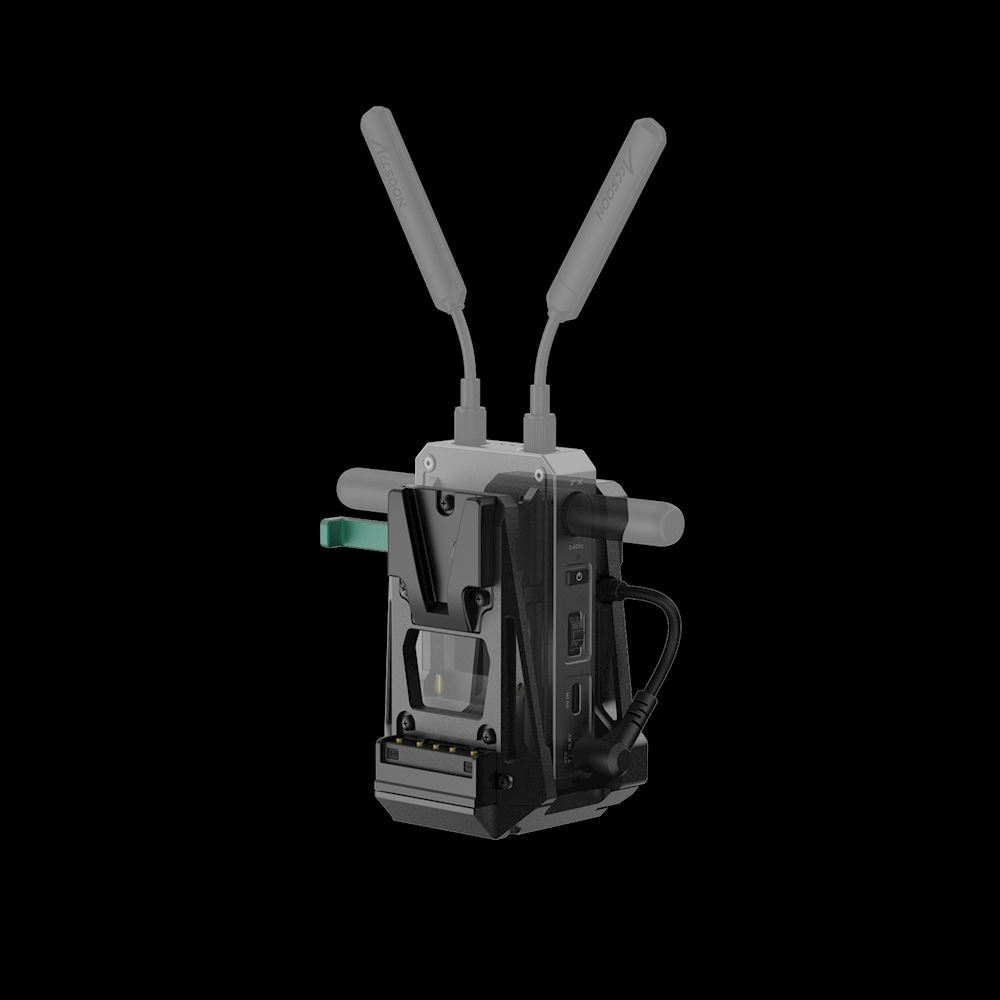

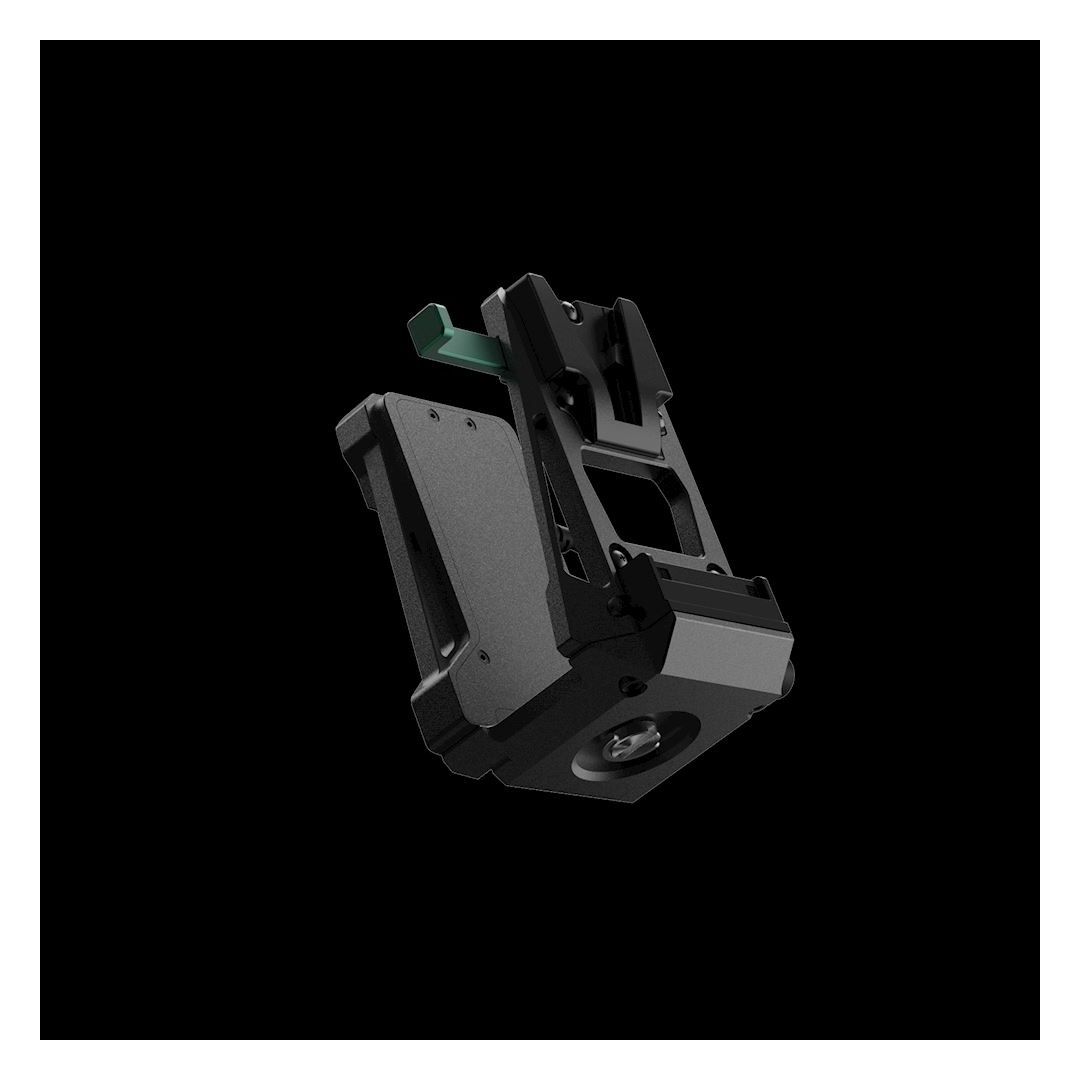

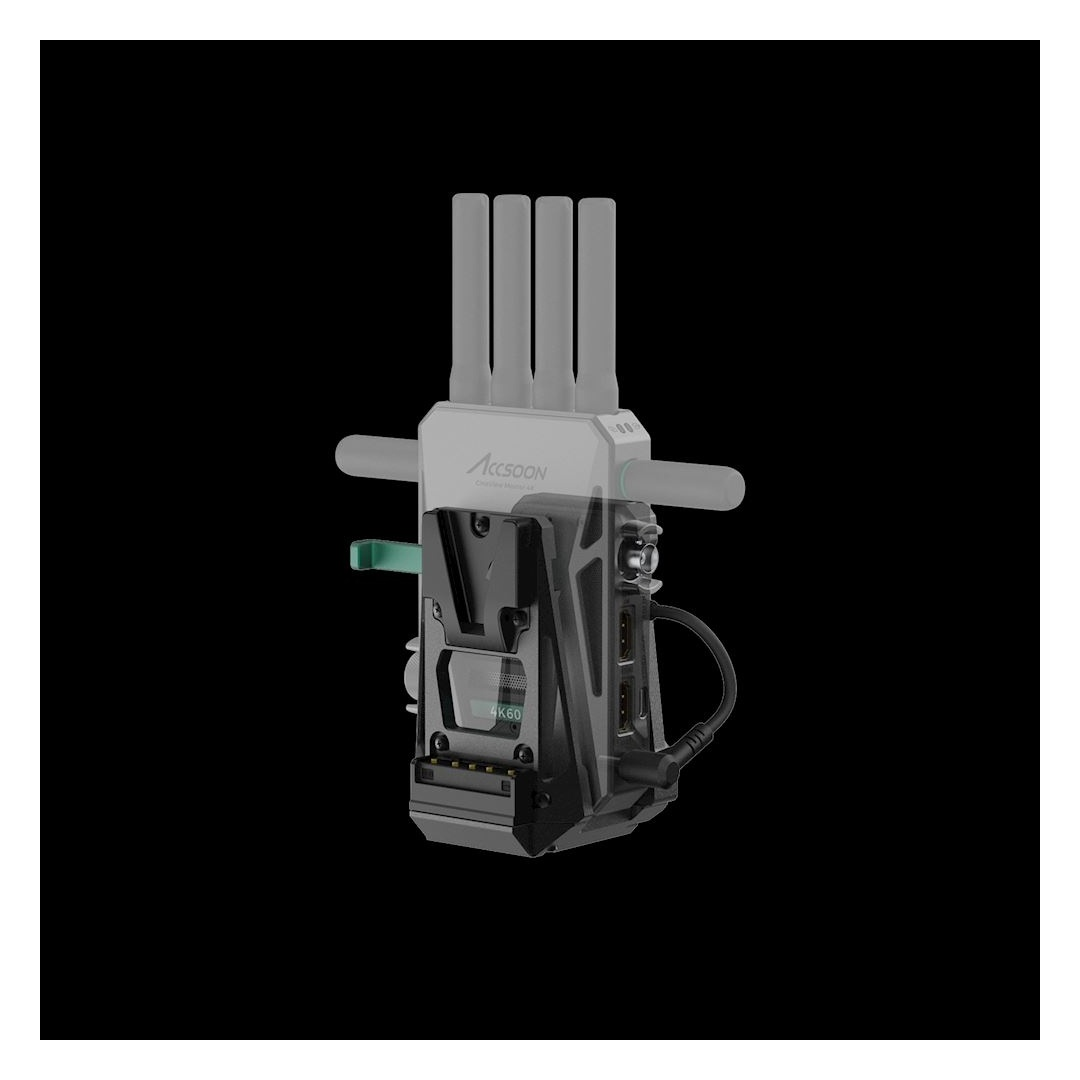

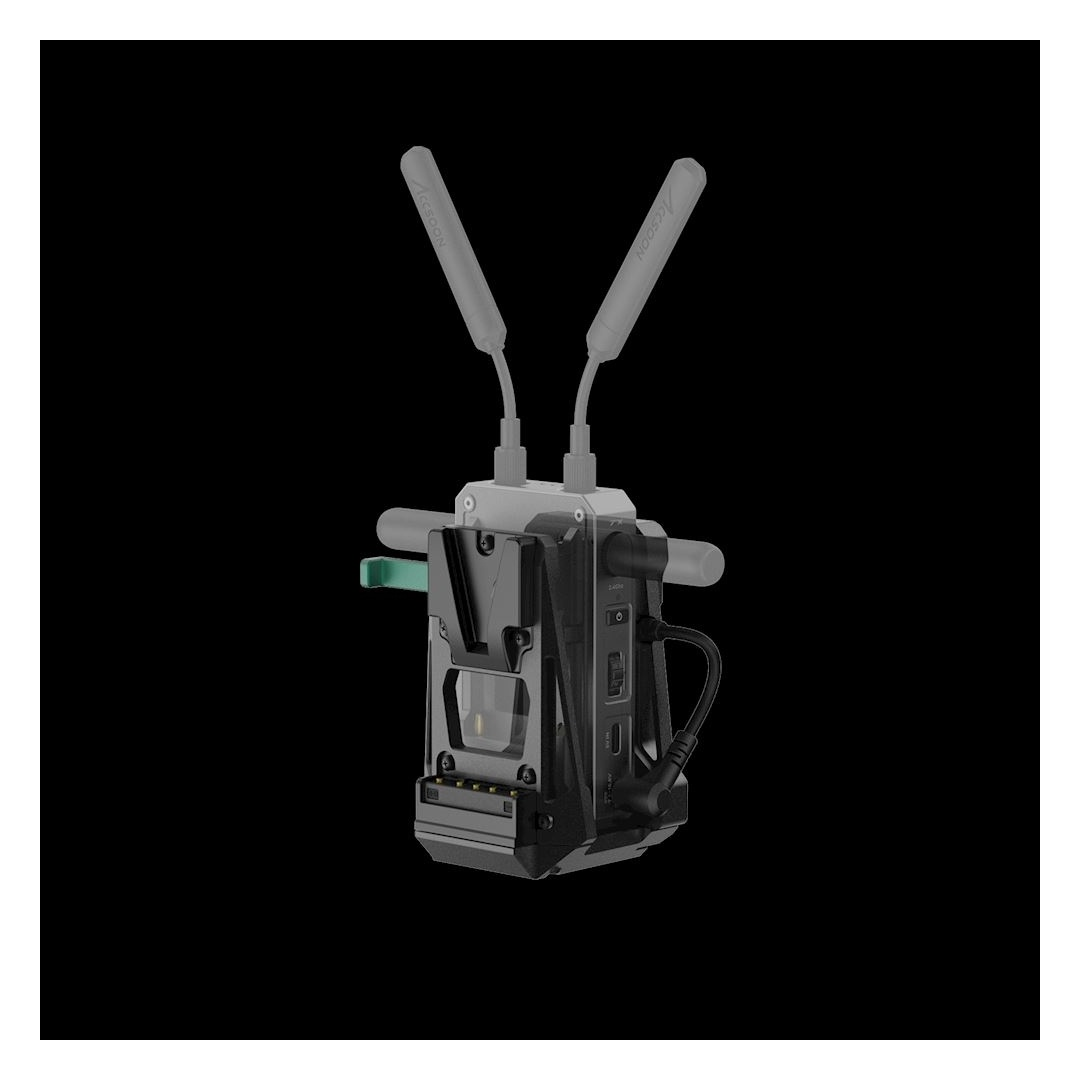

The manufacturer confirms mounting and power compatibility with CineView Master 4K and CineView 2 SDI transmitters. The aluminium body weighs 293 g and measures 106.3 × 68.3 × 89.1 mm. Allow room for the transmitter, connectors and battery when building the rig; all pictured devices and batteries are separate products.
