Accsoon CineView 2 SDI set

Accsoon CineView 2 SDI 1TX + 1RX is a wireless monitoring kit for camera crews, directors and mobile monitoring. The link carries Full HD up to 60p and H.264 video over simultaneous 2.4 and 5 GHz bands, with system latency below 50 ms excluding the camera and range up to 450 m in unobstructed, interference-free line of sight. The kit includes one transmitter…

More information

599 € with VAT 495.04 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon CineView 2 SDI 1TX + 1RX is a wireless monitoring kit for camera crews, directors and mobile monitoring. The link carries Full HD up to 60p and H.264 video over simultaneous 2.4 and 5 GHz bands, with system latency below 50 ms excluding the camera and range up to 450 m in unobstructed, interference-free line of sight. The kit includes one transmitter and one receiver for remote Full HD monitoring via SDI, HDMI or USB-C UVC. One TX supports up to four wireless receiving devices in total. Each unit has a fanless aluminium body, 1.47″ full-colour LCD and NP-F, 7.4–16.8 V DC or USB-C 5 V / 3 A power options. TX accepts DCI/UHD HDMI 4K60 with local HDMI loop-out; wireless transmission remains Full HD. RX provides HDMI, SDI and a separate USB-C UVC video output for a computer. Batteries, cables and monitoring equipment are purchased separately.

ACCSOON CINEVIEW 2 SDI · 1TX + 1RX

Wireless video for your crew

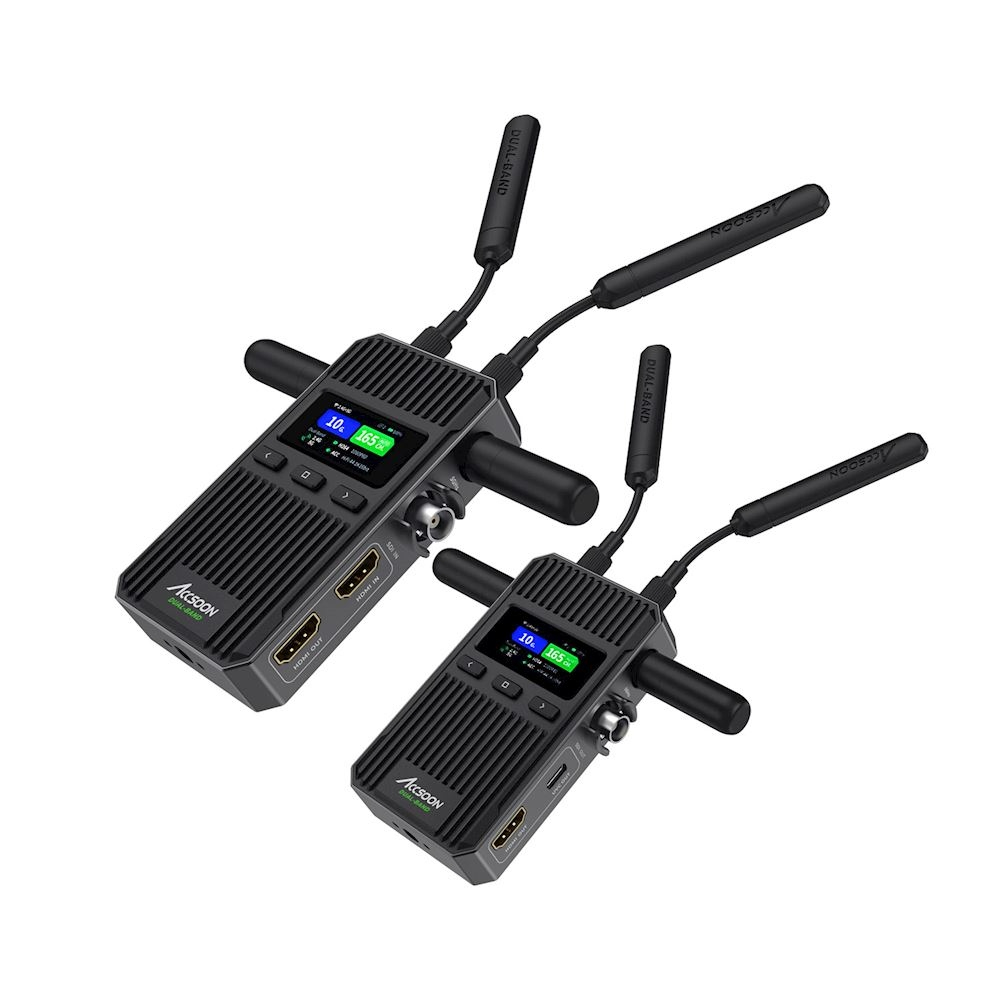

The kit includes one transmitter and one receiver for remote Full HD monitoring via SDI, HDMI or USB-C UVC.

Full HD 60p450 m<50 ms
Accsoon CineView 2 SDI 1TX + 1RX
Camera-side monitoring · Accsoon CineView 2 SDI

Camera-side monitoring

The manufacturer app photograph shows the exact CineView 2 SDI camera-side transmitter and mobile monitoring. Connect the camera’s SDI or HDMI output to TX. Phones receive directly in Accsoon SEE, while a compatible hardware RX supplies a remote monitor. Camera, mobile device and monitors are not included.

4K local, Full HD wireless

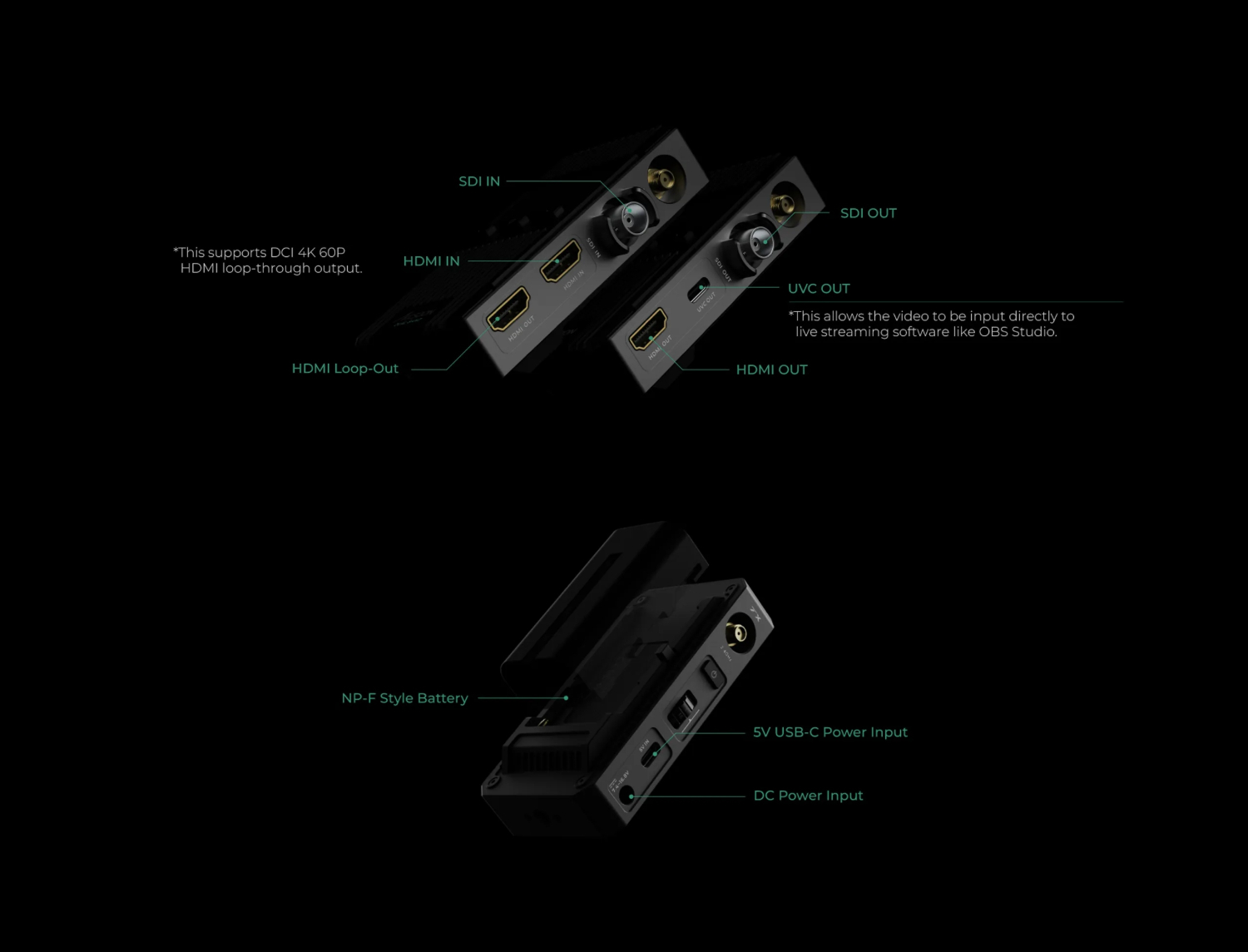

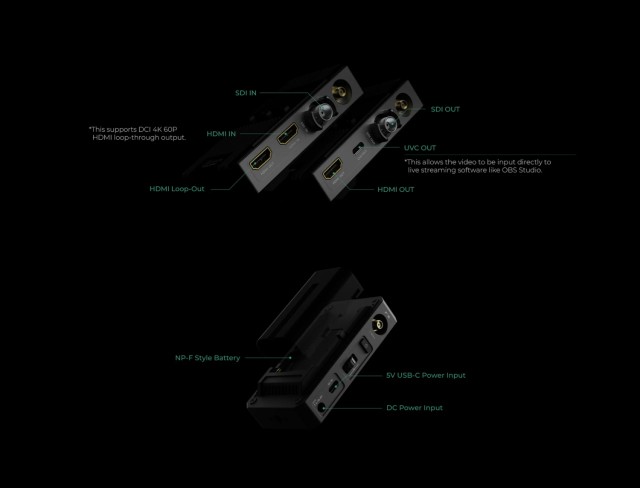

TX accepts SDI and HDMI and provides local HDMI loop-out. HDMI input and local loop support DCI/UHD 4K up to 60p, while wireless transmission and RX output remain Full HD up to 60p. TX accepts 3G-SDI level A/B; RX outputs SDI level A, HDMI and USB-C UVC. The diagram distinguishes the TX inputs on the left from RX outputs on the right. This package includes both units.

4K local, Full HD wireless · Accsoon CineView 2 SDI
Two bands together · Accsoon CineView 2 SDI

Two bands together

CineView 2 SDI sends the picture simultaneously over 2.4 and 5 GHz. The receiver uses both data streams for a more resilient link. Two longer upper and two shorter side antennas are part of this generation’s new construction. Interference and obstacles remain possible; careful unit placement is still needed for reliable monitoring.

Room for camera movement

The manufacturer specifies range up to 450 m in line of sight without obstacles or interference. System latency is below 50 ms, excluding camera latency. Walls, radio traffic and receiver position can reduce practical range. The illustration shows the rated range rather than a guaranteed link in every environment.

Room for camera movement · Accsoon CineView 2 SDI
One source, four devices · Accsoon CineView 2 SDI

One source, four devices

One TX supports up to four wireless receiving devices in total: compatible RX units or phones/tablets with Accsoon SEE. The five diagram rows are alternative combinations, not five simultaneous links. A wired monitor after RX or TX’s local HDMI monitor does not consume another wireless slot. The included RX uses one slot, leaving three for other devices.

Extend your CineView system

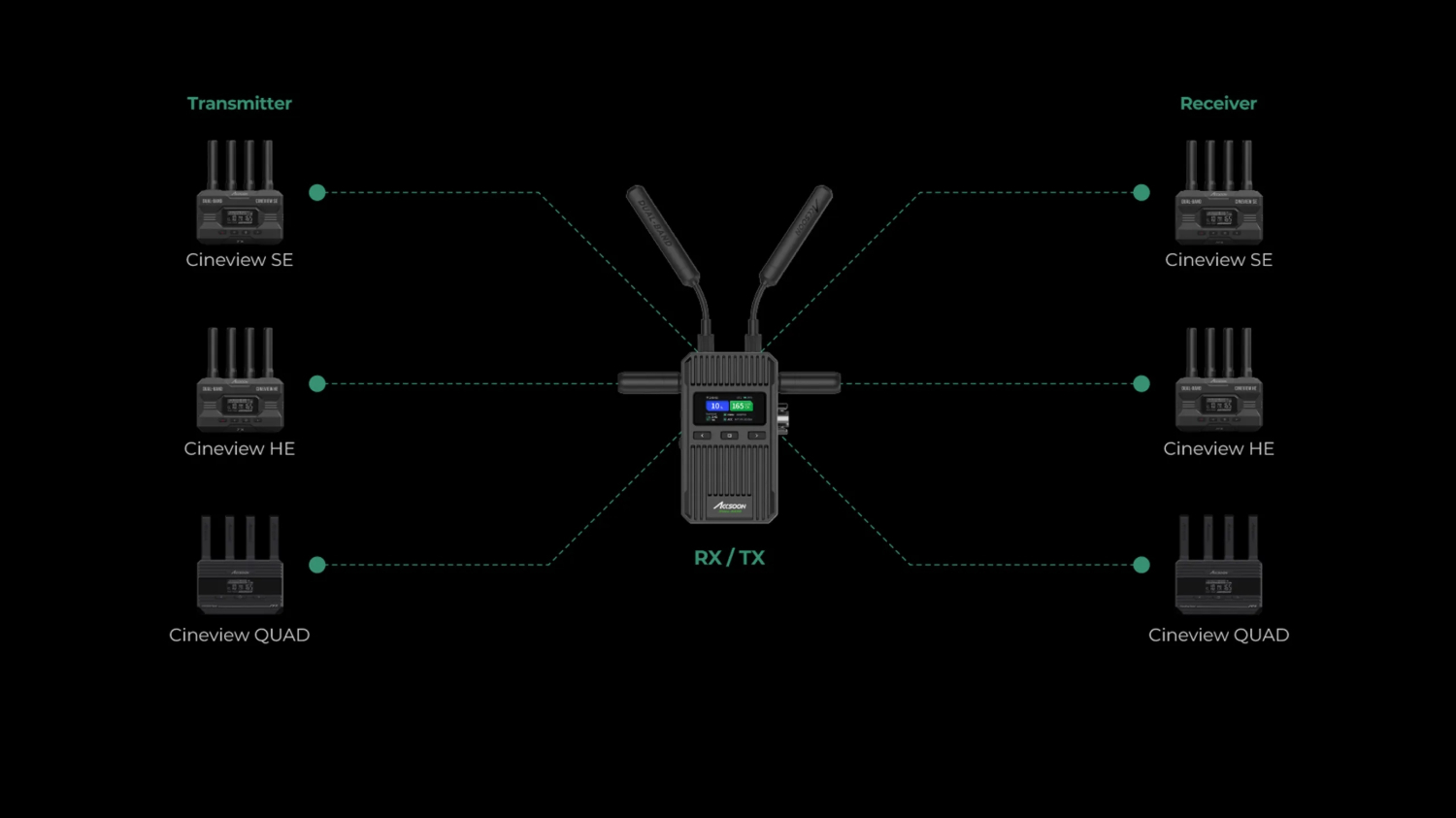

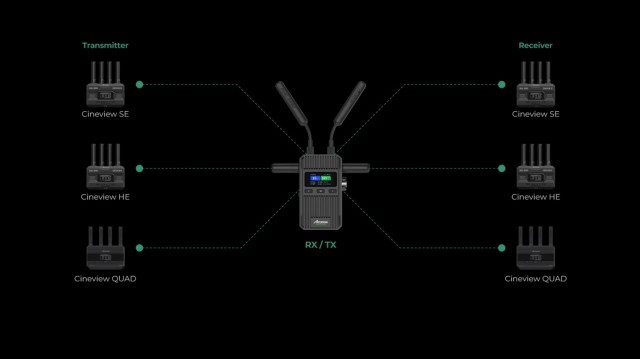

The manufacturer specifies compatibility with CineView SE, HE and Quad. CineView 2 SDI TX can also feed a CineView M7 Pro monitor in RX mode. The diagram illustrates possible transmitter/receiver pairings, not the contents of the package. Check TX/RX roles and a mutually supported video format.

Extend your CineView system · Accsoon CineView 2 SDI
Three power options · Accsoon CineView 2 SDI

Three power options

Each unit accepts an NP-F550/750/970 battery, 7.4–16.8 V DC or its separate USB-C power input at 5 V / 3 A according to manual v2.0. The 5.5 × 2.1 mm DC socket is centre positive. TX draws below 6 W and RX below 5 W. The illustrated V-Mount option requires a separate adapter; batteries, supplies and cables are purchased separately.

Link status on the display

The 1.47″ full-colour LCD shows the numbered diagram’s 1 signal strength, 2 connected-device count, 3 battery level, 4 group, 5 channel, 6 video format and 7 audio. Set matching groups on TX and RX and restart after changing them. At startup, TX in AUTO (A) selects a suitable channel; RX follows the transmitter.

Link status on the display · Accsoon CineView 2 SDI
Choose a transmission mode · Accsoon CineView 2 SDI

Choose a transmission mode

The device menu offers HQ, NOR and SPD. HQ prioritises picture quality, NOR balances performance and SPD prioritises speed. Adjust the mode to the environment and monitoring needs. Follow the manual for mobile-app live streaming; the illustration shows the actual device interface.

Video directly to a computer

RX provides a separate USB-C UVC video output for a computer. The manufacturer photograph shows the exact receiver connected to a laptop for monitoring and streaming software. This is a different socket from USB-C power. RX also supplies HDMI and SDI outputs simultaneously; prepare Internet access, a computer and a USB data cable separately.

Video directly to a computer · Accsoon CineView 2 SDI
Monitor and stream in Accsoon SEE · Accsoon CineView 2 SDI

Monitor and stream in Accsoon SEE

An iOS or Android phone or tablet receives directly from TX in Accsoon SEE and occupies one wireless slot. The app includes waveform, zebra, false colour, focus tools, LUT preview, recording and overlays. The interface example shows RTMP destination and key entry; streaming requires the mobile device’s own Internet connection and a suitable NOR/SPD setting according to the manual.

Quiet, compact construction

The fanless aluminium housing adds no fan noise. Each unit measures 60 × 27.5 × 106.5 mm and weighs 210 g without antennas. A 1/4″-20 thread with anti-rotation support helps mounting on a camera rig or stand. Operating temperature is −10 to 40 °C; the manufacturer detail illustrates passive cooling construction.

Quiet, compact construction · Accsoon CineView 2 SDI
The 1TX + 1RX package · Accsoon CineView 2 SDI

The 1TX + 1RX package

The standard kit includes one transmitter, one receiver, four long and four short antennas, two cold shoe mount adapters and a manual with warranty card. This diagram applies to the kit, not to standalone TX or RX packages. Batteries, video/power cables, camera, computer and monitors are not included.

PACKAGE CONTENT

  • Transmitter Accsoon CineView 2 SDI TX ×1
  • Receiver Accsoon CineView 2 SDI RX ×1
  • Long antennas ×4; short antennas ×4
  • Cold shoe mount adapters ×2
  • User manual / warranty card ×1

SPECIFICATIONS

  • Package: 1 TX + 1 RX
  • Wireless video: 1920 × 1080, ≤60p; H.264
  • Bands: 2.4 GHz + 5 GHz
  • Range: Up to 450 m LOS, no obstacles/interference
  • Latency: <50 ms; camera excluded
  • Receivers: 4 wireless devices total per TX
  • Audio: 44.1 / 48 kHz; 16 / 20 / 24 bit
  • DC: 7.4–16.8 V; 5.5 × 2.1 mm; socket, centre positive
  • USB-C power: 5 V / 3 A
  • Battery: NP-F550 / NP-F750 / NP-F970
  • LCD: 1.47″; full-colour
  • Housing: Fanless aluminium, black
  • Mount: 1/4″-20; anti-rotation
  • Antennas: 4 per unit: 2 long + 2 short
  • RF: 20 dBm; 2.4 / 5 GHz
  • Unit dimensions: 60 × 27.5 × 106.5 mm; antennas excluded
  • Unit weight: 210 g; antennas excluded
  • Temperature: −10–40 °C
  • TX inputs: HDMI type A / BNC 3G-SDI level A/B
  • TX HDMI input / loop: 4096 × 2160 / 3840 × 2160, ≤60p
  • TX SDI: 1080p23.98/24/25/29.97/30/50/59.94/60; 1080i50/59.94/60; 720p50/59.94/60
  • TX output: HDMI loop-out
  • TX power: <6 W
  • RX outputs: HDMI type A / BNC SDI level A / USB-C UVC
  • RX format: 1080p24/25/30/50/60; 1080i50/60; 720p50/60
  • RX power: <5 W

WE RECOMMEND

The Accsoon CineView 2 SDI is a professional dual-band wireless video transmission system with SDI/HDMI connectivity, offering low latency and long range. To get the most out of it, it is essential to ensure a reliable power supply using NP-F batteries, secure mounting on camera rigs, and the ability to monitor via mobile devices using specialized cages.

Power Supply - Accessories for providing power to both the transmitter and receiver using the NP-F standard.

Mounting Accessories - Components for secure and flexible mounting of CineView units on cameras, gimbals, and tripods.

Monitors and cages - Mounts and cages for tablets and phones that allow you to use mobile devices as viewfinders.

Cables and Transport - Essential cables for signal transmission and protective cases for safe transport of the kit.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Line-of-sight range450m
Unit dimensions without antennas60x27.5x106.5mm
Weight per unit210g
Transmitters in package1
Receivers in package1
Maximum receiving devices4
Maximum transmission resolution1920x1080px
Maximum frame rate60fps
DC input voltage range7.4x16.8V
USB-C supply voltage5V
Minimum USB-C source current3A
Operating temperature-10x40°C
Transmission power20dBm
Frequency band2.4 GHz · 5 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970 · USB-C
MaterialAluminium alloy
ColourBlack
Mounting interface1/4″-20
FunctionsAutomatic channel selection · Fanless cooling · Group dial pairing · HDMI loop-out · USB-C UVC output
DC power connector5.5 × 2.1 mm socket, centre positive
Audio sampling frequency44.1 kHz · 48 kHz
Audio bit depth16-bit · 20 bit · 24-bit
Input connectorBNC – female · HDMI type A – female
Output connectorBNC – female · HDMI type A – female · USB-C – female
3G-SDI input levelA · B
3G-SDI output levelA
Maximum transmitter power consumption6W
Maximum power consumption of the receiver5W
Maximum HDMI Input Resolution4096x2160px
Maximum HDMI Input Frame Rate60fps
Status Display TypeColour LCD
Compatible Wireless SystemCineView 2 SDI · CineView HE · CineView M7 Pro · CineView Quad · CineView SE
Video codecH.264
Number of antennas per unit4
Colour LCD diagonal1.47″
Latency<50 ms
InputHDMI · SDI
Output3G-SDI · HDMI · USB-C (UVC)
