Accsoon TopRig Ball Head
SKU: ACC-BH-01
Accsoon TopRig Ball Head ACC-BH-01 is an aluminium ball head for positioning a camera on a tripod, monopod or compatible slider. Its 36mm ball, 360° panoramic base and 135° tilt range give you flexible framing with a load of up to 3kg. The Arca-Swiss quick release plate has two 1/4″ screws, a built-in tightening key and 30mm of adjustment for balancing the…
60 € with VAT
49.59 € without VAT
Availability
Shipment day: 20. 10.
Shipment day: 20. 10.
1 pcs in stock at the supplier
Top accessories for Accsoon TopRig Ball Head
Manfrotto Element MII Monopod AL BK 5 Sec
The Manfrotto MMELMIIA5BK Element MII Monopod Black is a 5-section aluminum support
53 €
In stock 1 pcs
Accsoon TopRig S60 Videoslider
Accsoon TopRig S60 is a motorized camera slider with 425 mm of carriage travel for
386 €
To be sent 2 pcs
Accsoon TopRig S40 Video Slider
Accsoon TopRig S40 is a motorized camera slider with 225 mm of carriage travel for
338 €
> 5 pcs in stock at the supplier
Ulanzi TB12 61-Inch Camera Portable Aluminium Monopod
The Ulanzi TB12 61-Inch Camera Portable Aluminum Monopod is a lightweight, 5-section
19 €
on request
Accsoon TopRig Support Rods
Accsoon TopRig Support Rods ACC-SR-01 is a pair of aluminium supports for TopRig
47 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description

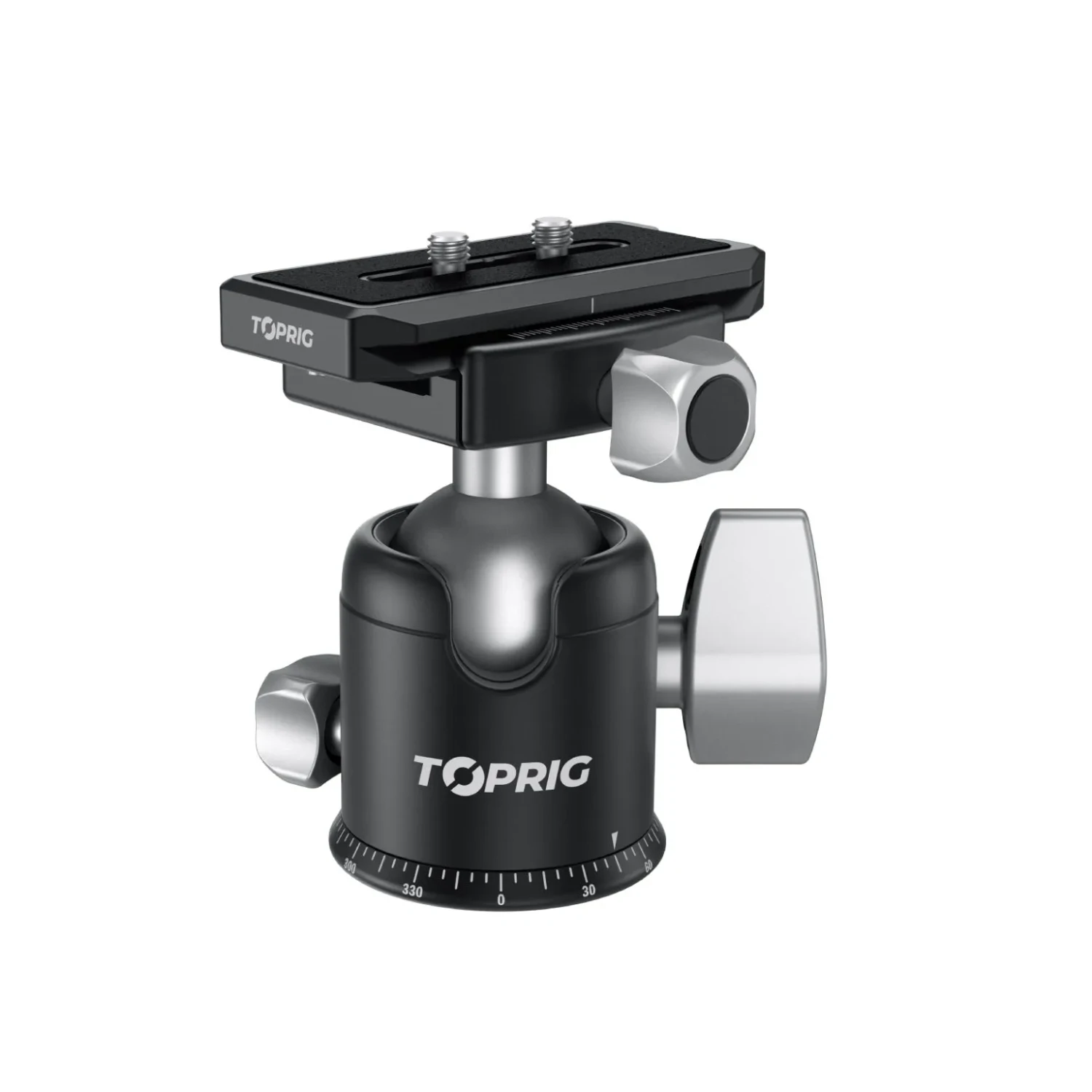

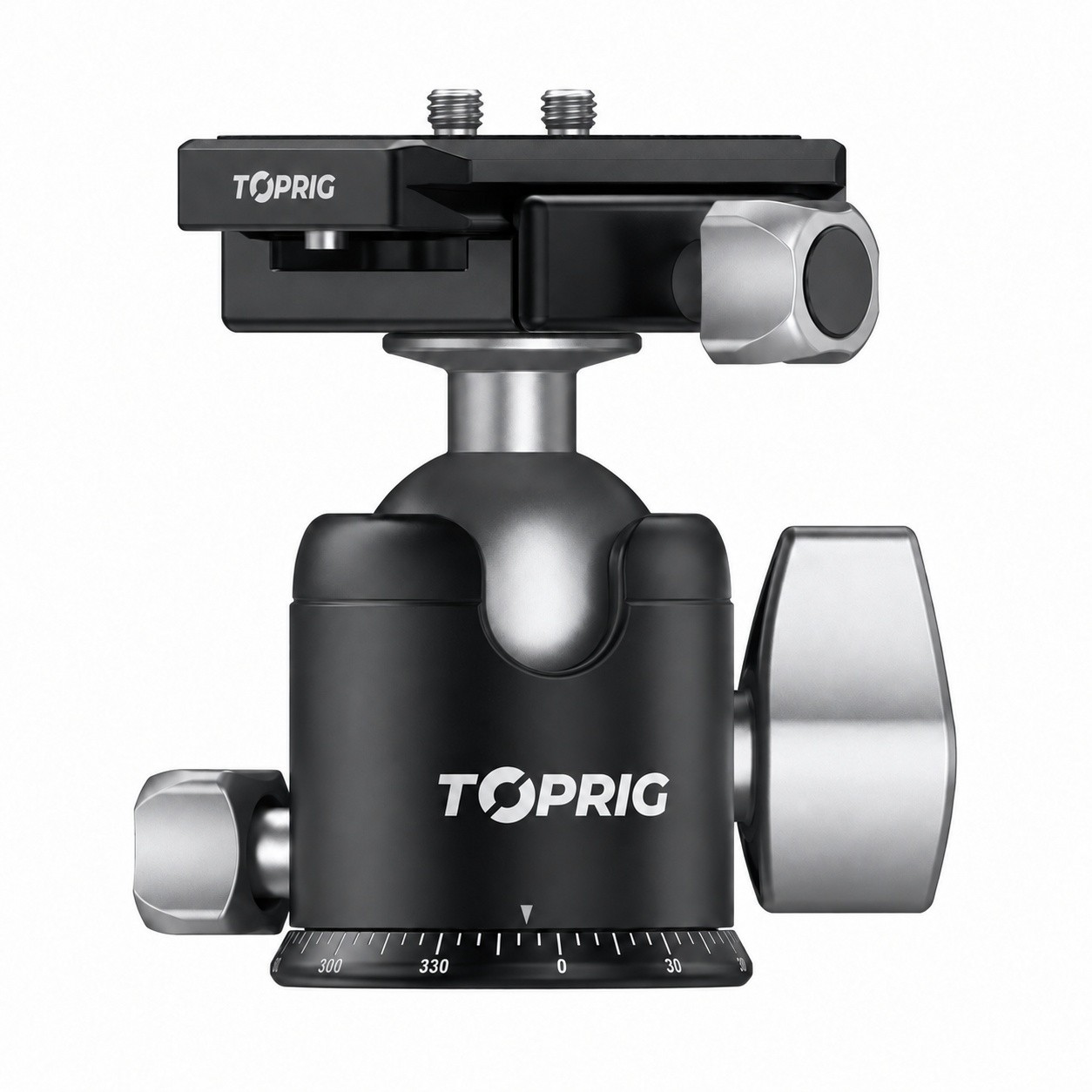

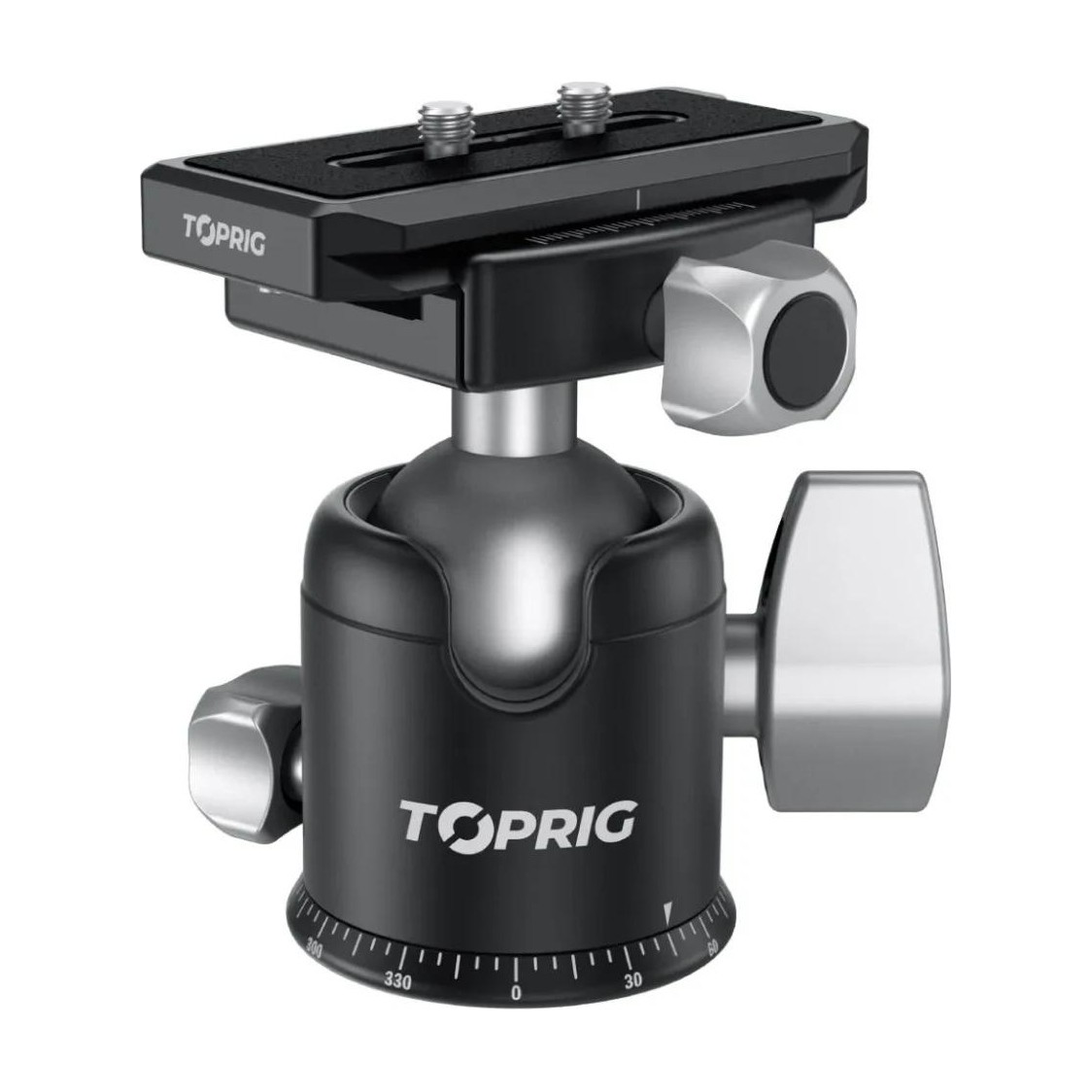

Accsoon TopRig Ball Head ACC-BH-01 is an aluminium ball head for positioning a camera on a tripod, monopod or compatible slider. Its 36mm ball, 360° panoramic base and 135° tilt range give you flexible framing with a load of up to 3kg. The Arca-Swiss quick release plate has two 1/4″ screws, a built-in tightening key and 30mm of adjustment for balancing the setup. A 3/8″ female thread connects the 51mm base to your support; the head weighs 372.6g.
Camera support · ACC-BH-01
Frame with control
Set your camera angle, lock the ball and adjust the panorama independently. A compact aluminium head for a tripod, monopod or compatible slider.
3 kg360°Arca-Swiss372.6 g
Panoramas and flexible camera angles

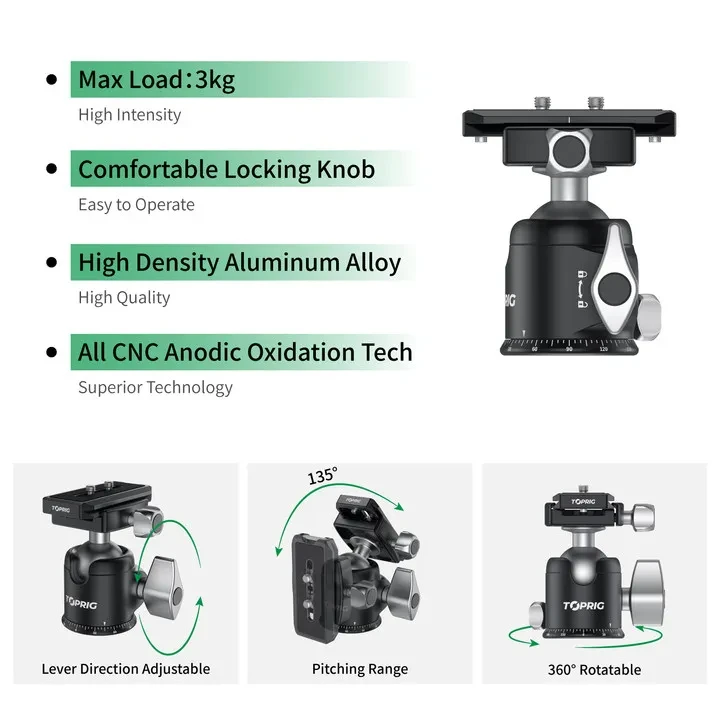

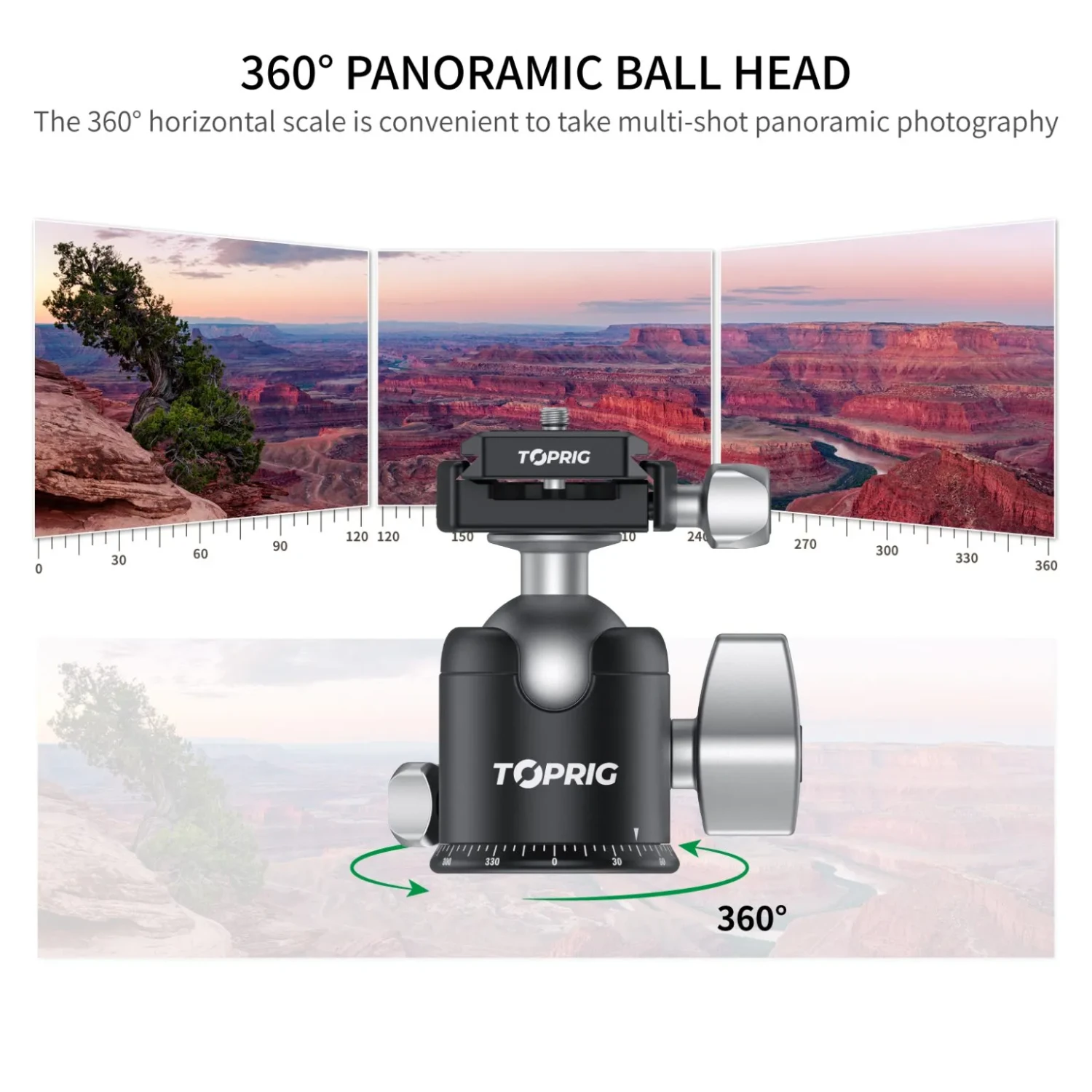

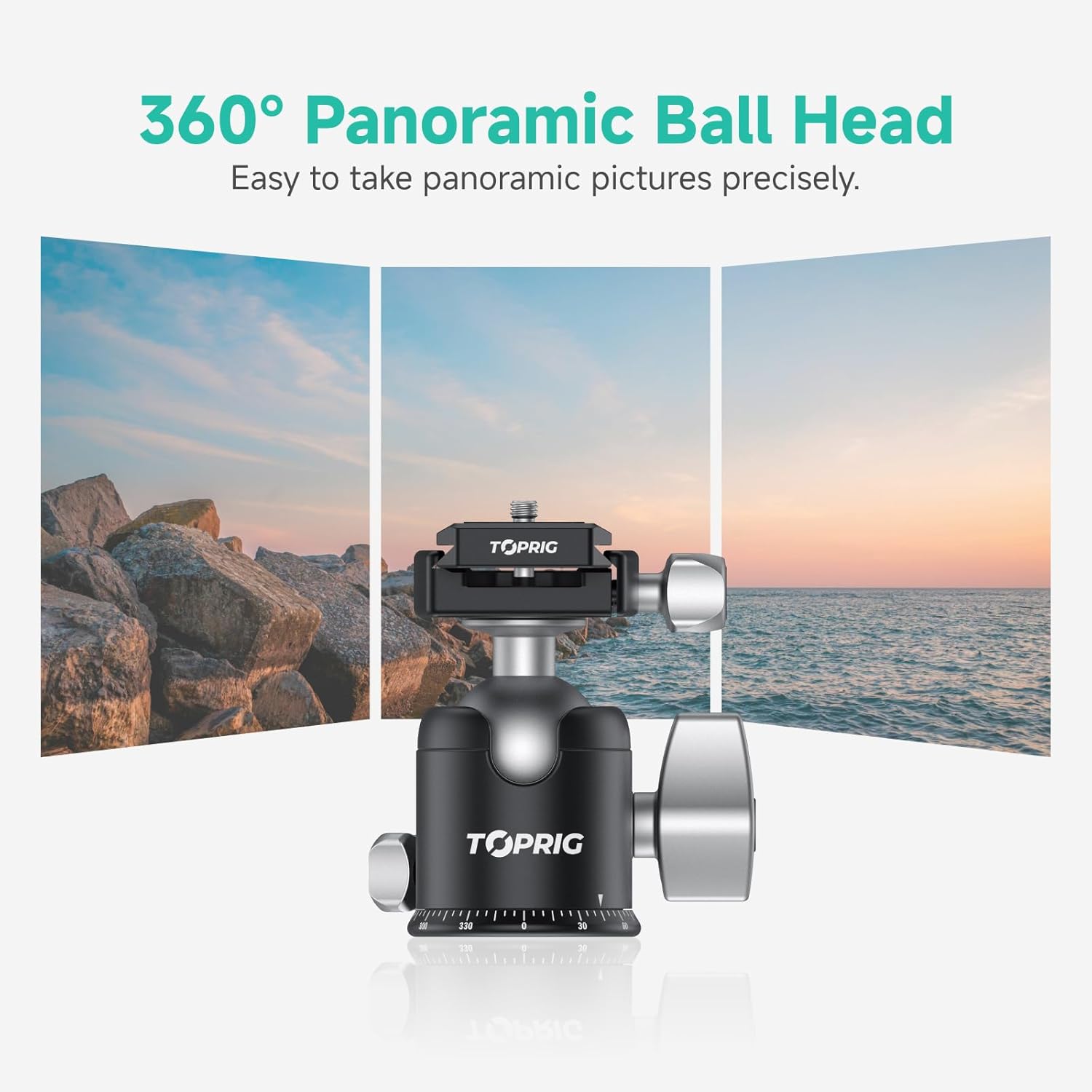

The 36mm ball gives you flexible angle adjustment for landscape, portrait and overhead framing. The panoramic base turns through 360° and has its own locking knob; the tilt range is 135°. Release the control you need, frame the shot and lock it before shooting.
Mount quickly, balance the setup

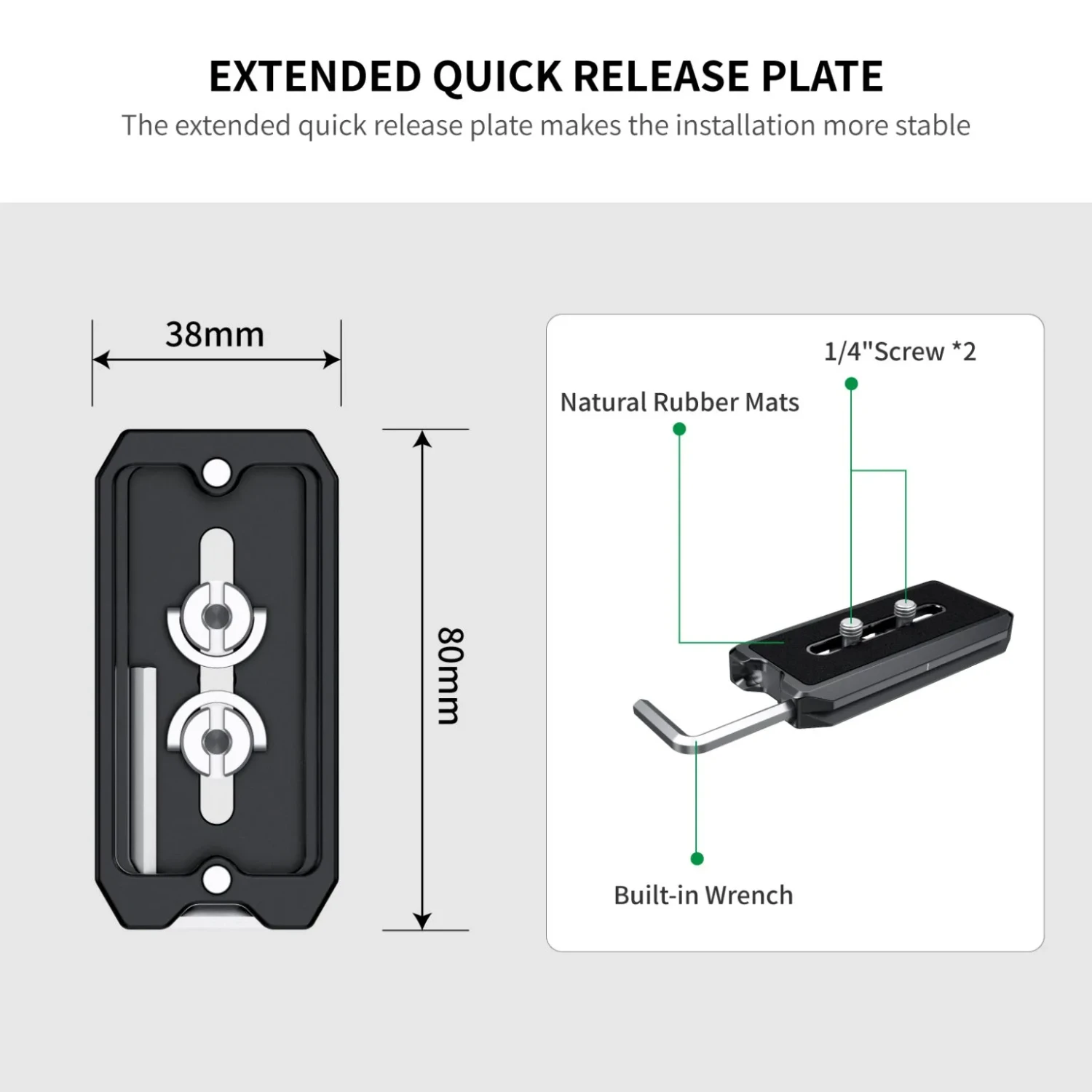

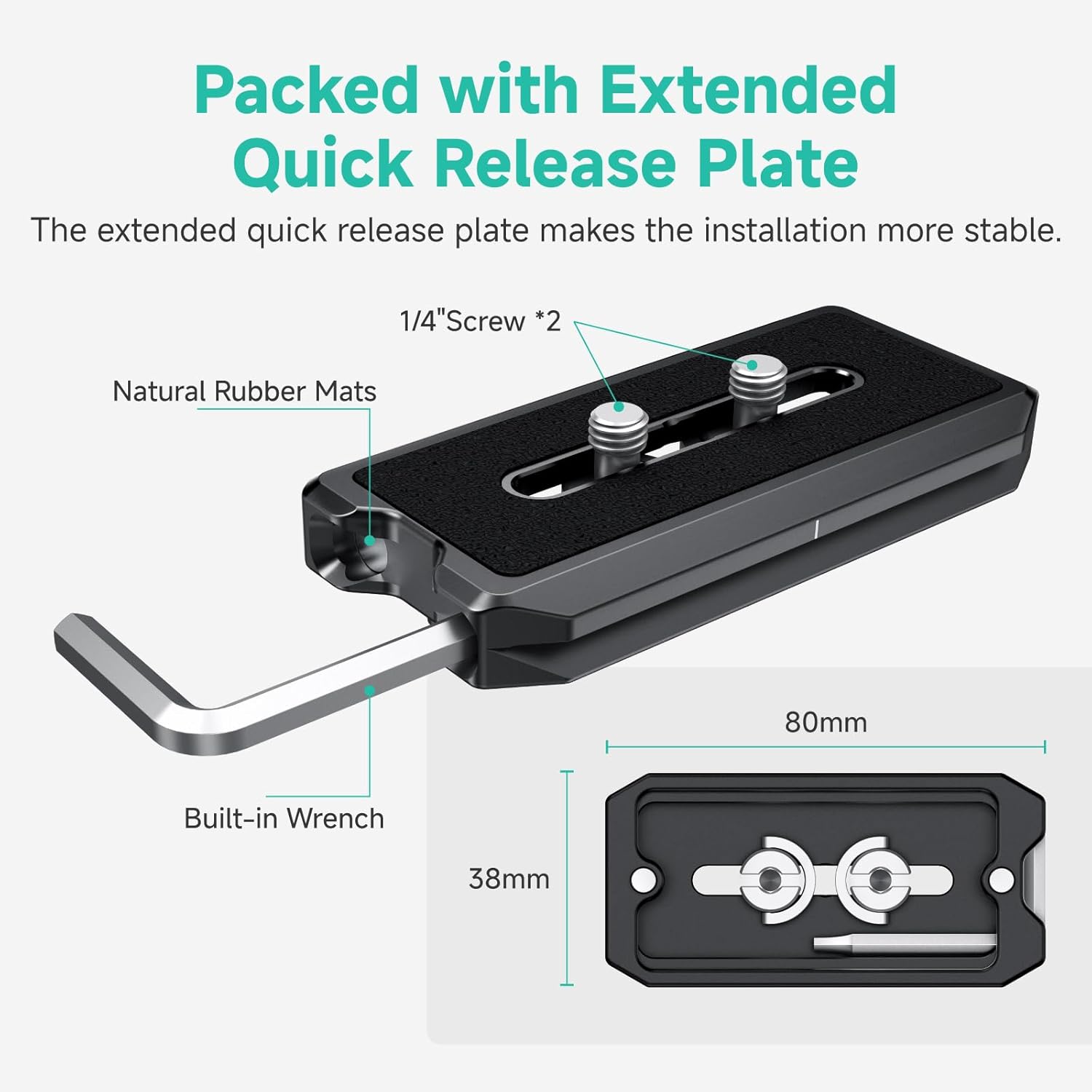

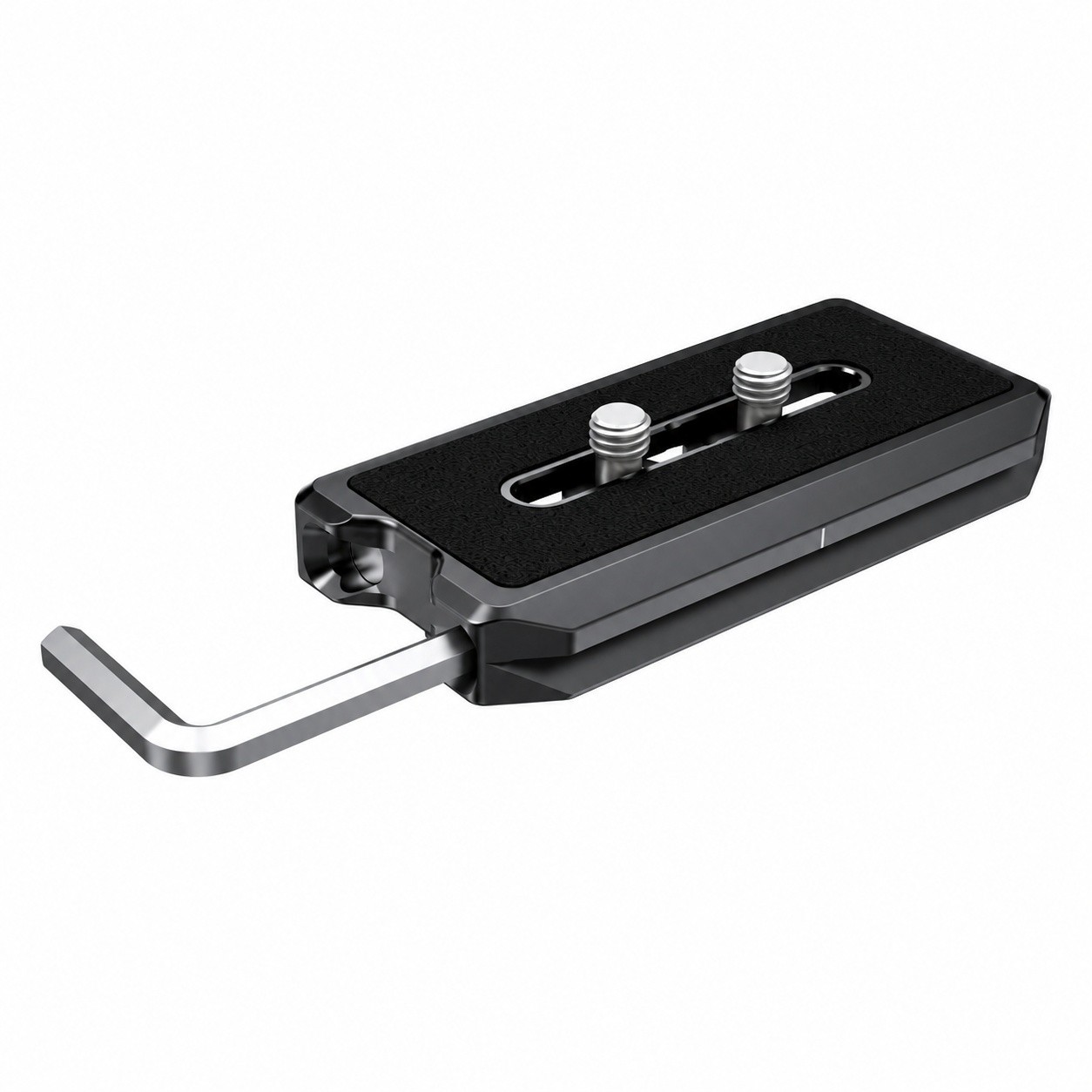

The extended Arca-Swiss plate measures 80 × 38mm and offers 30mm of adjustment. Two 1/4″ screws, rubber pads and a built-in key help you attach the camera securely. The quick release makes it easier to move between handheld work and your support without repeatedly unscrewing the camera.
Choose the right support
The CNC-machined aluminium-alloy construction combines a compact body with a net weight of 372.6g. Its 51mm base has a 3/8″ female thread for a matching tripod, monopod or slider. Count the camera, lens and attached equipment together when observing the 3kg limit; the complete setup must also remain within the support’s rating.
The camera, tripod, monopod, slider and other illustrated equipment are sold separately. The supplied plate is included.
Click the graphic to open it at full size.
PACKAGE CONTENT
- Accsoon TopRig Ball Head ACC-BH-01 × 1
- Quick release plate with two 1/4″ screws and built-in key × 1
SPECIFICATIONS
- Model: Accsoon ACC-BH-01 / BH-01
- Head type: Ball head with panoramic base
- Material: Aluminium alloy
- Colour: Black
- Maximum load: 3 kg
- Net weight: 372.6 g
- Ball diameter: 36 mm
- Base diameter: 51 mm
- Panoramic rotation: 360°
- Tilt range: 135°
- Camera attachment: Two 1/4″ screws
- Base thread: 3/8″ female
- Quick release system: Arca-Swiss
- Plate dimensions (L × W): 80 × 38 mm
- Plate adjustment: 30 mm
Parameters
Parameters
| Manufacturer: | Accsoon |
| Category: | Ball heads |
Main parameters
| Material | Aluminium alloy |
| Color | Black |
| Mounting | 1/4″-20 (M) · 3/8″-16 (F) · Arca-Swiss |
| Diameter of the sphere | 36mm |
| Base diameter | 51mm |
| Panoramic rotation | 360° |
| Tilt Range | 135° |
| Plate dimensions (L × W) | 80x38mm |
| Adjustment of the quick-release plate | 30mm |
| Net weight | 372.6g |
| Payload | 3 |
| Ball Type | Flat base |
| Type | Ball Head |
