AVMatrix 12G-SDI/ HDMI 2.0 Bidirectional Converter With Transceiver SFP Module

AVMATRIX SC2020-12G TR is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied with a bidirectional SFP transceiver module. In addition to conversion it provides loop outputs, signal distribution, an optical path and configuration through DIP switches or a computer via USB-C.

More information

549 € with VAT 453.72 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 3 pcs
Praha 3 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

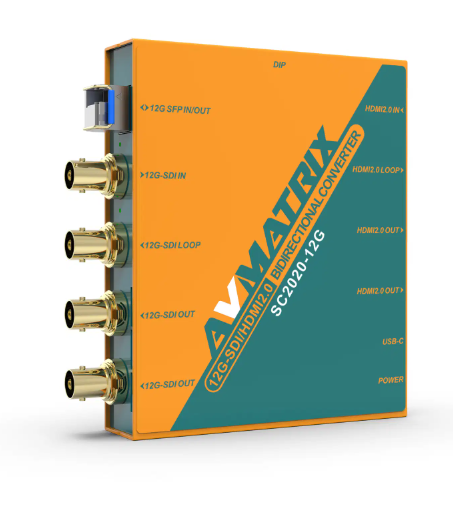

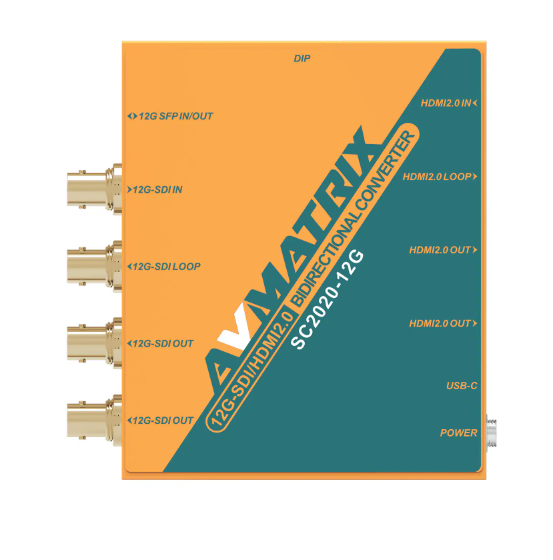

AVMATRIX SC2020-12G TR is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied with a bidirectional SFP transceiver module. In addition to conversion it provides loop outputs, signal distribution, an optical path and configuration through DIP switches or a computer via USB-C.

Bidirectional 12G-SDI and HDMI 2.0 converter for 4K60

It converts 12G-SDI to HDMI 2.0 and back, handles UHD up to 4K60 and offers loop and dual outputs. Set it with DIP switches or from a computer over USB-C. It ships with an SFP transceiver module.

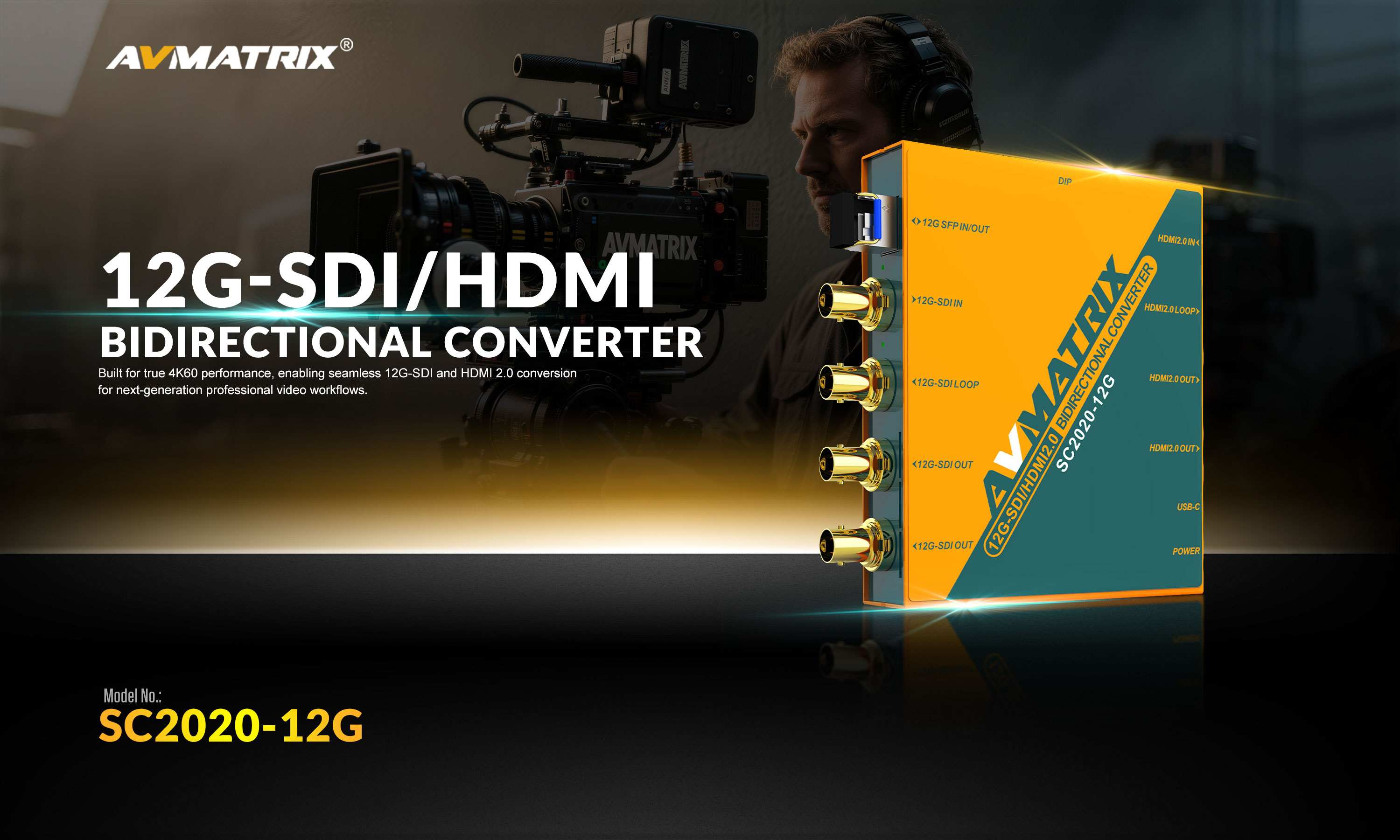

AVMATRIX SC2020-12G TR
12G-SDI ↔ HDMI 2.0UHD up to 4K60Loop and dual outputsSFP opticalDIP + USB-CDC 5–24 V

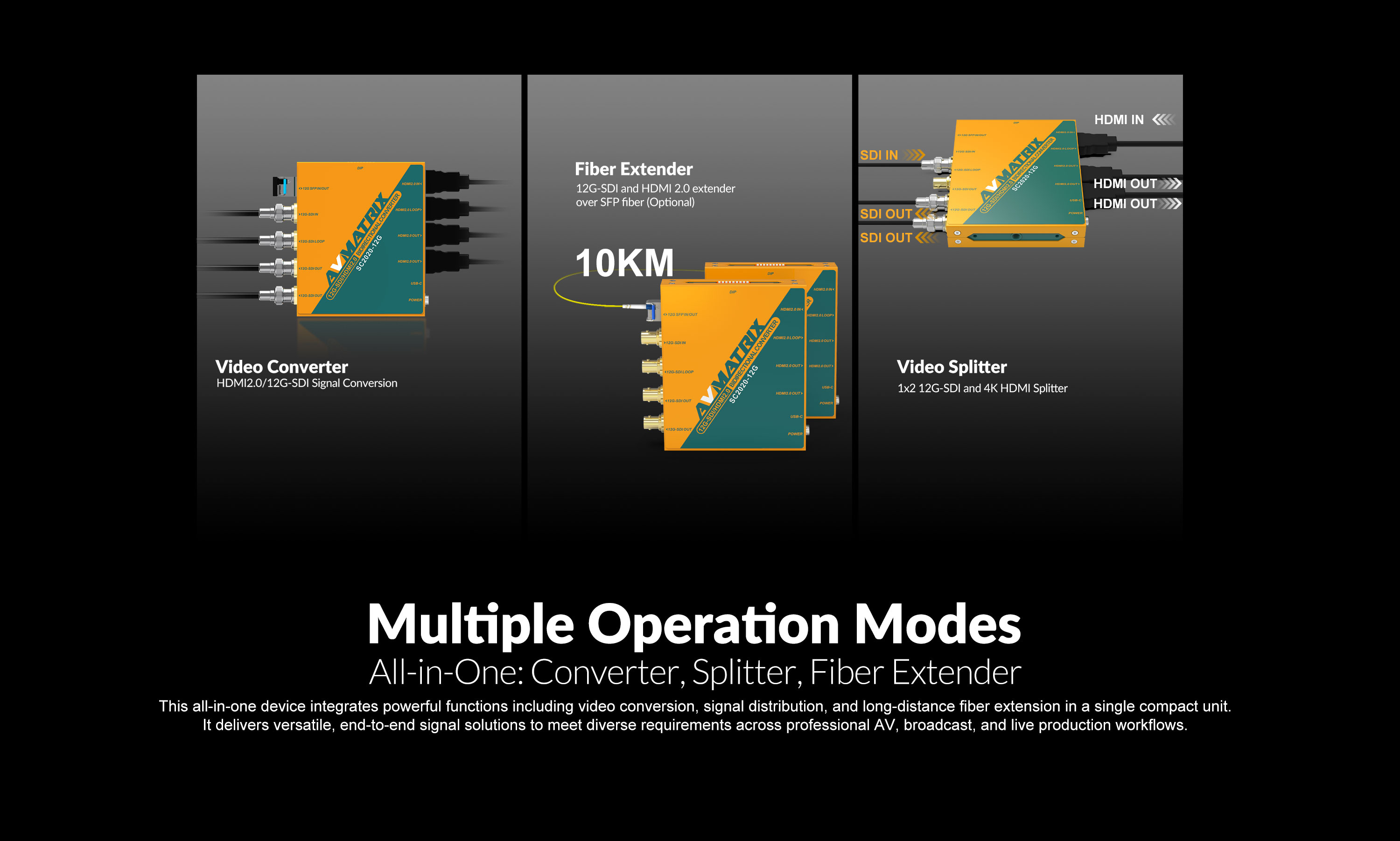

Converter, splitter and optical extender in one

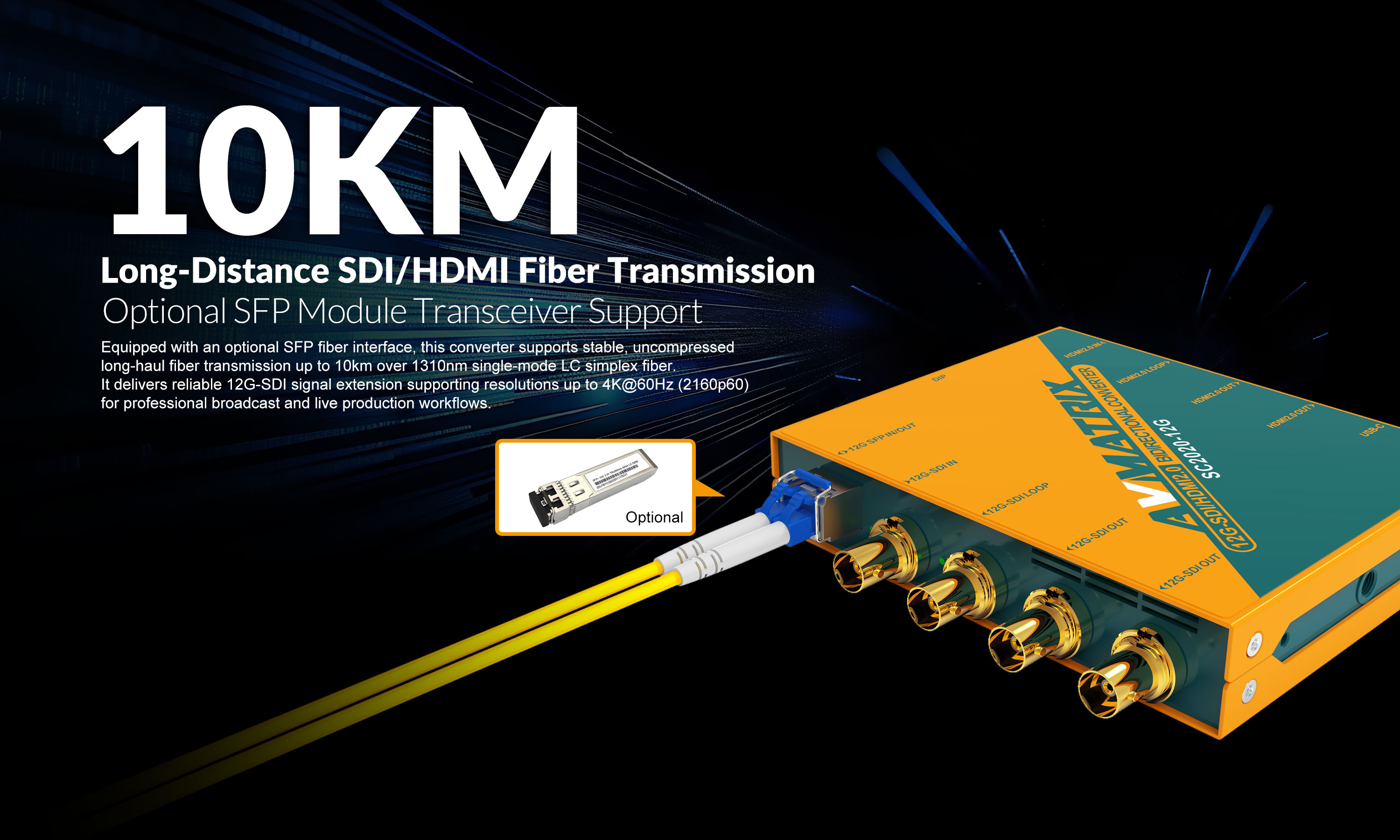

One device converts the signal between 12G-SDI and HDMI 2.0 and distributes it to two SDI and two HDMI outputs. The optical path is provided by an SFP module.

UHD up to 4K60

Formats up to 2160p60 and, on the HDMI side, RGB 4:4:4 and YCbCr 4:4:4 / 4:2:2 / 4:2:0 colour spaces.

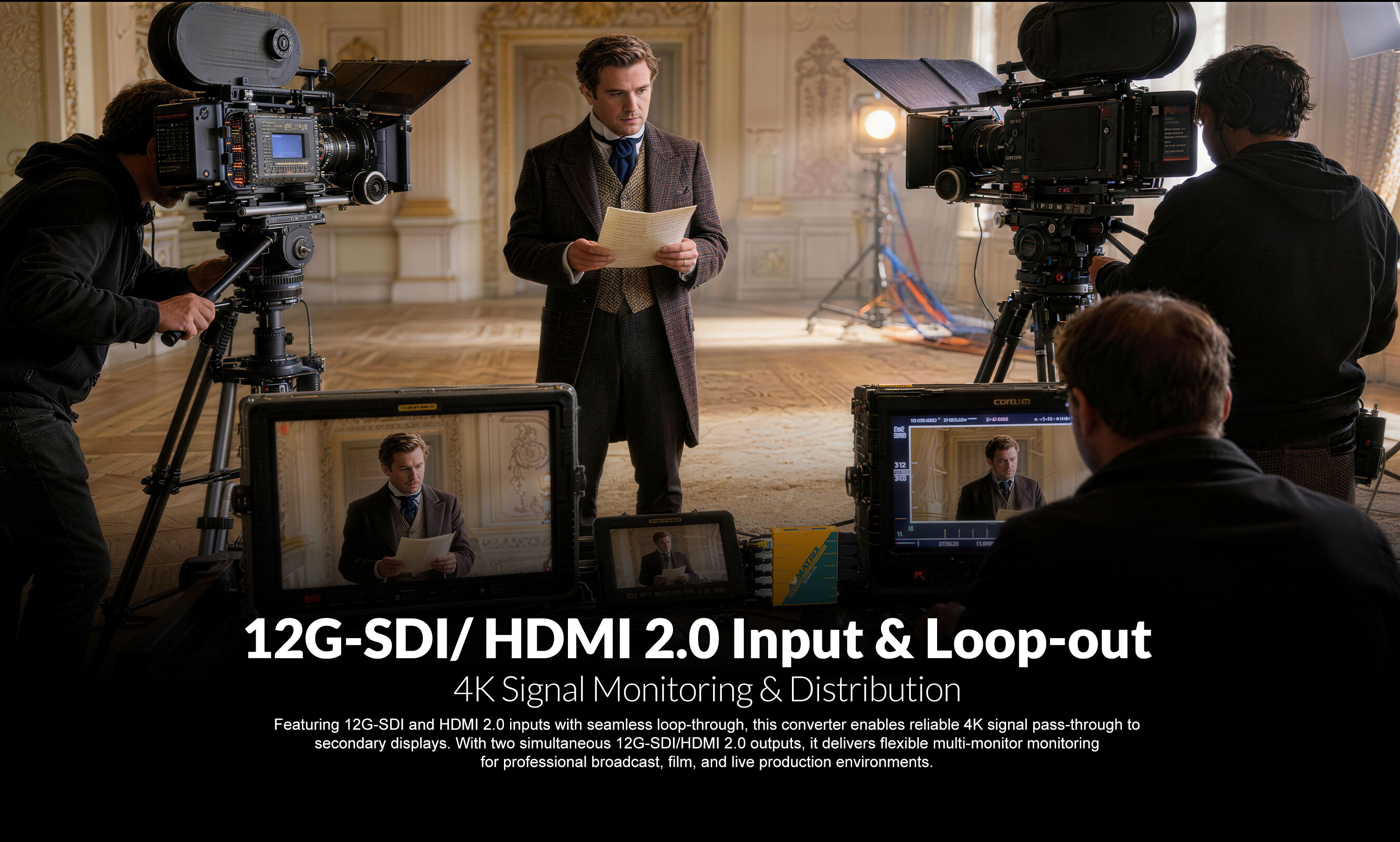

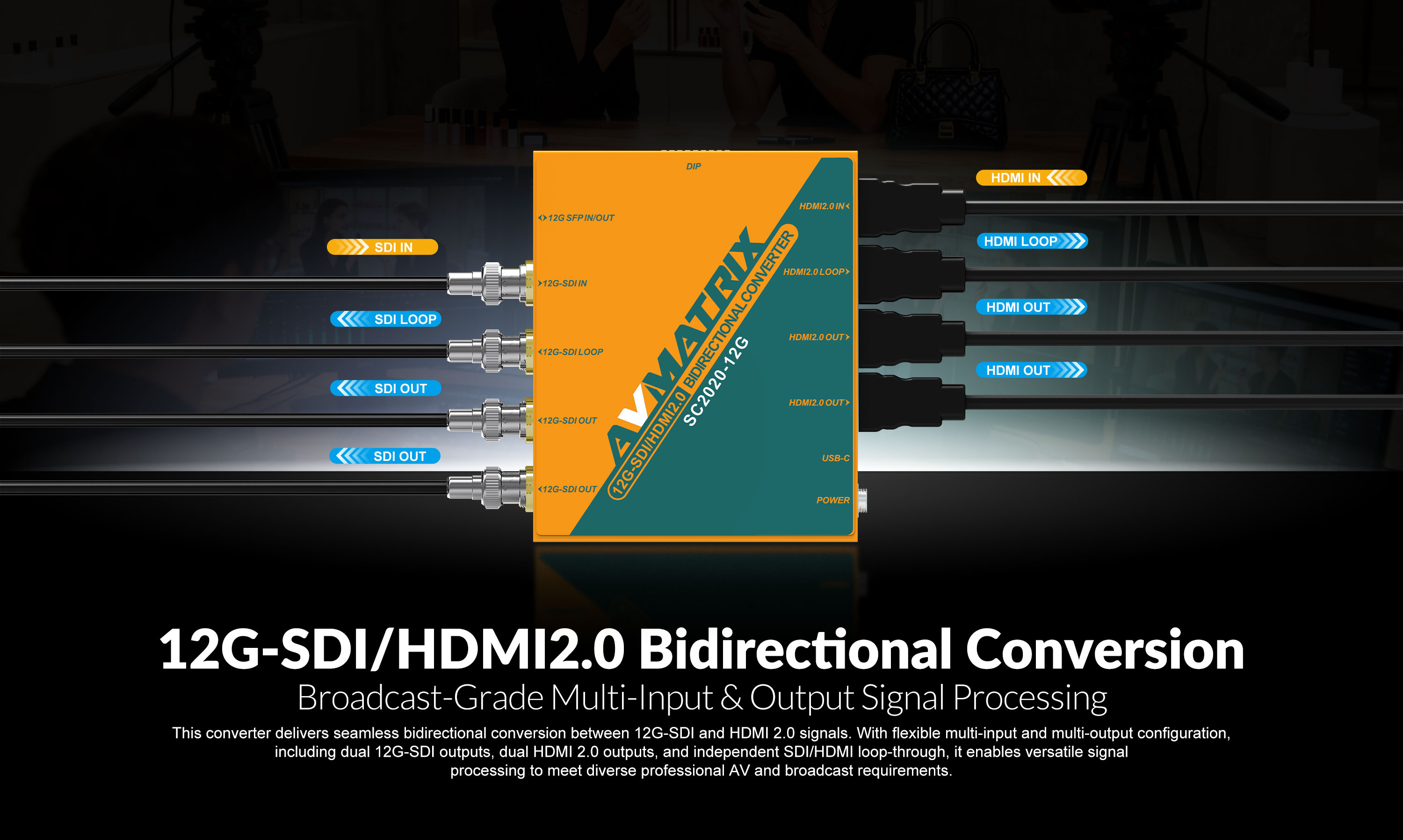

Loop and dual outputs

HDMI and SDI loop plus two HDMI and two 12G-SDI outputs: monitor and distribute without a splitter.

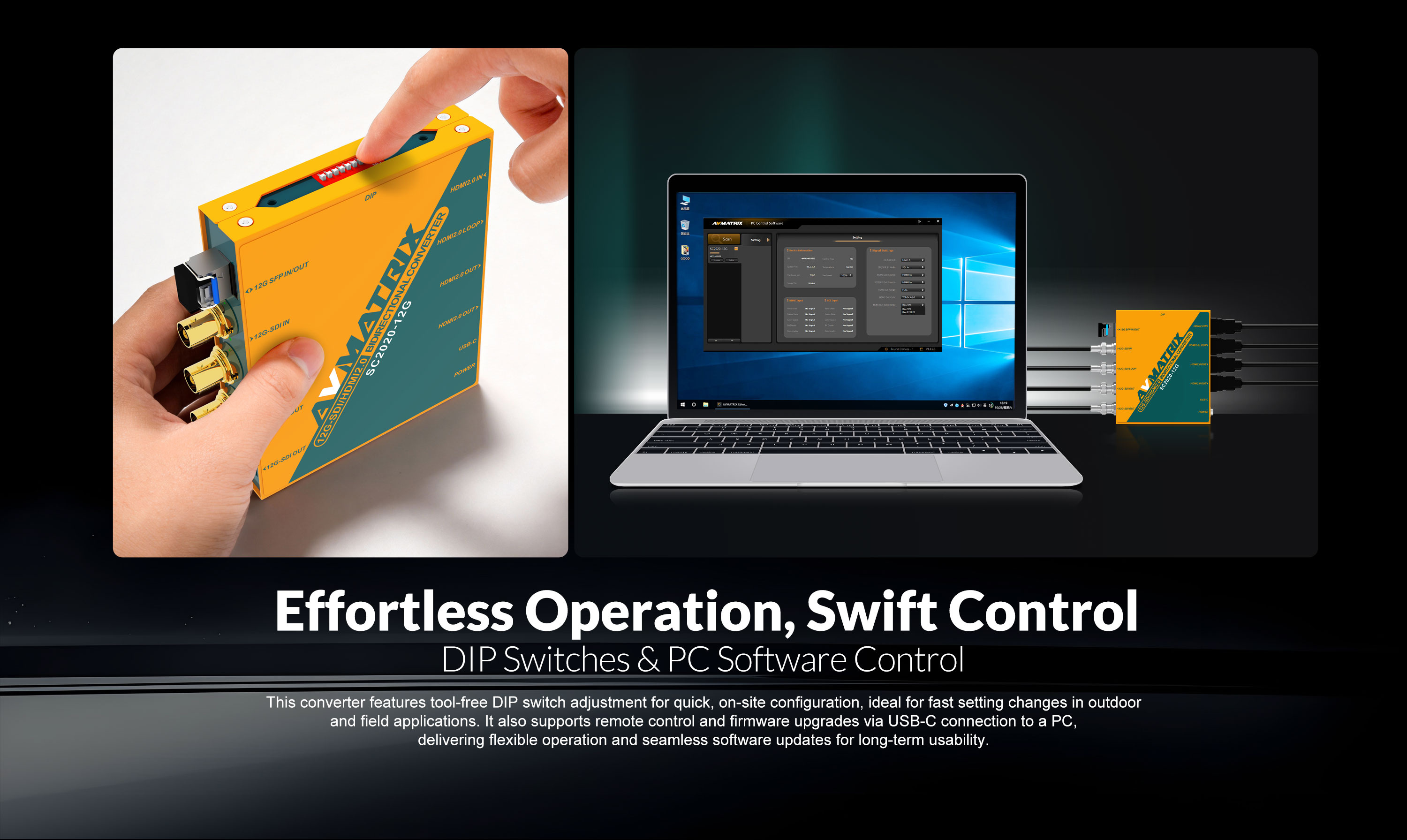

DIP or USB-C

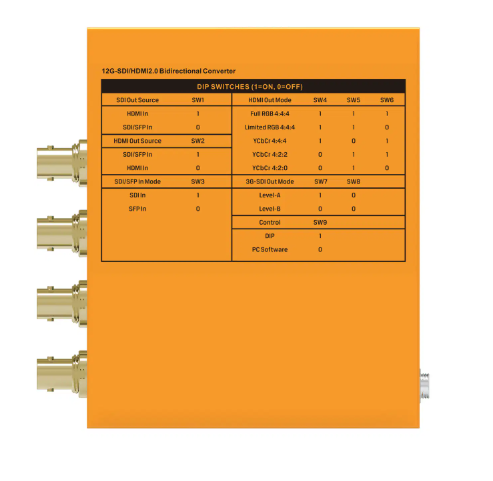

Pick the mode with DIP switches on the body; USB-C handles detailed setup and firmware updates from a PC.

5–24 V power

12 V DC power with a supported 5–24 V range and 15 W consumption.

AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic AVMATRIX SC2020-12G TR – infographic

More information

About the product

AVMATRIX SC2020-12G TR is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied with an SFP transceiver module. It provides conversion, loop outputs, signal distribution, an SFP optical path and configuration via DIP switches or PC over USB-C.

Key features

  • Bidirectional 12G-SDI and HDMI 2.0 conversion
  • UHD up to 4K60
  • HDMI, SDI and SFP optical interface
  • Loop and distribution outputs for monitoring and signal routing
  • RGB 4:4:4 and YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • DIP switches, USB-C configuration and firmware updates

Conversion, distribution and optical transport

SC2020-12G TR connects professional 12G-SDI infrastructure with HDMI 2.0 equipment, while the supplied SFP transceiver supports flexible optical workflows. Loop and dual outputs support monitoring and further signal distribution at the same time.

PACKAGE CONTENT

  • 1× AVMATRIX SC2020-12G TR
  • 1× SFP transceiver module
  • 1× 12V DC power adapter
  • 1× user manual

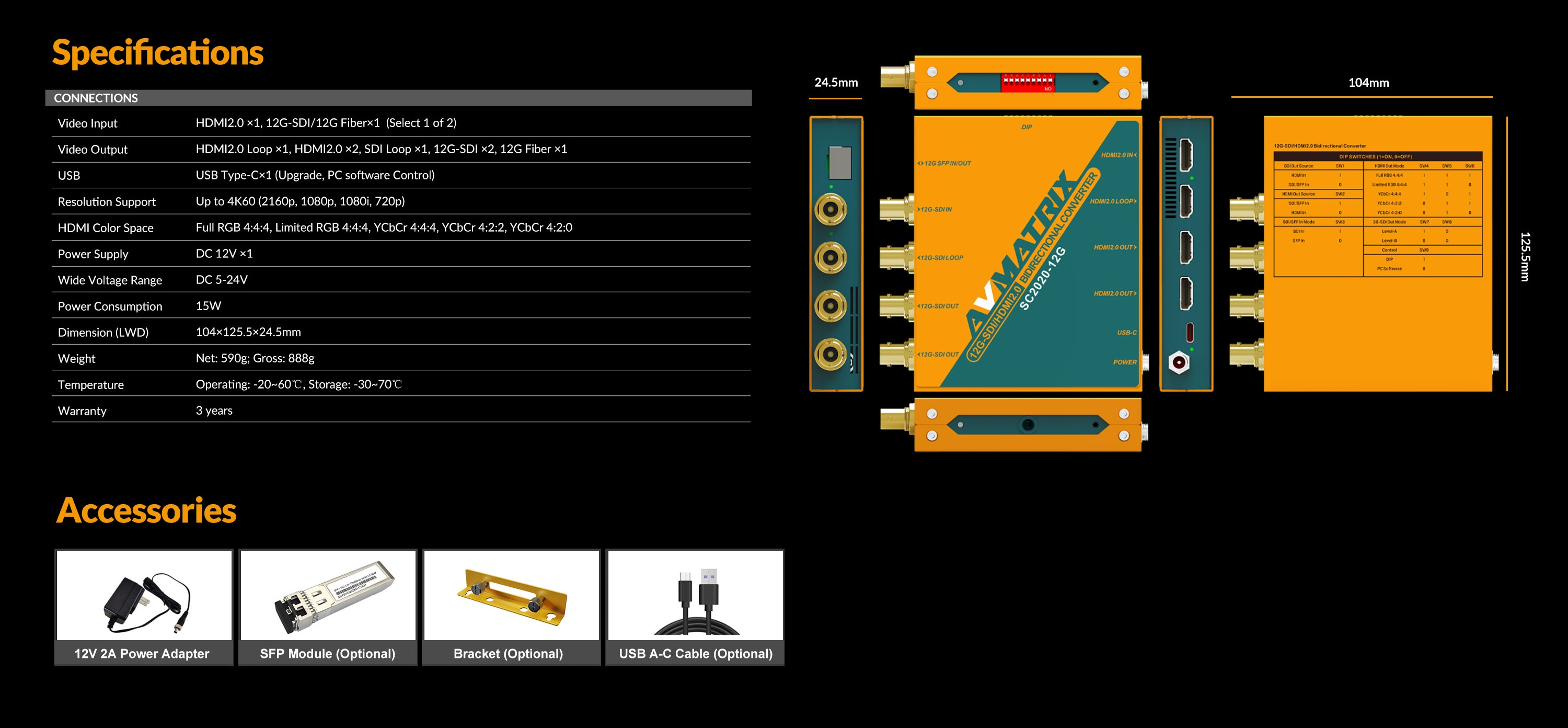

SPECIFICATIONS

  • Video inputs: 1× HDMI 2.0; 1× 12G-SDI or 12G optical
  • Video outputs: 1× HDMI loop, 2× HDMI 2.0, 1× SDI loop, 2× 12G-SDI, 1× 12G optical
  • Formats: up to 2160p60, 1080p, 1080i, 720p, NTSC, PAL
  • USB: USB-C for PC control and firmware
  • Power: 12V DC, supported 5–24V range; 15W
  • Dimensions: 104 × 125.5 × 24.5mm
  • Weight: 590g net
  • Operating temperature: −20 to 60°C
Parameters

Parameters

Manufacturer: AVMATRIX
Category: Signal converters

Main parameters

Source12G SDI · HDMI 2.0 · Optical
Target12G SDI · HDMI 2.0 · Optical
