AVMatrix 12G-SDI/ HDMI 2.0 Bidirectional Converter

AVMATRIX SC2020-12G is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied without an installed SFP module. In addition to conversion it provides loop outputs, signal distribution, an optical path and configuration through DIP switches or a computer via USB-C.

More information

338 € with VAT 279.34 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

AVMATRIX SC2020-12G is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied without an installed SFP module. In addition to conversion it provides loop outputs, signal distribution, an optical path and configuration through DIP switches or a computer via USB-C.

Bidirectional 12G-SDI and HDMI 2.0 converter for 4K60

It converts 12G-SDI to HDMI 2.0 and back, handles UHD up to 4K60 and offers loop and dual outputs. Set it with DIP switches or from a computer over USB-C. It ships without an installed SFP module.

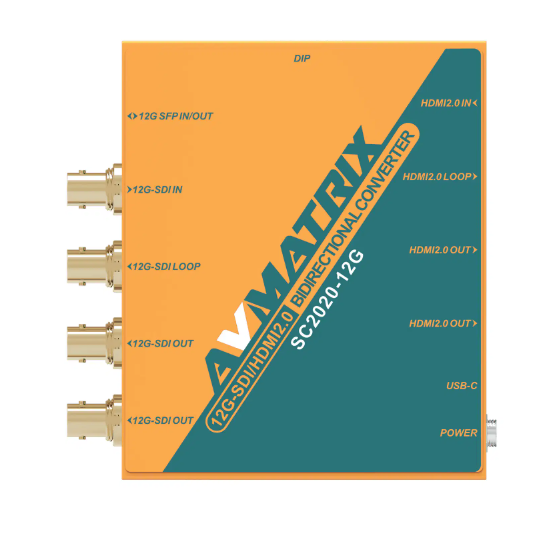

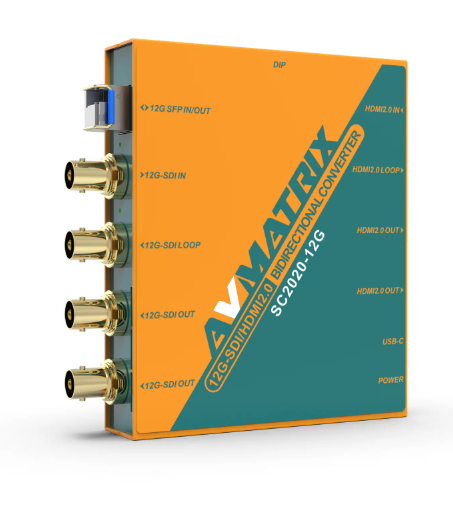

AVMATRIX SC2020-12G
12G-SDI ↔ HDMI 2.0UHD up to 4K60Loop and dual outputsSFP opticalDIP + USB-CDC 5–24 V

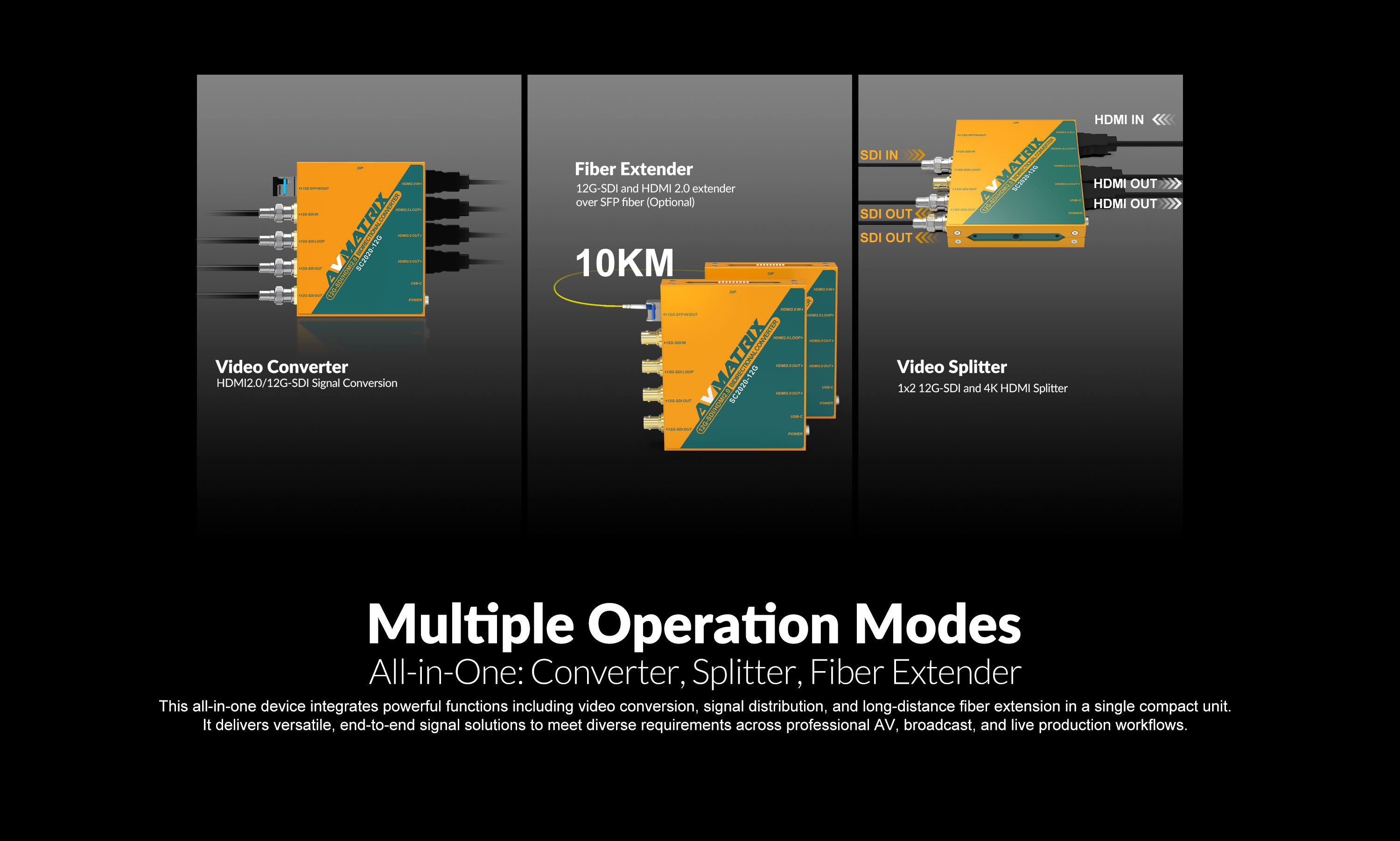

Converter, splitter and optical extender in one

One device converts the signal between 12G-SDI and HDMI 2.0 and distributes it to two SDI and two HDMI outputs. For an optical path, just add an SFP module.

UHD up to 4K60

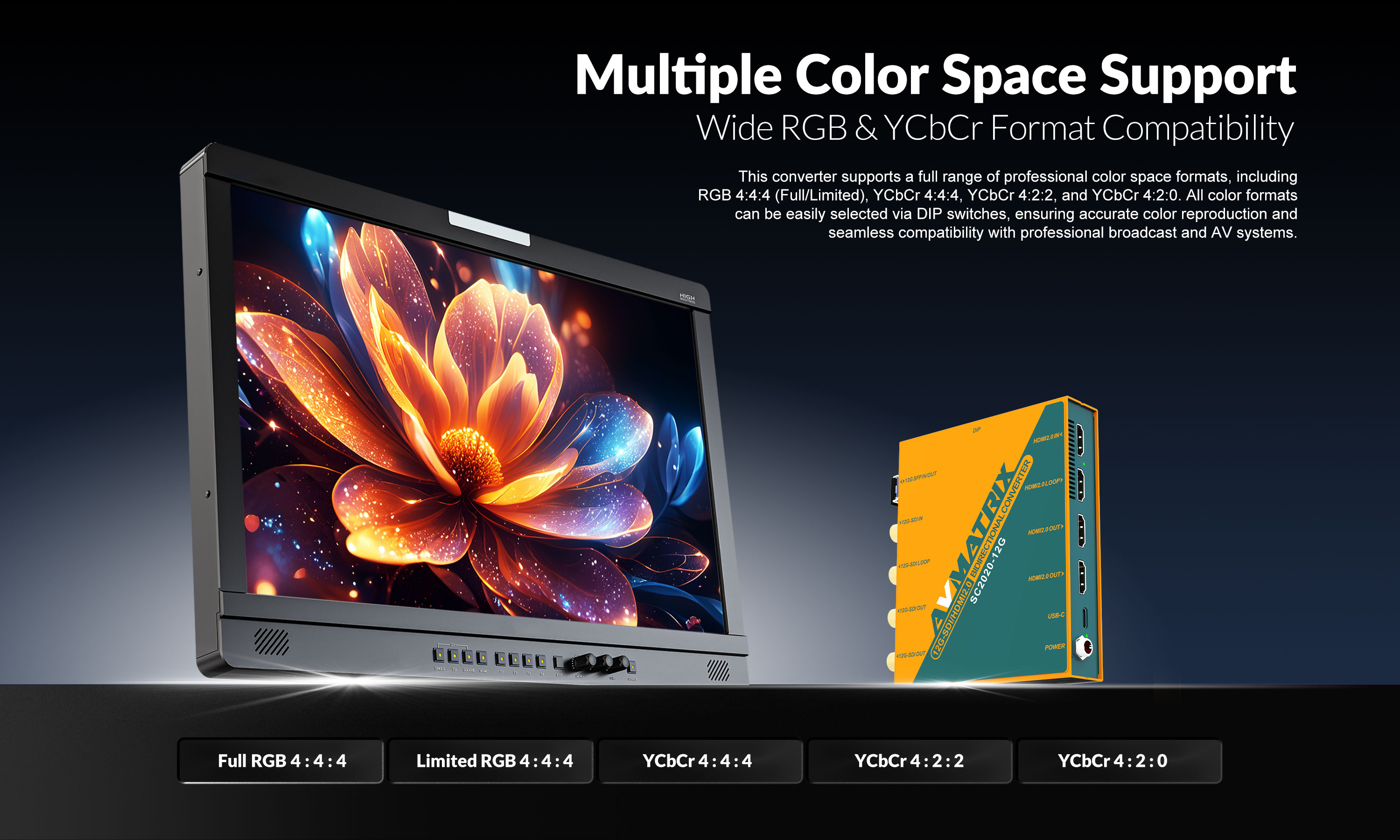

Formats up to 2160p60 and, on the HDMI side, RGB 4:4:4 and YCbCr 4:4:4 / 4:2:2 / 4:2:0 colour spaces.

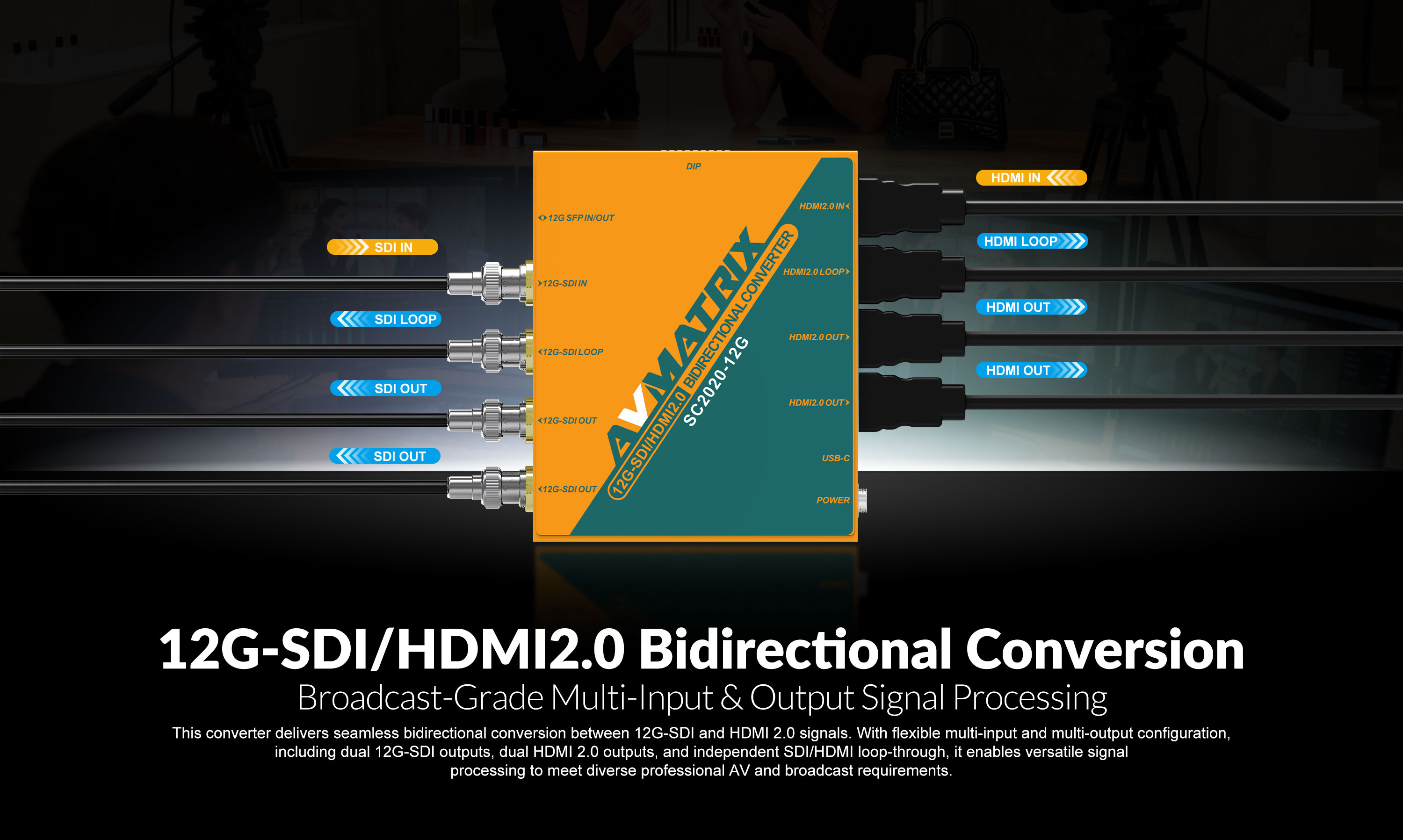

Loop and dual outputs

HDMI and SDI loop plus two HDMI and two 12G-SDI outputs: monitor and distribute without a splitter.

DIP or USB-C

Pick the mode with DIP switches on the body; USB-C handles detailed setup and firmware updates from a PC.

5–24 V power

12 V DC power with a supported 5–24 V range and 15 W consumption.

AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic AVMATRIX SC2020-12G – infographic

More information

About the product

AVMATRIX SC2020-12G is a professional bidirectional 12G-SDI/HDMI 2.0 converter for UHD production up to 4K60, supplied without an installed SFP module. In addition to conversion it provides loop outputs, signal distribution, an optical path and configuration through DIP switches or a computer via USB-C.

Key features

  • Bidirectional 12G-SDI and HDMI 2.0 conversion
  • UHD support up to 4K60
  • 1× HDMI 2.0 and 1× 12G-SDI / optical input

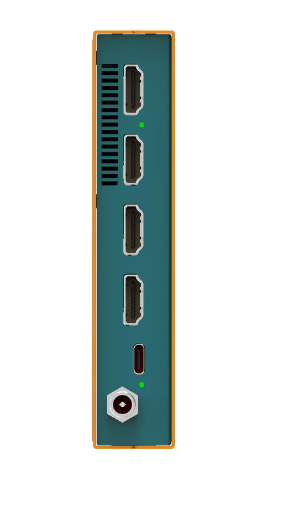

  • HDMI and SDI loop outputs plus 2× HDMI and 2× 12G-SDI outputs
  • SFP optical interface for long-distance transmission
  • RGB 4:4:4 and YCbCr 4:4:4 / 4:2:2 / 4:2:0 colour spaces
  • USB-C for PC control and firmware updates

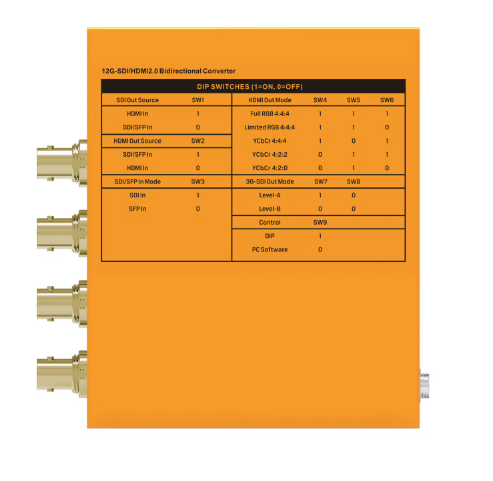

  • Configuration via DIP switches
  • Wide DC 5–24V power range

Conversion, distribution and monitoring in one device

SC2020-12G connects professional 12G-SDI infrastructure with HDMI 2.0 equipment while preserving formats up to 2160p60. Loop and dual outputs allow simultaneous monitoring and distribution without an additional splitter.

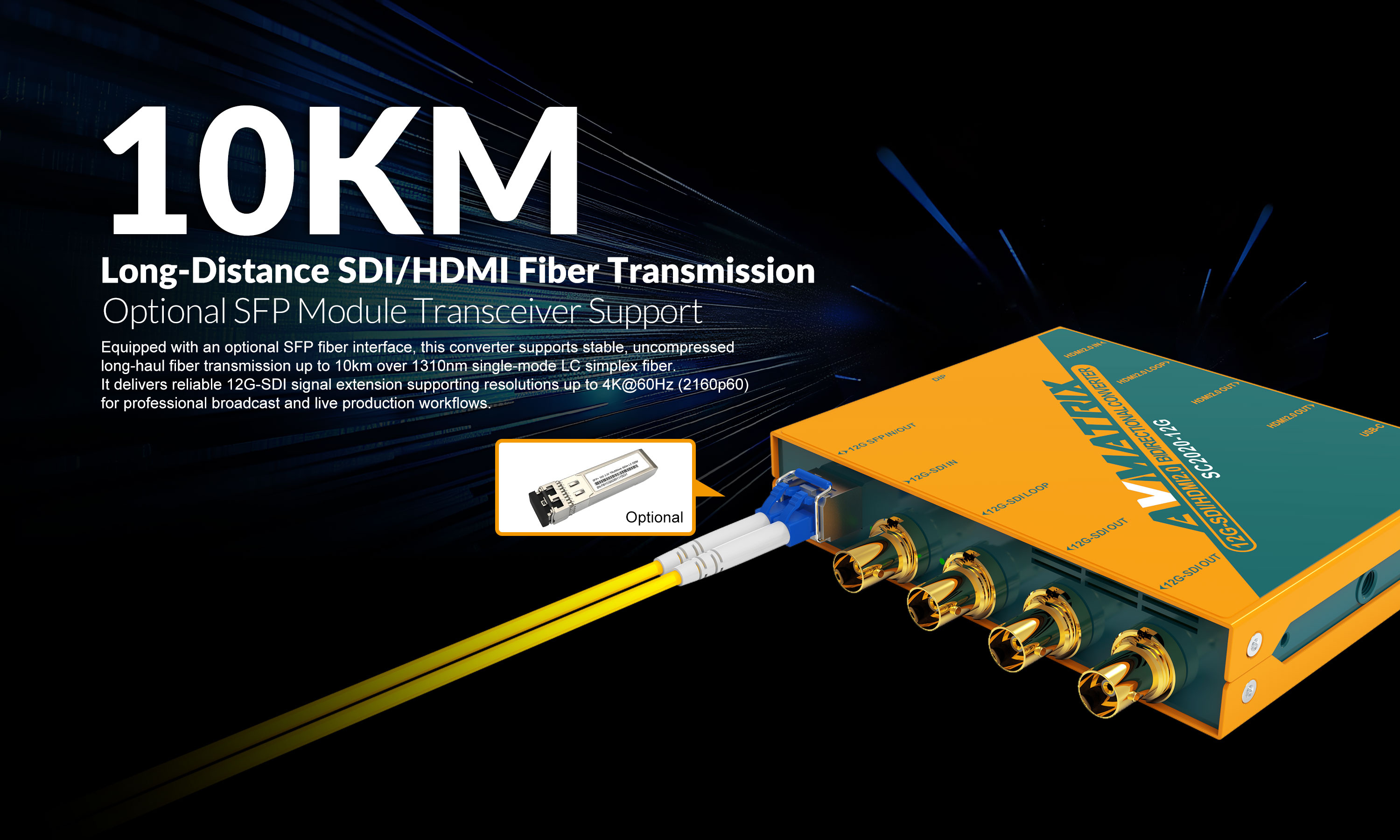

Optical connectivity and flexible control

The SFP interface supports an optical path according to the installed module. Operating modes can be selected quickly with DIP switches, while USB-C and PC software provide detailed configuration and firmware updates.

PACKAGE CONTENT

  • 1× AVMATRIX SC2020-12G
  • 1× 12V DC power adapter
  • 1× user manual

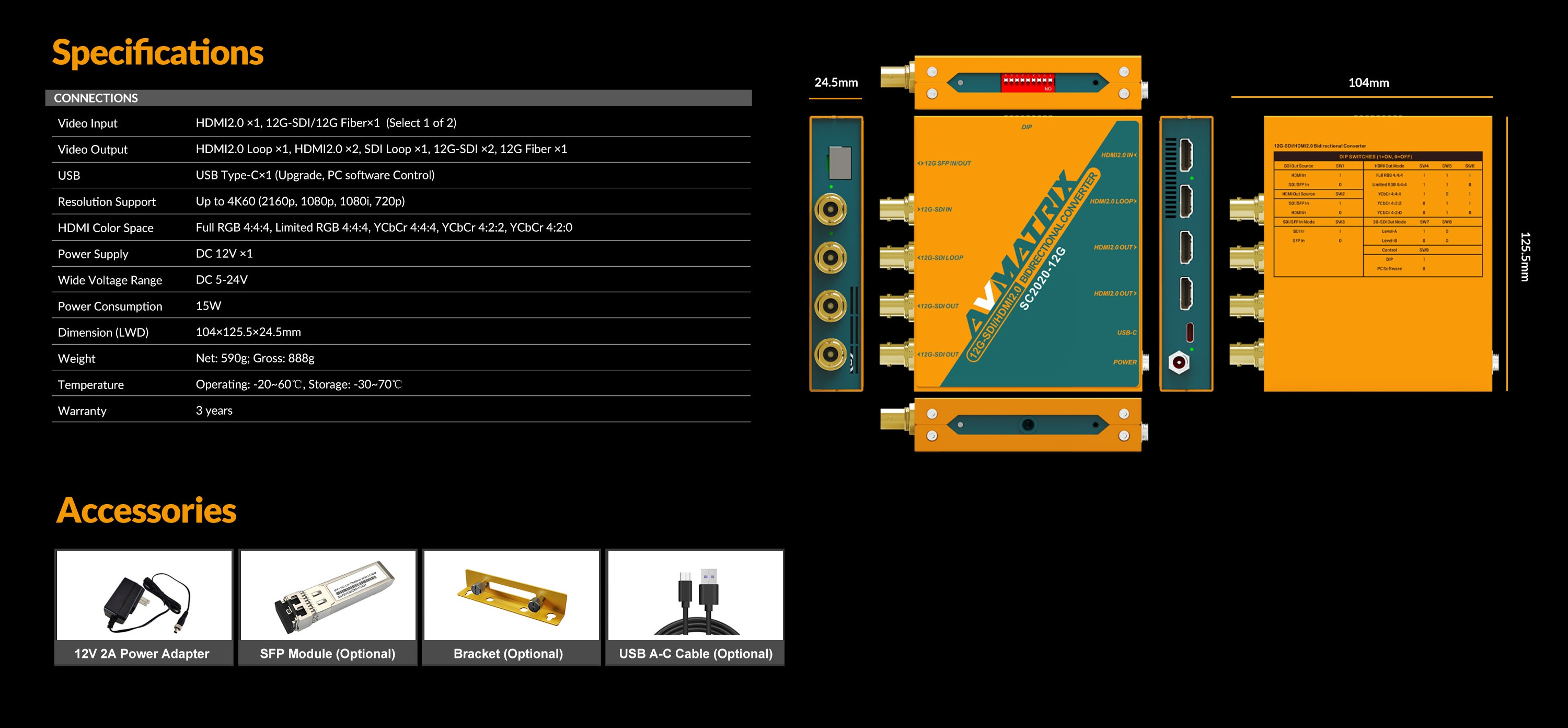

SPECIFICATIONS

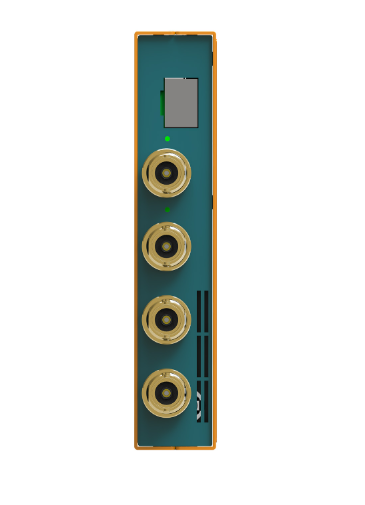

  • Video inputs: 1× HDMI 2.0; 1× 12G-SDI or 12G optical
  • Video outputs: 1× HDMI loop, 2× HDMI 2.0, 1× SDI loop, 2× 12G-SDI, 1× 12G optical
  • Formats: 2160p, 1080p, 1080i, 720p, NTSC, PAL; up to 4K60
  • USB: 1× USB-C for PC control and firmware
  • Power: 12V DC, supported 5–24V range; 15W
  • Dimensions: 104 × 125.5 × 24.5mm
  • Weight: 590g net
  • Operating temperature: −20 to 60°C
Parameters

Parameters

Manufacturer: AVMATRIX
Category: Signal converters

Main parameters

Source12G SDI · HDMI 2.0 · Optical
Target12G SDI · HDMI 2.0 · Optical
