Accsoon Adapter for Monitor

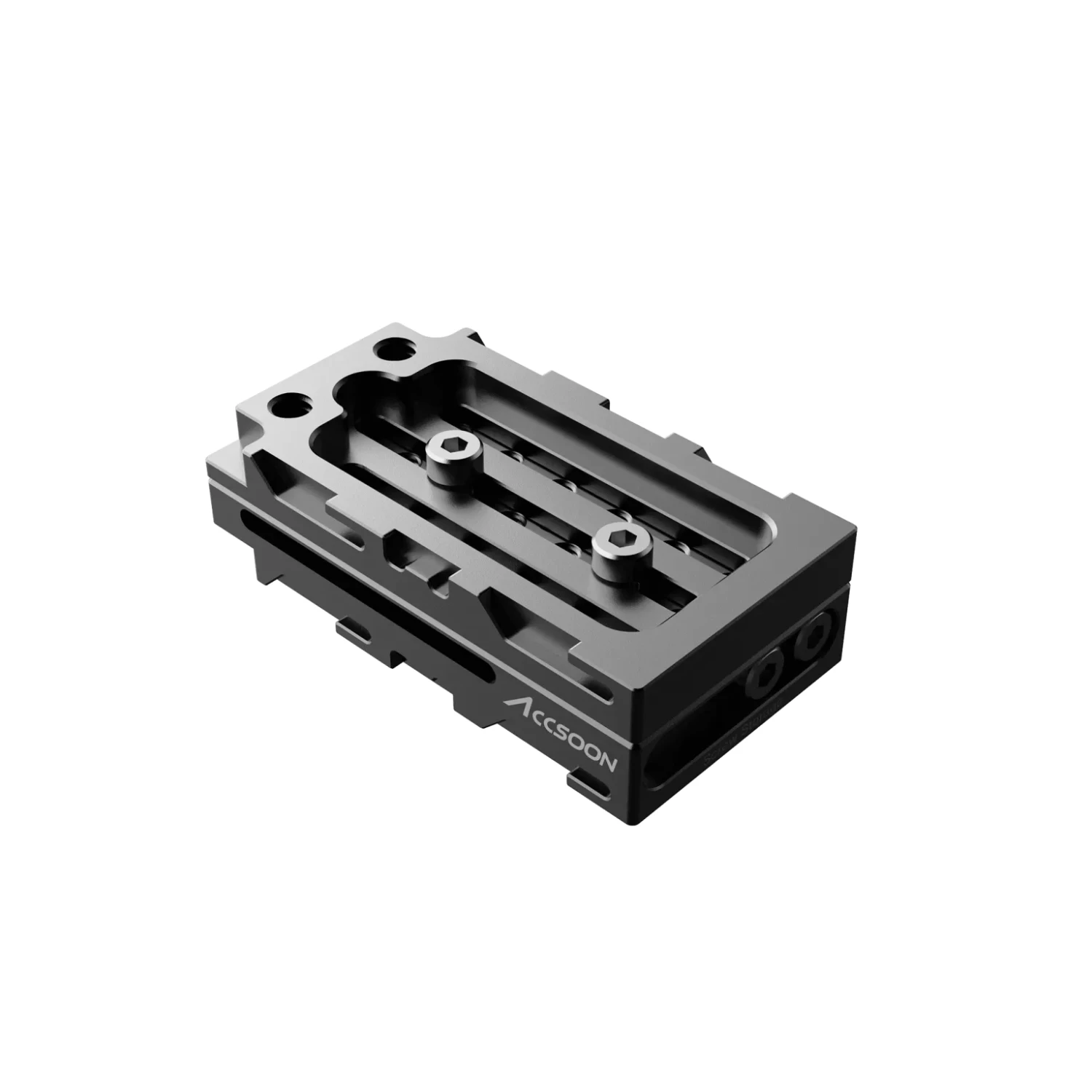

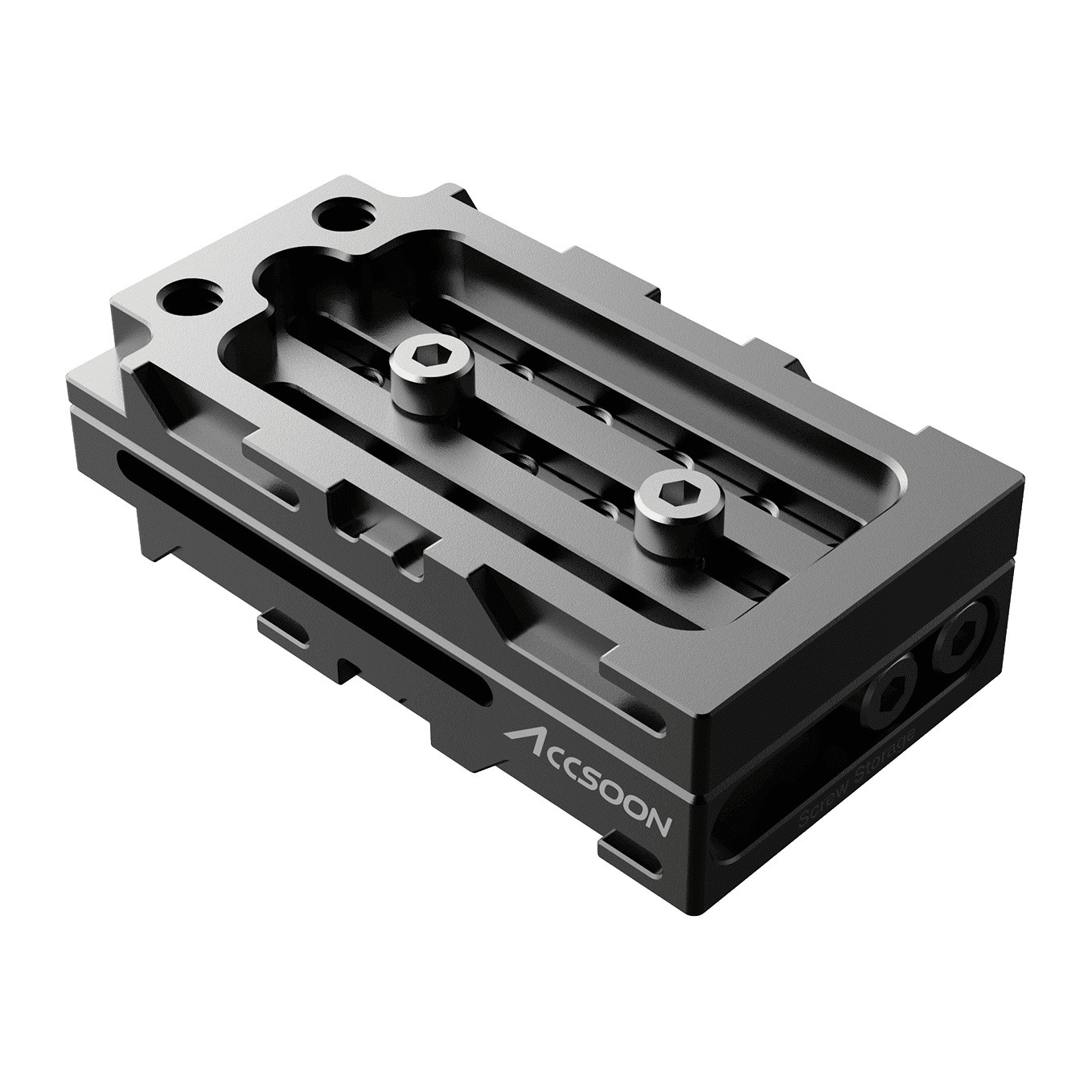

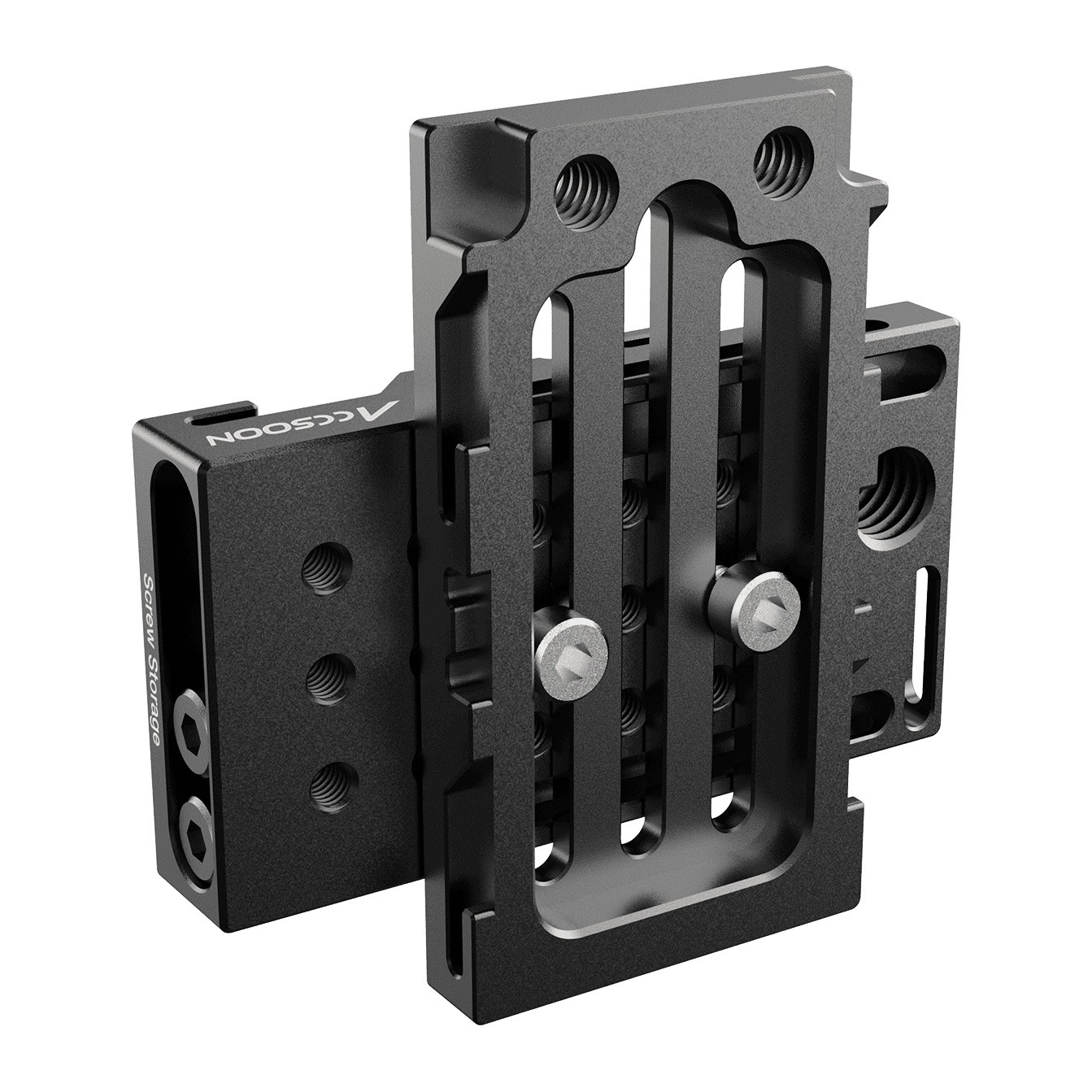

Accsoon Adapter for Monitor ACC-ACC03 is a mechanical mounting adapter for CineView and CineEye wireless units with an NP-F slot. Two adjustable aluminium plates attach a receiver to a monitor or rig, with sliding slots allowing its orientation to be adjusted. An unused NP-F slot becomes a set of 1/4″-20, 3/8″ and M4 mounting points; the adapter weighs 100 g and measures 70.8 × 38.4 × 20 mm. ACC03 has no power pass-through, so power the wireless unit separately through its DC input. The package contains the adapter and an Allen wrench; the monitor, wireless unit and battery are sold separately.

Accsoon ACC03

MOUNT TO AN NP-F SLOT

Two adjustable plates connect a wireless unit to a monitor or add mounting points to your rig. A purely mechanical solution with separate power.

1/4″-20 / 3/8″ / M4100 g

ADD MOUNTING POINTS

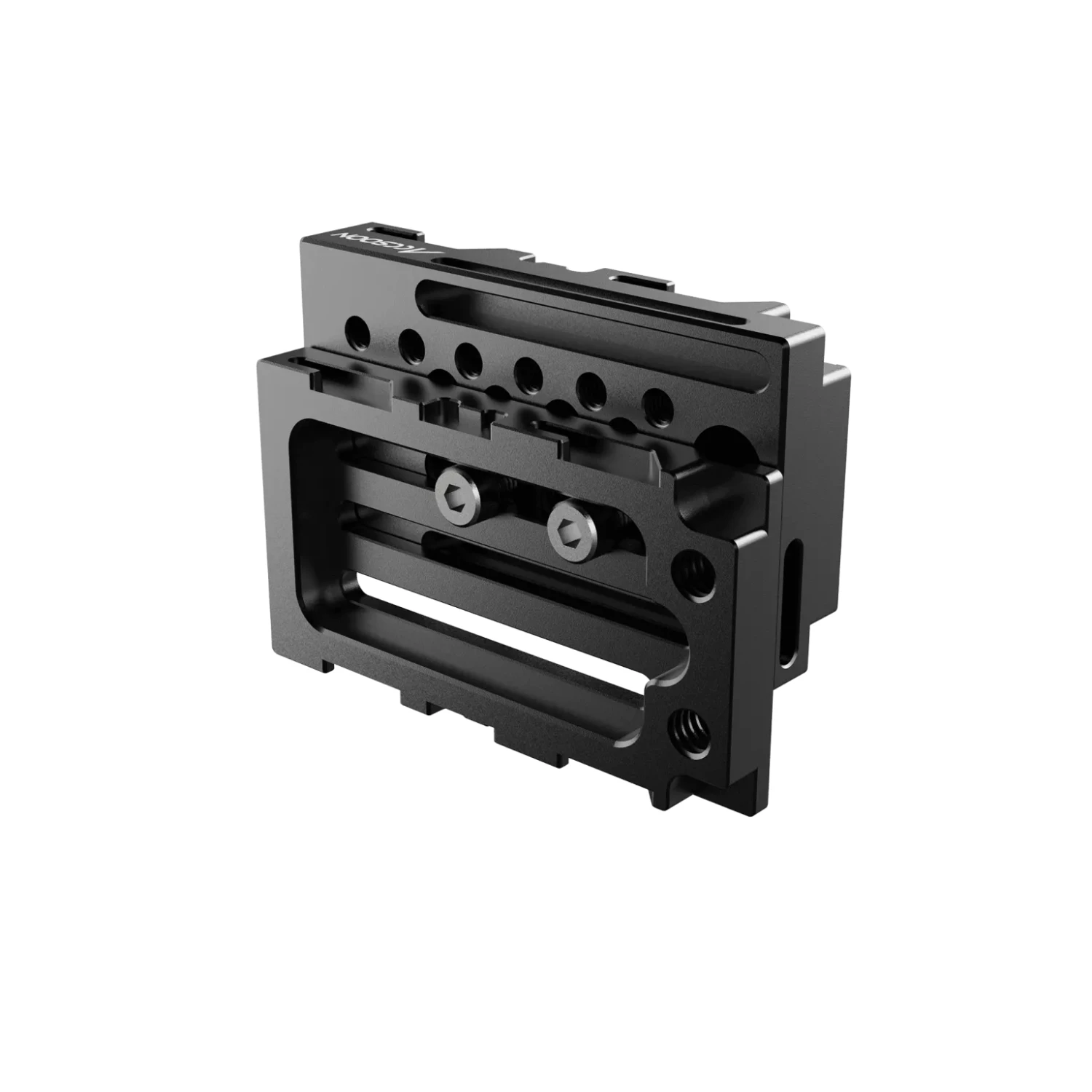

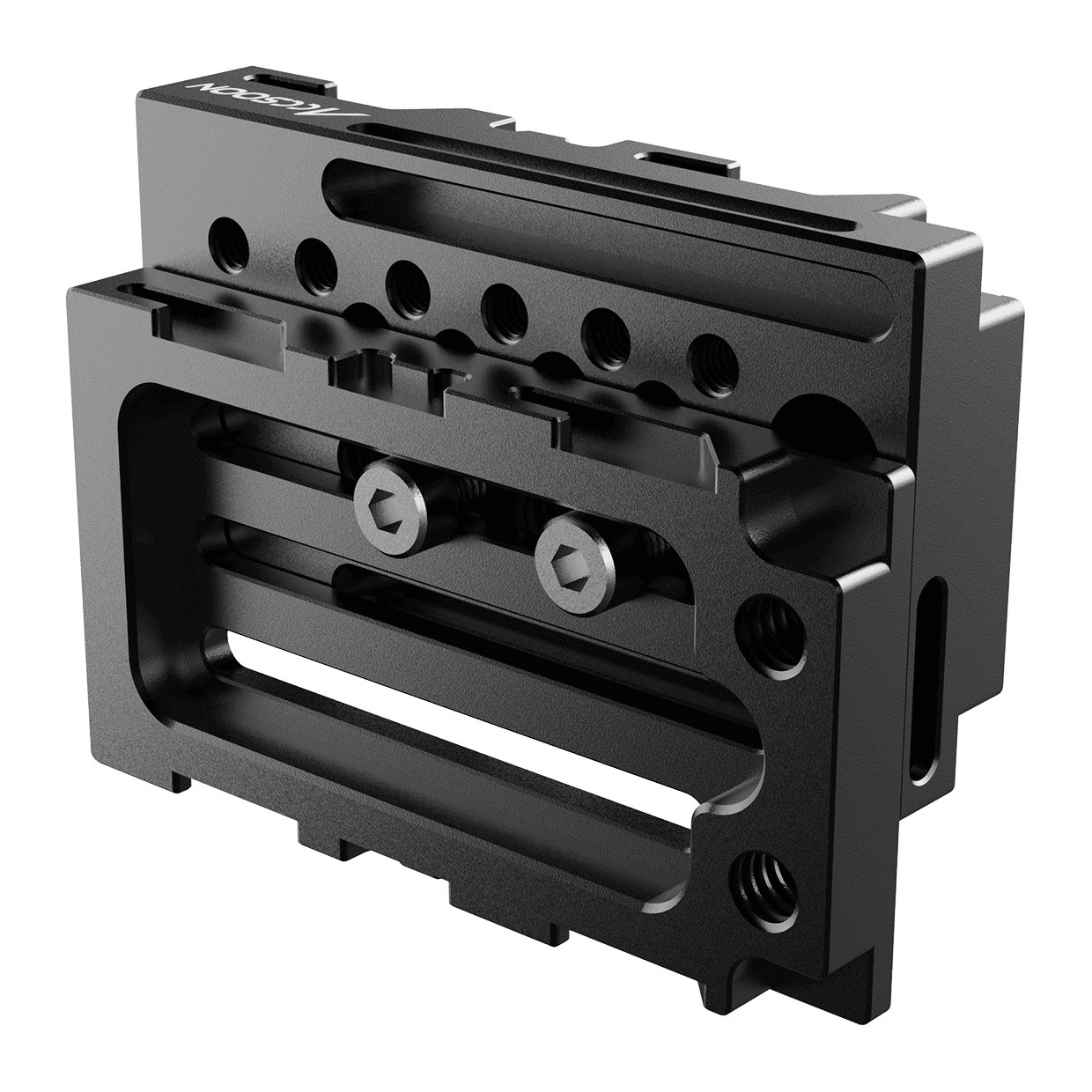

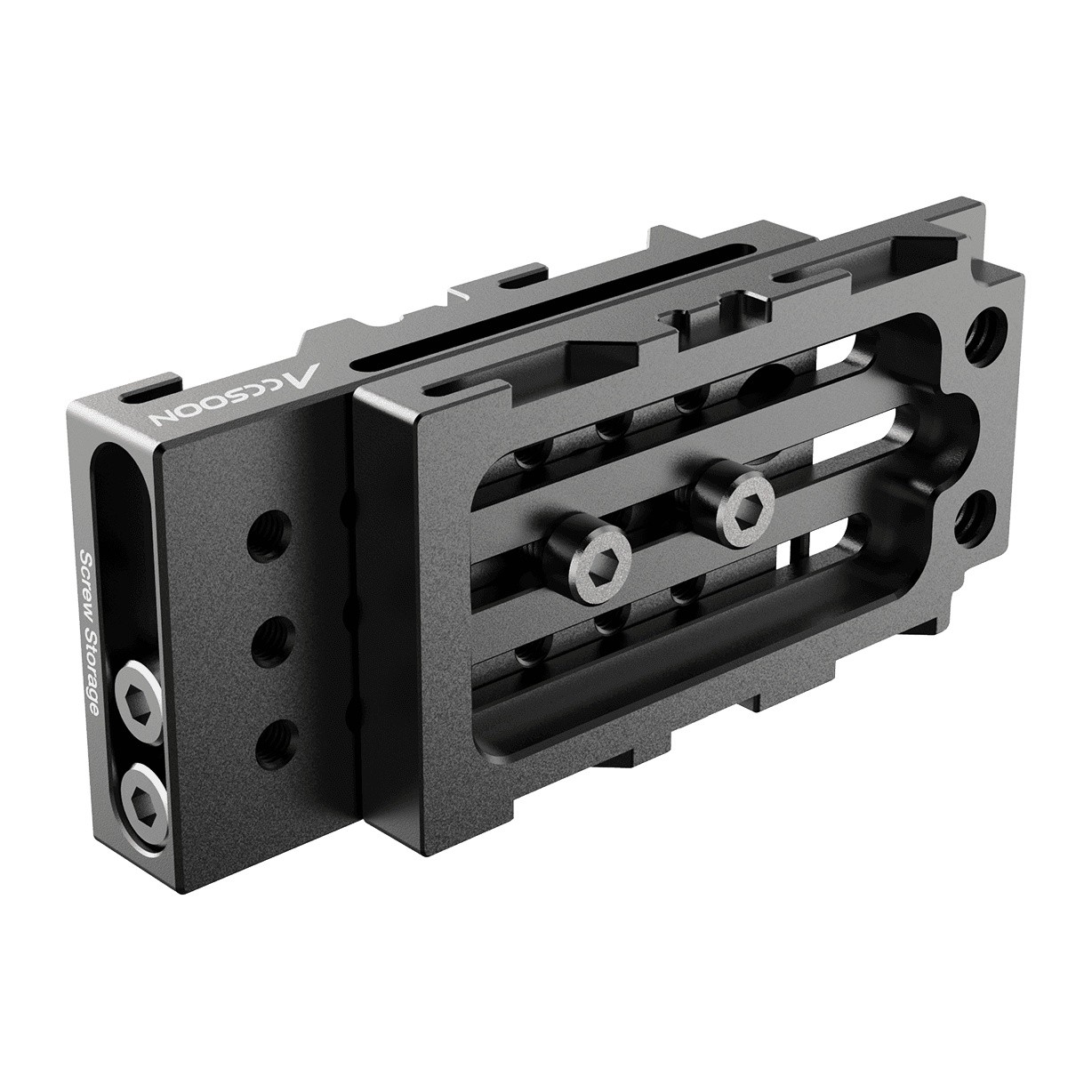

An unused NP-F slot on a monitor, camera or wireless unit can become an accessory mounting point. The front provides 18 M4 holes, eight 1/4″-20 threads and one 3/8″ thread; four further M4 holes are on the side. Aluminium construction forms a secure mechanical connection.

ADJUST THE ORIENTATION

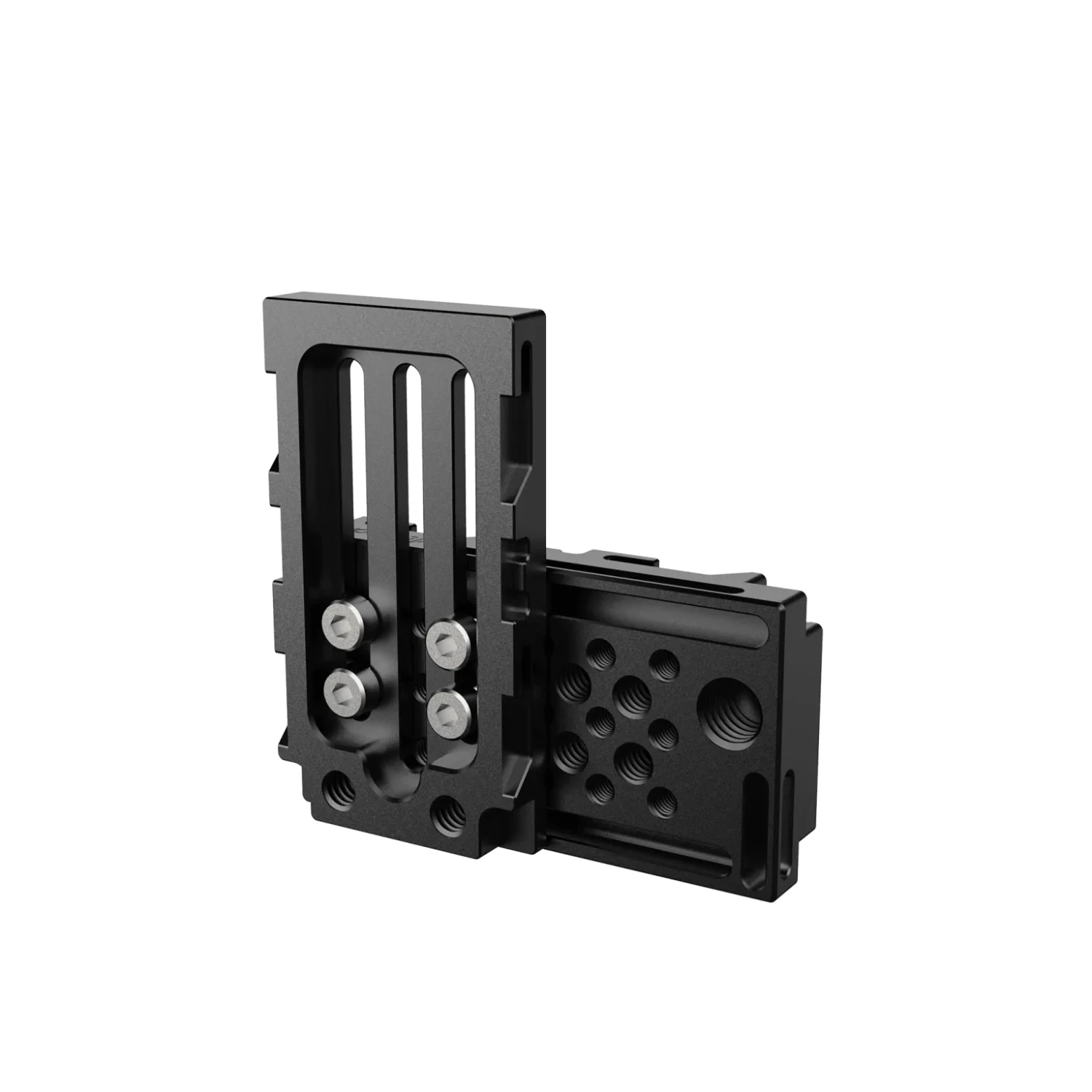

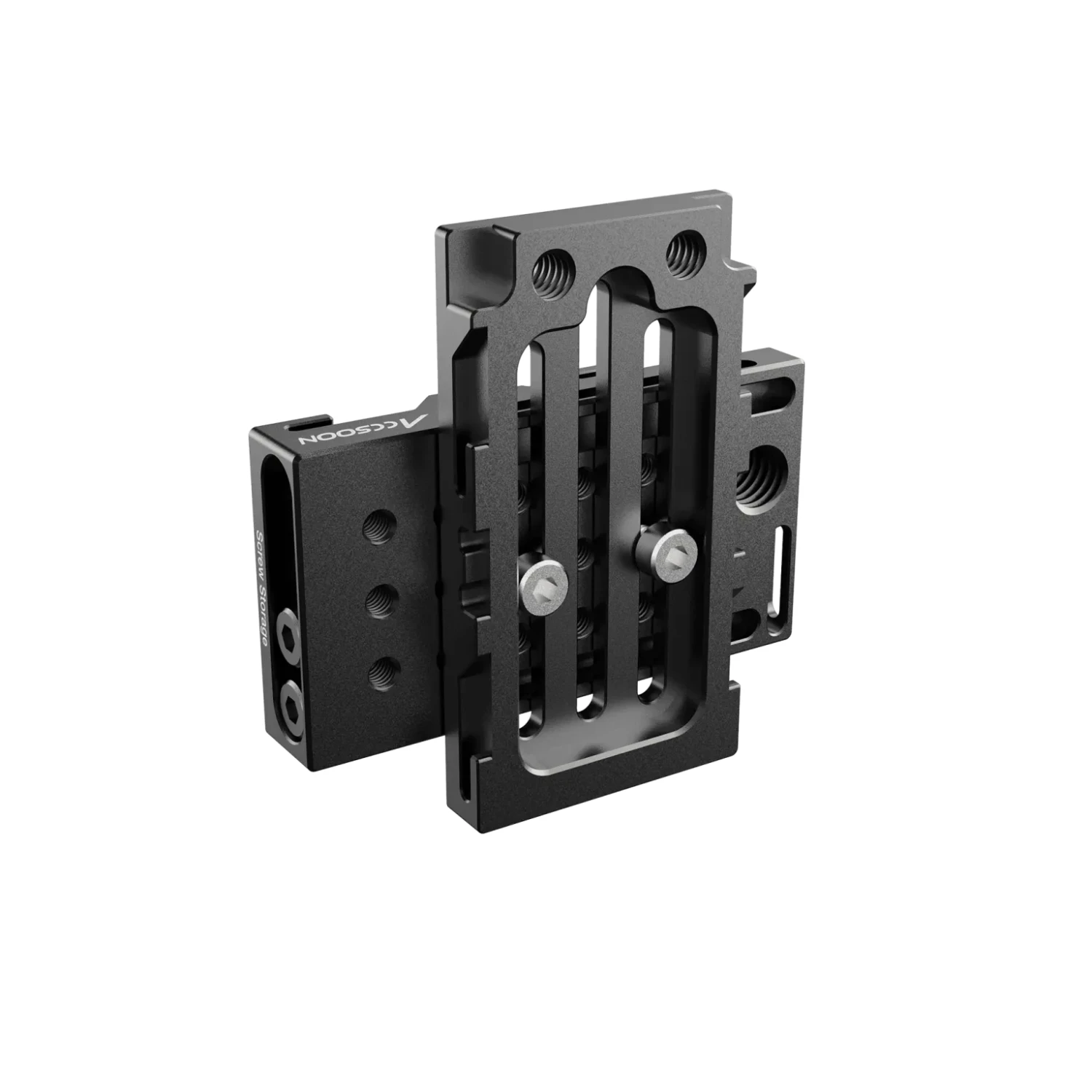

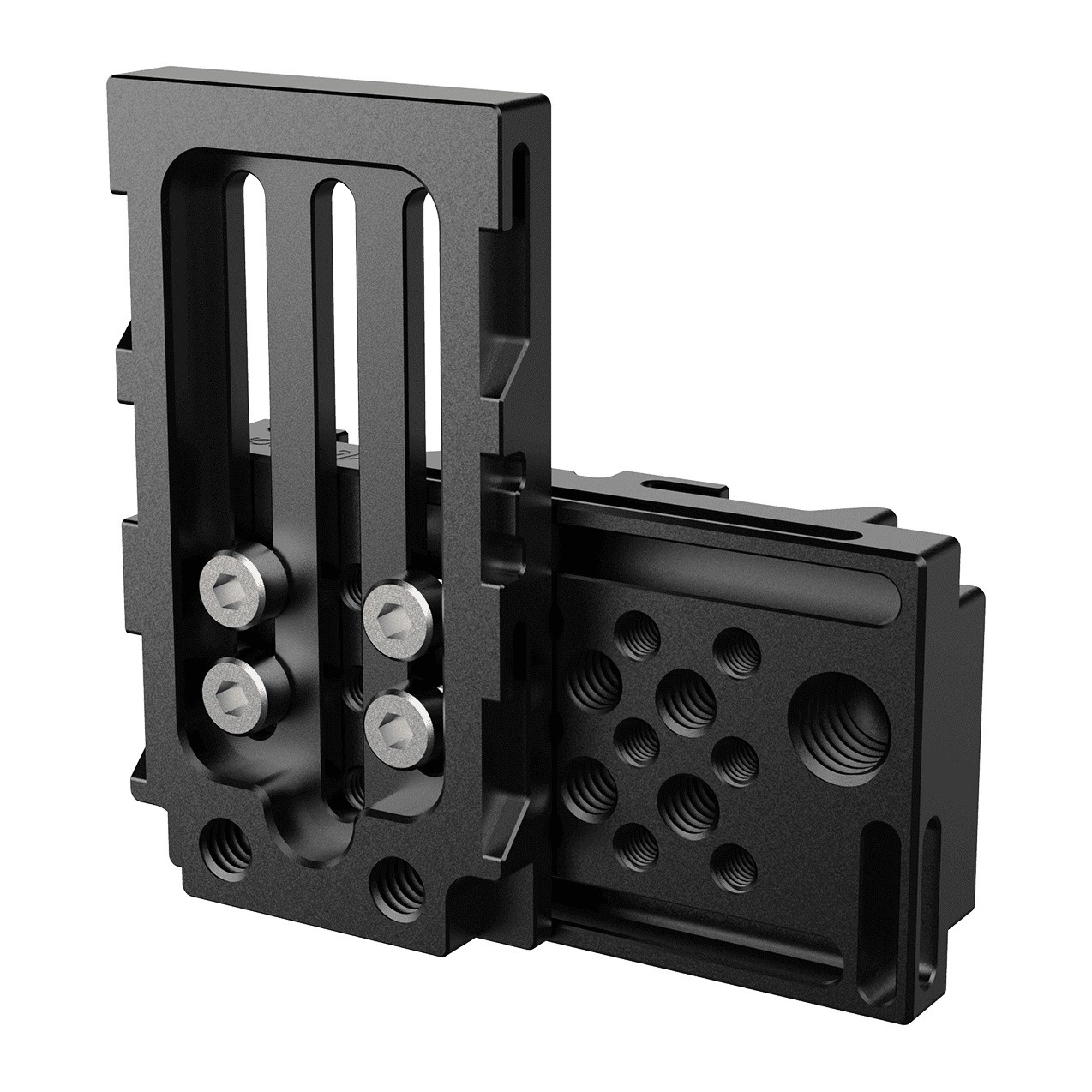

The two plates with NP-type mounts attach a compatible RX or TX unit to another device with a matching slot. Sliding slots adjust the position so the wireless unit can remain upright even when the monitor slot has a different orientation. A single plate can also be used on its own to attach accessories through the mounting threads.

BUILD A DIRECTOR’S MONITOR

Manufacturer photographs show a receiver mounted behind a monitor for on-set viewing. On a suitable dual NP-F slot monitor, the second slot can remain available for the monitor battery. ACC03 carries no electrical power: CineView or CineEye needs separate power through its DC input.
