Accsoon Cineview Quad RX - WIT04-QS-RX
SKU: ACC-WIT04-QS-RX
Accsoon CineView Quad RX is a standalone wireless receiver for camera crews, directors and remote monitoring. The standalone receiver adds SDI and HDMI monitor outputs to a CineView Quad system. A compatible transmitter is required and purchased separately. The system carries Full HD up to 60p over simultaneous 2.4 and 5 GHz bands, with latency below 60 ms…
296 € with VAT
244.63 € without VAT
Availability
Shipment day: 19. 10.
Shipment day: 19. 10.
1 pcs in stock at the supplier
Top accessories for Accsoon Cineview Quad RX - WIT04-QS-RX
PremiumCord 4K HDMI 2.0b High Speed + Ethernet cable, gold-plated connectors, 1 m
High-quality interconnect cable for connecting two audio/video devices via modern
3.2 €
In stock 2 pcs
Tilta NP-F970 Battery (10500mAh) - Green
The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera
47 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
A flat two-channel Tilta charger for Sony L-Series / NP-F batteries and compatible
18 €
In stock 5 pcs
Tilta NP-F550 Battery (3500mAh) - Green
The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera
23 €
In stock 2 pcs
PremiumCord Slim HDMI 2.0 High Speed + Ethernet Cable, Gold-Plated, 0.5 m
PremiumCord Slim HDMI High Speed + Ethernet cable, gold-plated connectors, 0.5m
5 €
on request
Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G
The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,
108 €
To be sent 2 pcs
Canare L-2.5CHWS BNC / BNC 0,4 m, GRY
Assembled SDI cable, Canare L-2.5CHWS, 0.4 m long, terminated with BNC and BNC c
13 €
In stock 1 pcs
Accsoon Right Angle SDI to Right Angle SDI cable - 80 cm
Accsoon ACC-XC-BNC-SDI-80-BLACK is a black 80cm SDI video cable with right-angle
12 €
> 5 pcs in stock at the supplier
Accsoon HDMI Cable (A-A)
Accsoon HDMI Cable (A-A) is a 50 cm male-to-male cable connecting cameras, external
12 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Accsoon CineView Quad RX is a standalone wireless receiver for camera crews, directors and remote monitoring. The standalone receiver adds SDI and HDMI monitor outputs to a CineView Quad system. A compatible transmitter is required and purchased separately. The system carries Full HD up to 60p over simultaneous 2.4 and 5 GHz bands, with latency below 60 ms excluding the camera and rated range up to 150 m in unobstructed, interference-free line of sight. One transmitter supports up to four wireless receivers or mobile devices in total. The fanless aluminium units have four integrated folding antennas, a 1.3″ OLED display, NP-F battery support and 7.4–16.8 V DC power. Batteries, monitors and cables are purchased separately.
ACCSOON CINEVIEW QUAD · RX
Video at your monitor
The standalone receiver adds SDI and HDMI monitor outputs to a CineView Quad system. A compatible transmitter is required and purchased separately.
Full HD 60p150 m<60 ms

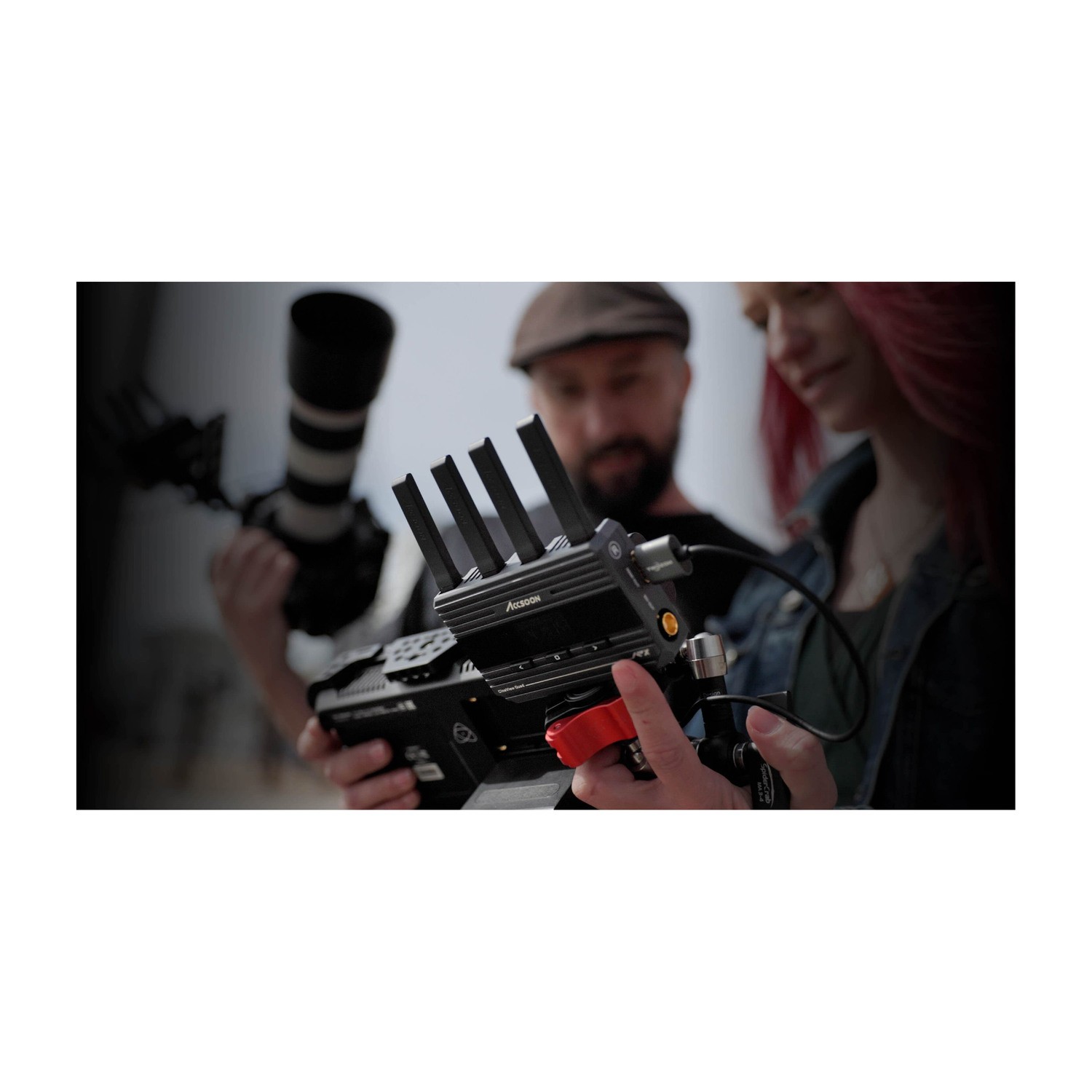

A remote view for your crew

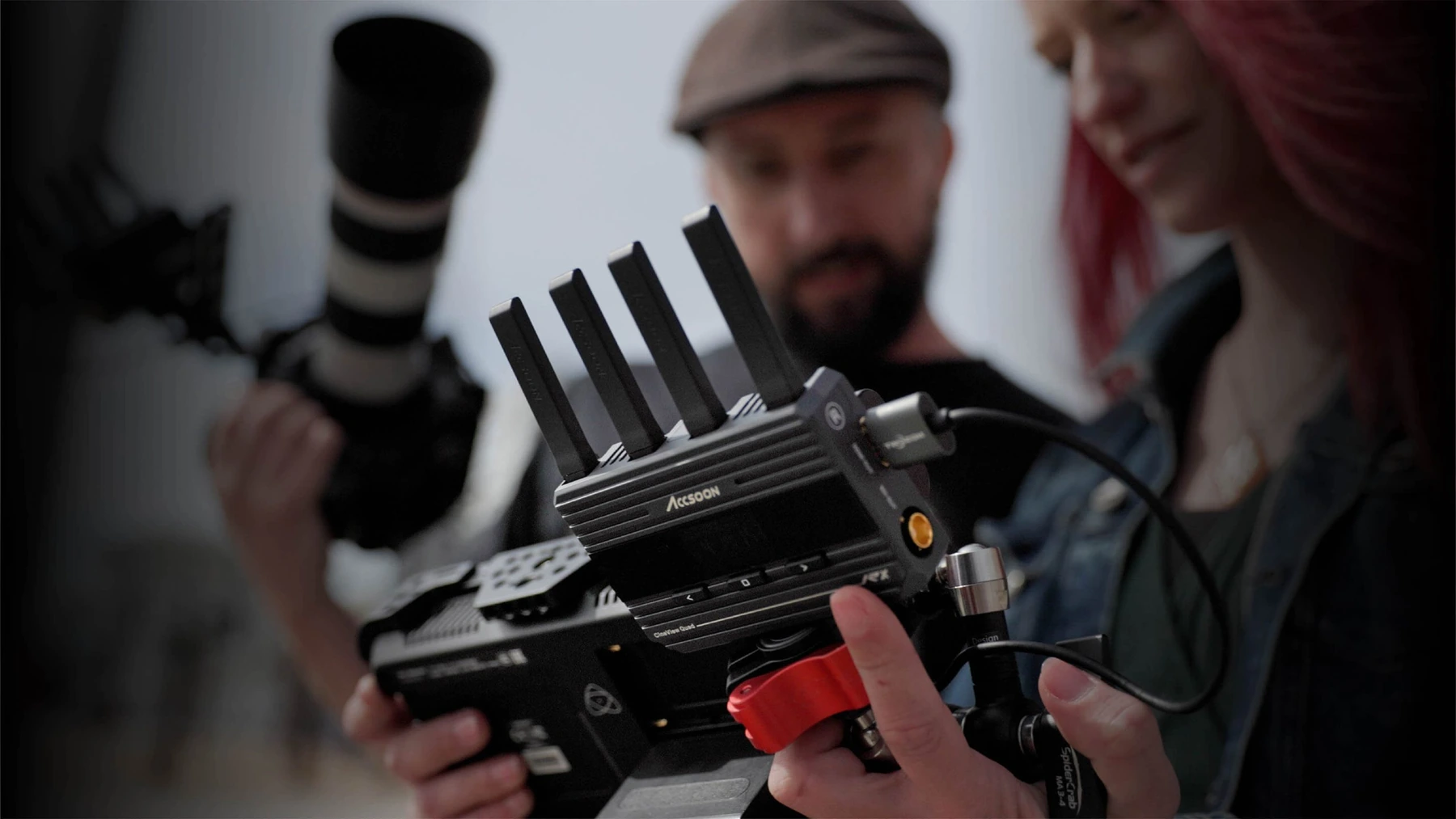

The manufacturer photograph shows CineView Quad RX connected at a monitoring position. The matching TX sends Full HD up to 60p simultaneously over 2.4 and 5 GHz; RX uses both streams for a more resilient link. Rated range is up to 150 m in clear line of sight without obstacles or interference, with system latency below 60 ms excluding camera delay. Camera, monitor and cables are separate equipment. The standalone receiver adds SDI and HDMI monitor outputs to a CineView Quad system. A compatible transmitter is required and purchased separately.
NP-F or external DC power

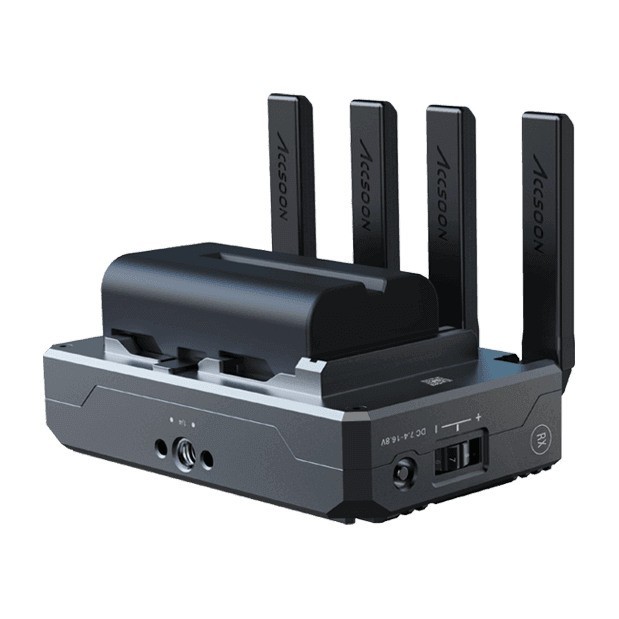

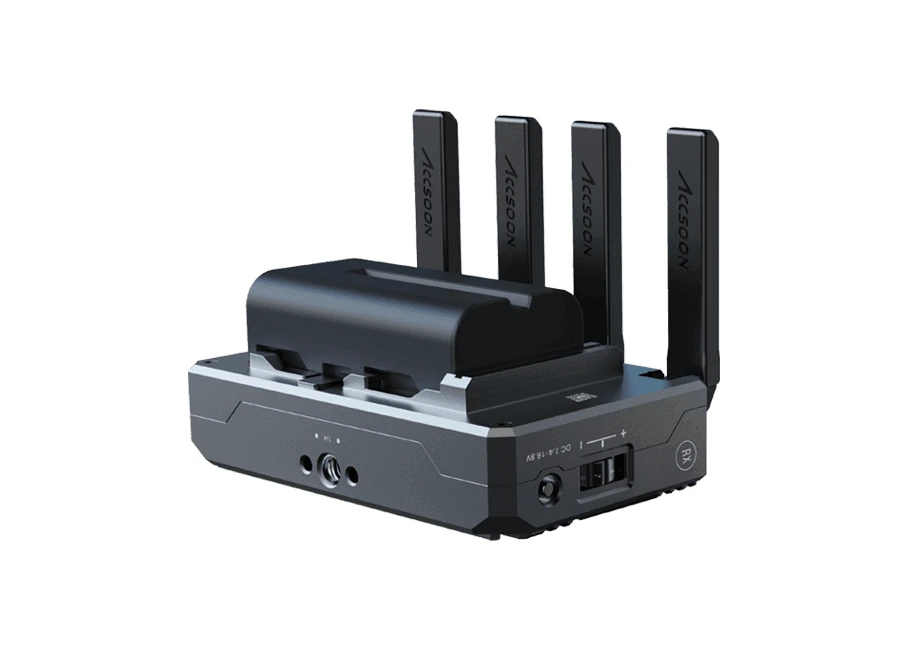

The manufacturer detail shows the receiver with an NP-F battery attached. Each unit accepts NP-F550/750/970 or 7.4–16.8 V DC through a 5.5 × 2.1 mm centre-positive socket. Typical consumption is 4.5 W for TX and 5 W for RX. The four antennas are integrated and fold down for transport. Batteries, supplies and power cables are purchased separately.

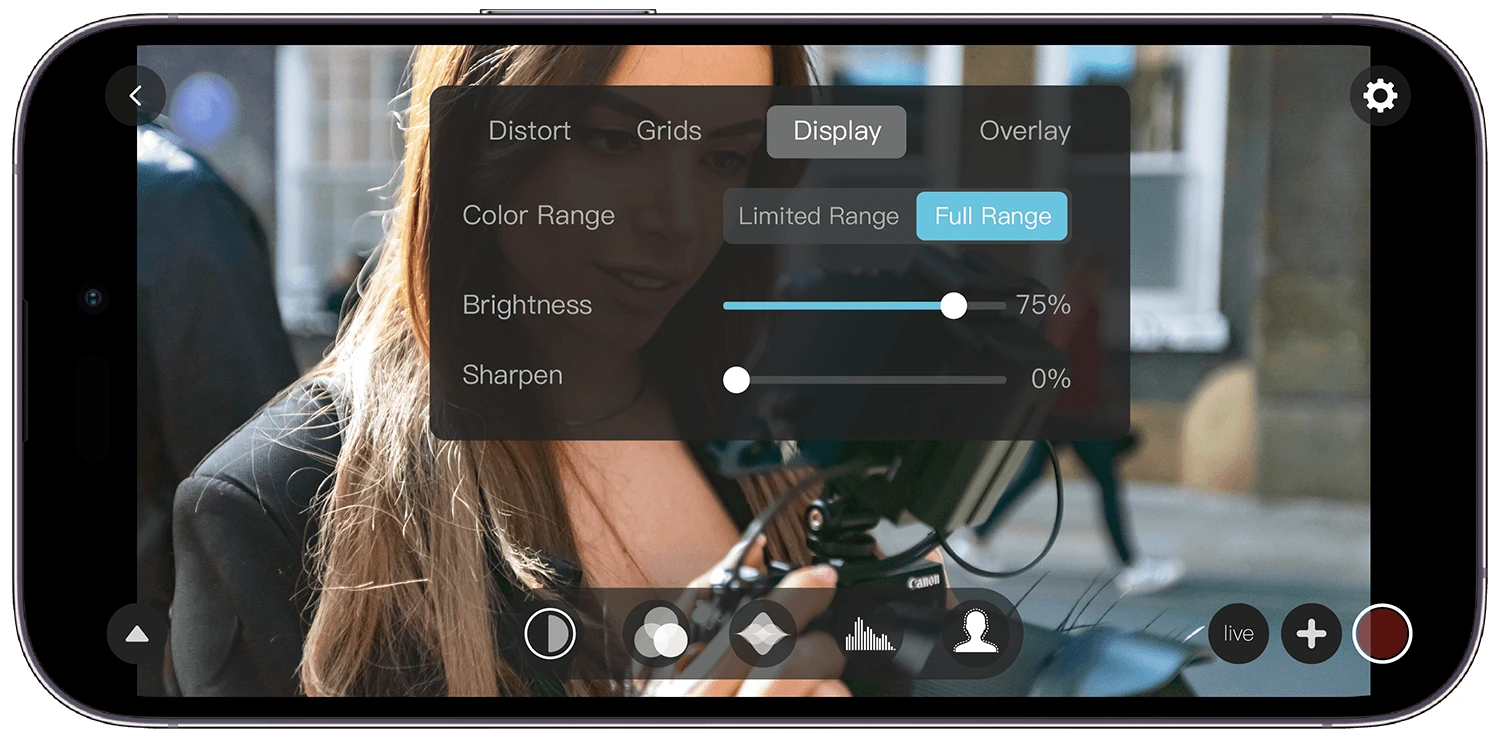

Adjust the mobile preview
The official app example illustrates display adjustments: colour range, brightness and sharpening. CineView Quad supports direct iOS/Android monitoring in Accsoon Go as described in its manual; the current support page also links Accsoon SEE. A phone or tablet receives directly from TX and uses one of its four wireless receiving slots. App features depend on the supported app version and mobile device.
A viewing look for Log footage

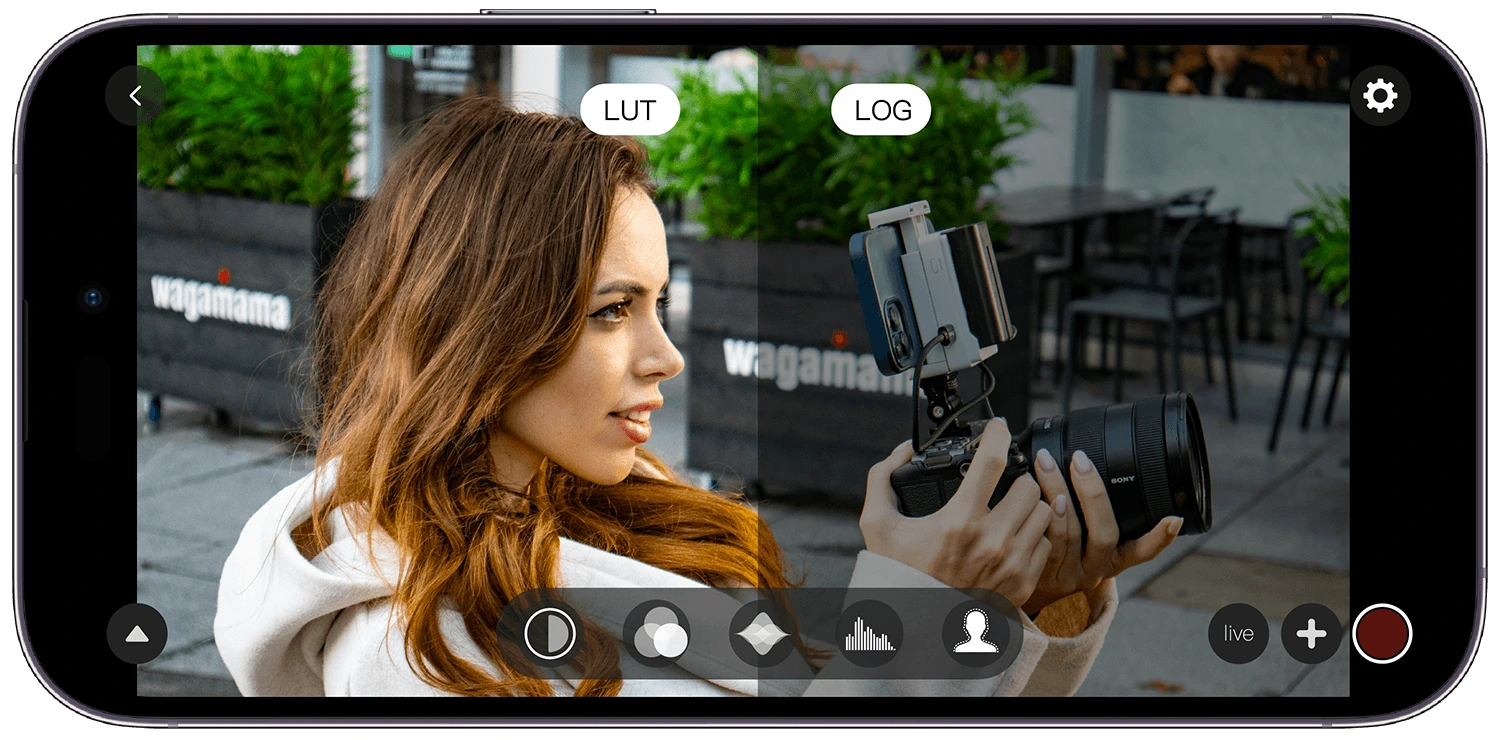

The manufacturer’s split-screen example compares a LUT preview with the original Log image. The mobile app supports 3D LUT viewing, focus peaking, histogram and false colour tools for checking a shot on set. Applying a preview look helps the crew judge the intended image; it does not change the camera’s original recording. The phone and camera in the example are not included.
Stream from the mobile app

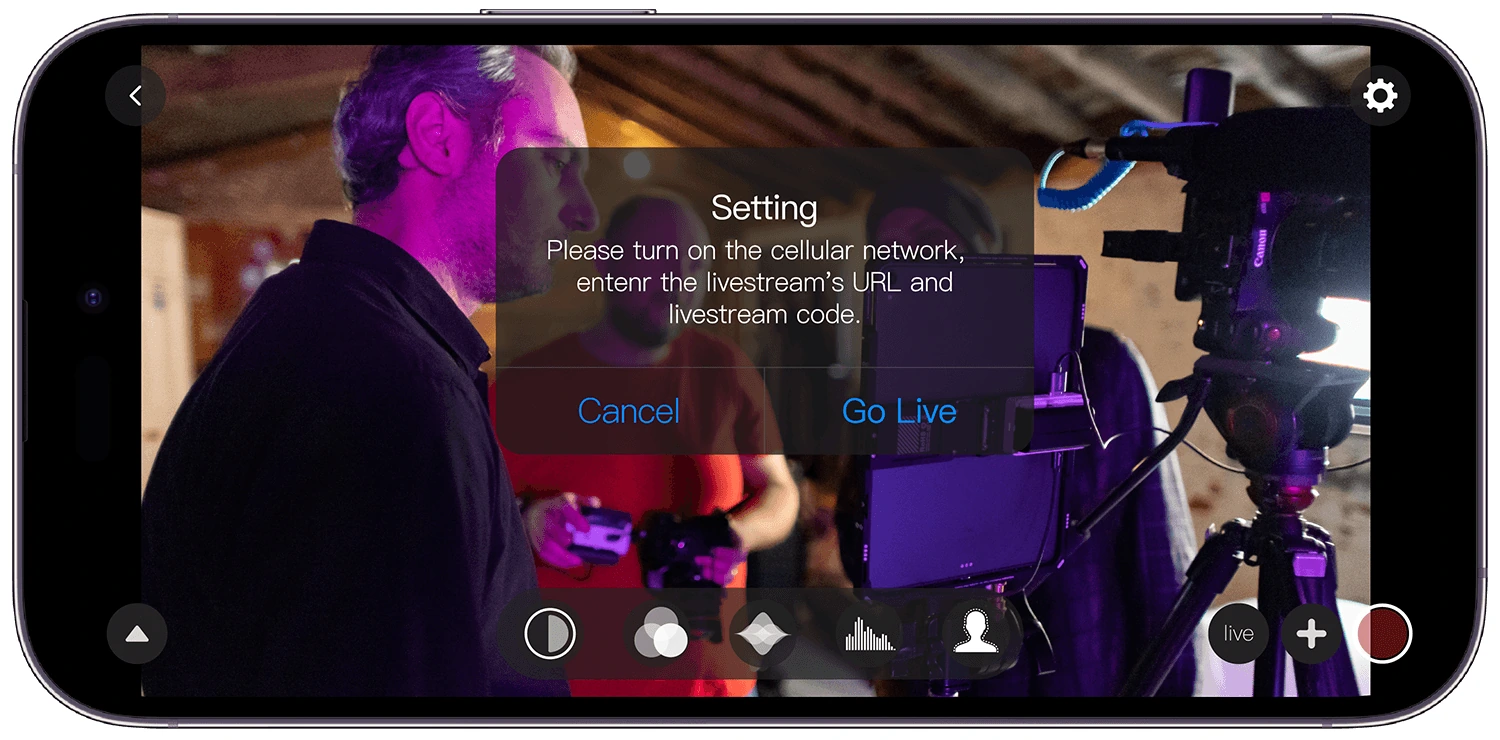

The illustrated dialog asks you to enable cellular Internet and enter the livestream destination and stream code. The mobile device needs its own Internet connection while receiving the TX video over Wi-Fi. Streaming is performed by the supported app, not by a USB output on Quad RX. Prepare the service account and connection separately; quality depends on the mobile network.
Match framing between takes

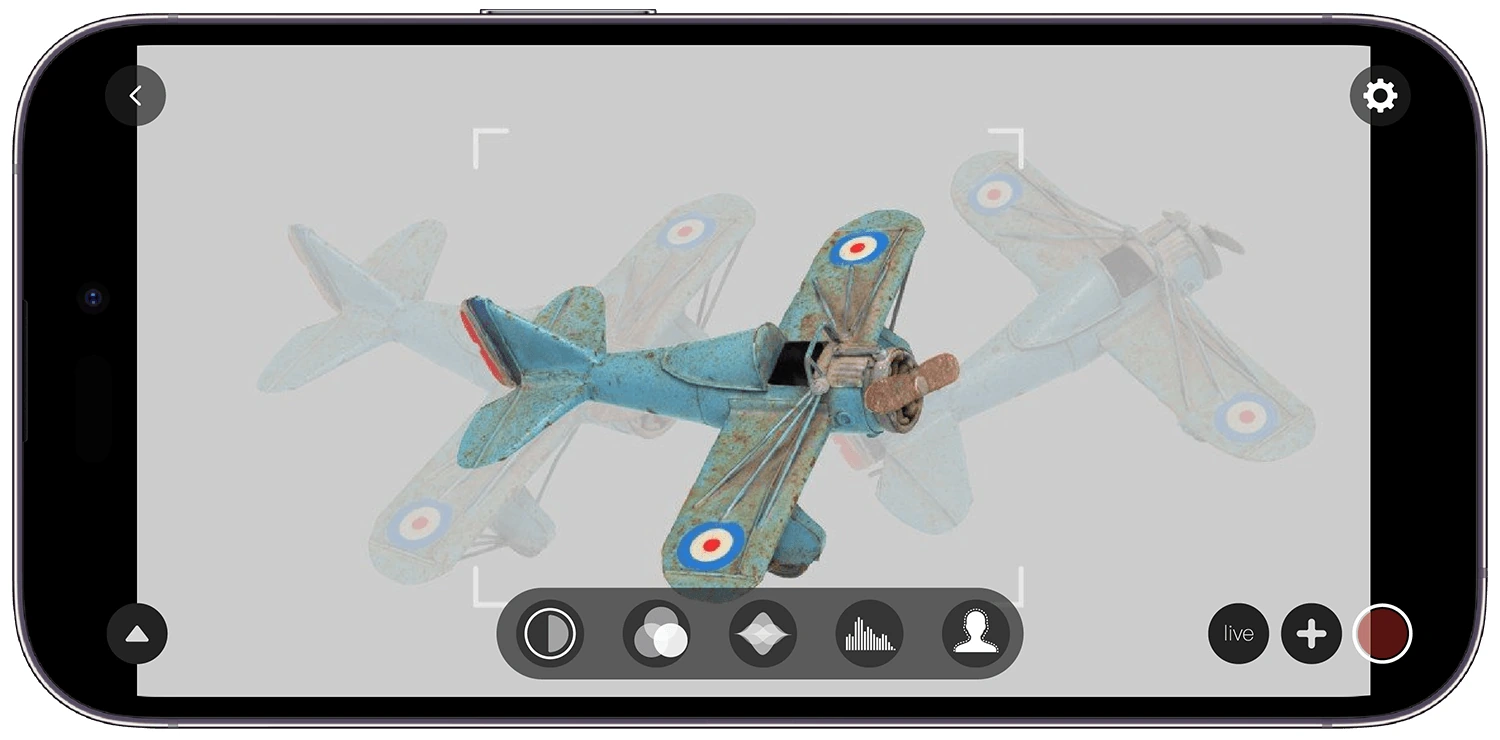

The official overlay example superimposes a reference image over the live picture. This helps compare composition and subject position between takes. Accsoon Go also offers video recording and playback for quick review; these mobile files are monitoring copies rather than the camera’s master recording. A mobile receiver counts toward the total four-device wireless limit.
Set up the link

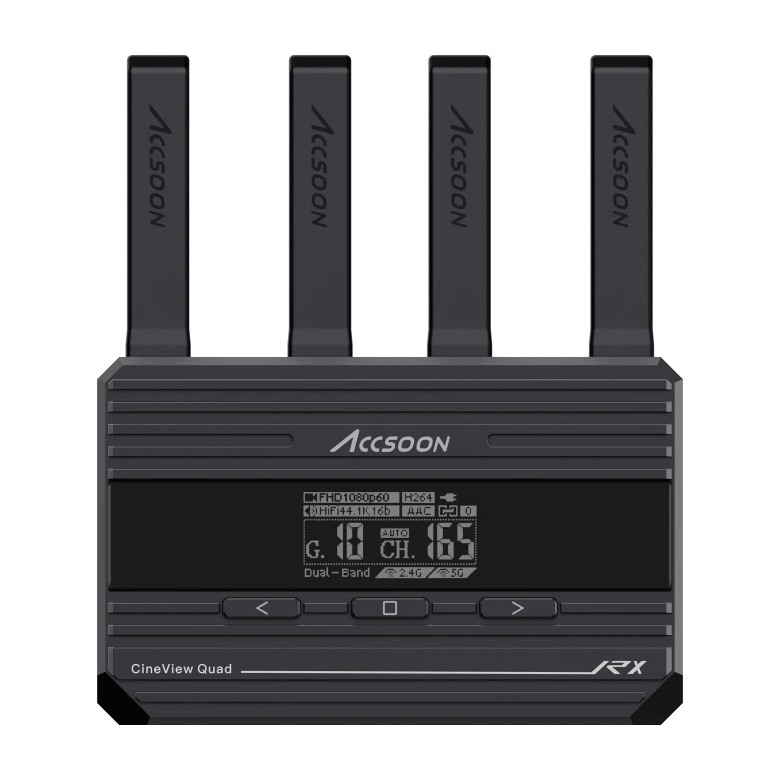

The 1.3″ OLED displays video format, group, channel, battery and connection status. Match group numbers on TX/RX and restart after changing the group. TX AUTO (A) selects a channel at power-on. The HQ, NOM and SPD modes prioritise quality, balance and speed respectively. CineView 2 SDI compatibility is documented by the newer manufacturer compatibility chart; use matching firmware and a shared video format.
PACKAGE CONTENT
- Receiver CineView Quad RX ×1
- Four integrated folding antennas on each unit
- Cold shoe mount adapter ×1
- User manual ×1
SPECIFICATIONS
- Package: 0 TX + 1 RX
- Wireless video: 1920 × 1080; ≤60p; H.264
- Bands: 2.4 GHz + 5 GHz
- Range: 150 m; clear LOS, no interference
- Latency: <60 ms; camera excluded
- Receiving slots: 4 total per TX
- Audio: 44.1/48 kHz; 16/24 bit PCM
- DC: 7.4–16.8 V; 5.5 × 2.1 mm; centre positive
- Battery: NP-F550/750/970
- OLED: 1.3″
- Unit dimensions: 105 × 66 × 31 mm; antennas excluded
- Unit weight: 225 g; antennas included
- Housing: Black fanless aluminium
- Mount: 1/4″
- Antennas: 4 integrated folding antennas/unit
- Temperature: −10–40 °C
- RX outputs: HDMI / SDI
- RX SDI: 1080p24/25/30/50/60; level A
- RX HDMI: 1080p24/25/30/50/60
- RX consumption: 5 W; typical
WE RECOMMEND
The Accsoon Cineview Quad RX is a professional wireless video receiver that utilizes dual-band transmission in the 2.4 GHz and 5 GHz bands for maximum signal stability. For effective operation, it is essential to ensure a reliable power supply using NP-F batteries and to use compatible mounting accessories for integration into camera setups or with monitoring screens.
Power Supplies and Chargers - Accessories for powering and charging the NP-F standard batteries used by the receiver.
Mounting and Attachment - Components for secure and flexible mounting of the receiver to monitors, gimbals, or rigs.
- Accsoon Adapter for Monitor
- Accsoon V-Lock Adapter
- Accsoon Adapter for Gimbal
- Accsoon Phone Clamp
- Accsoon TopRig Ball Head
Monitoring and iPad cages - Cages and mounts that allow you to use tablets and phones as professional viewfinders within the Accsoon ecosystem.
Cables and Transport - Essential accessories for connecting video signals and protecting equipment during transport.
Parameters
| Manufacturer: | Accsoon |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | NP-F550 · NP-F750 · NP-F970 · DC |
| Material | Aluminium alloy |
| Colour | Black |
| Mounting interface | 1/4″-20 |
| Functions | Fanless cooling · Group dial pairing |
| DC power connector | 5.5 × 2.1 mm socket, centre positive |
| Audio sampling frequency | 44.1 kHz · 48 kHz |
| Audio bit depth | 16-bit · 24-bit |
| Output connector | HDMI type A – female · BNC – female |
| 3G-SDI output level | A |
| Compatible Wireless System | CineView 2 SDI · CineView Quad |
| Video codec | H.264 |
| Status Display Type | OLED |
| Functions | Integrated folding antennas |
| Line-of-sight range | 150m |
| Unit dimensions without antennas | 105x66x31mm |
| Weight per unit | 225g |
| Receivers in package | 1 |
| Maximum receiving devices | 4 |
| Maximum transmission resolution | 1920x1080px |
| Maximum frame rate | 60fps |
| DC input voltage range | 7.4x16.8V |
| Status display diagonal | 1.3″ |
| Operating temperature | -10x40°C |
| Typical receiver power consumption | 5W |
| Number of antennas per unit | 4 |
| Latency | <60 ms |
| Input | Wireless video reception |
| Output | 3G-SDI · HDMI |
