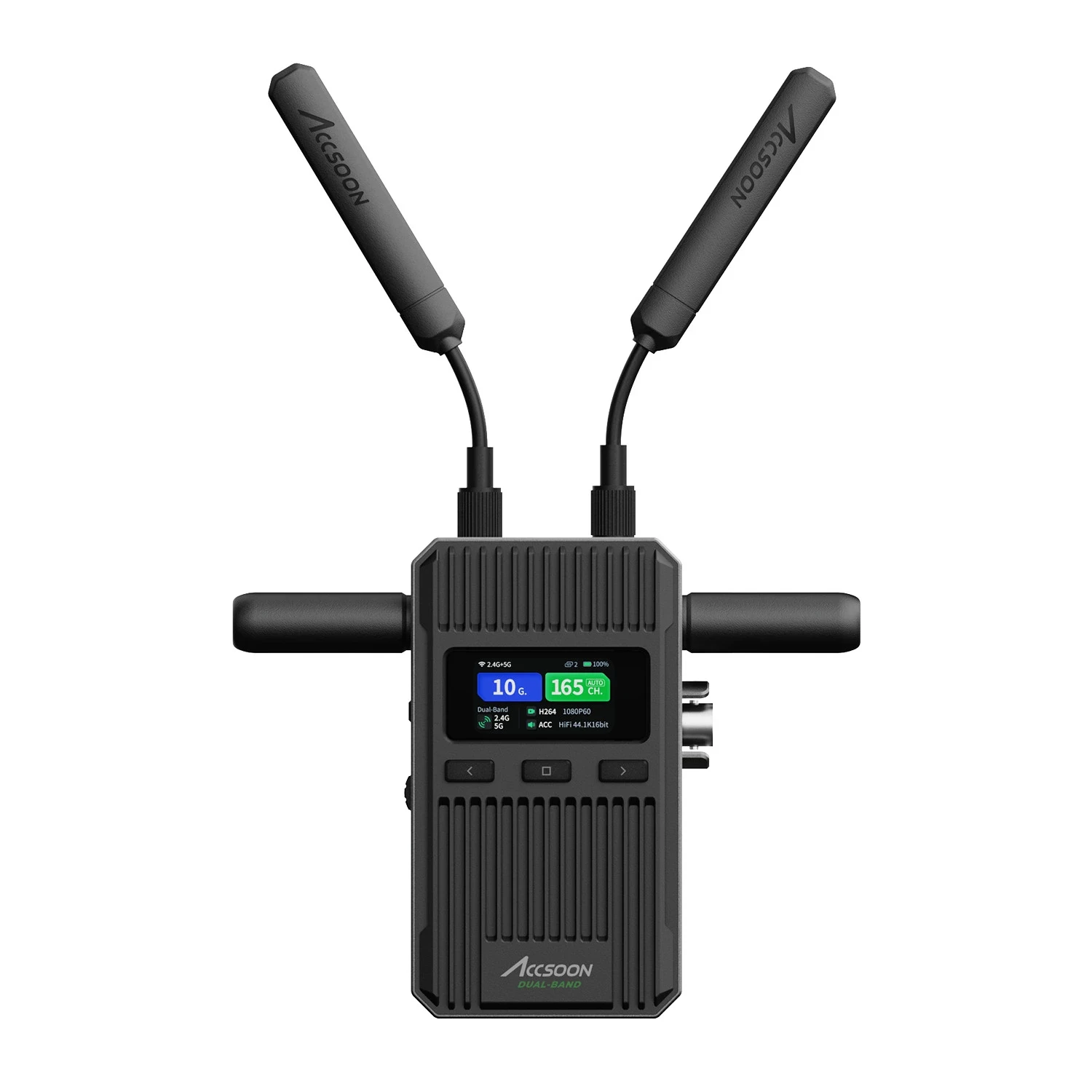

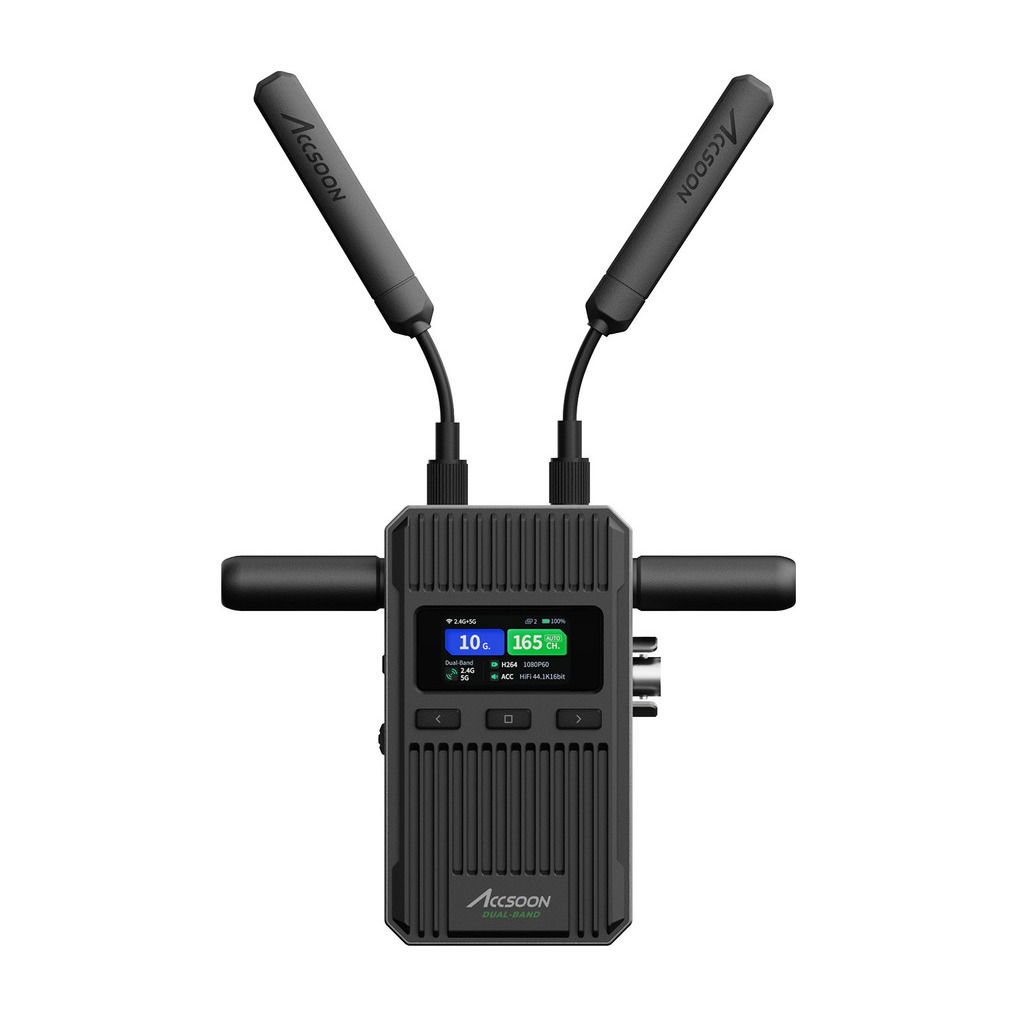

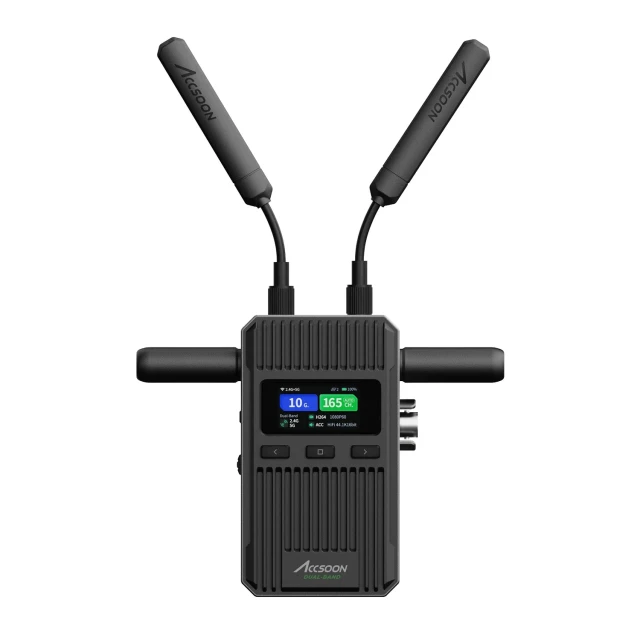

Accsoon CineView 2 SDI RX only
SKU: ACC-WIT08-S-RX
Accsoon CineView 2 SDI RX is a standalone wireless receiver for camera crews, directors and mobile monitoring. The link carries Full HD up to 60p and H.264 video over simultaneous 2.4 and 5 GHz bands, with system latency below 50 ms excluding the camera and range up to 450 m in unobstructed, interference-free line of sight. This standalone receiver adds SDI,…
301 € with VAT
248.76 € without VAT
Availability
Shipment day: 29. 10.
Shipment day: 29. 10.
2 pcs in stock at the supplier
Top accessories for Accsoon CineView 2 SDI RX only
Tilta NP-F970 Battery (10500mAh) - Green
The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera
47 €
In stock > 5 pcs
PremiumCord 4K HDMI 2.0b High Speed + Ethernet cable, gold-plated connectors, 1 m
High-quality interconnect cable for connecting two audio/video devices via modern
3.2 €
In stock 4 pcs
PremiumCord USB-C angled 90° cable (USB 3.2 GEN 2x2, 5A, 100W, 20Gbit/s) aluminum caps, cotton braid, 1m
PremiumCord USB-C 90° Angled Cable (USB 3.2 Gen 2x2, 5A, 100W, 20Gbit/s) with aluminum
11 €
In stock 2 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
A flat two-channel Tilta charger for Sony L-Series / NP-F batteries and compatible
18 €
In stock 5 pcs
Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G
The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,
108 €
To be sent 2 pcs
Canare L-2.5CHWS BNC / BNC 0,4 m, GRY
Assembled SDI cable, Canare L-2.5CHWS, 0.4 m long, terminated with BNC and BNC c
13 €
In stock 1 pcs
PremiumCord Slim HDMI 2.0 High Speed + Ethernet Cable, Gold-Plated, 0.5 m
PremiumCord Slim HDMI High Speed + Ethernet cable, gold-plated connectors, 0.5m
5 €
on request
Tilta NP-F550 Battery (3500mAh) - Green
The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera
23 €
on request
Accsoon HDMI Cable (A-A)
Accsoon HDMI Cable (A-A) is a 50 cm male-to-male cable connecting cameras, external
12 €
Backordered 1 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Accsoon CineView 2 SDI RX is a standalone wireless receiver for camera crews, directors and mobile monitoring. The link carries Full HD up to 60p and H.264 video over simultaneous 2.4 and 5 GHz bands, with system latency below 50 ms excluding the camera and range up to 450 m in unobstructed, interference-free line of sight. This standalone receiver adds SDI, HDMI and USB-C UVC outputs to a compatible CineView system. A compatible transmitter is required and purchased separately. One TX supports up to four wireless receiving devices in total. Each unit has a fanless aluminium body, 1.47″ full-colour LCD and NP-F, 7.4–16.8 V DC or USB-C 5 V / 3 A power options. RX provides HDMI, SDI and a separate USB-C UVC video output for a computer. Batteries, cables and monitoring equipment are purchased separately.
ACCSOON CINEVIEW 2 SDI · RX
Video at your monitor
This standalone receiver adds SDI, HDMI and USB-C UVC outputs to a compatible CineView system. A compatible transmitter is required and purchased separately.
Full HD 60p450 m<50 ms

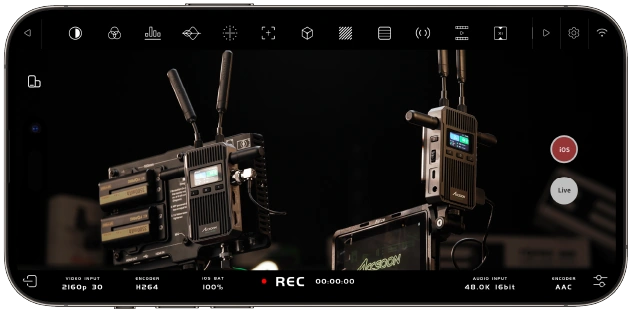

Camera-side monitoring
The manufacturer app photograph shows the exact CineView 2 SDI camera-side transmitter and mobile monitoring. Connect the camera’s SDI or HDMI output to TX. Phones receive directly in Accsoon SEE, while a compatible hardware RX supplies a remote monitor. Camera, mobile device and monitors are not included. The transmitter shown is purchased separately for this RX-only package.

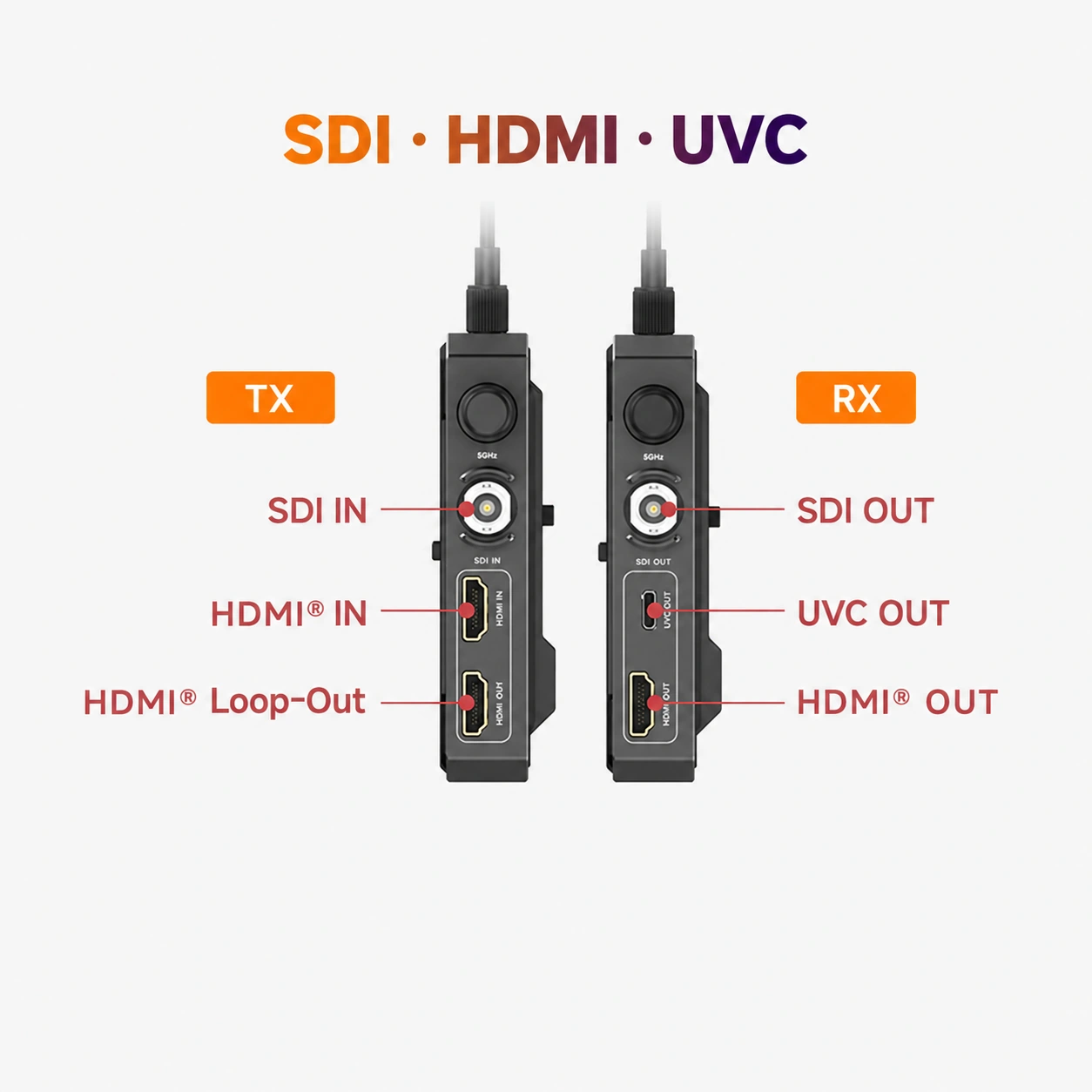

4K local, Full HD wireless
TX accepts SDI and HDMI and provides local HDMI loop-out. HDMI input and local loop support DCI/UHD 4K up to 60p, while wireless transmission and RX output remain Full HD up to 60p. TX accepts 3G-SDI level A/B; RX outputs SDI level A, HDMI and USB-C UVC. The diagram distinguishes the TX inputs on the left from RX outputs on the right. Only RX is included; TX is purchased separately.

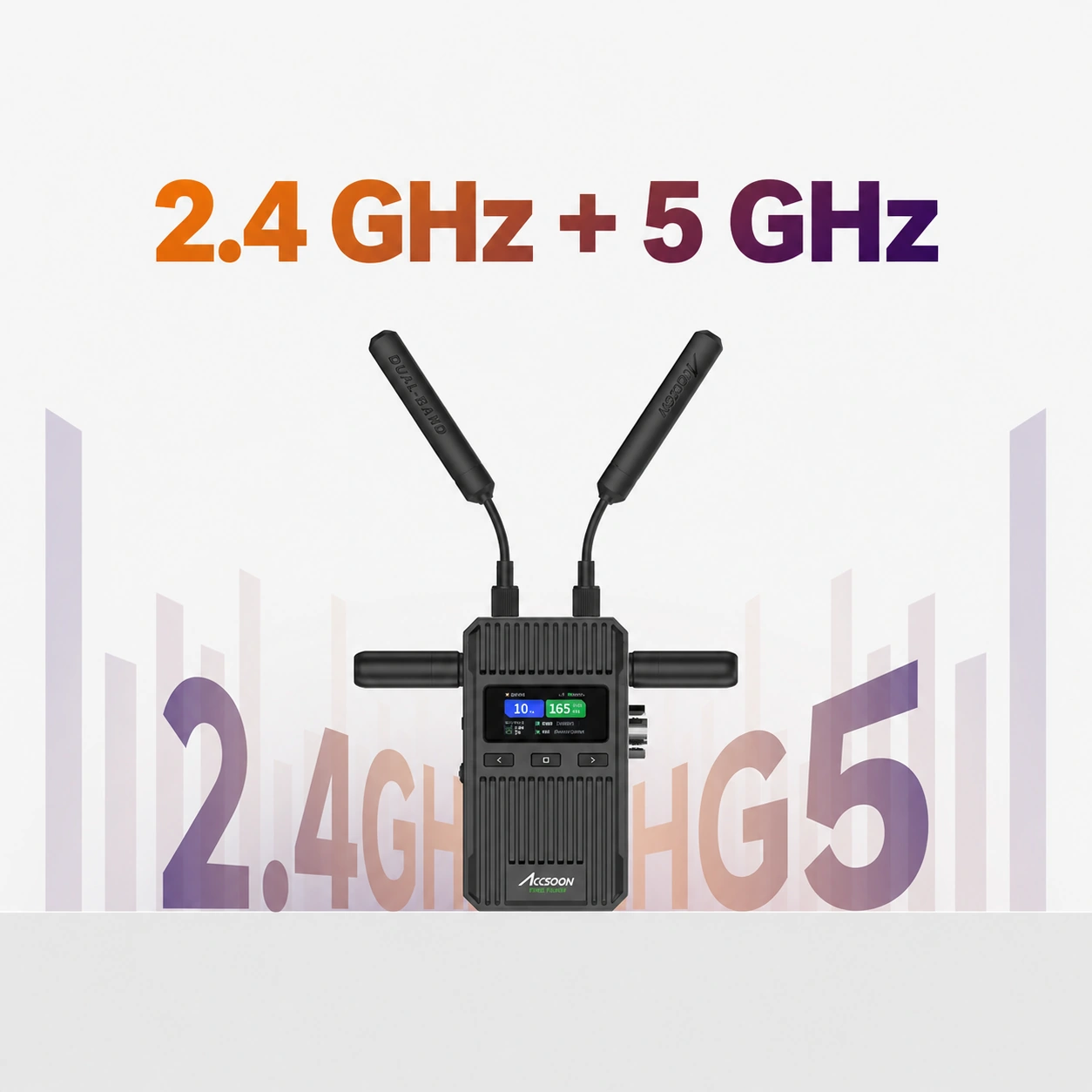

Two bands together

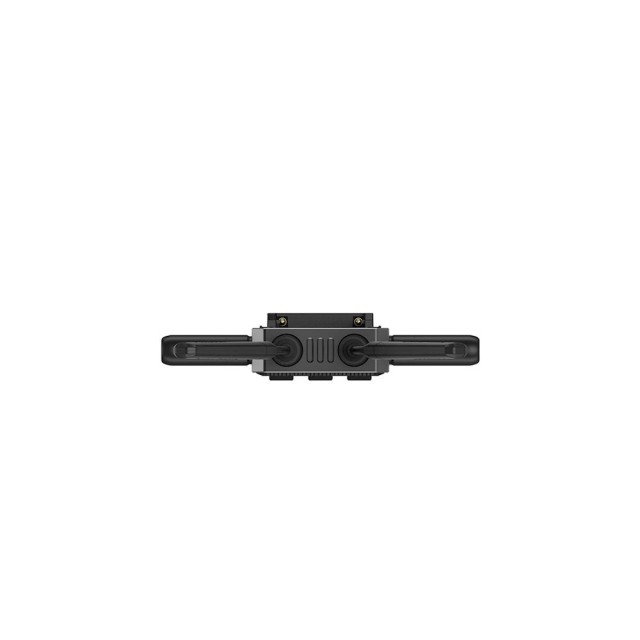

CineView 2 SDI sends the picture simultaneously over 2.4 and 5 GHz. The receiver uses both data streams for a more resilient link. Two longer upper and two shorter side antennas are part of this generation’s new construction. Interference and obstacles remain possible; careful unit placement is still needed for reliable monitoring.
Room for camera movement
The manufacturer specifies range up to 450 m in line of sight without obstacles or interference. System latency is below 50 ms, excluding camera latency. Walls, radio traffic and receiver position can reduce practical range. The illustration shows the rated range rather than a guaranteed link in every environment.

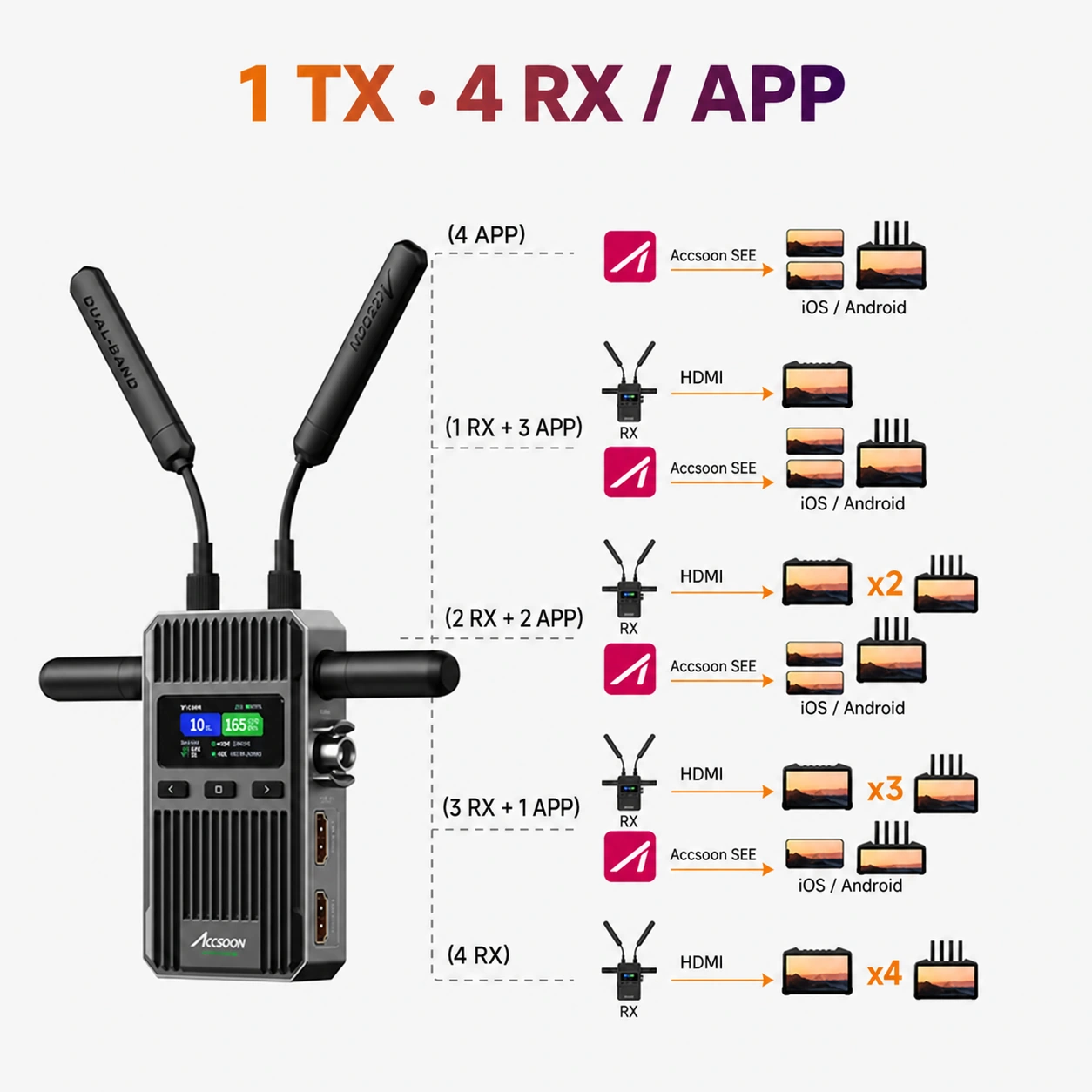

One source, four devices
One TX supports up to four wireless receiving devices in total: compatible RX units or phones/tablets with Accsoon SEE. The five diagram rows are alternative combinations, not five simultaneous links. A wired monitor after RX or TX’s local HDMI monitor does not consume another wireless slot. This receiver uses one slot of a separately purchased transmitter.

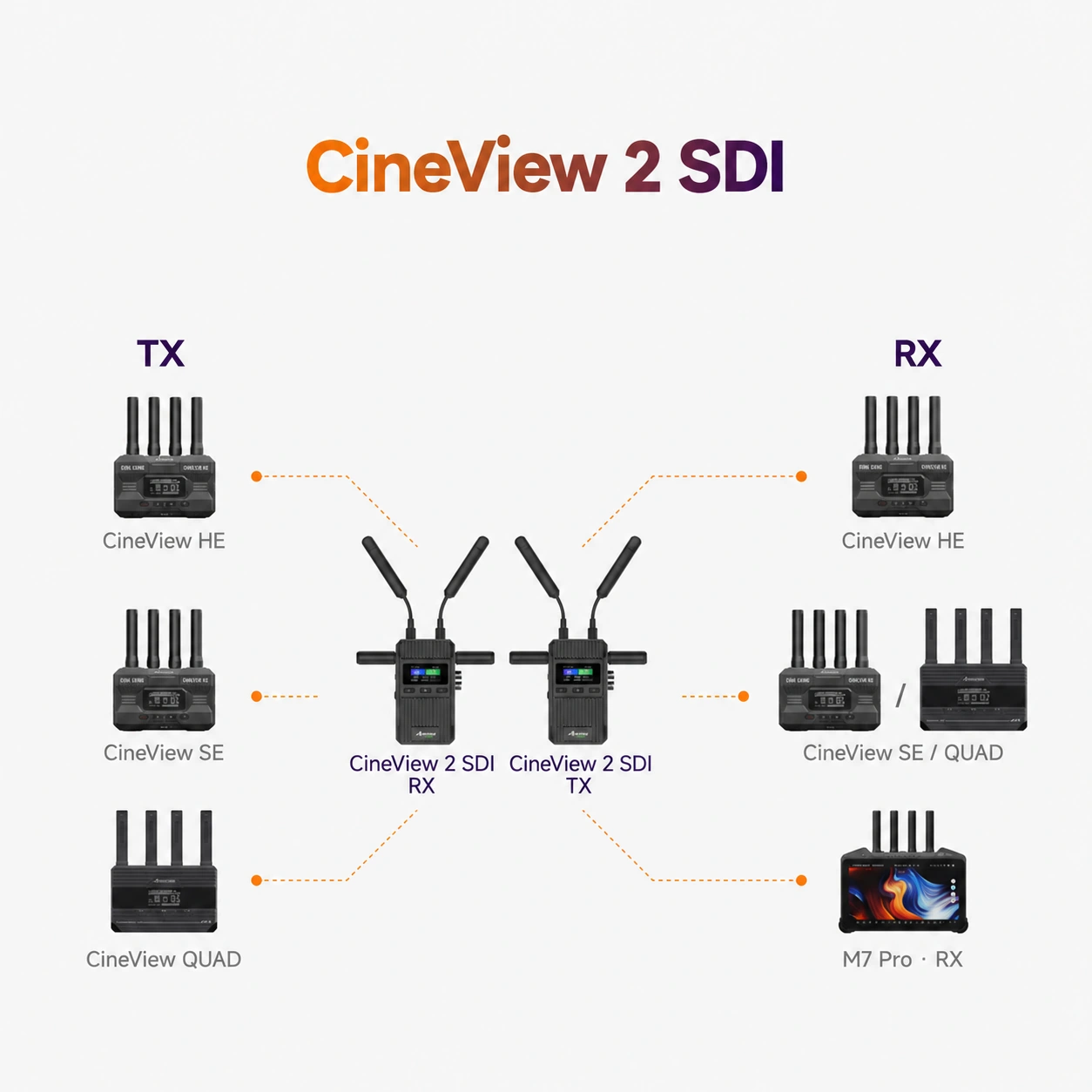

Extend your CineView system
The manufacturer specifies compatibility with CineView SE, HE and Quad. CineView 2 SDI TX can also feed a CineView M7 Pro monitor in RX mode. The diagram illustrates possible transmitter/receiver pairings, not the contents of the package. Check TX/RX roles and a mutually supported video format.

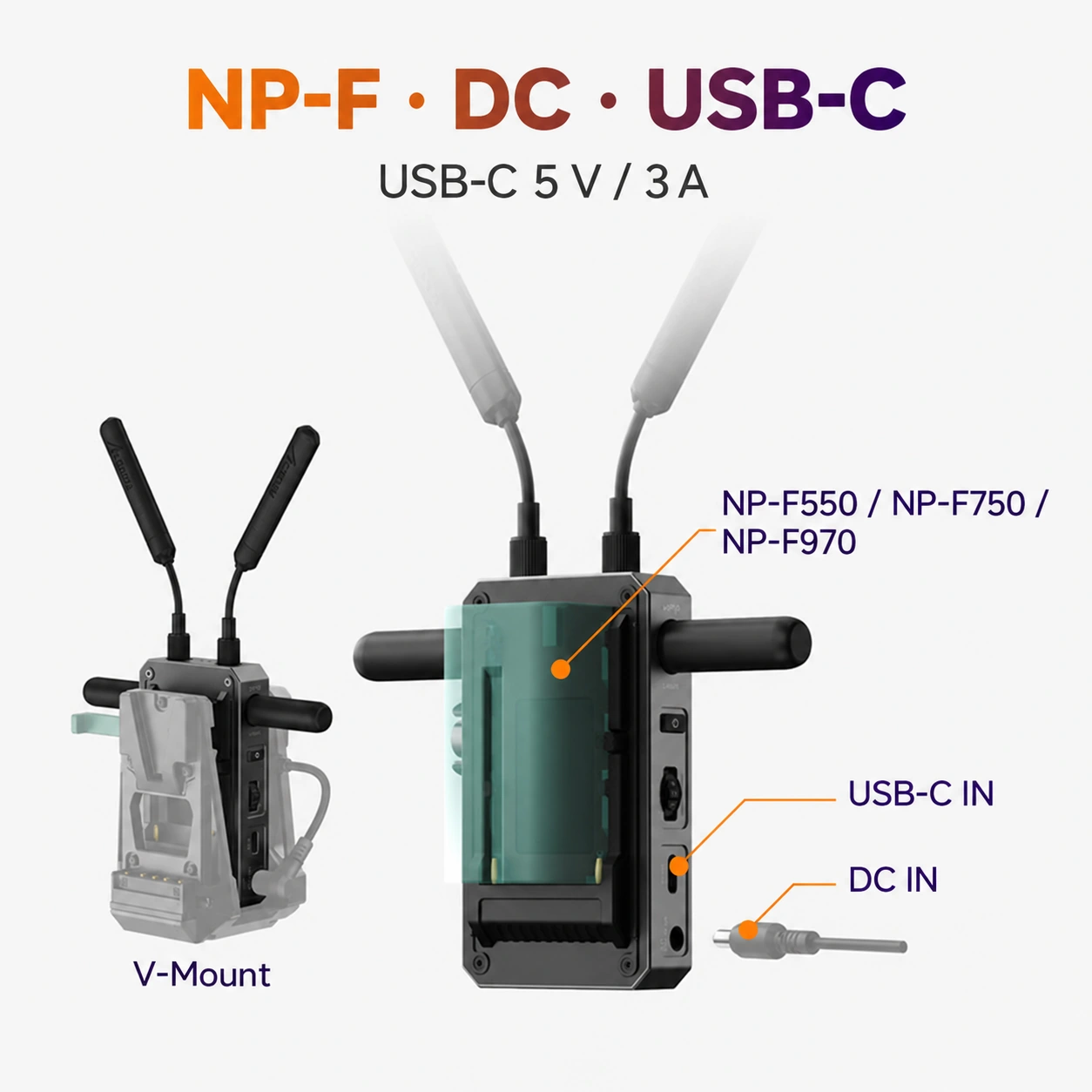

Three power options

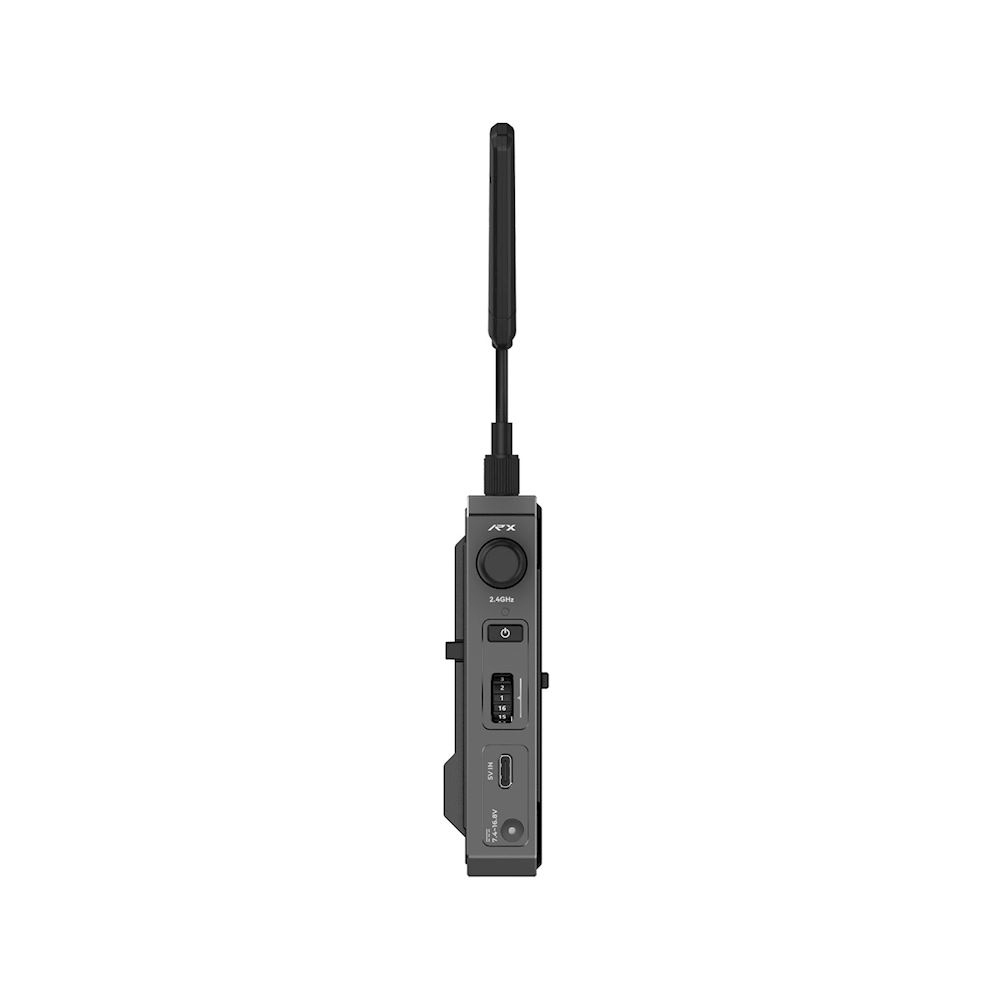

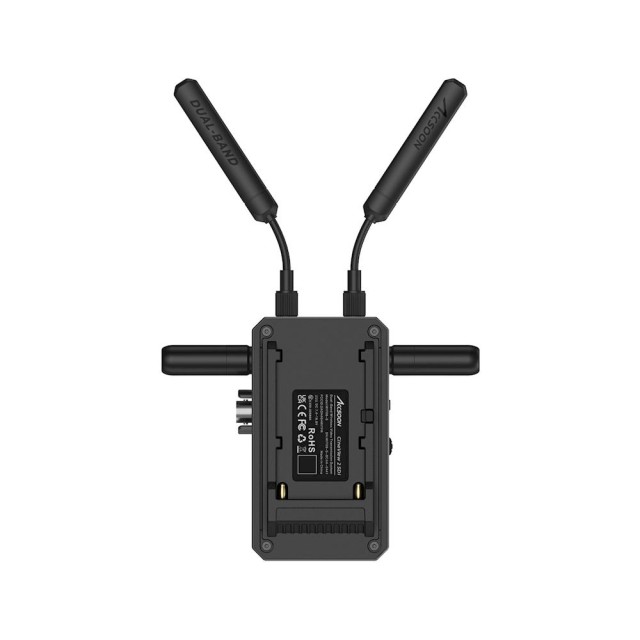

Each unit accepts an NP-F550/750/970 battery, 7.4–16.8 V DC or its separate USB-C power input at 5 V / 3 A according to manual v2.0. The 5.5 × 2.1 mm DC socket is centre positive. TX draws below 6 W and RX below 5 W. The illustrated V-Mount option requires a separate adapter; batteries, supplies and cables are purchased separately.

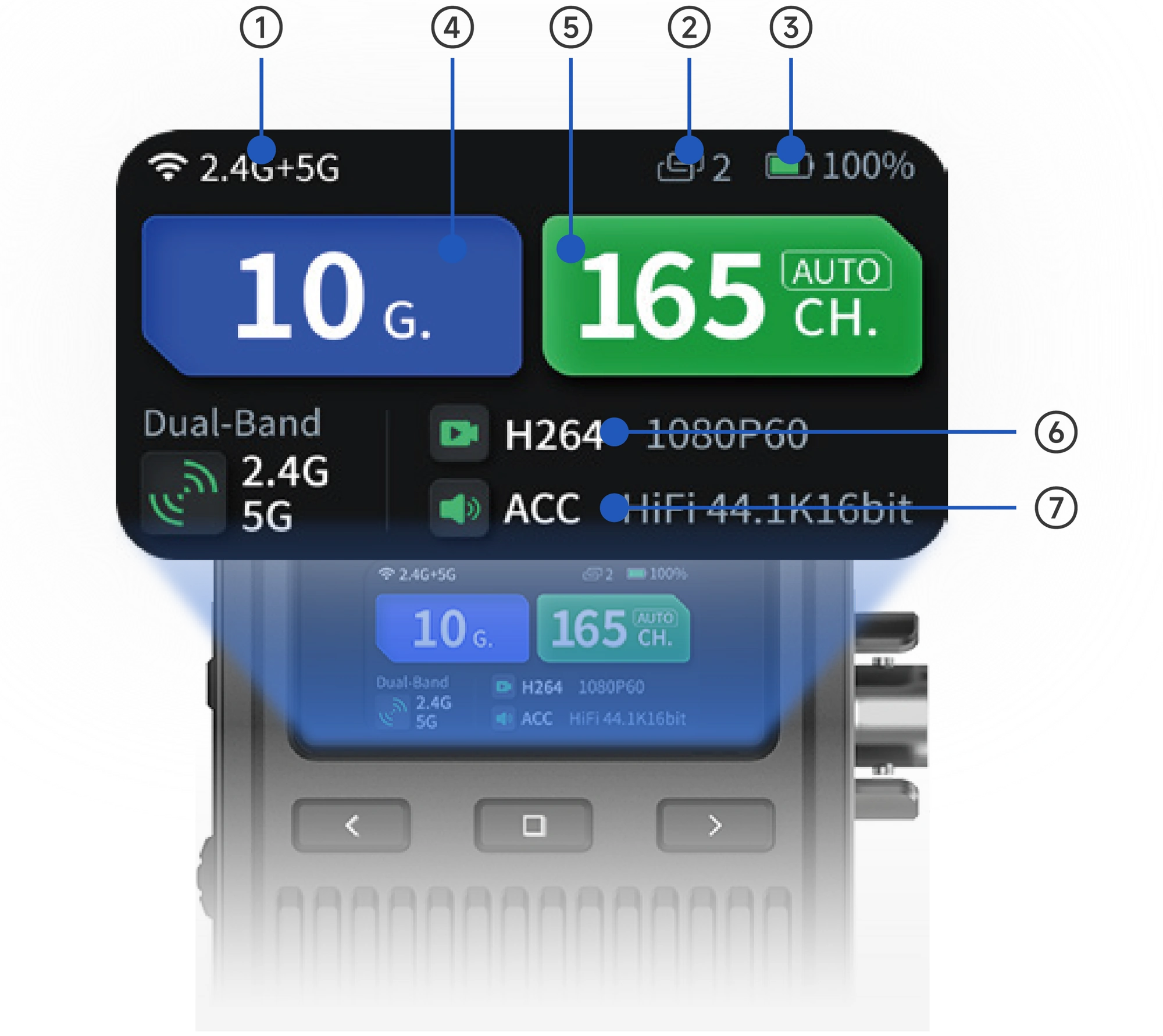

Link status on the display

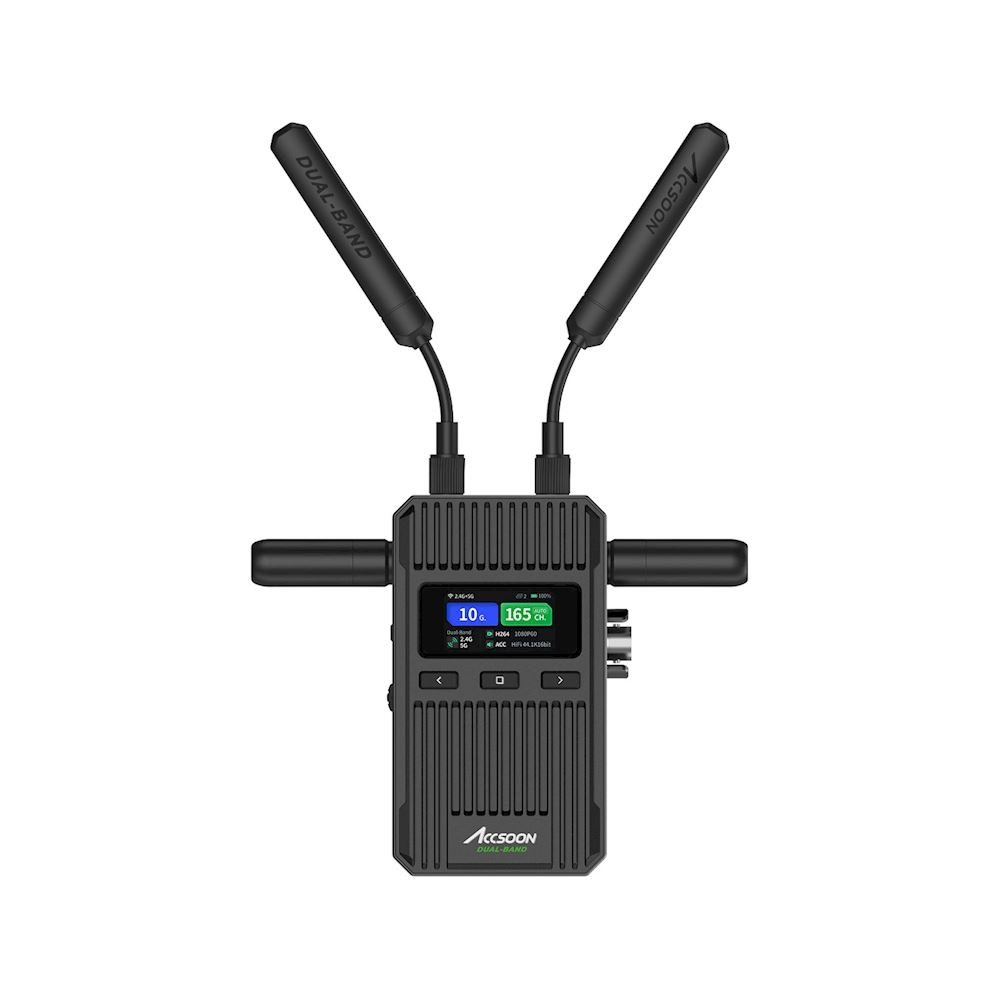

The 1.47″ full-colour LCD shows the numbered diagram’s 1 signal strength, 2 connected-device count, 3 battery level, 4 group, 5 channel, 6 video format and 7 audio. Set matching groups on TX and RX and restart after changing them. At startup, TX in AUTO (A) selects a suitable channel; RX follows the transmitter.

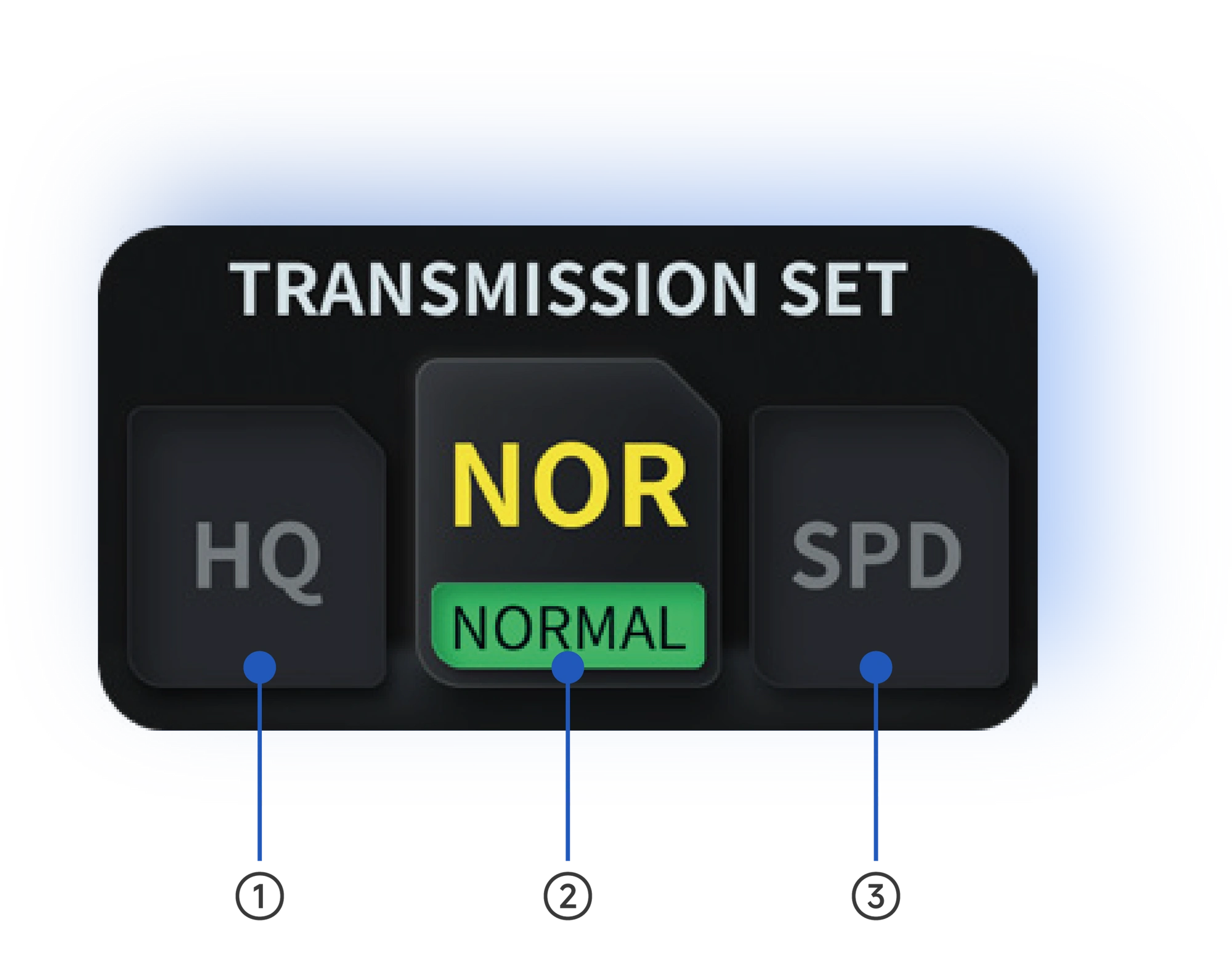

Choose a transmission mode
The device menu offers HQ, NOR and SPD. HQ prioritises picture quality, NOR balances performance and SPD prioritises speed. Adjust the mode to the environment and monitoring needs. Follow the manual for mobile-app live streaming; the illustration shows the actual device interface.

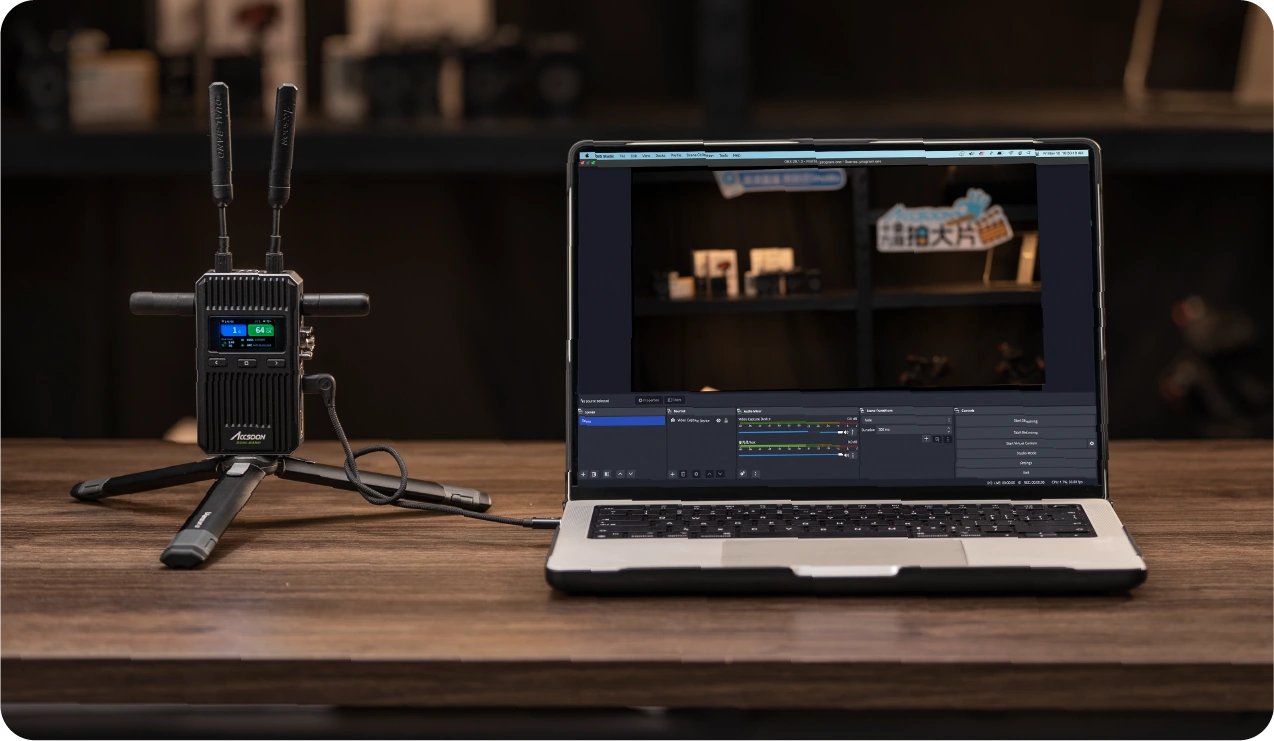

Video directly to a computer
RX provides a separate USB-C UVC video output for a computer. The manufacturer photograph shows the exact receiver connected to a laptop for monitoring and streaming software. This is a different socket from USB-C power. RX also supplies HDMI and SDI outputs simultaneously; prepare Internet access, a computer and a USB data cable separately.

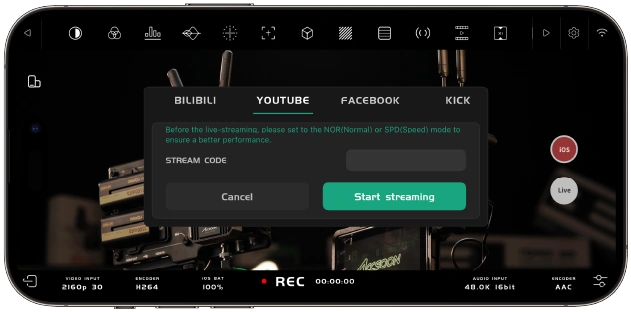

Monitor and stream in Accsoon SEE
An iOS or Android phone or tablet receives directly from TX in Accsoon SEE and occupies one wireless slot. The app includes waveform, zebra, false colour, focus tools, LUT preview, recording and overlays. The interface example shows RTMP destination and key entry; streaming requires the mobile device’s own Internet connection and a suitable NOR/SPD setting according to the manual.

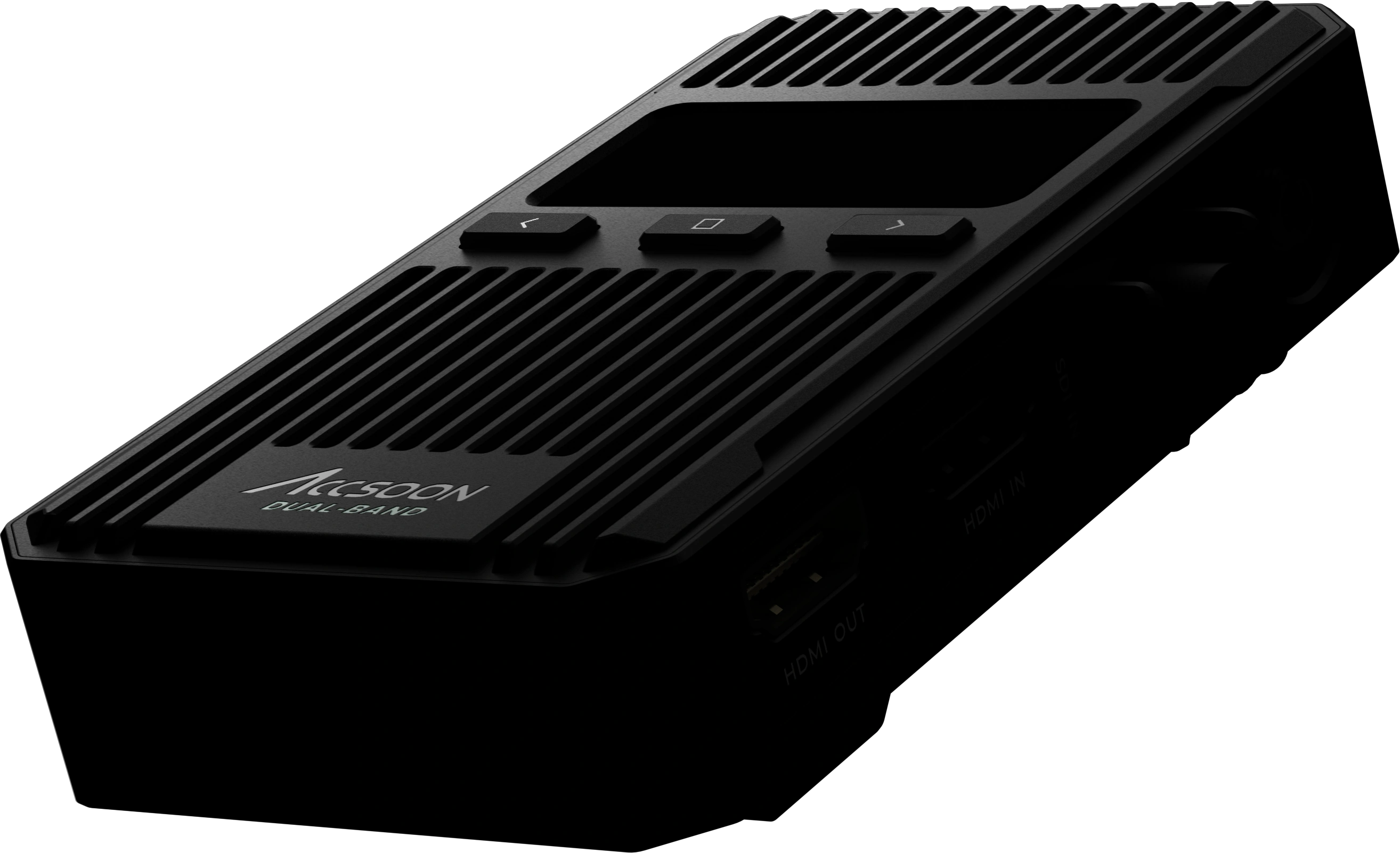

Quiet, compact construction

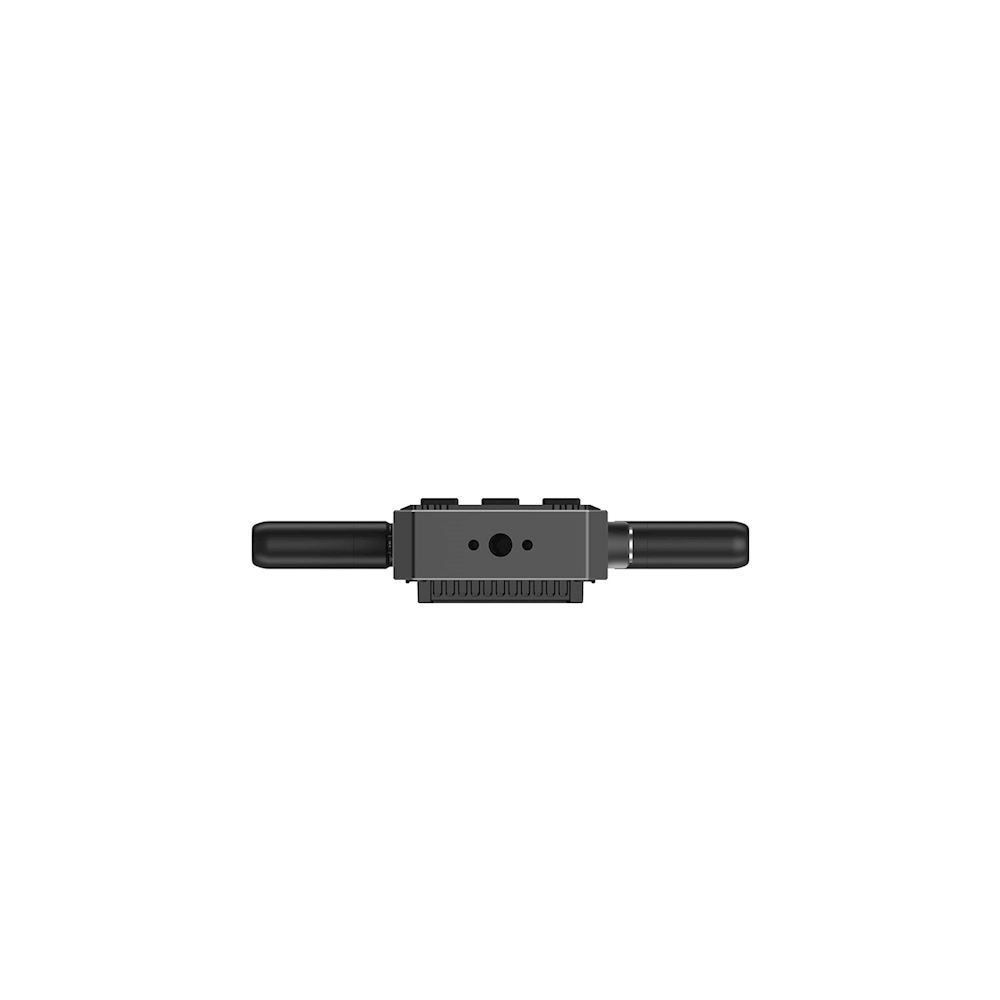

The fanless aluminium housing adds no fan noise. Each unit measures 60 × 27.5 × 106.5 mm and weighs 210 g without antennas. A 1/4″-20 thread with anti-rotation support helps mounting on a camera rig or stand. Operating temperature is −10 to 40 °C; the manufacturer detail illustrates passive cooling construction.
PACKAGE CONTENT
- Receiver Accsoon CineView 2 SDI RX ×1
- Antennas for the unit ×4
- Cold shoe mount adapter ×1
- User manual / warranty card ×1
SPECIFICATIONS
- Package: 0 TX + 1 RX
- Wireless video: 1920 × 1080, ≤60p; H.264
- Bands: 2.4 GHz + 5 GHz
- Range: Up to 450 m LOS, no obstacles/interference
- Latency: <50 ms; camera excluded
- Receivers: 4 wireless devices total per TX
- Audio: 44.1 / 48 kHz; 16 / 20 / 24 bit
- DC: 7.4–16.8 V; 5.5 × 2.1 mm; socket, centre positive
- USB-C power: 5 V / 3 A
- Battery: NP-F550 / NP-F750 / NP-F970
- LCD: 1.47″; full-colour
- Housing: Fanless aluminium, black
- Mount: 1/4″-20; anti-rotation
- Antennas: 4 per unit: 2 long + 2 short
- RF: 20 dBm; 2.4 / 5 GHz
- Unit dimensions: 60 × 27.5 × 106.5 mm; antennas excluded
- Unit weight: 210 g; antennas excluded
- Temperature: −10–40 °C

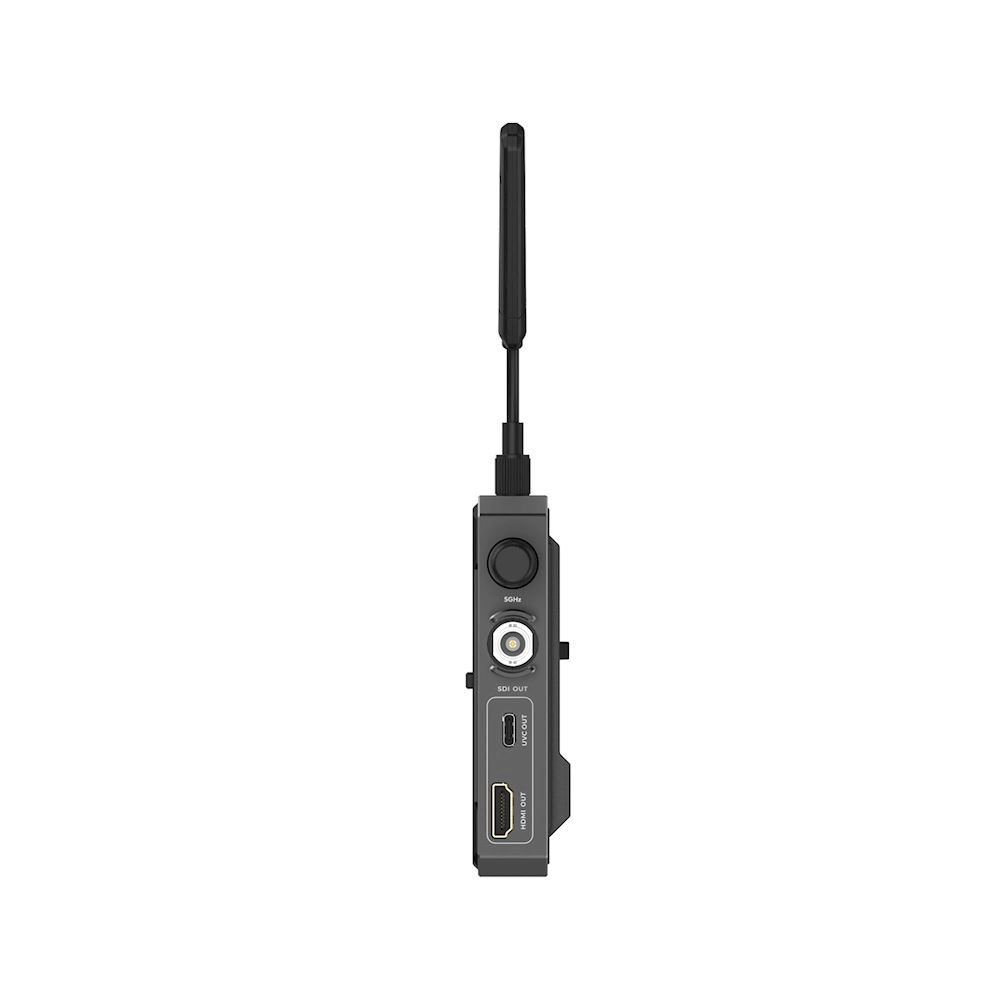

- RX outputs: HDMI type A / BNC SDI level A / USB-C UVC
- RX format: 1080p24/25/30/50/60; 1080i50/60; 720p50/60
- RX power: <5 W
WE RECOMMEND
The Accsoon CineView 2 SDI RX is a professional wireless video receiver with dual-band transmission (2.4 GHz and 5 GHz) that requires a stable NP-F power supply and offers flexible mounting options. For maximum efficiency on set, it is recommended to supplement it with fast chargers, mounting adapters for monitors, and protective transport cases.
Power Supplies and Chargers - Accessories for powering the receiver using NP-F standard batteries.
Mounting and Attachment - Adapters and heads that allow for secure attachment of the receiver to monitors, gimbals, or camera cages.
- Accsoon Adapter for Monitor
- Accsoon V-Lock Adapter
- Accsoon Adapter for Gimbal
- Accsoon Phone Clamp
- Accsoon TopRig Ball Head
Cages and mounts for monitoring - Mounts and cages for tablets used as display devices for the received signal.
Rigs and Stabilizers - Components for building camera rigs and sliders where wireless monitoring is required.
Other Accessories - Connection cables and carrying cases for safe handling of equipment.
Parameters
| Manufacturer: | Accsoon |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | NP-F550 · NP-F750 · NP-F970 · DC · USB-C |
| Material | Aluminium alloy |
| Colour | Black |
| Mounting interface | 1/4″-20 |
| Functions | USB-C UVC output · Fanless cooling · Group dial pairing |
| DC power connector | 5.5 × 2.1 mm socket, centre positive |
| Audio sampling frequency | 44.1 kHz · 48 kHz |
| Audio bit depth | 16-bit · 24-bit |
| Output connector | HDMI type A – female · BNC – female |
| 3G-SDI output level | A |
| Status Display Type | Colour LCD |
| Compatible Wireless System | CineView 2 SDI · CineView SE · CineView HE · CineView Quad |
| Audio bit depth | 20 bit |
| Video codec | H.264 |
| Output connector | USB-C – female |
| Colour LCD diagonal | 1.47″ |
| Line-of-sight range | 450m |
| Unit dimensions without antennas | 60x27.5x106.5mm |
| Weight per unit | 210g |
| Receivers in package | 1 |
| Maximum receiving devices | 4 |
| Maximum transmission resolution | 1920x1080px |
| Maximum frame rate | 60fps |
| DC input voltage range | 7.4x16.8V |
| USB-C supply voltage | 5V |
| Minimum USB-C source current | 3A |
| Operating temperature | -10x40°C |
| Transmission power | 20dBm |
| Maximum power consumption of the receiver | 5W |
| Number of antennas per unit | 4 |
| Latency | <50 ms |
| Input | Wireless video reception |
| Output | 3G-SDI · HDMI · USB-C (UVC) |
