Accsoon iPad Powercage II

MONITORING WITH SEEMO

Mount an optional SeeMo on the rear attachment and connect it to a compatible iPad. Accsoon SEE offers waveform, vectorscope, false color and audio meters according to the connected SeeMo. The cage itself contains no HDMI converter or display. The photo shows PowerCage II with SeeMo, battery and iPad; those accessories are not included.

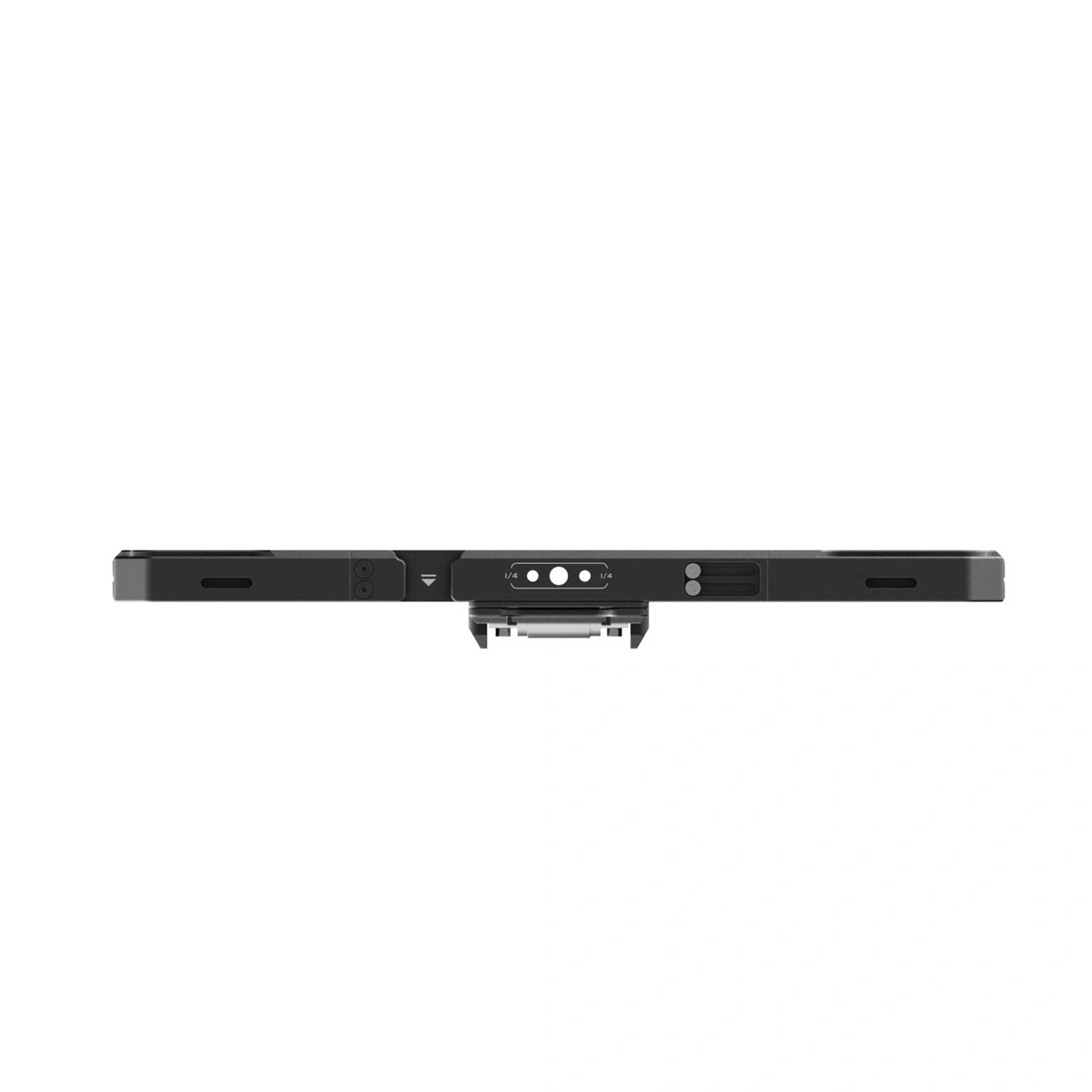

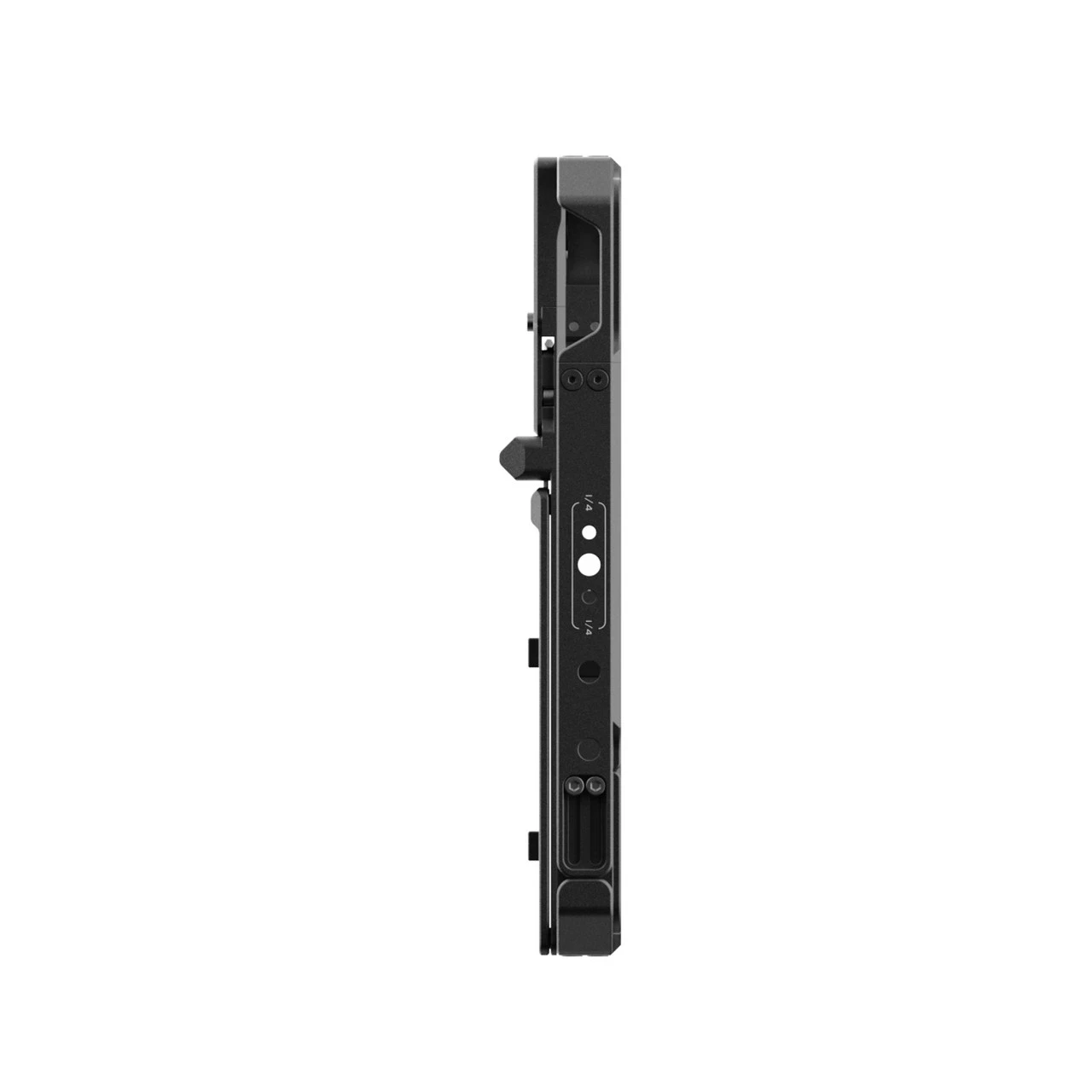

MOUNTS AND TILTING STAND

• 1. Cold shoes. Two shoes for a compatible microphone or compact light.
• 2. 1/4″-20 threads. Eight threads for cage and accessory mounting.
• 3. Handgrip attachment. Side attachment points for a matching handgrip.
• 4. Tilting stand. Support the setup on a flat desk and adjust its tilt.

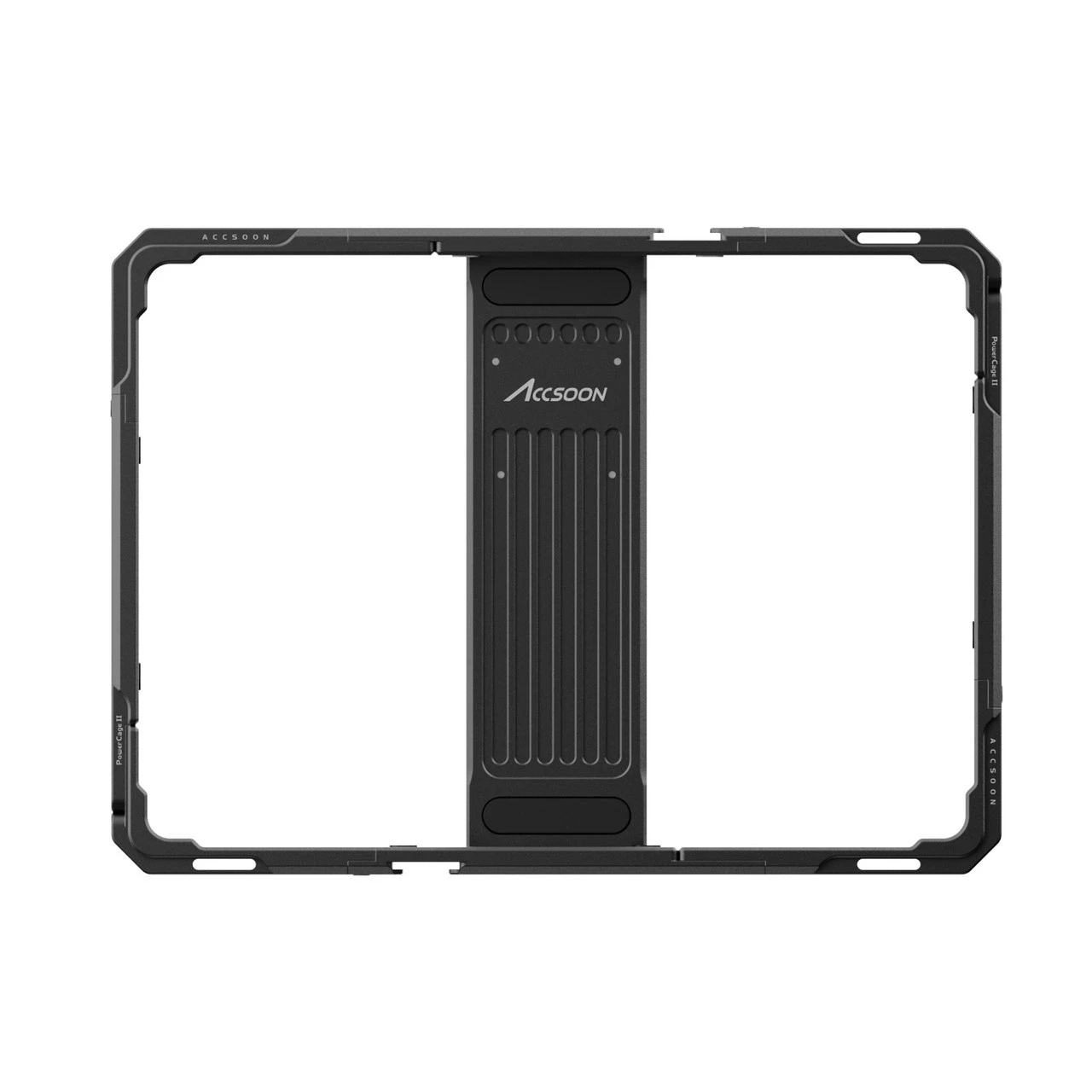

ADJUSTABLE FRAME

Adjust the frame to a supported iPad size. The precision-machined aluminium cage maintains access to controls and ports and assembles with the included key. The frame adjusts through 239–256 × 169–186 mm; screen diagonal alone does not confirm compatibility.

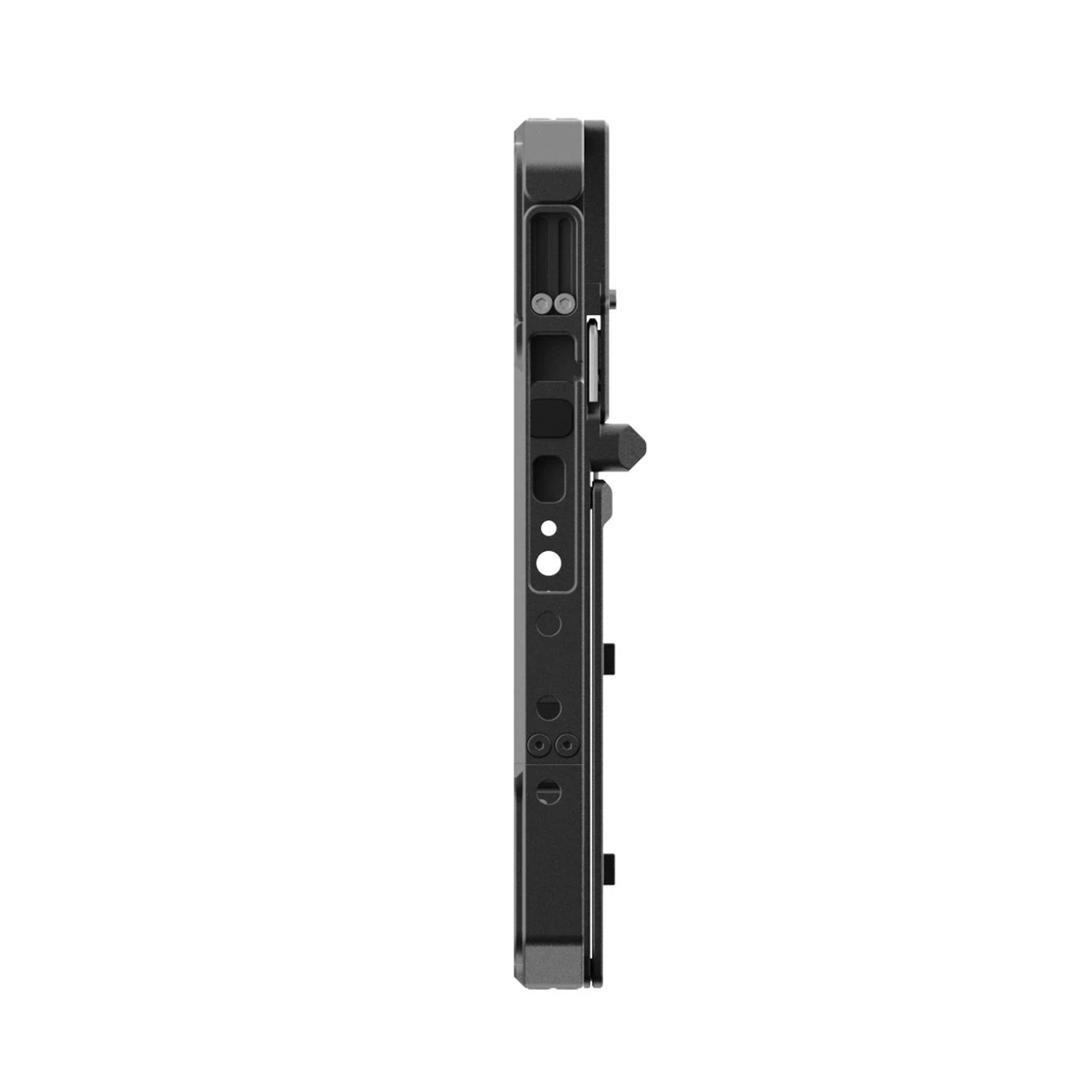

PRACTICAL DETAILS

• 1. Button access. Power and volume buttons remain accessible.
• 2. Allen key holder. Magnetic storage for the Allen key on the cage.
• 3. Lanyard hole. An additional attachment for a matching lanyard.

Cable routing along the frame keeps the connection organised. Select handles, lights and microphones separately.

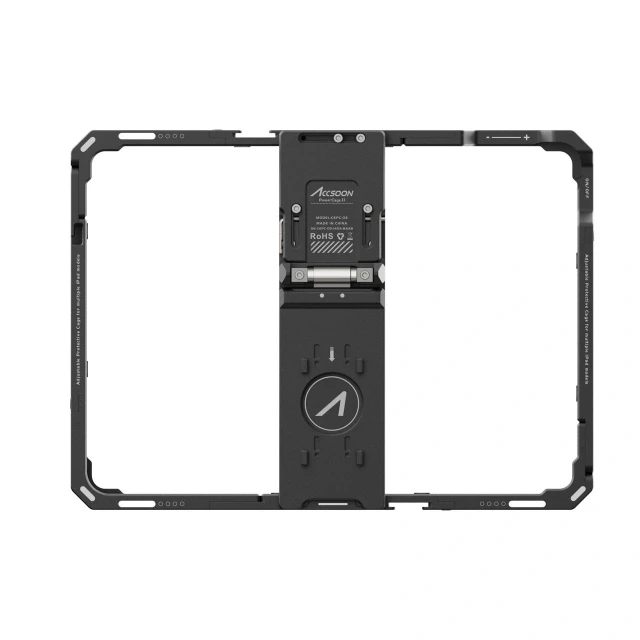

POWER FROM AN NP-F BATTERY

• 1. USB-C PD IN/OUT, up to 20 W
• 2. USB-C OUT
• 3. USB-A OUT
• 4. DC OUT, 6.6–8.4 V
• 5. Power button

The removable ACC04 has a level indicator, charges an NP-F battery and includes circuit protection. Mount it separately via its 1/4″-20 interface.
