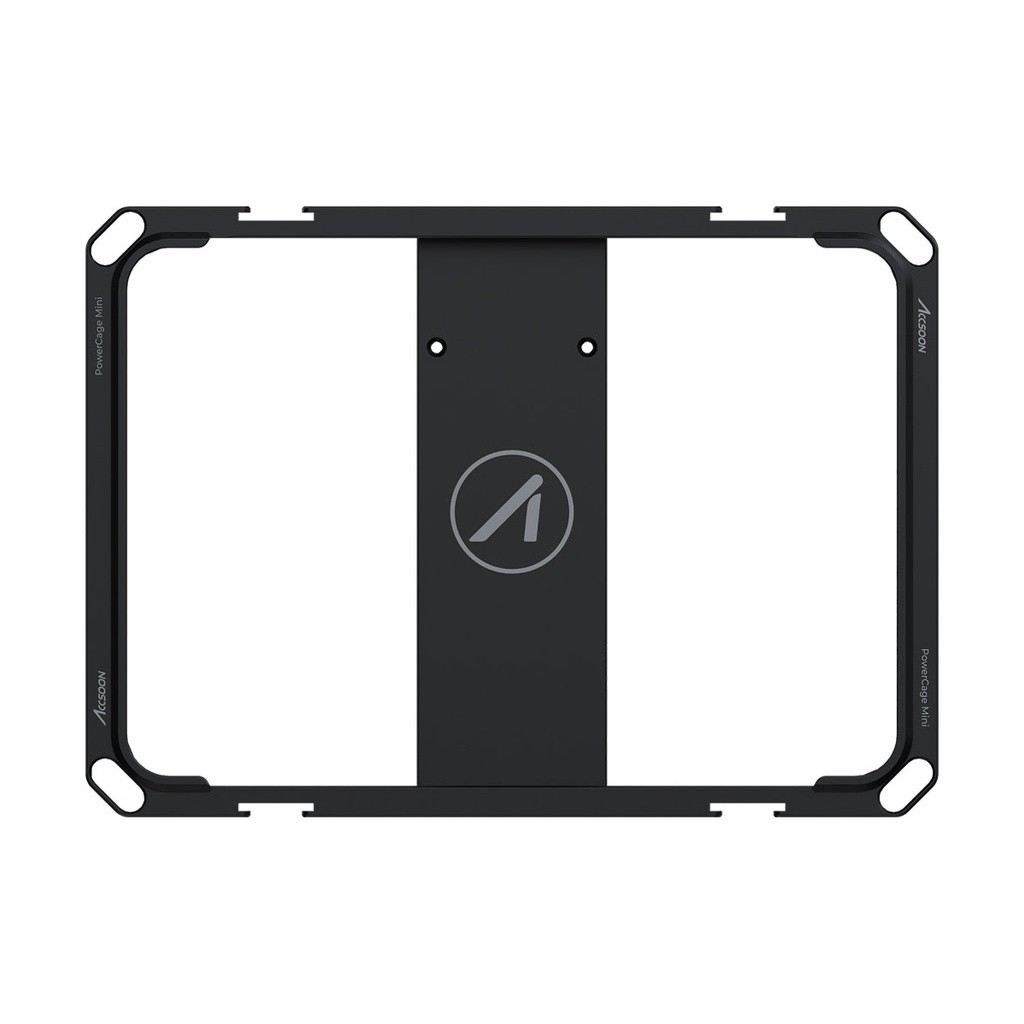

Accsoon iPad Powercage mini

COMPACT MONITORING

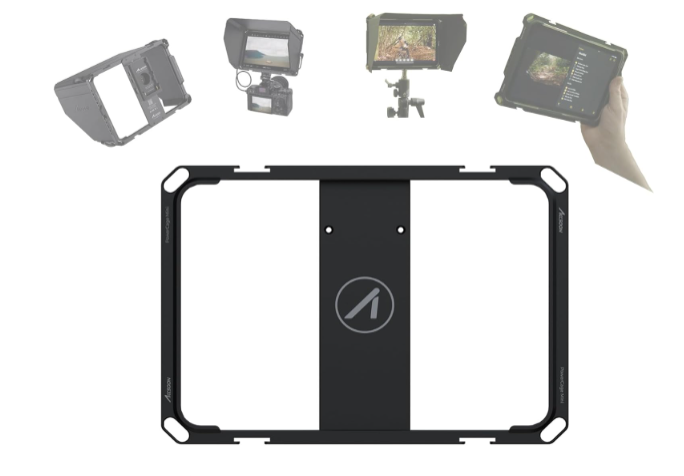

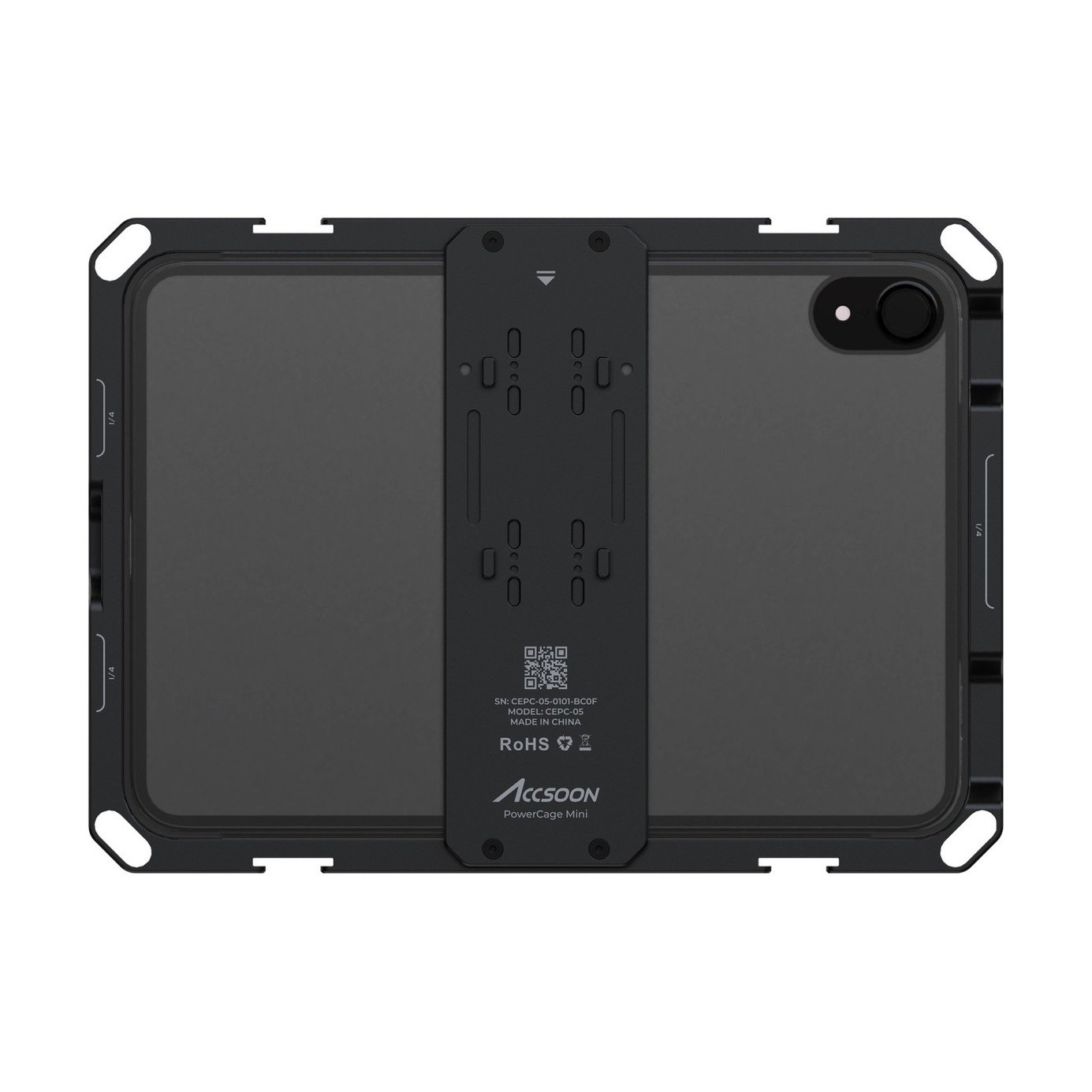

The aluminium cage weighs 162 g; the manufacturer lists a further 293 g for the iPad mini 6 itself. Mounting points accept a compatible support or accessories. The photograph shows use with an iPad; video input and Accsoon SEE tools require a separately sold compatible SeeMo.

INCLUDED SUNHOOD

The included sunhood reduces ambient light reaching the screen. Attach it at the cage corners as shown in the manual; first place the tablet in the clear case, then install it in the frame. The support bracket also allows use on a flat desk. iPad and the pictured tripod are not included.

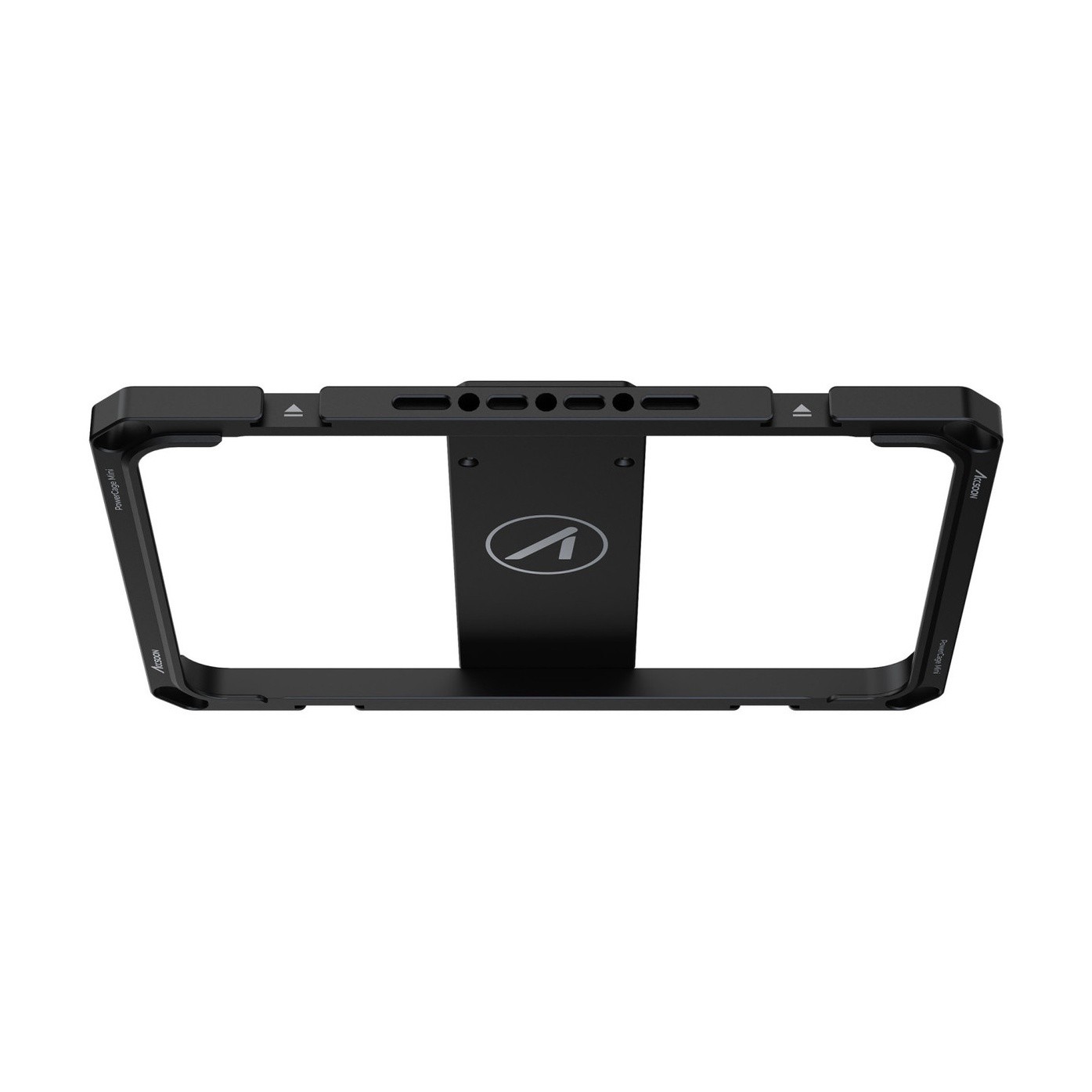

MOUNTING INTERFACES

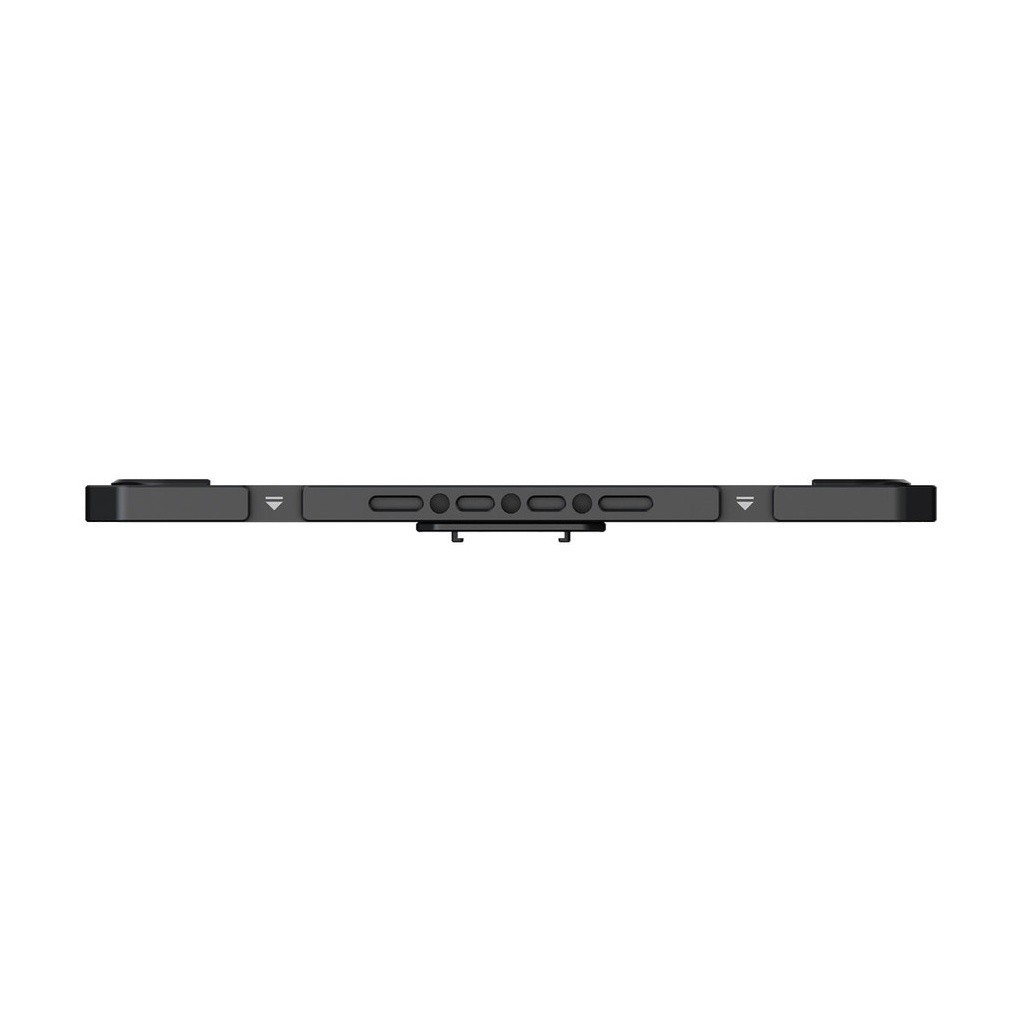

• 1. NATO. The upper and lower mounting points support compatible NATO adapters.

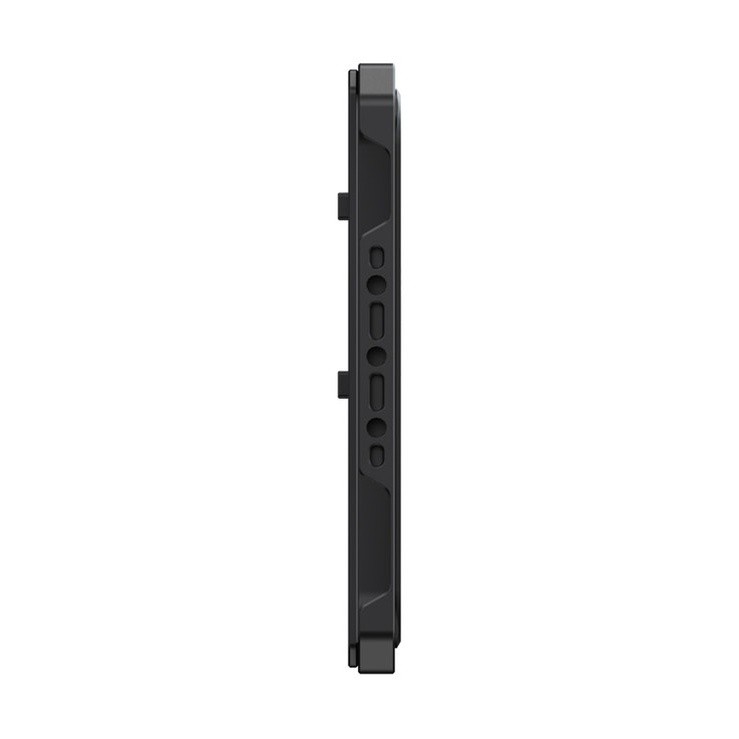

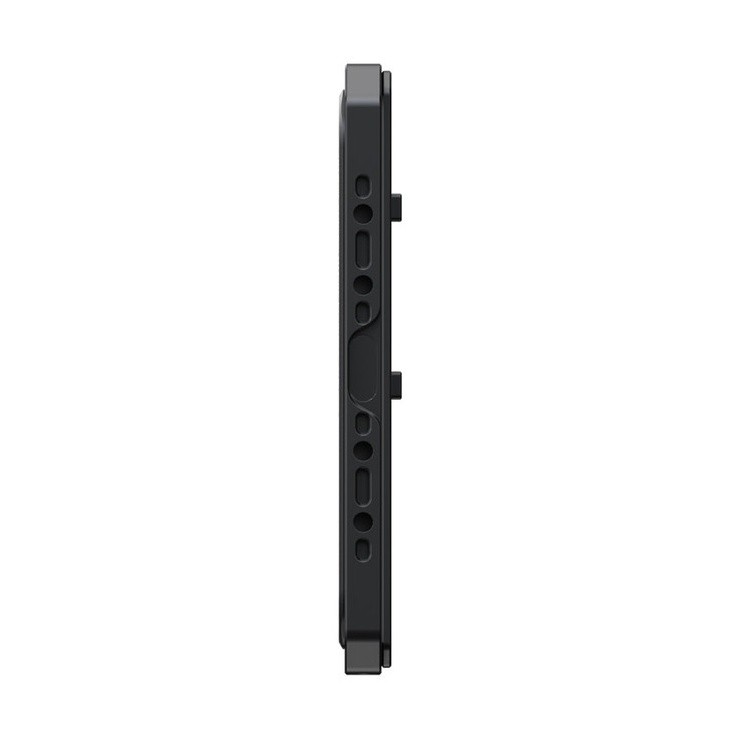

• 2. 1/4″-20. Thirteen threads accept matching mounts; side points with anti-rotation holes provide a secure connection for a compatible handle or support.

CONTROLS AND ACCESSORIES

• 3. Button access. Cut-outs maintain access to tablet controls.
• 4. Cold shoes. Four mounting shoes for compatible accessories.
• 5 / 6 / 7. The diagram illustrates mounting a microphone, LED light and wireless transmitter; choose them separately according to interface, weight and setup requirements.

POWER AND CONNECTORS

• 1. 1/4″-20 Separate adapter mounting.
• 2. USB-A OUT USB-A output.
• 3. USB-C PD IN/OUT Output up to 30 W; input up to 20 W.
• 4. USB-C OUT Separate USB-C output.
• 5. DC OUT 6.6–8.4 V voltage.

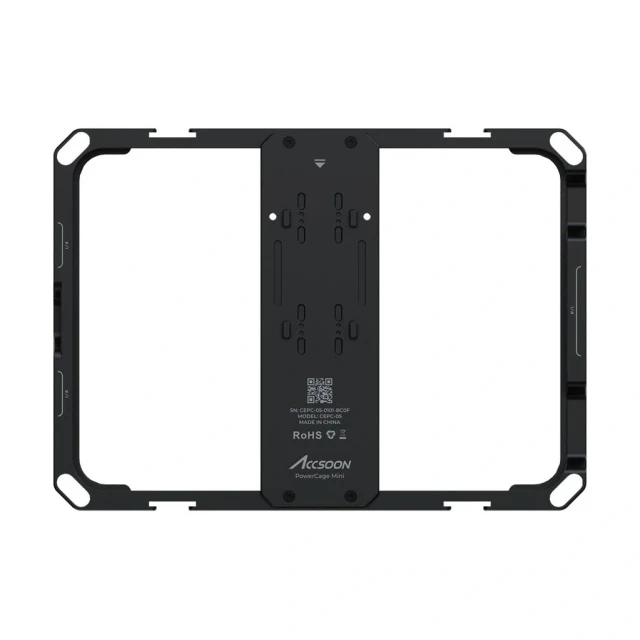

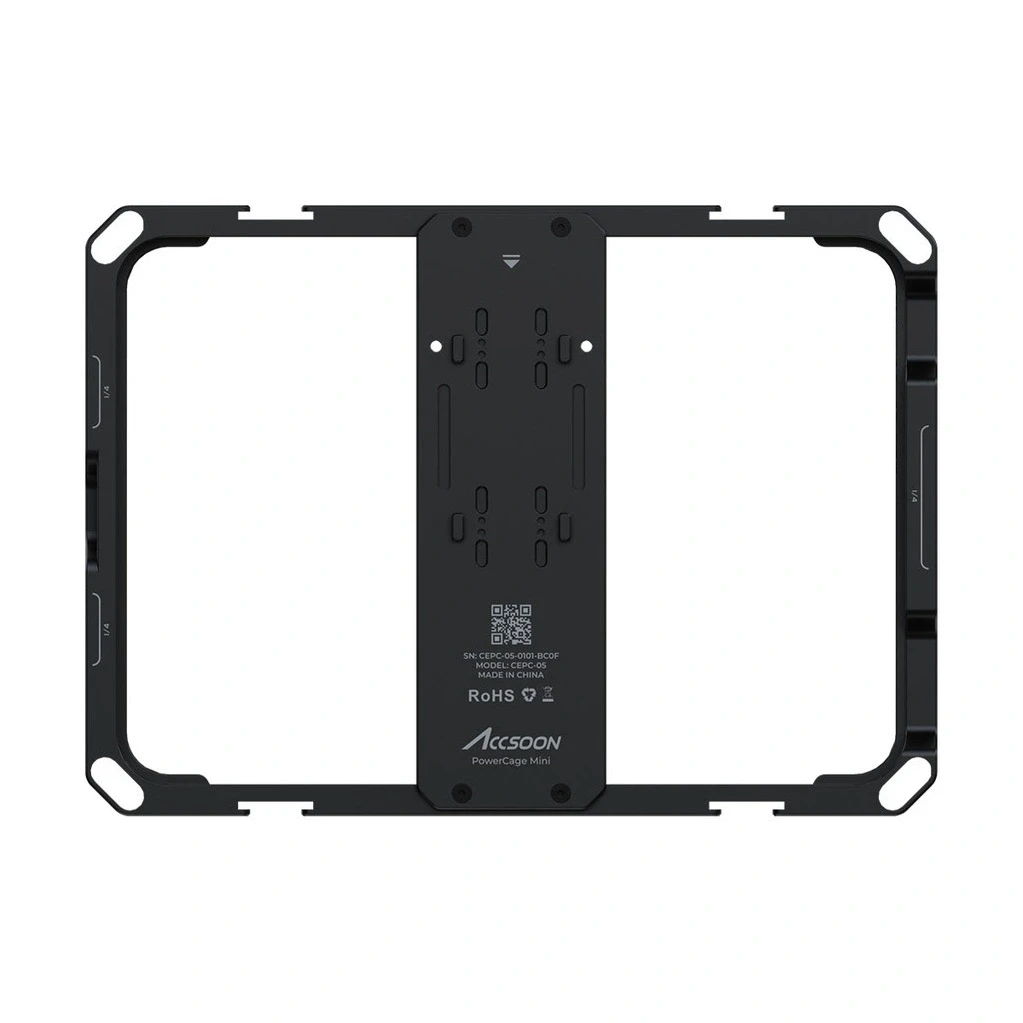

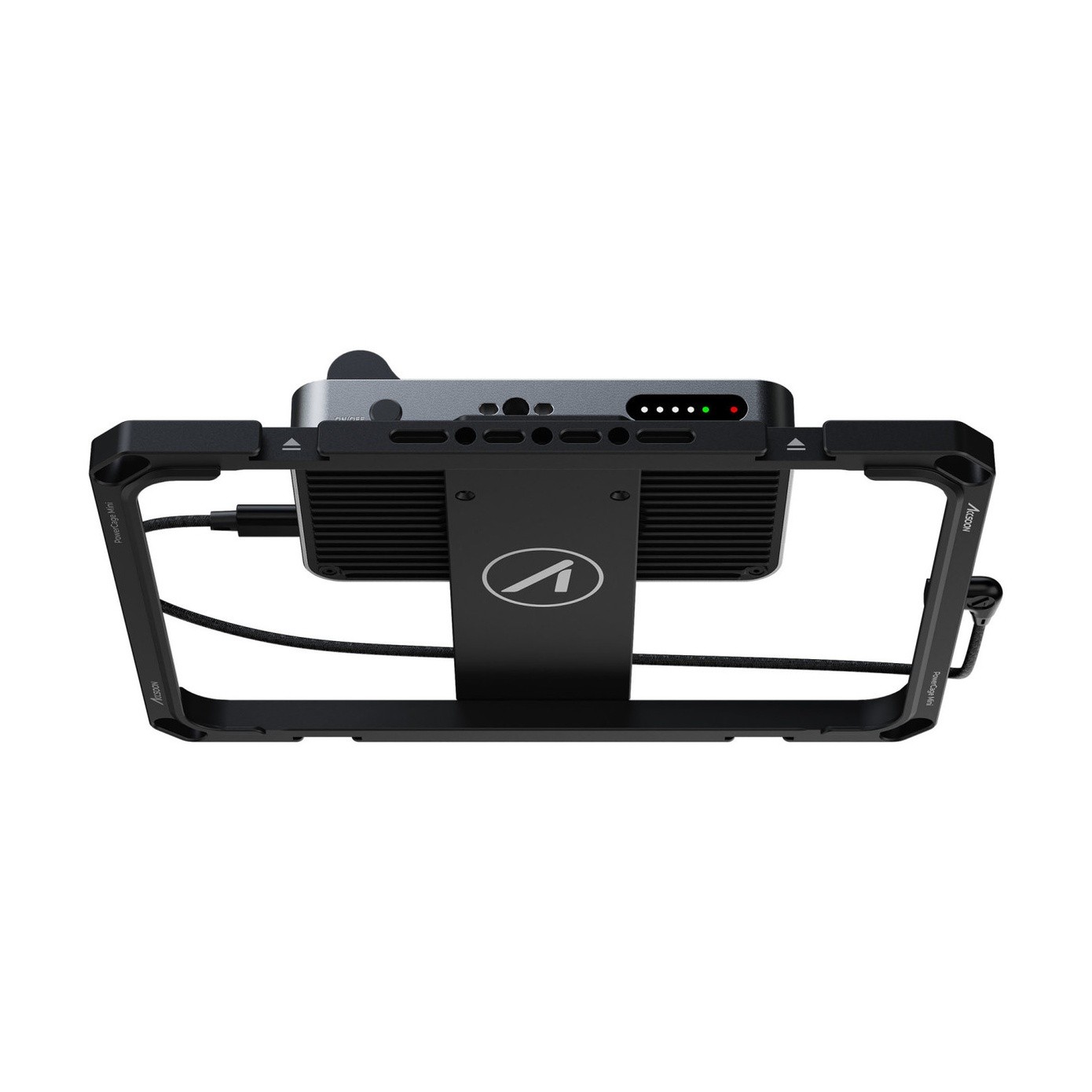

The removable plate supports NP-F550, NP-F750 and NP-F970 batteries, battery charging, LED level indication and circuit protection.

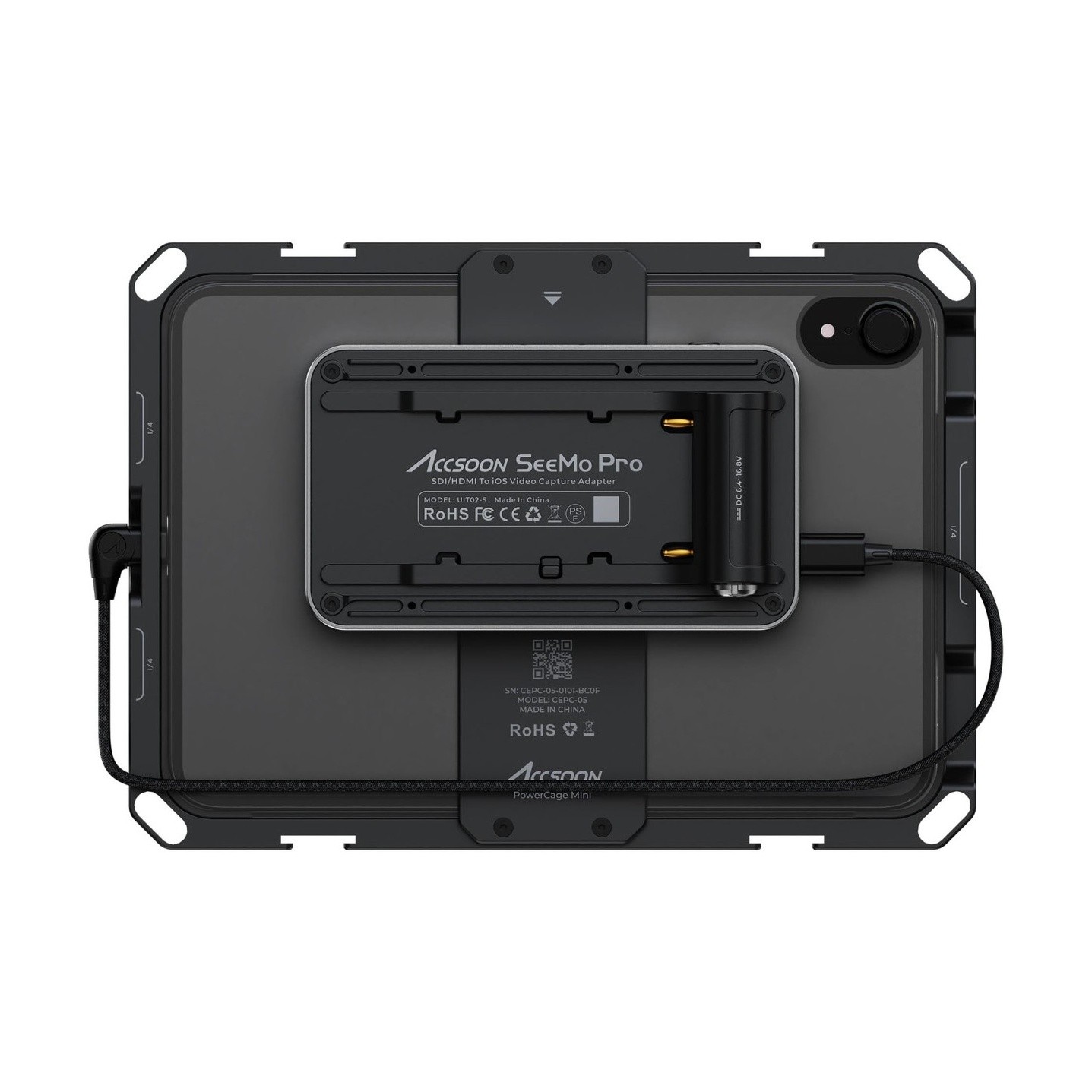

A SETUP WITH SEEMO

The manufacturer illustrates compatible mounting with the original SeeMo, SeeMo 4K for iOS and SeeMo Pro. Select the optional converter for your required video inputs and functions. Number 4 identifies the sunhood included with the cage; SeeMo, tablet and battery are not included.
