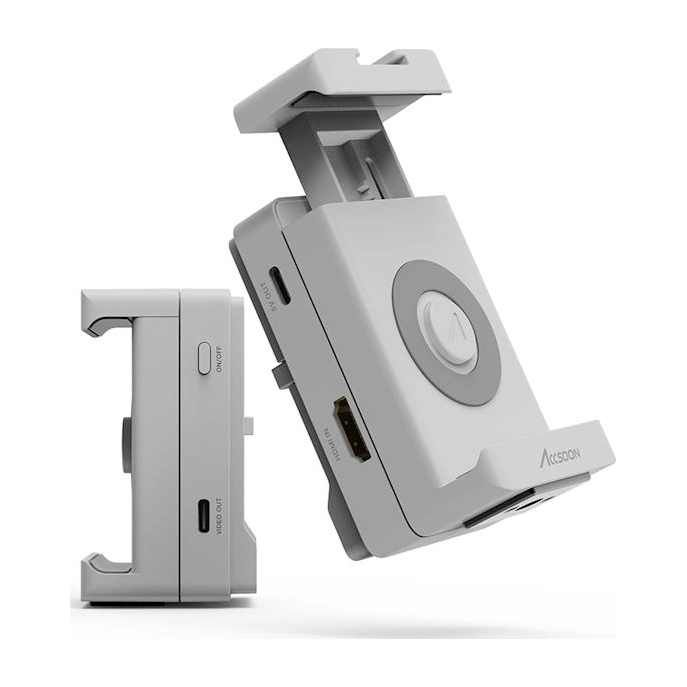

Accsoon SeeMo

LAST PIECE

SKU: ACC-UIT02

Accsoon SeeMo converts the camera’s HDMI signal for one supported iPhone/iPad device. A wired HDMI adapter for iPhone/iPad: Full HD 60p monitoring, H.264 recording and streaming in Accsoon SEE. It supports Full HD 60p, also 720p, and uses an NP-F550/750/970 battery. The mobile app provides monitoring tools, audio/video recording and Internet streaming. Use…

175 € with VAT 144.63 € without VAT

Price history

Personal pickup within 90 minutes
Shipment day: Today

In stock 1 pcs
Praha 1 pcs

SKU:
ACC-UIT02

Price history

Top accessories for Accsoon SeeMo

Portkeys 8K HDMI cable A to A 0,3m

The Portkeys 8K HDMI Cable A to A (0.3m) Dual Cable Set features a slim, flexible

19 €

To be sent > 5 pcs

Portkeys 8K HDMI cable A to A 1m

LAST PIECE

The Portkeys 8K HDMI Cable A to A (1m) Dual Cable Set is a high-quality HDMI solution

19 €

In stock 1 pcs

Tilta NP-F970 Battery (10500mAh) - Green

The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera

47 €

In stock > 5 pcs

SmallRig NP-F970 Camera Battery Charger 4086

SmallRig 4086 dual-slot charger for Sony NP-F550 to NP-F970 batteries. It charges

13 €

In stock > 5 pcs

Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G

The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,

108 €

To be sent 2 pcs

Tilta NP-F550 Battery (3500mAh) - Green

The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera

23 €

on request

Accsoon iPad Powercage Pro II

LAST PIECE

Accsoon iPad PowerCage Pro II is an adjustable aluminium cage with a removable ACC04

151 €

In stock 1 pcs

Accsoon TopRig 100W 4-Bay NP-F Fast Charger

The Accsoon TopRig NP-F (ACC-BC-01) is a four-bay charger for NP-F550, NP-F750, NP-F970

59 €

on request

Accsoon USB-C to lightning cable 30 cm (for SeeMo)

Accsoon CL30 / ACC-XC-UIT02-CL is a 30 cm braided USB-C to Lightning data cable for

18 €

on request

Accsoon Phone Clamp

Accsoon Phone Clamp ACC-ACC06 is an adjustable smartphone holder for Accsoon SeeMo

24 €

2 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

ACCSOON SEEMO

HD video on your mobile

A wired HDMI adapter for iPhone/iPad: Full HD 60p monitoring, H.264 recording and streaming in Accsoon SEE.

Full HD 60piPhone/iPadNP-F

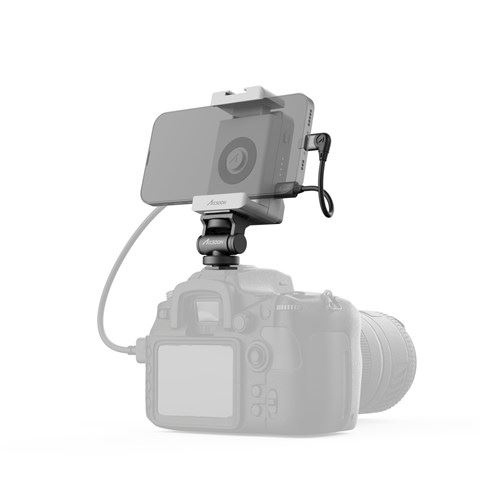

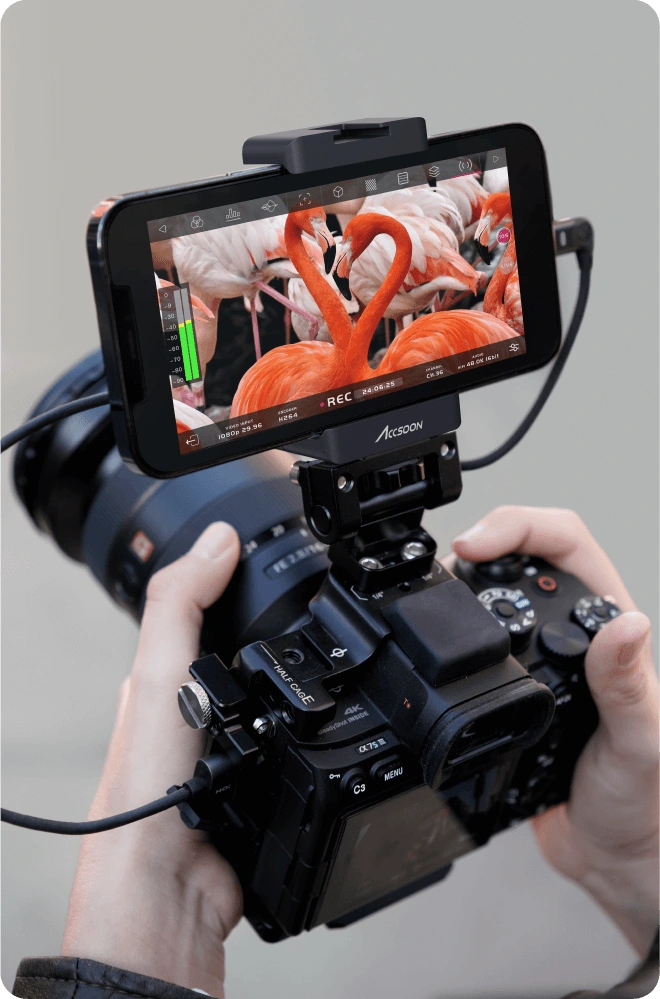

A camera view on your iPhone

This manufacturer photograph shows the original SeeMo in a compact camera rig. Connect HDMI from the camera and the dedicated USB cable to one supported iPhone or iPad. Accsoon SEE displays the live image; the phone, camera, lens and battery shown are separate equipment.

Choose the wired signal path

The diagram shows alternative HDMI sources and either an iPhone or iPad connected by USB. These are examples, not simultaneous multi-device reception. The separate USB 5 V / 1 A output powers other compatible low-power equipment; it does not charge Apple devices.

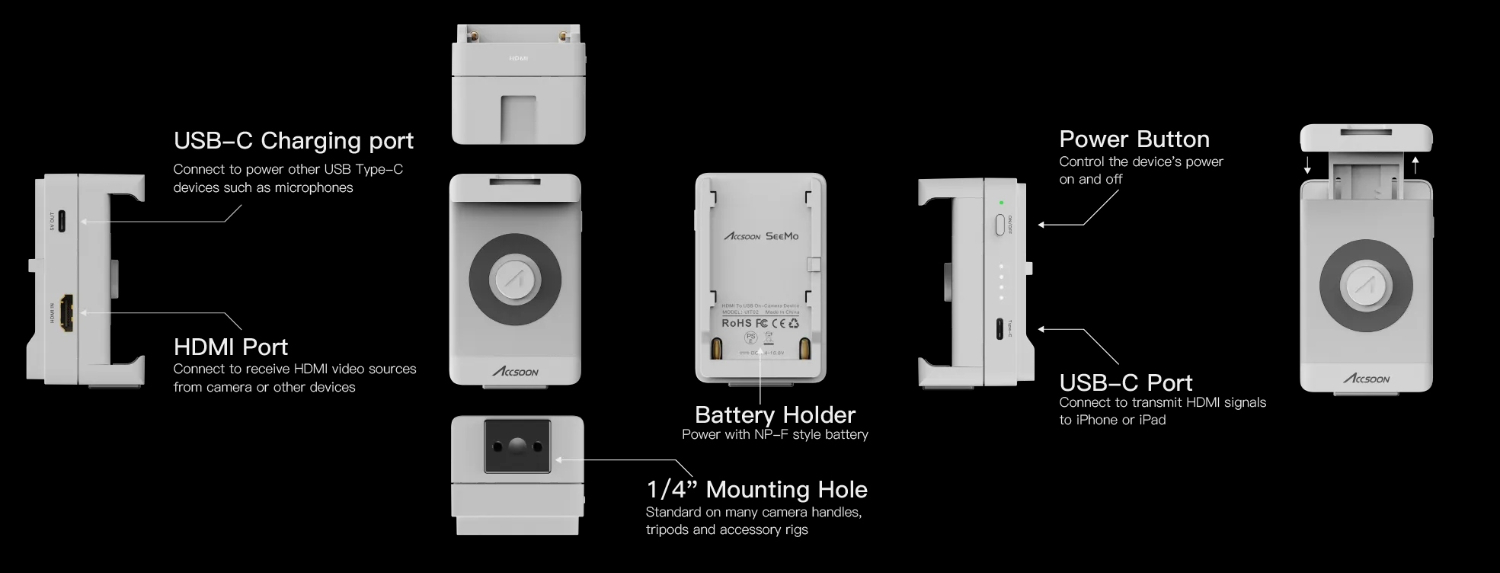

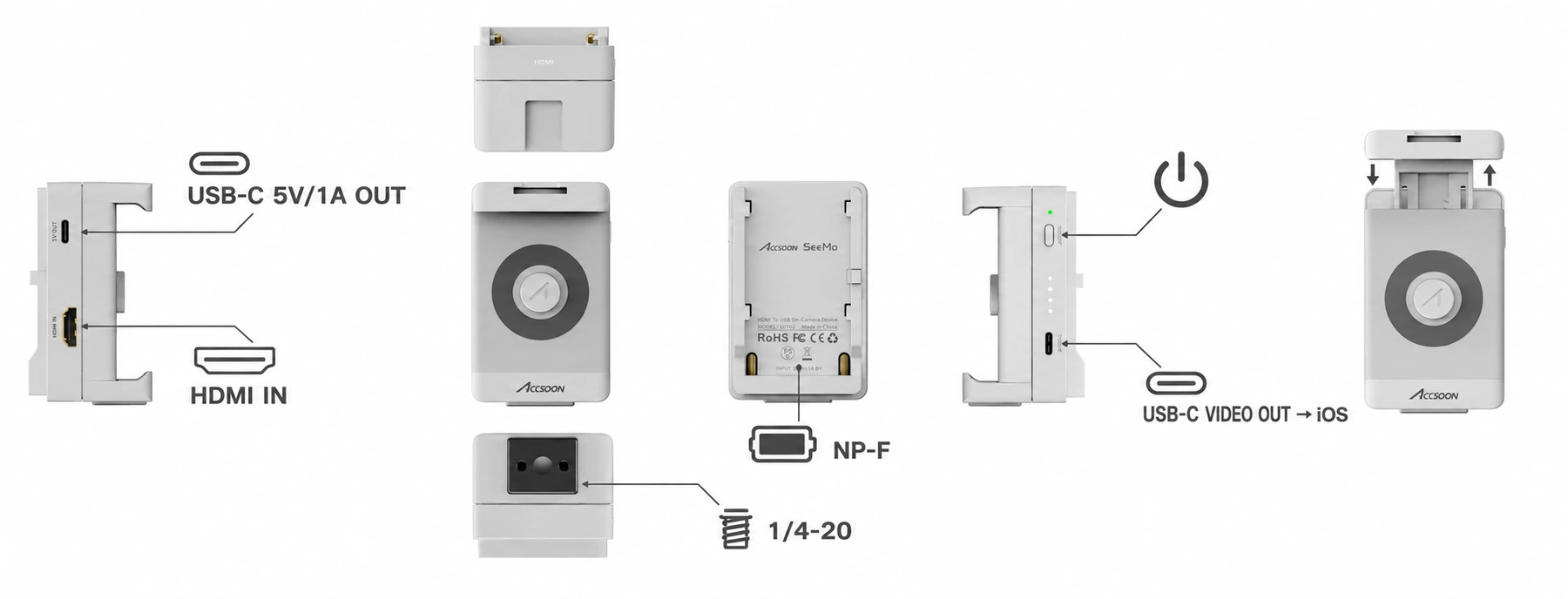

Keep the two USB ports distinct

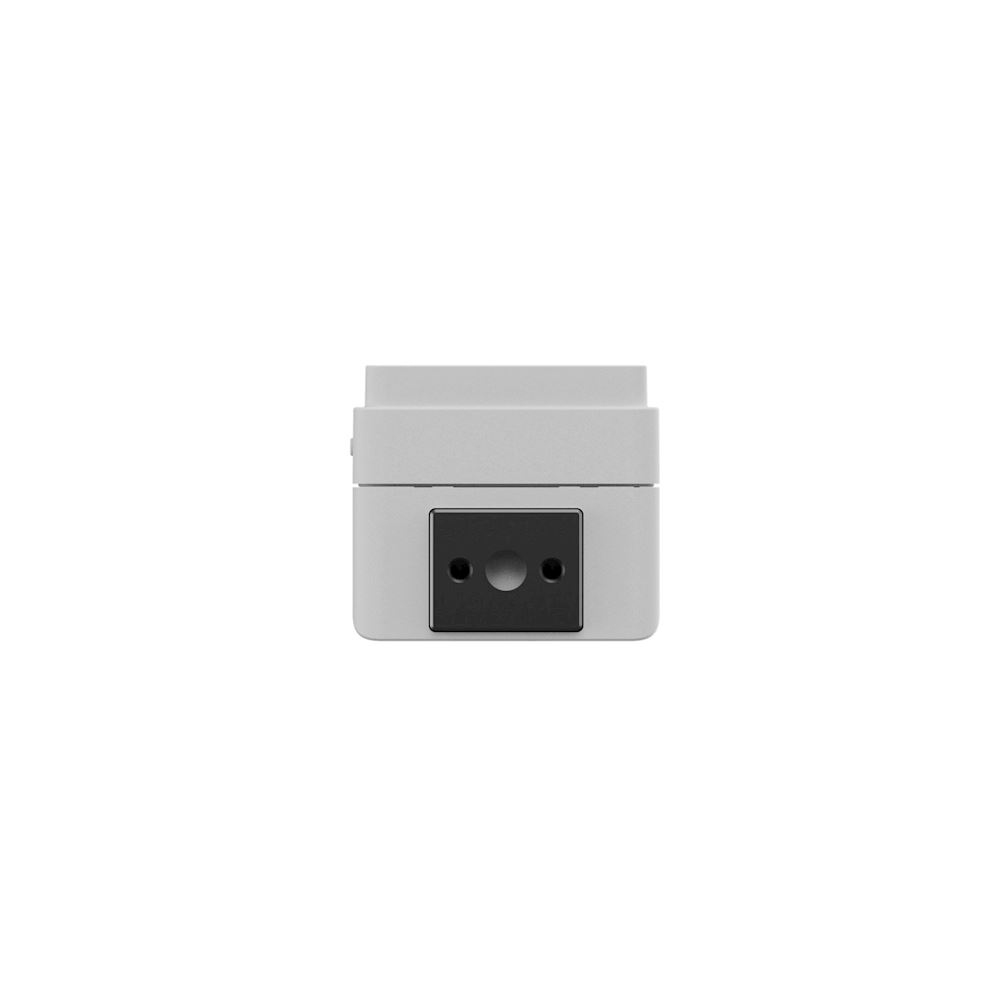

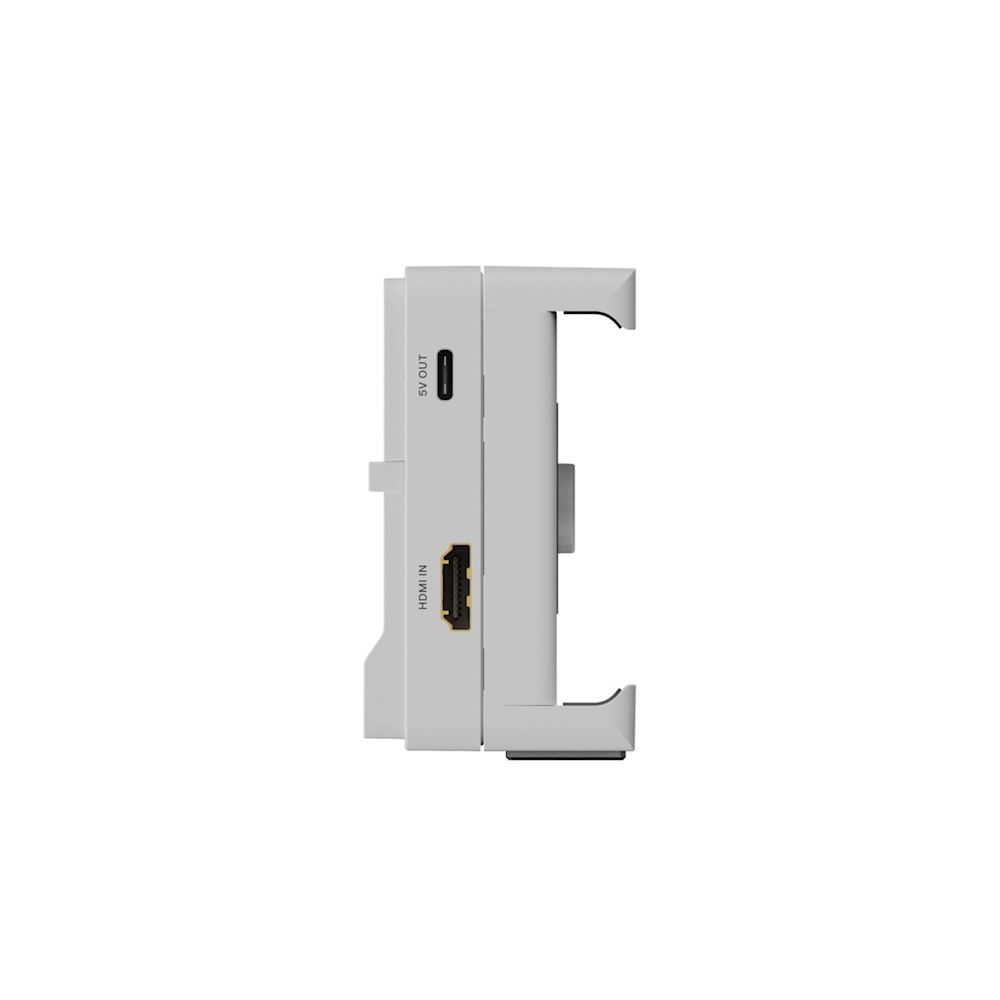

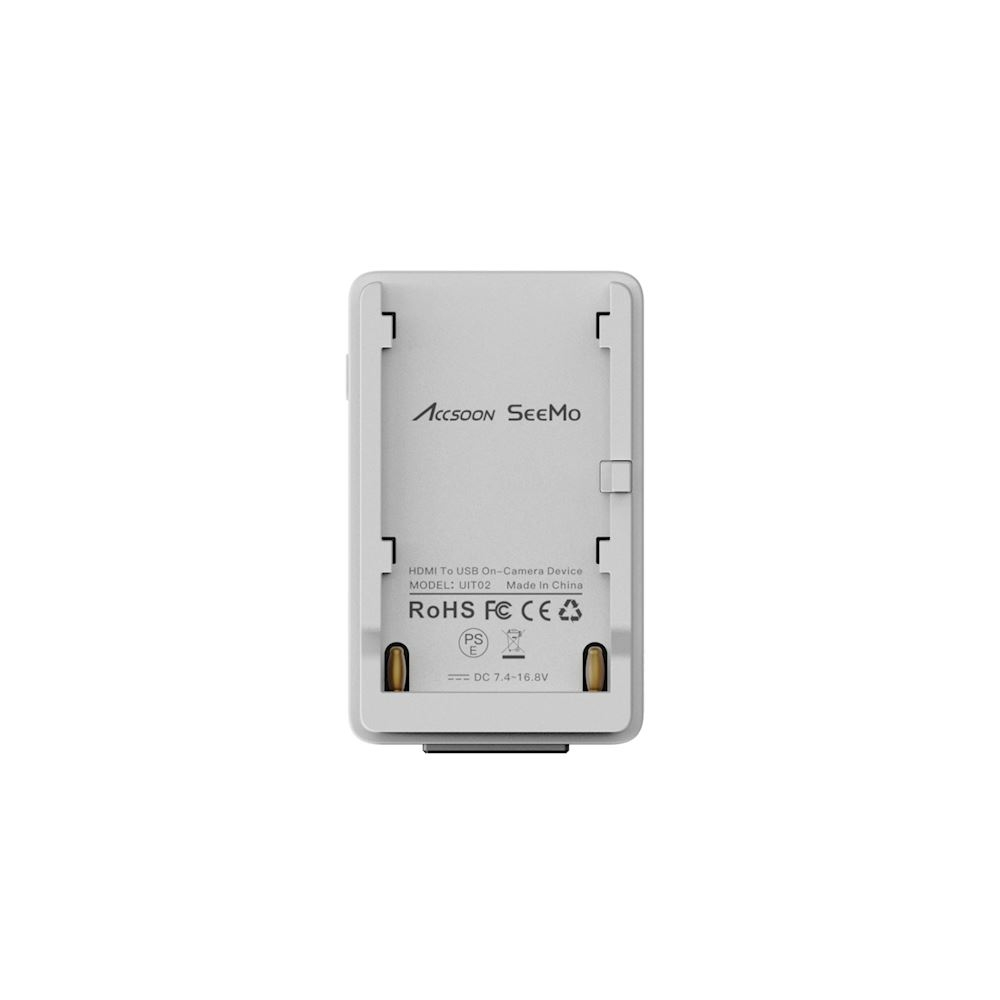

HDMI-A accepts up to 1080p60. USB-C VIDEO OUT sends H.264 video to iOS using the supplied Accsoon cable. The other USB-C port is a power output. An NP-F550/750/970 battery powers SeeMo; the locking mechanism secures the battery. The 1/4″-20 socket and included cold shoe adapter support mounting.

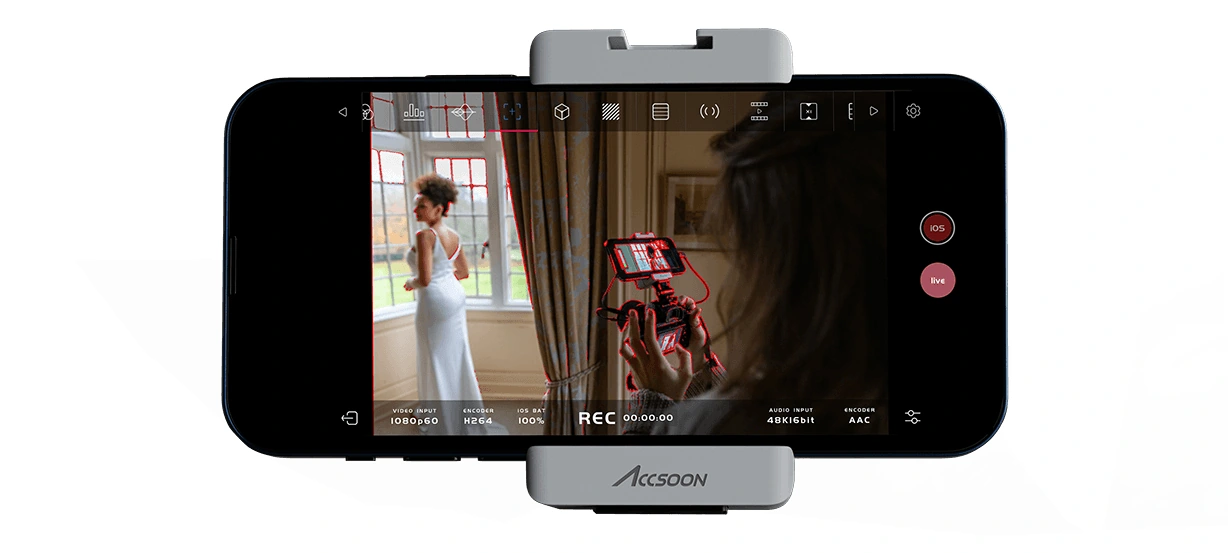

Check focus and exposure

Accsoon SEE provides focus assist, framing grids, zebra and a histogram. These tools help assess sharpness, composition and exposure on the mobile screen. Screen brightness, colour and resolution depend on the connected device; SeeMo has no built-in display with a fixed brightness rating.

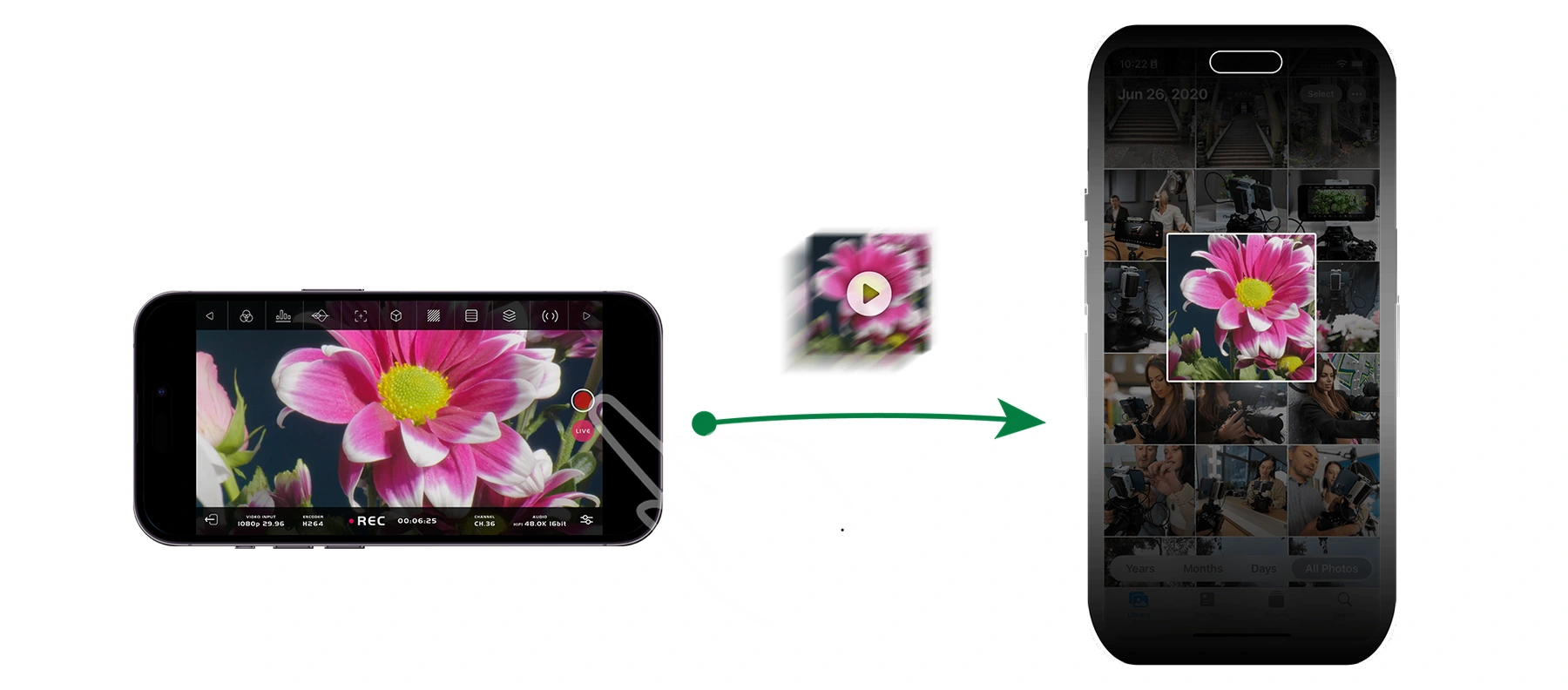

Record, share or stream

Record Full HD up to 60 fps to the mobile device in H.264 with AAC 48 kHz / 16-bit audio. Preview and share clips from the mobile device. RTMP streaming uses its Internet connection, which remains available because the camera connection is wired. Retain the camera originals for your main recording.

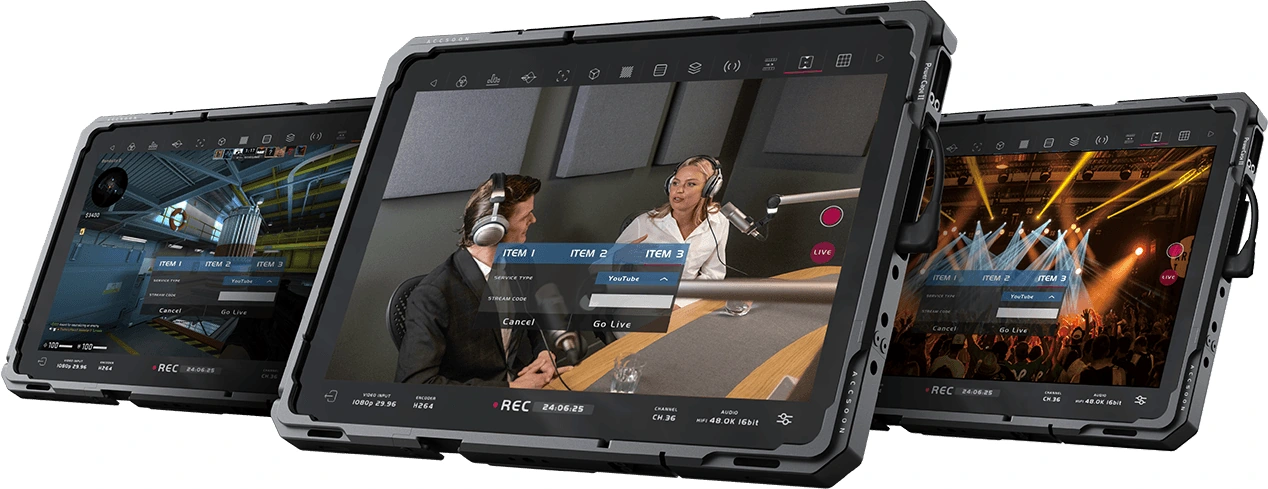

A larger view with an iPad

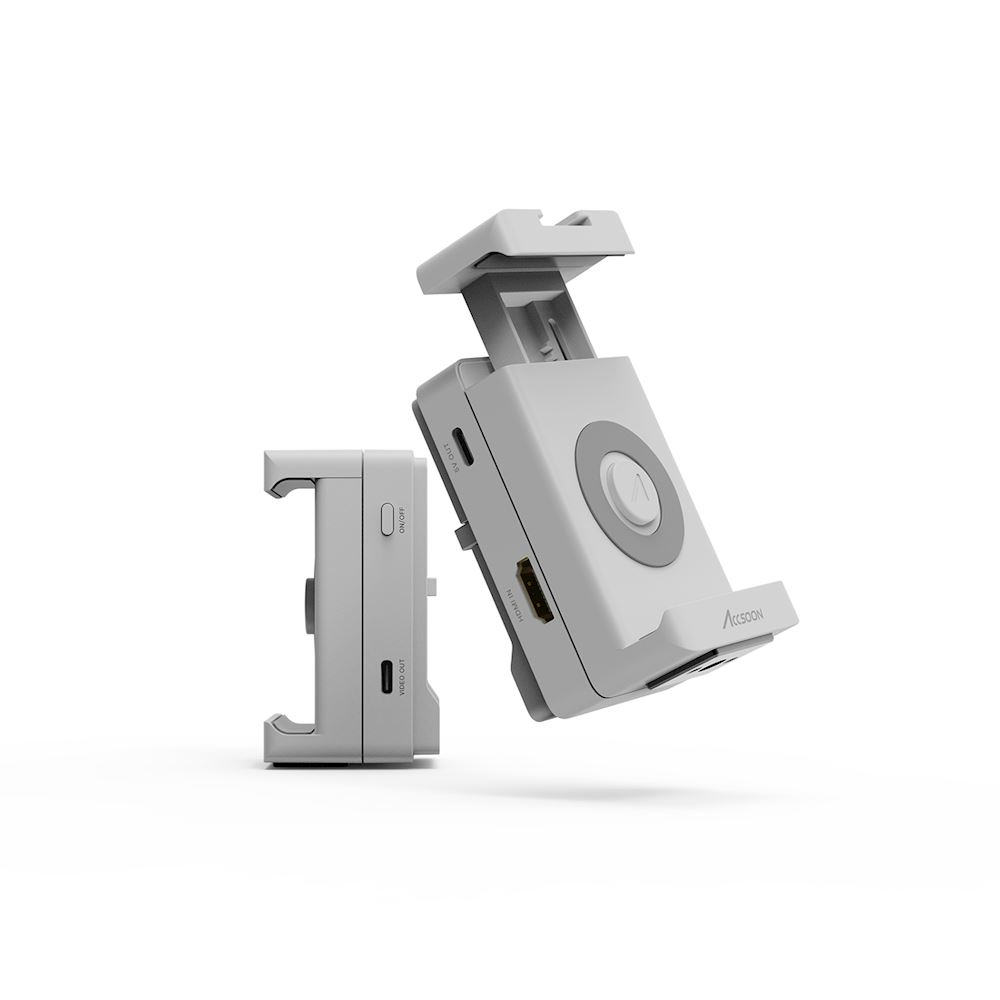

The modular image-processing unit detaches from the phone clamp for use with a compatible optional Accsoon iPad PowerCage. A supported USB-C iPad can charge over the video cable; Lightning iPhones do not charge with this original model. The PowerCage, iPad and battery are purchased separately.

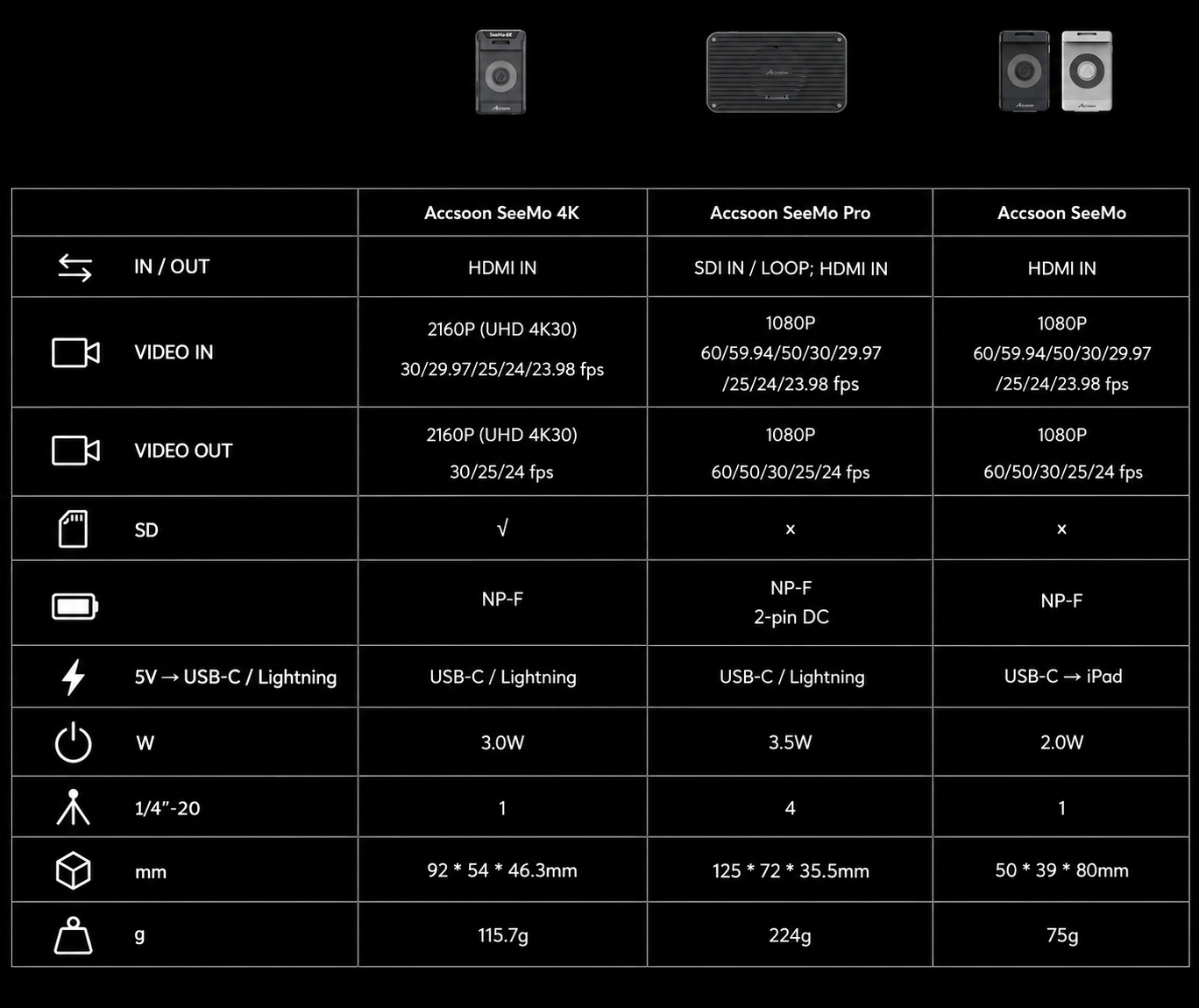

Choose SeeMo for your connection

The table compares iOS models: SeeMo has HDMI Full HD60; Pro adds SDI input and loop-out; SeeMo 4K has HDMI UHD30 and an SD reader. IN/OUT means input/output, SD means card reader and the battery symbol means power supply. W is consumption without mobile charging, 1/4″-20 is mount count, mm is body size and g is weight without battery. Original SeeMo does not charge Lightning devices. Click to enlarge the chart.

Device compatibility

Use the current Accsoon SEE app and firmware. iOS 12.0 or later is required; manufacturer examples include iPhone 8 and later, iPad generation 6 and later, iPad Pro 9.7/10.5/11/12.9″, Air generation 3 and later and mini generation 5 and later. Available features and smooth Full HD performance depend on the connected device. The clamp is 65–90 mm wide for 5.5–6.7″ phones; iPhone 12 mini and 13 mini need a case for clamping.

PACKAGE CONTENT

Accsoon SeeMo ×1
USB-C → USB-C cable ×1
USB-C → Lightning cable ×1
Phone clamp included in assembly
Accsoon cold shoe adapter ×1

SPECIFICATIONS

Model: Accsoon SeeMo
Video input: HDMI-A
HDMI IN: 1080p60/59.94/50/30/29.97/25/24/23.98; 720p60/59.94/50
USB VIDEO OUT: 1080p60/50/30/25/24; 720p60/50
Video output device: iPhone/iPad
Codec: H.264; VBR
Power supply: NP-F550/750/970
USB auxiliary output: 5 V / 1 A
Consumption without mobile charging: 2 W
Body dimensions: 50 × 39 × 80 mm
Weight without battery: 75 g
Operating temperature: −10–40 °C
Minimum OS: iOS 12.0
Mounts: 1 × 1/4″-20
Battery / mobile / camera: Purchased separately
Clamp width: 65–90 mm
Phone screen size: 5.5–6.7″
Audio recording: AAC; 48 kHz; 16 bit
Consumption charging a USB-C iPad: ≤4.5 W
Lightning iPhone charging: Not supported on this original model

WE RECOMMEND

The Accsoon SeeMo is an innovative adapter that transforms your iPhone or iPad into a professional monitor and recorder powered by NP-F batteries. To maximize its potential, it is essential to choose the right connection cables, mounting accessories for attaching it to a rig or gimbal, and protective cases for tablets.

Cables and Connectivity - Essential connection cables for signal and power transmission between SeeMo and your iOS device.

Power - Accessories for charging and managing the NP-F batteries that SeeMo uses for operation.

Mounting and Attachment - Adapters and clamps for securely attaching SeeMo to monitors, gimbals, or tripods.

iPad Cages - Protective cages with integrated power supply, ideal for using an iPad as a large preview monitor.

Rigs and Stabilizers - Support systems and sliders for smooth shots when using mobile monitoring.

Protection and Transport - Durable cases for safe transport of the SeeMo adapter and its accessories.

Accsoon EVA Carrying Case

Parameters

Manufacturer:	Accsoon
Category:	Wireless video transmission

Main parameters

Power supply	NP-F550 · NP-F750 · NP-F970
Mounting interface	1/4″-20
Audio sampling frequency	48 kHz
Audio bit depth	16-bit
Input connector	HDMI type A – female
Video codec	H.264
Output connector	USB-C – female
Functions	USB-C video output to iPhone/iPad · Mobile recording in Accsoon SEE · RTMP streaming in Accsoon SEE · Focus peaking in Accsoon SEE
Mounting interface	Cold shoe adapter
Compatible mobile operating system	iOS 12.0 or later
Colour	White
Functions	Adjustable VBR bitrate · Zebra in Accsoon SEE · Histogram in Accsoon SEE · Framing grids in Accsoon SEE
Audio codec	AAC
Unit dimensions without antennas	50x39x80mm
Weight per unit	75g
Maximum transmission resolution	1920x1080px
Maximum frame rate	60fps
Operating temperature	-10x40°C
Maximum HDMI Input Resolution	1920x1080px
Maximum HDMI Input Frame Rate	60fps
Maximum wired monitoring devices	1
USB output voltage	5V
Maximum USB output current	1A
Power consumption without powering the connected device	2W
Phone clamp width range	65x90mm
Number of 1/4″-20 mounting points	1
Compatible phone screen size range	5.5x6.7″
Input	HDMI
Output	USB-C (video to iOS)
