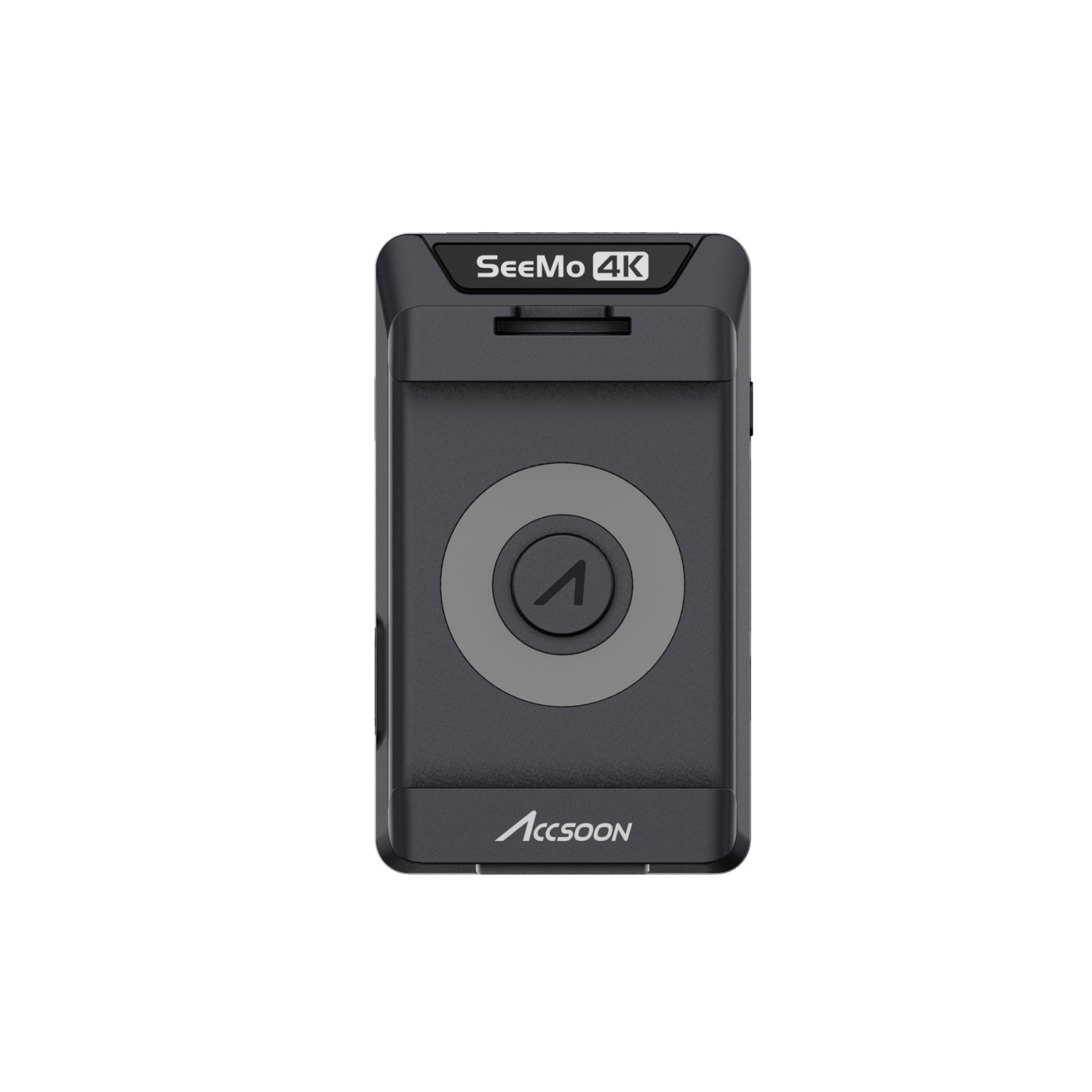

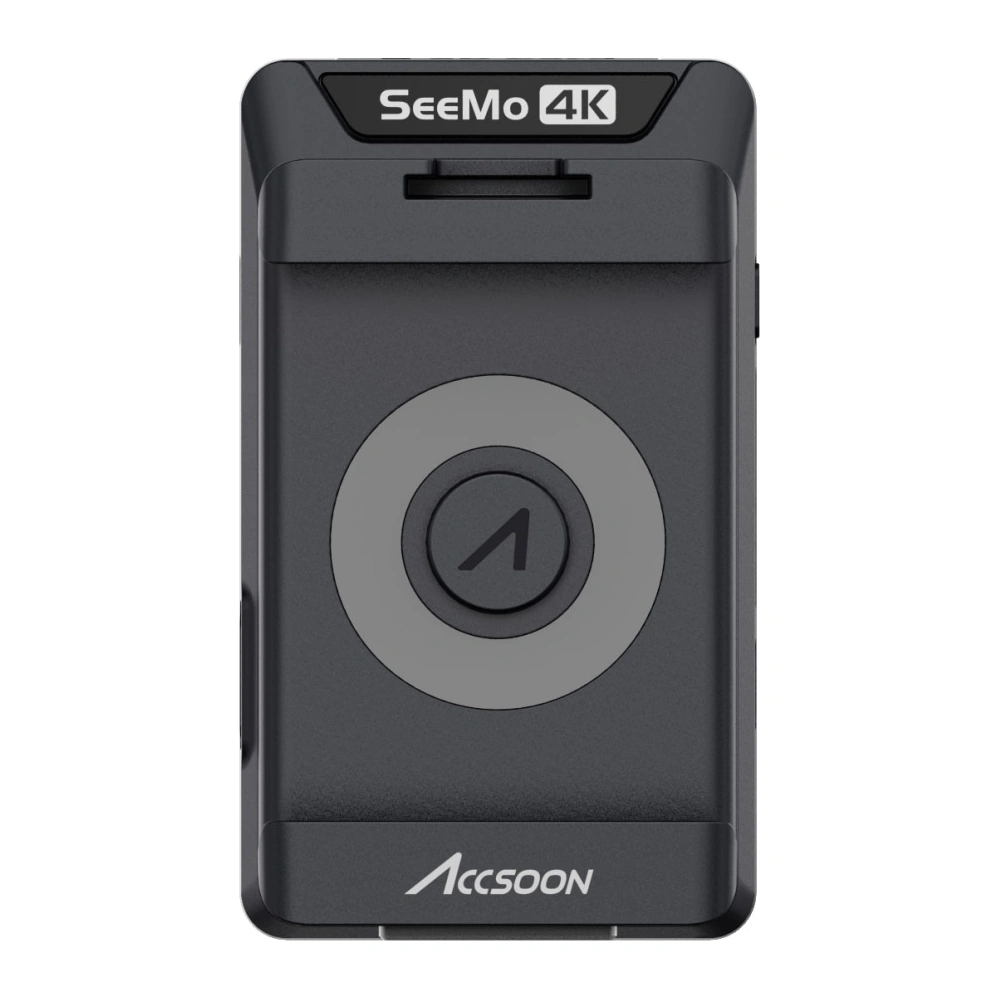

Accsoon SeeMo 4K

Name: Accsoon SeeMo 4K
Brand: Accsoon
SKU: ACC-UIT03
Price: 175 EUR
Availability: OutOfStock

SKU: ACC-UIT03

More information

175 € with VAT 144.63 € without VAT

Price history

Availability

on request

SKU:
ACC-UIT03

Price history

Top accessories for Accsoon SeeMo 4K

Portkeys 8K HDMI cable A to A 0,3m

The Portkeys 8K HDMI Cable A to A (0.3m) Dual Cable Set features a slim, flexible

19 €

To be sent > 5 pcs

Portkeys 8K HDMI cable A to A 1m

LAST PIECE

The Portkeys 8K HDMI Cable A to A (1m) Dual Cable Set is a high-quality HDMI solution

19 €

In stock 1 pcs

Tilta NP-F970 Battery (10500mAh) - Green

The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera

47 €

In stock > 5 pcs

SmallRig NP-F970 Camera Battery Charger 4086

SmallRig 4086 dual-slot charger for Sony NP-F550 to NP-F970 batteries. It charges

13 €

In stock > 5 pcs

Tilta NP-F550 Battery (3500mAh) - Green

The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera

23 €

In stock 2 pcs

Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G

The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,

108 €

To be sent 2 pcs

Accsoon iPad Powercage Pro II

LAST PIECE

Accsoon iPad PowerCage Pro II is an adjustable aluminium cage with a removable ACC04

151 €

In stock 1 pcs

Accsoon TopRig 100W 4-Bay NP-F Fast Charger

The Accsoon TopRig NP-F (ACC-BC-01) is a four-bay charger for NP-F550, NP-F750, NP-F970

59 €

on request

Accsoon USB-C to lightning cable 30 cm (for SeeMo)

Accsoon CL30 / ACC-XC-UIT02-CL is a 30 cm braided USB-C to Lightning data cable for

18 €

on request

Accsoon Phone Clamp

Accsoon Phone Clamp ACC-ACC06 is an adjustable smartphone holder for Accsoon SeeMo

24 €

2 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon SeeMo 4K converts the camera’s HDMI signal for one supported iPhone/iPad device. A wired HDMI adapter for iPhone/iPad: UHD 4K30 monitoring, H.264 recording and streaming in Accsoon SEE. It supports UHD 4K30, also 720p, and uses an NP-F550/750/970 battery. The mobile app provides monitoring tools, audio/video recording and Internet streaming. Use the dedicated included Accsoon USB cable; cameras, mobile devices, batteries and HDMI/SDI signal cables are purchased separately. The SD reader transfers files with compatible USB-C iOS devices; it does not record camera video directly to a card.

ACCSOON SEEMO 4K

4K on your mobile

A wired HDMI adapter for iPhone/iPad: UHD 4K30 monitoring, H.264 recording and streaming in Accsoon SEE.

UHD 4K30iPhone/iPadNP-F

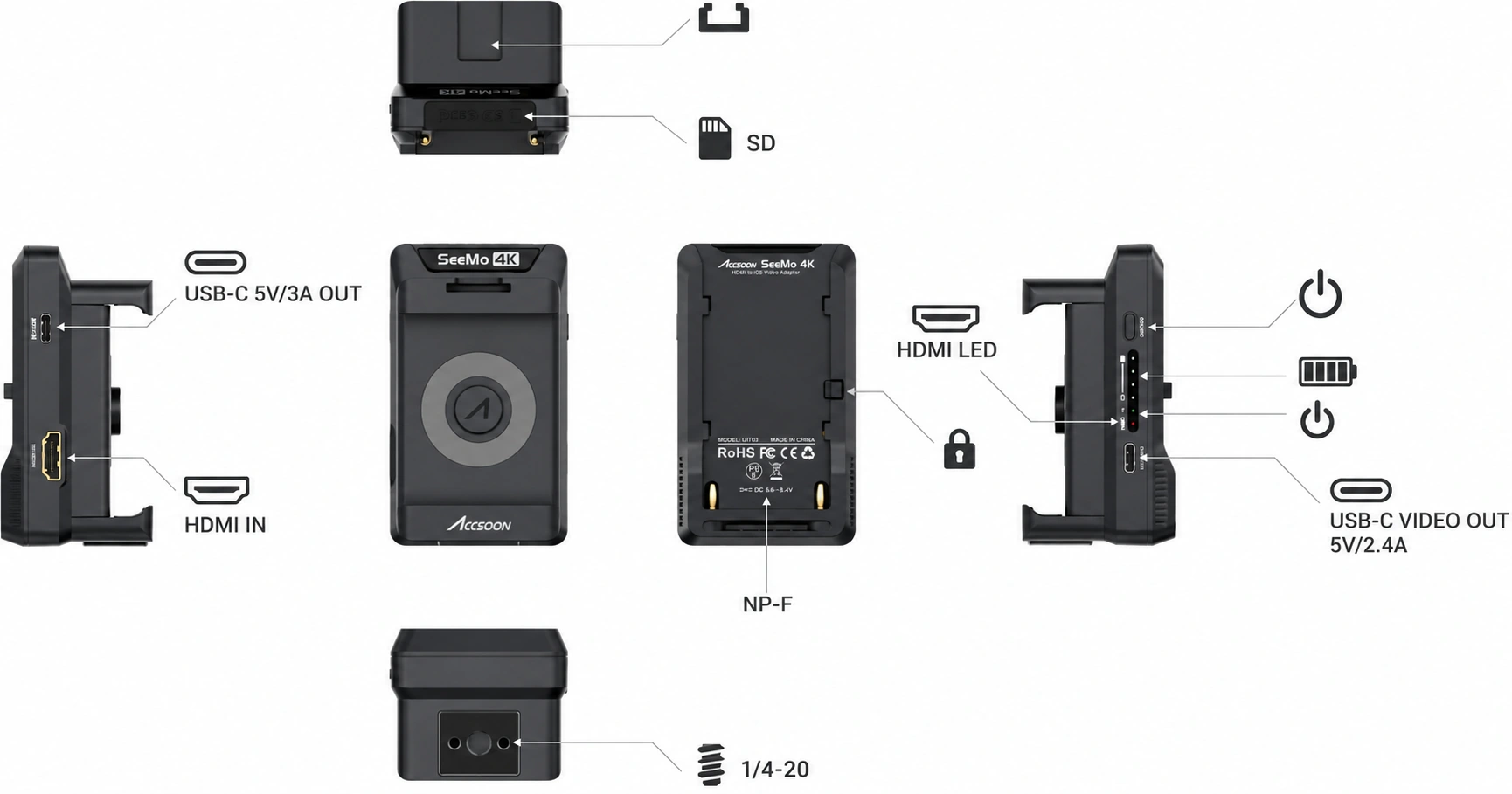

4K video through the right port

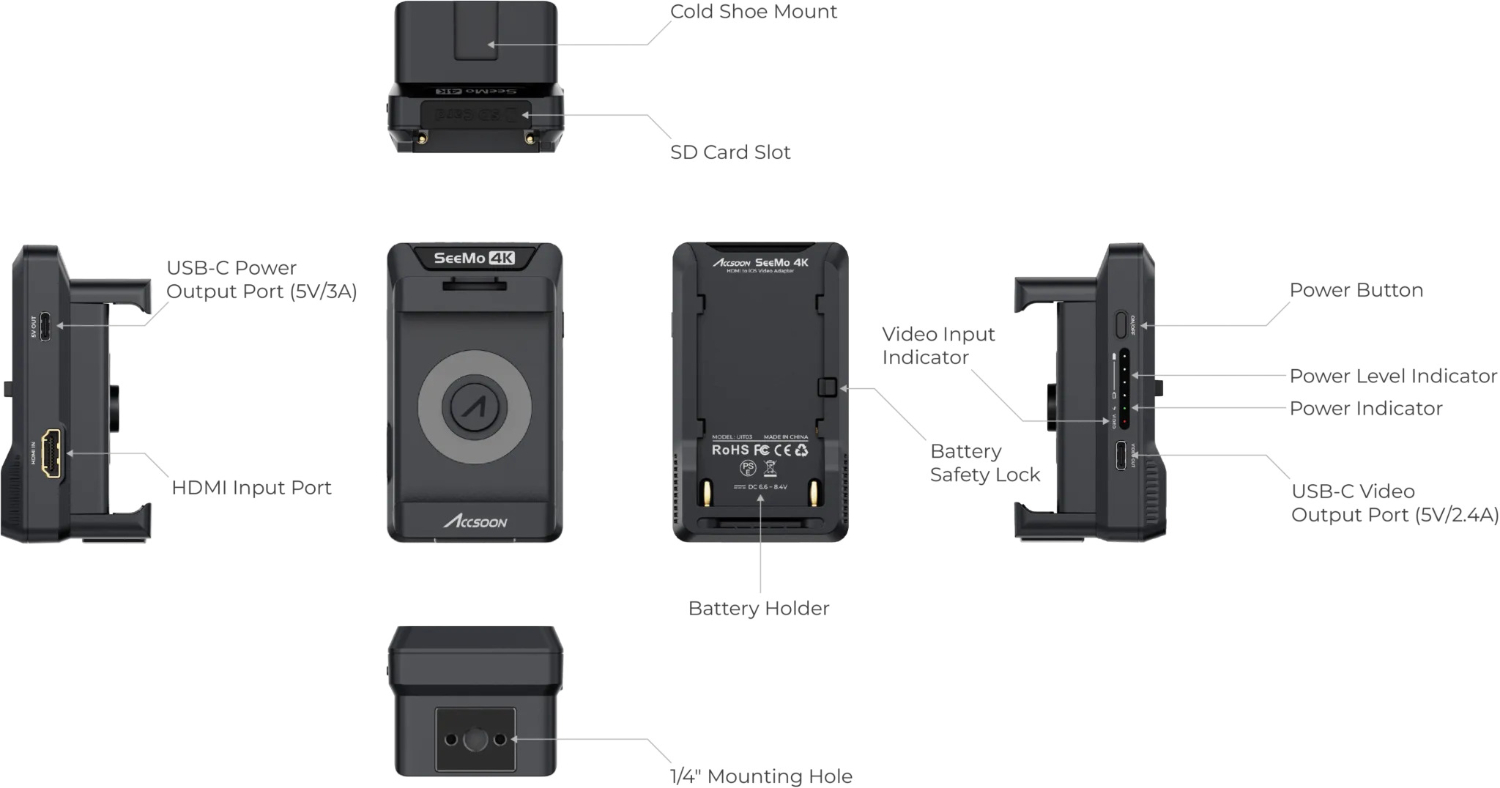

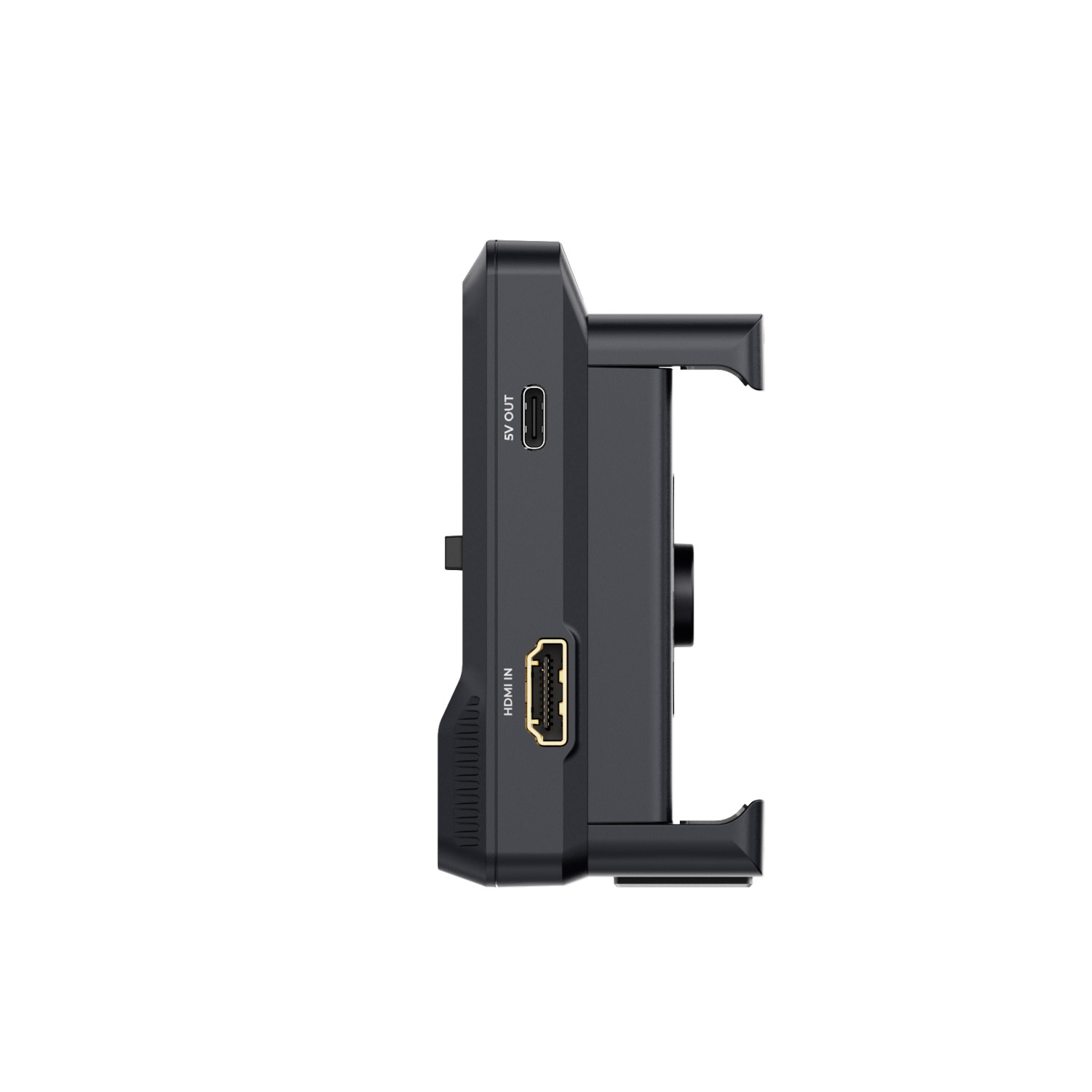

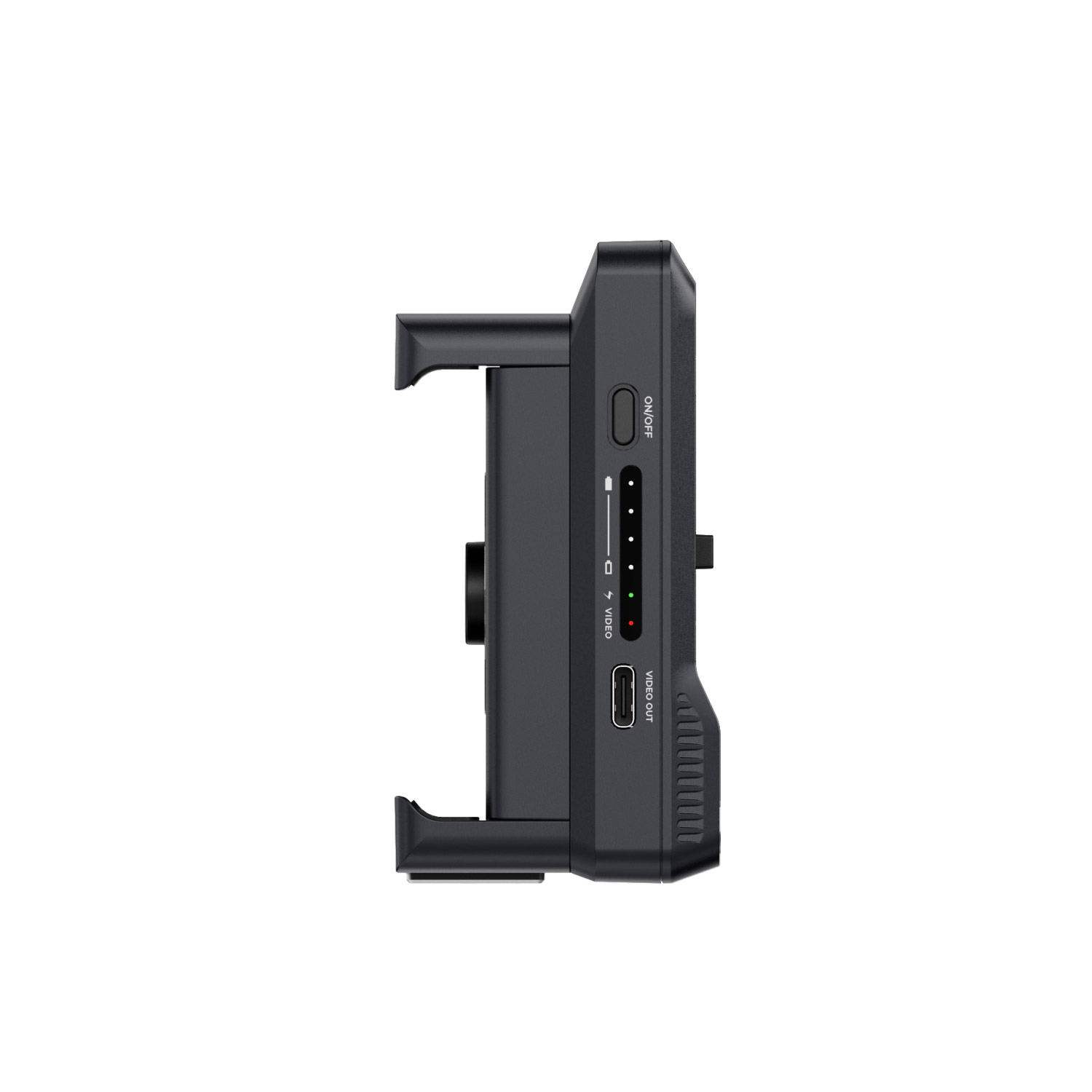

HDMI-A input accepts UHD 3840 × 2160 up to 30 fps or Full HD up to 60 fps. USB-C VIDEO OUT sends H.264 video to one supported iPhone/iPad. The separate USB-C port supplies 5 V / 3 A to compatible equipment. NP-F power, the battery lock, 1/4″-20 mount and SD reader are shown in the diagram.

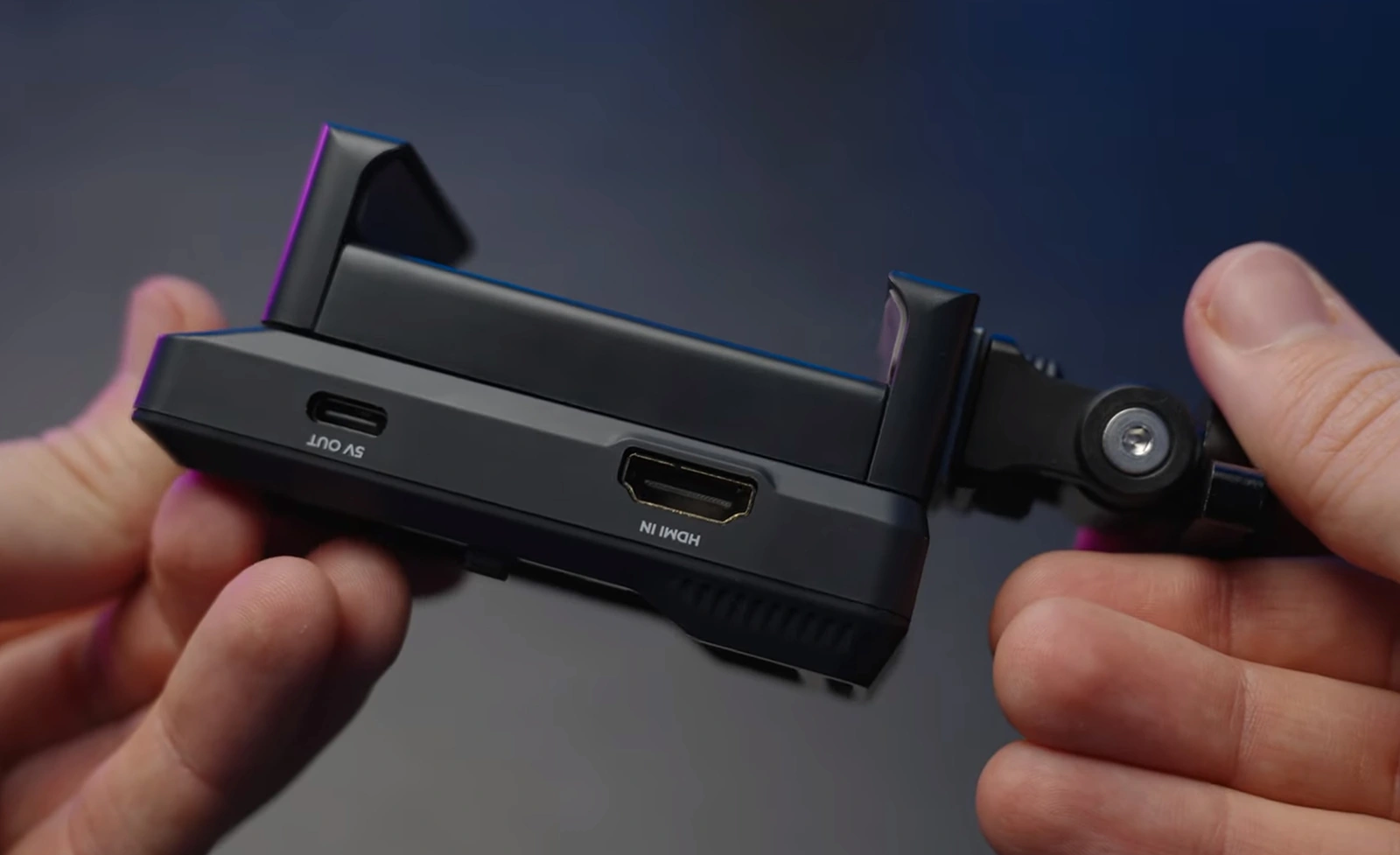

A modular phone mount

The phone clamp separates from the image-processing module for mounting on suitable accessories, including a compatible optional iPad PowerCage. The included cold shoe adapter mounts the supplied assembly to a camera shoe. Phone, camera, cage and NP-F battery are separate equipment.

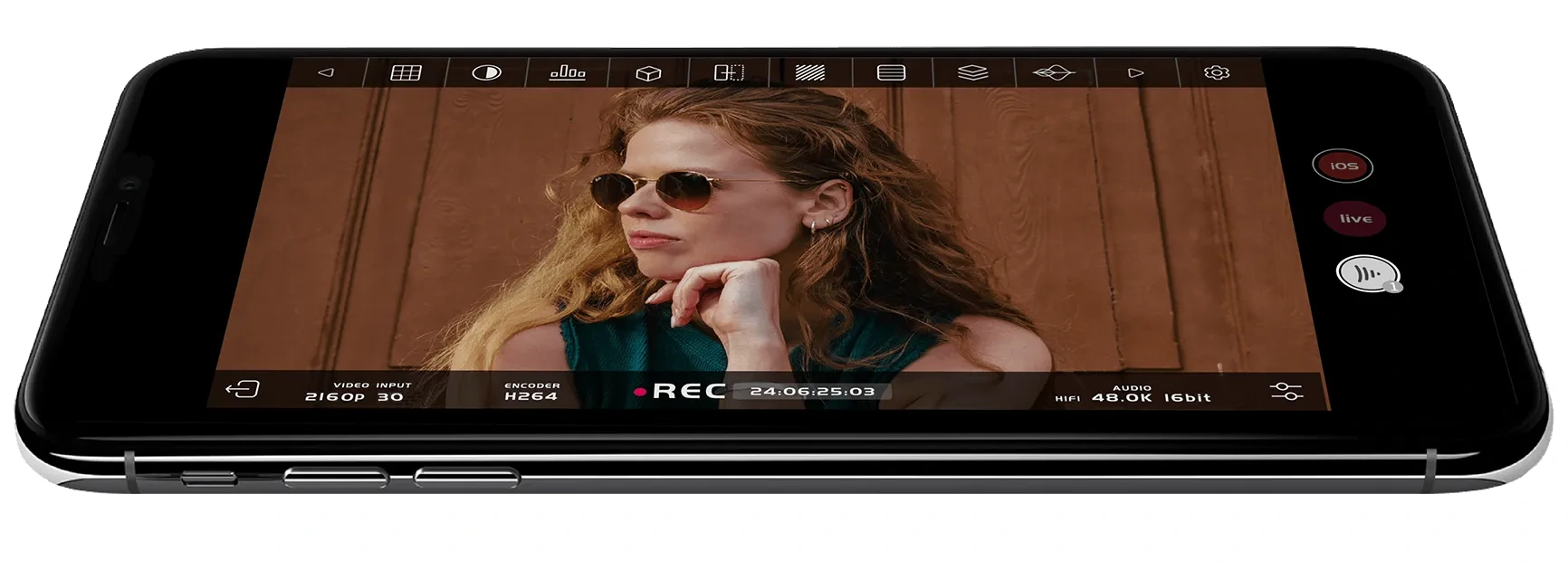

Check the detail in 4K

The Accsoon SEE app turns the supported mobile screen into a monitor with magnification, waveform, histogram, false colour, zebra, focus peaking, LUT, grids, markers, audio levels, overlay, mirror and anamorphic de-squeeze. Display quality and brightness depend on the connected Apple device.

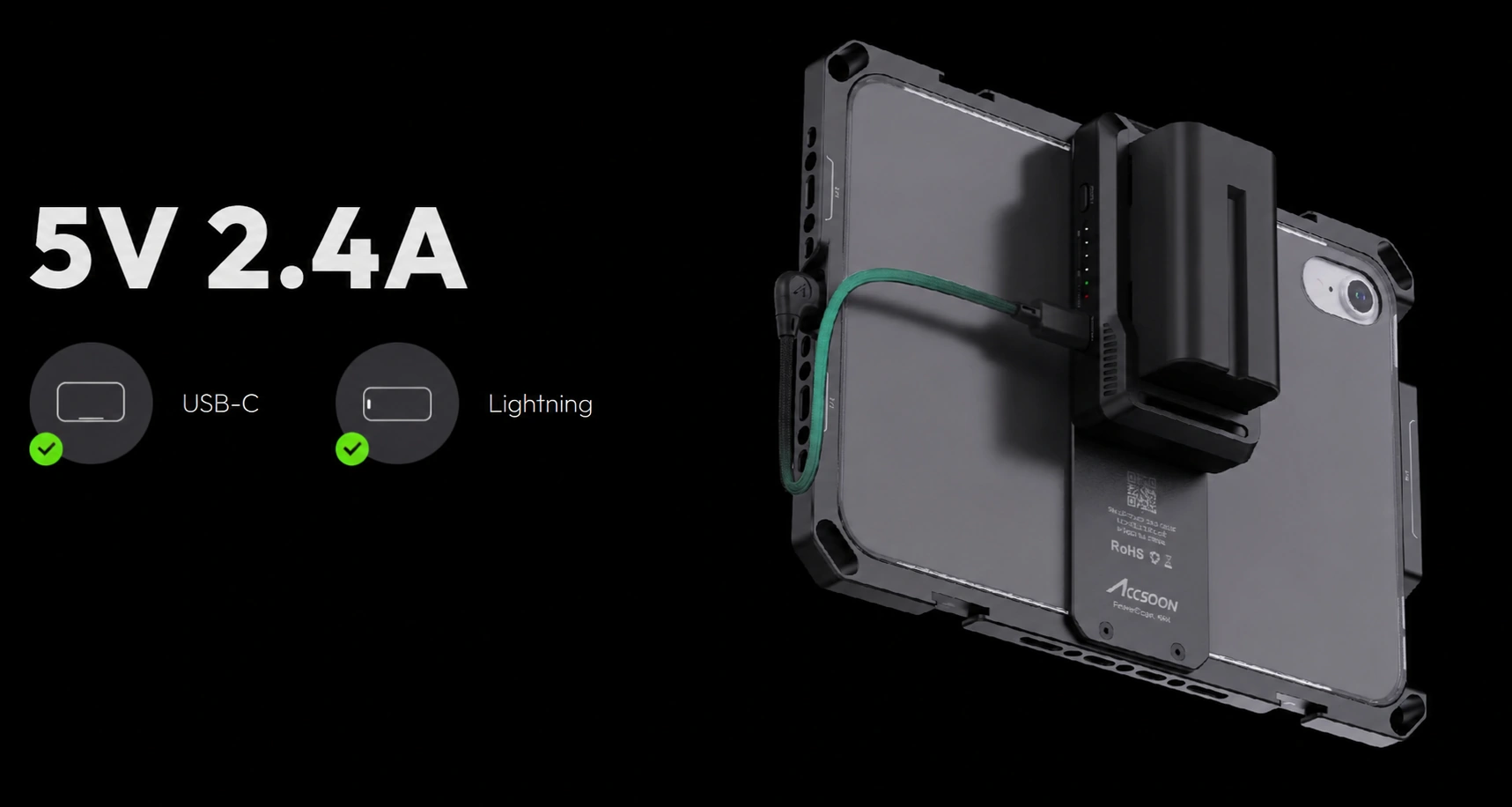

Power for iPhone or iPad

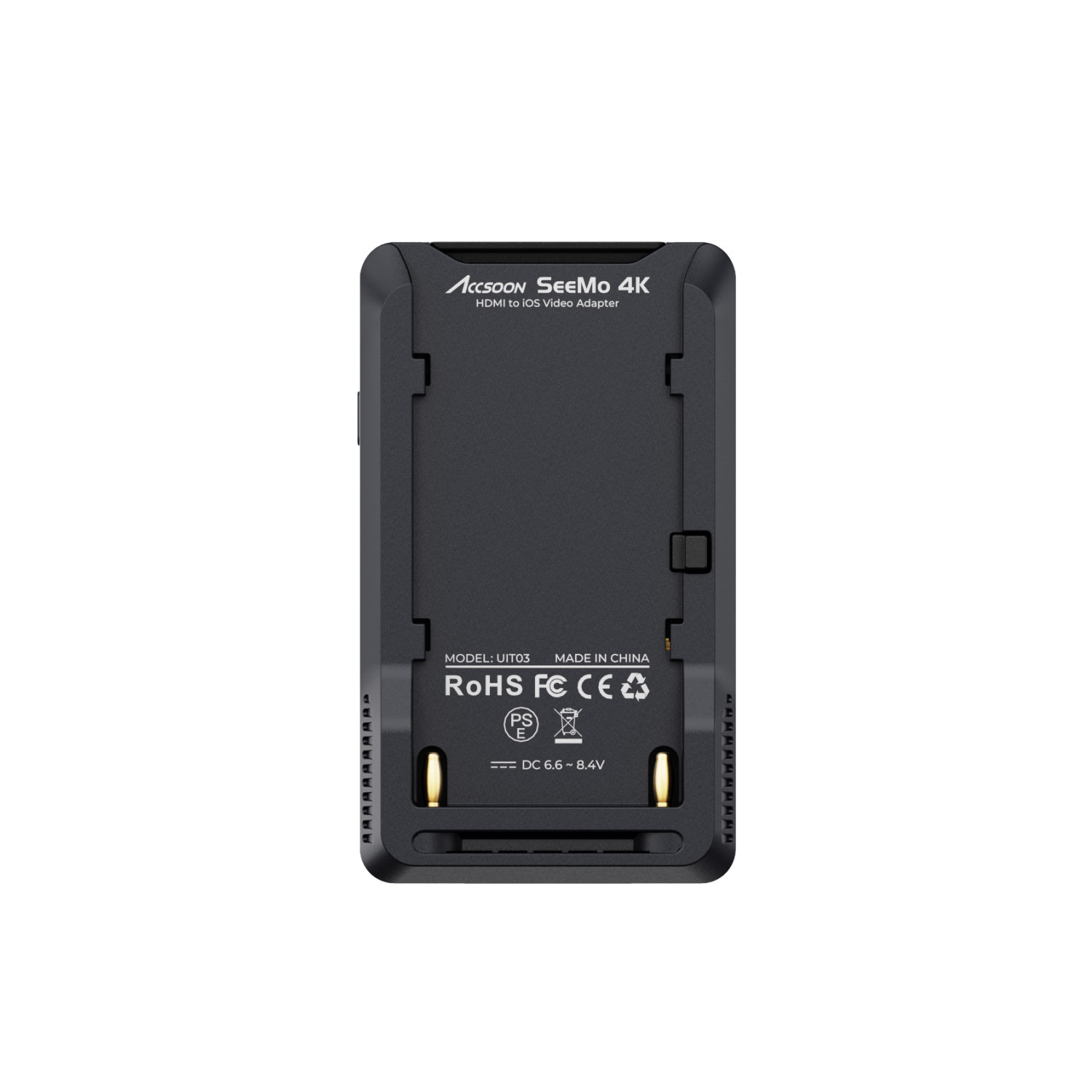

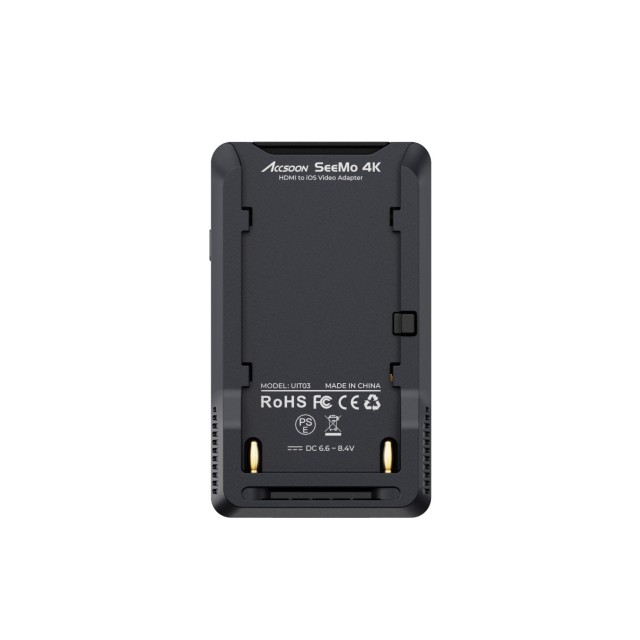

An NP-F550/750/970 battery powers SeeMo 4K. The video connection can supply up to 5 V / 2.4 A to a compatible Lightning or USB-C iPhone/iPad. The separate auxiliary USB-C output is rated 5 V / 3 A. Consumption without connected-device charging is 3 W. The pictured cage, tablet and battery are optional.

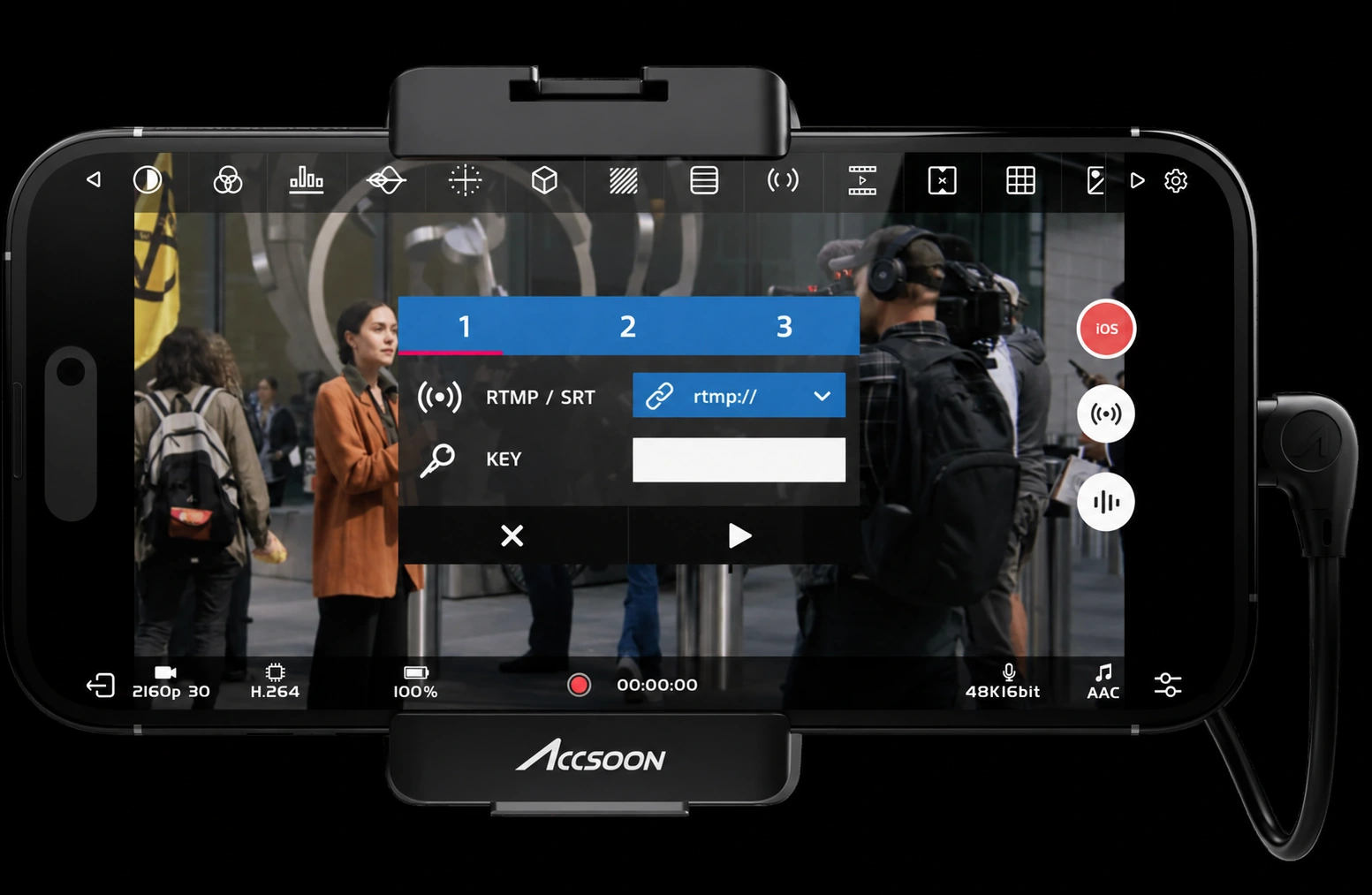

Record and stream from iOS

Record H.264 up to UHD 30 fps to the iOS camera roll, then edit or share it. RTMP/SRT streaming uses the mobile Internet connection. Set the service address and stream key before going live; LUT and rotation options depend on the current app. The technical symbols in the graphic explain the workflow, rather than promising a localized app interface.

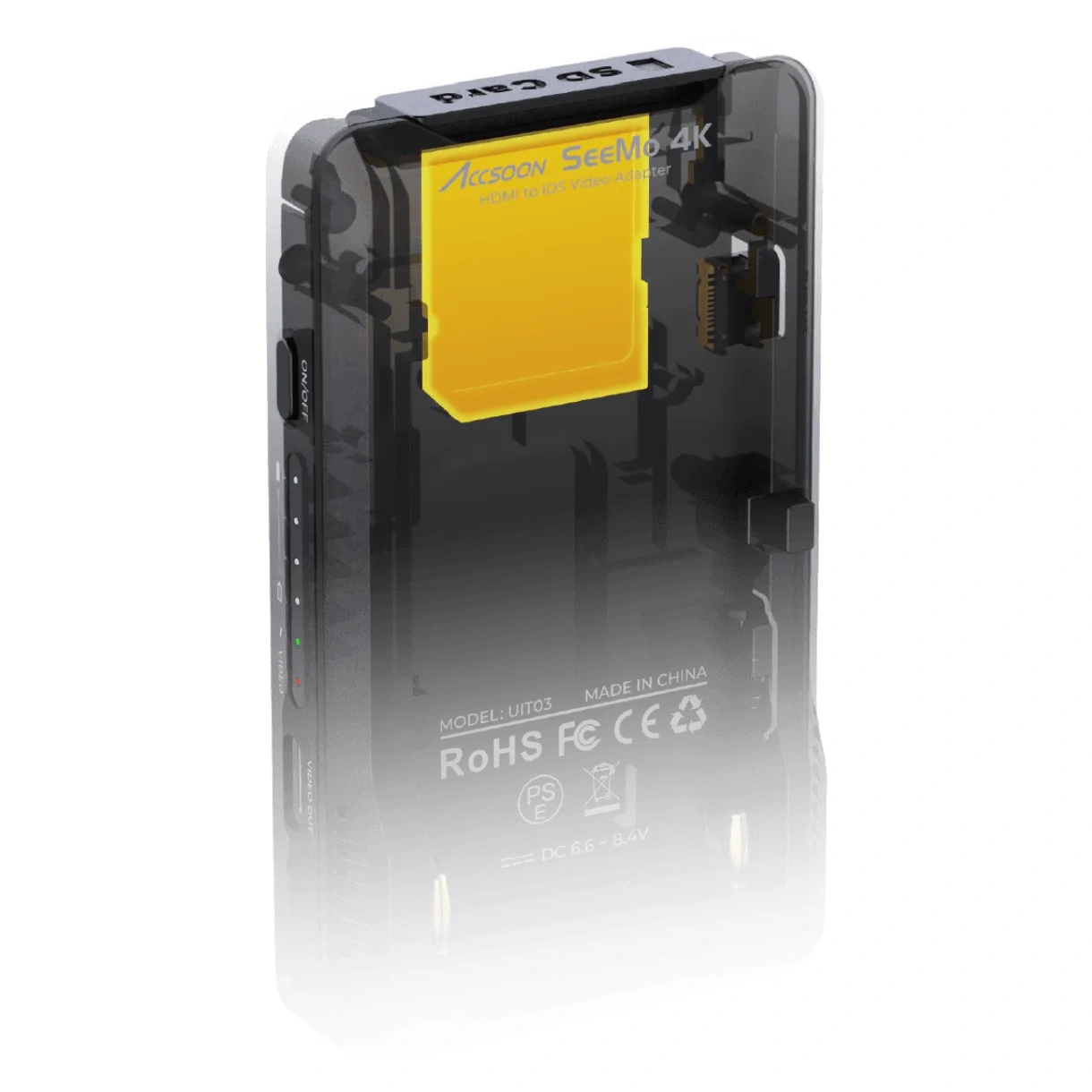

SD files, not SD recording

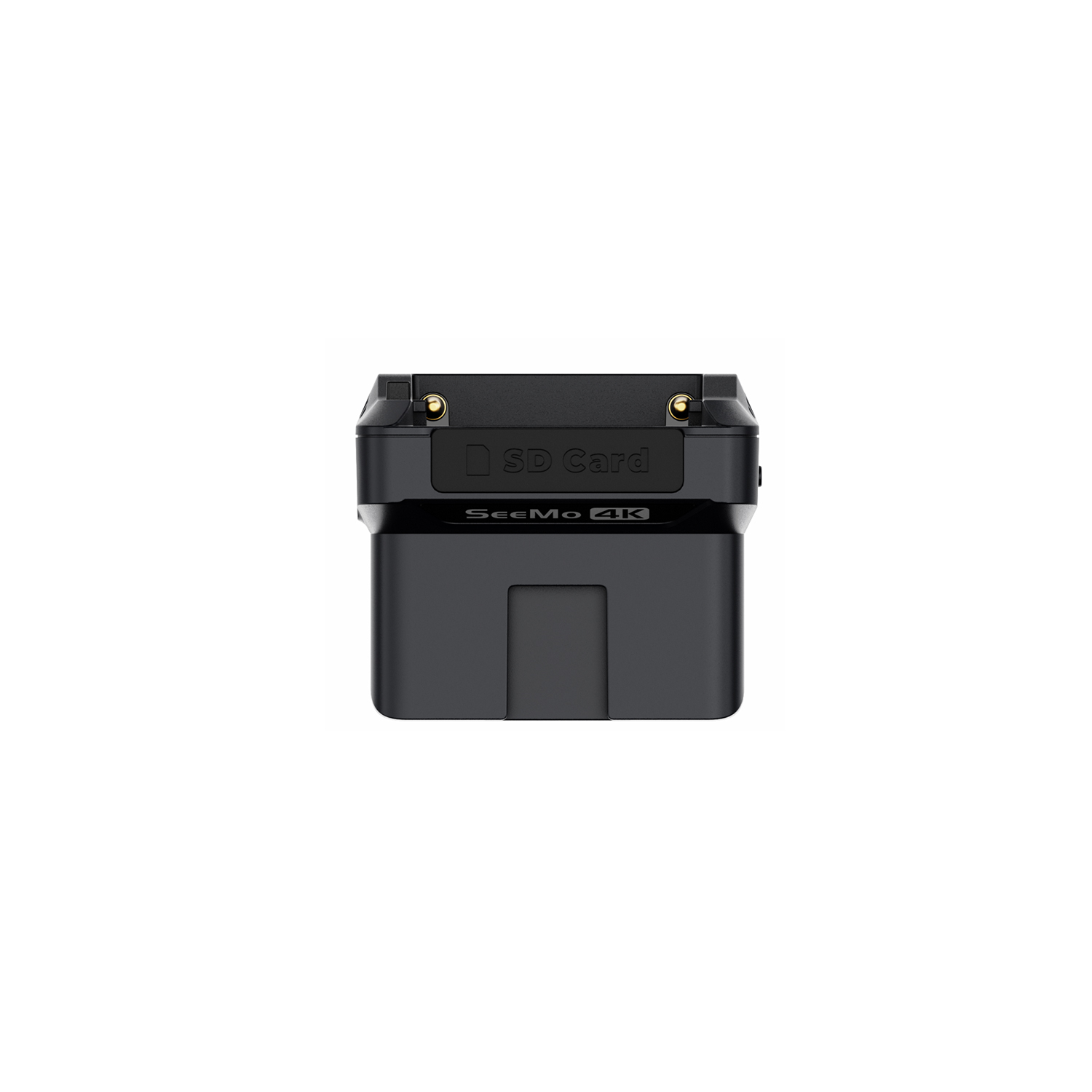

The SD reader transfers files between a card and a compatible USB-C iOS device at USB 2.0 speed. It supports SD/SDHC up to 32 GB and SDXC up to 2 TB. This feature is unavailable with Lightning devices. SeeMo does not record the live camera video directly onto the SD card; recording runs on the mobile device. Card sold separately.

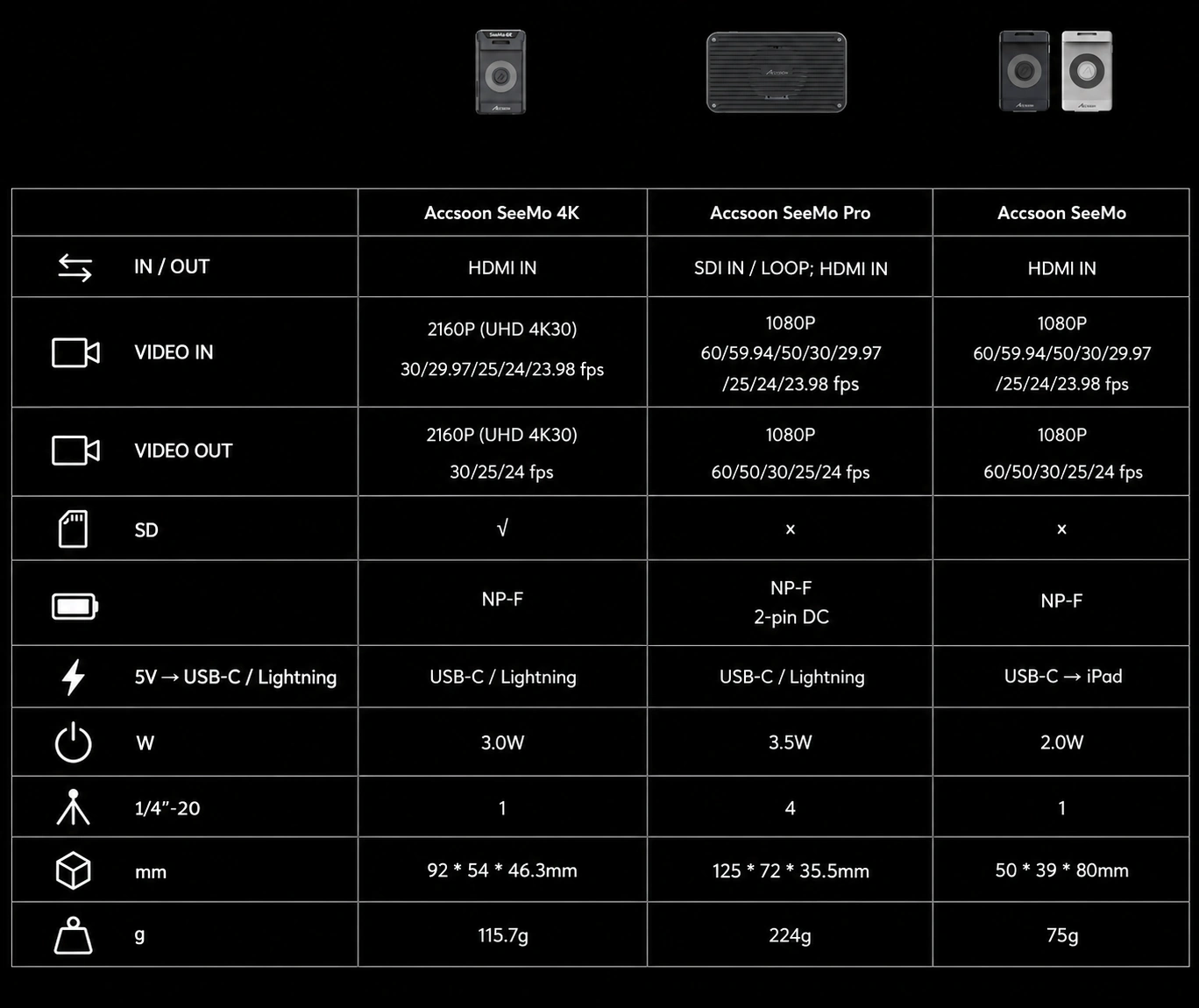

Choose SeeMo for your connection

The table compares iOS models: SeeMo has HDMI Full HD60; Pro adds SDI input and loop-out; SeeMo 4K has HDMI UHD30 and an SD reader. IN/OUT means input/output, SD means card reader and the battery symbol means power supply. W is consumption without mobile charging, 1/4″-20 is mount count, mm is body size and g is weight without battery. Original SeeMo does not charge Lightning devices. Click to enlarge the chart.

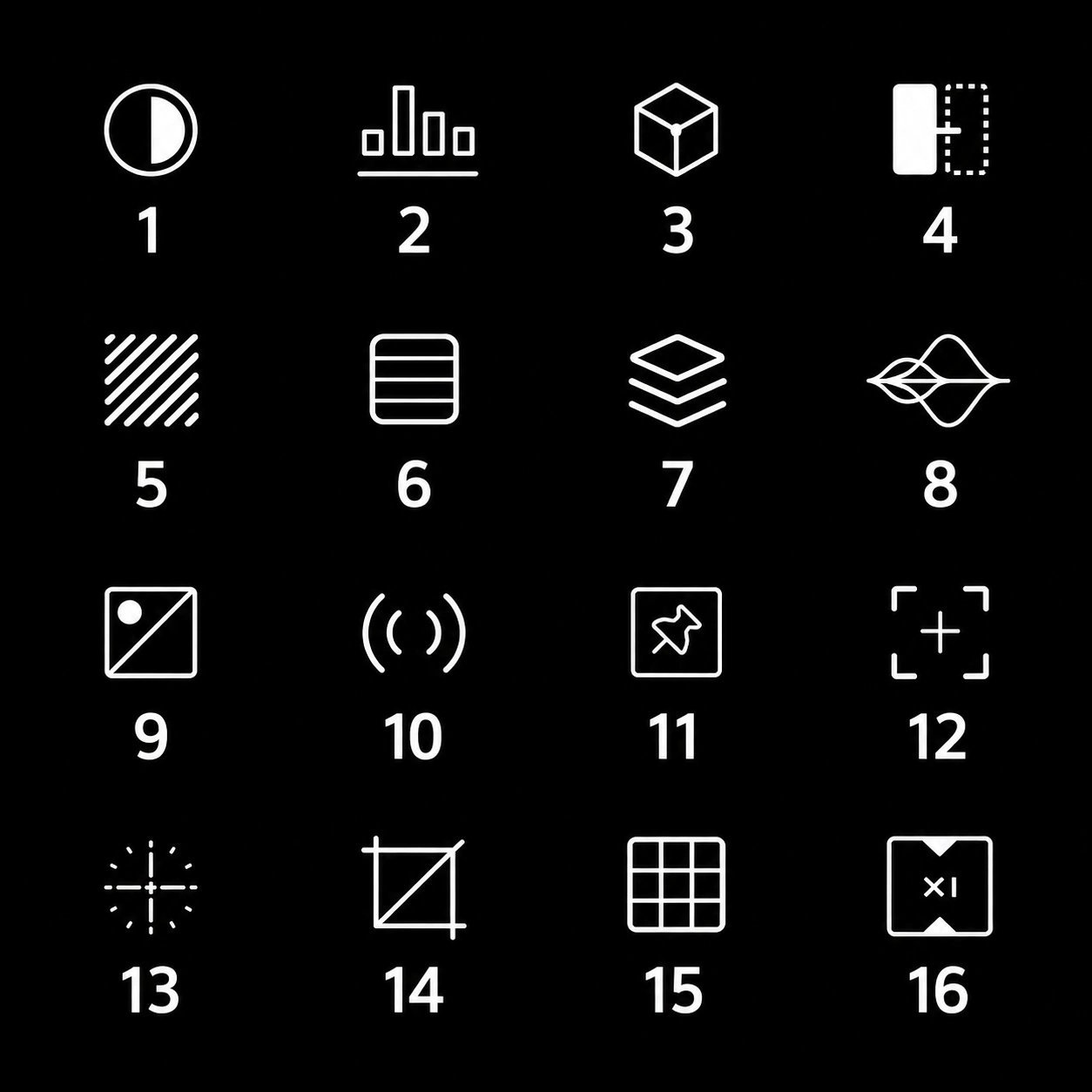

Accsoon SEE tools

Numbers in the manufacturer overview identify the following app tools. Availability depends on the current version and connected device.

1. Grayscale
2. Histogram
3. LUT
4. Mirror
5. Zebra
6. False colour
7. Overlay
8. Waveform
9. Colour range
10. Audio levels
11. Markers
12. Focus peaking
13. Vectorscope
14. Screenshot
15. Grids
16. Anamorphic de-squeeze

Device compatibility

Use the current Accsoon SEE app and firmware. iOS 12.0 or later is required; manufacturer examples include iPhone 8 and later, iPad generation 6 and later, iPad Pro 9.7/10.5/11/12.9″, Air generation 3 and later and mini generation 5 and later. Available features and smooth 4K performance depend on the connected device.

PACKAGE CONTENT

Accsoon SeeMo 4K ×1
USB-C → USB-C cable ×1
USB-C → Lightning cable ×1
Phone clamp included in assembly
Accsoon cold shoe adapter ×1

SPECIFICATIONS

Model: Accsoon SeeMo 4K
Video input: HDMI-A
HDMI IN: 2160p30/29.97/25/24/23.98; 1080p60/59.94/50/30/29.97/25/24/23.98; 720p60/59.94/50
USB VIDEO OUT: 2160p30/25/24; 1080p60/50/30/25/24; 720p60/50
Video output device: iPhone/iPad
Codec: H.264; VBR
Power supply: NP-F550/750/970
USB auxiliary output: 5 V / 3 A
Consumption without mobile charging: 3 W
Body dimensions: 92 × 54 × 46.3 mm
Weight without battery: 115.7 g
Operating temperature: −10–40 °C
Minimum OS: iOS 12.0

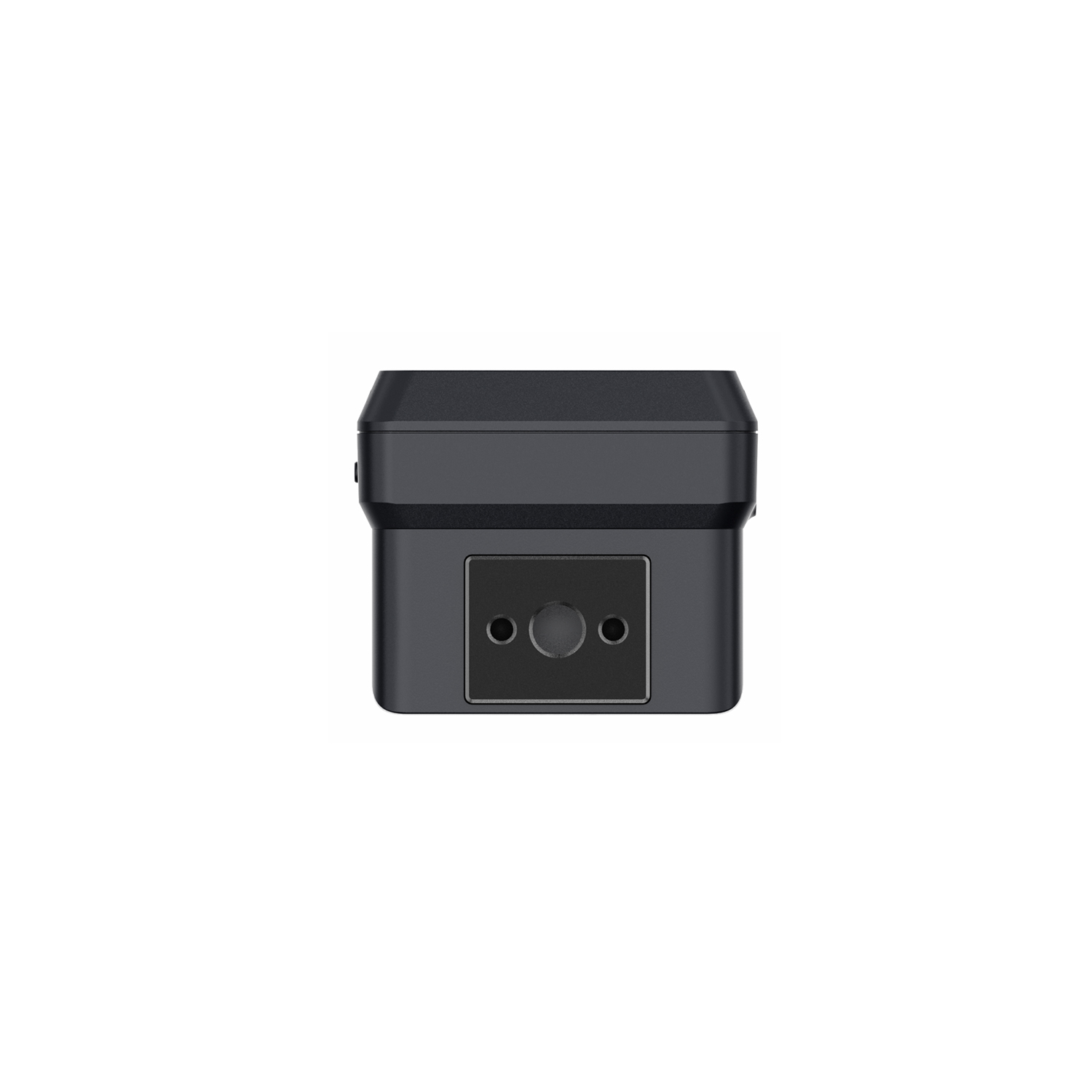

Mounts: 1 × 1/4″-20
Battery / mobile / camera: Purchased separately
Clamp width: 65–90 mm
Mobile charging maximum: 5 V / 2.4 A
SD reader: USB-C iOS only; USB 2.0; no direct camera recording
Card capacity: SD/SDHC ≤32 GB; SDXC ≤2 TB

WE RECOMMEND

The Accsoon SeeMo 4K is an innovative interface that transforms your iPhone or iPad into a professional UHD monitor and recorder powered by NP-F batteries. For optimal performance, we recommend accessories for securely mounting your iOS device, a high-quality power solution, and connection cables for video signal transmission.

Power and Charging - Accessories to provide power to the SeeMo 4K and connected iOS devices using the NP-F standard.

Mounting and Attachment - Components for securely attaching the SeeMo 4K to monitors, gimbals, or camera cages.

iPad Cages - Specialized cages that allow you to integrate an iPad as a large production monitor in combination with the SeeMo system.

Cabling and Signal Transmission - High-quality HDMI cables essential for connecting the camera to the SeeMo 4K device input.

Accsoon HDMI Cable (A-D)

Rigs and stabilization - Accessories for expanding your camera setup and capturing smooth footage while monitoring via SeeMo.

Protection and Transport - Durable cases for the safe transport of sensitive electronics and accessories.

Accsoon EVA Carrying Case

Parameters

Manufacturer:	Accsoon
Category:	Wireless video transmission

Main parameters

Power supply	NP-F550 · NP-F750 · NP-F970
Colour	Black
Mounting interface	1/4″-20
Input connector	HDMI type A – female
Video codec	H.264
Output connector	USB-C – female
Functions	USB-C video output to iPhone/iPad · 3D LUT in Accsoon SEE · Mobile recording in Accsoon SEE · RTMP streaming in Accsoon SEE · SRT streaming in Accsoon SEE · Waveform in Accsoon SEE · False colour in Accsoon SEE · Focus peaking in Accsoon SEE · Recording / stream rotation in Accsoon SEE
Mounting interface	Cold shoe adapter
Compatible mobile operating system	iOS 12.0 or later
Functions	SD card reader for USB-C iOS · Adjustable VBR bitrate · Zebra in Accsoon SEE · Histogram in Accsoon SEE · Framing grids in Accsoon SEE · Anamorphic de-squeeze in Accsoon SEE · Mirror in Accsoon SEE · Image overlay in Accsoon SEE · Image magnification in Accsoon SEE · Vectorscope in Accsoon SEE · Audio level meters in Accsoon SEE · Framing markers in Accsoon SEE · Grayscale in Accsoon SEE · Color range in Accsoon SEE · Screenshot in Accsoon SEE
Unit dimensions without antennas	92x54x46.3mm
Weight per unit	115.7g
Maximum transmission resolution	3840x2160px
Maximum frame rate	60fps
Operating temperature	-10x40°C
Maximum HDMI Input Resolution	3840x2160px
Maximum HDMI Input Frame Rate	60fps
Maximum wired monitoring devices	1
USB output voltage	5V
Maximum USB output current	3A
Power consumption without powering the connected device	3W
Phone clamp width range	65x90mm
Number of 1/4″-20 mounting points	1
Maximum connected mobile device charging current	2.4A
Maximum UHD 4K frame rate	30fps
Maximum SD/SDHC card capacity	32GB
Maximum SDXC card capacity	2TB
Input	HDMI
Output	USB-C (video to iOS)
