Accsoon SeeMo 4K for Android

Accsoon SeeMo 4K for Android converts the camera’s HDMI signal for one supported Android device. A wired HDMI adapter for Android: UHD 4K30 monitoring, H.264 recording and streaming in Accsoon SEE. It supports UHD 4K30, also 720p, and uses an NP-F550/750/970 battery. The mobile app provides monitoring tools, audio/video recording and Internet streaming. Use…

More information

168 € with VAT 138.84 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon SeeMo 4K for Android converts the camera’s HDMI signal for one supported Android device. A wired HDMI adapter for Android: UHD 4K30 monitoring, H.264 recording and streaming in Accsoon SEE. It supports UHD 4K30, also 720p, and uses an NP-F550/750/970 battery. The mobile app provides monitoring tools, audio/video recording and Internet streaming. Use the dedicated included Accsoon USB cable; cameras, mobile devices, batteries and HDMI/SDI signal cables are purchased separately.

ACCSOON SEEMO 4K FOR ANDROID

4K on your mobile

A wired HDMI adapter for Android: UHD 4K30 monitoring, H.264 recording and streaming in Accsoon SEE.

UHD 4K30AndroidNP-F
Accsoon SeeMo 4K for Android
A camera view on Android · Accsoon SeeMo 4K for Android

A camera view on Android

This manufacturer photograph shows SeeMo 4K for Android mounted with a camera and phone. The HDMI camera signal travels over the supplied dedicated USB-C cable to Accsoon SEE. The app supports monitoring, recording and Internet streaming. The pictured camera, phone and battery are separate equipment.

HDMI to one Android device

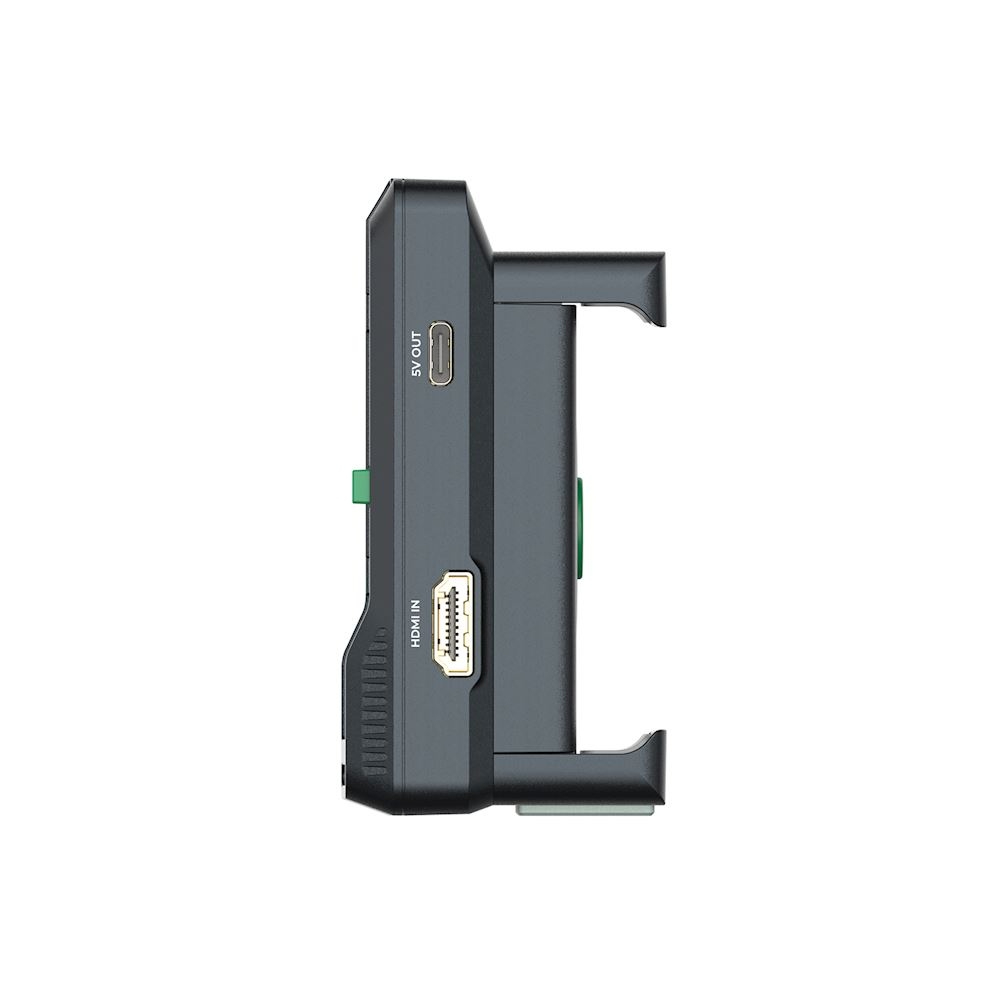

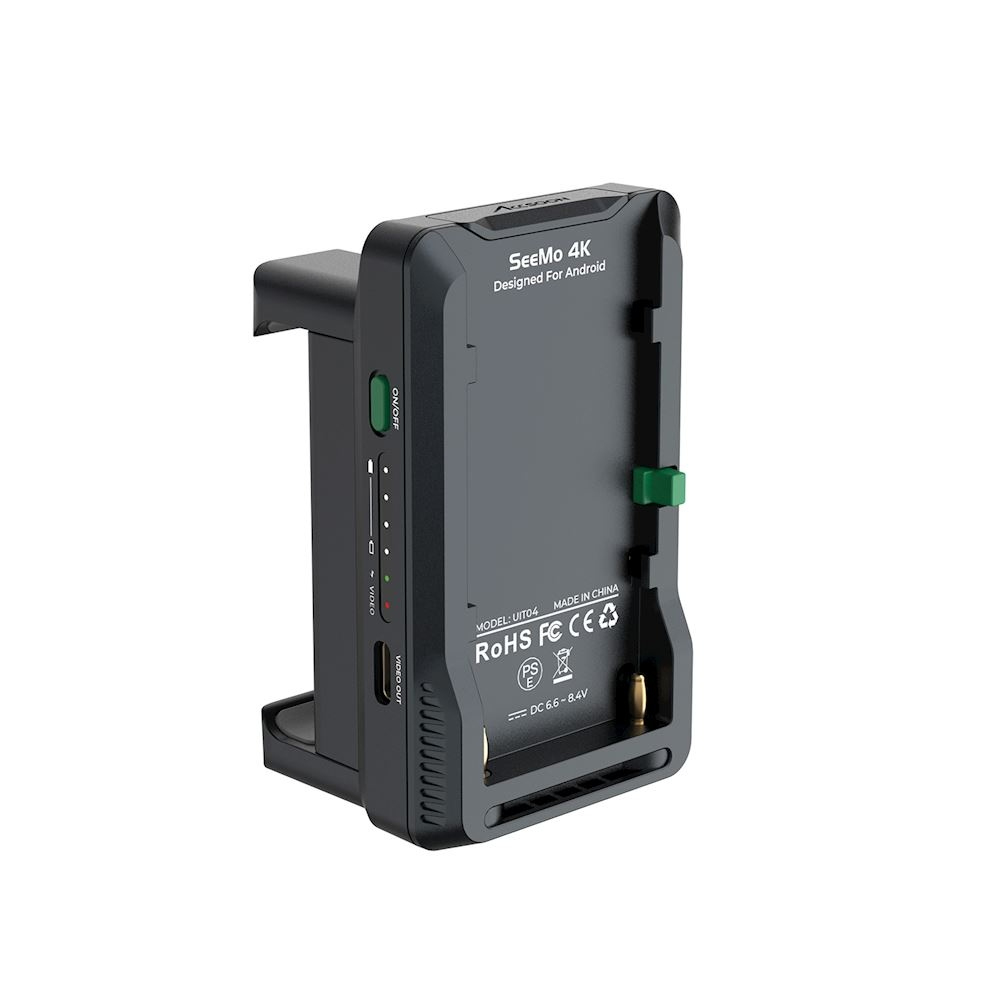

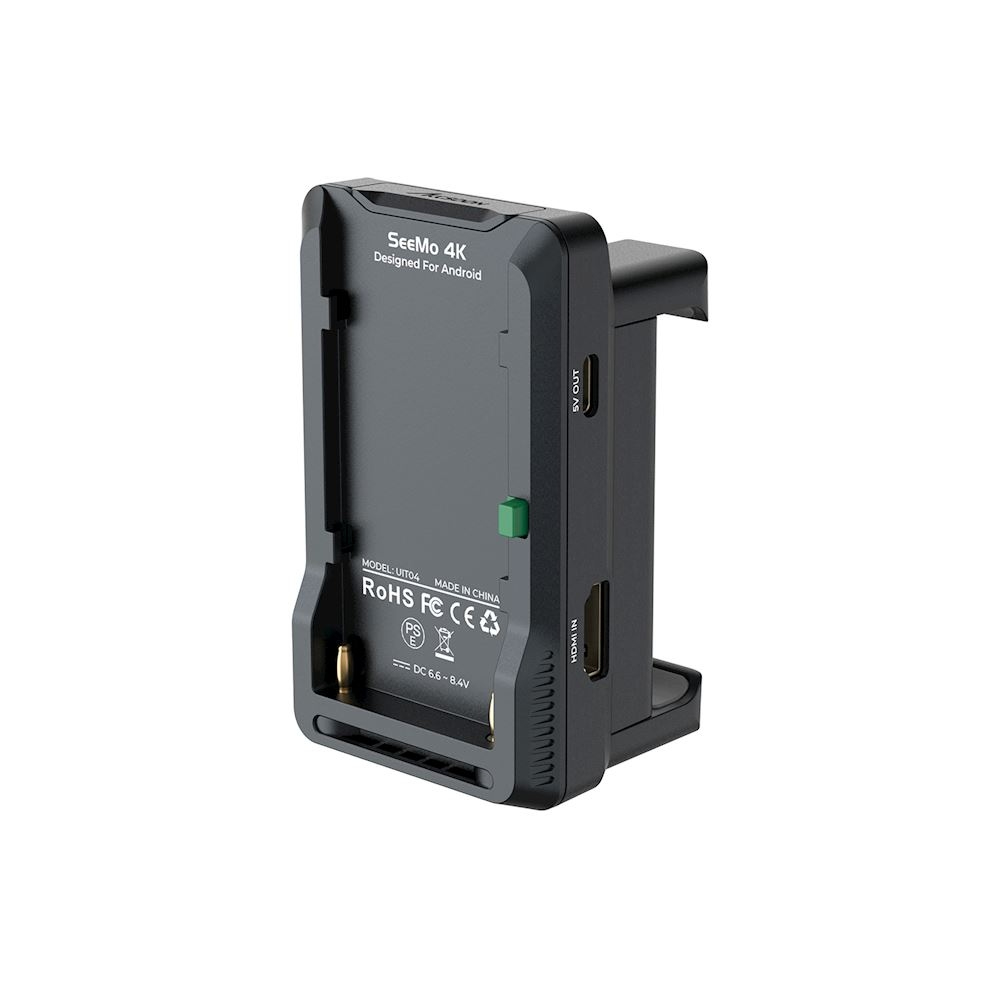

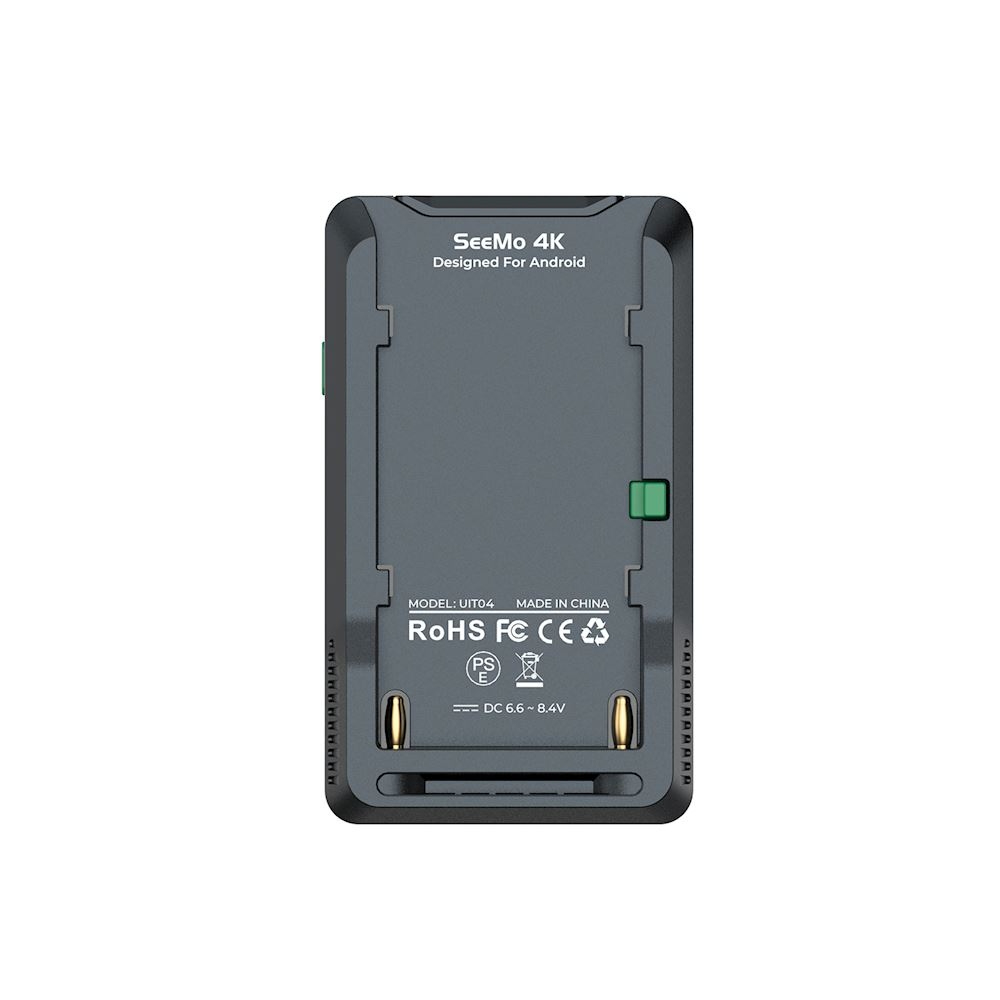

HDMI-A accepts UHD 3840 × 2160 up to 30 fps or Full HD up to 60 fps. USB-C VIDEO OUT connects to one supported Android phone/tablet; the other USB-C port supplies 5 V / 3 A to compatible equipment. The diagram shows the battery lock, NP-F holder, 1/4″-20 mount and cold shoe. This Android model has no SD reader.

HDMI to one Android device · Accsoon SeeMo 4K for Android
One battery, longer operation · Accsoon SeeMo 4K for Android

One battery, longer operation

Use an NP-F550/750/970 battery. SeeMo can also supply up to 5 V / 3 A to the connected Android device through its video cable. The separate USB-C power output has the same maximum rating. Consumption without connected-device charging is 3 W; the body weighs 112.3 g. The battery shown is an example and is not included.

Monitor, record and stream

Accsoon SEE offers LUT, overlay, focus assist and zebra on a supported Android device. Record H.264 up to UHD 30 fps and share it from the device. RTMP/SRT streaming requires stable Internet; set 90°/180°/270° stream rotation before going live. Android 8.0 or later is required, but compatibility also depends on the exact device and OS version.

Monitor, record and stream · Accsoon SeeMo 4K for Android

Device compatibility

Use the current Accsoon SEE app from Google Play and check the manufacturer’s tested device/OS list. Android 8.0 alone does not guarantee every phone is compatible. This model is for Android, not iOS; it has no SD reader or Lightning cable.

PACKAGE CONTENT

  • Accsoon SeeMo 4K for Android ×1
  • USB-C → USB-C cable ×1
  • Phone clamp included in assembly
  • Accsoon cold shoe adapter ×1
  • L-shaped hex key ×1

SPECIFICATIONS

  • Model: Accsoon SeeMo 4K for Android
  • Video input: HDMI-A
  • HDMI IN: 2160p30/29.97/25/24/23.98; 1080p60/59.94/50/30/29.97/25/24/23.98; 720p60/59.94/50
  • USB VIDEO OUT: 2160p30/25/24; 1080p60/50/30/25/24; 720p60/50
  • Video output device: Android
  • Codec: H.264; VBR
  • Power supply: NP-F550/750/970
  • USB auxiliary output: 5 V / 3 A
  • Consumption without mobile charging: 3 W
  • Body dimensions: 92 × 54 × 46.3 mm
  • Weight without battery: 112.3 g
  • Operating temperature: −10–40 °C
  • Minimum OS: Android 8.0
  • Mounts: 1 × 1/4″-20
  • Battery / mobile / camera: Purchased separately
  • Clamp width: 65–90 mm
  • Phone screen size: 5.5–6.7″
  • Mobile charging maximum: 5 V / 3 A
  • Stream protocols: RTMP / SRT
  • Stream rotation: 90°/180°/270°; set before broadcast

WE RECOMMEND

The Accsoon SeeMo 4K for Android is an innovative adapter that transforms your smartphone into a professional 4K monitor, recorder, and streaming device. To get the most out of it, it’s essential to ensure a stable power supply using NP-F batteries, a high-quality HDMI connection to your camera, and a secure mount within your camera rig.

Power and Charging - The SeeMo 4K is powered by NP-F batteries, so fast chargers and battery adapters are essential accessories.

Cables and Connectivity - A high-quality HDMI cable with compatible connectors is required to transmit the 4K signal from the camera to the SeeMo adapter.

Mounting and Attachment - These components allow for secure attachment of the adapter and phone to a camera, gimbal, or tripod.

Rigs and Stabilization - Accessories for building more complex camera setups and achieving smooth shots.

Protection and Transport - High-quality cases protect the SeeMo adapter’s sensitive electronics during transport in the field.

Intercom and Communication - Accsoon CoMo wireless systems complement the ecosystem for effective crew communication during image monitoring.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Unit dimensions without antennas92x54x46.3mm
Weight per unit112.3g
Maximum transmission resolution3840x2160px
Maximum frame rate60fps
Operating temperature-10x40°C
Power supplyNP-F550 · NP-F750 · NP-F970
ColourBlack
Mounting interface1/4″-20 · Cold shoe adapter
Functions3D LUT in Accsoon SEE · Adjustable VBR bitrate · Focus peaking in Accsoon SEE · Image overlay in Accsoon SEE · Mobile recording in Accsoon SEE · Recording / stream rotation in Accsoon SEE · RTMP streaming in Accsoon SEE · SRT streaming in Accsoon SEE · USB-C video output to Android · Zebra in Accsoon SEE
Input connectorHDMI type A – female
Output connectorUSB-C – female
Maximum HDMI Input Resolution3840x2160px
Maximum HDMI Input Frame Rate60fps
Video codecH.264
Maximum wired monitoring devices1
USB output voltage5V
Maximum USB output current3A
Compatible mobile operating systemAndroid 8.0 or later
Power consumption without powering the connected device3W
Phone clamp width range65x90mm
Number of 1/4″-20 mounting points1
Maximum connected mobile device charging current3A
Maximum UHD 4K frame rate30fps
Compatible phone screen size range5.5x6.7″
InputHDMI
OutputUSB-C (video to Android)
