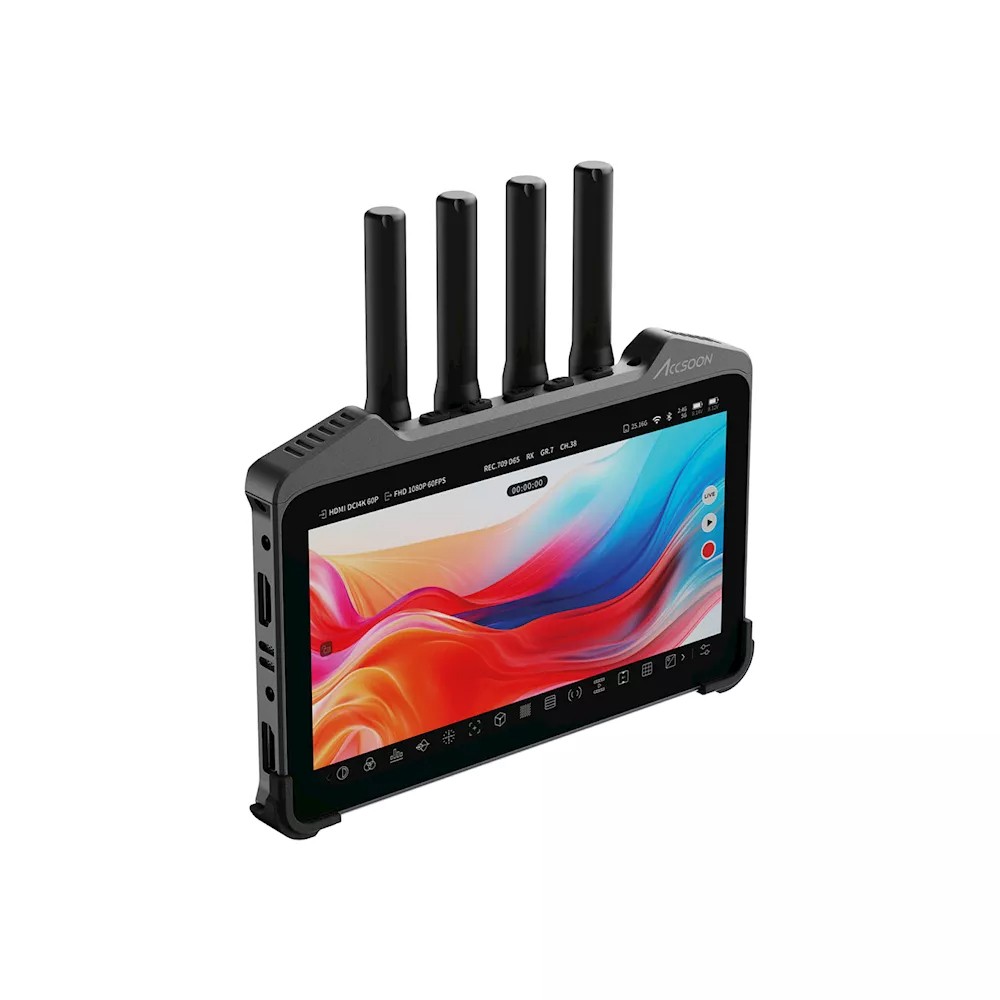

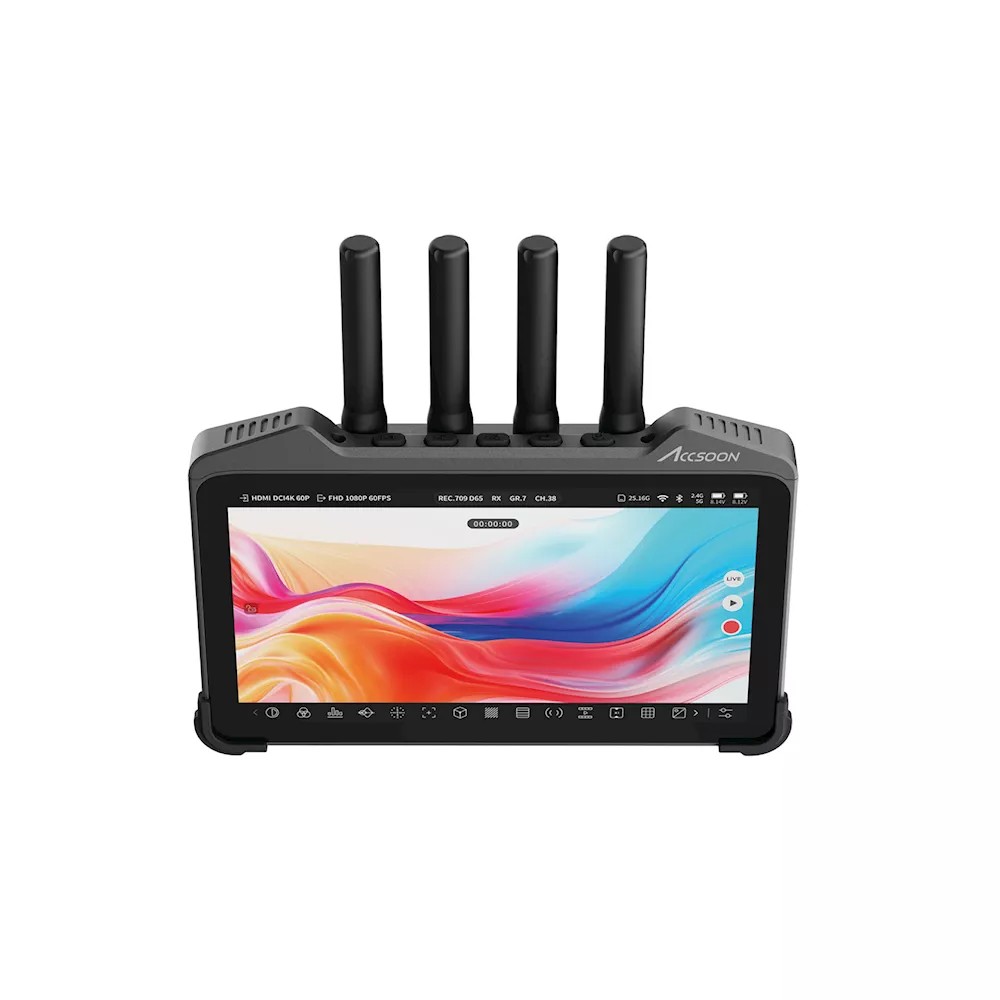

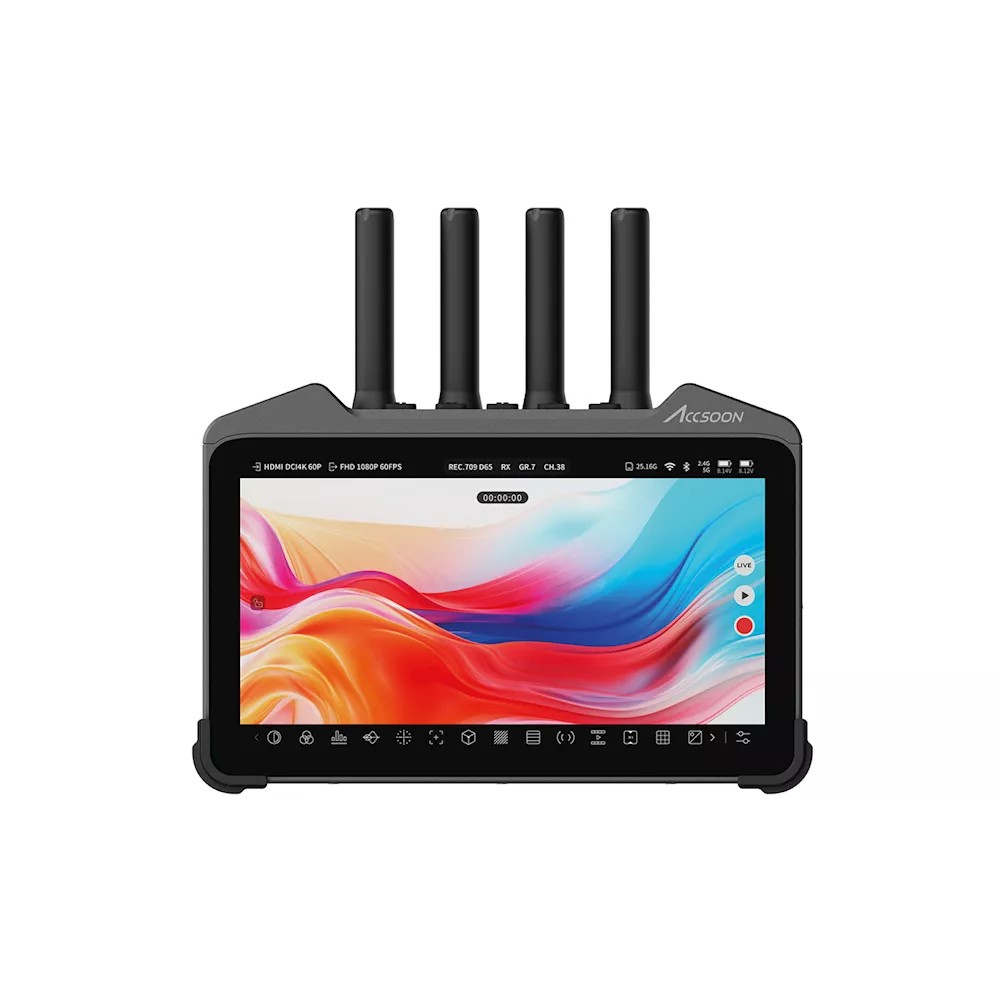

Accsoon CineView M7H Pro

The Accsoon CineView M7H Pro is a professional 7-inch Full HD wireless field monitor built for HDMI-based production workflows. Featuring a bright 1000-nit touchscreen, integrated wireless video transmitter and receiver with up to 350 m transmission range, and advanced monitoring tools including waveform, false color, focus peaking,…

More information

789 € with VAT 652.07 € without VAT
-+
Availability
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

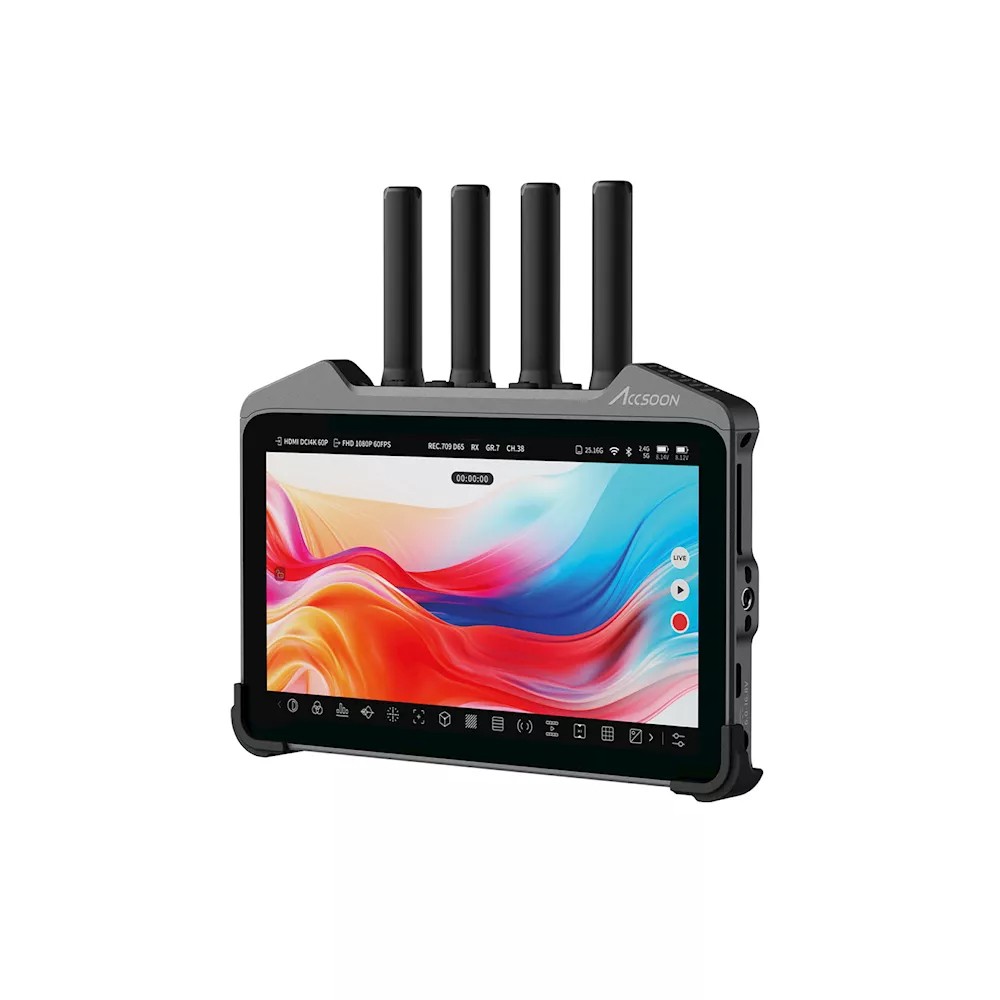

The Accsoon CineView M7H Pro is a professional 7-inch Full HD wireless field monitor built for HDMI-based production workflows. Featuring a bright 1000-nit touchscreen, integrated wireless video transmitter and receiver with up to 350 m transmission range, and advanced monitoring tools including waveform, false color, focus peaking, zebras, and LUT support, it delivers reliable on-set monitoring for DSLR, mirrorless, and HDMI-equipped cinema cameras. Its rugged aluminum construction, Android-based operating system, and flexible power options make it an ideal all-in-one monitoring solution for filmmakers and content creators.

Accsoon CineView M7H Pro

Accsoon CineView M7H Pro

Wireless monitoring in one

A 7-inch 1000-nit monitor with DCI 4K60 HDMI and integrated dual-band TX/RX. Combine camera-side image assessment with wireless viewing for the crew.

7″ Full HD1000 nitsHDMI 4K60TX / RX≤350 m
Accurate image assessment

Accurate image assessment

The factory-calibrated 7″ Full HD display offers 1000 nits and 1000:1 contrast. Waveform, histogram, false colour, zebra and focus peaking assist exposure and focus. 1D/3D LUTs and LUT Box support consistent viewing looks.

Wireless viewing for the crew

Integrated TX/RX uses 2.4 + 5 GHz bands, with up to 350 m line-of-sight range and 60 ms latency. Receive from compatible CineView transmitters or send to supported receivers and mobile devices. Video format depends on the complete chain.

Wireless viewing for the crew
Touch, record and share

Touch, record and share

Android adds SD or USB 3.0 recording and playback, Wi-Fi streaming and cloud sharing including Frame.io. Configurable F1–F3 buttons speed up operation. Camera control and touch focus depend on supported camera models and firmware.

HDMI for modern cameras

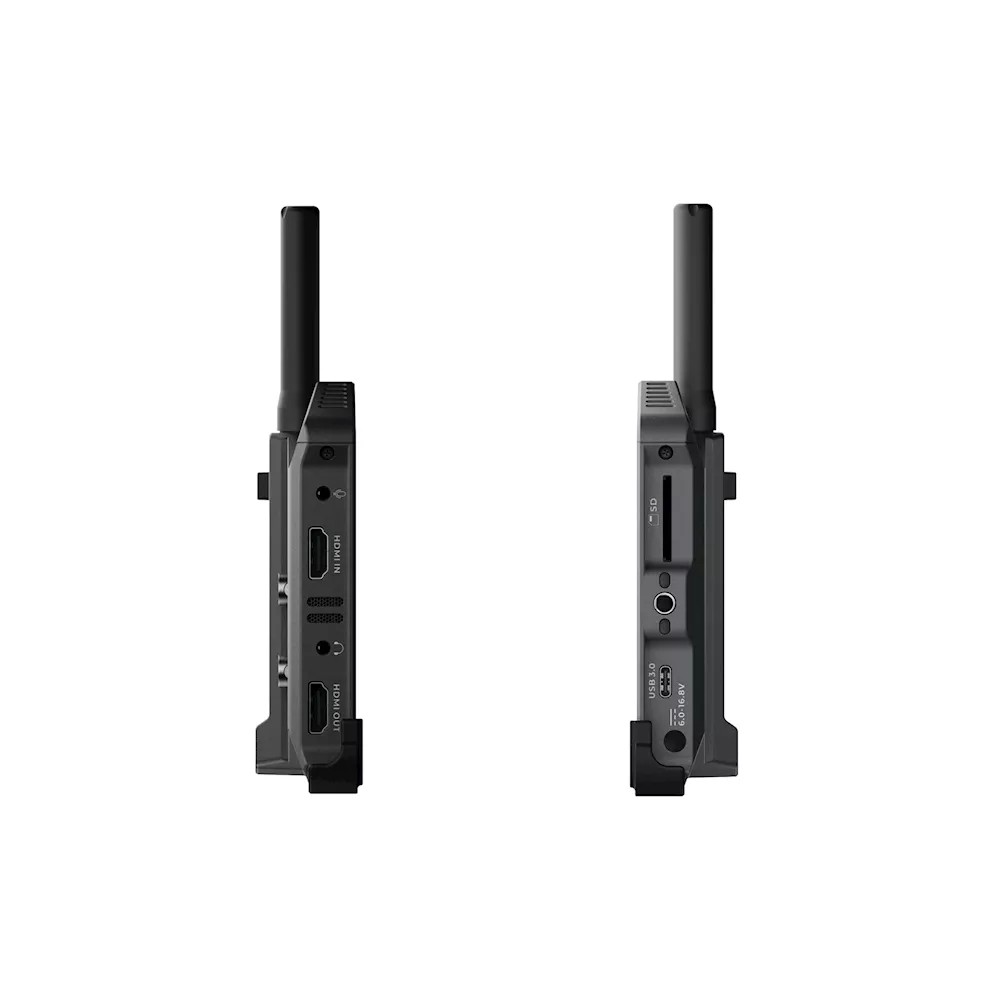

HDMI 2.0 input and output support DCI/UHD 4K60. M7H Pro is HDMI-only, without SDI. TRS microphone input and CTIA headphone output assist audio monitoring.

HDMI for modern cameras
Flexible power on set

Flexible power on set

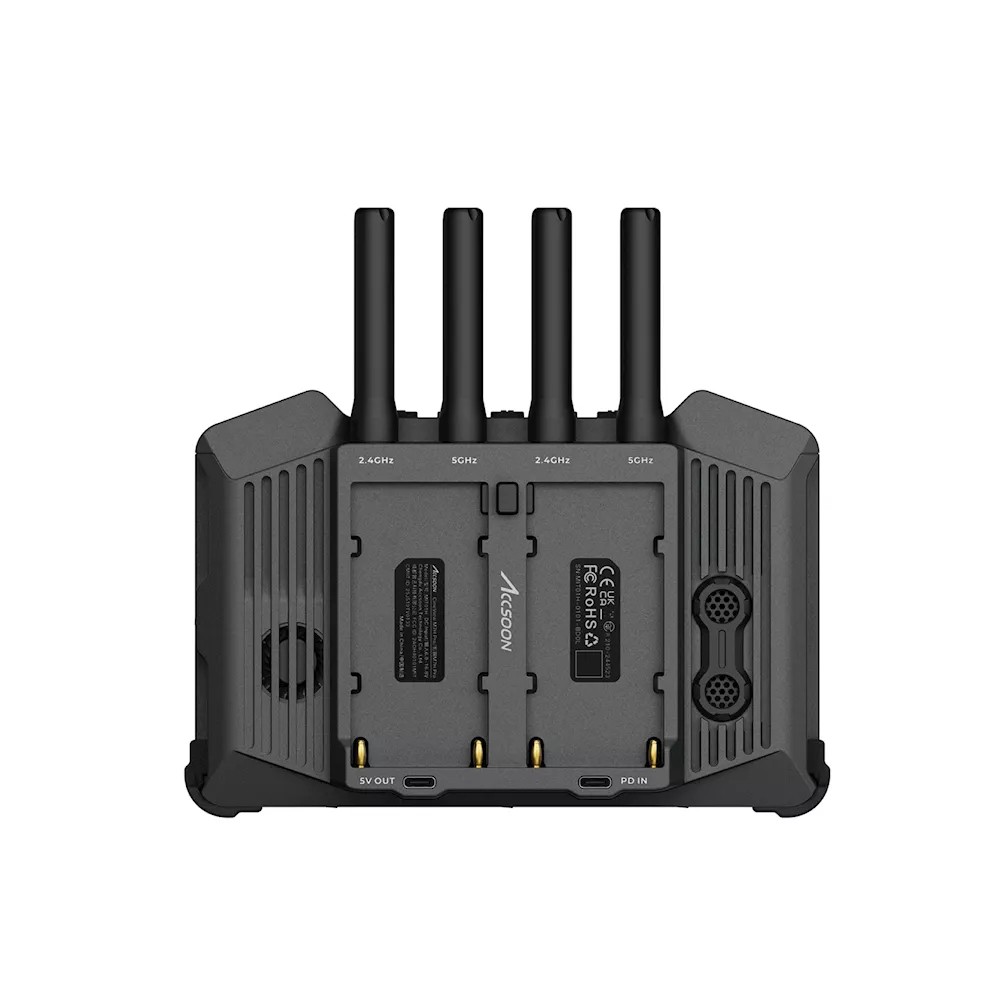

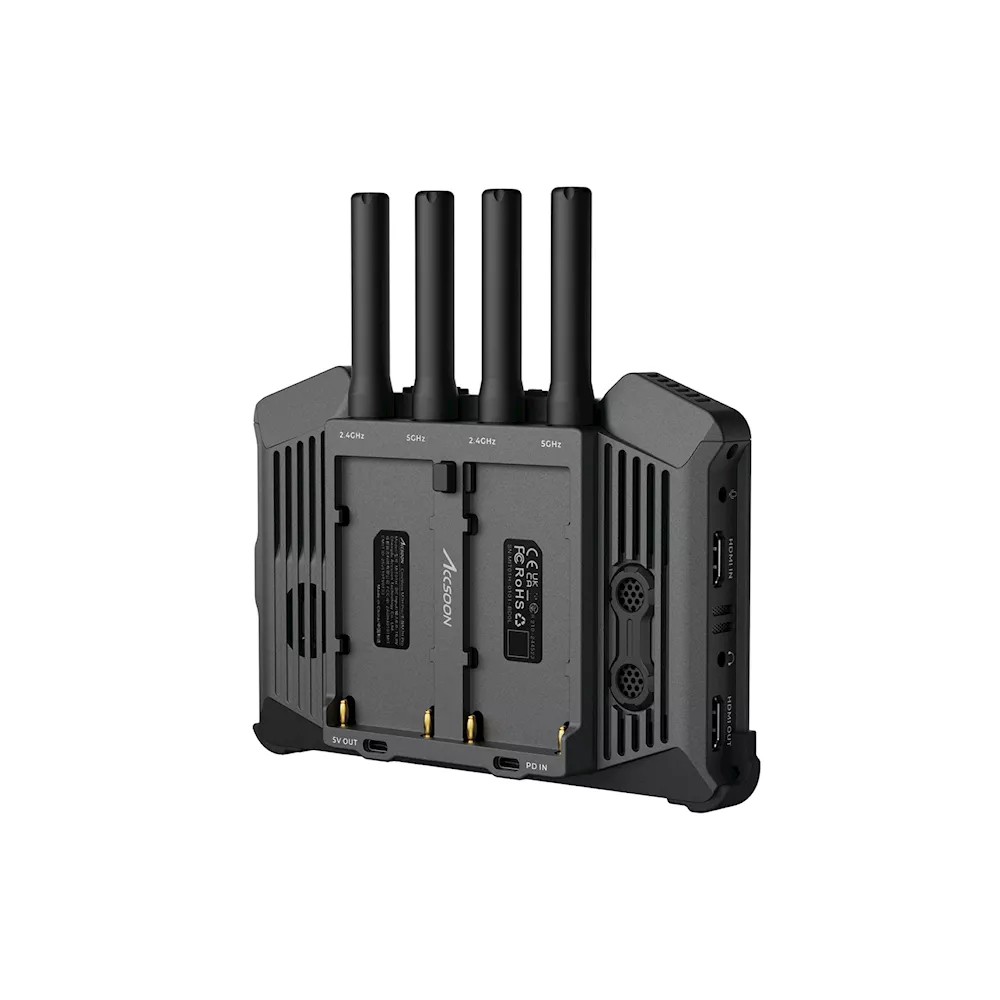

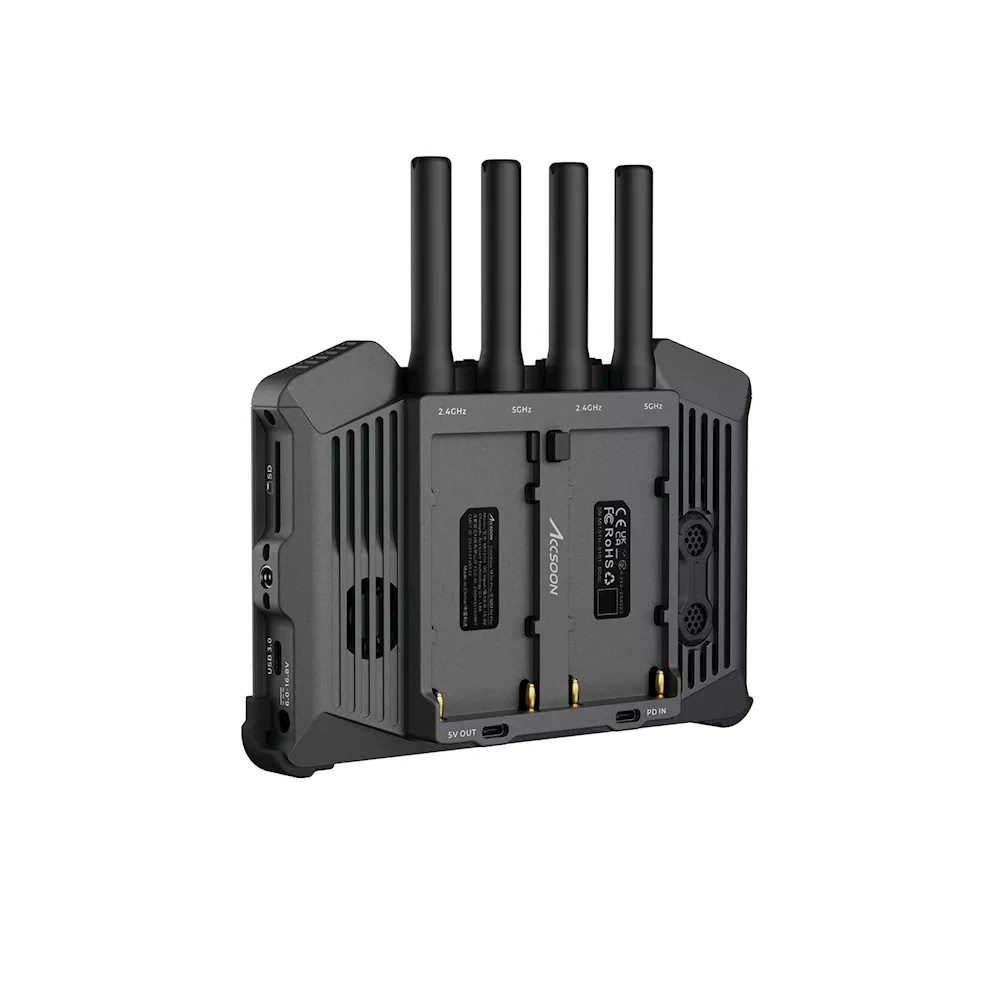

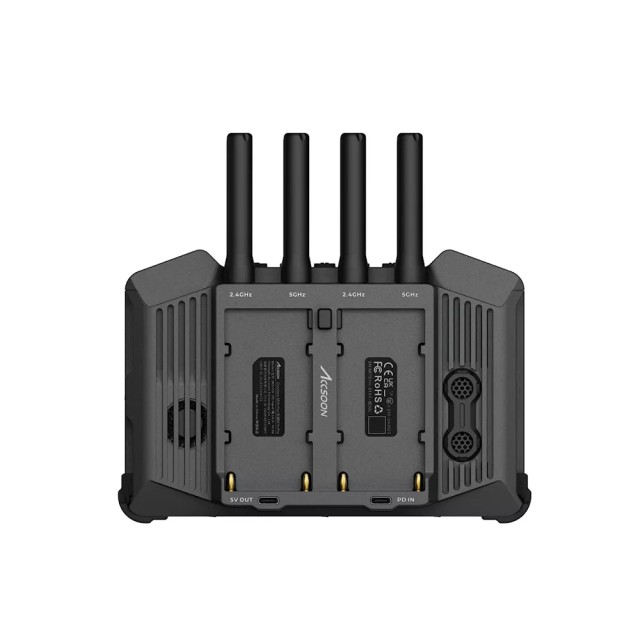

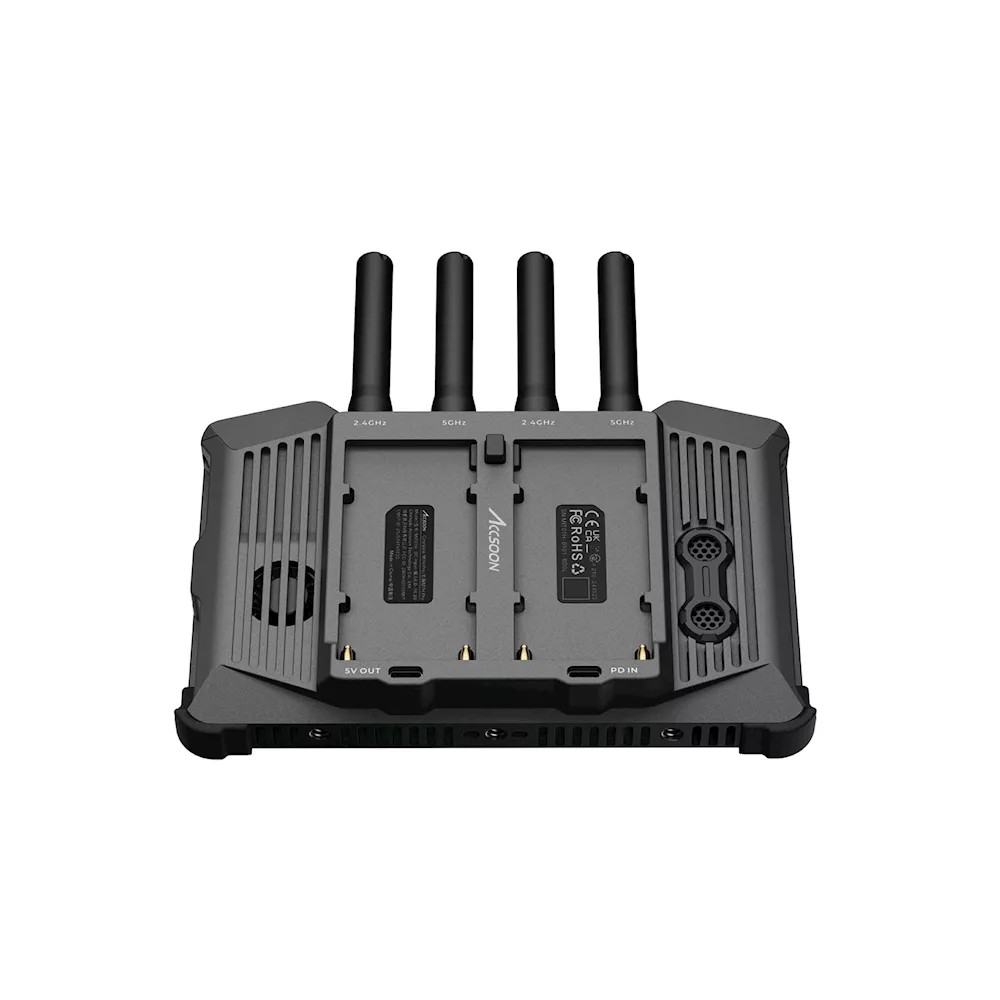

Two NP-F550/750/970 positions complement 6–16.8 V DC and USB-C PD 3.0. Hot swapping batteries requires a connected DC supply. The actively and passively cooled aluminium body weighs 494.3 g without antennas. Batteries, supplies and cage with sunhood are sold separately.

Camera and crew workflow

RX supports CineView M7 Pro, M7H Pro, Master 4K, HE, SE and 2SDI; QUAD is also listed by the manufacturer. TX sends to M7 Pro / M7H Pro, Master 4K and mobile devices. Wireless 4K viewing requires compatible 4K equipment. Supported camera control includes record triggering, focus, aperture, shutter, ISO and white balance; available functions depend on camera and firmware. Available control depends on the camera and firmware. IP control supports Sony FX6 and, with current firmware, Canon EOS C50, C70, C80 and C400; C70 requires an external network adapter.

PACKAGE CONTENT

  • Accsoon CineView M7H Pro × 1
  • 2,4 + 5 GHz antenna × 4
  • User manual × 1

SPECIFICATIONS

  • Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9
  • Brightness / contrast: 1000 nit / 1000:1
  • Viewing angle: 176° / 176°
  • Backlight: LED, edge-lit
  • Calibration: factory calibrated, user-adjustable
  • LUT: 1D Cube ≤4096; 3D Cube ≤127
  • HDMI input / output: HDMI 2.0, DCI 4K (4096 × 2160) / UHD (3840 × 2160) ≤60p; 1080p ≤60p; 1080i / 720p
  • SDI input / output: no SDI
  • CineView wireless video: TX / RX; 2,4 + 5 GHz; ≤350 m; 60 ms
  • DC input: 6–16,8 V, ≥3 A, 5,5 × 2,1 mm, centre positive
  • USB-C power input: PD 3.0: 9 / 12 / 15 V, 3 A
  • USB-C power output: 5 V / 2 A maximum
  • Batteries: 2 × NP-F550 / NP-F750 / NP-F970
  • Battery exchange: hot swap with DC power connected
  • Power consumption: 12–28 W
  • Microphone input: 3,5 mm TRS; 16 bit / 48 kHz
  • Headphone output: 3,5 mm CTIA / Bluetooth headphones
  • Storage: SD / USB 3.0
  • Operating system: Android
  • Housing: aluminium alloy
  • Cooling: active + passive

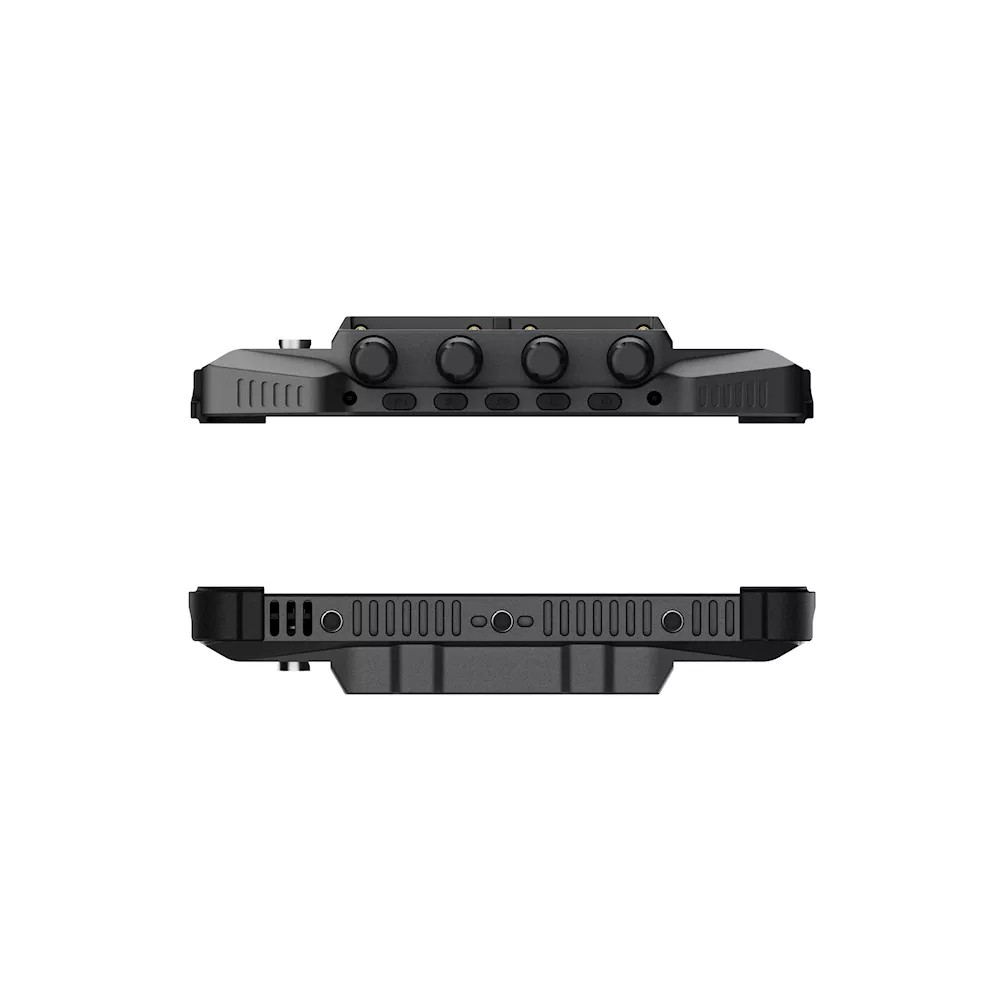

  • Mounting: 2 × 1/4″-20
  • Operating temperature: −10 to +40 °C
  • Dimensions: 182,2 × 120,7 × 31,5 mm
  • Weight: 494,3 g without antennas
Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Line-of-sight range350m
Unit dimensions without antennas182.2x120.7x31.5mm
Weight per unit494.3g
Maximum frame rate60fps
DC input voltage range6x16.8V
Minimum USB-C source current3A
Operating temperature-10x40°C
Frequency band2.4 GHz · 5 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970 · USB-C
MaterialAluminium alloy
ColourGrey
Mounting interface1/4″-20
Functions3D LUT in Accsoon SEE · Anamorphic de-squeeze in Accsoon SEE · Audio level meters in Accsoon SEE · Battery hot swap with DC connected · Bluetooth headphones · Color range in Accsoon SEE · False colour in Accsoon SEE · Focus peaking in Accsoon SEE · Frame.io C2C in Accsoon SEE · Framing grids in Accsoon SEE · Framing markers in Accsoon SEE · Grayscale in Accsoon SEE · Histogram in Accsoon SEE · Image magnification in Accsoon SEE · Image overlay in Accsoon SEE · Mirror in Accsoon SEE · Mobile recording in Accsoon SEE · RTMP streaming in Accsoon SEE · Screenshot in Accsoon SEE · Supported-camera control depending on firmware · Vectorscope in Accsoon SEE · Waveform in Accsoon SEE · Zebra in Accsoon SEE
DC power connector5.5 × 2.1 mm socket, centre positive
Audio sampling frequency48 kHz
Audio bit depth16-bit
Input connector3.5 mm TRS – female · HDMI type A – female · USB-C – female
Output connector3.5 mm CTIA – female · HDMI type A – female · USB-C – female
Maximum HDMI Input Resolution4096x2160px
Maximum HDMI Input Frame Rate60fps
Compatible Wireless SystemCineView 2 SDI · CineView HE · CineView M7 Pro · CineView M7H Pro · CineView Master 4K · CineView Quad · CineView SE
Number of antennas per unit4
Colour LCD diagonal7″
USB output voltage5V
Maximum USB output current2A
Minimum DC source current3A
Number of 1/4″-20 mounting points2
Maximum USB-C output power10W
Display brightness1000nit
Display contrast ratio1000:1
Display resolution1920x1080px
Display pixel density323ppi
Viewing angle (horizontal × vertical)176x176°
Operating power consumption range12x28W
USB-C PD input voltage9x12x15V
HDMI output resolution4096x2160px
Maximum HDMI output frame rate60fps
TouchscreenYes
Maximum 1D LUT points4096
Maximum 3D LUT points127
NP-F battery slots2
Display aspect ratio16:9
Operating systemAndroid
Display colour calibrationYes
Display backlight typeLED – edge-lit
Latency60 ms
InputHDMI
OutputHDMI
