Roland V-600UHD

The Roland V-600UHD is a powerful 4K HDR multi-format video switcher that integrates Full HD and 4K sources with seamless scaling, 10-bit 4:4:4 color processing, and HDR support—ideal for IMAG, live events, and professional video workflows.

More information

11 819 € with VAT 9 767.77 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

The Roland V-600UHD is a powerful 4K HDR multi-format video switcher that integrates Full HD and 4K sources with seamless scaling, 10-bit 4:4:4 color processing, and HDR support—ideal for IMAG, live events, and professional video workflows.



The V-600UHD is a 4K HDR multi-format video switcher for live events, IMAG and LED walls. Every input has its own scaler, so it mixes Full HD and 4K sources simultaneously and outputs at multiple resolutions at once. It handles HDR, the Rec.2020 colour space and 10-bit 4:4:4 colour.

Move to 4K HDR at your own pace

Your HD sources and displays stay useful: Ultra Scaler technology on every input mixes HD and 4K, and every output can downscale to Full HD.

4× HDMI 2.0 + 2× 12G-SDIHDR10 and HLGRec.2020, 10-bit 4:4:4DCI 4KROI up to 8 shots19″ rack mount

Six inputs, each with a scaler

Four HDMI 2.0 inputs, two 12G-SDI and analogue RGB on an HD DB-15 connector. Outputs are three HDMI 2.0, one 12G-SDI and a dedicated multi-view for monitoring sources, programme and preview.

Built for LED walls

Dot-by-dot output connects to an LED wall controller at its exact resolution, up to 4096 pixels wide, without the cost and latency of an extra scaler. With an HDR camera, a presenter in front of a bright LED wall no longer turns into a shadowy outline.

Composition and transitions at hand

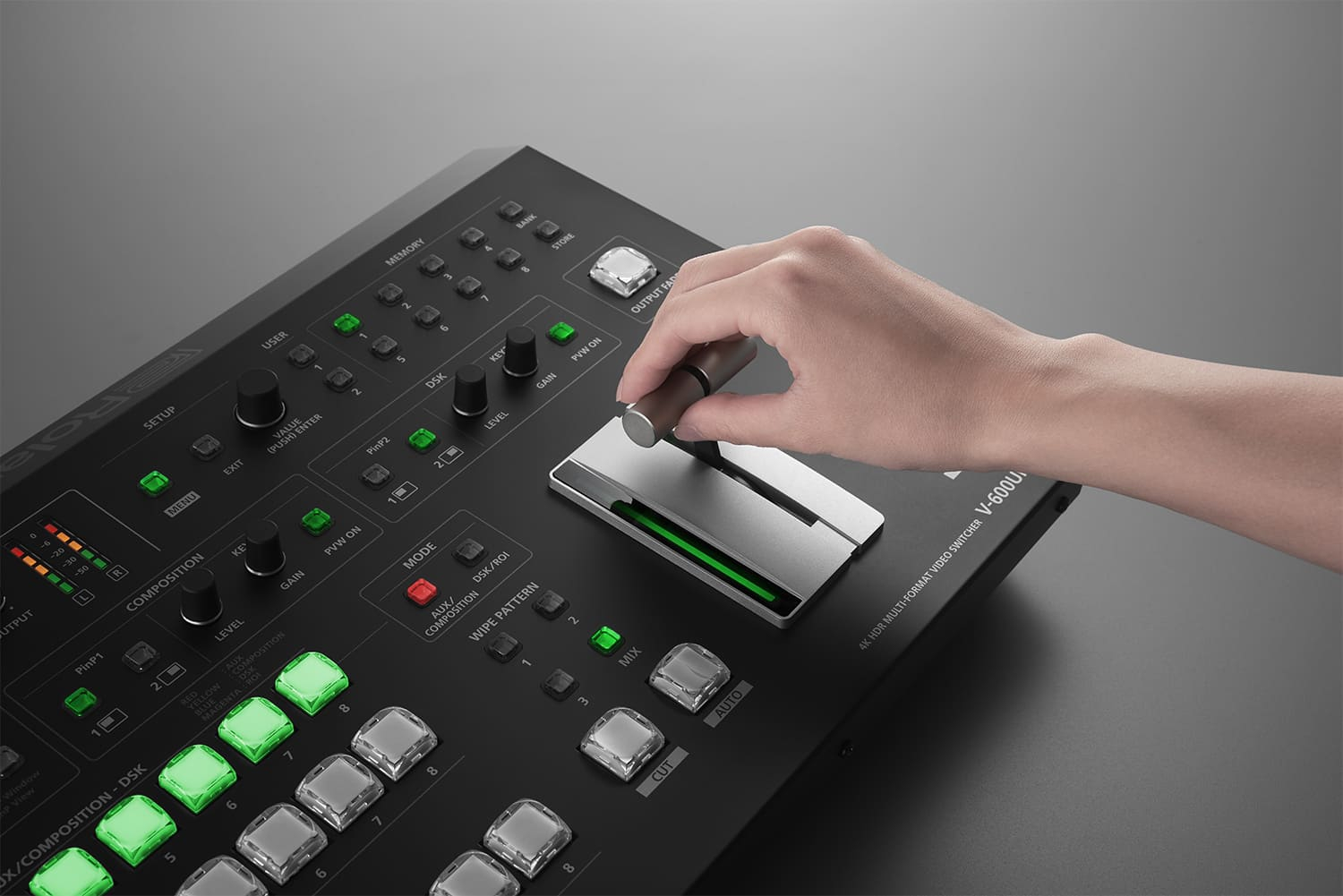

Mix, Cut and Wipe transitions with nine patterns on the T-bar, two PinP layers with luminance or chroma keying, a DSK and Output Fade, Freeze and Capture.

True 4K HDR

HDR PQ (HDR10) and HLG, the Rec.2020 colour gamut, 10-bit 4:4:4 processing and a full 60 Hz frame rate for smooth motion without blur. SDR signals can still be switched.

ROI from one camera

Up to eight shots cropped from a single 4K camera, automatically with Canon XF705/400/405 camcorders.

24-bit / 48 kHz audio

De-embedding and embedding, Audio Follows Video, matrix mixer, delay up to 500 ms and a test tone.

PTZ control

LAN cameras from Canon, JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA straight from the switcher.

System integration

RS-232, LAN, tally/GPI (16 tally, 8 GPI) and a USB memory port for BMP and PNG stills.

Upgrade your video production capabilities with the Roland V-600UHD 4K HDR Multi-Format Video Switcher, engineered for seamless integration of Full HD and 4K sources in hybrid workflows. Designed to support simultaneous HD and UHD output, this advanced switcher allows you to gradually transition to a full 4K setup as needed—without sacrificing compatibility or visual fidelity.

The V-600UHD preserves rich detail in nuanced lighting scenarios using HDR (High Dynamic Range) technology, while its 60 Hz frame rate support ensures smooth motion in live environments. With BT.2020 color gamut support and 10-bit 4:4:4 color processing, it delivers vivid, accurate color with reduced banding—ideal for IMAG (Image Magnification), broadcast, or corporate productions.

Equipped with four HDMI 2.0 and two 12G-SDI inputs, the V-600UHD automatically scales incoming signals up to DCI 4K resolution. Outputs include three HDMI 2.0 and one 12G/3G-SDI, all capable of downscaling for HD displays while simultaneously supporting 4K. A customizable multiview lets you monitor all sources on a single screen, and dot-by-dot scaling ensures LED display compatibility without the need for external scalers.

Key Features:

  • Integrates HD and 4K video sources with simultaneous output
  • Supports HDR, BT.2020, and 10-bit 4:4:4 color for superior image quality
  • 4 HDMI 2.0 & 2 12G-SDI inputs with automatic scaling
  • 3 HDMI 2.0 & 1 12G/3G-SDI outputs with downscaling support
  • Multiview output and LED display dot-by-dot compatibility
  • Ideal for live events, broadcast, IMAG, and professional AV setups

Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

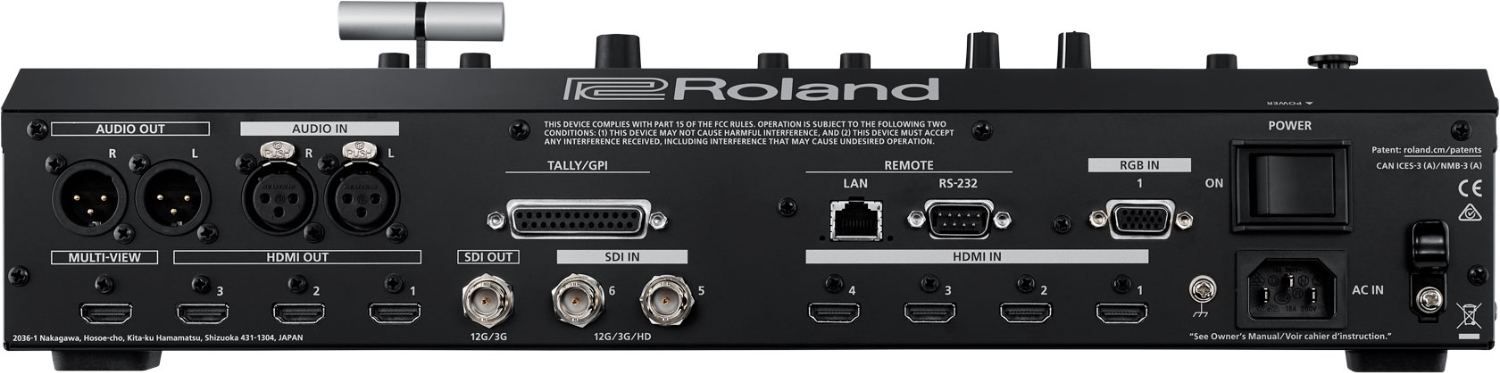

Input Connectors:

  • HDMI IN 1–4: HDMI Type A (HDMI 2.0)
  • SDI IN 5–6: BNC (12G/3G/HD-SDI, SMPTE 2082, 424M, 292M)
  • RGB IN 1: HD DB-15 (Analog RGB; selectable with menu)

Output Connectors:

  • SDI OUTPUT: BNC (12G/3G-SDI, SMPTE 2082, 424M)
  • HDMI OUT 1–3: HDMI Type A (HDMI 2.0)
  • MULTI-VIEW: HDMI Type A (HDMI 1.4)

Input Formats:

  • HDMI Video (CEA-861-F): 720p/50/59.94, 1080i/50/59.94, 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)
  • HDMI PC (VESA/CEA):
    • 1024x768/60Hz, 1280x768/60Hz, 1280x1024/60Hz
    • 1400x1050/60Hz, 1600x1200/60Hz
    • 1920x1080/30/60Hz, 1920x1200/60Hz (RB)
    • 3840x2160/24/30/60Hz, 4096x2160/24/30/60Hz
  • RGB (VESA/CEA):
    • 1600x1200/60Hz, 1920x1080/60Hz
  • SDI (SMPTE):
    • ST274: 1080i/50/59.94, 1080p/50/59.94
    • ST2036: 2160p/50/59.94 (UHD 4K)
    • ST2048: 2160p/50/59.94 (DCI 4K)
  • Still Images:
    • BMP: max 4096x2160, 24-bit, uncompressed
    • PNG: max 4096x2160 (alpha not supported)

Output Formats:

  • HDMI Video (CEA-861-F):
    • 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)
  • HDMI PC (CEA-861-F):
    • 1920x1080/30/60Hz, 3840x2160/30/60Hz, 4096x2160/30/60Hz
    • 1920x1080/30Hz available when Down Convert is enabled
  • SDI (SMPTE):
    • 1080p/50/59.94, 2160p/50/59.94 (UHD/DCI 4K)

Video Standards:

  • VESA DMT, VESA CVT, CEA-861-F
  • Color Gamut: Rec.709, Rec.2020
  • Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

Video Effects:

  • Transitions: Mix, Cut, Wipe (9 patterns)
  • Composition: PinP, Key, PinP + Key (Luminance or Chroma Key)
  • DSK: PinP, Key, PinP + Key
  • Others: Output Fade, Freeze, Capture

Audio Processing: 24-bit / 48 kHz

Audio Formats:

  • SDI IN/OUT: Linear PCM, 24-bit / 48 kHz, 16 ch (SMPTE 299M)
  • HDMI IN/OUT: Linear PCM, 24-bit / 48 kHz, 2 ch

Audio Connectors:

  • AUDIO IN L/R: XLR-3-31 (balanced)
  • AUDIO OUT L/R: XLR-3-32 (balanced)
  • PHONES: Stereo mini jack

Audio Specs:

  • Input Level: +4 dBu (max +24 dBu), 15 kΩ
  • Output Level: +4 dBu (max +24 dBu), 600 Ω
  • Headphones: 92 mW + 92 mW (32 Ω), 10 Ω

Audio Effects:

  • Matrix mixer
  • Delay (1 ms steps, max 500 ms)
  • Test tone output

Other Connectors:

  • USB MEMORY: USB A
  • RS-232: DB-9 (Male, remote control)
  • LAN: RJ45, 100BASE-TX (remote control)
  • TALLY/GPI: DB-25 (Tally x16, GPI x8)
  • XLR pinout: 1 GND, 2 HOT, 3 COLD

Power Consumption: 80 W

Operating Temperature: 0–40°C / 32–104°F

Dimensions (W x D x H):

  • 482 x 300 x 109 mm
  • 19 x 11-13/16 x 4-5/16 in (with rack mount angles)

Weight (excl. AC adaptor):

  • 5.3 kg / 11 lbs 11 oz (incl. rack mounts)

Accessories:

  • Owner's Manual
  • Power cord
  • Rack-mount angles x2

HDR for IMAG. The V-600UHD processes HDR, preserving detail in the darkest and brightest areas of the image without oversaturating the stage lighting. Standard SDR signals can be switched too.

A wider colour space. Rec.2020 (WCG) support alongside RGB and Rec.709 delivers more realistic and accurate colour, especially in red and yellow ranges.

10-bit 4:4:4 colour. Internal 10-bit processing reduces banding and sharpens detail from computer sources, so small fonts stay legible even when heavily magnified.

DCI 4K resolution. Besides UHD (3840 pixels) it handles 4096-pixel-wide DCI Cinema 4K, displaying content in its original aspect ratio without cropping or letterboxing.

The right I/O for your show. Every input scales HD, Full HD, UHD 4K and DCI 4K independently, plus PC resolutions from UXGA. Every output can downscale to Full HD for streaming encoders and HD displays.

Multiple shots from one 4K camera. Region of Interest (ROI) crops up to eight “camera shots” from a single 4K camera and assigns them to cross points: a wide shot, a panel shot and close-ups without extra cameras.

Automatic ROI. With Canon XF705/400/405 camcorders, two ROI windows use facial tracking to follow two people in the scene automatically, with no camera operator. One HDMI and one LAN cable is all it takes.

Composition with two PinP windows. Two picture-in-picture windows with customisable aspect ratio, size and source scaling give results comparable to dedicated screen processors.

Audio system integration. Audio Follows Video de-embeds audio from the selected source and sends it to the sound console. Audio from the console can in turn be embedded into selected video outputs for the stream, a recorder or an overflow room.

PTZ camera control. Over LAN it controls Canon, JVC, Panasonic, Sony, PTZOptics, Avonic and VISCA-compatible robotic cameras without a dedicated controller.

PACKAGE CONTENT

  • V-600UHD video switcher ×1
  • Owner's Manual ×1
  • Power cord ×1
  • Rack-mount angle ×2

SPECIFICATIONS

  • Brand: Roland
  • Model: V-600UHD
  • Type: 4K HDR multi-format video switcher
  • Video processing: 4:4:4 (Y/Pb/Pr), 10-bit
  • Video inputs: HDMI type A (HDMI 2.0) ×4, BNC 12G/3G/HD-SDI ×2, HD DB-15 analogue RGB ×1 (shared with HDMI IN 1)
  • Video outputs: HDMI type A (HDMI 2.0) ×3, BNC 12G/3G-SDI ×1, MULTI-VIEW HDMI 1.4 ×1
  • Input formats: 720p to 2160p (UHD and DCI 4K) 50/59.94 Hz, PC from 1024 × 768 to 4096 × 2160/60 Hz
  • Output formats: 1080p and 2160p (UHD and DCI 4K) 50/59.94 Hz, PC 1920 × 1080 to 4096 × 2160/60 Hz
  • Colour gamut: Rec.709, Rec.2020
  • Dynamic range: SDR, HDR PQ (HDR10), HDR HLG
  • Video effects: Mix, Cut, Wipe (9 patterns), PinP, Key (luminance, chroma), DSK, Output Fade/Freeze/Capture
  • Still images: BMP and PNG up to 4096 × 2160 from USB memory
  • Audio processing: 24-bit / 48 kHz
  • Embedded audio: SDI 16 channels, HDMI 2 channels
  • Audio connectors: XLR input L/R, XLR output L/R, stereo mini headphone jack
  • Audio effects: matrix mixer, delay up to 500 ms, test tone
  • Control: USB A (USB memory), RS-232 (DB-9), LAN RJ45 100BASE-TX, tally/GPI DB-25 (16 tally, 8 GPI)
  • Power consumption: 80 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 482 × 300 × 109 mm (with rack-mount angles)
  • Weight: 5.3 kg (with rack-mount angles)
