Roland V-1SDI

V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

More information

Promotion: -21%
2 366.55 € 1 877.16 € with VAT 1 551.37 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description ARTICLES SPECIFICATIONS PACKAGE CONTENT

Product description

V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

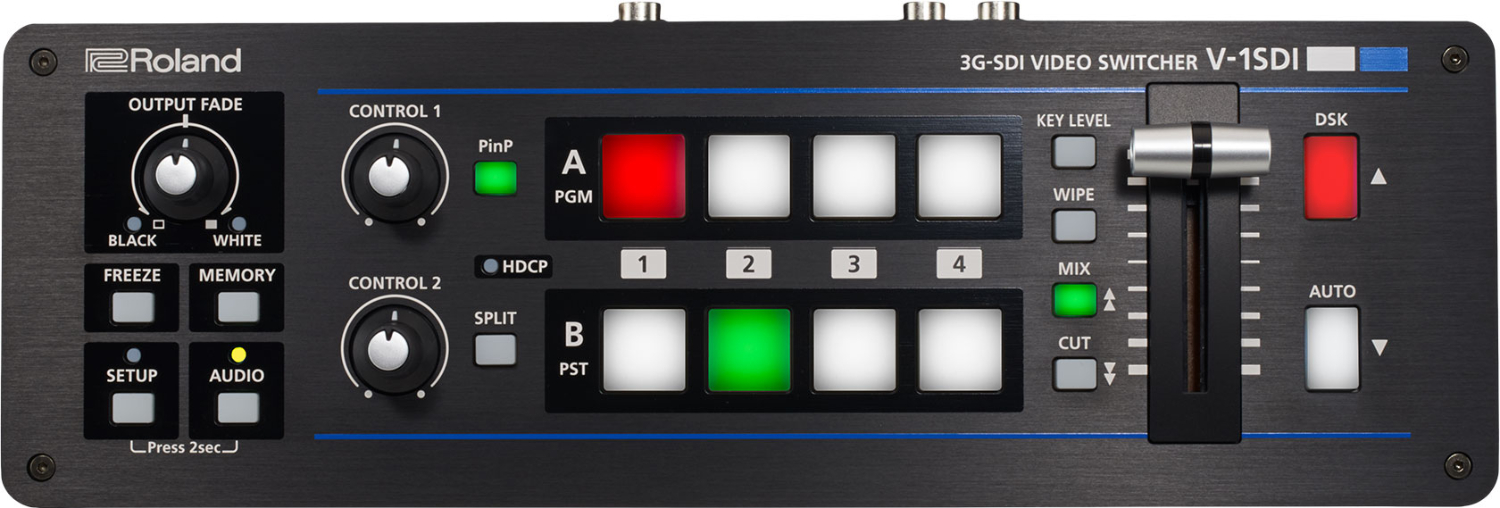

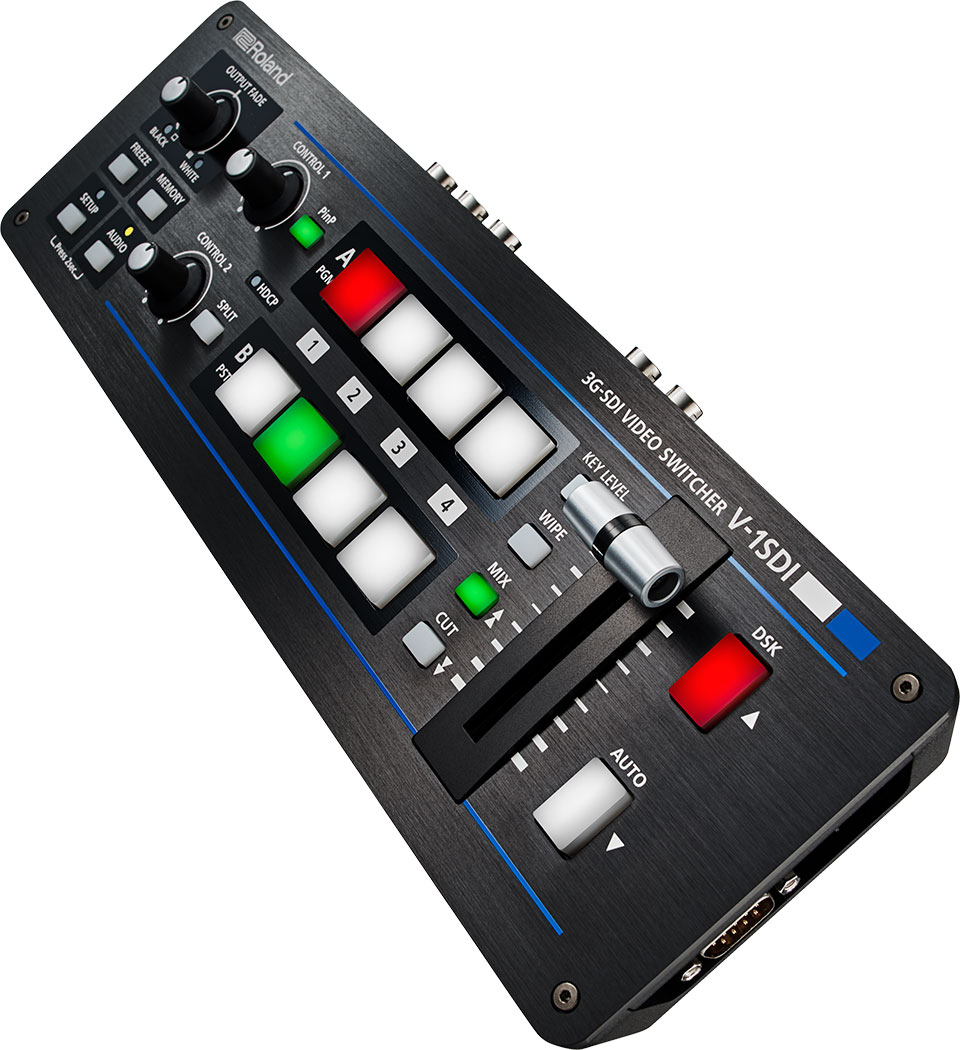

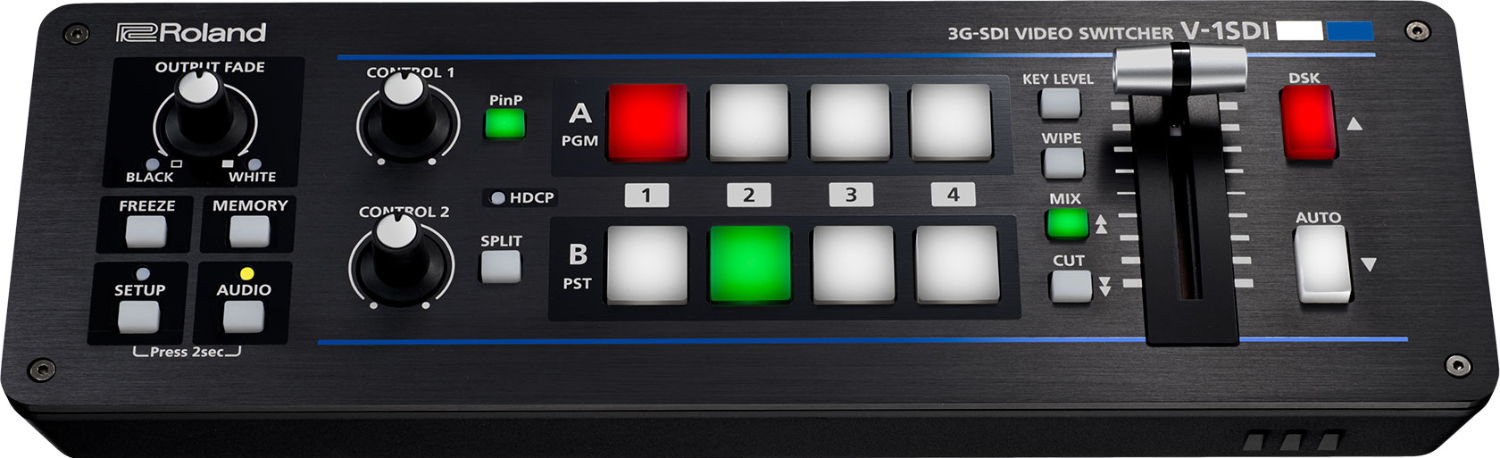

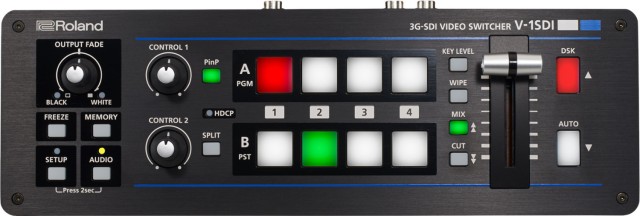

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

The V-1SDI is a compact four-channel switcher for three 3G-SDI and two HDMI sources – input 3 can be set to SDI or HDMI. It offers a T-fader, backlit buttons, a quad multi-viewer, PinP, Split, Quad and DSK effects and a 14-channel audio mixer in a body weighing just 1.2 kg.

Professional SDI switching you can take anywhere

Four channels, 3G-SDI at full 1080p, a T-fader and a 14-channel audio mixer in a console measuring 313 × 108 × 59 mm.

3× 3G-SDI + 2× HDMIUp to 1080pT-faderQuad multi-viewer14-channel audio mixerUSB + RS-232

Webcasting and videography

Webcasters and videographers with SDI cameras can create professional content simply and effectively with the V-1SDI. The programme goes to a recorder and the PVW output in PGM mode straight to the stream.

Fixed installations

SDI support for long-distance camera connections and RS-232 control from system controllers make the V-1SDI ideal for fixed installations.

Live events

The compact, portable V-1SDI makes live event switching easy, whatever the size or location of the venue. It runs from the supplied adaptor, a PSB-7U adaptor or a battery.

All four sources on one monitor

The multi-viewer shows all four inputs on a single display. A red border marks the video currently on air, a green one the video coming up next. Audio meters for every input and the main output are included too.

Effects and keying

PinP at 1/2, 1/3 and 1/4 size, Split, Quad and a DSK with luminance and chroma keying (blue/green).

T-fader transitions

Cut, mix (dissolve, FAM, NAM, mosaic) and 30 wipe types, eight memories, FREEZE and output fade.

Still images

From version 1.5 it captures a still from input 4 or receives an image from the STILL IMAGE EDITOR in the V-1SDI RCS app.

Remote control

The V-1SDI RCS app for Mac and PC over USB, plus an RS-232 serial port for A/V control systems.

The V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.

This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.

Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4’s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.

The V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.

The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.

The V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.

The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).

Included is a 14 channel digital audio mixer.

The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.

Every audio input is equipped with a DELAY function* to synchronize the video and the audio as well as EQ for adjustment of sound quality. Audio output is equipped with a MASTERING function to improve the sound of the final audio mix.

Audio follow function enables the audio to transition along with the video.

The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.

Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable.

The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.

V-1SDI RCS Ver.1.5 supports sending a Still Image to the V-1SDI.*
The STILL IMAGE EDITOR allows both images and text to be edited making it ideal for easy, on-demand creation of subtitles and graphics.

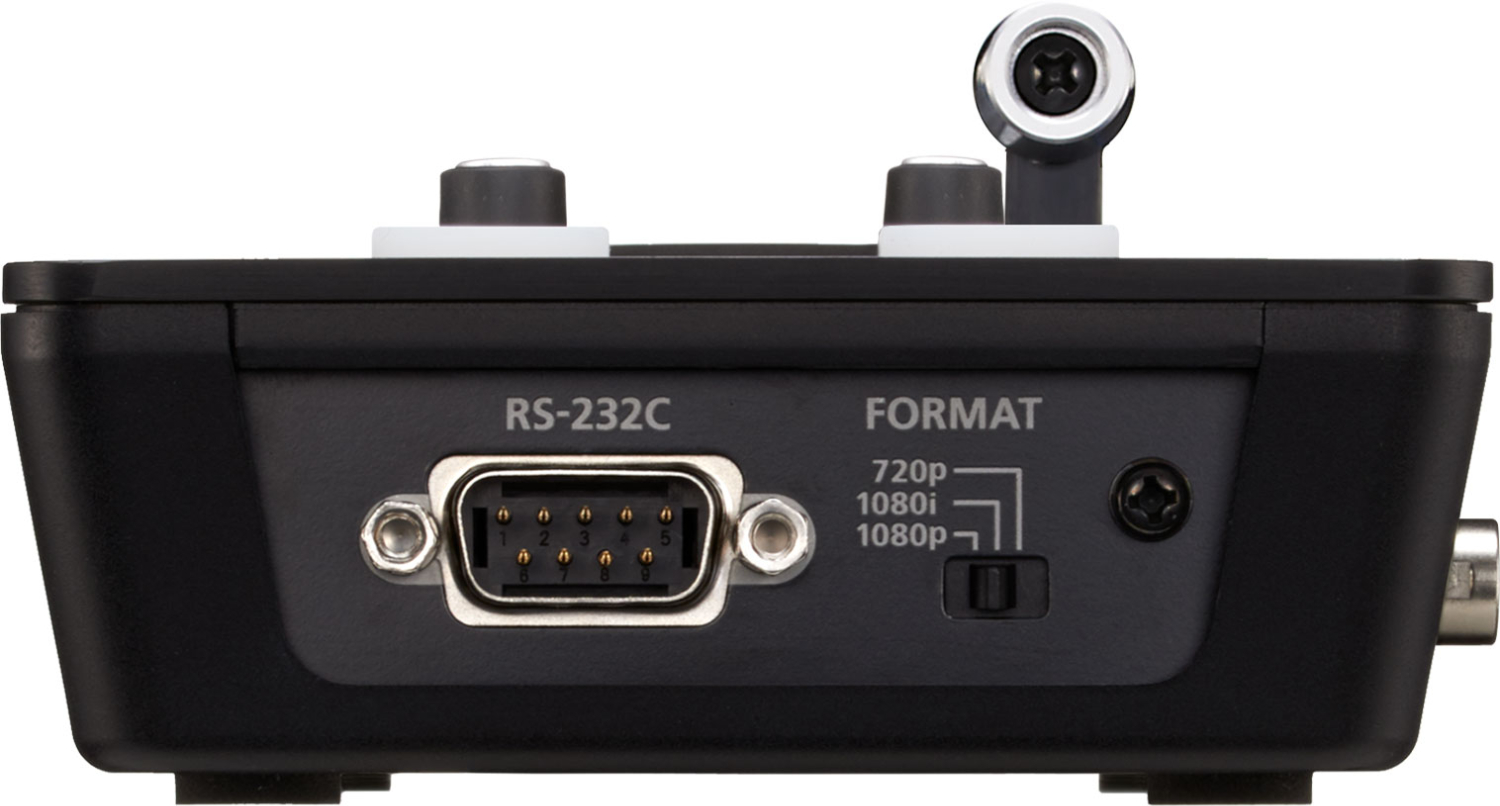

For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.

  • Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
  • Easy to operate with hardware controls
  • Compact size
  • PSB-7U, provided AC adaptor or Battery operation
  • Supports up to Full HD 1080p
  • 3 x 3G-SDI and 2 x HDMI*1 inputs
  • 2 x 3G-SDI and 1 x HDMI*1 output
  • Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
  • Quad input multi-viewer with source labelling and audio metering
  • Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
  • Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
  • Full 14 channel audio mixer included
  • Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
  • Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]

Example connections. For webcasting, three SDI cameras and a computer feed inputs 1–4, the programme goes to a recorder, the PVW output in PGM mode to the stream and the multi-view to an HDMI monitor. In a fixed installation it handles two PTZ cameras and two computers, with PGM and PVW (in PST mode) on SDI monitors.

Live events. Three SDI cameras and a Blu-ray player on HDMI input 4, a computer connected via USB controls the switcher with V-1SDI RCS, and the MULTI-VIEW output in PGM mode feeds an HDCP-capable monitor. With HDCP enabled, video is output only via HDMI and the SDI outputs are disabled.

Audio mixing. The mic input has a high-pass filter, EQ, gate, compressor and delay; the line input and embedded SDI and HDMI audio get EQ and up to 500 ms of delay. Mastering and reverb act on the bus, and the final mix goes to the SDI and HDMI outputs, AUDIO OUT and the headphones.

PACKAGE CONTENT

  • V-1SDI video switcher ×1
  • AC adaptor ×1
  • Power cord ×1
  • Cord hook ×1
  • Owner's manual ×1

SPECIFICATIONS

  • Brand: Roland
  • Model: V-1SDI
  • Type: 4-channel 3G-SDI video switcher
  • Video processing: 4:2:2 (Y/Pb/Pr), 8-bit

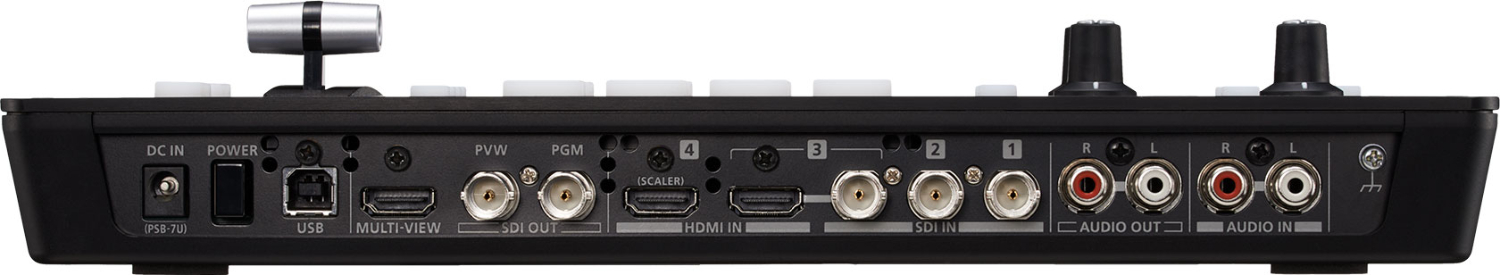

  • Video inputs: BNC 3G-SDI ×3 (SDI 1–3), HDMI type A ×2 (HDMI 3–4, HDCP); input 3 selectable SDI or HDMI
  • Video outputs: BNC 3G-SDI ×2 (PGM, PVW), HDMI type A ×1 (MULTI-VIEW, HDCP)
  • Input formats: SDI and HDMI 3: 720p, 1080i, 1080p; HDMI 4 also 480i/p, 576i/p and PC resolutions VGA to WUXGA
  • Output formats: 720p, 1080i, 1080p (59.94 / 50 Hz)
  • Transitions: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
  • Composition: PinP, SPLIT, QUAD, DSK (luminance key, chroma key)
  • Audio: 24-bit / 48 kHz; SDI and HDMI linear PCM, 2 channels

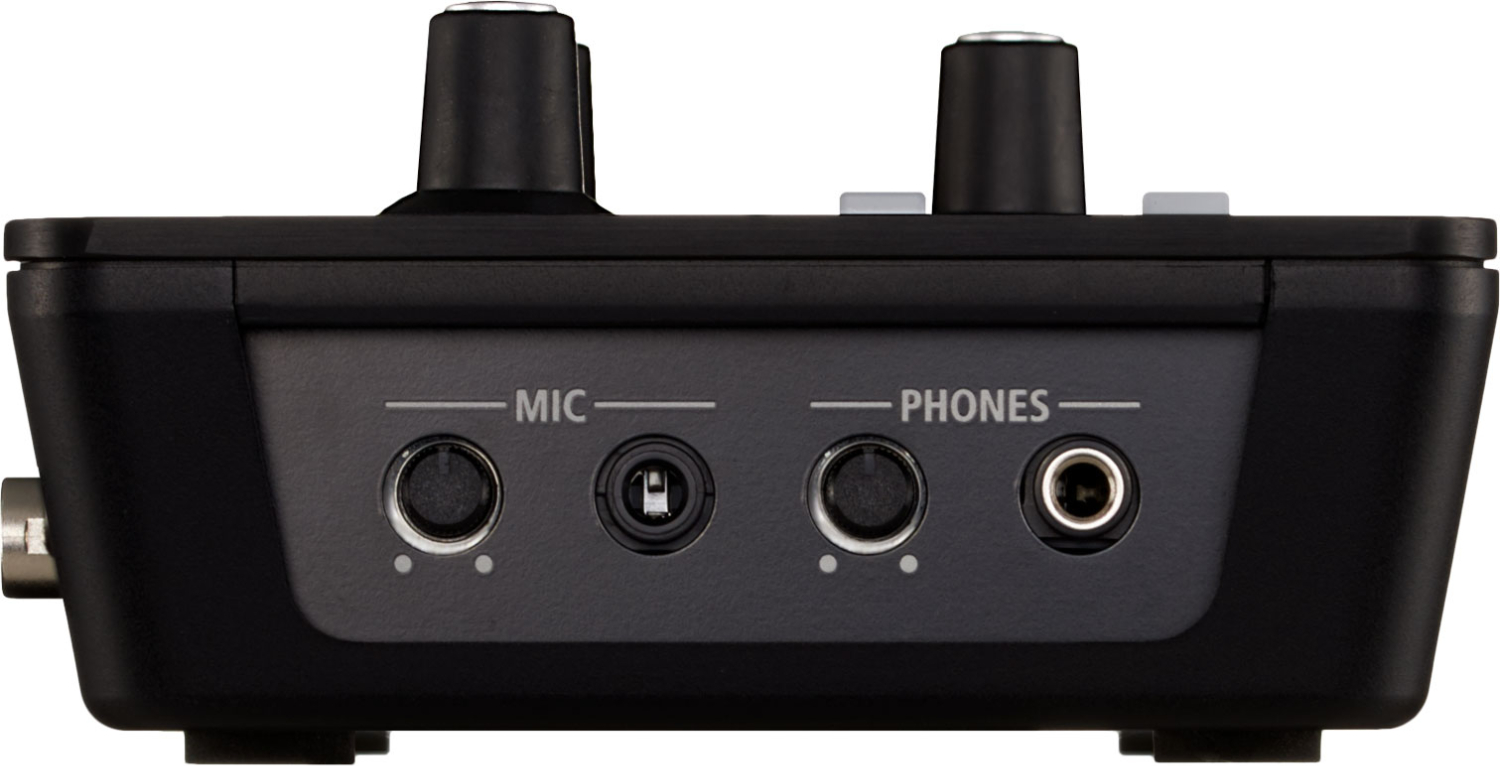

  • Audio inputs: AUDIO IN (RCA), MIC (stereo mini jack, plug-in power)
  • Audio outputs: AUDIO OUT (RCA), PHONES (stereo mini jack, 92 mW + 92 mW / 32 Ω)
  • Audio effects: EQ, delay, compressor, HPF, gate, reverb, mastering
  • Control: USB type B (computer control), RS-232 (DB-9)
  • Other functions: 8 memories, FREEZE, OUTPUT FADE (white / black)
  • Power: AC adaptor, 2.1 A, 25 W
  • Operating temperature: 0 to 40 °C
  • Dimensions: 313 × 108 × 59 mm
  • Weight: 1.2 kg (without adaptor)
