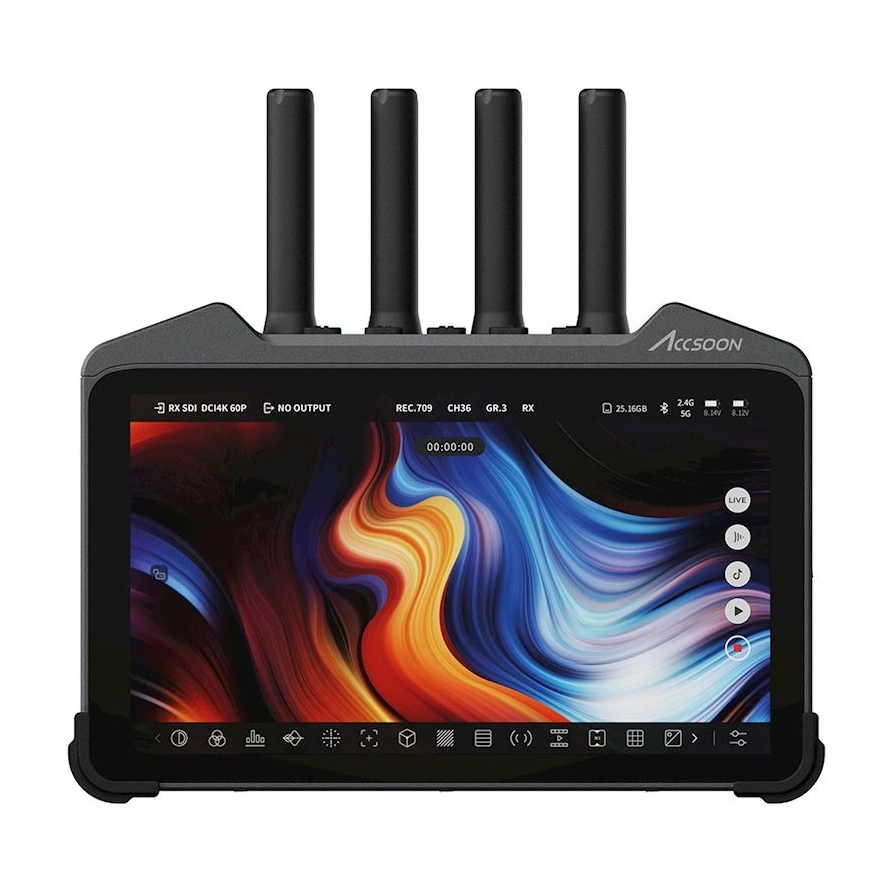

Accsoon CineView M7 Pro
SKU: ACC-MT01

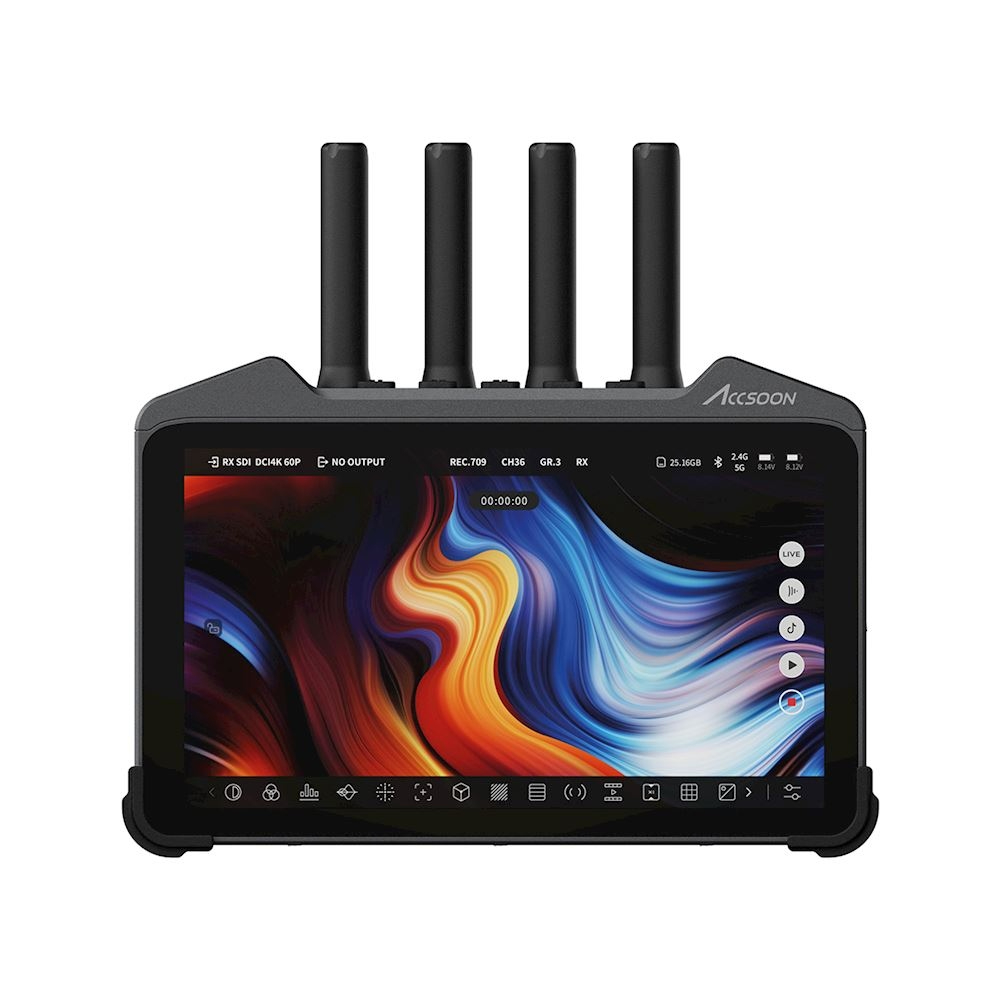

Accsoon CineView M7 Pro is a 7-inch touchscreen monitor with an integrated dual-band wireless transmitter and receiver for camera-side and crew viewing. Its factory-calibrated 1000-nit Full HD display is paired with DCI 4K60 HDMI 2.0 input and output, 1080p60 3G-SDI and HDMI/SDI cross conversion. Wireless range reaches up to 350 m with clear line of sight,…
969 € with VAT
800.83 € without VAT
Personal pickup within 90 minutes
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Praha 1 pcs
Top accessories for Accsoon CineView M7 Pro
Viltrox Battery NP-F750
The Viltrox NP-F750 is a high-capacity, rechargeable NP-F-type Li-ion battery for
32 €
Backordered > 5 pcs
Portkeys 8K HDMI cable A to A 0,3m
The Portkeys 8K HDMI Cable A to A (0.3m) Dual Cable Set features a slim, flexible
19 €
To be sent > 5 pcs
Portkeys 8K HDMI cable A to A 1m
The Portkeys 8K HDMI Cable A to A (1m) Dual Cable Set is a high-quality HDMI solution
19 €
In stock 1 pcs
Viltrox Battery NP-F970 - USB-C
The Viltrox NP-F970 is a high-capacity NP-F-type Li-ion battery for compatible camera
39 €
Backordered > 5 pcs
Infinitek L-1.5C2VS 0.5m FLEX HD-SDI cable BNC-BNC 90°
Canare L-1.5C2VS BNC (Male) / BNC (Male)), finished thin flexible SDI coaxial cable,
23 €
To be sent > 5 pcs
Infinitek L-1.5C2VS 0.3m FLEX HD-SDI cable BNC-BNC 90°
Canare L-1.5C2VS BNC (Male) / BNC (Male)), finished thin flexible SDI coaxial cable,
22 €
To be sent 1 pcs
Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G
The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,
108 €
To be sent 2 pcs
Accsoon CineView M7 Monitor Cage with Sunhood
Accsoon ACC33 is a protective monitor cage with a removable sunhood for CineView
108 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Accsoon CineView M7 Pro is a 7-inch touchscreen monitor with an integrated dual-band wireless transmitter and receiver for camera-side and crew viewing. Its factory-calibrated 1000-nit Full HD display is paired with DCI 4K60 HDMI 2.0 input and output, 1080p60 3G-SDI and HDMI/SDI cross conversion. Wireless range reaches up to 350 m with clear line of sight, with manufacturer-specified 60 ms latency; video format depends on the compatible transmission chain. Waveform, false colour, focus peaking and 1D/3D LUTs assist exposure, colour and focus. Android adds recording, playback, network streaming and control of supported cameras depending on firmware. Power comes from two NP-F battery positions, DC input or USB-C PD.
Accsoon CineView M7 Pro
Wireless monitoring in one
A 7-inch 1000-nit monitor with DCI 4K60 HDMI and integrated dual-band TX/RX. Combine camera-side image assessment with wireless viewing for the crew.
7″ Full HD1000 nitsHDMI 4K60TX / RX≤350 m
Accurate image assessment
The factory-calibrated 7″ Full HD display offers 1000 nits and 1000:1 contrast. Waveform, histogram, false colour, zebra and focus peaking assist exposure and focus. 1D/3D LUTs and LUT Box support consistent viewing looks.
Wireless viewing for the crew
Integrated TX/RX uses 2.4 + 5 GHz bands, with up to 350 m line-of-sight range and 60 ms latency. Receive from compatible CineView transmitters or send to supported receivers and mobile devices. Video format depends on the complete chain.

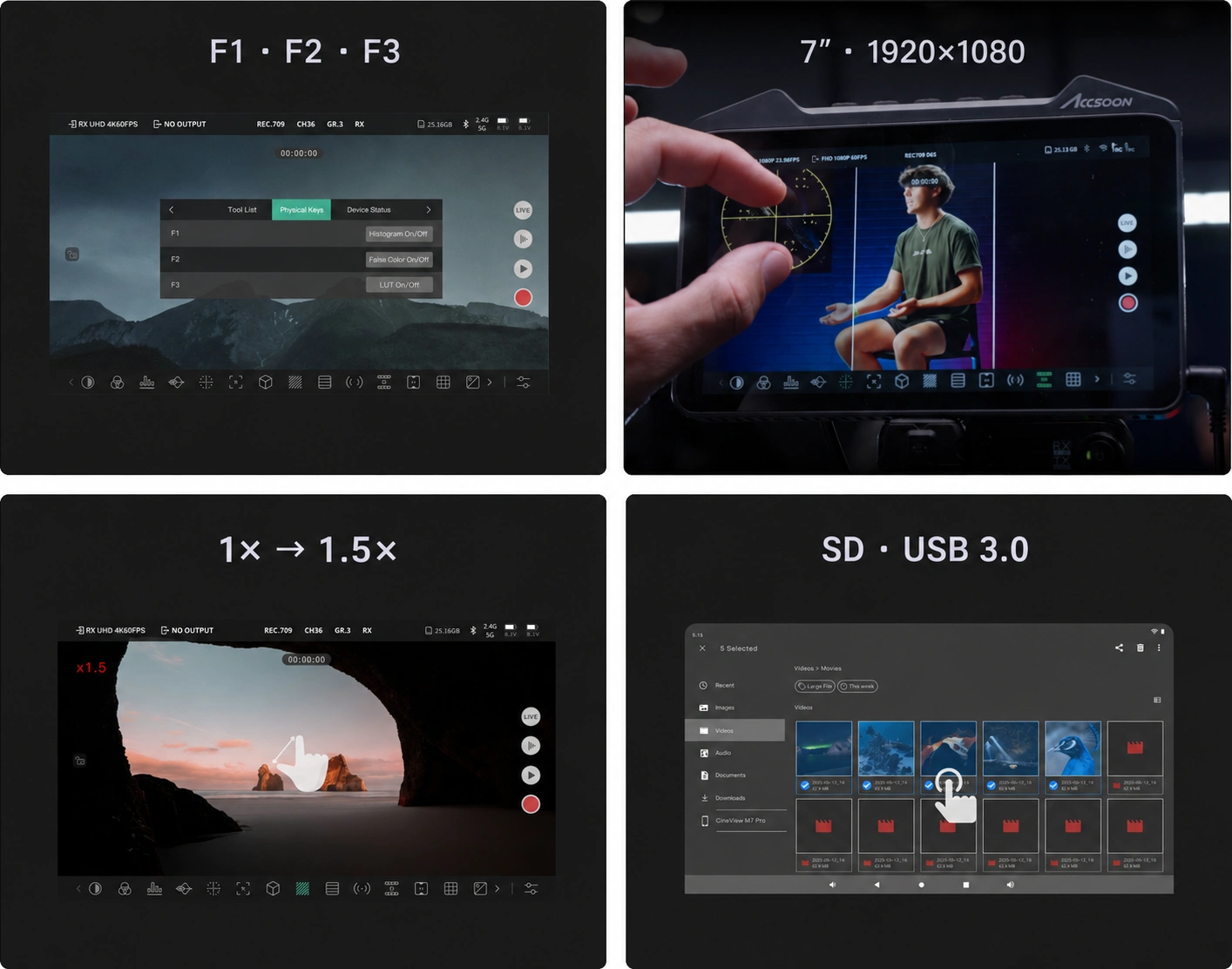

Touch, record and share
Android adds SD or USB 3.0 recording and playback, Wi-Fi streaming and cloud sharing including Frame.io. Configurable F1–F3 buttons speed up operation. Camera control and touch focus depend on supported camera models and firmware.

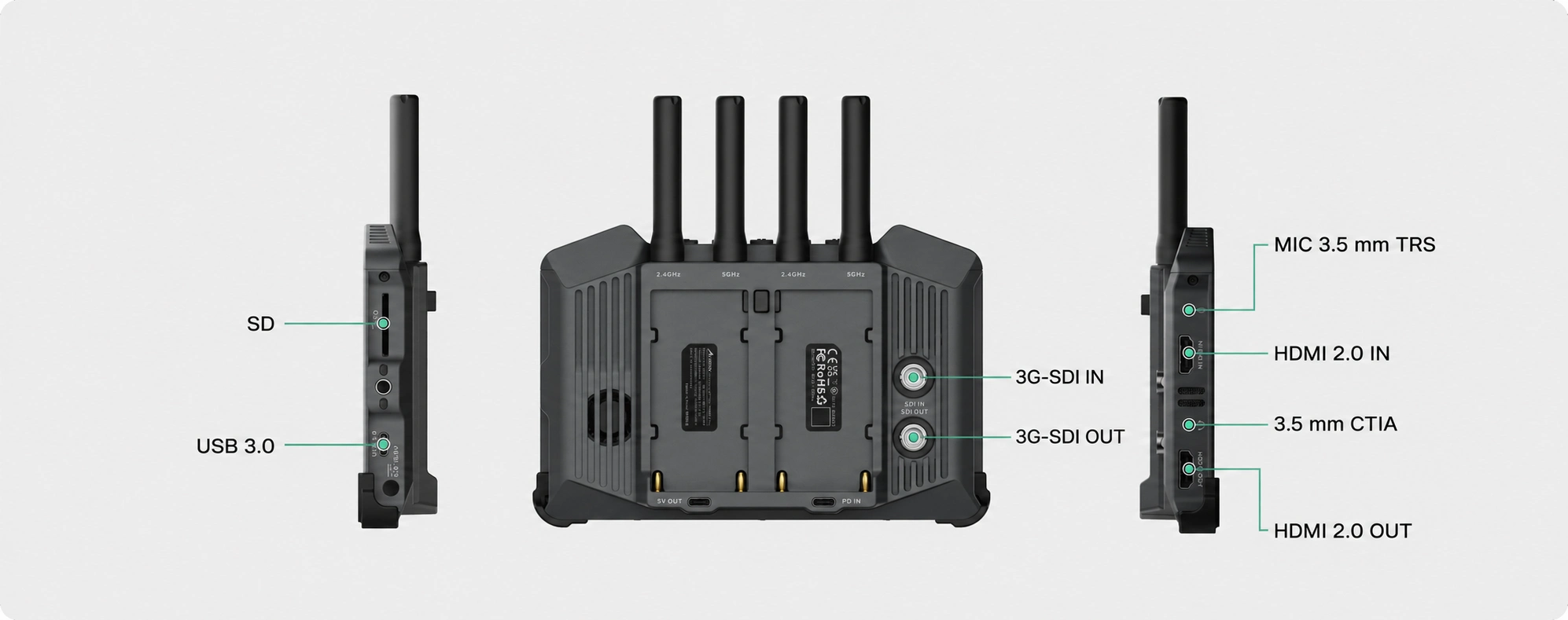

HDMI and SDI in one chain

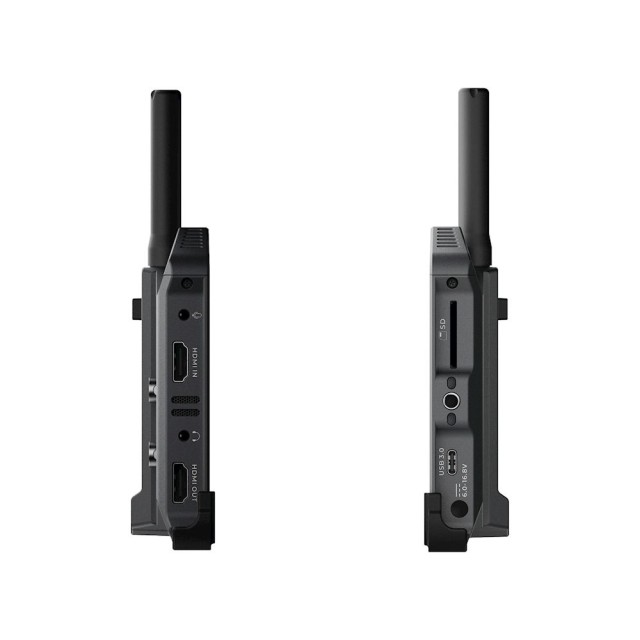

HDMI 2.0 input and output handle DCI/UHD 4K60; 3G-SDI supports up to 1080p60. HDMI/SDI cross conversion and simultaneous outputs connect different production devices. TRS microphone input and CTIA headphone output assist audio monitoring.
Flexible power on set

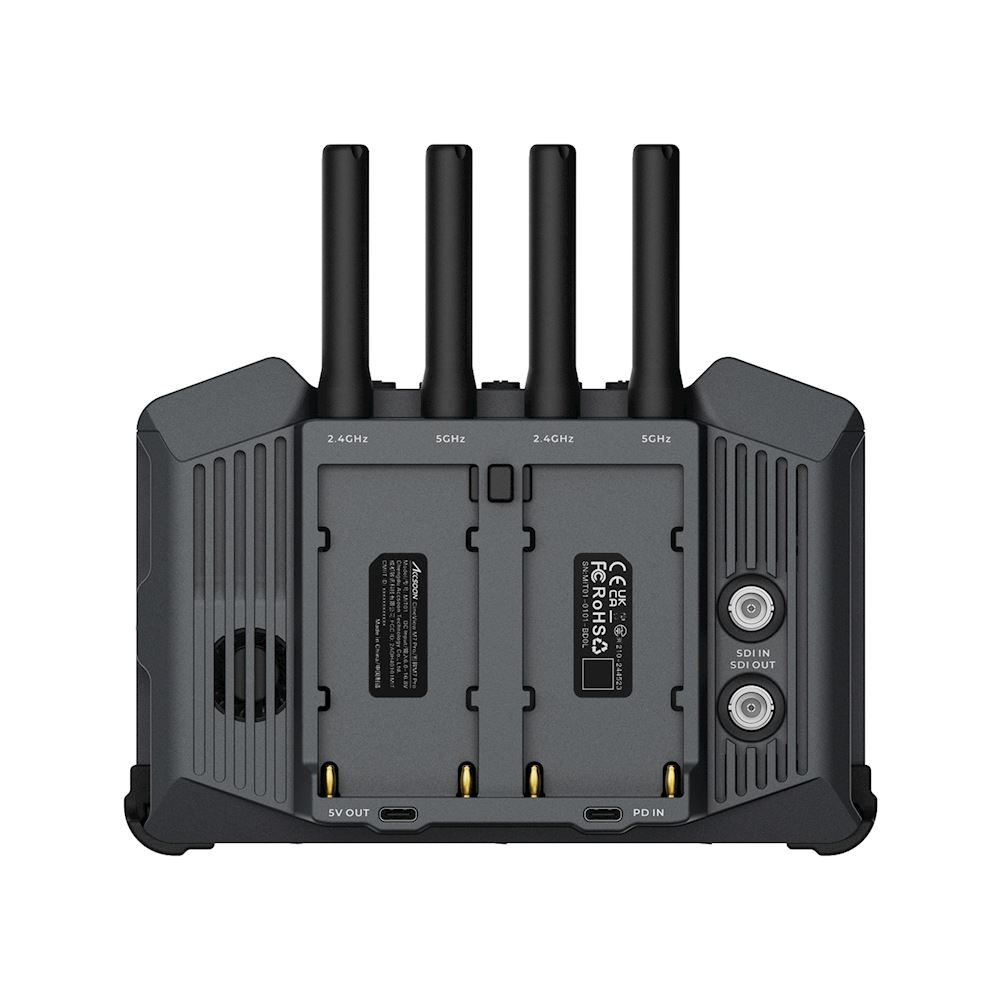

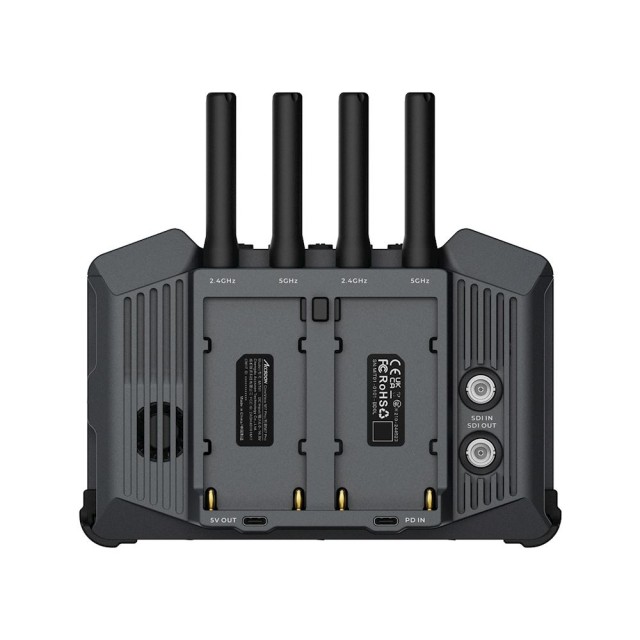

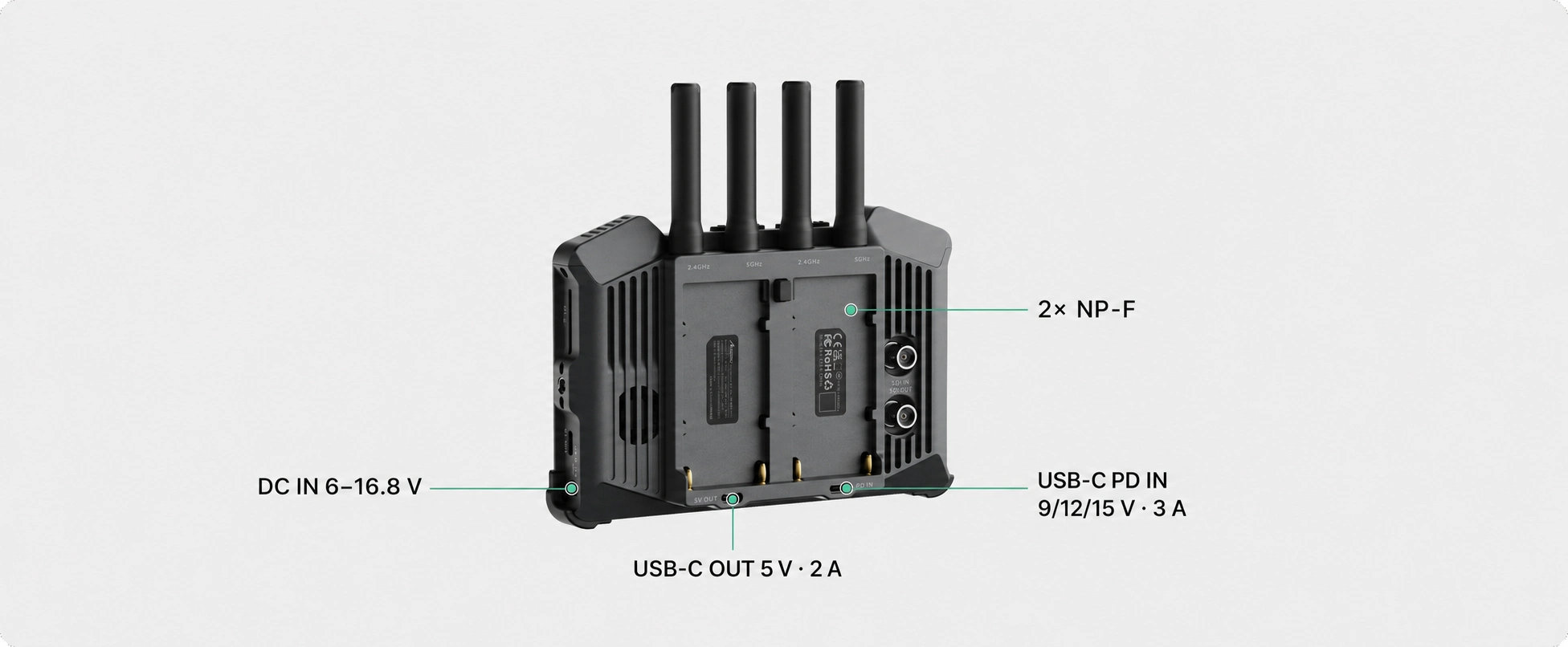

Two NP-F550/750/970 positions complement 6–16.8 V DC and USB-C PD 3.0. Hot swapping batteries requires a connected DC supply. The actively and passively cooled aluminium body weighs 494.3 g without antennas. Batteries, supplies and cage with sunhood are sold separately.

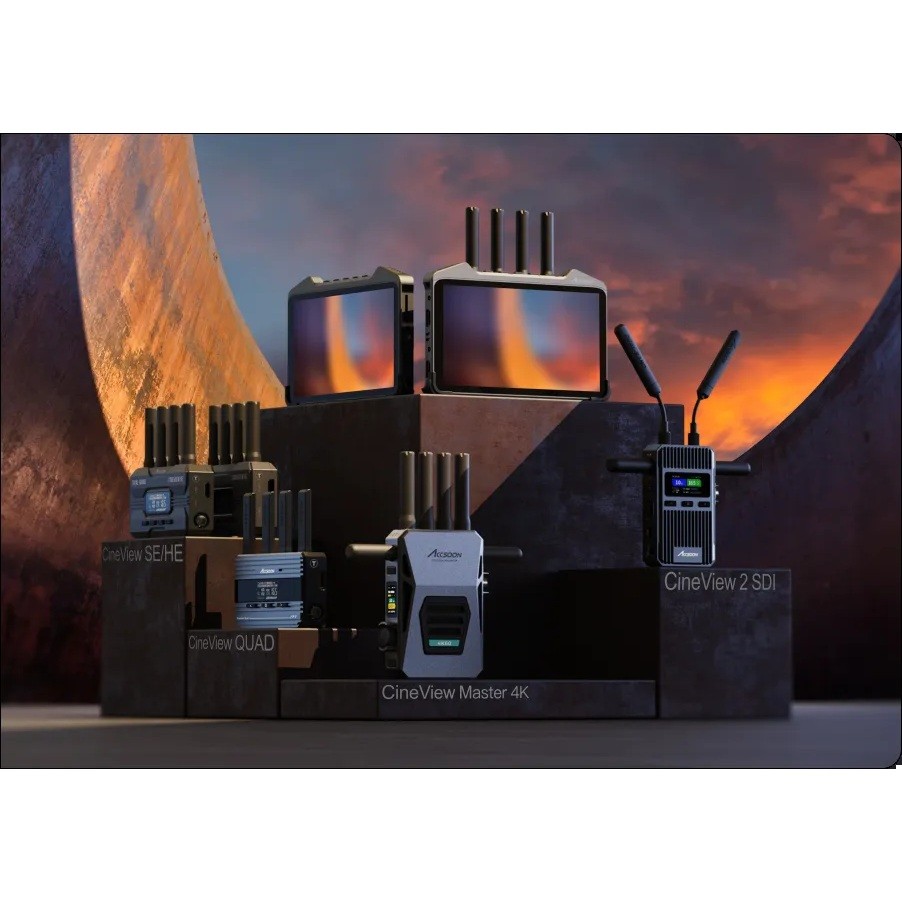

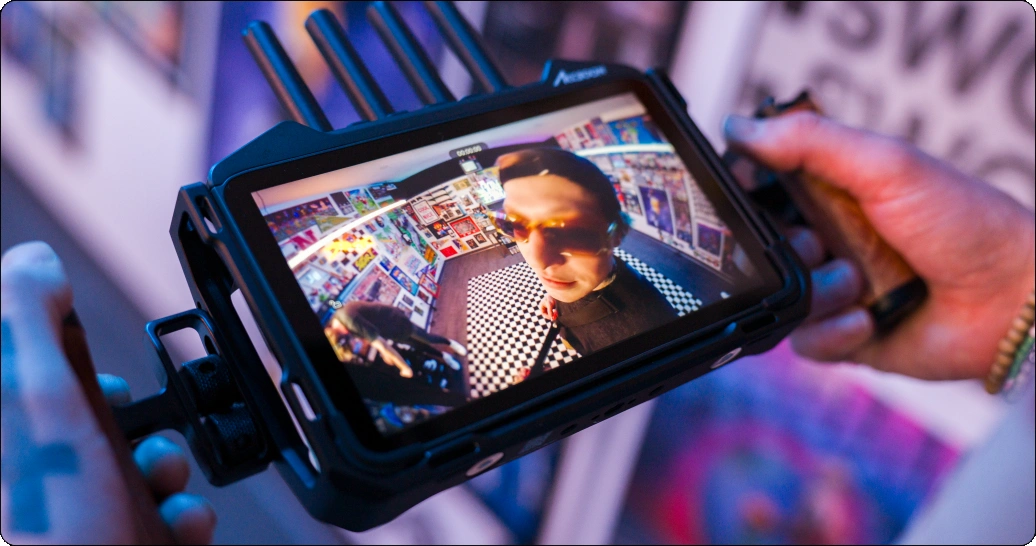

Camera and crew workflow

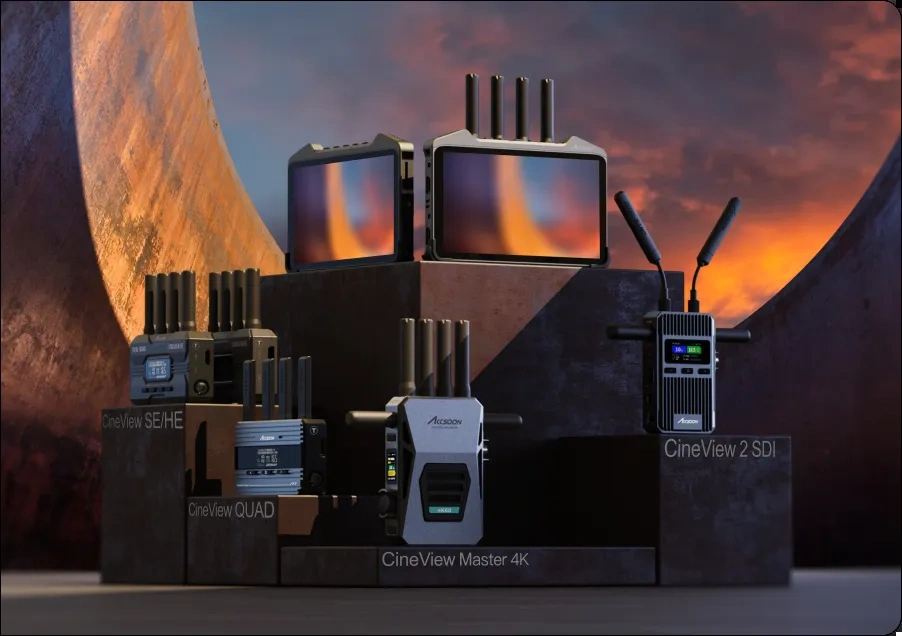

RX supports CineView M7 Pro, M7H Pro, Master 4K, HE, SE and 2SDI; QUAD is also listed by the manufacturer. TX sends to M7 Pro / M7H Pro, Master 4K and mobile devices. Wireless 4K viewing requires compatible 4K equipment. Supported camera control includes record triggering, focus, aperture, shutter, ISO and white balance; available functions depend on camera and firmware. Available control depends on the camera and firmware. IP control supports Sony FX6 and, with current firmware, Canon EOS C50, C70, C80 and C400; C70 requires an external network adapter.
In TX mode, outputs follow the input format without downscaling. With a 4K HDMI input, 3G-SDI output is disabled; the HDMI output requires a monitor supporting the incoming 4K format.
PACKAGE CONTENT
- Accsoon CineView M7 Pro × 1
- 2,4 + 5 GHz antenna × 4
- User manual × 1
SPECIFICATIONS
- Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9
- Brightness / contrast: 1000 nit / 1000:1
- Viewing angle: 176° / 176°
- Backlight: LED, edge-lit
- Calibration: factory calibrated, user-adjustable
- LUT: 1D Cube ≤4096; 3D Cube ≤127
- HDMI input / output: HDMI 2.0, DCI 4K (4096 × 2160) / UHD (3840 × 2160) ≤60p; 1080p ≤60p; 1080i / 720p
- SDI input / output: 3G-SDI, 1080p ≤60p / 1080i; BNC
- CineView wireless video: TX / RX; 2,4 + 5 GHz; ≤350 m; 60 ms
- DC input: 6–16,8 V, ≥3 A, 5,5 × 2,1 mm, centre positive
- USB-C power input: PD 3.0: 9 / 12 / 15 V, 3 A
- USB-C power output: 5 V / 2 A maximum
- Batteries: 2 × NP-F550 / NP-F750 / NP-F970
- Battery exchange: hot swap with DC power connected
- Power consumption: 12–28 W
- Microphone input: 3,5 mm TRS; 16 bit / 48 kHz
- Headphone output: 3,5 mm CTIA / Bluetooth headphones
- Storage: SD / USB 3.0
- Operating system: Android
- Housing: aluminium alloy
- Cooling: active + passive
- Mounting: 2 × 1/4″-20
- Operating temperature: −10 to +40 °C
- Dimensions: 182,2 × 120,7 × 31,5 mm
- Weight: 494,3 g without antennas
WE RECOMMEND
The Accsoon CineView M7 Pro is a professional 7-inch monitor with built-in wireless video transmission at 4K60 resolution, powered by a standardized NP-F battery. To fully leverage its potential in a production environment, it is essential to pair it with compatible mounting accessories, fast-charging systems, and communication kits for the crew.
Power Supplies and Chargers - Accessories to ensure continuous monitor operation using NP-F batteries.
Mounting and Attachment - Adapters and mounts for securely attaching the monitor to camera rigs, gimbals, or tripods.
- Accsoon Adapter for Monitor
- Accsoon V-Lock Adapter
- Accsoon Adapter for Gimbal
- Accsoon TopRig Ball Head
Intercom and Communication - Accsoon CoMo wireless communication systems, which complement wireless video transmission with voice communication.
Cabling and Protection - Essential connection cables and carrying cases for safe handling.
Rigs and Stabilization - Components for building camera rigs and achieving smooth camera movements.
Parameters
| Manufacturer: | Accsoon |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | NP-F550 · NP-F750 · NP-F970 · DC · USB-C |
| Material | Aluminium alloy |
| Mounting interface | 1/4″-20 |
| DC power connector | 5.5 × 2.1 mm socket, centre positive |
| Audio sampling frequency | 48 kHz |
| Audio bit depth | 16-bit |
| Input connector | HDMI type A – female · BNC – female |
| Output connector | HDMI type A – female · BNC – female |
| 3G-SDI input level | A · B |
| 3G-SDI output level | A |
| Compatible Wireless System | CineView 2 SDI · CineView SE · CineView HE · CineView Quad · CineView M7 Pro |
| Output connector | USB-C – female |
| Compatible Wireless System | CineView Master 4K |
| Functions | Battery hot swap with DC connected |
| Colour | Grey |
| Functions | 3D LUT in Accsoon SEE · Mobile recording in Accsoon SEE · RTMP streaming in Accsoon SEE · Waveform in Accsoon SEE · False colour in Accsoon SEE · Focus peaking in Accsoon SEE · Frame.io C2C in Accsoon SEE · Zebra in Accsoon SEE · Histogram in Accsoon SEE · Framing grids in Accsoon SEE · Anamorphic de-squeeze in Accsoon SEE · Mirror in Accsoon SEE · Image overlay in Accsoon SEE · Image magnification in Accsoon SEE · Vectorscope in Accsoon SEE · Audio level meters in Accsoon SEE · Framing markers in Accsoon SEE · Grayscale in Accsoon SEE · Color range in Accsoon SEE · Screenshot in Accsoon SEE |
| Input connector | USB-C – female |
| Colour LCD diagonal | 7″ |
| Compatible Wireless System | CineView M7H Pro |
| Input connector | 3.5 mm TRS – female |
| Output connector | 3.5 mm CTIA – female |
| Display aspect ratio | 16:9 |
| Operating system | Android |
| Display backlight type | LED – edge-lit |
| Functions | Bluetooth headphones · Supported-camera control depending on firmware |
| Line-of-sight range | 350m |
| Unit dimensions without antennas | 182.2x120.7x31.5mm |
| Weight per unit | 494.3g |
| Maximum transmission resolution | 4096x2160px |
| Maximum frame rate | 60fps |
| DC input voltage range | 6x16.8V |
| Minimum USB-C source current | 3A |
| Operating temperature | -10x40°C |
| Maximum HDMI Input Resolution | 4096x2160px |
| Maximum HDMI Input Frame Rate | 60fps |
| Number of antennas per unit | 4 |
| USB output voltage | 5V |
| Maximum USB output current | 2A |
| Minimum DC source current | 3A |
| Number of 1/4″-20 mounting points | 2 |
| Maximum USB-C output power | 10W |
| Display brightness | 1000nit |
| Display contrast ratio | 1000:1 |
| Display resolution | 1920x1080px |
| Display pixel density | 323ppi |
| Viewing angle (horizontal × vertical) | 176x176° |
| Operating power consumption range | 12x28W |
| USB-C PD input voltage | 9x12x15V |
| HDMI output resolution | 4096x2160px |
| Maximum HDMI output frame rate | 60fps |
| Maximum SDI input resolution | 1920x1080px |
| Maximum SDI output resolution | 1920x1080px |
| Maximum SDI frame rate | 60fps |
| Touchscreen | Yes |
| Maximum 1D LUT points | 4096 |
| Maximum 3D LUT points | 127 |
| NP-F battery slots | 2 |
| Display colour calibration | Yes |
| Latency | 60 ms |
| Input | 3G-SDI, HDMI |
| Output | 3G-SDI · HDMI |
