Accsoon Multi-Directional Cold Shoe Adapter

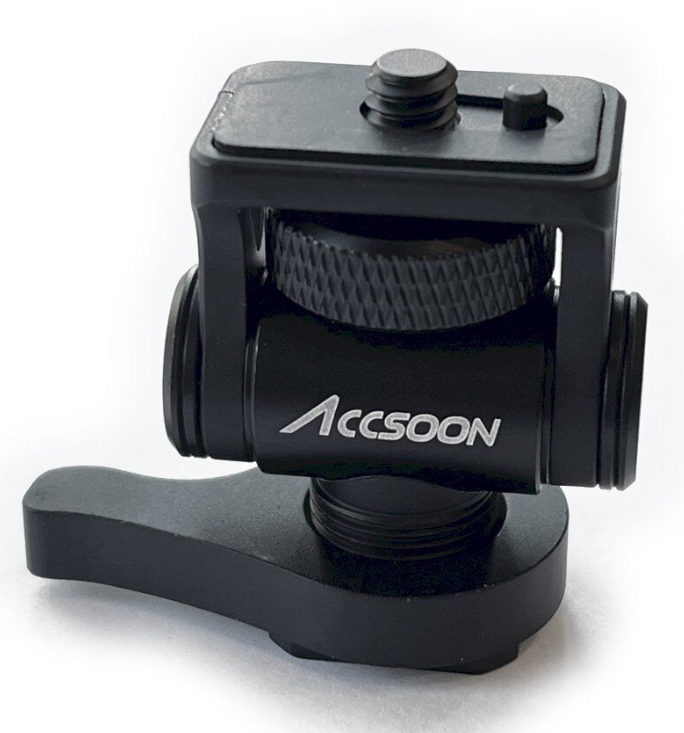

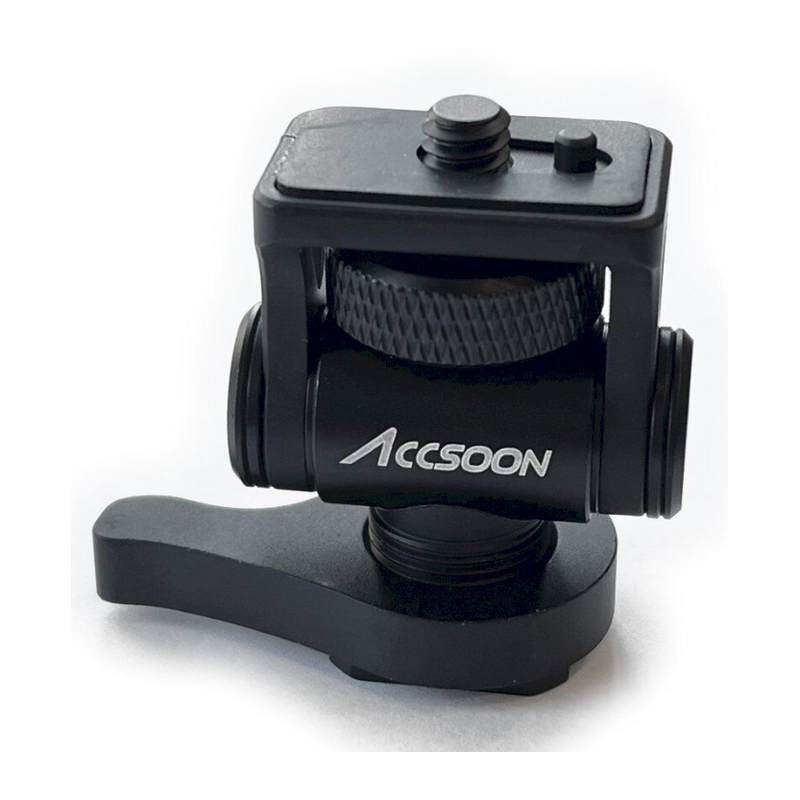

Accsoon Multi-Directional Cold Shoe Adapter ACC-AA-01 mounts a monitor, wireless video device or other compatible accessory with a 1/4″-20 mounting thread on the cold shoe of a camera, cage or rig. The aluminium adapter supports up to 2 kg and offers 180° tilt and 360° pan, letting you position the screen for your camera angle and working position. A locking wheel, anti-twist pins and protective anti-slip pad help keep the connection secure; use the included Allen key to reinforce the fastening. The compact body weighs 43 g and its base also has a 1/4″ threaded hole. Accsoon lists compatibility with CineView HE, SE, 2 SDI and Nano, SeeMo, SeeMo Pro and SeeMo 4K, and PowerCage Mini. The package includes the adapter and Allen key; the camera and other illustrated devices are sold separately.

Accsoon ACC-AA-01

POSITION YOUR MONITOR

A compact aluminium adapter for accessories up to 2 kg. A cold shoe foot and 1/4″-20 screw connect compatible devices to your camera, cage or rig.

2 kg180° / 360°1/4″-20

View full-size image

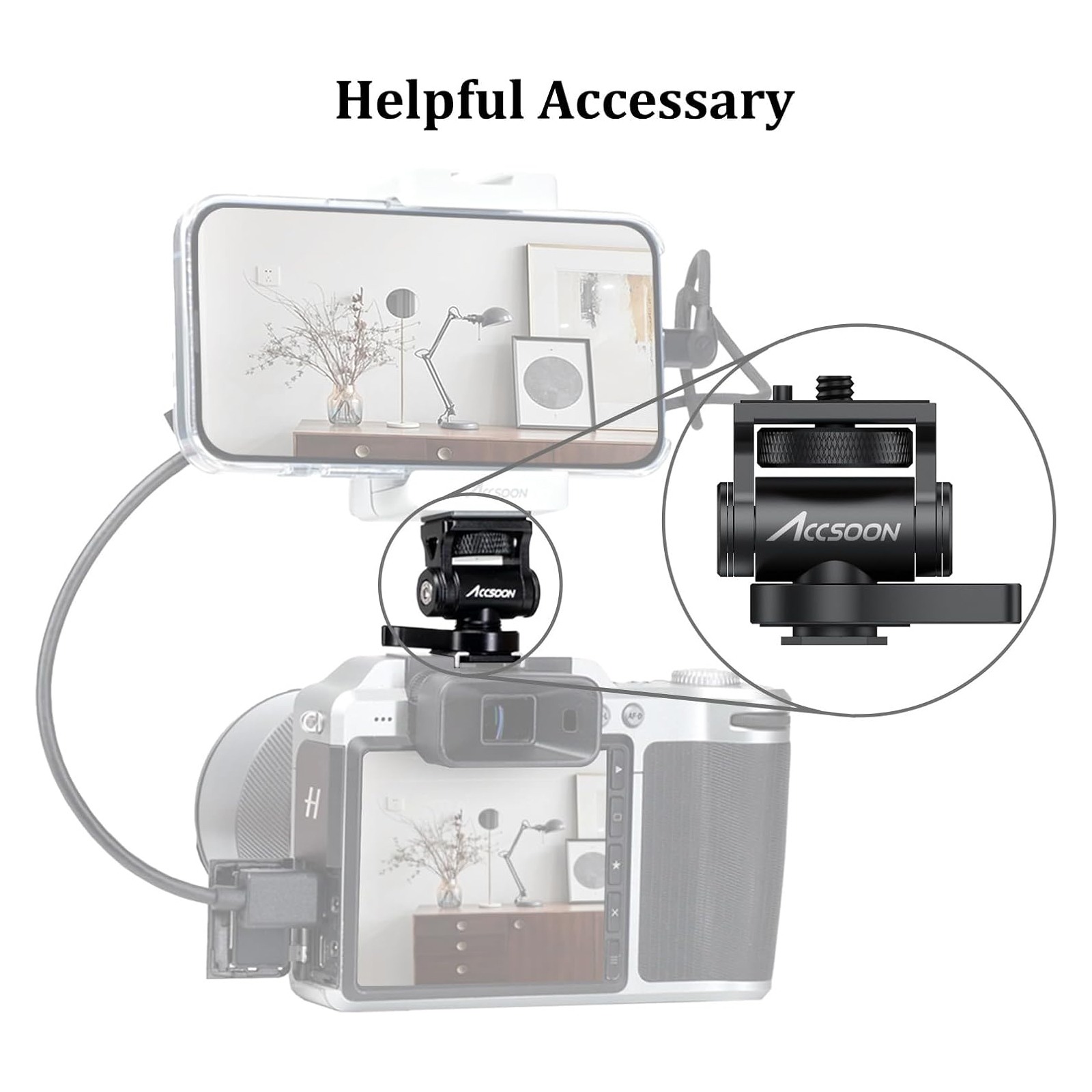

MOUNT ACCESSORIES ON YOUR CAMERA

The cold shoe foot connects the adapter to a matching shoe on a camera, cage or rig. Its upper 1/4″-20 screw attaches a compatible monitor or other accessory up to 2 kg. The manufacturer image illustrates a camera setup with a phone and video adapter; these devices are not included.

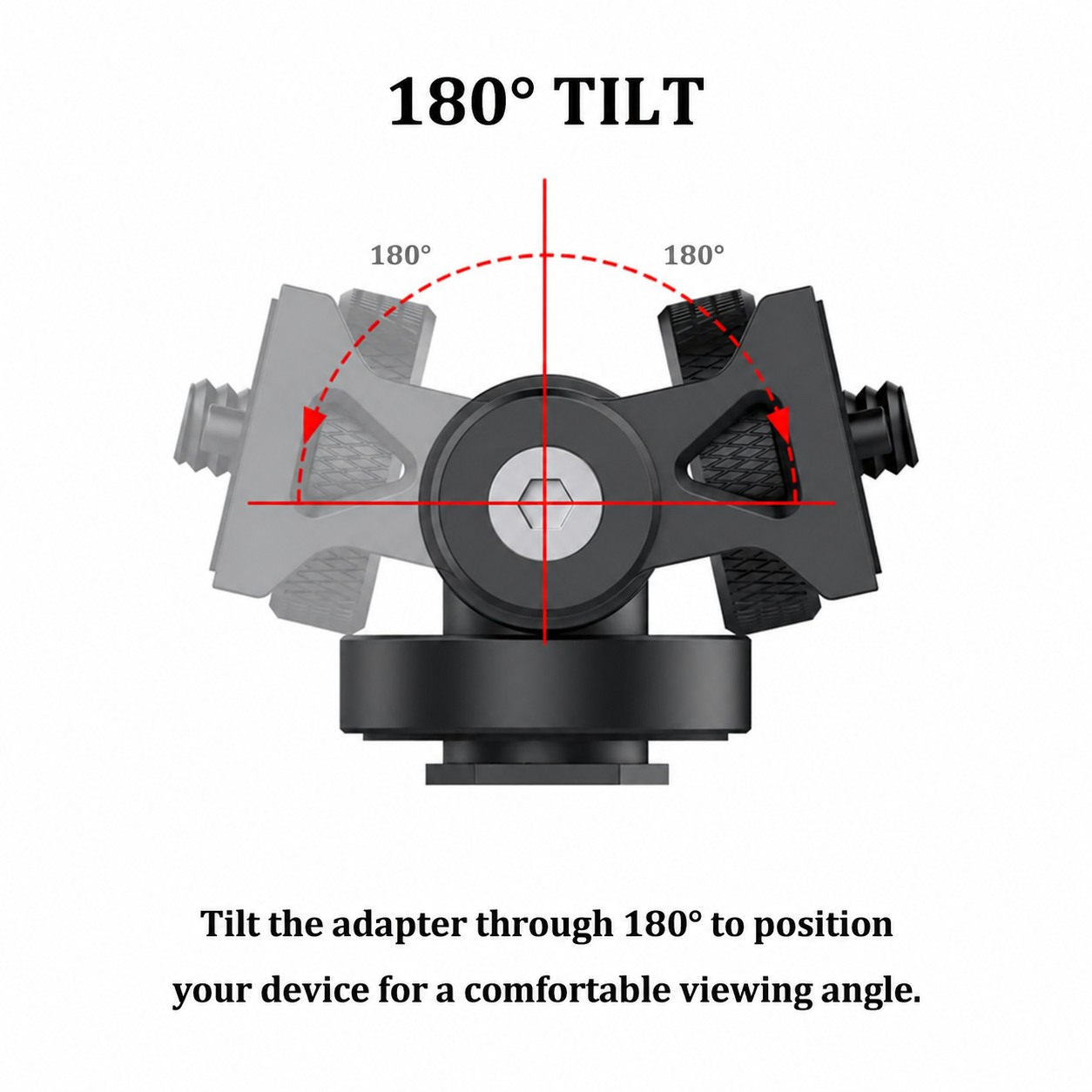

ADJUST YOUR VIEWING ANGLE

A 180° tilt range and 360° pan let you adapt the monitor position to the shot and your working position. Select the angle before recording, secure the mount and route connecting cables so that they do not restrict the assembly.

View full-size image

View full-size image

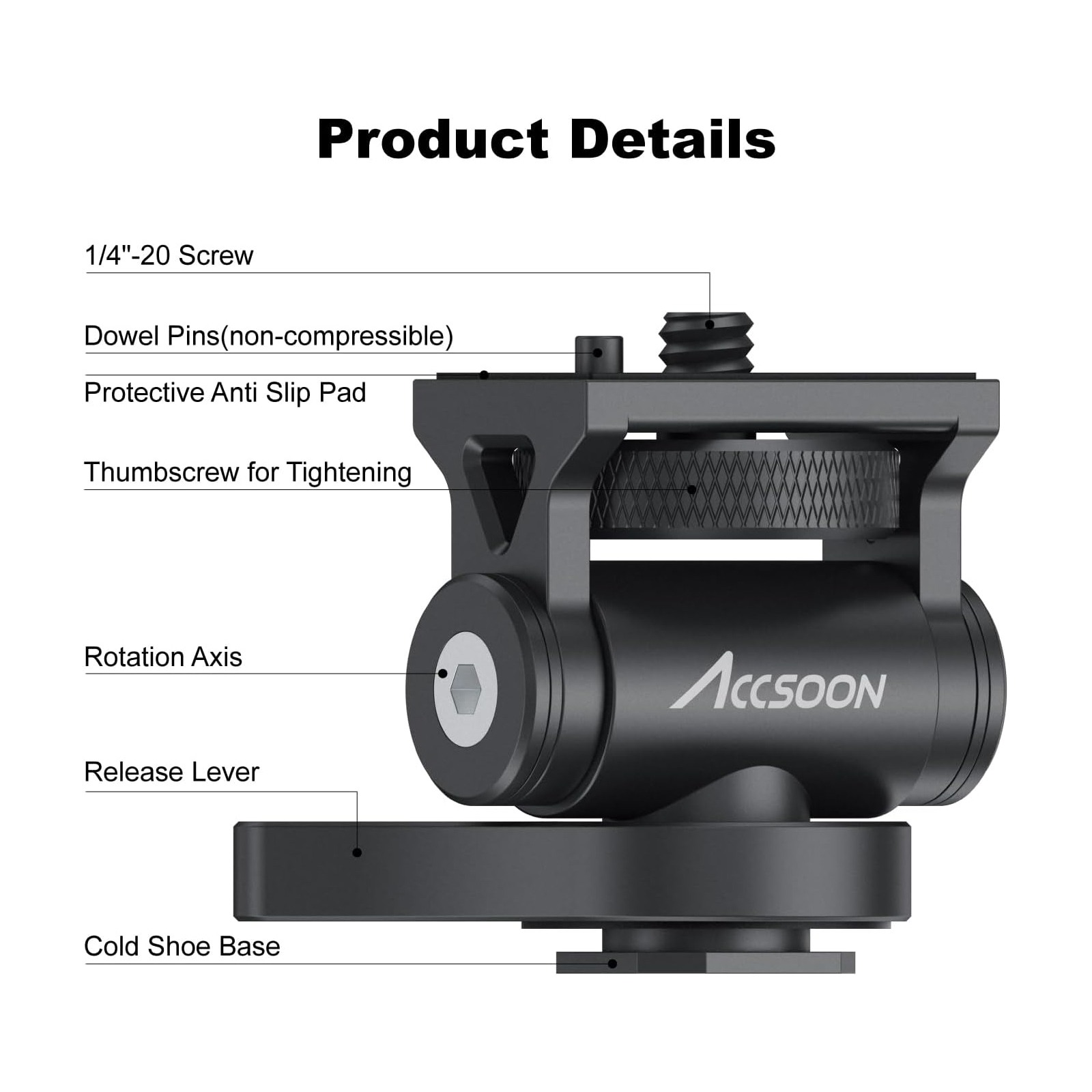

CONTROLS AND MOUNTING POINTS

The diagram identifies the 1/4″-20 screw, anti-twist pins, protective anti-slip pad, locking wheel, rotation axis, release lever and cold shoe foot. These details help you identify the mounting interfaces and adjust the adapter in your setup.

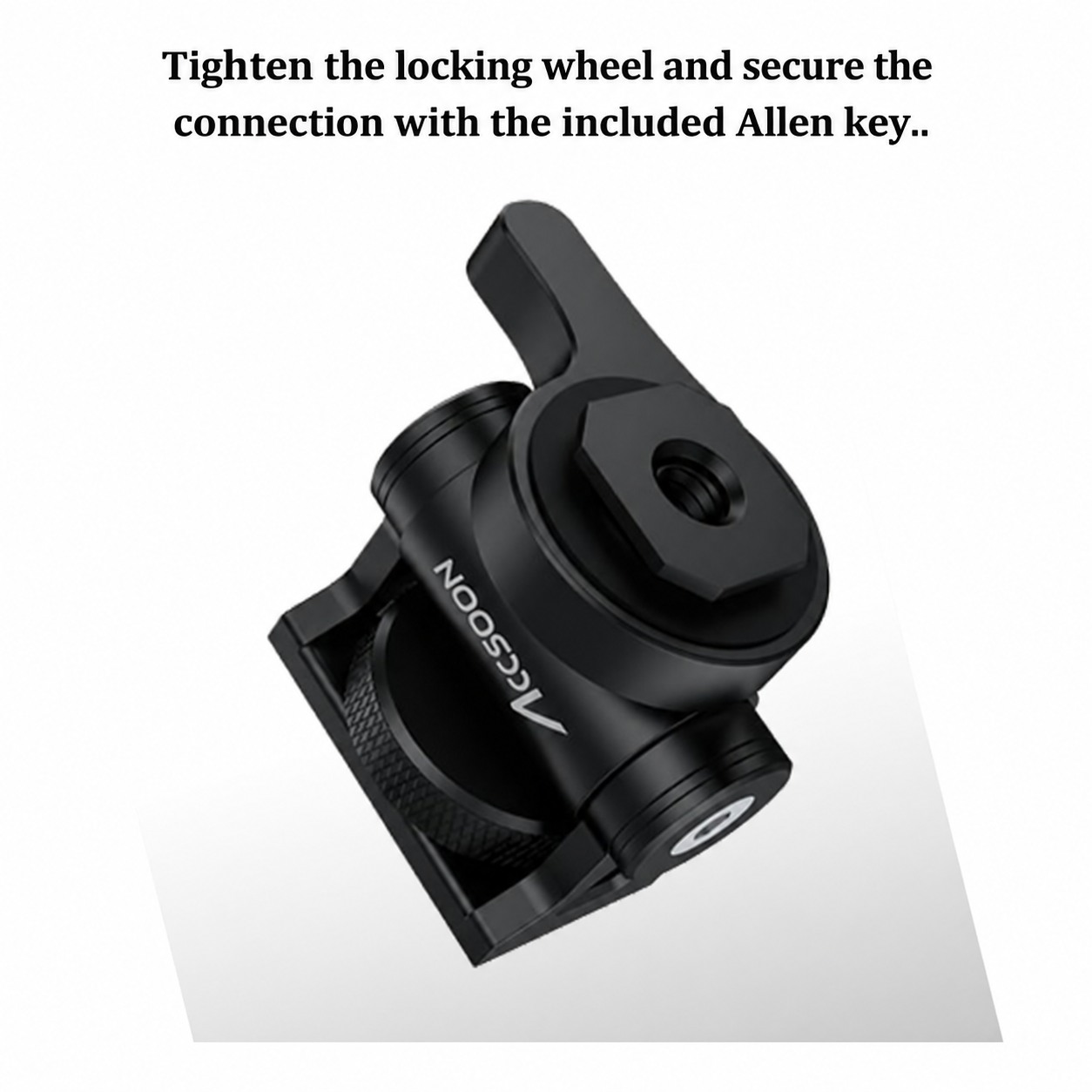

SECURE THE CONNECTION

After attaching the accessory, tighten the locking wheel. The included Allen key lets you reinforce the fastening. The aluminium construction supports a load of 2 kg; this limit applies to the attached accessory, not the entire camera setup.

View full-size image

View full-size image

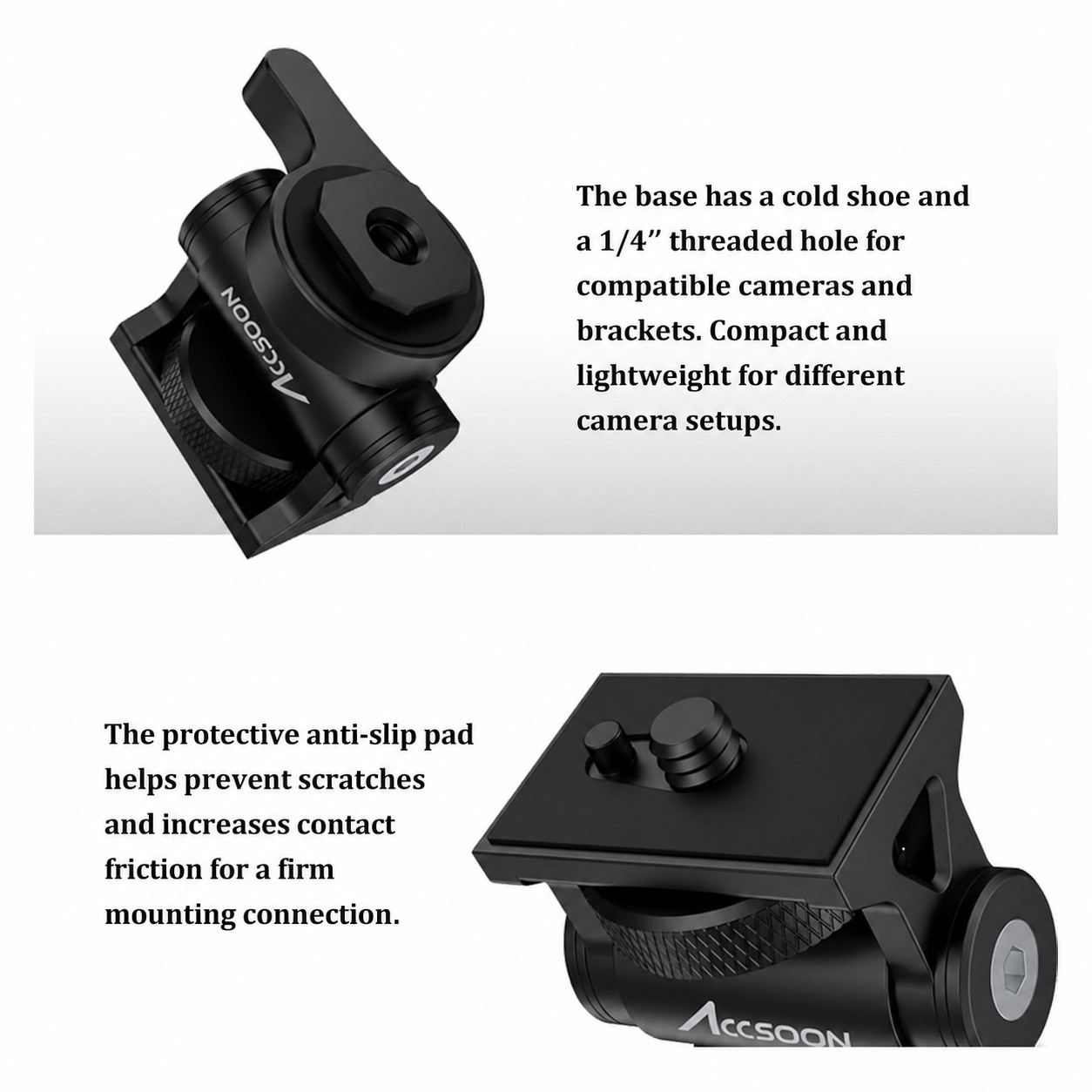

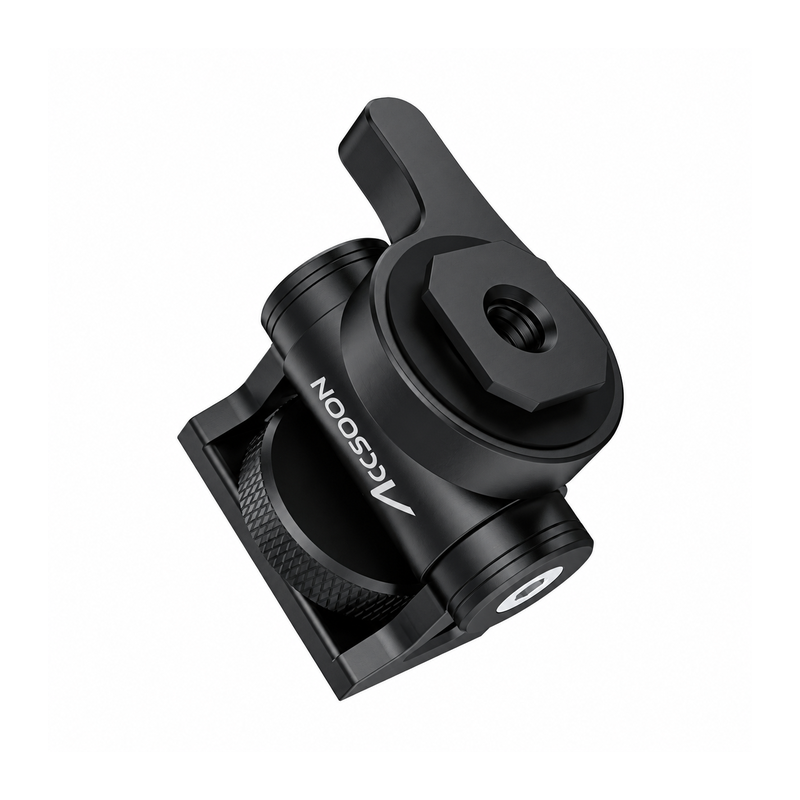

COLD SHOE AND 1/4″ THREAD

The base combines a cold shoe foot with a 1/4″ threaded hole for compatible mounting components. The anti-slip pad helps protect the contact surface against scratches and increases friction at the connection. At 34.5 × 19 × 40 mm and 43 g, the body fits a compact rig.
