Accsoon CineView HE is a 1TX + 1RX wireless HDMI video kit for camera monitoring and computer streaming. It carries Full HD video up to 60p and PCM audio using simultaneous 2.4 and 5 GHz transmission, with latency below 60 ms excluding the camera and a manufacturer range up to 350 m under unobstructed, interference-free line-of-sight conditions. The transmitter has HDMI input and local loop-out; the receiver supplies HDMI and USB-C UVC output for software such as OBS without a separate capture card. Up to four hardware receivers or mobile devices can share one transmitter using Accsoon SEE. Each unit supports NP-F batteries, DC or USB-C power; batteries, cables and monitors are purchased separately.

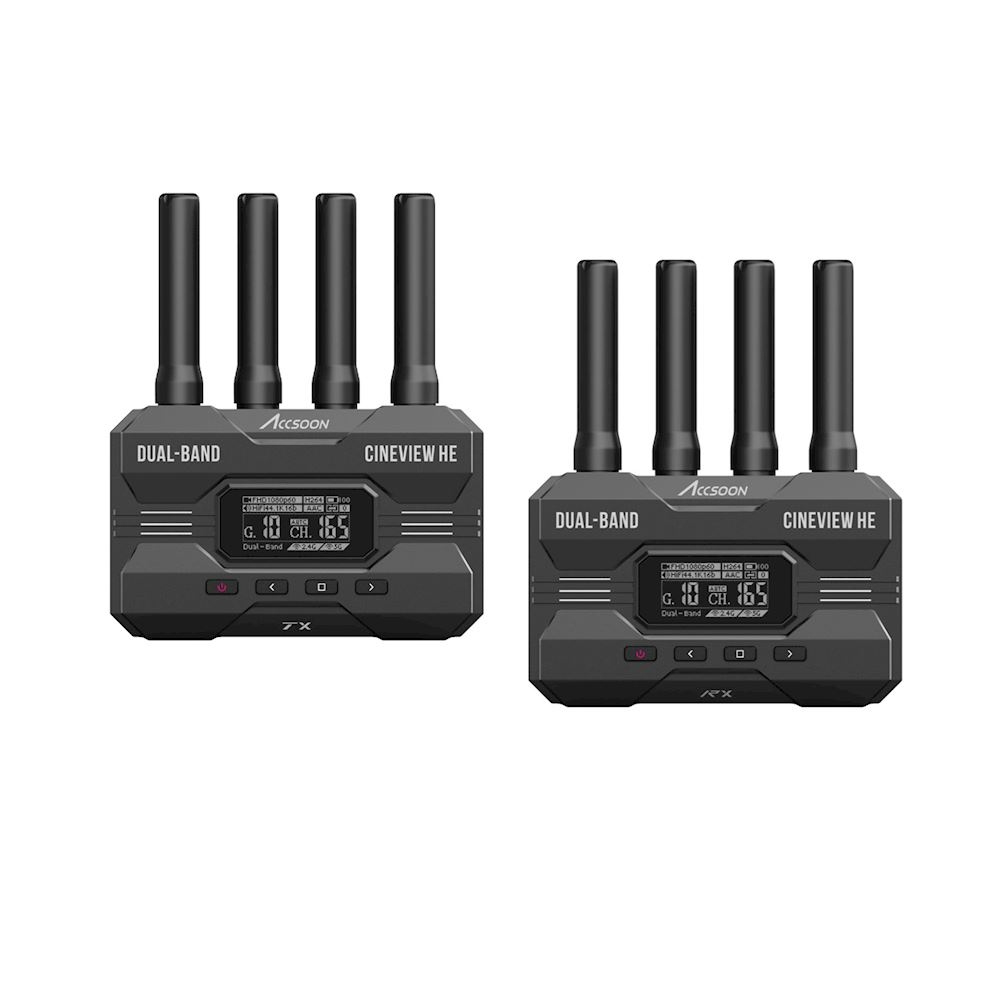

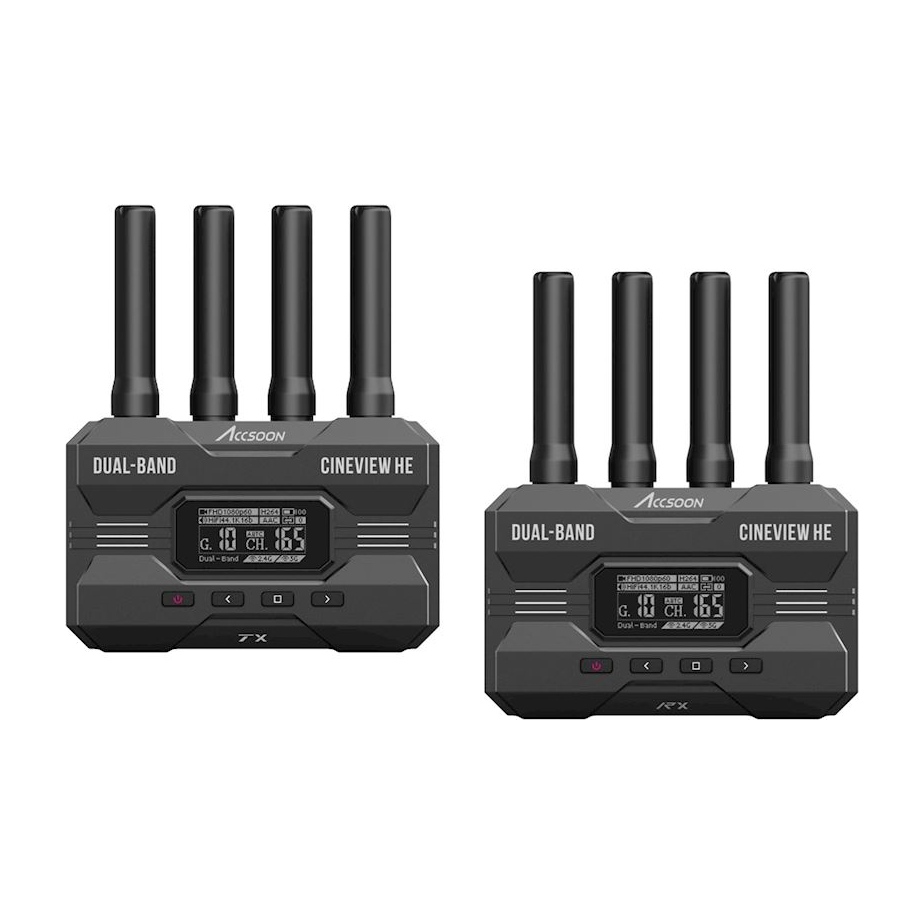

ACCSOON CINEVIEW HE · 1TX + 1RX
Camera video for your crew
The 1TX + 1RX kit sends Full HD video and audio from a camera to a remote monitor or computer. Simultaneous dual-band transmission and Accsoon SEE help keep more crew members in view.
Full HD 60p2.4 + 5 GHzHDMI + UVC

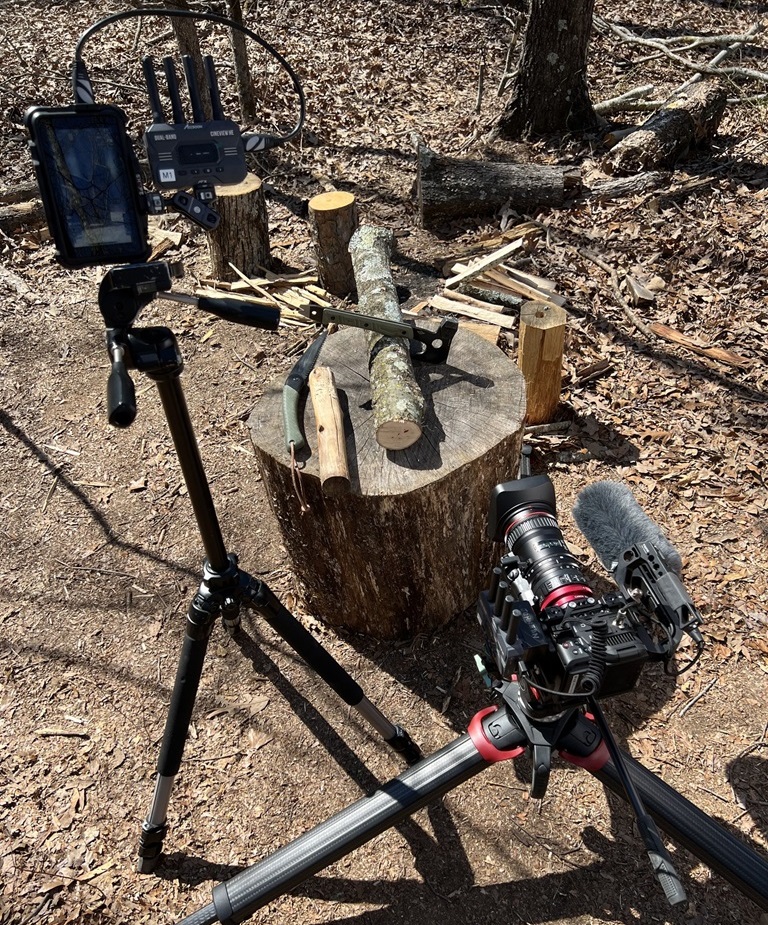

Monitor away from the camera

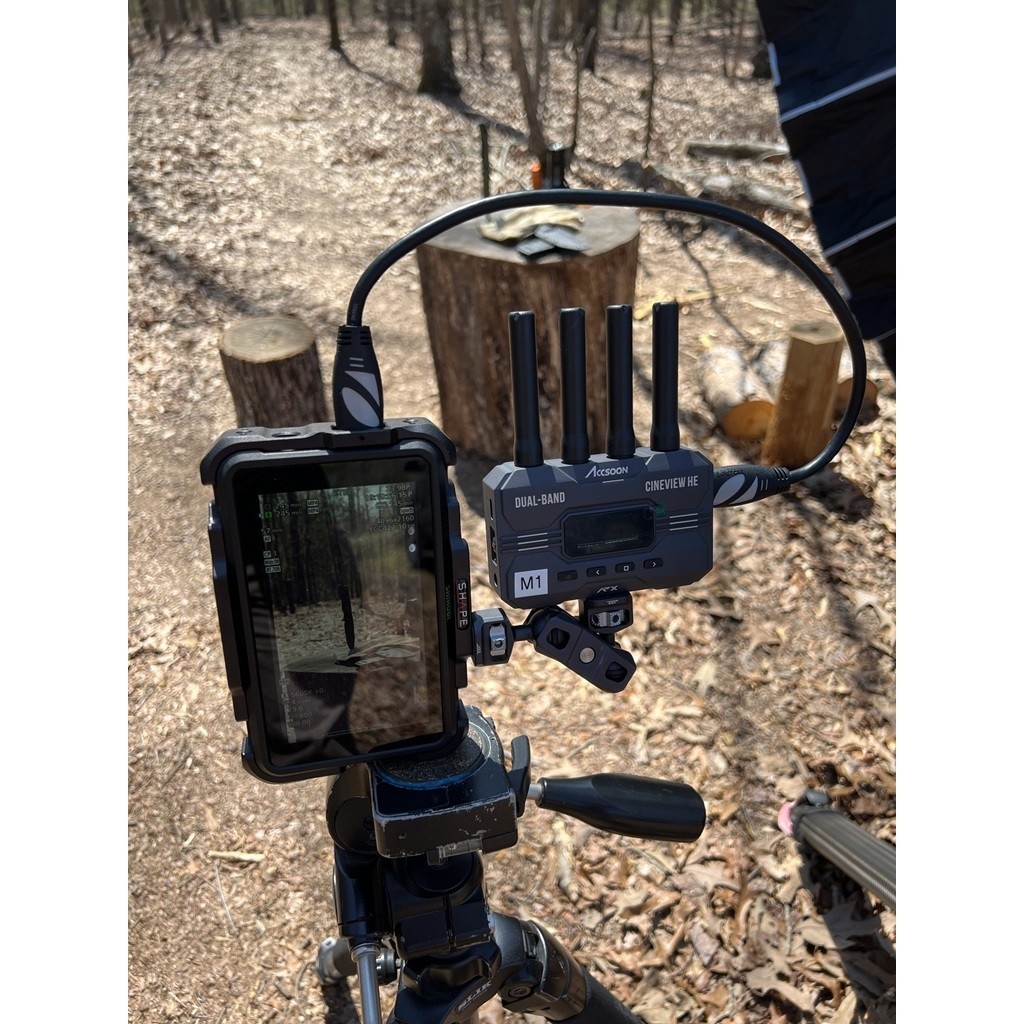

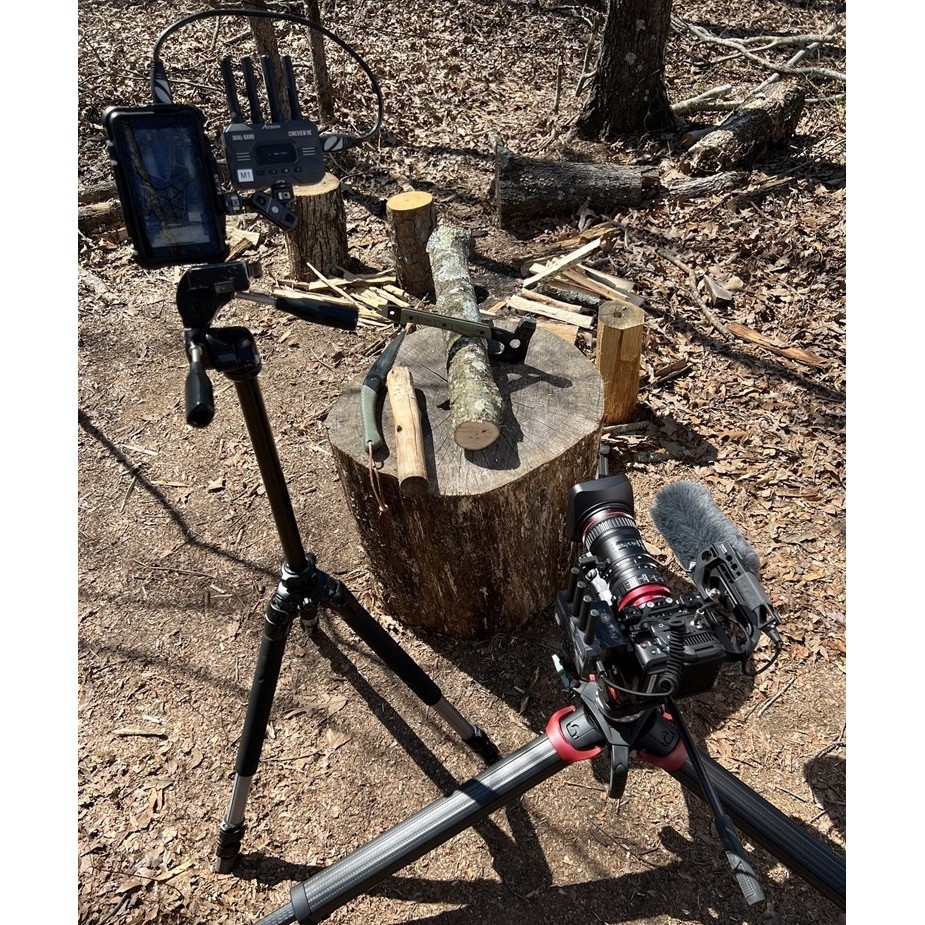

Connect the transmitter to the camera over HDMI and the receiver to an external monitor. A director, client or solo camera operator can check framing away from the camera body without a long video cable between positions. The manufacturer photograph shows CineView HE in an actual outdoor production; the camera and monitor are not included.

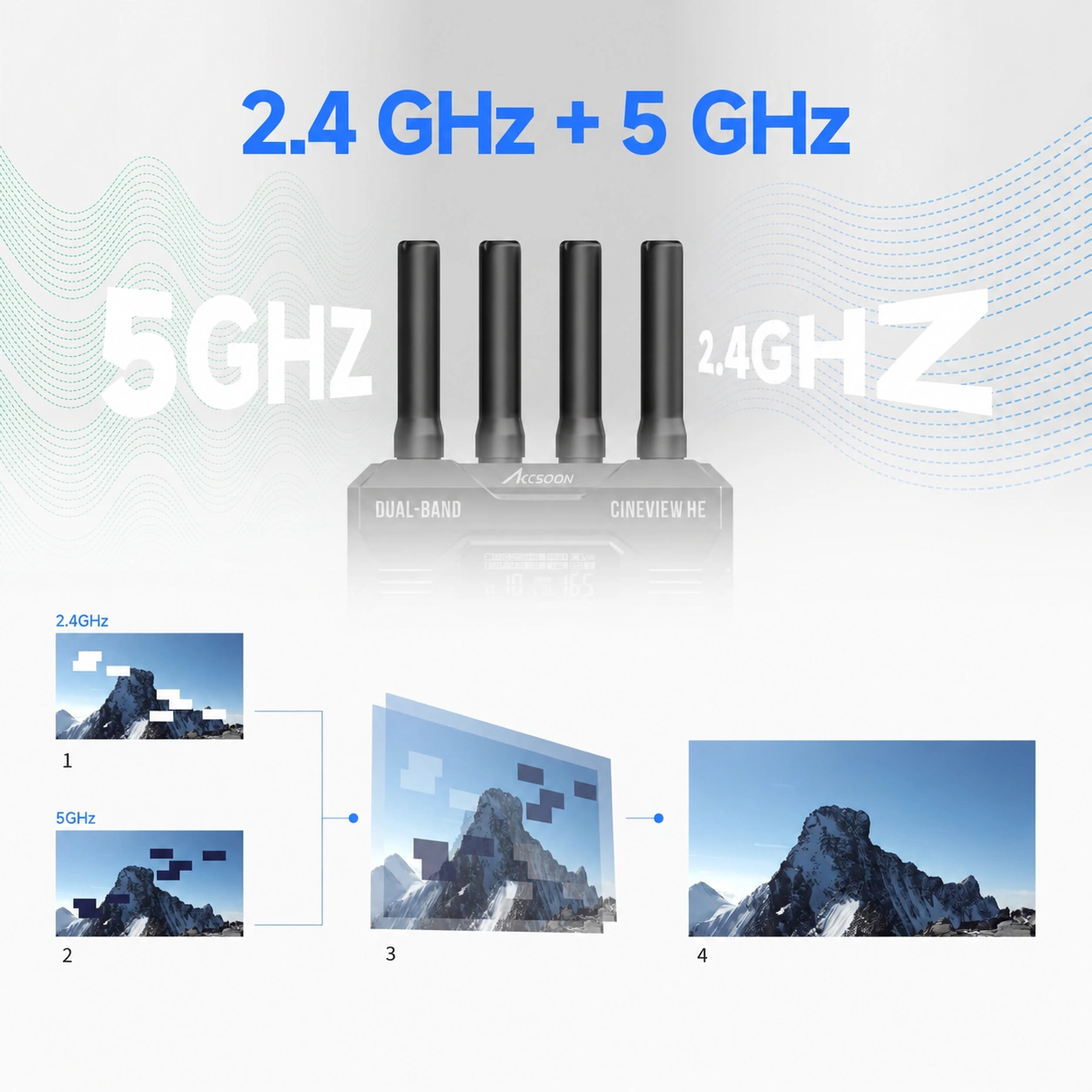

Two bands for one picture
CineView HE transmits the picture simultaneously over 2.4 and 5 GHz. The receiver compares both data streams and combines them into the output picture, helping reduce the impact of interference. Diagram: 1 and 2 show losses on each band, 3 their combination in RX and 4 the recovered picture. Performance still depends on the surrounding radio environment.

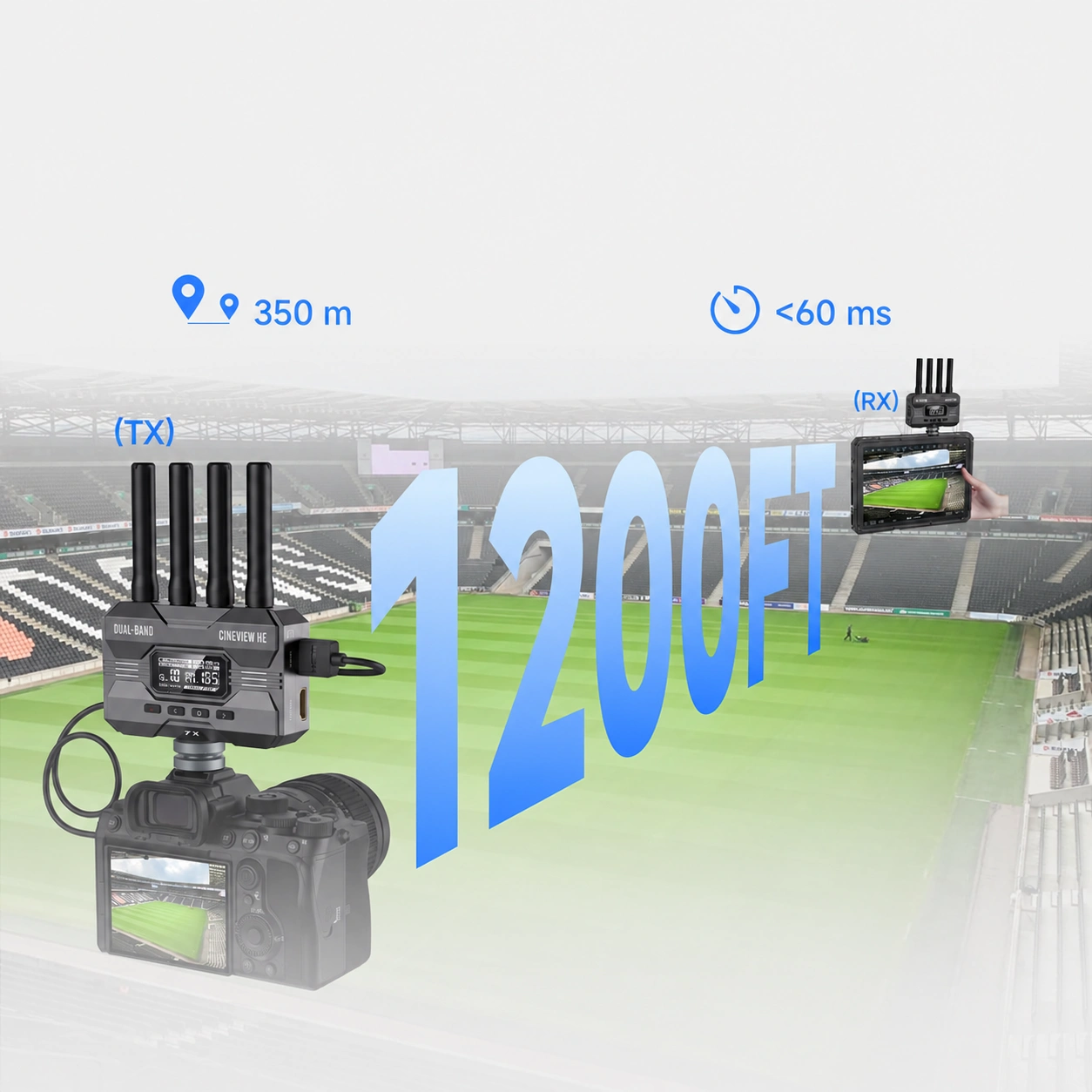

Range up to 350 metres
The manufacturer specifies a range up to 350 m with line of sight, no obstructions and no interference. Wireless transmission latency is below 60 ms and excludes camera latency. This combination supports on-set monitoring; reception distance on a phone can differ from that of a hardware receiver.

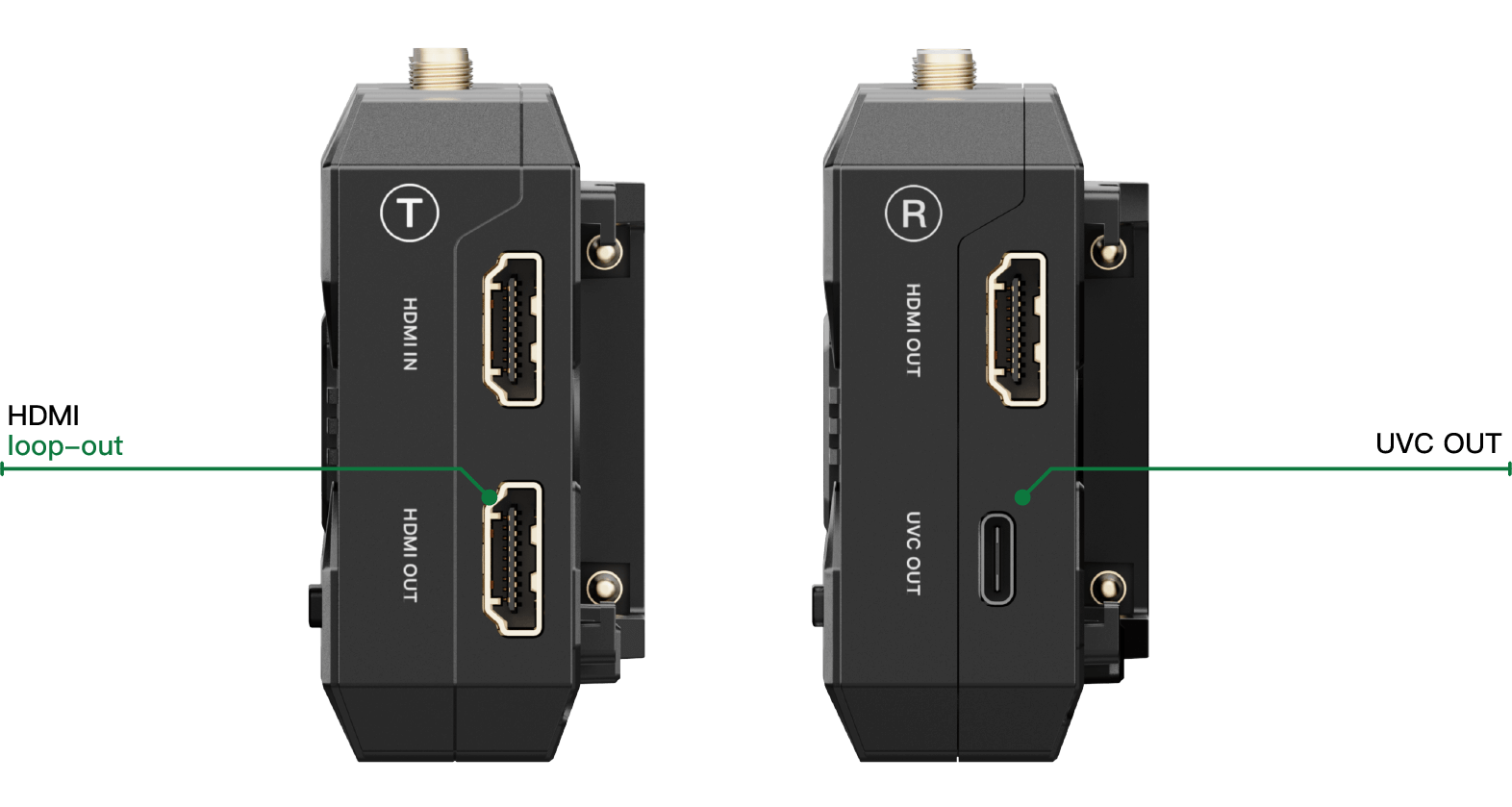

HDMI at the camera, HDMI and UVC at RX

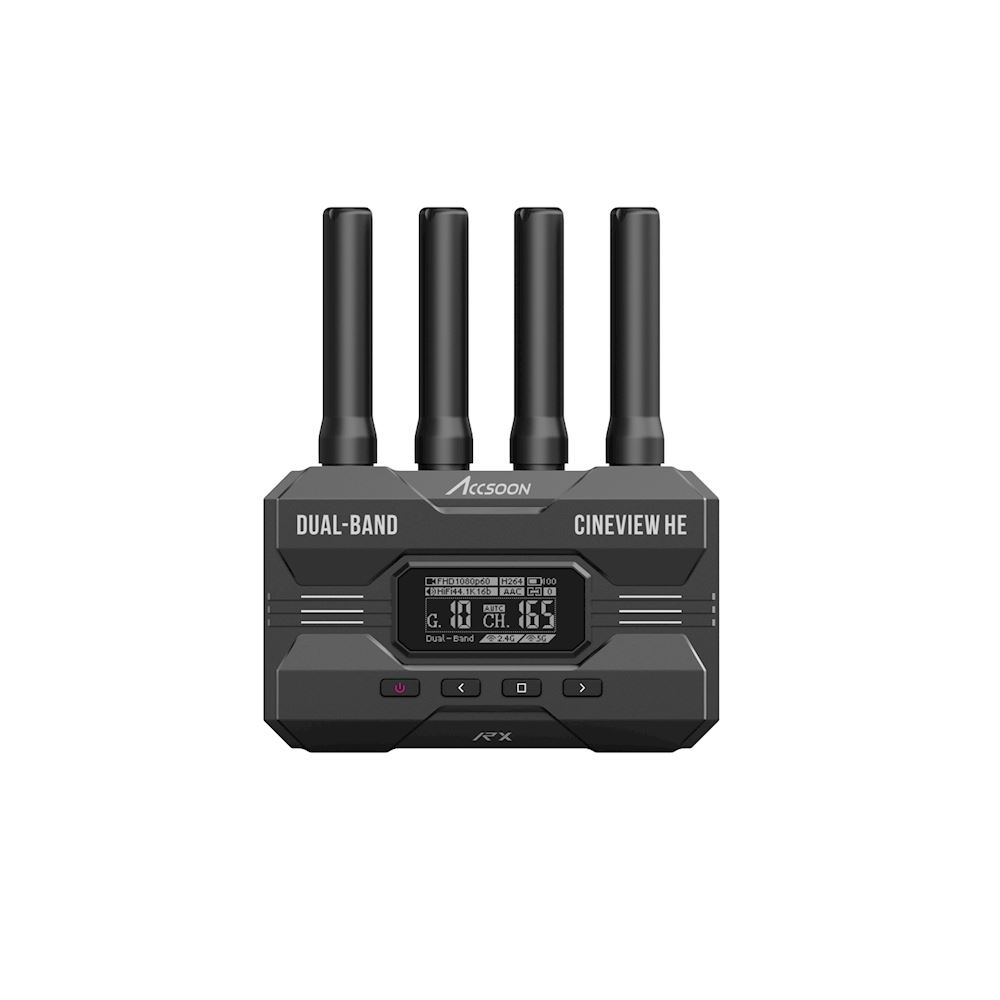

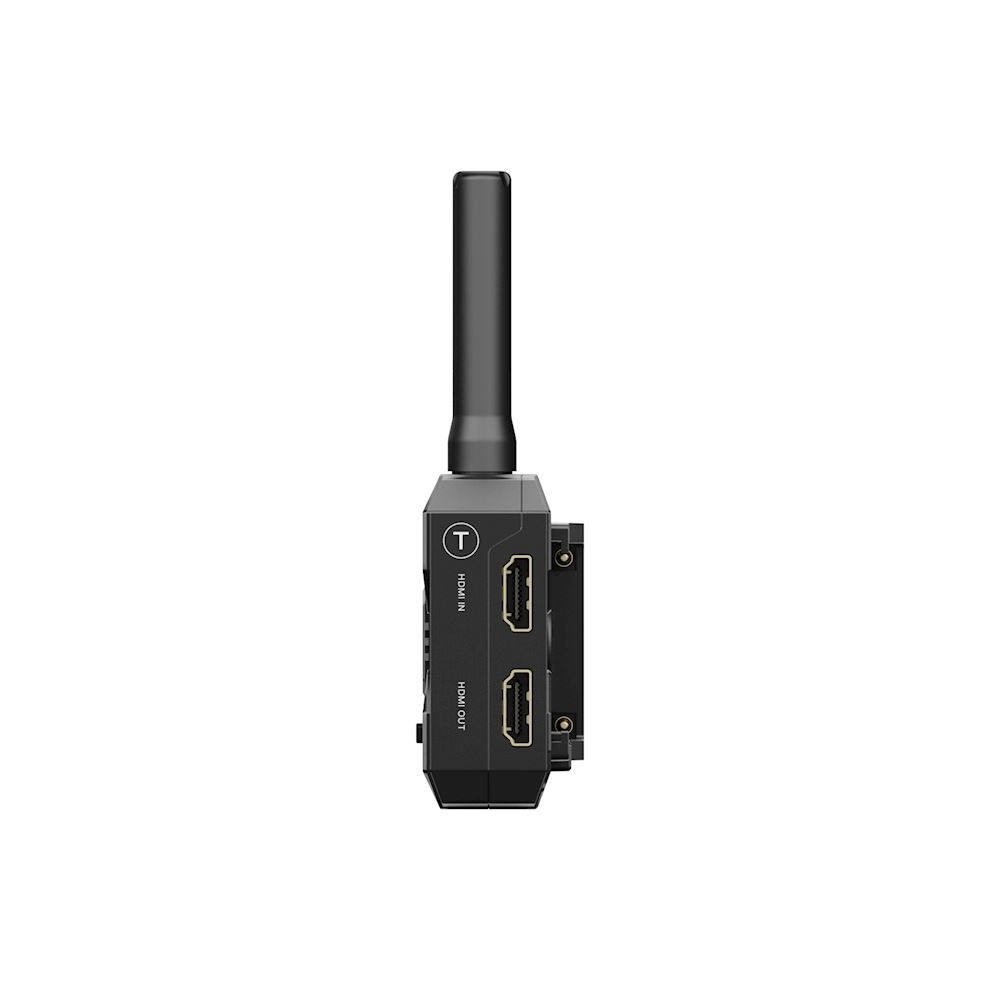

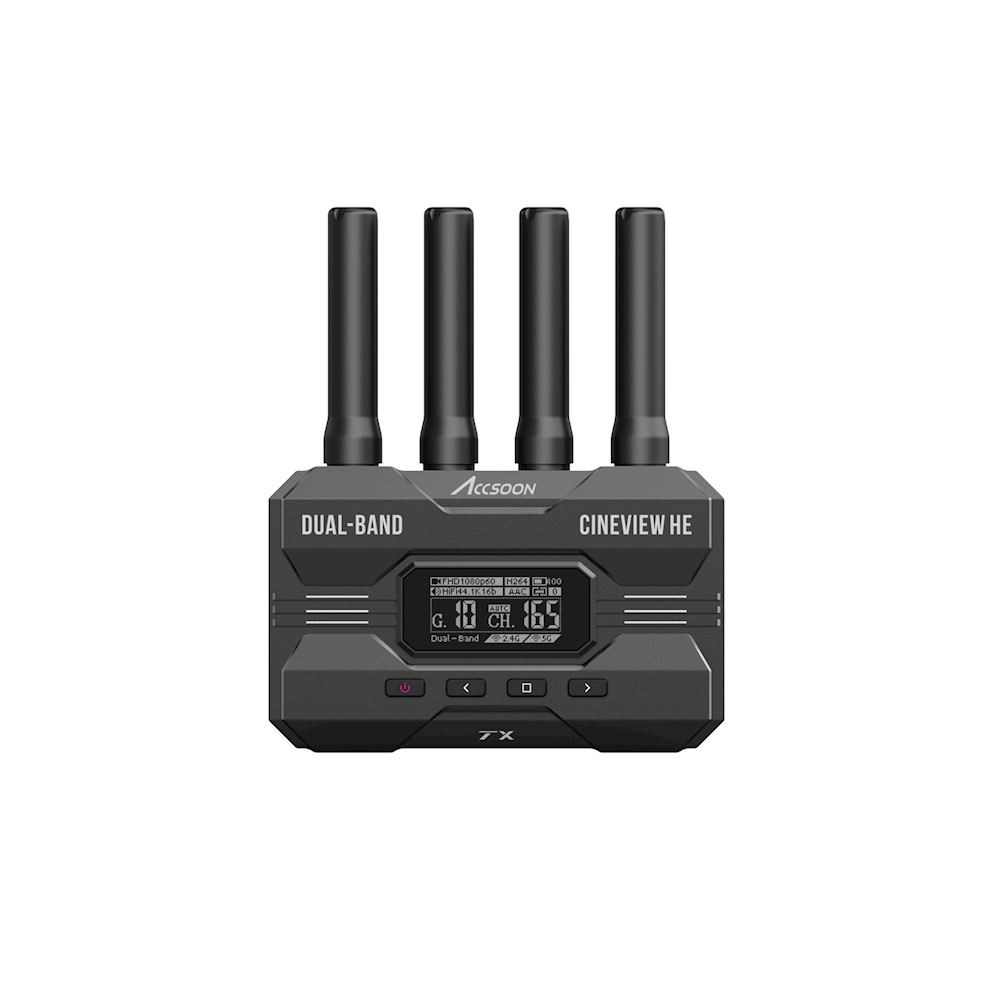

TX provides full-size HDMI input and local HDMI loop-out for an on-camera monitor. This wired output does not add wireless transmission latency. RX provides HDMI output and a separate USB-C UVC data output. The system carries Full HD up to 60p and PCM audio; it does not accept 4K or SDI.

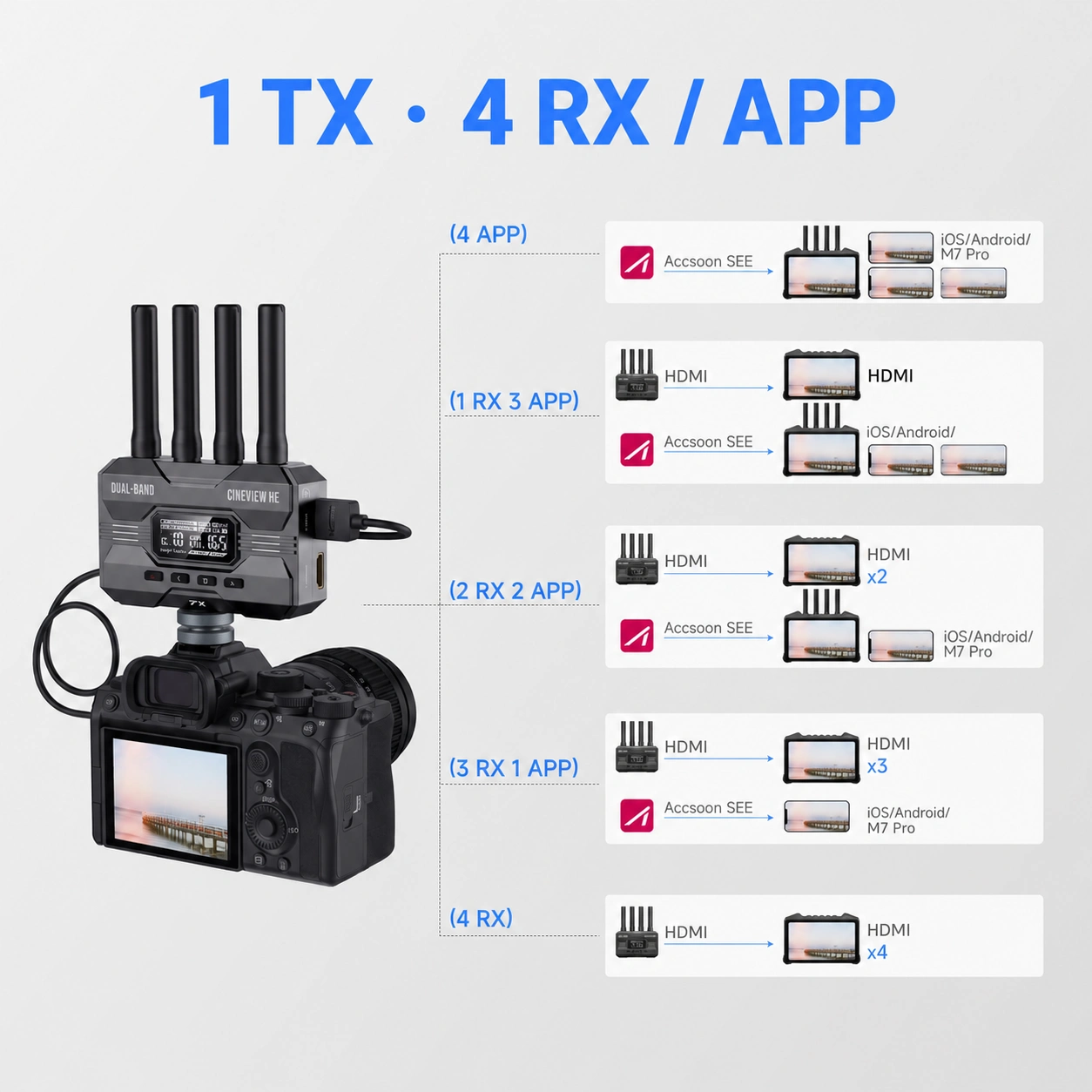

Up to four receiving devices
One TX supports a maximum of four receiving devices in total. Mix hardware receivers with phones or tablets using Accsoon SEE for iOS and Android: for example 1 RX + 3 mobile devices, or 4 RX. A wired monitor connected to RX does not consume another wireless slot. This kit includes 1 TX and 1 RX; additional receivers and mobile devices are purchased separately.

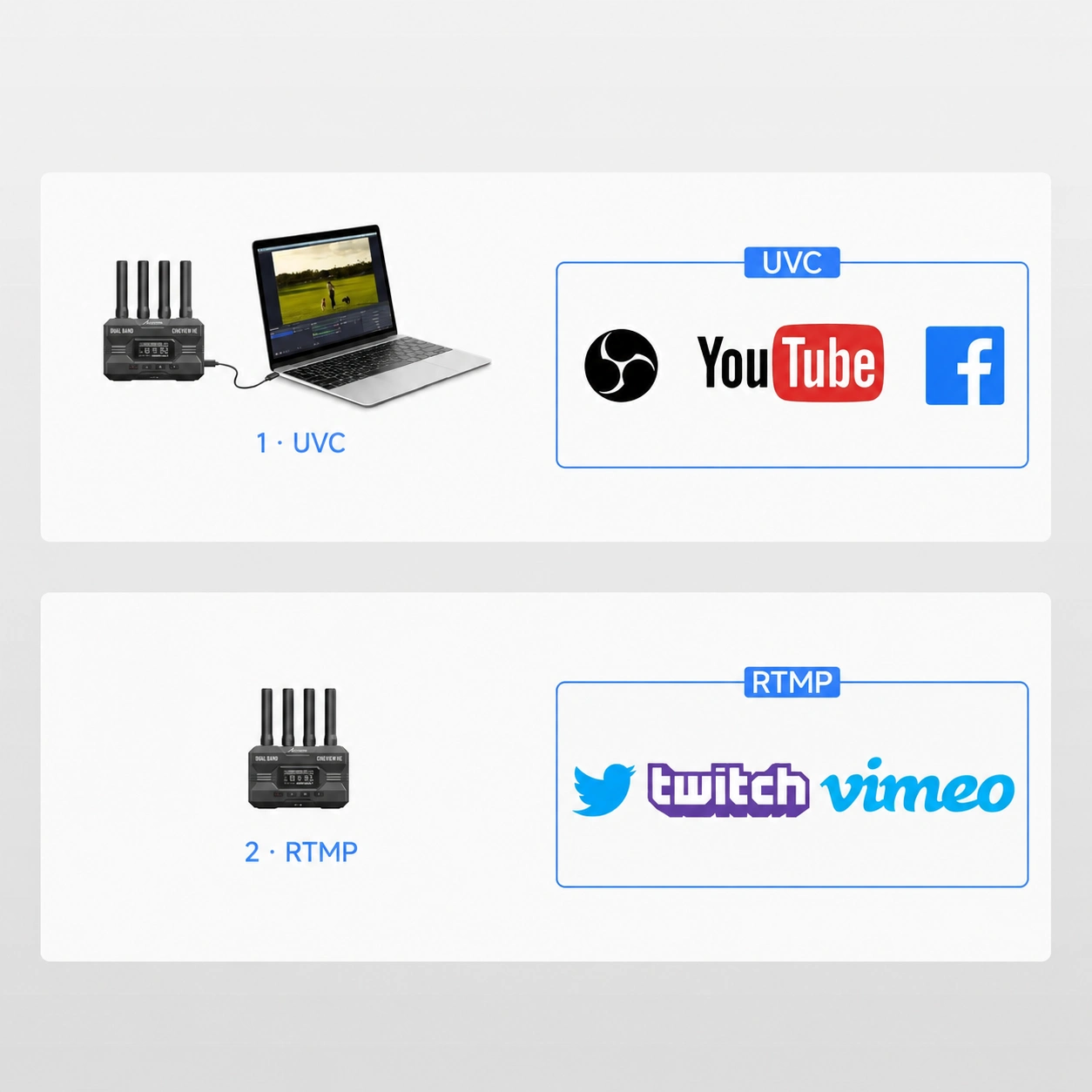

Video to a computer without a capture card
1 · UVC: connect RX to a computer with a USB-C data cable and use the picture in software such as OBS. A separate capture card is unnecessary. 2 · RTMP: live streaming through Accsoon SEE uses a phone or tablet and its Internet connection. HE does not send RTMP directly to the Internet by itself. Destination support depends on the app and the platform’s current terms; cables and computer are not included.

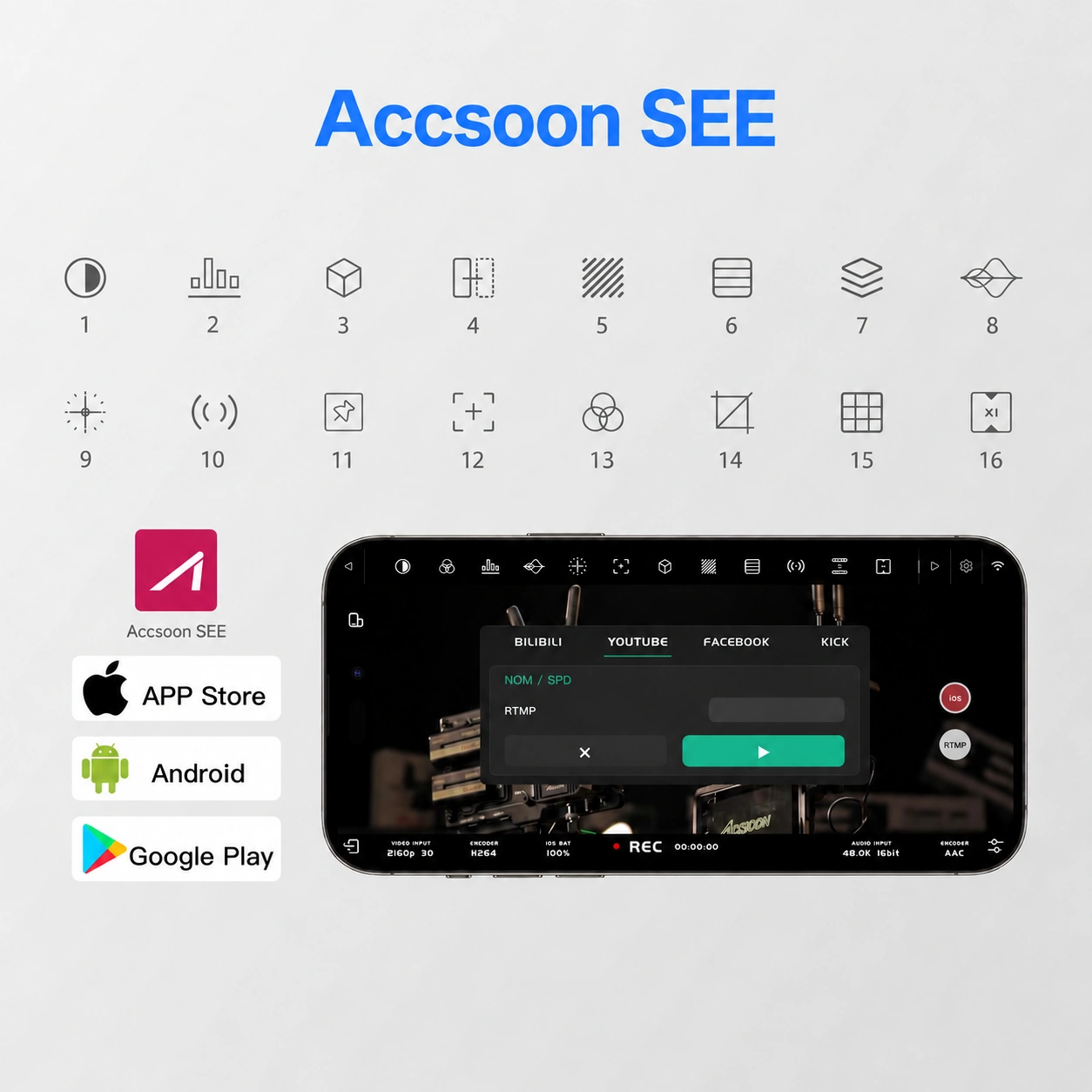

Accsoon SEE monitoring tools
Mobile reception adds exposure, colour, framing and focus tools, recording and live streaming in Accsoon SEE. The numbered legend follows the manufacturer’s icons. The interface screenshot illustrates the app; CineView HE transmission remains Full HD.
Monochrome preview
Histogram
LUT
Mirror
Zebra
False colour
Overlay
Waveform
Vectorscope
Audio
Markers
Focus
RGB
Screenshots
Grids
Display correction

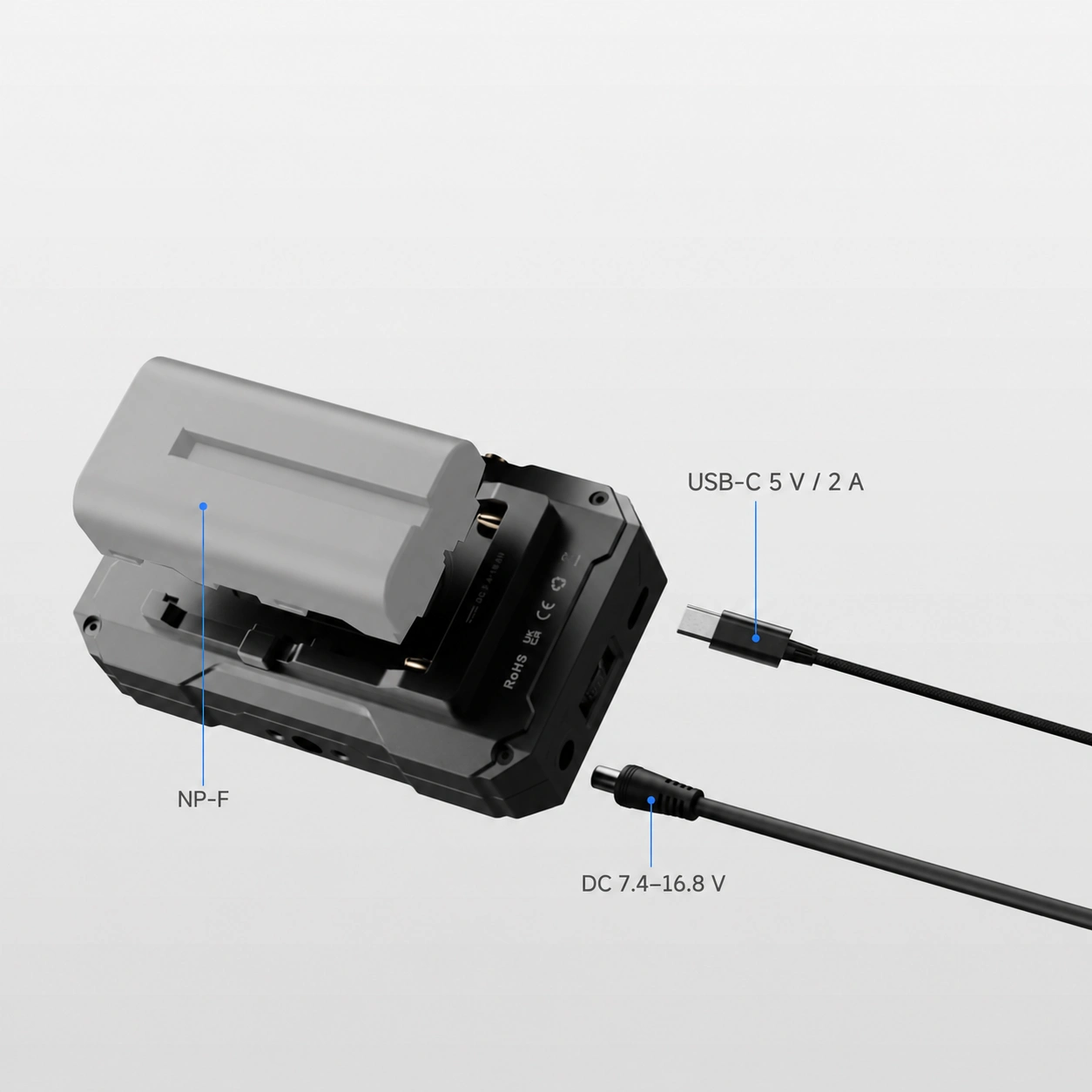

Power to suit your rig

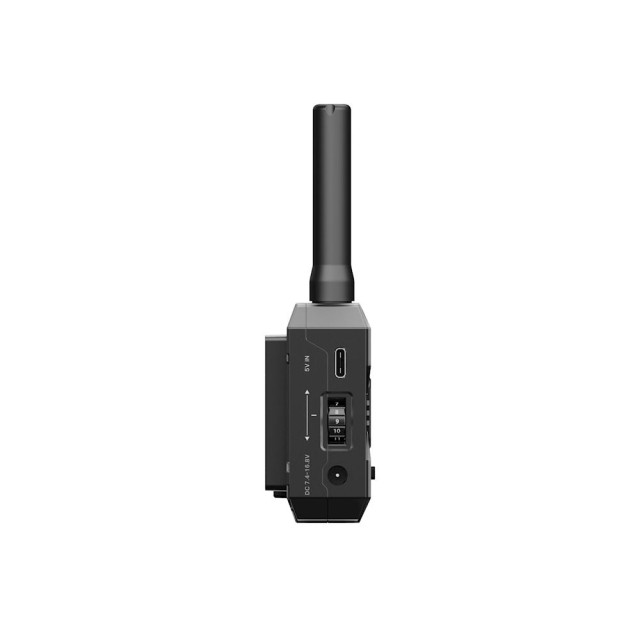

Power each unit from an NP-F550/750/970 battery, 7.4–16.8 V DC or a 5 V USB-C source rated at least 2 A. The DC connector is 5.5 × 2.1 mm, centre positive. RX has separate USB-C connections for UVC data output and power. Batteries, supplies and power cables are purchased separately; this USB-C input does not charge an NP-F battery.

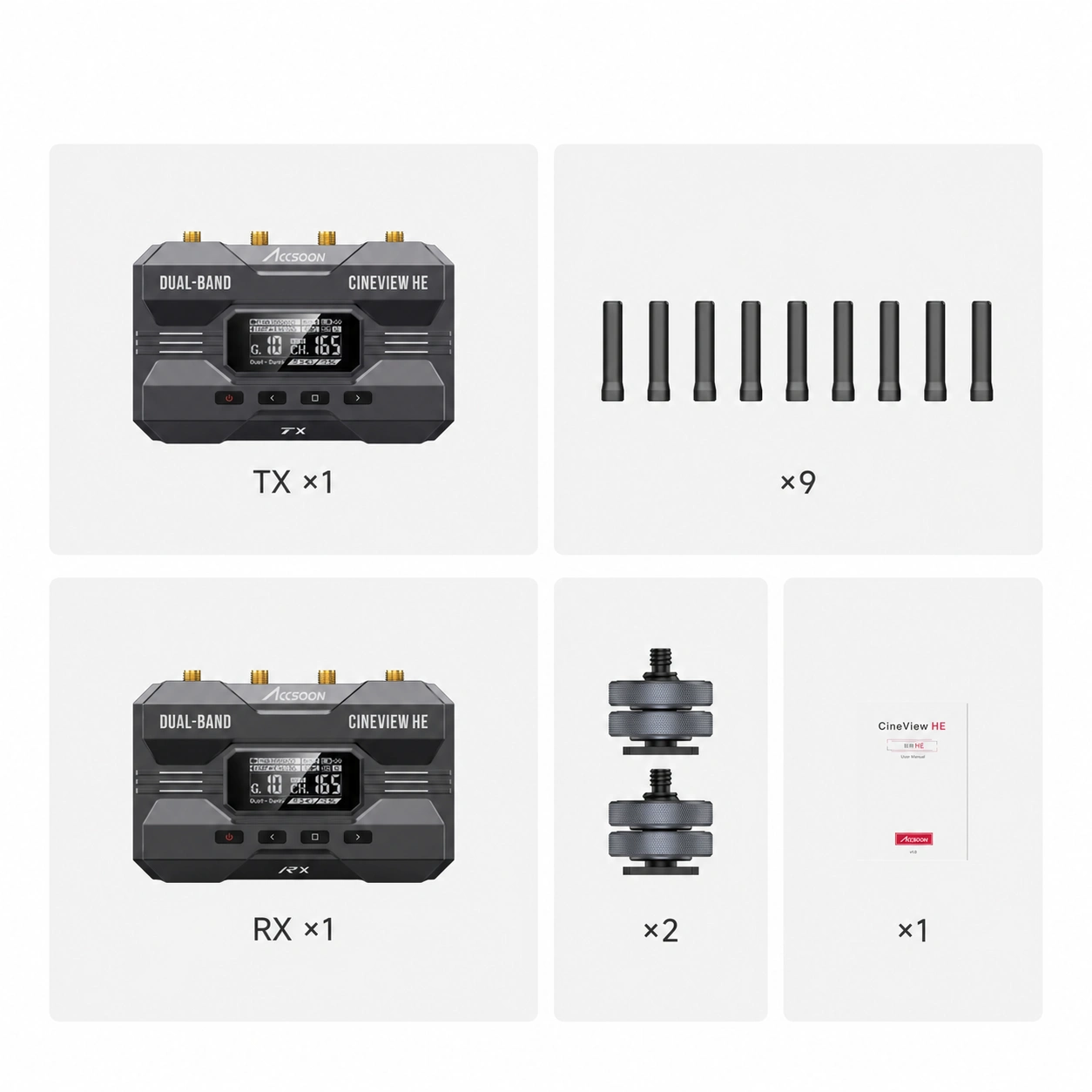

A kit for a camera and one monitor

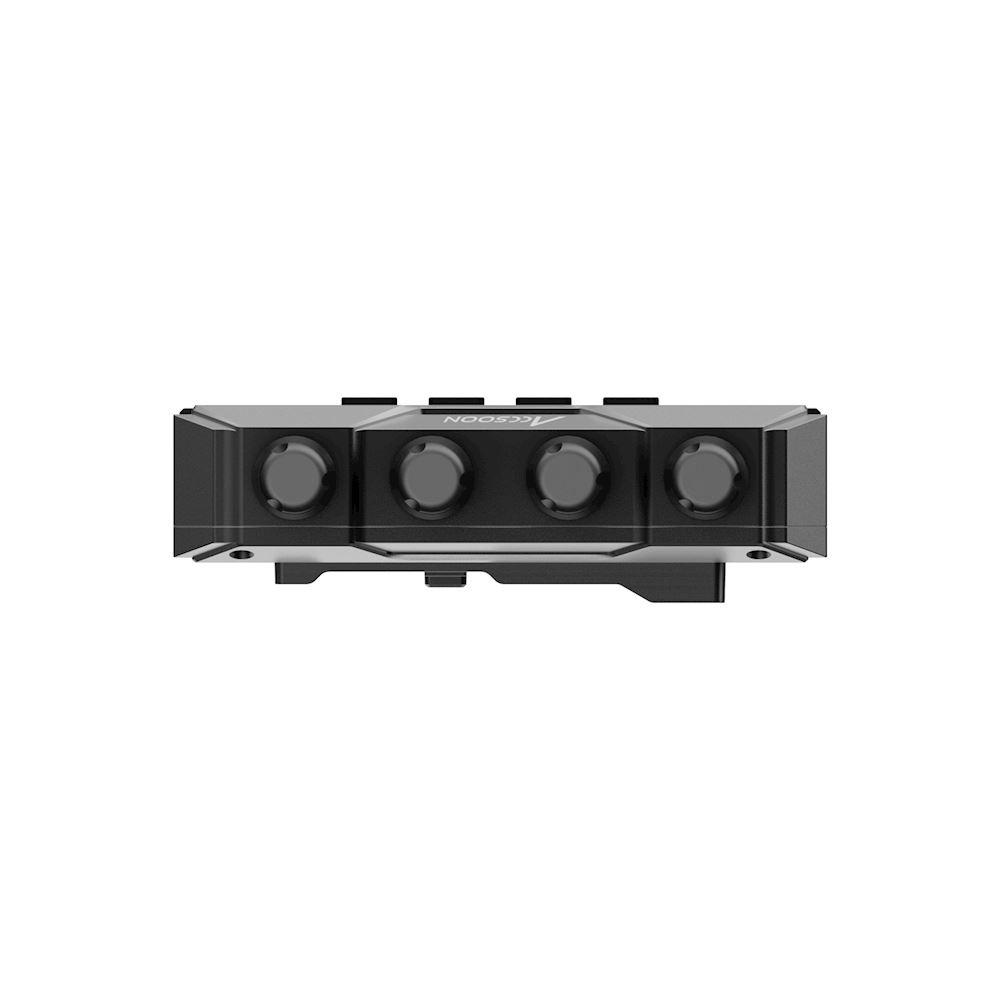

The standard 1TX + 1RX package includes a transmitter, receiver, nine antennas, two cold shoe mount adapters and a manual. Eight antennas fit both units, with the ninth as a spare. Choose HDMI cables, power and any USB-C data cable for your setup. This diagram does not describe TX-only, RX-only or 1T4R packages.

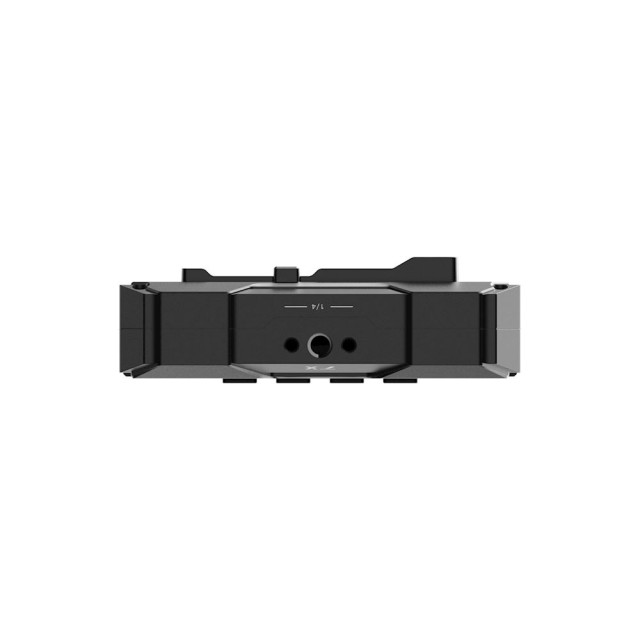

At startup, TX automatically selects a transmission channel. Pair units with the 0–F group dial; HQ, NOM and SPD modes let you prioritise picture quality or speed. The fanless aluminium body adds no fan noise on set. Each unit has a 1.3″ OLED, a manufacturer-specified weight of 200 g and a 1/4″-20 mounting thread. Before connecting other models, verify exact compatibility and firmware; HE/SE does not mean universal compatibility with every Accsoon device.
PACKAGE CONTENT
Accsoon CineView HE TX transmitter ×1
Accsoon CineView HE RX receiver ×1
Antenna ×9
Cold shoe mount adapter ×2
User manual ×1
SPECIFICATIONS
Bands: 2.4 GHz + 5 GHz
Maximum resolution: 1920 × 1080, 60p
Range: Up to 350 m; line of sight, no obstructions or interference
Latency: <60 ms; excludes camera latency
Receiving devices: Maximum 4 in total per TX
Audio: PCM, 44.1/48 kHz, 16/24 bit
Unit display: OLED 1.3″
Battery: NP-F550 / NP-F750 / NP-F970
DC power: 7.4–16.8 V
DC connector: 5.5 × 2.1 mm, female, centre positive
USB-C power: 5 V; source rated at least 2 A
Dimensions per unit: 105 × 66 × 32 mm, excluding antennas
The Accsoon CineView HE is an advanced wireless system with an HDMI interface and UVC support, powered by standard NP-F batteries. To maximize its potential, we recommend accessories for stable mounting, reliable power supply, and professional monitoring on iPad and iPhone mobile devices.
Power and Charging - Accessories for power supply using the NP-F standard, which the CineView HE utilizes.
Monitors and cages for iPad/mobile devices - Since the CineView HE transmits video to mobile devices, these cages and mounts are the ideal accessories.
