Accsoon Cineview SE - WIT04-SE
SKU: ACC-WIT04-SE
Accsoon CineView SE 1TX + 1RX is a wireless monitoring system for SDI and HDMI camera workflows. It carries Full HD up to 60p and PCM audio using simultaneous 2.4 and 5 GHz transmission, with system latency below 50 ms excluding the camera and range up to 350 m in unobstructed, interference-free line of sight. The 1TX + 1RX package shares one camera’s Full…
519 € with VAT
428.93 € without VAT
Availability
Shipment day: 19. 10.
Shipment day: 19. 10.
> 5 pcs in stock at the supplier
Top accessories for Accsoon Cineview SE - WIT04-SE
PremiumCord 4K HDMI 2.0b High Speed + Ethernet cable, gold-plated connectors, 1 m
High-quality interconnect cable for connecting two audio/video devices via modern
3.2 €
In stock 2 pcs
Tilta NP-F970 Battery (10500mAh) - Green
The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera
47 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
PremiumCord USB-C angled 90° cable (USB 3.2 GEN 2x2, 5A, 100W, 20Gbit/s) aluminum caps, cotton braid, 1m
PremiumCord USB-C 90° Angled Cable (USB 3.2 Gen 2x2, 5A, 100W, 20Gbit/s) with aluminum
11 €
In stock 3 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
A flat two-channel Tilta charger for Sony L-Series / NP-F batteries and compatible
18 €
In stock 5 pcs
Tilta NP-F550 Battery (3500mAh) - Green
The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera
23 €
In stock 2 pcs
PremiumCord Slim HDMI 2.0 High Speed + Ethernet Cable, Gold-Plated, 0.5 m
PremiumCord Slim HDMI High Speed + Ethernet cable, gold-plated connectors, 0.5m
5 €
on request
Canare L-2.5CHWS BNC / BNC 0,4 m, GRY
Assembled SDI cable, Canare L-2.5CHWS, 0.4 m long, terminated with BNC and BNC c
13 €
In stock 1 pcs
Accsoon Right Angle SDI to Right Angle SDI cable - 80 cm
Accsoon ACC-XC-BNC-SDI-80-BLACK is a black 80cm SDI video cable with right-angle
12 €
> 5 pcs in stock at the supplier
Accsoon HDMI Cable (A-A)
Accsoon HDMI Cable (A-A) is a 50 cm male-to-male cable connecting cameras, external
12 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Accsoon CineView SE 1TX + 1RX is a wireless monitoring system for SDI and HDMI camera workflows. It carries Full HD up to 60p and PCM audio using simultaneous 2.4 and 5 GHz transmission, with system latency below 50 ms excluding the camera and range up to 350 m in unobstructed, interference-free line of sight. The 1TX + 1RX package shares one camera’s Full HD picture across remote monitors. TX accepts SDI or HDMI; each RX provides SDI and HDMI outputs. One transmitter supports up to four wireless receiving devices in total. Each unit has a fanless aluminium body, 1.3″ OLED and NP-F, 7.4–16.8 V DC or 5 V USB-C power options. USB-C is a power input. Batteries, power/video cables and monitors are purchased separately.

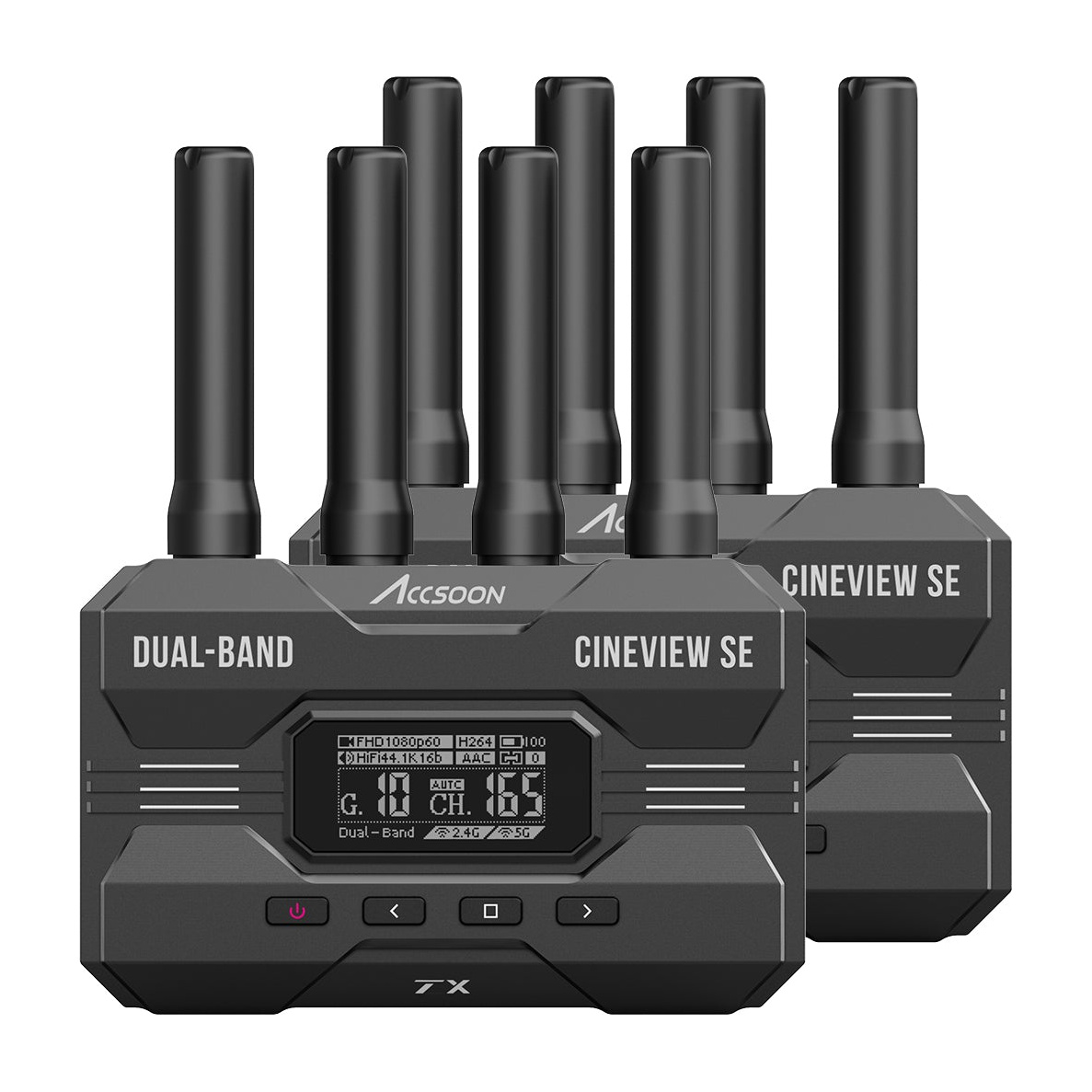

ACCSOON CINEVIEW SE · 1TX + 1RX
SDI and HDMI for your crew
The 1TX + 1RX package shares one camera’s Full HD picture across remote monitors. TX accepts SDI or HDMI; each RX provides SDI and HDMI outputs.
SDI + HDMIFull HD 60p<50 ms

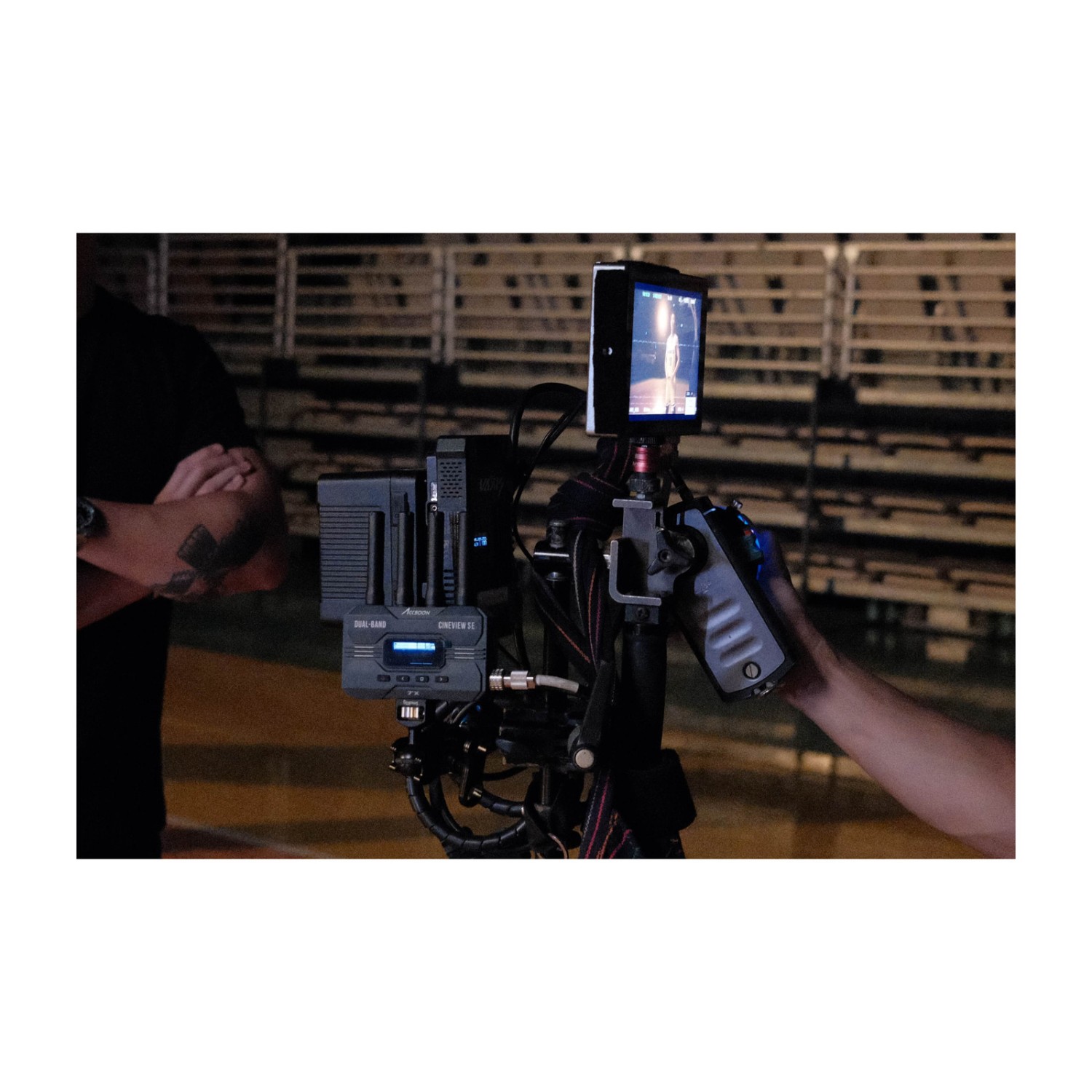

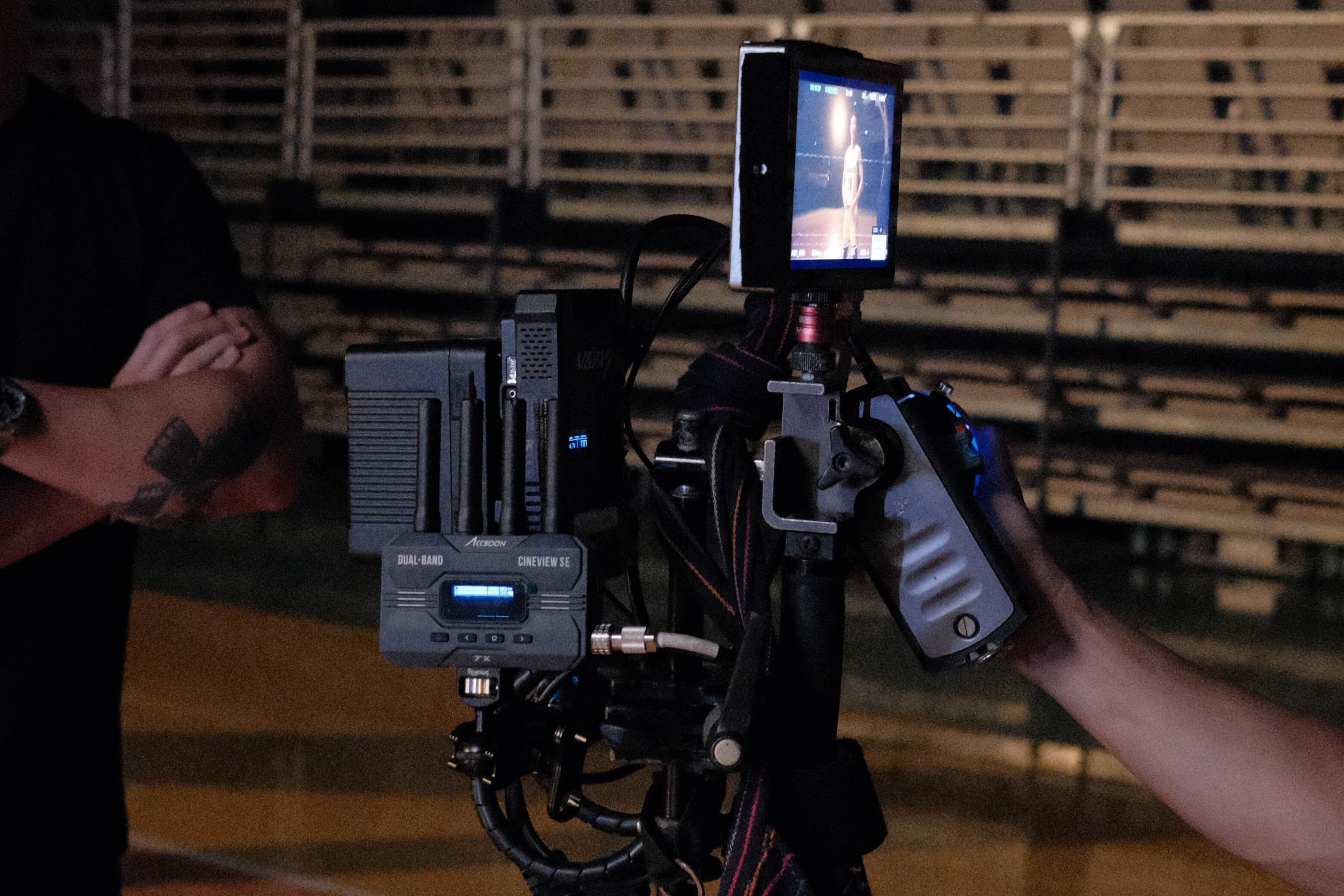

Camera-side workflow
Connect TX to the camera’s SDI or HDMI output and place RX by the remote monitor. The manufacturer photograph shows the exact SE transmitter on a camera rig. Monitors and camera equipment are purchased separately.

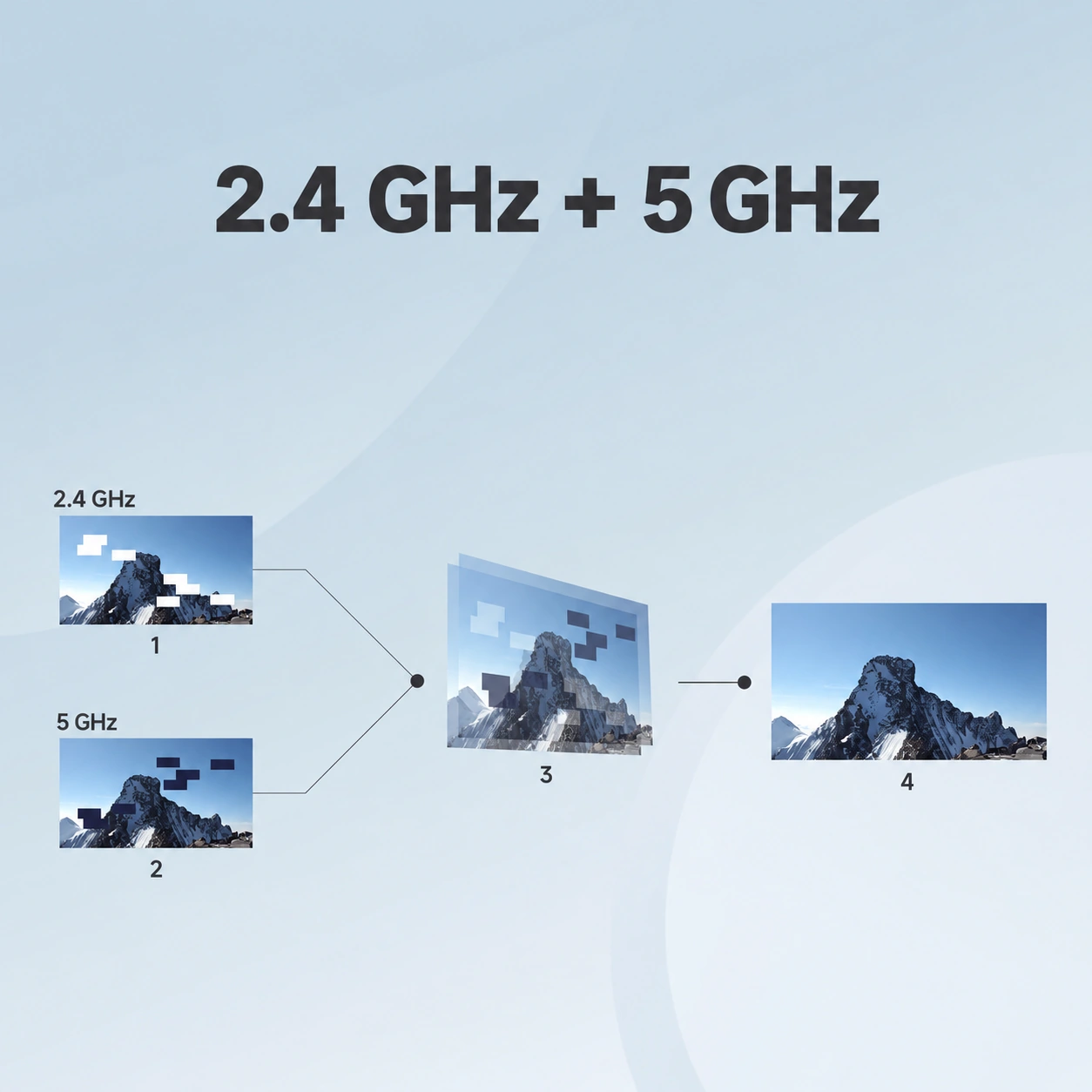

Two bands, one picture

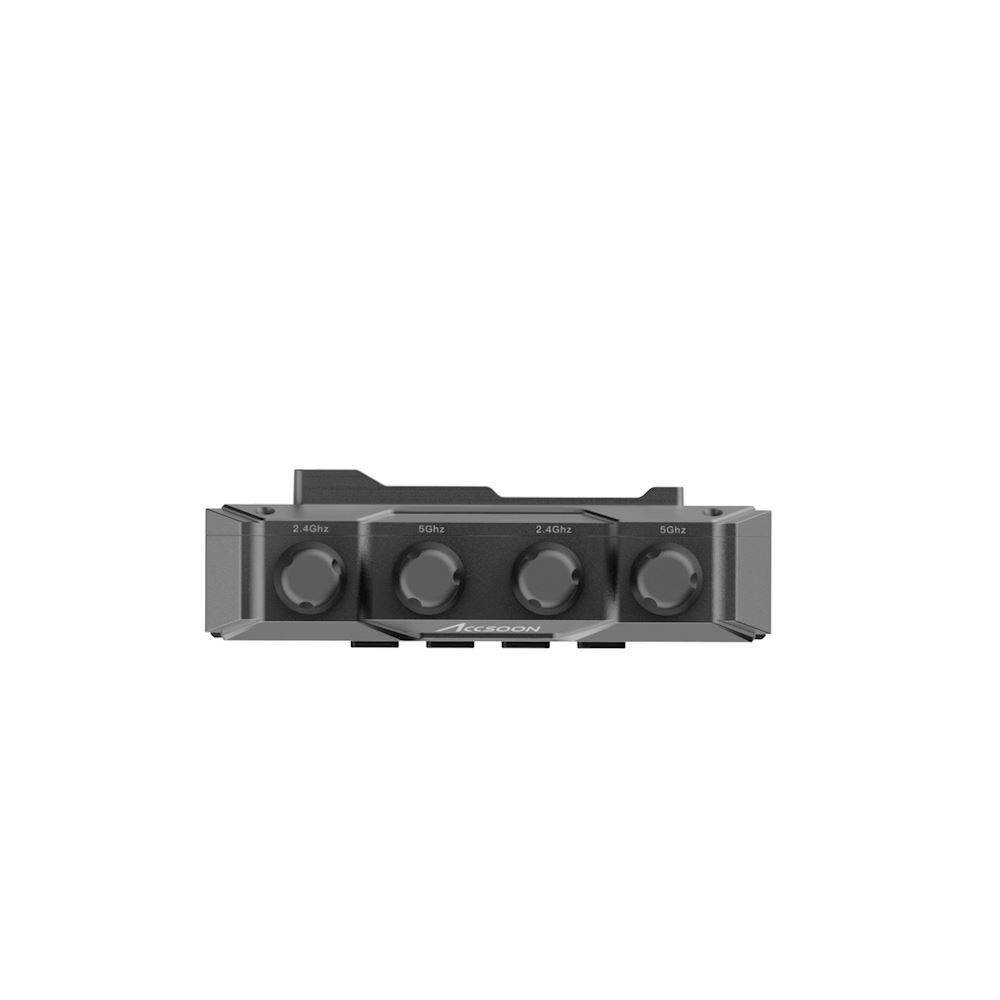

CineView SE sends the picture simultaneously over 2.4 and 5 GHz. The receiver compares both streams and combines available data to recover the picture. In the diagram, 1 and 2 illustrate interference in separate streams, 3 combines them and 4 shows the recovered result. This improves resilience; it does not guarantee an interference-free link.
Room to move
System latency is below 50 ms, excluding camera latency. The manual specifies range up to 350 m in clear line of sight without obstacles or interference. Walls, radio traffic and the receiving device can reduce the practical range. Plan camera and monitoring positions accordingly; this is a monitoring link rather than a zero-delay production feed.

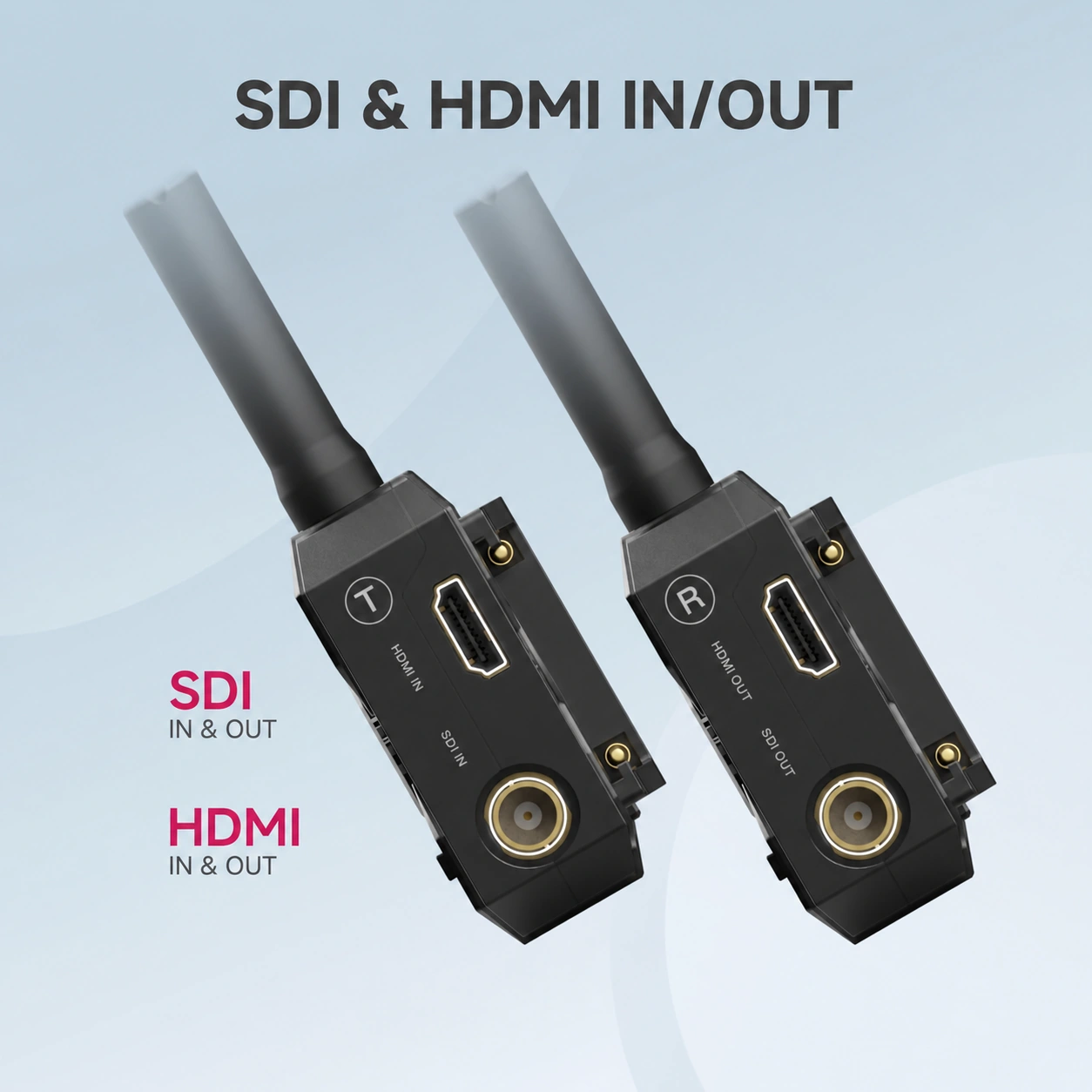

Inputs on TX, outputs on RX

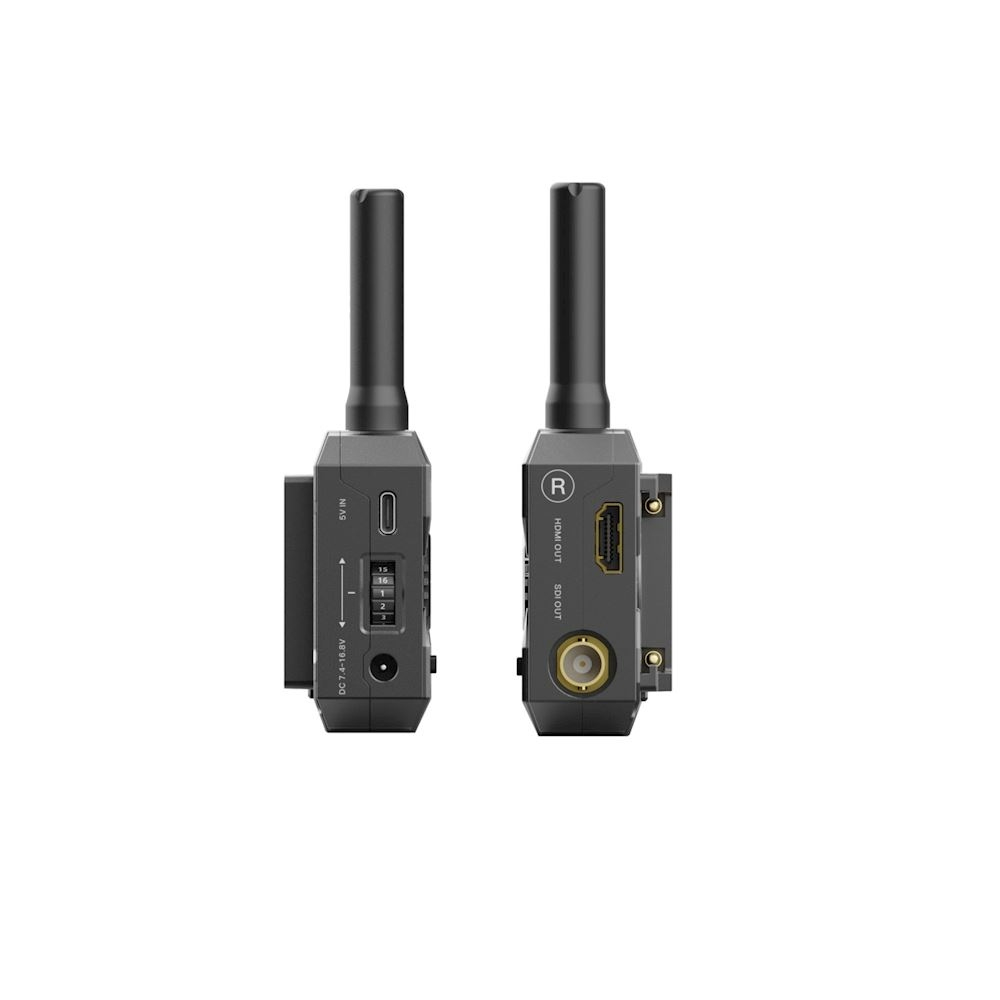

TX has HDMI type-A and BNC SDI inputs; RX provides HDMI type-A and BNC SDI outputs. TX accepts 1080p23.98/24/25/29.97/30/50/59.94/60, with 3G-SDI level A/B. RX outputs 1080p24/25/30/50/60 and SDI level A. SE has no local HDMI loop-out or USB video output; USB-C is for power. A computer requires a separate HDMI/SDI capture interface.

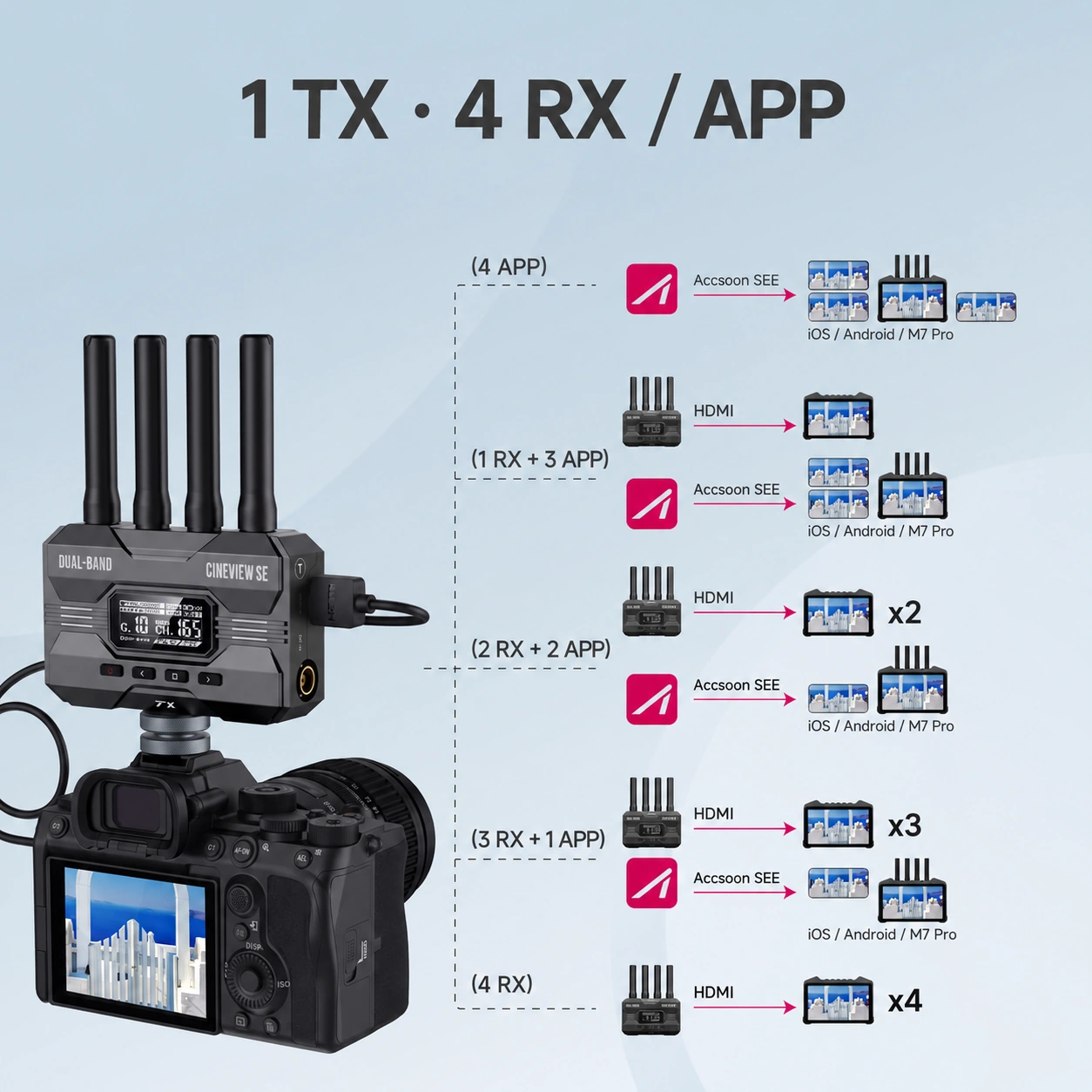

One source, up to four devices
One TX supports up to four wireless receiving devices in total: compatible RX units, phones or tablets using Accsoon SEE. A mobile device receives directly from TX; a wired monitor after RX adds no wireless slot. The diagram shows alternative device mixes, not five simultaneous connections. The included RX uses one slot, leaving room for three other wireless devices.

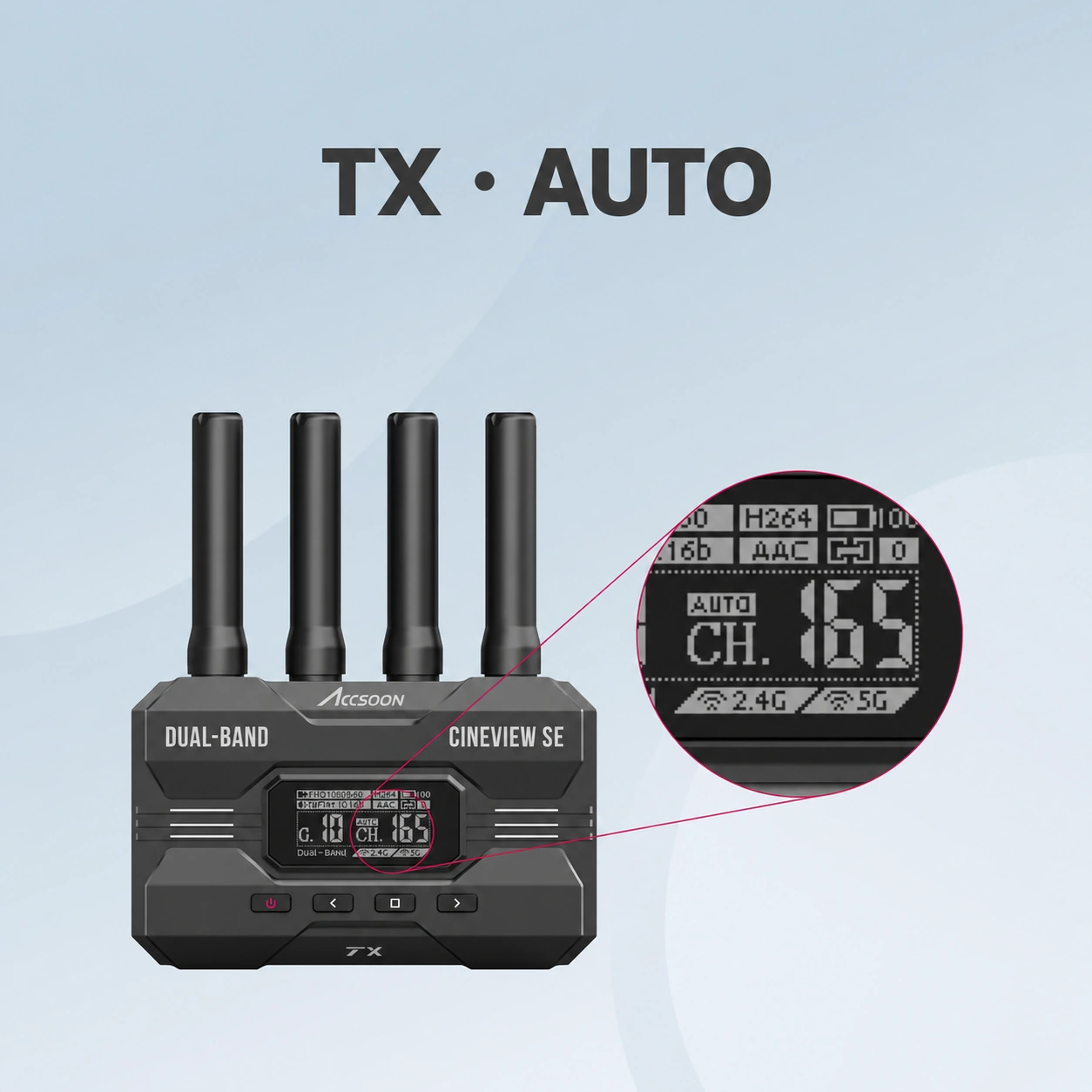

Choose the channel at startup
When TX is set to AUTO channel 0, it scans at startup and chooses a suitable transmission channel. RX follows the paired transmitter; it does not independently select the transmit channel. Set matching group selectors 0–F on TX and RX and restart after a group or channel change. HQ, NOM and SPD balance picture quality and transmission performance.

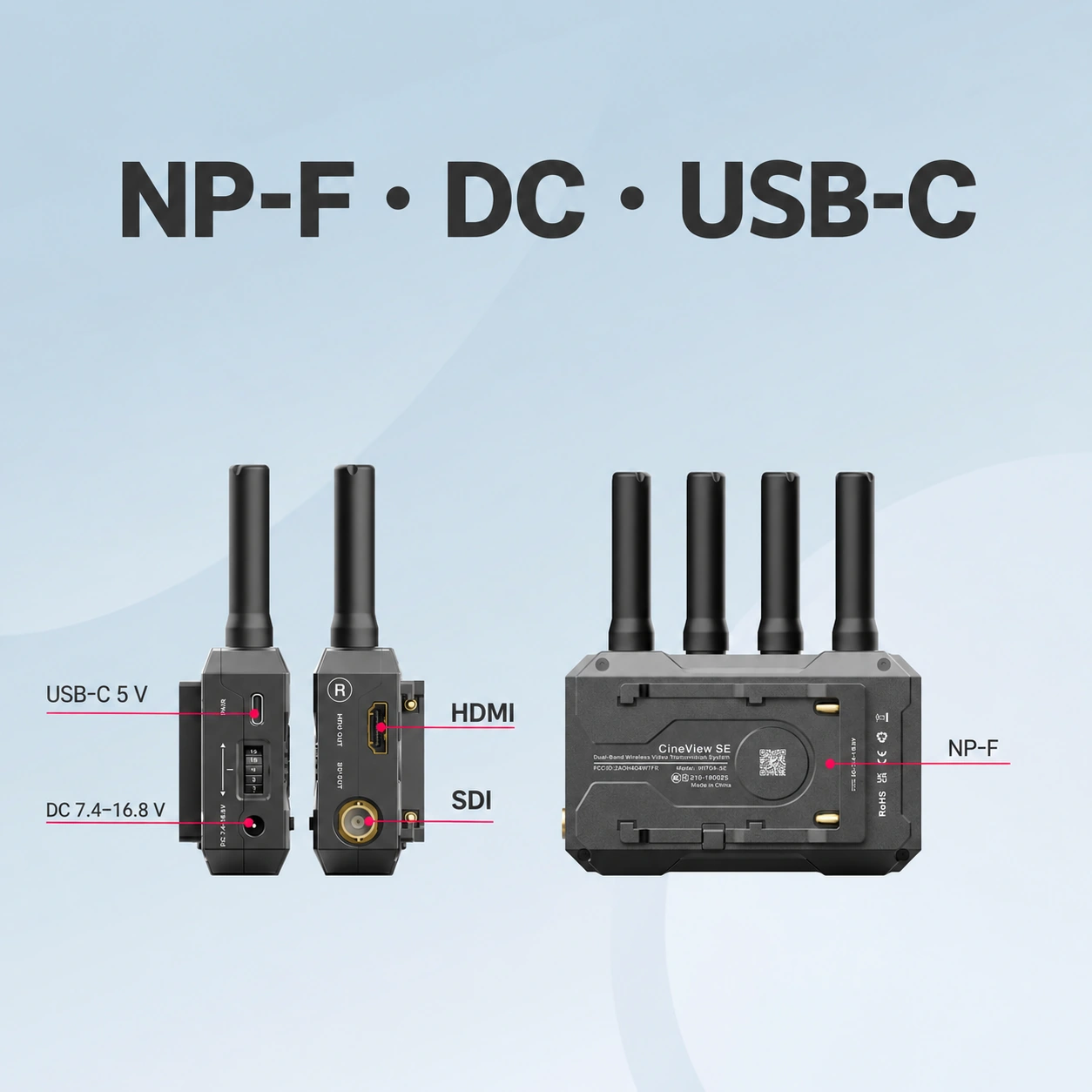

Power for each position

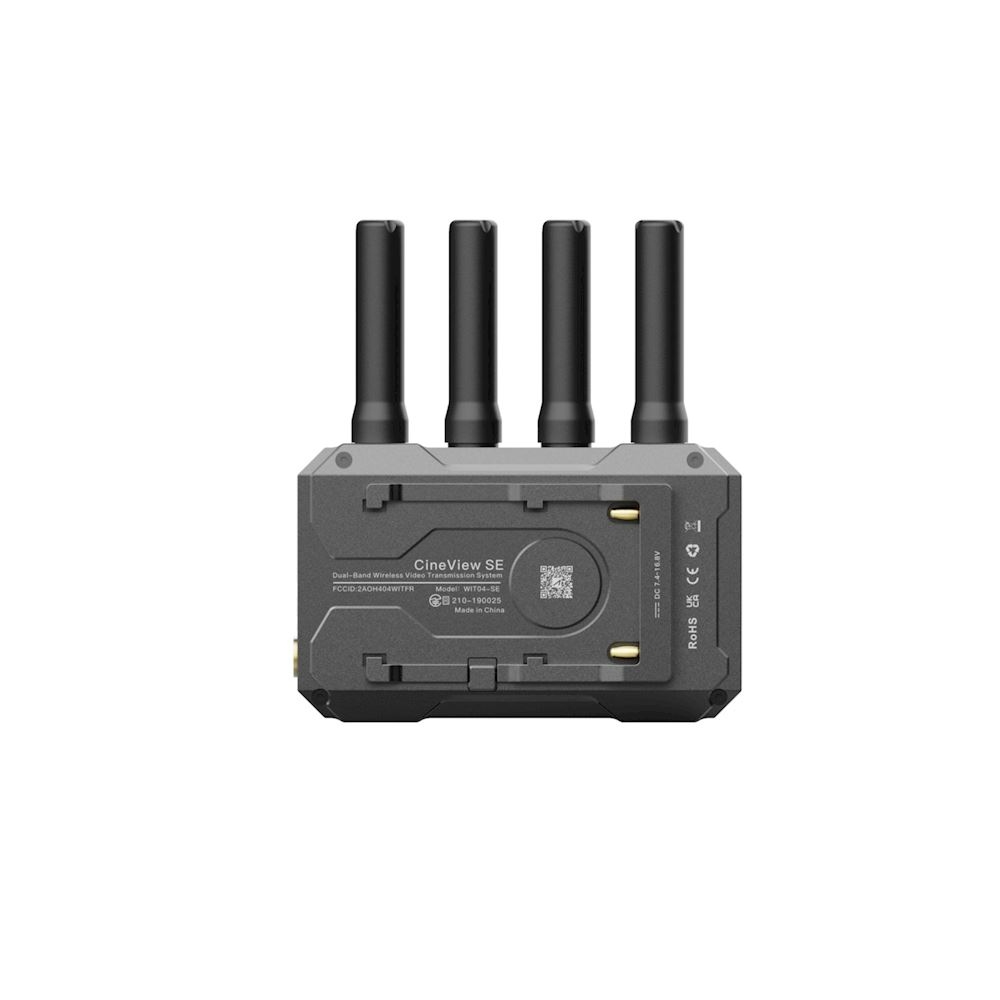

Each unit accepts an NP-F550/750/970 battery, 7.4–16.8 V DC or 5 V USB-C power. DC uses a 5.5 × 2.1 mm socket with positive centre. The illustrated receiver shows the shared power interfaces; its SDI and HDMI connectors are video outputs. TX typically draws 4.5 W and RX 3.5 W. Batteries, supplies and cables are purchased separately.

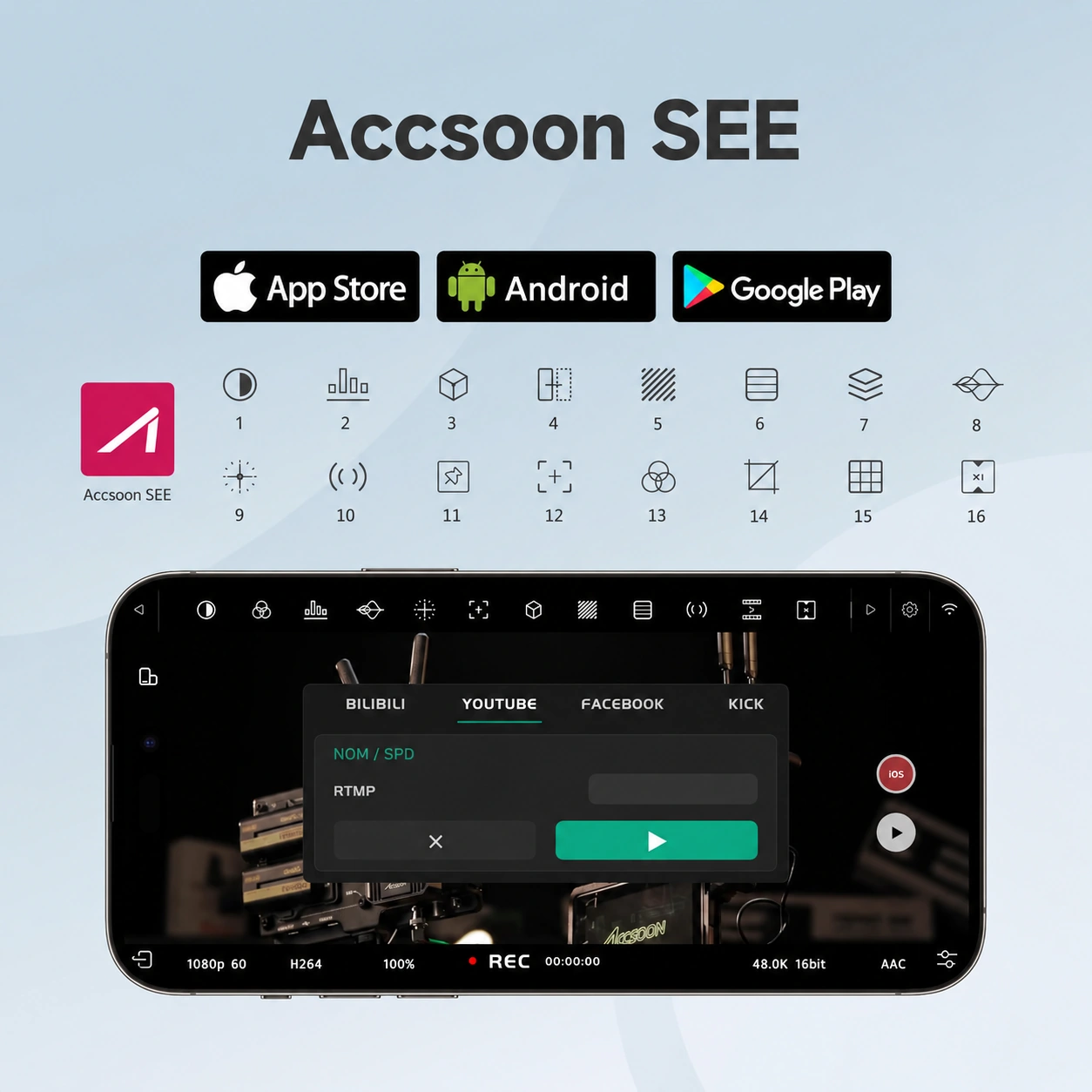

Monitor in Accsoon SEE
A phone or tablet receives directly from a compatible TX in Accsoon SEE for iOS or Android. It occupies one wireless receiving slot. The numbered manufacturer icons identify the monitoring tools below; software illustrations show app operation, while SE transmission remains Full HD.
- 1 · Grayscale
- 2 · Histogram
- 3 · LUT
- 4 · Mirror
- 5 · Zebra
- 6 · False colour
- 7 · Overlay
- 8 · Waveform
- 9 · Vectorscope
- 10 · Audio
- 11 · Markers
- 12 · Focus
- 13 · RGB
- 14 · Screenshot
- 15 · Grid
- 16 · De-squeeze

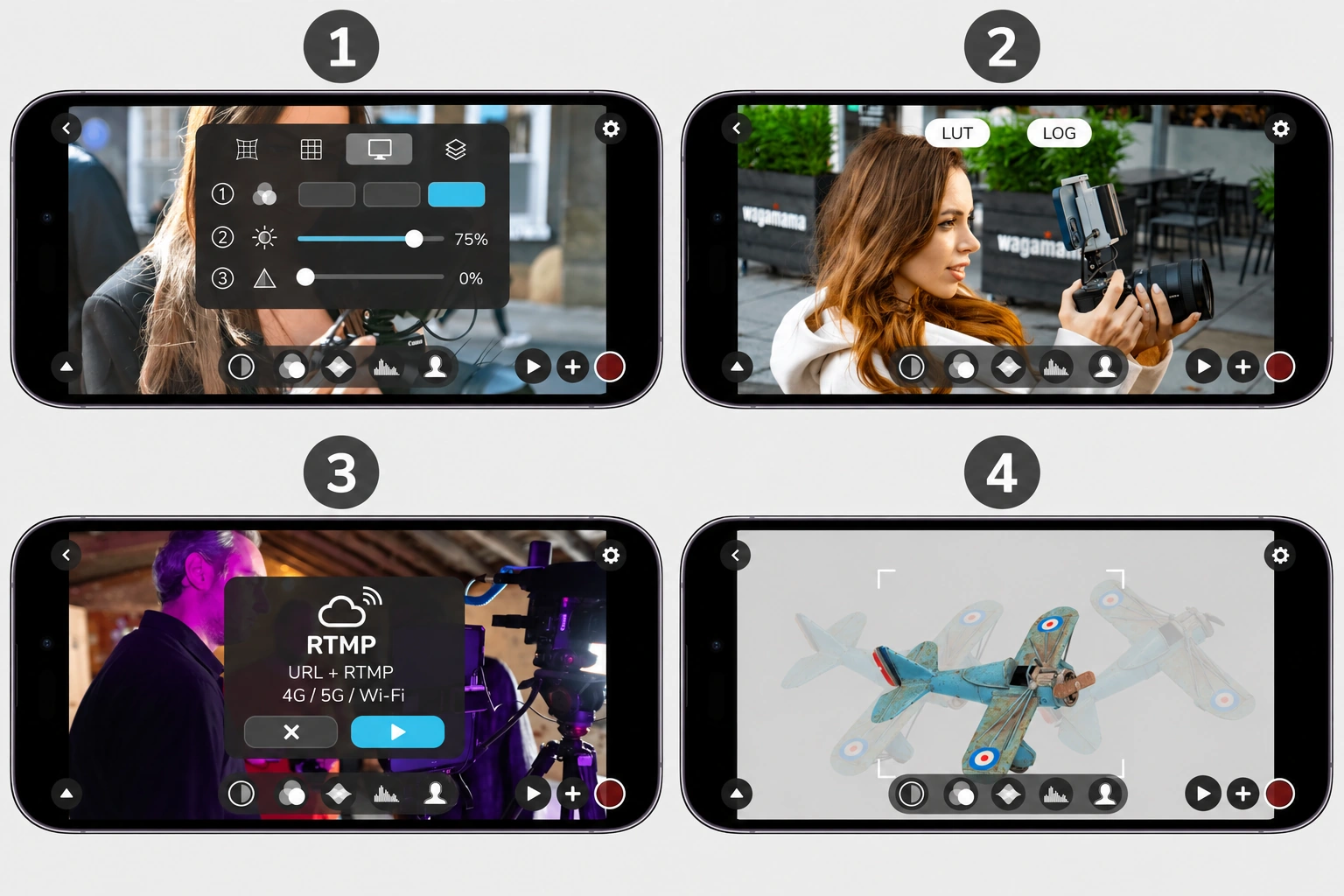

Preview, record and share
The four manufacturer examples illustrate app functions on a mobile device. These are separate from the physical RX outputs.
- Sharpening adjusts the monitoring preview.
- LUT preview and recording support colour review.
- RTMP uses the phone’s Internet connection and a destination URL/key. Follow the manual’s SPD setting for SE streaming.
- Onion-skin overlay compares framing with a previous image.

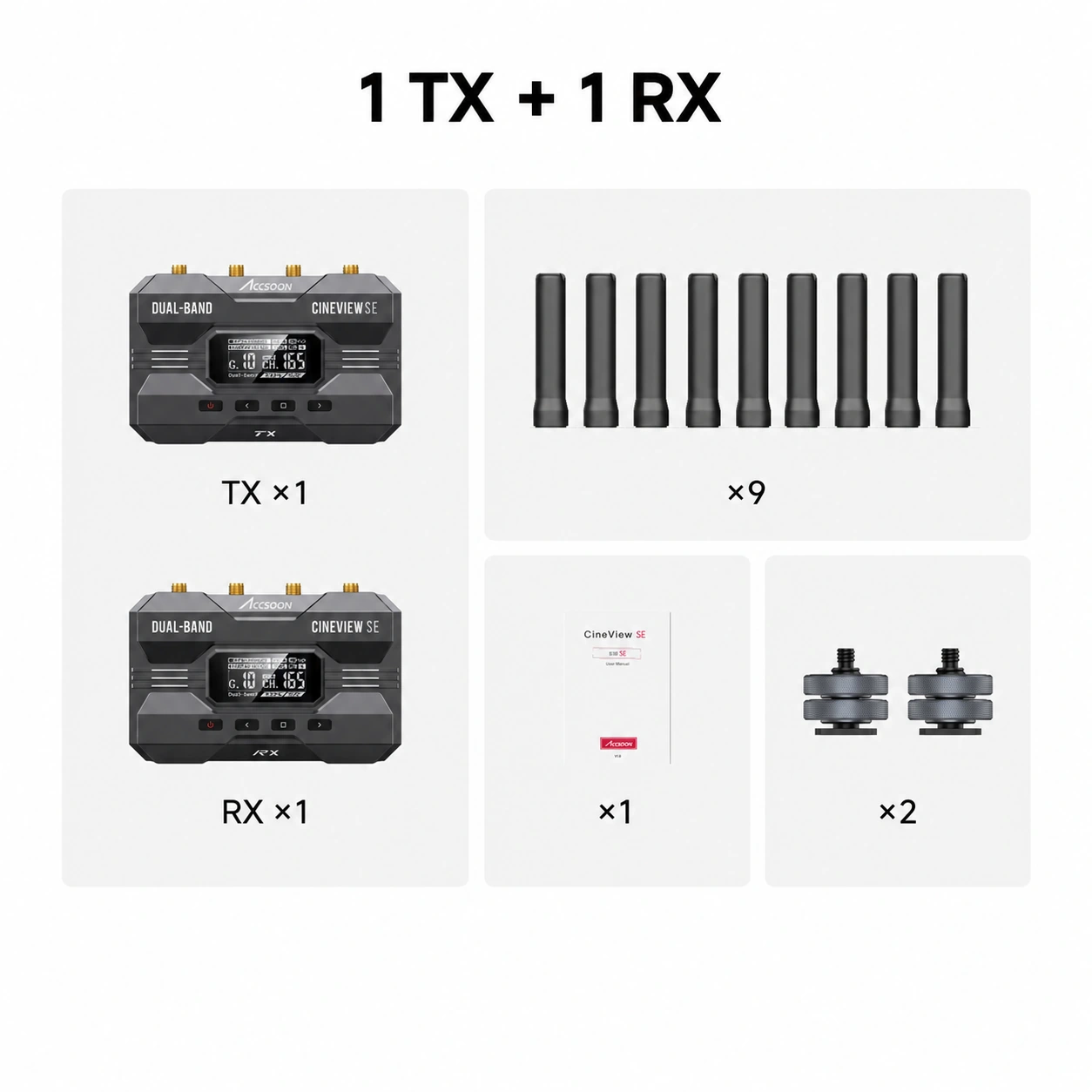

The complete 1TX + 1RX kit
This standard package includes one SE transmitter, one SE receiver, nine antennas including one spare, two cold shoe mount adapters and one manual. The diagram applies to this 1TX + 1RX package only. Batteries, video/power cables, camera, mobile devices and monitors are not included.

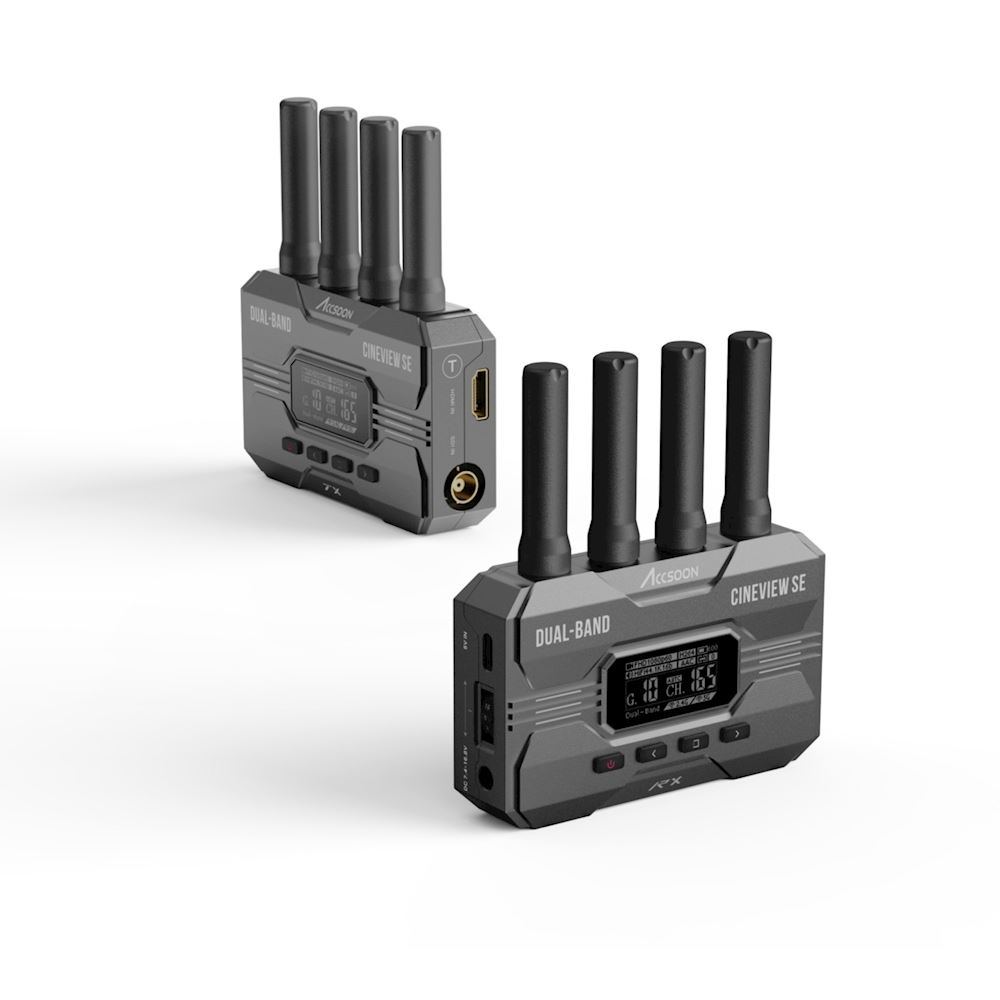

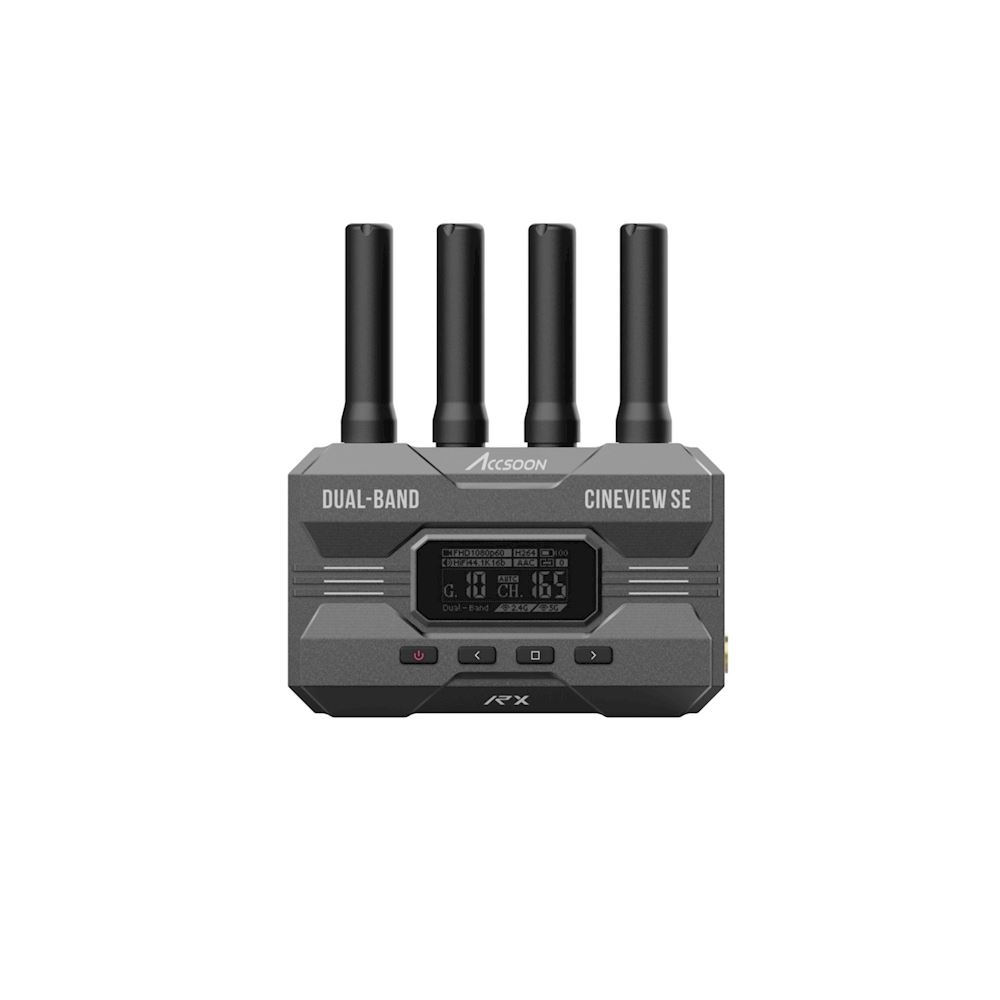

Small rig, clear controls
The fanless aluminium body avoids fan noise. Each unit measures 105 × 66 × 32 mm and weighs 210 g without antennas. A 1.3″ OLED displays status, and the 1/4″-20 thread supports rig mounting. Four removable RP-SMA antennas retain serviceable connections. Verify exact model pairing before combining different Accsoon systems; this is not a universal receiver ecosystem.
PACKAGE CONTENT
- Accsoon CineView SE TX transmitter ×1
- Accsoon CineView SE RX receiver ×1
- Antennas ×9, including one spare
- Cold shoe mount adapters ×2
- User manual ×1
SPECIFICATIONS
- Package: 1 TX + 1 RX
- Transmission: 1920 × 1080, ≤60p; 2.4 GHz + 5 GHz
- Latency: <50 ms; camera excluded
- Range: Up to 350 m LOS; no obstacles or interference
- Receivers: 4 wireless devices total per TX
- Audio: PCM 44.1/48 kHz, 16/24 bit
- DC: 7.4–16.8 V; 5.5 × 2.1 mm; socket, positive centre
- USB-C: 5 V; power input only
- Battery: NP-F550/750/970
- OLED: 1.3″
- Housing: Fanless aluminium, black
- Mount: 1/4″-20
- Antennas: 4 removable RP-SMA per unit
- Unit dimensions: 105 × 66 × 32 mm; antennas excluded
- Unit weight: 210 g; antennas excluded
- Temperature: −10–40 °C
- TX input: HDMI type A / BNC 3G-SDI level A/B
- TX format: 1080p23.98/24/25/29.97/30/50/59.94/60
- TX typical power: 4.5 W
- TX RF: 17–20 dBm
- RX output: HDMI type A / BNC SDI level A
- RX format: 1080p24/25/30/50/60
- RX typical power: 3.5 W
WE RECOMMEND
The Accsoon CineView SE is a professional dual-band wireless video transmission system with extremely low latency that requires a reliable power supply and flexible mounting options. To maximize its potential, it is recommended to supplement the setup with a high-quality NP-F power supply, mounting adapters for monitors, and cases for monitoring on mobile devices.
Power and Charging - Accessories for power supply using the NP-F standard, which the CineView SE utilizes.
Mounting and Installation - Adapters and ball heads for securely attaching the transmitter and receiver to rigs, gimbals, or monitors.
- Accsoon Adapter for Monitor
- Accsoon V-Lock Adapter
- Accsoon Adapter for Gimbal
- Accsoon Phone Clamp
- Accsoon TopRig Ball Head
Monitors and cages - iPad cages that allow you to use your tablet as a viewfinder monitor thanks to the Accsoon app.
Cables and Transport - Essential cables for signal transmission and protective cases for safe transport of equipment.
Rigs and Stabilization - Components for integrating wireless transmission into complex camera systems.
Parameters
| Manufacturer: | Accsoon |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | NP-F550 · NP-F750 · NP-F970 · DC · USB-C |
| Material | Aluminium alloy |
| Colour | Black |
| Mounting interface | 1/4″-20 |
| Functions | Fanless cooling · Automatic channel selection · Group dial pairing |
| DC power connector | 5.5 × 2.1 mm socket, centre positive |
| Antenna connector | RP-SMA (male) |
| Audio sampling frequency | 44.1 kHz · 48 kHz |
| Audio bit depth | 16-bit · 24-bit |
| Input connector | HDMI type A – female · BNC – female |
| Output connector | HDMI type A – female · BNC – female |
| 3G-SDI input level | A · B |
| 3G-SDI output level | A |
| Line-of-sight range | 350m |
| Unit dimensions without antennas | 105x66x32mm |
| Weight per unit | 210g |
| Transmitters in package | 1 |
| Receivers in package | 1 |
| Maximum receiving devices | 4 |
| Maximum transmission resolution | 1920x1080px |
| Maximum frame rate | 60fps |
| DC input voltage range | 7.4x16.8V |
| USB-C supply voltage | 5V |
| Status display diagonal | 1.3″ |
| Operating temperature | -10x40°C |
| Typical transmitter power consumption | 4.5W |
| Typical receiver power consumption | 3.5W |
| Transmission power | 17x20dBm |
| Latency | <50 ms |
| Input | SDI · HDMI |
| Output | 3G-SDI · HDMI |
