Accsoon D-Tap - to DC Cable

Accsoon ACC-XC-DTAP-DC is a coiled D-Tap to 5.5 × 2.1 mm DC power cable for compatible CineView SE, HE, Quad, 2 SDI, Master 4K, M7 and M7 Pro devices. It connects the D-Tap output of a professional battery to the matching DC input; an approximate length of 40 cm at rest and 120 cm when extended helps organise cables on a camera rig. Right-angle connectors route the cable along the setup, while the coil leaves room for changes in distance. For other equipment, check the connector size, polarity and permitted input voltage before choosing the power source.

Accsoon D-Tap → DC

POWER YOUR CINEVIEW

A coiled D-Tap to 5.5 × 2.1 mm DC cable for powering compatible equipment from a professional battery. Its approximate 40–120 cm reach adapts to the layout of your rig.

40–120 cmDC 5.5 × 2.1D-Tap

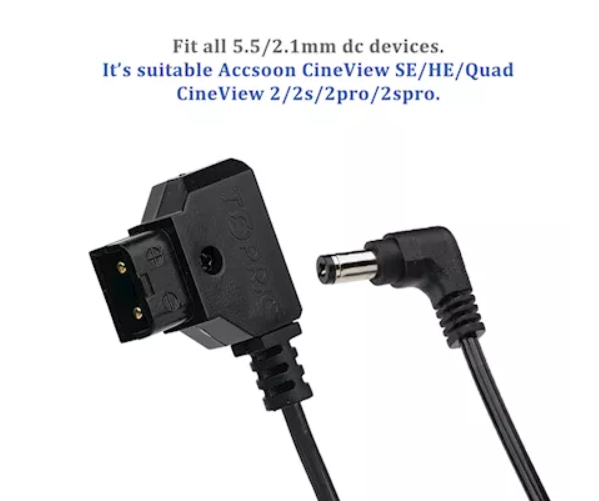

MATCH THE DC INPUT

The cable has a D-Tap input and a barrel DC plug with a 5.5 mm outer diameter and 2.1 mm inner diameter. The distributor explicitly lists CineView SE, HE, Quad, 2 SDI, Master 4K, M7 and M7 Pro compatibility. The outer diameter alone does not establish a match: a 5.5 × 2.5 mm plug and the two-pin 0B plug for SeeMo Pro are different connectors.

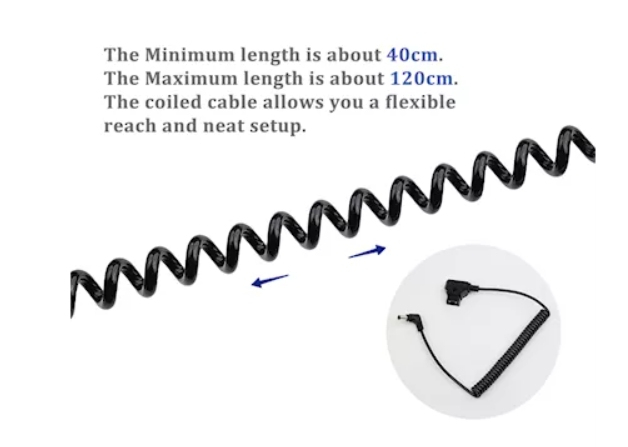

A COIL WITH FLEXIBLE REACH

The cable is approximately 40 cm long at rest and reaches about 120 cm when extended. The coiled construction reduces hanging excess and accommodates the distance between battery and device. Leave slack at the plugs, avoid keeping the cable under constant tension and route it clear of moving parts.

POWER SOURCE AND PLACEMENT

The cable carries power from a D-Tap output. Choose the battery for the powered device and its manual; this cable does not replace an adapter providing a different output voltage. Secure the battery and device separately and leave slack near the plugs. The package contains one cable only.
