Accsoon Cineview HE TX -WIT04-HE-TX

Accsoon CineView HE TX is a standalone wireless HDMI transmitter for a camera rig and an existing CineView HE monitoring system. It sends Full HD up to 60p and PCM audio simultaneously over 2.4 and 5 GHz, with latency below 60 ms excluding camera latency and range up to 350 m in unobstructed, interference-free line of sight. Full-size HDMI input and local…

More information

350 € with VAT 289.26 € without VAT
-+
Availability
Shipment day: 23. 11.
> 5 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

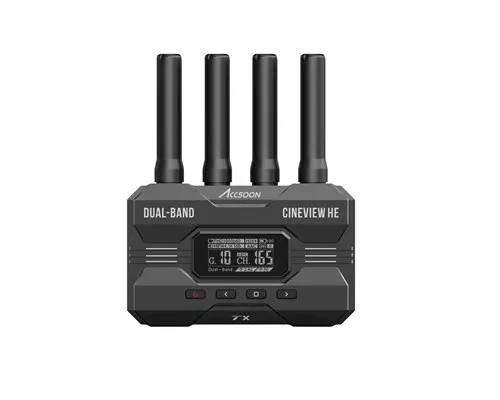

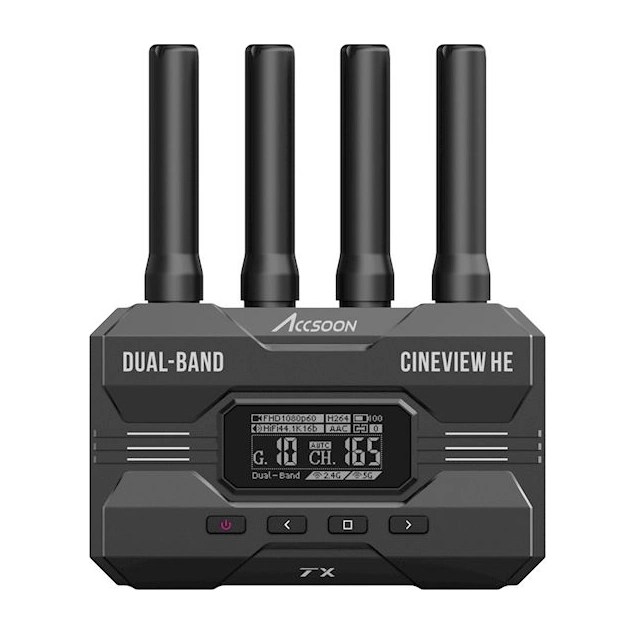

Accsoon CineView HE TX is a standalone wireless HDMI transmitter for a camera rig and an existing CineView HE monitoring system. It sends Full HD up to 60p and PCM audio simultaneously over 2.4 and 5 GHz, with latency below 60 ms excluding camera latency and range up to 350 m in unobstructed, interference-free line of sight. Full-size HDMI input and local loop-out connect the camera and an on-camera monitor. One TX supports up to four hardware receivers or Accsoon SEE mobile devices in total. A compatible receiver is required for a remote HDMI monitor or computer UVC workflow and is purchased separately. Power options are NP-F batteries, 7.4–16.8 V DC or 5 V USB-C; batteries, cables and monitors are not included.

ACCSOON CINEVIEW HE · TX

Camera HDMI for your crew

This standalone transmitter sends one camera’s Full HD video to compatible receivers or Accsoon SEE mobile devices. HDMI loop-out retains your wired on-camera monitor. A hardware receiver is purchased separately.

Full HD 60p2.4 + 5 GHzHDMI IN/OUT
Accsoon CineView HE TX

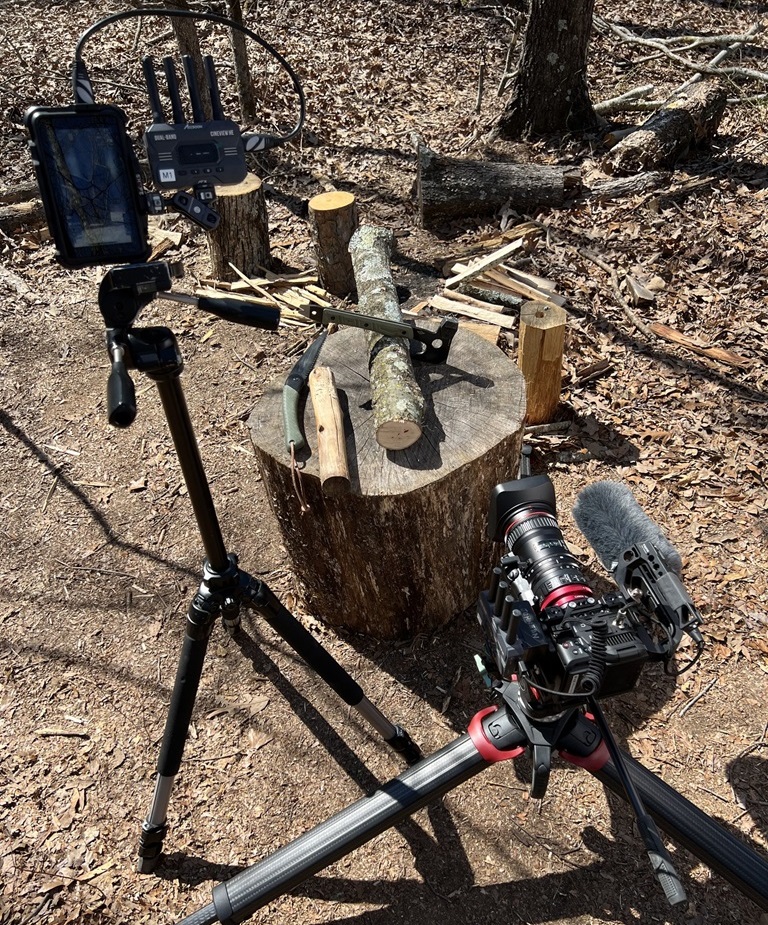

Monitor away from the camera

Monitor away from the camera

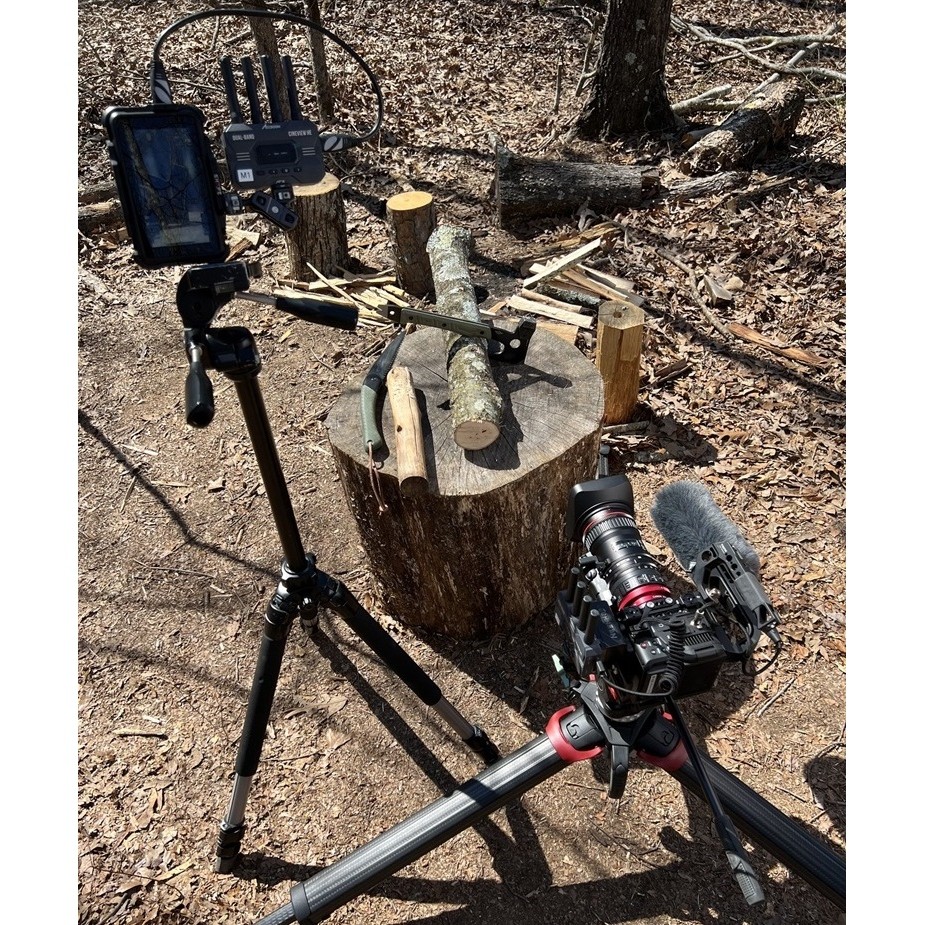

Mount this TX on the camera rig and connect the camera’s HDMI output. A separately purchased compatible RX feeds a remote HDMI monitor; a phone or tablet can receive directly in Accsoon SEE. The exact HE manufacturer photograph illustrates the complete camera/monitor workflow, rather than the contents of this transmitter-only package.

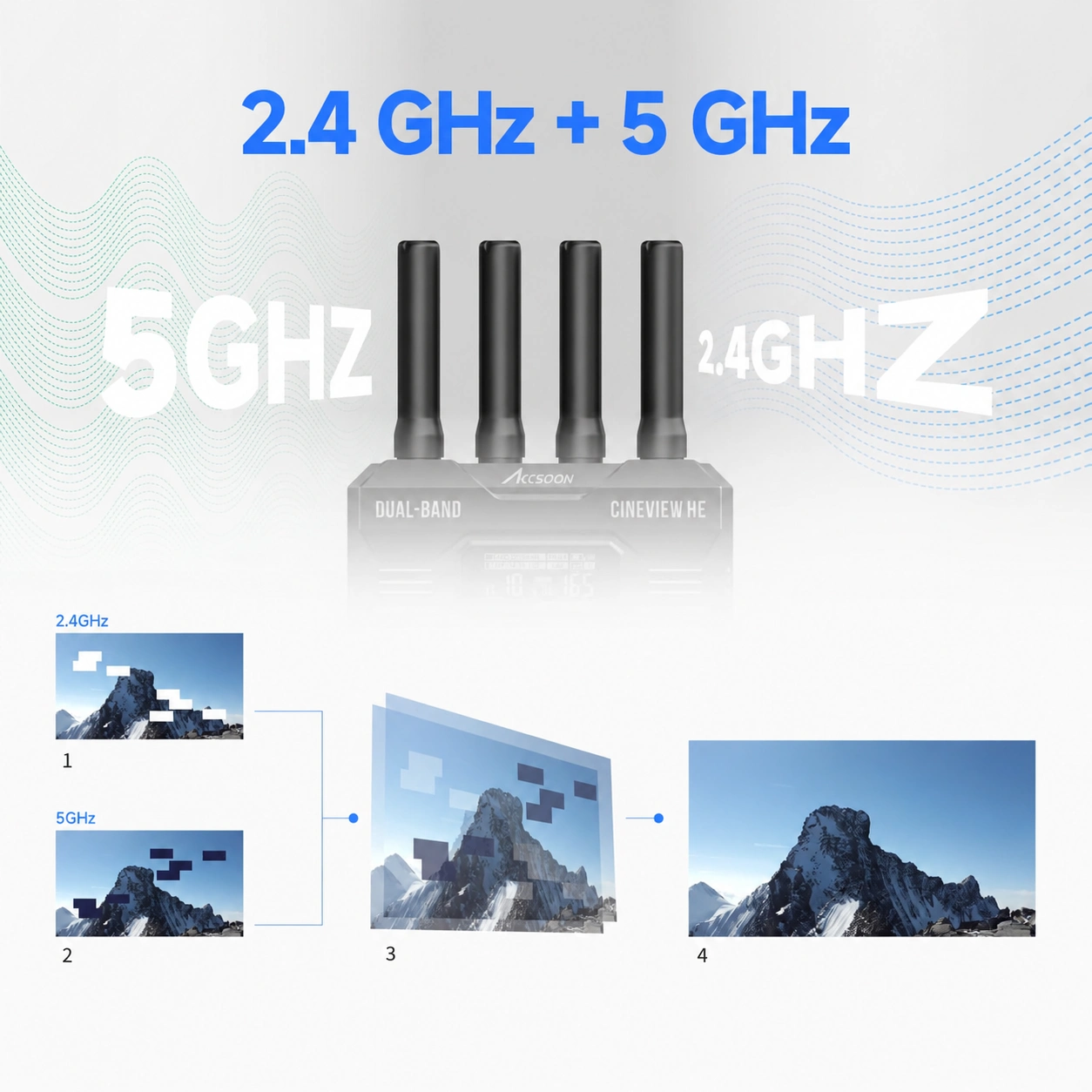

Two bands for one picture

CineView HE transmits the picture simultaneously over 2.4 and 5 GHz. The receiver compares both data streams and combines them into the output picture, helping reduce the impact of interference. Diagram: 1 and 2 show losses on each band, 3 their combination in RX and 4 the recovered picture. Performance still depends on the surrounding radio environment.

Two bands for one picture
Range up to 350 metres

Range up to 350 metres

The manufacturer specifies a range up to 350 m with line of sight, no obstructions and no interference. Wireless transmission latency is below 60 ms and excludes camera latency. This combination supports on-set monitoring; reception distance on a phone can differ from that of a hardware receiver.

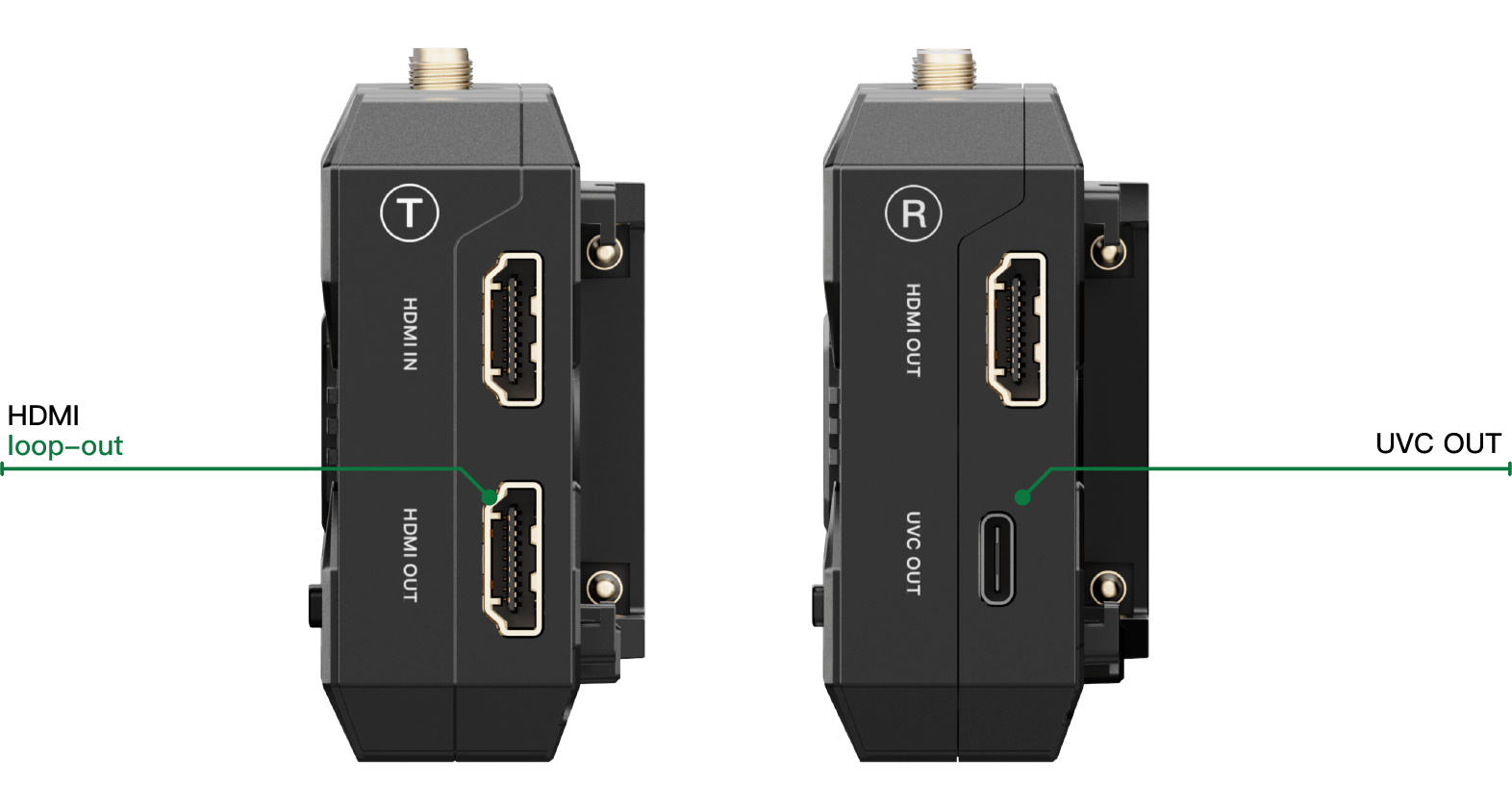

HDMI at the camera, HDMI and UVC at RX

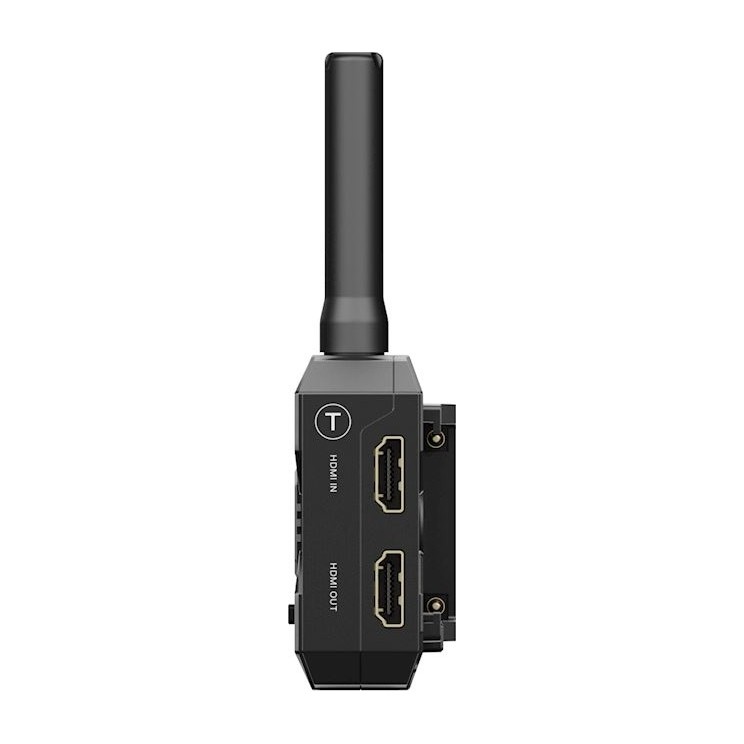

This TX provides full-size HDMI input and local HDMI loop-out for an on-camera monitor. The wired loop-out does not add wireless transmission latency. The right-hand RX in the diagram is purchased separately: its HDMI and USB-C UVC outputs are not ports on this transmitter. HE carries Full HD up to 60p and PCM audio; it does not accept 4K or SDI.

HDMI at the camera, HDMI and UVC at RX

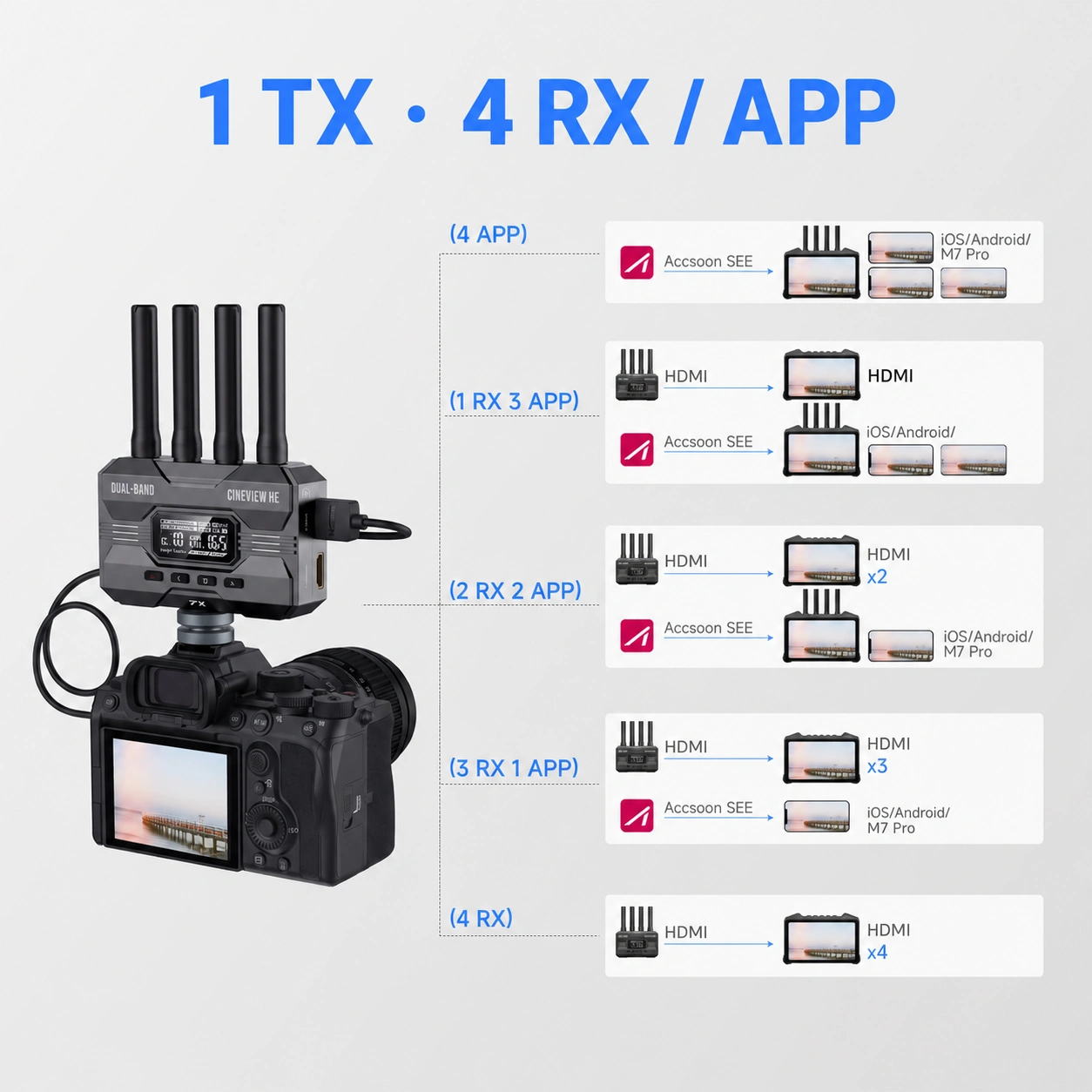

Up to four receiving devices

Up to four receiving devices

One TX supports a maximum of four wireless receiving devices in total. Combine separately purchased compatible hardware RX units with phones or tablets running Accsoon SEE for iOS and Android: for example 1 RX + 3 mobile devices, or 4 RX. A phone receives directly from TX; a wired monitor after RX consumes no extra wireless slot. This package contains only one transmitter.

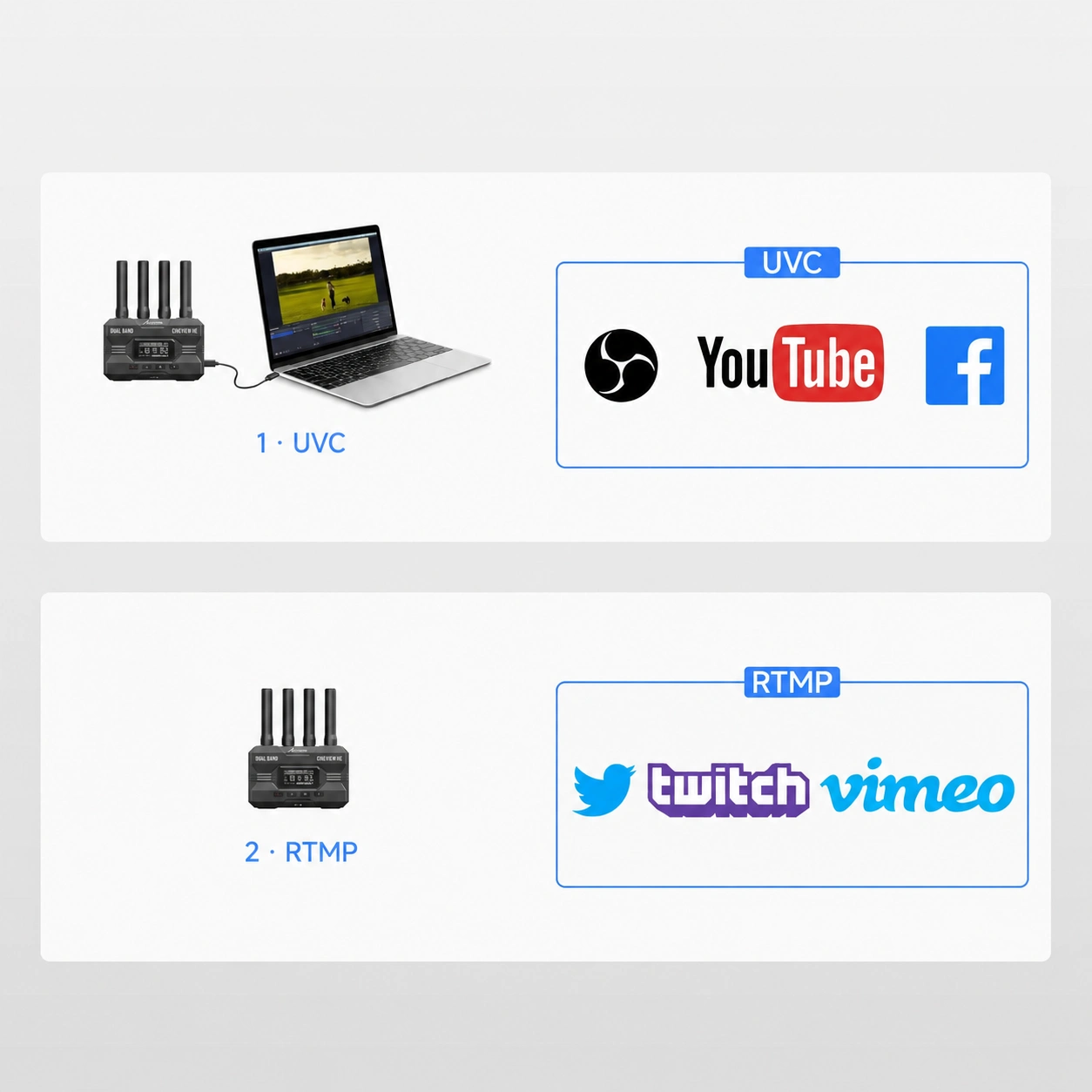

Video to a computer without a capture card

1 · UVC: a separately purchased HE receiver connects to a computer using a USB-C data cable, allowing software such as OBS to use the picture without an extra capture card. This TX has no UVC data output. 2 · RTMP: Accsoon SEE on a phone or tablet uses that mobile device’s Internet connection. TX does not stream directly to the Internet; platform support depends on the app and the destination’s current terms.

Video to a computer without a capture card

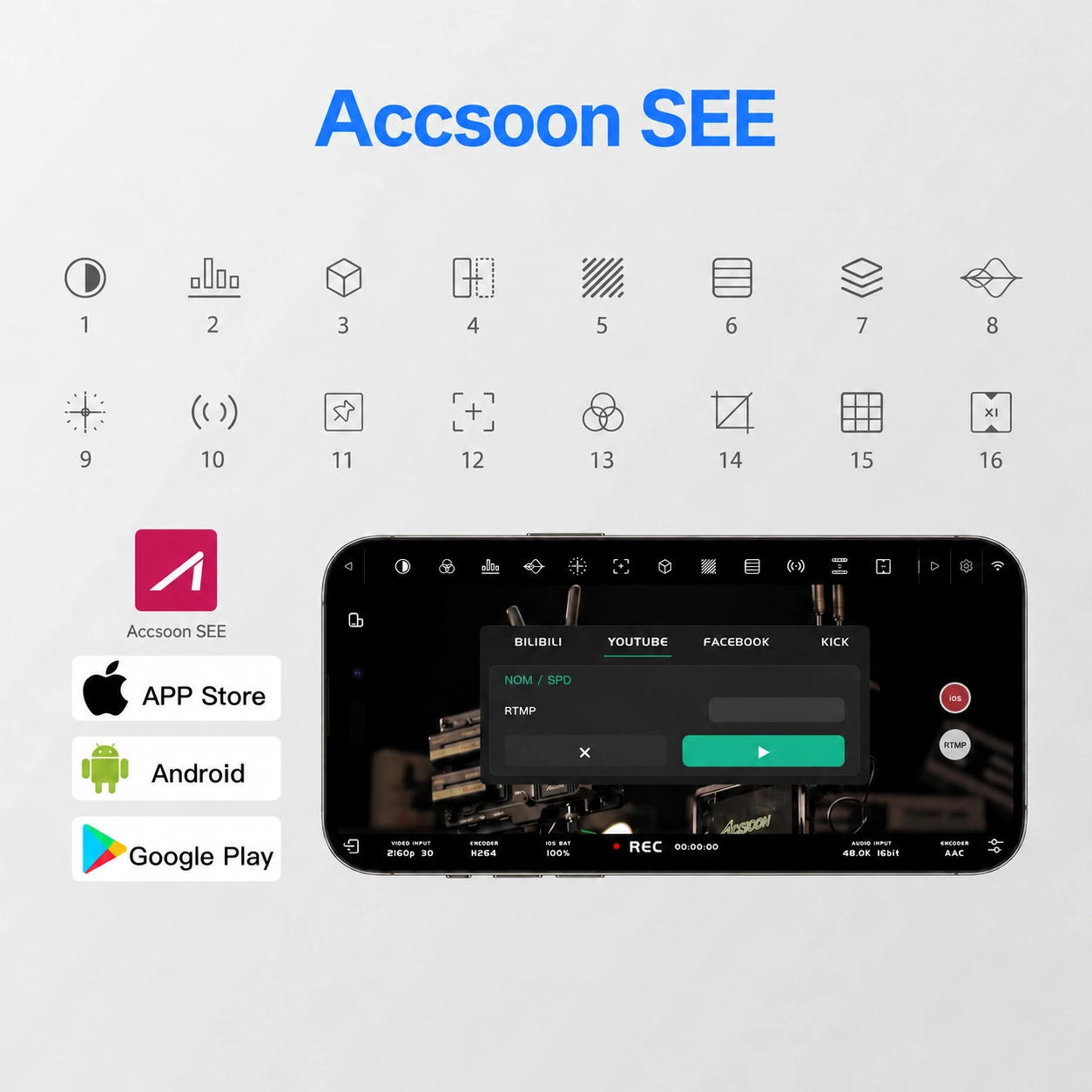

Accsoon SEE monitoring tools

Accsoon SEE monitoring tools

Mobile reception adds exposure, colour, framing and focus tools, recording and live streaming in Accsoon SEE. The numbered legend follows the manufacturer’s icons. The interface screenshot illustrates the app; CineView HE transmission remains Full HD.

  1. Monochrome preview
  2. Histogram
  3. LUT
  4. Mirror
  5. Zebra
  6. False colour
  7. Overlay
  8. Waveform
  9. Vectorscope
  10. Audio
  11. Markers
  12. Focus
  13. RGB
  14. Screenshots
  15. Grids
  16. Display correction

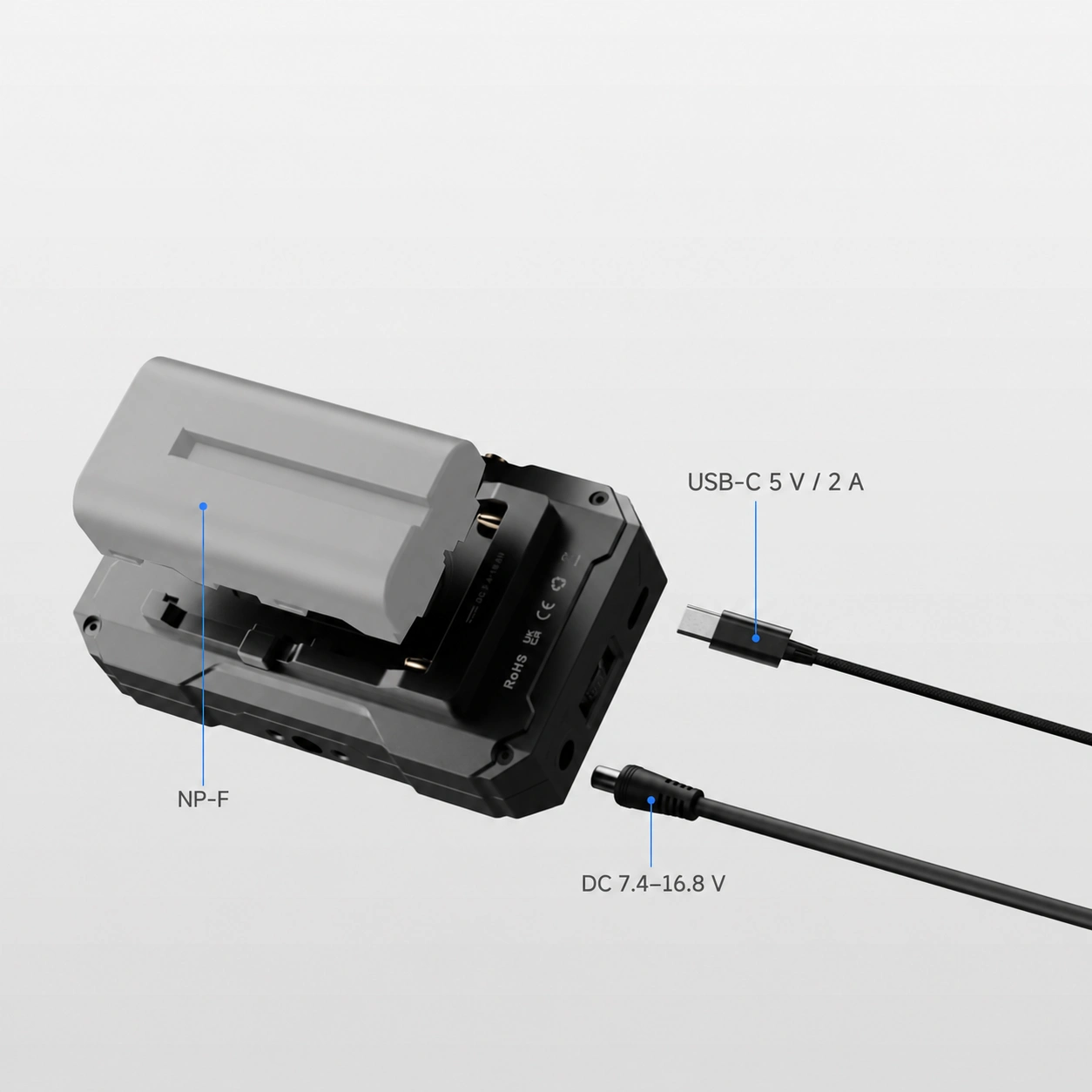

Power to suit your rig

Power this transmitter from an NP-F550/750/970 battery, 7.4–16.8 V DC or a 5 V USB-C source rated at least 2 A. The DC connector is 5.5 × 2.1 mm, centre positive. TX’s USB-C is a power input; the UVC data port shown on RX belongs to a separately purchased receiver. Batteries, supplies and power cables are not included. USB-C does not charge an NP-F battery.

Power to suit your rig

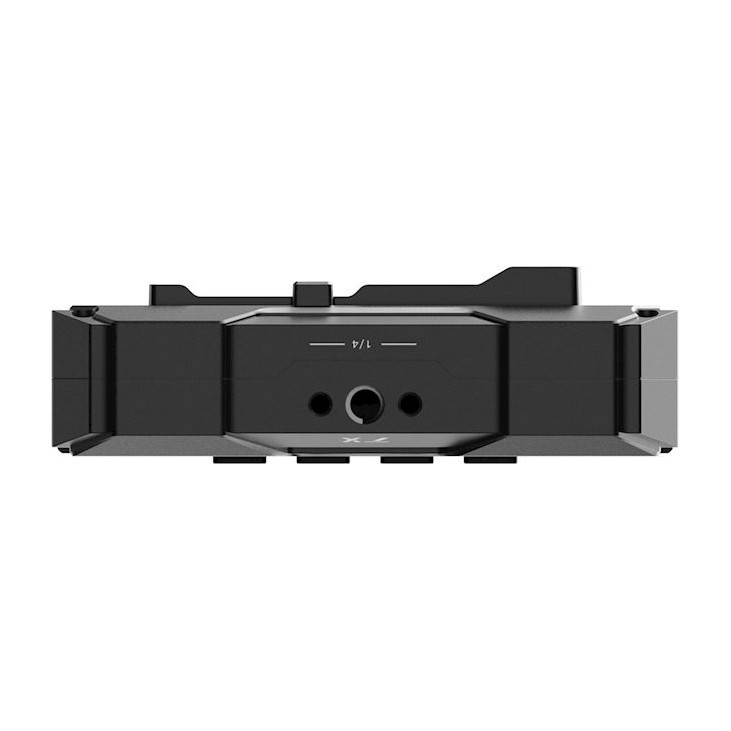

At startup, TX automatically selects a transmission channel. Pair units with the 0–F group dial; HQ, NOM and SPD modes let you prioritise picture quality or speed. The fanless aluminium body adds no fan noise on set. Each unit has a 1.3″ OLED, a manufacturer-specified weight of 200 g and a 1/4″-20 mounting thread. Before connecting other models, verify exact compatibility and firmware; HE/SE does not mean universal compatibility with every Accsoon device.

PACKAGE CONTENT

  • Accsoon CineView HE TX transmitter ×1
  • Antennas for the transmitter
  • Cold shoe mount adapter ×1
  • User manual ×1

SPECIFICATIONS

  • Bands: 2.4 GHz + 5 GHz
  • Maximum resolution: 1920 × 1080, 60p
  • Range: Up to 350 m; line of sight, no obstructions or interference
  • Latency: <60 ms; excludes camera latency
  • Receiving devices: Maximum 4 in total per TX
  • Audio: PCM, 44.1/48 kHz, 16/24 bit
  • Unit display: OLED 1.3″
  • Battery: NP-F550 / NP-F750 / NP-F970
  • DC power: 7.4–16.8 V
  • DC connector: 5.5 × 2.1 mm, female, centre positive
  • USB-C power: 5 V; source rated at least 2 A
  • Dimensions per unit: 105 × 66 × 32 mm, excluding antennas
  • Weight per unit: 200 g
  • Material: Aluminium alloy
  • Cooling: Fanless
  • Colour: Black

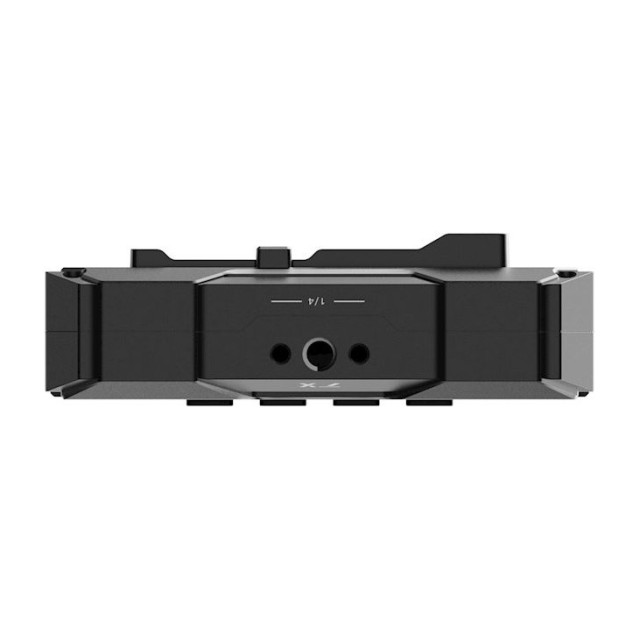

  • Mount: 1/4″-20

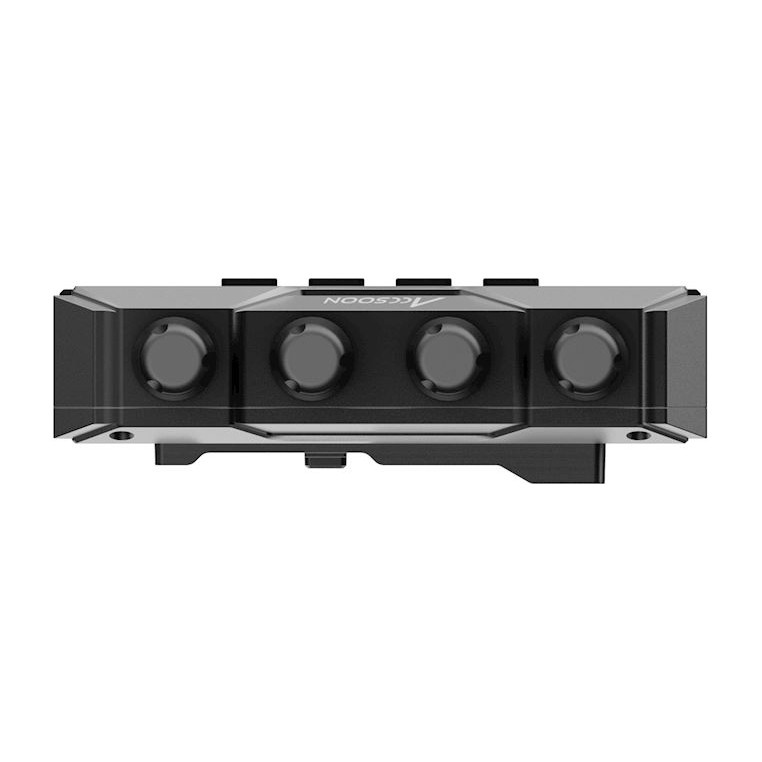

  • Antenna connectors: 4 × RP-SMA, male on unit
  • Operating temperature: −10 to +40 °C
  • TX input: HDMI, type A
  • TX output: HDMI loop-out, type A
  • TX HDMI formats: 1080p 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
  • TX typical consumption: 4.5 W
  • TX transmission power: 17–20 dBm

WE RECOMMEND

The Accsoon Cineview HE TX is a professional wireless video transmitter with an HDMI input and USB-C UVC output, offering exceptional transmission stability and the option to be powered via NP-F batteries or a DC input. For optimal performance, we recommend pairing the transmitter with high-quality power systems, mounting adapters for rigs, and accessories for monitoring on mobile devices.

Power and Batteries - Accessories for reliable power supply to the transmitter using the NP-F standard.

Mounting Accessories - Components for securely mounting the transmitter on cameras, gimbals, and studio equipment.

Monitors and cages - Accessories for using iPads and phones as viewfinders via the Accsoon app.

Cables and Connectivity - Connection cables for transmitting video signals from the camera to the transmitter.

Intercom systems - Accsoon communication systems for crew coordination during wireless transmission.

Rigs and Transport - Components for camera rigs and protective cases for safe transport.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Line-of-sight range350m
Unit dimensions without antennas105x66x32mm
Weight per unit200g
Transmitters in package1
Maximum receiving devices4
Maximum transmission resolution1920x1080px
Maximum frame rate60fps
DC input voltage range7.4x16.8V
USB-C supply voltage5V
Minimum USB-C source current2A
Status display diagonal1.3″
Operating temperature-10x40°C
Typical transmitter power consumption4.5W
Transmission power17x20dBm
Frequency band2.4 GHz · 5 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970 · USB-C
MaterialAluminium alloy
ColourBlack
Mounting interface1/4″-20
FunctionsAutomatic channel selection · Fanless cooling · Group dial pairing · HDMI loop-out
DC power connector5.5 × 2.1 mm socket, centre positive
Antenna connectorRP-SMA (male)
Audio sampling frequency44.1 kHz · 48 kHz
Audio bit depth16-bit · 24-bit
Latency<60 ms
InputHDMI
OutputHDMI
