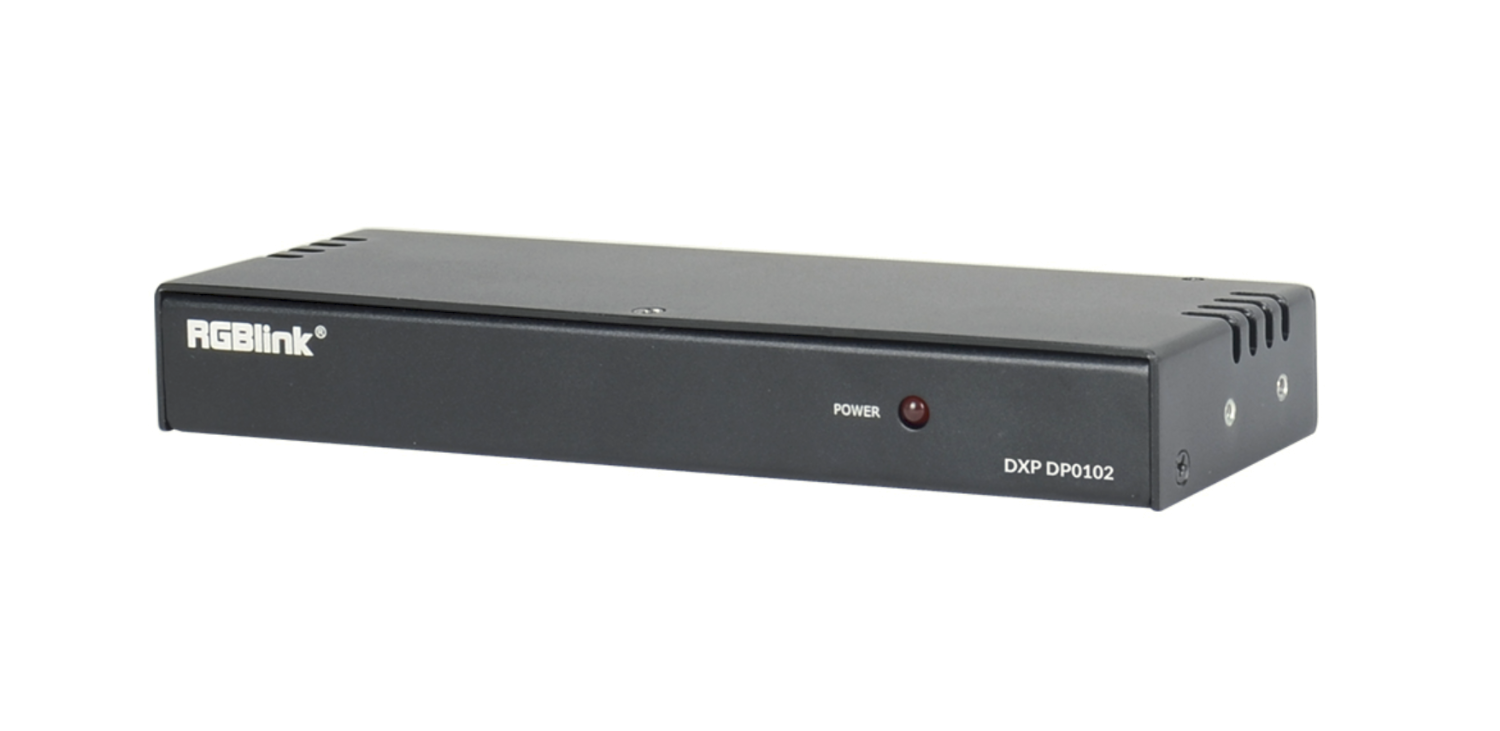

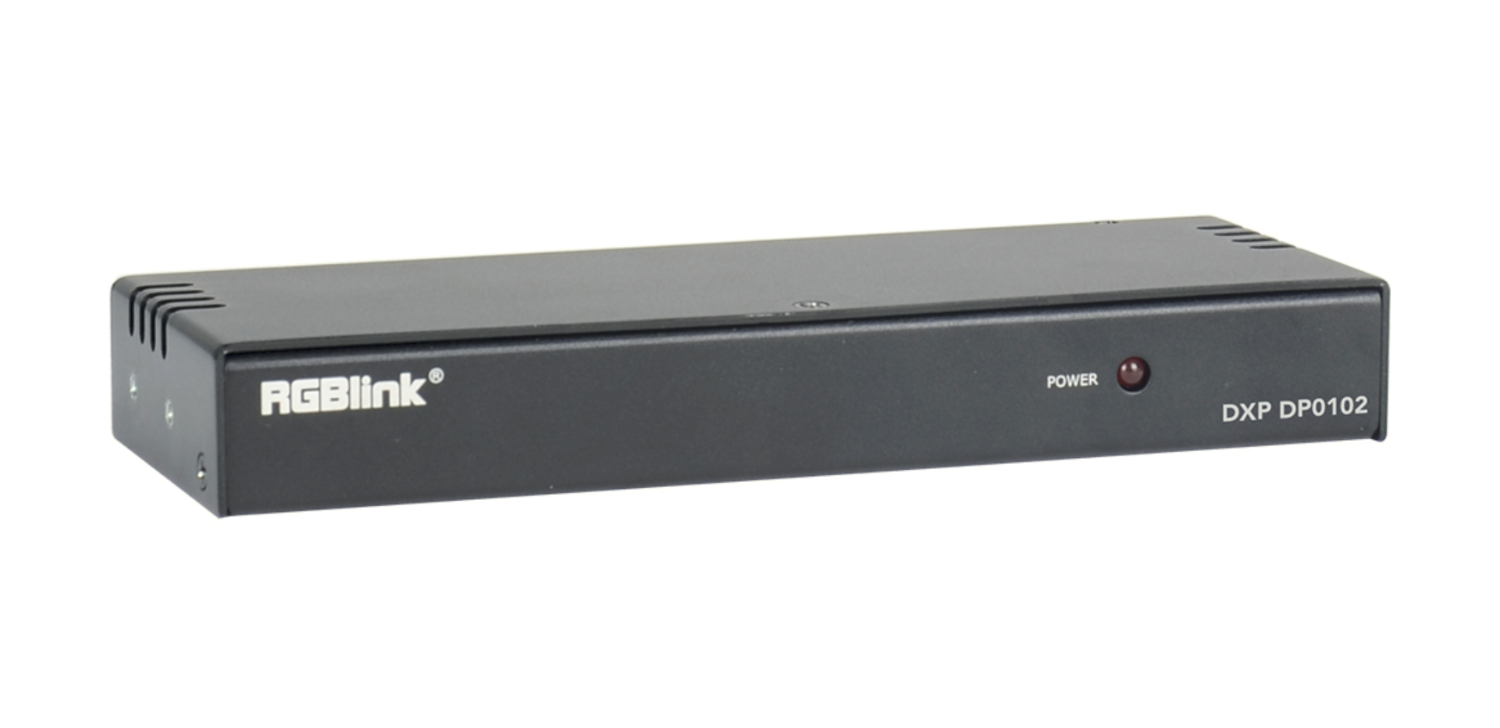

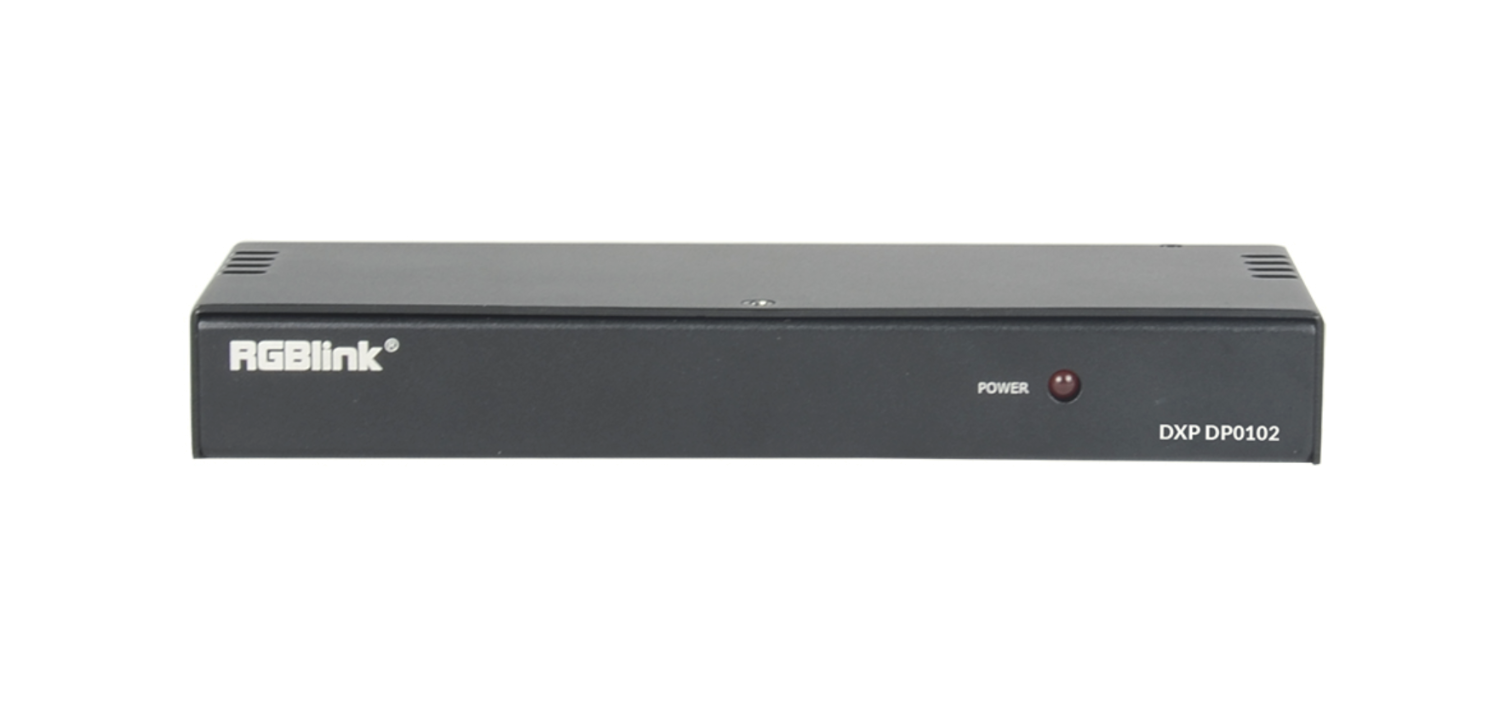

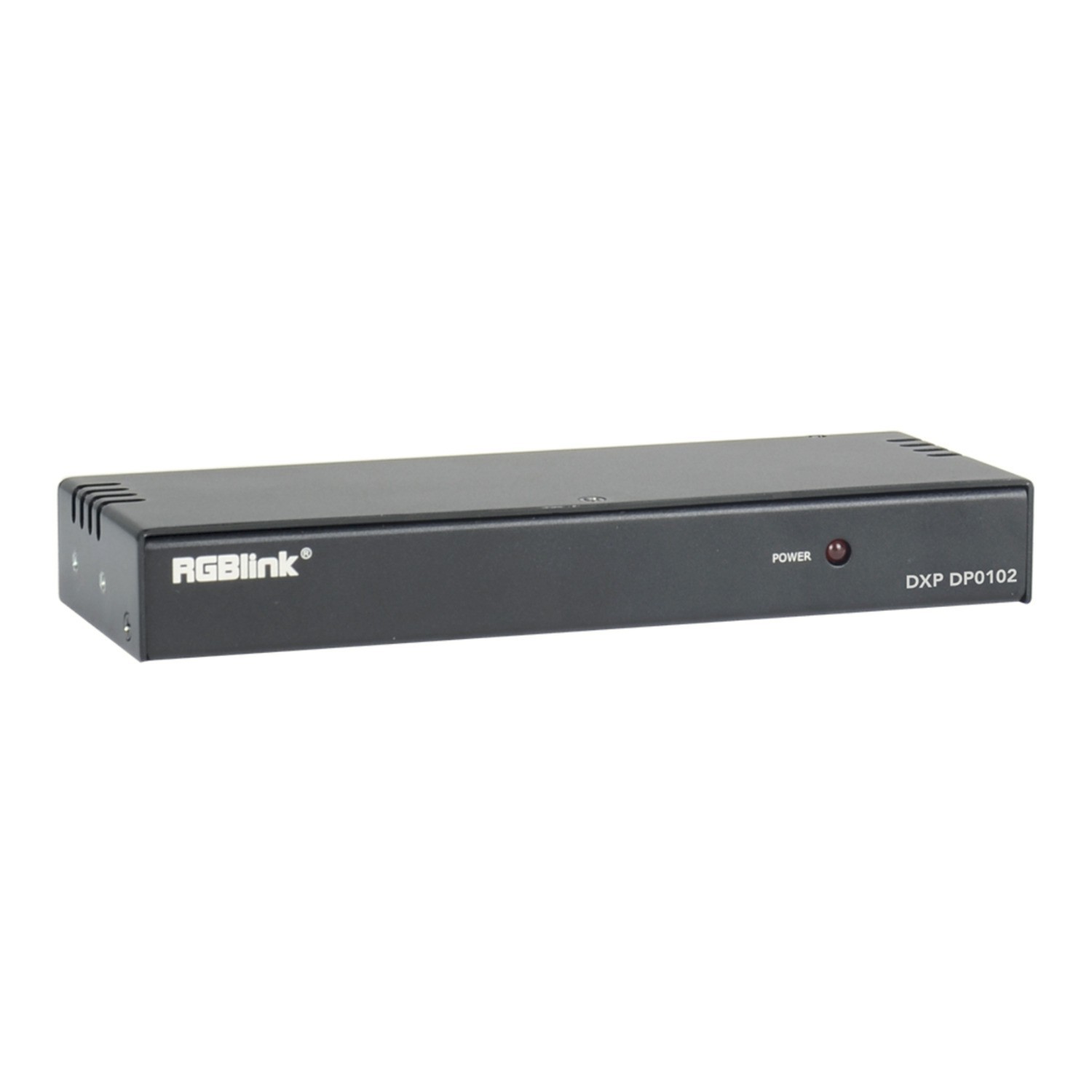

RGBlink DXP DP0102

The RGBlink DXP DP0102 is a compact DisplayPort video distributor designed to split a single DP input into two synchronized DP outputs, supporting resolutions up to 4K UHD at 60Hz. With HDR support, EDID management, and serial expansion capability, it is ideal for professional AV, digital signage, and multi-display applications requiring high-quality signal distribution.

The RGBlink DXP DP0102 is a professional DisplayPort 1-in-2-out video distributor engineered for reliable, high-resolution signal distribution in demanding AV environments. It allows a single DisplayPort 1.2 source to be duplicated across two DisplayPort outputs while maintaining full image fidelity, making it suitable for control rooms, presentation systems, digital signage, and broadcast applications.

Supporting resolutions up to 3840×2160 at 60Hz, the DXP DP0102 delivers smooth 4K UHD video with HDR and YCbCr 4:4:4 color processing for accurate color reproduction. The unit features intelligent EDID management with two selectable EDID modes, allowing users to optimize compatibility and image quality based on connected displays.

Designed for scalability, the DXP DP0102 can be serially connected to extend the number of displays without signal degradation. Integrated audio support via SPDIF/Coaxial outputs ensures seamless audio distribution alongside video. Housed in a compact, durable chassis, it operates reliably across a wide range of temperatures and humidity levels, making it well suited for both fixed installations and professional mobile setups.

Key Features:

• 1× DisplayPort input, 2× DisplayPort outputs
• Supports resolutions up to 3840×2160 @ 60Hz
• HDR with YCbCr 4:4:4 color support
• Serializable design to expand display count
• Intelligent EDID management with two modes
• SPDIF/Coaxial audio outputs
• Compact, professional-grade construction
