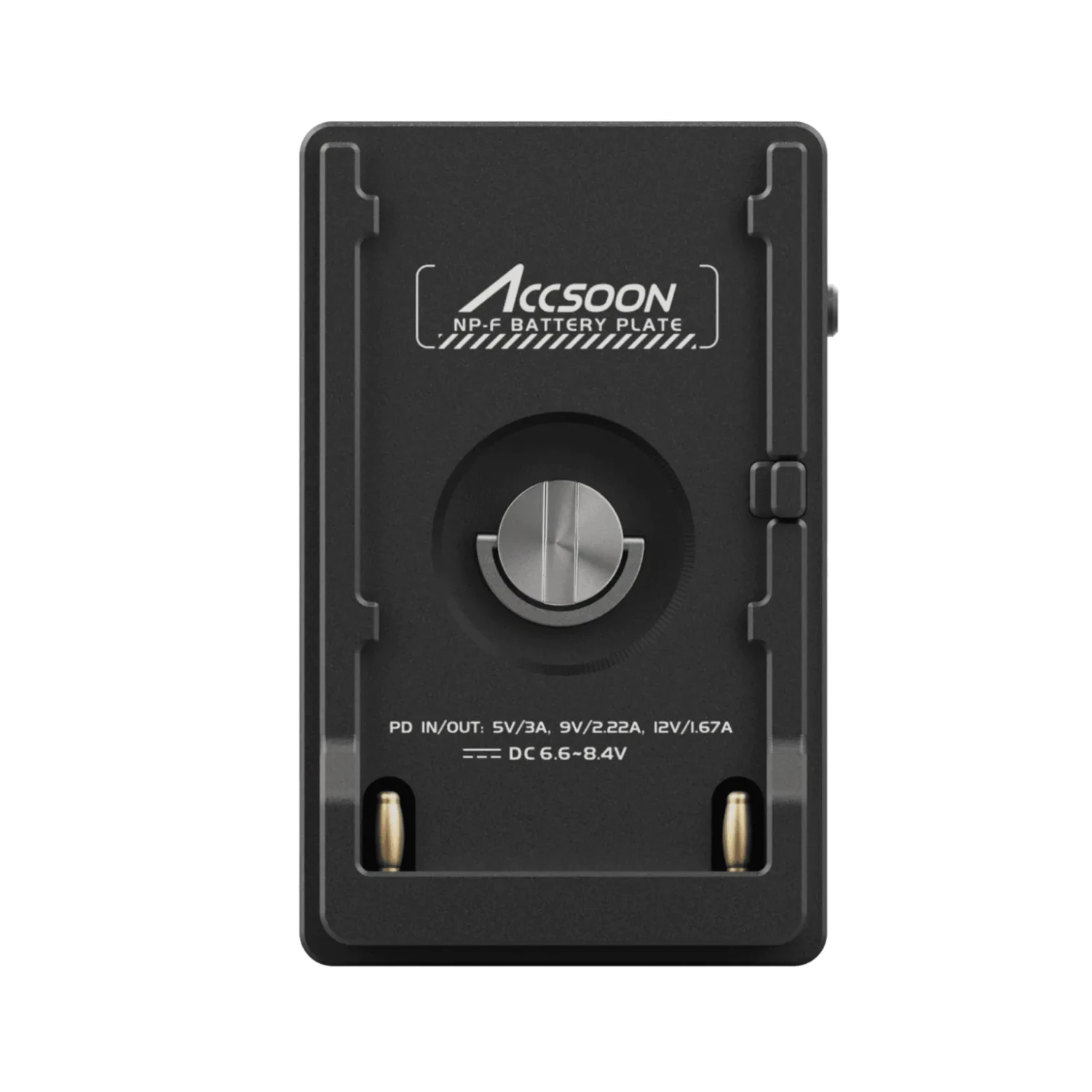

Accsoon ACC04 NP-F Battery Plate Adapter

Accsoon ACC04 NP-F Battery Plate Adapter powers a compatible iPad, monitor, wireless receiver or other production accessory from a Sony NP-F battery. It provides USB-A, a separate USB-C output, bidirectional USB-C PD up to 20 W and a 6.6–8.4 V DC output, so you can choose the connection that matches your device voltage and charging protocol. Use the removable plate with Accsoon PowerCage II, PowerCage Pro II and PowerCage Mini, or mount it separately via its 1/4″-20 mounting interface. The aluminium body measures 80 × 50 × 21.5 mm, weighs 93 g and includes a battery level indicator and NP-F battery charging. The package contains the adapter only; battery, cage and connecting cables are sold separately.

Accsoon ACC04

POWER FROM AN NP-F BATTERY

A compact plate for powering a compatible tablet and production accessories. Choose USB-A, USB-C, USB-C PD or DC to match your connected device.

NP-FPD 20 WDC 6.6–8.4 V

CONNECT TO YOUR POWERCAGE

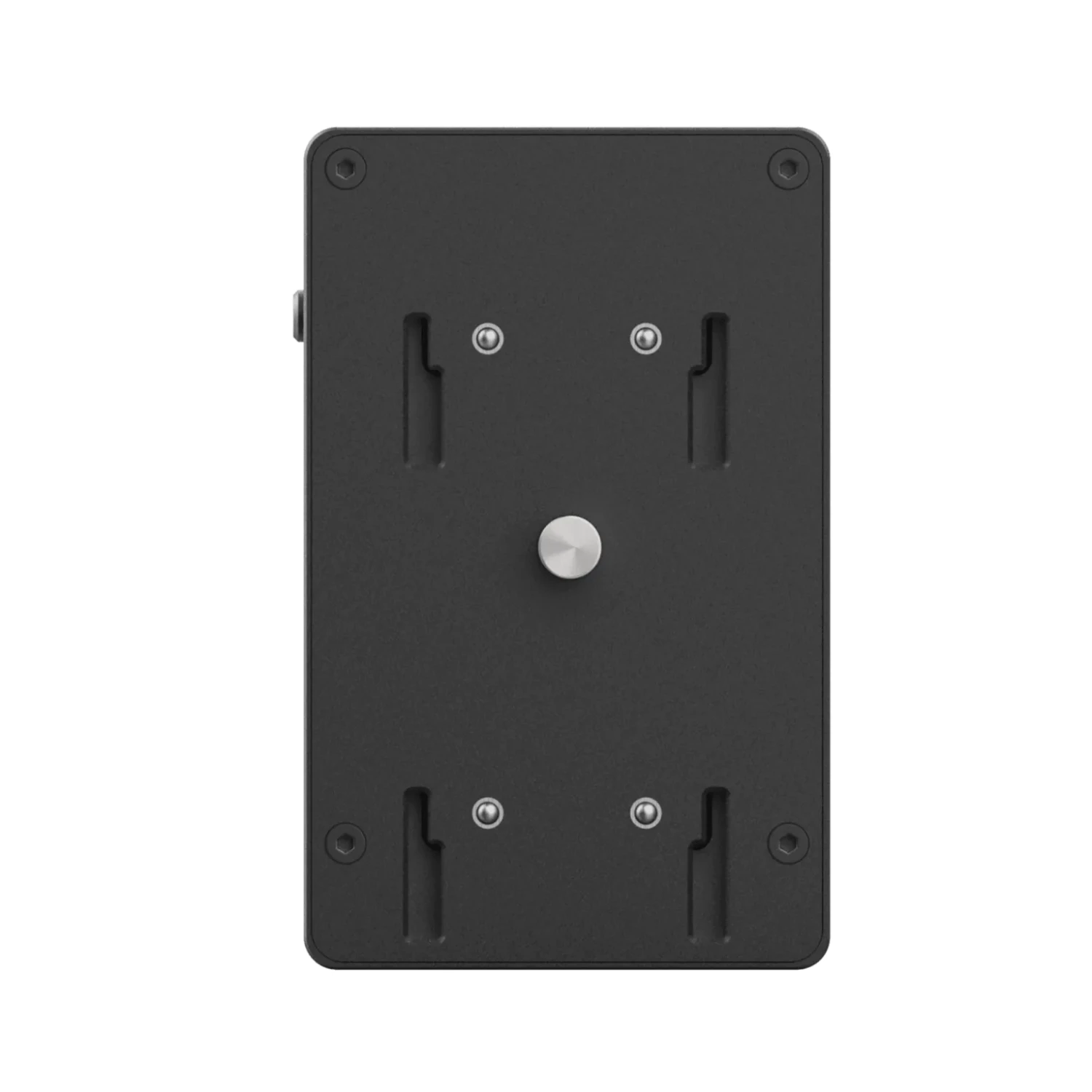

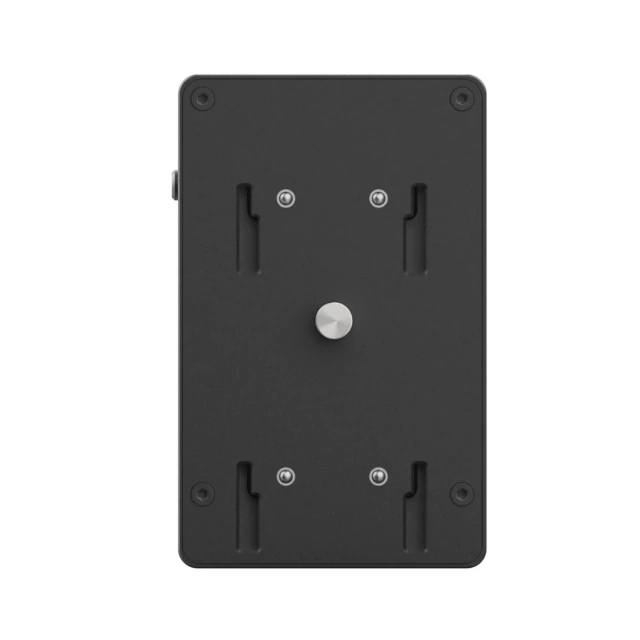

Use the removable plate with PowerCage II, PowerCage Pro II and PowerCage Mini. The manufacturer image shows ACC04 on a PowerCage II; the cage is not included in this package. You can also attach the adapter separately to a compatible rig via its 1/4″-20 interface. The aluminium alloy body weighs 93 g and measures 80 × 50 × 21.5 mm.

CHOOSE THE OUTPUT YOU NEED

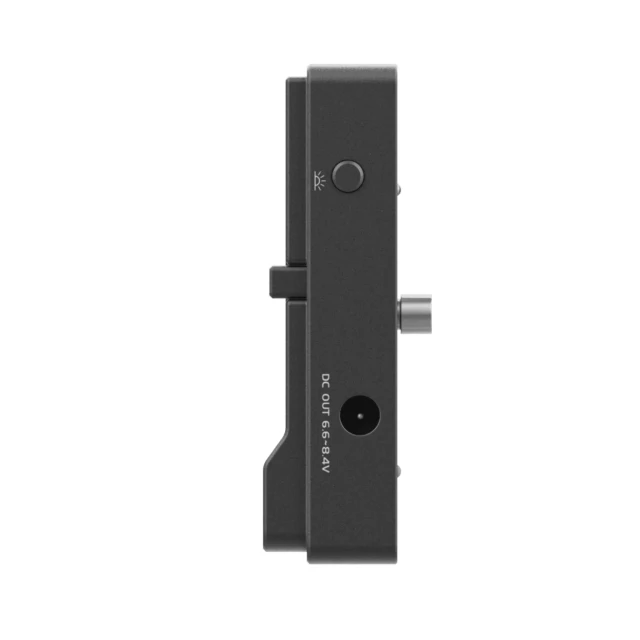

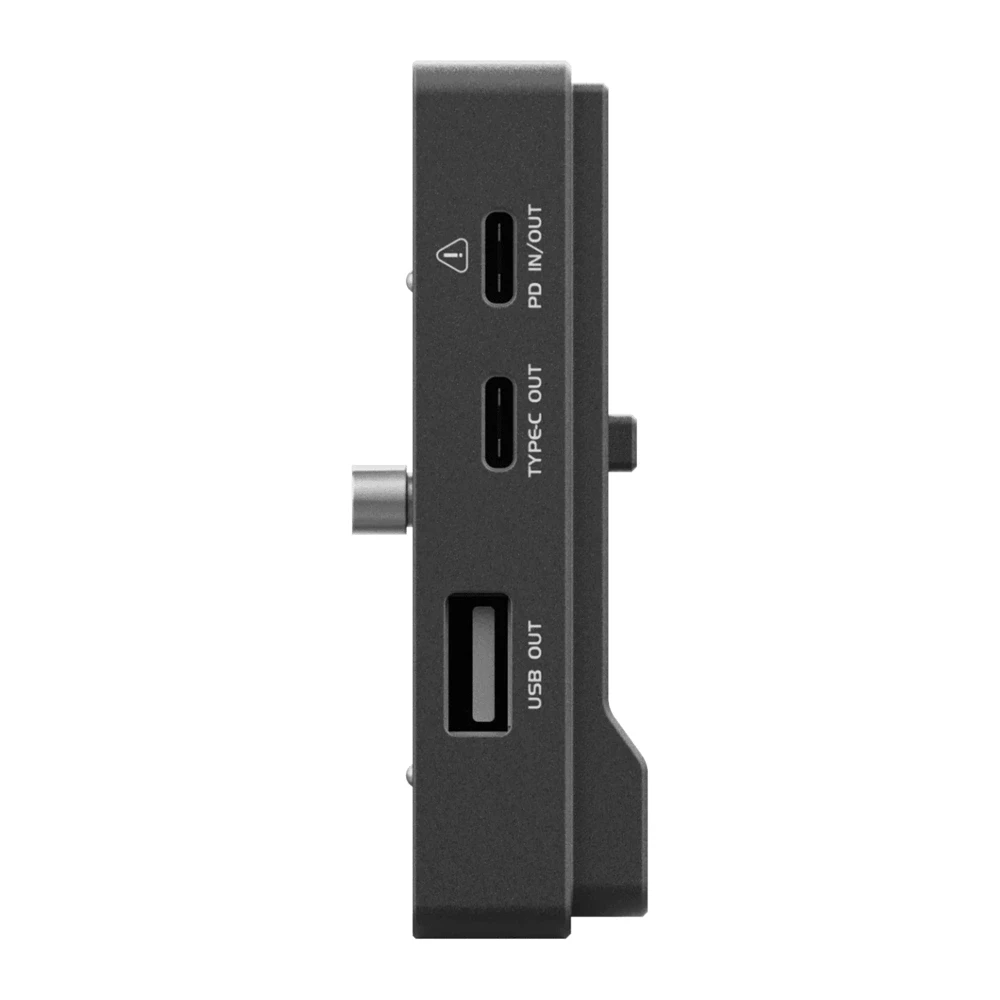

USB-C PD IN/OUT powers a compatible phone or tablet and charges the NP-F battery. Next to it are separate USB-C and USB-A outputs; the DC connector on the opposite side provides 6.6–8.4 V. The USB ports support 5 / 9 / 12 V modes depending on the connected device. Check voltage, polarity, connector and supported protocol before connecting.

CHARGING AND BATTERY CHANGES

The indicator helps you check battery level, and the adapter includes circuit protection. When powering a mobile device from PD IN/OUT after replacing the battery, hold the button for 10 seconds or reconnect the cable to restore power. Direct PD power to the iPad and connection to the original SeeMo require the same iPad port, so they cannot be used simultaneously in this setup.
