Accsoon Cineview Quad 1T4R combo
SKU: ACC-WIT04-QS-1T4R
Accsoon CineView Quad 1TX + 4RX is a wireless monitoring kit for camera crews, directors and remote monitoring. This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI. The system carries Full HD up to 60p over simultaneous 2.4 and 5 GHz bands, with latency below 60 ms excluding the camera and rated range up to…
1 429 € with VAT
1 180.99 € without VAT
Availability
on request
Top accessories for Accsoon Cineview Quad 1T4R combo
PremiumCord 4K HDMI 2.0b High Speed + Ethernet cable, gold-plated connectors, 1 m
High-quality interconnect cable for connecting two audio/video devices via modern
3.2 €
In stock 2 pcs
Tilta NP-F970 Battery (10500mAh) - Green
The Tilta NP-F970 replaces NP-F series cells, the batteries that power on-camera
47 €
In stock > 5 pcs
Infinitek L-2.5CHWS 1.5m FLEX 3G/HD-SDI cable BNC-BNC
Assembled SDI cable, Infinitek L-2.5CHWS, 1.5 m long, terminated with BNC (M) and
15 €
In stock 5 pcs
Tilta Battery Charger for L-Series/NP-F (2 Channel) - Green
A flat two-channel Tilta charger for Sony L-Series / NP-F batteries and compatible
18 €
In stock 5 pcs
Tilta NP-F550 Battery (3500mAh) - Green
The Tilta NP-F550 replaces NP-F series cells, the batteries that power on-camera
23 €
In stock 2 pcs
PremiumCord Slim HDMI 2.0 High Speed + Ethernet Cable, Gold-Plated, 0.5 m
PremiumCord Slim HDMI High Speed + Ethernet cable, gold-plated connectors, 0.5m
5 €
on request
Accsoon TopRig 100W 4-Bay NP-F Fast Charger + EU G
The Accsoon TopRig NP-F (ACC-BC-01EU) is a four-bay charger for NP-F550, NP-F750,
108 €
To be sent 2 pcs
Canare L-2.5CHWS BNC / BNC 0,4 m, GRY
Assembled SDI cable, Canare L-2.5CHWS, 0.4 m long, terminated with BNC and BNC c
13 €
In stock 1 pcs
Accsoon Right Angle SDI to Right Angle SDI cable - 80 cm
Accsoon ACC-XC-BNC-SDI-80-BLACK is a black 80cm SDI video cable with right-angle
12 €
> 5 pcs in stock at the supplier
Accsoon HDMI Cable (A-A)
Accsoon HDMI Cable (A-A) is a 50 cm male-to-male cable connecting cameras, external
12 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Accsoon CineView Quad 1TX + 4RX is a wireless monitoring kit for camera crews, directors and remote monitoring. This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI. The system carries Full HD up to 60p over simultaneous 2.4 and 5 GHz bands, with latency below 60 ms excluding the camera and rated range up to 150 m in unobstructed, interference-free line of sight. One transmitter supports up to four wireless receivers or mobile devices in total. The fanless aluminium units have four integrated folding antennas, a 1.3″ OLED display, NP-F battery support and 7.4–16.8 V DC power. Batteries, monitors and cables are purchased separately.
ACCSOON CINEVIEW QUAD · 1TX + 4RX
Wireless video for your crew
This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI.
Full HD 60p150 m<60 ms
A remote view for your crew

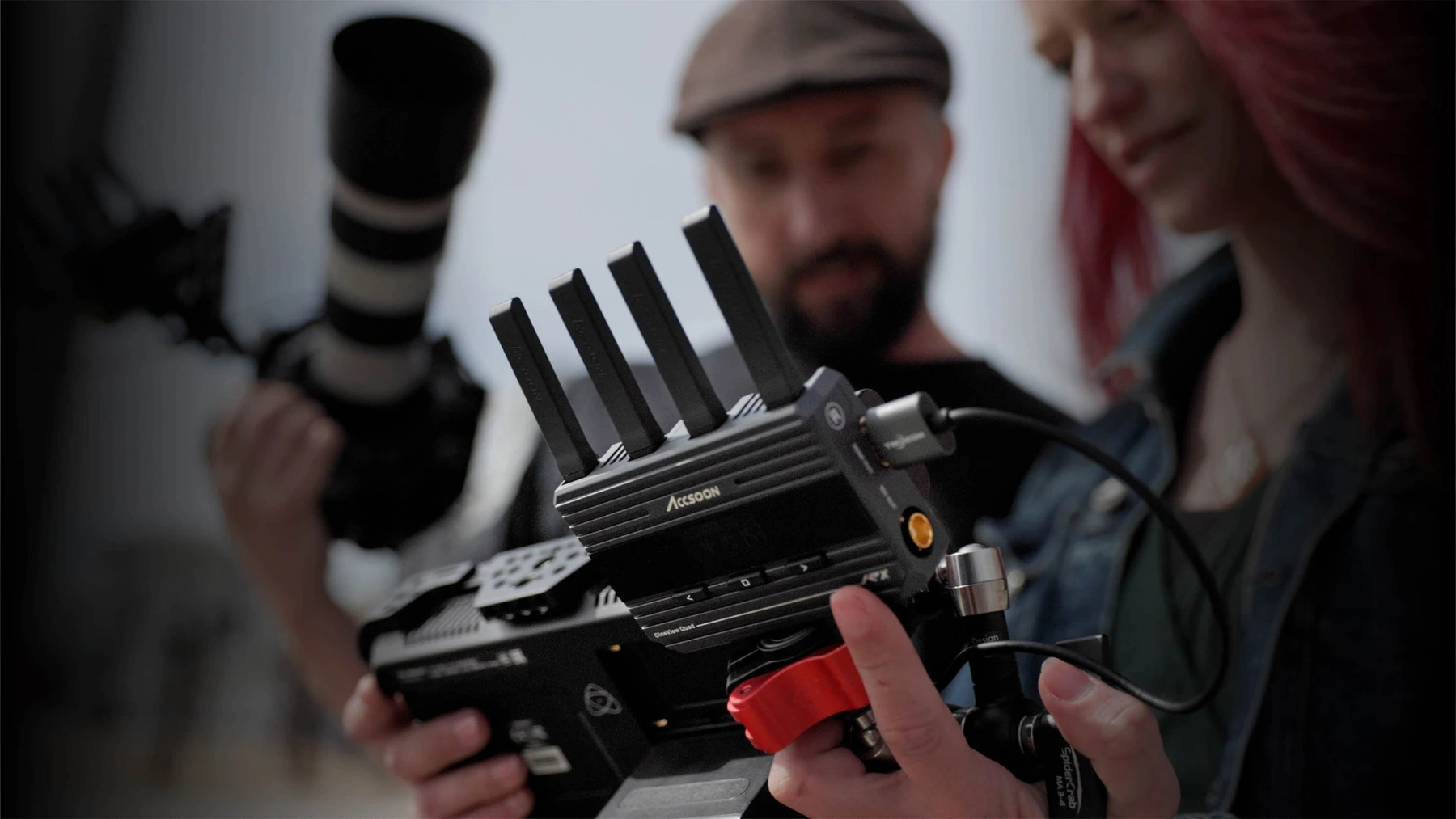

The manufacturer photograph shows CineView Quad RX connected at a monitoring position. The matching TX sends Full HD up to 60p simultaneously over 2.4 and 5 GHz; RX uses both streams for a more resilient link. Rated range is up to 150 m in clear line of sight without obstacles or interference, with system latency below 60 ms excluding camera delay. Camera, monitor and cables are separate equipment. This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI.
SDI and HDMI for the camera

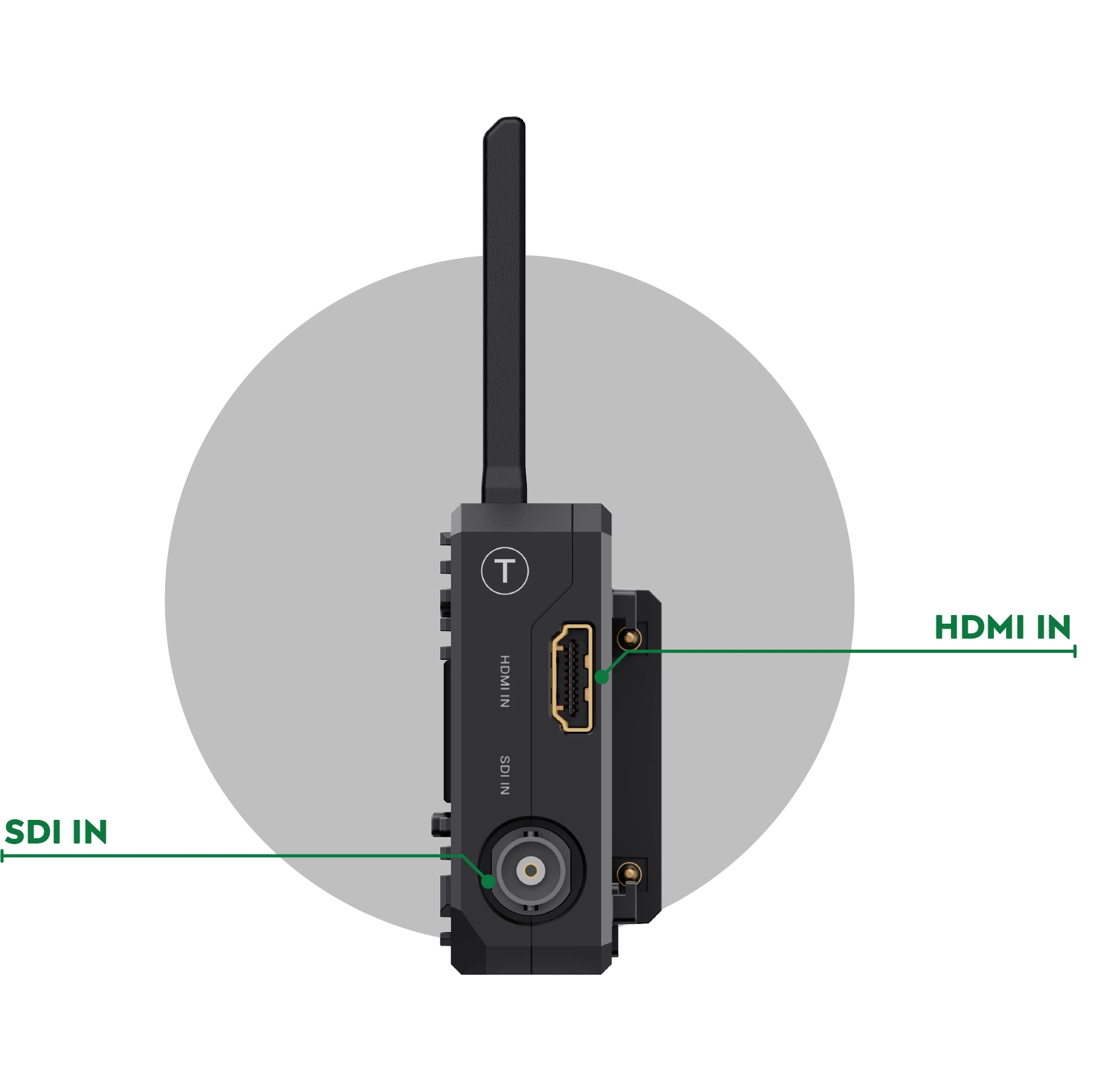

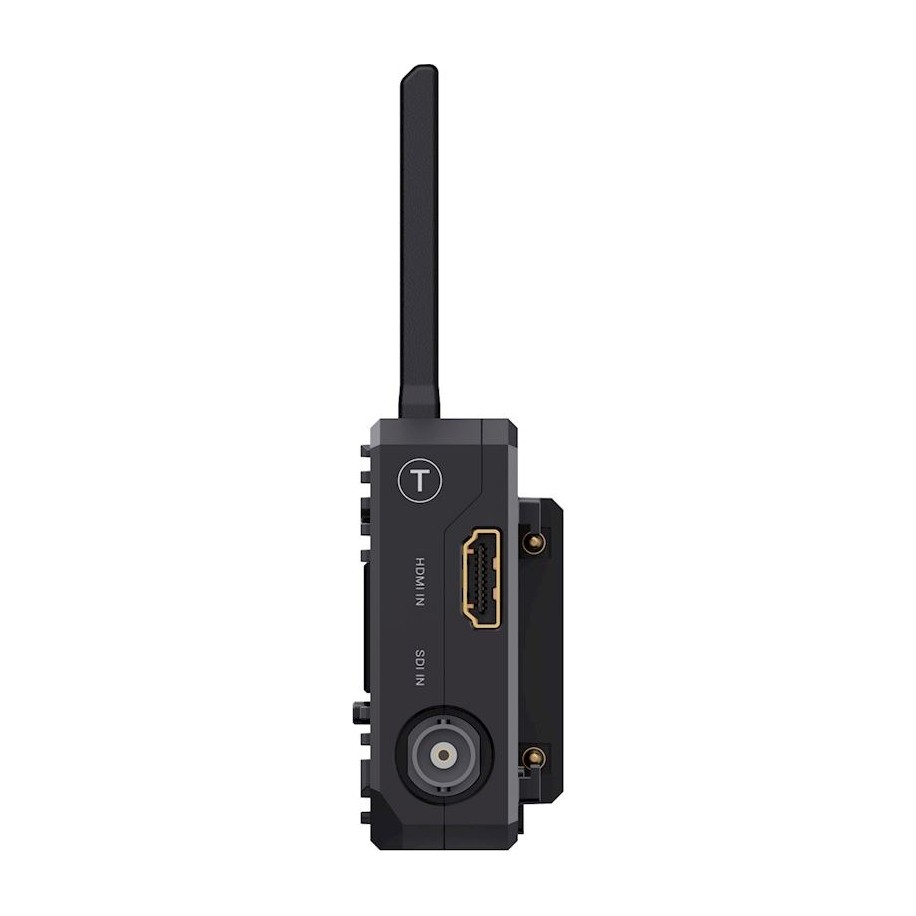

The detail shows the transmitter’s SDI IN and HDMI IN connectors. TX accepts Full HD up to 60p, with SDI level A/B support. RX supplies HDMI and SDI level A outputs for a remote monitor. Wireless video remains Full HD; this generation has no HDMI loop output or USB-C UVC output. PCM audio supports 44.1/48 kHz and 16/24 bit.
NP-F or external DC power

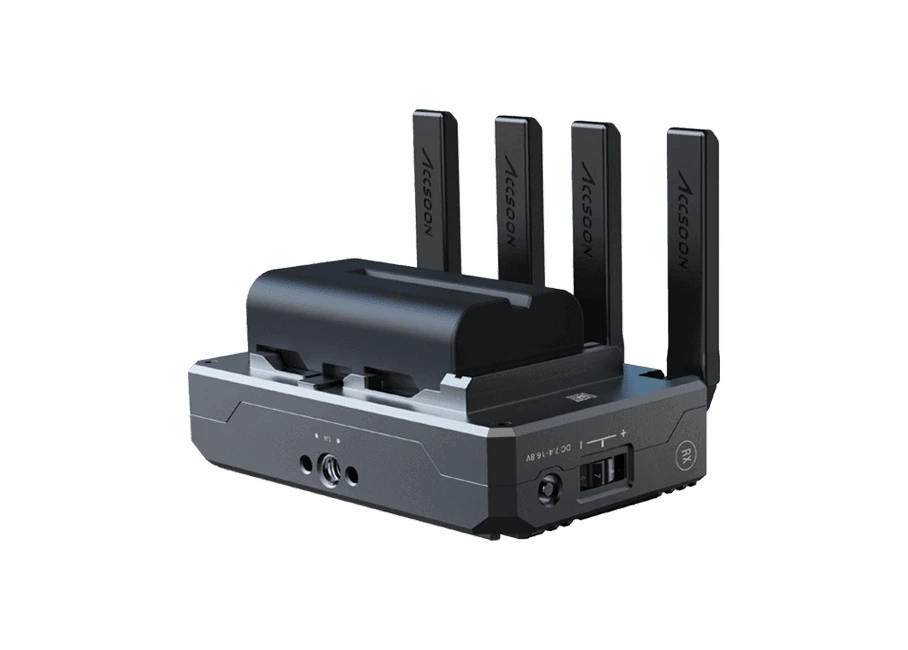

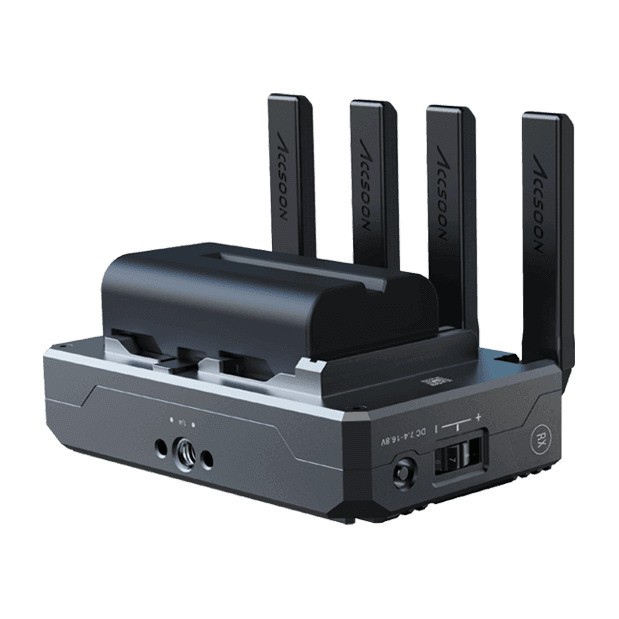

The manufacturer detail shows the receiver with an NP-F battery attached. Each unit accepts NP-F550/750/970 or 7.4–16.8 V DC through a 5.5 × 2.1 mm centre-positive socket. Typical consumption is 4.5 W for TX and 5 W for RX. The four antennas are integrated and fold down for transport. Batteries, supplies and power cables are purchased separately.
Compact, fanless aluminium

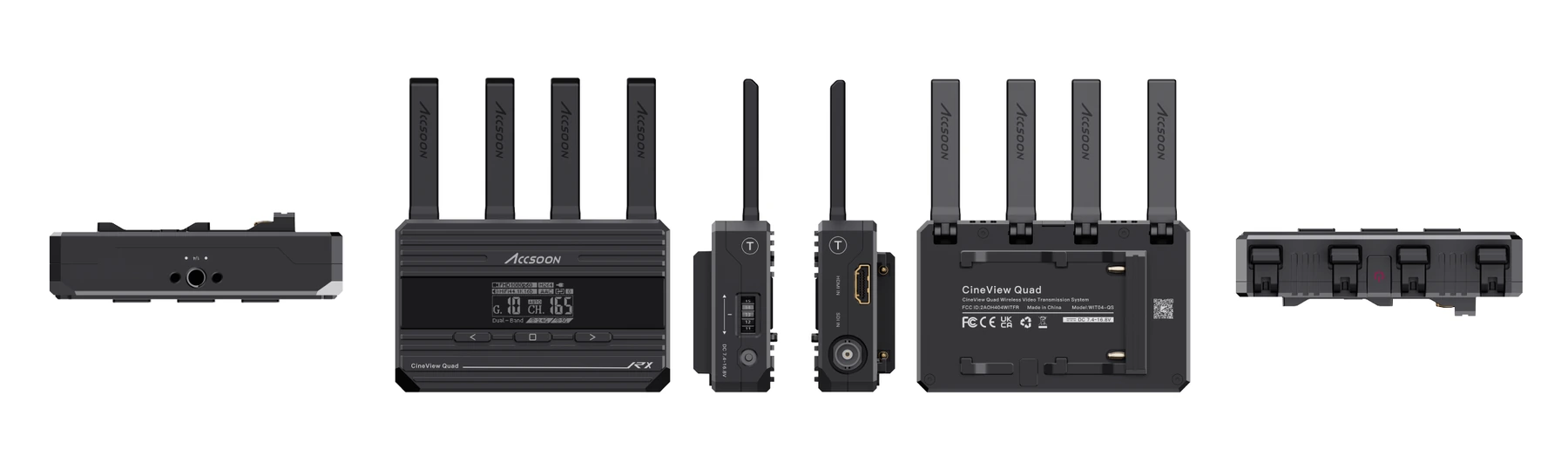

The manufacturer construction graphic combines RX front and TX component views. The aluminium housing has no fan, and a 1/4″ mounting thread supports a camera rig or monitor mount. Each unit measures 105 × 66 × 31 mm without antennas and weighs 225 g including antennas. Keep ventilation surfaces clear and use the units within −10 to 40 °C.
Adjust the mobile preview

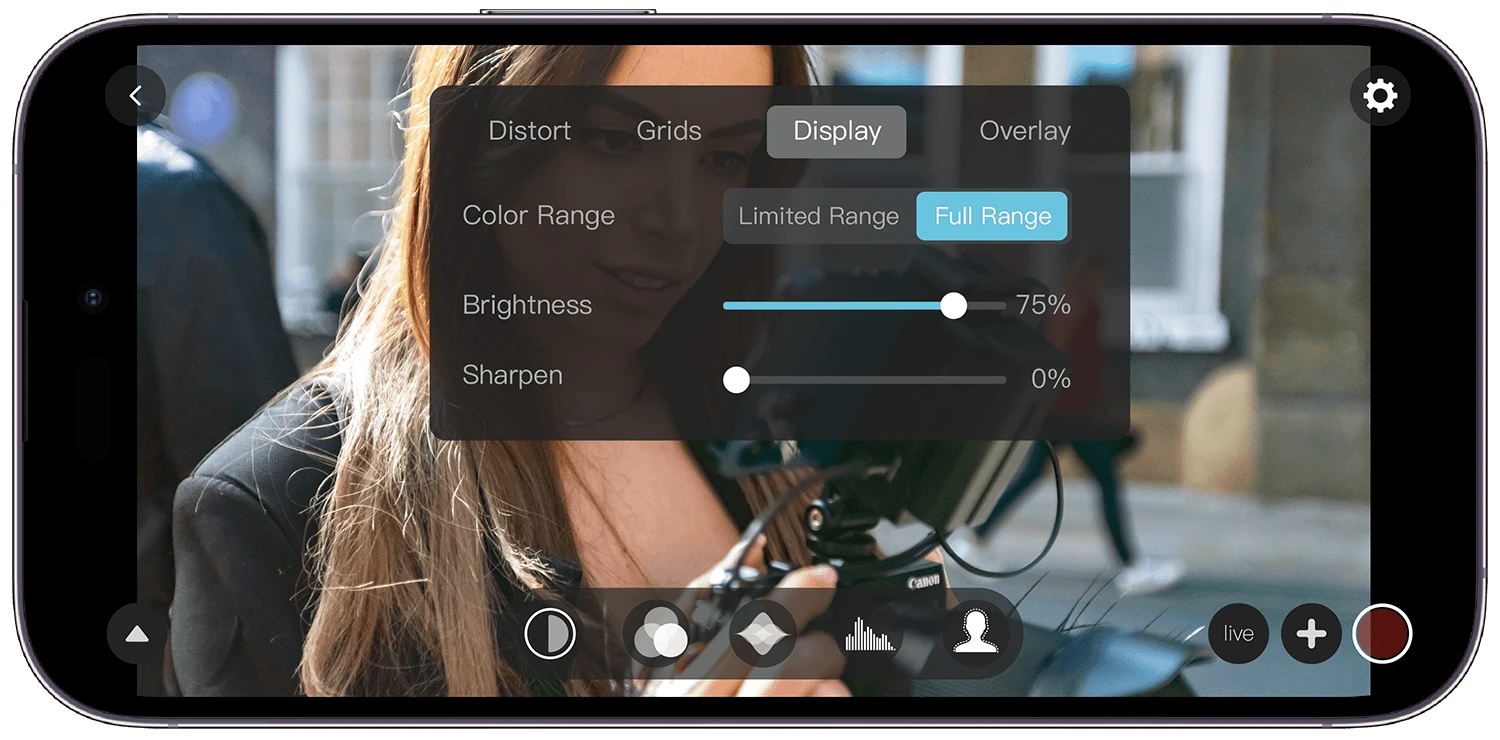

The official app example illustrates display adjustments: colour range, brightness and sharpening. CineView Quad supports direct iOS/Android monitoring in Accsoon Go as described in its manual; the current support page also links Accsoon SEE. A phone or tablet receives directly from TX and uses one of its four wireless receiving slots. App features depend on the supported app version and mobile device.
A viewing look for Log footage

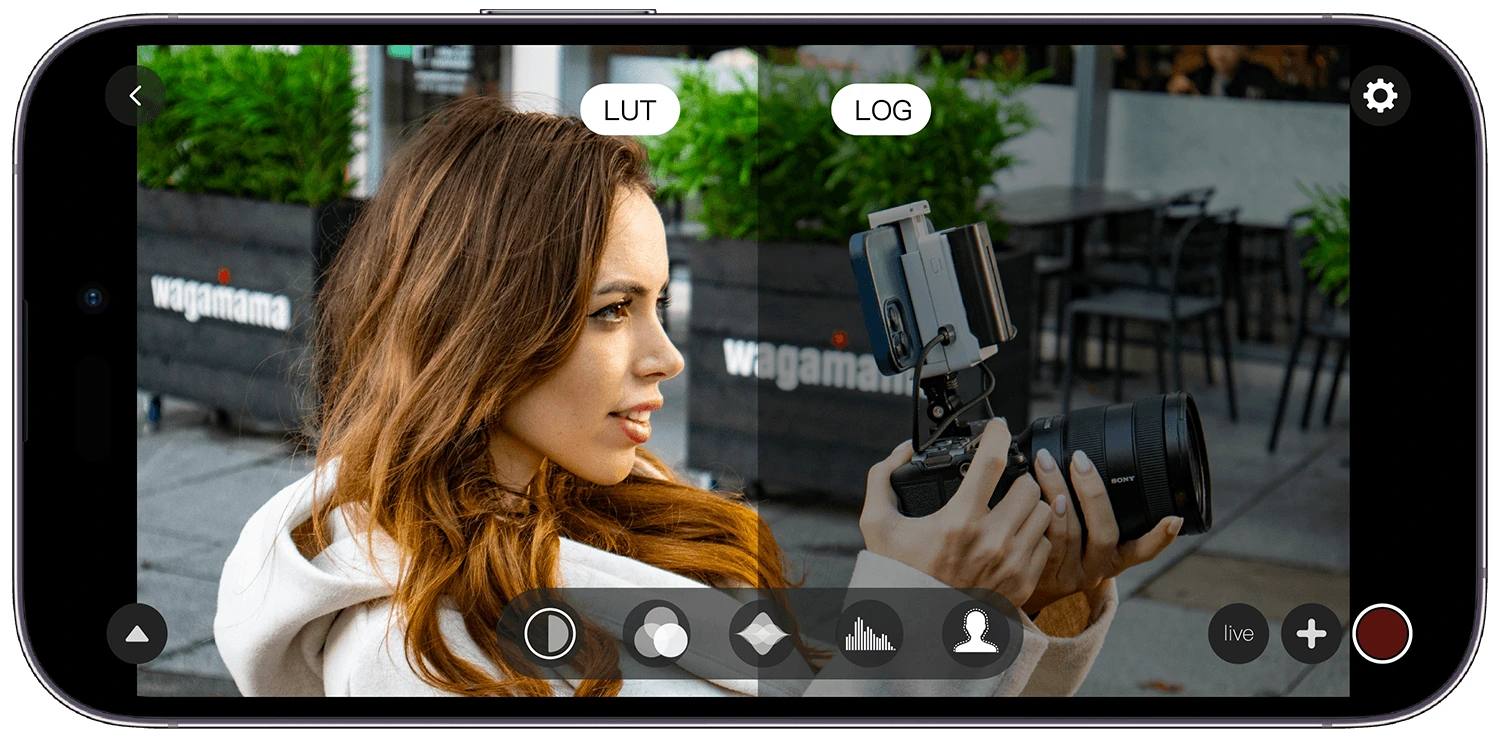

The manufacturer’s split-screen example compares a LUT preview with the original Log image. The mobile app supports 3D LUT viewing, focus peaking, histogram and false colour tools for checking a shot on set. Applying a preview look helps the crew judge the intended image; it does not change the camera’s original recording. The phone and camera in the example are not included.
Stream from the mobile app

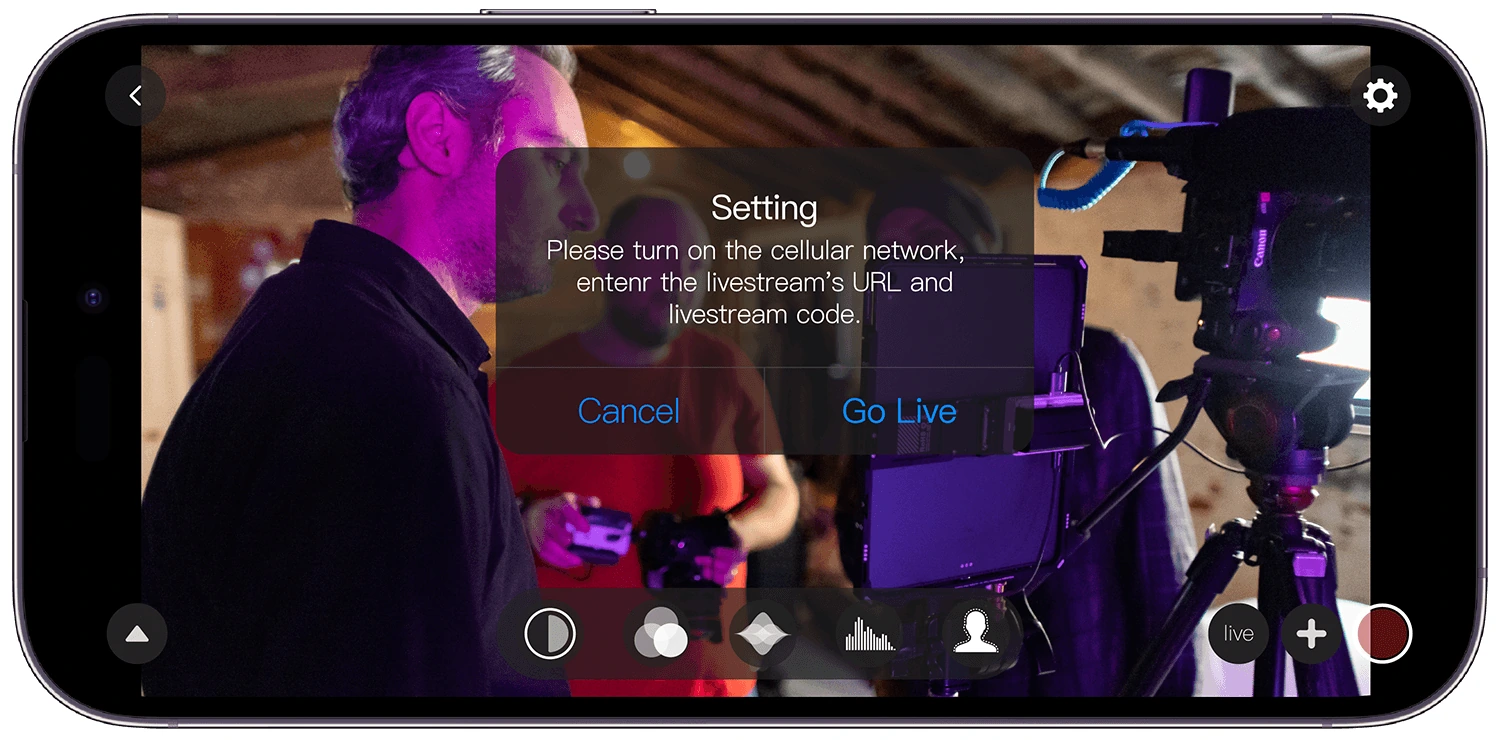

The illustrated dialog asks you to enable cellular Internet and enter the livestream destination and stream code. The mobile device needs its own Internet connection while receiving the TX video over Wi-Fi. Streaming is performed by the supported app, not by a USB output on Quad RX. Prepare the service account and connection separately; quality depends on the mobile network.
Match framing between takes

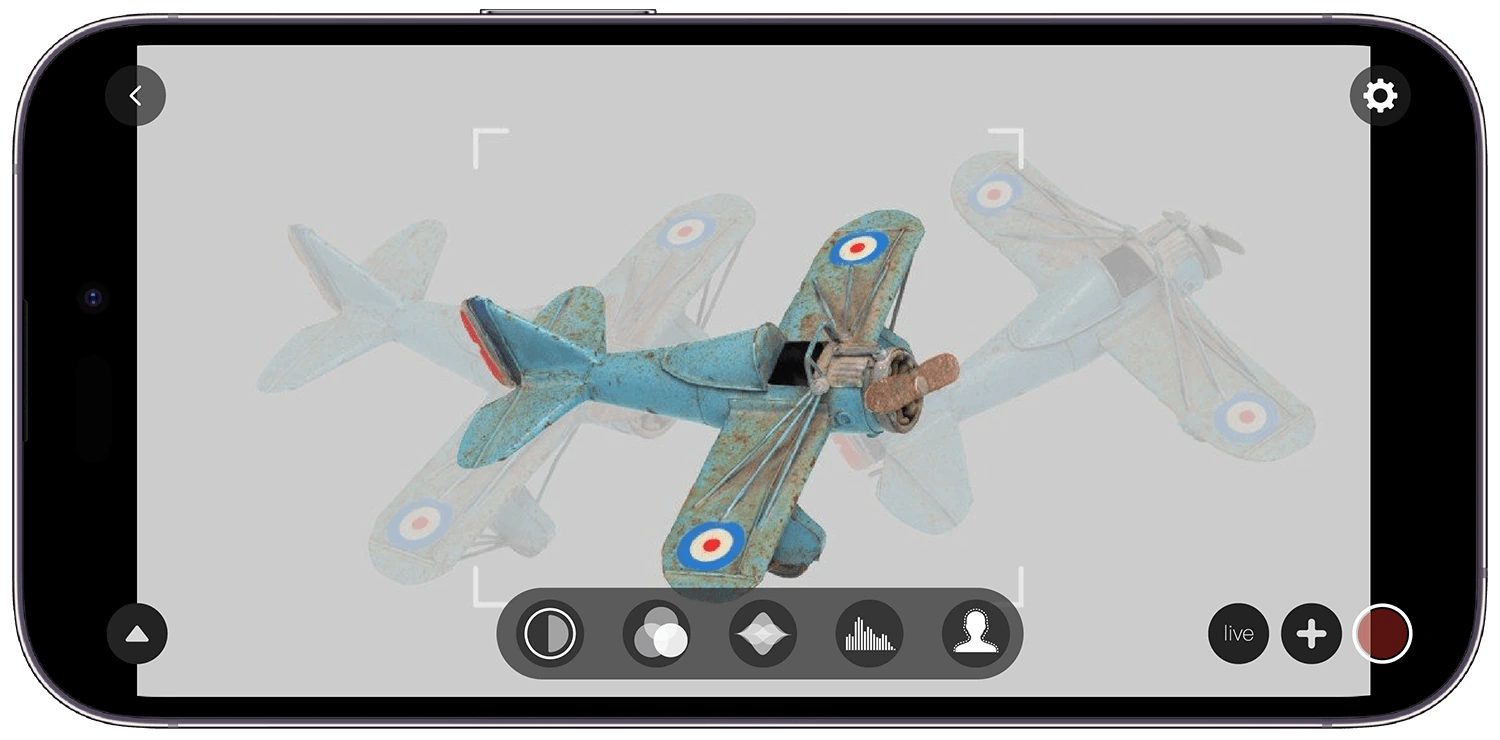

The official overlay example superimposes a reference image over the live picture. This helps compare composition and subject position between takes. Accsoon Go also offers video recording and playback for quick review; these mobile files are monitoring copies rather than the camera’s master recording. A mobile receiver counts toward the total four-device wireless limit.
Keep the transmitter on the rig

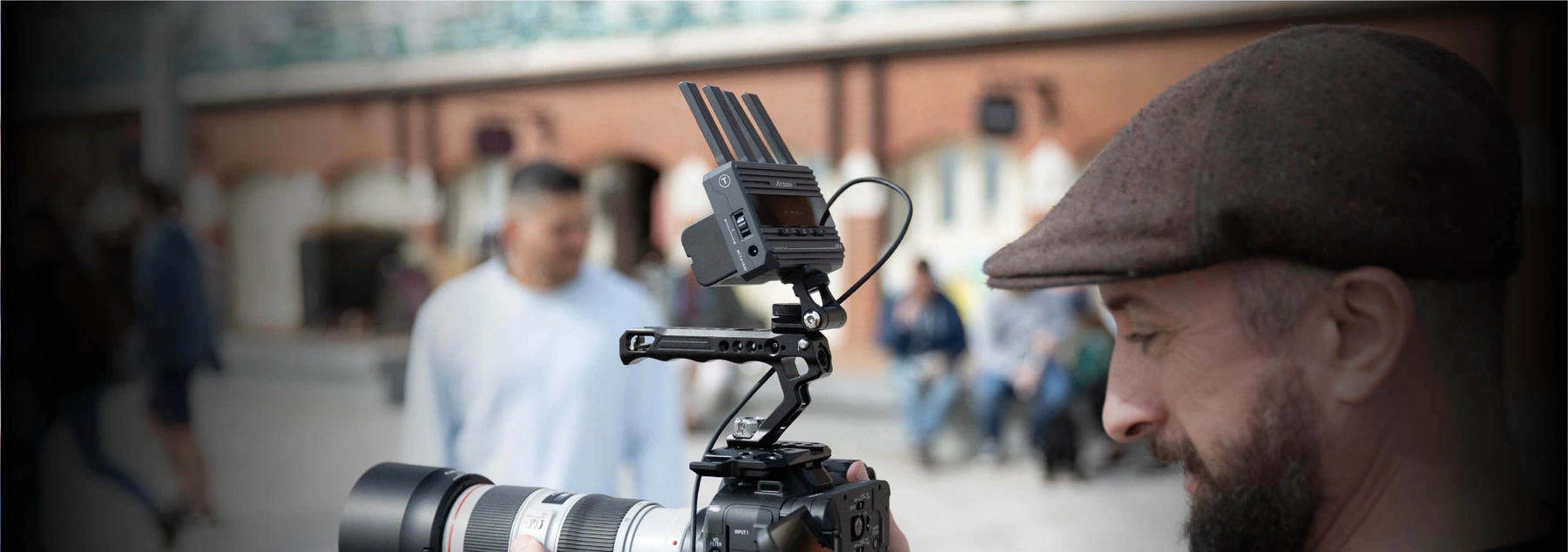

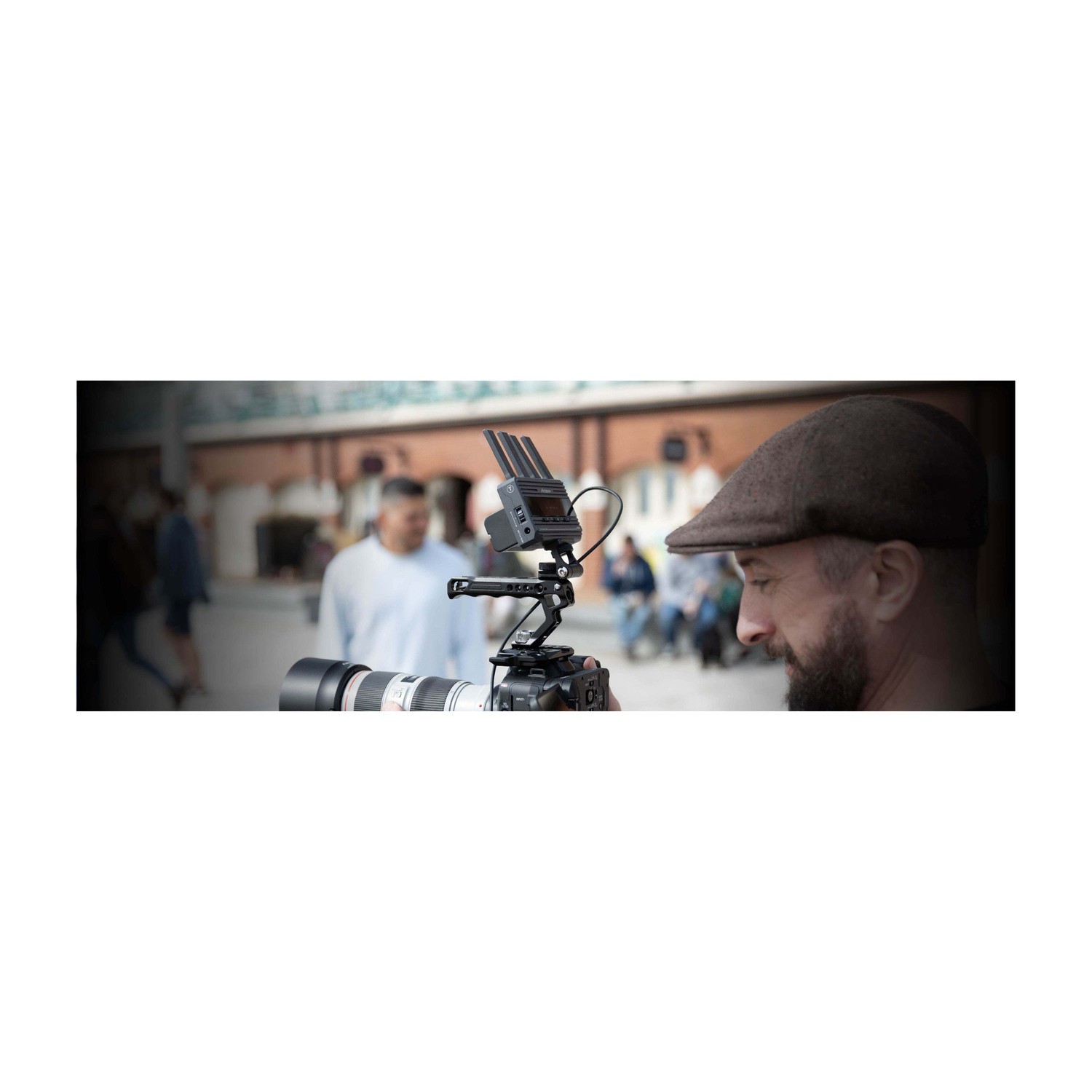

The manufacturer photograph shows the exact Quad TX above the camera, with its four antennas raised. Connect the camera’s supported HDMI or SDI output to TX and position the antennas with a clear path to receiving devices. One TX can feed up to four hardware RX units or mobile devices in total. Camera, mounting hardware, battery and video cable shown are separate equipment. The four included RX units occupy all four receiving slots; adding a phone requires replacing one RX connection.
Set up the link

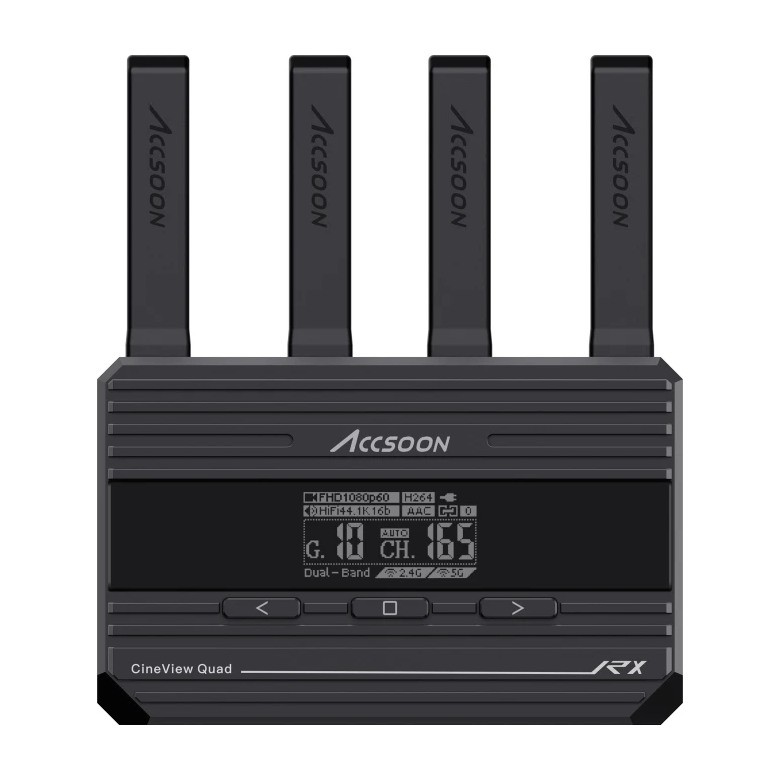

The 1.3″ OLED displays video format, group, channel, battery and connection status. Match group numbers on TX/RX and restart after changing the group. TX AUTO (A) selects a channel at power-on. The HQ, NOM and SPD modes prioritise quality, balance and speed respectively. CineView 2 SDI compatibility is documented by the newer manufacturer compatibility chart; use matching firmware and a shared video format.
PACKAGE CONTENT

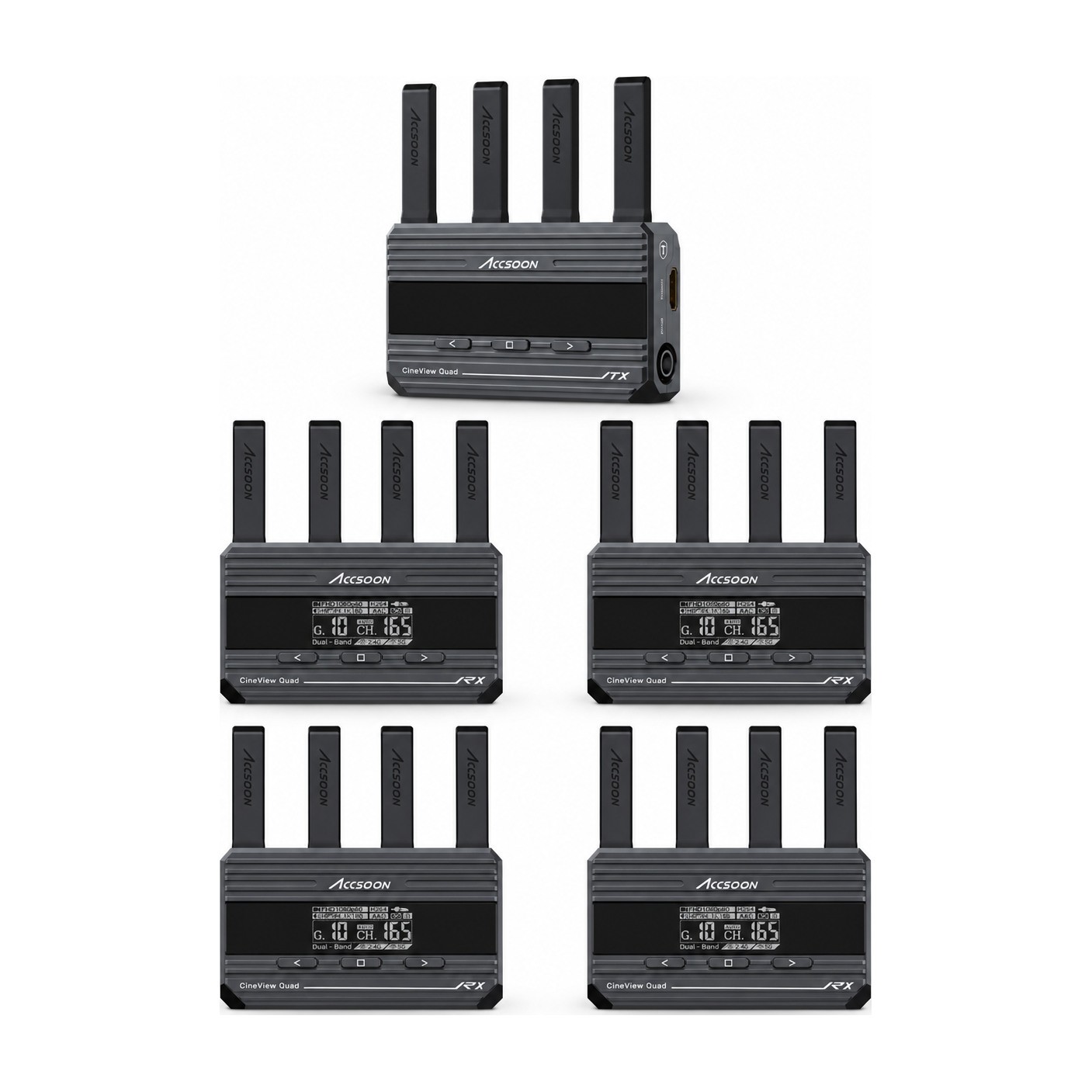

- Transmitter CineView Quad TX ×1
- Receiver CineView Quad RX ×4
- Four integrated folding antennas on each unit
SPECIFICATIONS
- Package: 1 TX + 4 RX
- Wireless video: 1920 × 1080; ≤60p; H.264
- Bands: 2.4 GHz + 5 GHz
- Range: 150 m; clear LOS, no interference
- Latency: <60 ms; camera excluded
- Receiving slots: 4 total per TX
- Audio: 44.1/48 kHz; 16/24 bit PCM
- DC: 7.4–16.8 V; 5.5 × 2.1 mm; centre positive
- Battery: NP-F550/750/970
- OLED: 1.3″
- Unit dimensions: 105 × 66 × 31 mm; antennas excluded
- Unit weight: 225 g; antennas included
- Housing: Black fanless aluminium
- Mount: 1/4″
- Antennas: 4 integrated folding antennas/unit
- Temperature: −10–40 °C
- TX inputs: HDMI / SDI
- TX SDI: 1080p23.98/24/25/29.97/30/50/59.94/60; level A/B
- TX HDMI: 1080p23.98/24/25/29.97/30/50/59.94/60
- TX consumption: 4.5 W; typical
- TX RF: 17–20 dBm
- RX outputs: HDMI / SDI
- RX SDI: 1080p24/25/30/50/60; level A
- RX HDMI: 1080p24/25/30/50/60
- RX consumption: 5 W; typical
WE RECOMMEND
The Accsoon CineView Quad is an advanced wireless system for transmitting SDI and HDMI signals, offering exceptional stability thanks to its dual-band transmission. For optimal performance, we recommend accessories that provide a reliable power supply via the NP-F standard, as well as rugged mounting components for rigs and tablet cages that serve as viewfinders.
Power and Batteries - Accessories for powering both the transmitter and receiver using the NP-F standard.
Mounting Hardware and Adapters - Components for securely mounting CineView units on cameras, gimbals, and tripods.
- Accsoon Adapter for Monitor
- Accsoon V-Lock Adapter
- Accsoon Adapter for Gimbal
- Accsoon TopRig Ball Head
Monitoring and mobile device mounts - Cages and mounts for iPads and phones that allow you to use mobile devices as wireless monitors.
- Accsoon iPad Powercage Pro II
- Accsoon Phone Clamp
- Accsoon iPad Powercage II
- Accsoon iPad Powercage mini
Cables and protection - Essential cables for connecting to the camera and carrying cases for safe transport.
Parameters
| Manufacturer: | Accsoon |
| Category: | Wireless video transmission |
Main parameters
| Frequency band | 2.4 GHz · 5 GHz |
| Power supply | NP-F550 · NP-F750 · NP-F970 · DC |
| Material | Aluminium alloy |
| Colour | Black |
| Mounting interface | 1/4″-20 |
| Functions | Fanless cooling · Automatic channel selection · Group dial pairing |
| DC power connector | 5.5 × 2.1 mm socket, centre positive |
| Audio sampling frequency | 44.1 kHz · 48 kHz |
| Audio bit depth | 16-bit · 24-bit |
| Input connector | HDMI type A – female · BNC – female |
| Output connector | HDMI type A – female · BNC – female |
| 3G-SDI input level | A · B |
| 3G-SDI output level | A |
| Compatible Wireless System | CineView 2 SDI · CineView Quad · CineView M7 Pro |
| Video codec | H.264 |
| Status Display Type | OLED |
| Functions | Integrated folding antennas |
| Line-of-sight range | 150m |
| Unit dimensions without antennas | 105x66x31mm |
| Weight per unit | 225g |
| Transmitters in package | 1 |
| Receivers in package | 4 |
| Maximum receiving devices | 4 |
| Maximum transmission resolution | 1920x1080px |
| Maximum frame rate | 60fps |
| DC input voltage range | 7.4x16.8V |
| Status display diagonal | 1.3″ |
| Operating temperature | -10x40°C |
| Typical transmitter power consumption | 4.5W |
| Typical receiver power consumption | 5W |
| Transmission power | 17x20dBm |
| Number of antennas per unit | 4 |
| Latency | <60 ms |
| Input | SDI · HDMI |
| Output | 3G-SDI · HDMI |
