Accsoon CineView Master 4K

Accsoon CineView Master 4K 1TX + 1RX. A one-transmitter, one-receiver kit for wireless UHD monitoring via HDMI and Full HD via SDI. The system uses RTMS 4.0 and simultaneous 2.4/5/6 GHz transmission for a director, focus puller or remote monitoring station. It supports UHD 3840 × 2160 up to 60p, H.264/H.265, four wireless viewing devices per TX plus one wired…

More information

939 € with VAT 776.03 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Accsoon CineView Master 4K 1TX + 1RX. A one-transmitter, one-receiver kit for wireless UHD monitoring via HDMI and Full HD via SDI. The system uses RTMS 4.0 and simultaneous 2.4/5/6 GHz transmission for a director, focus puller or remote monitoring station. It supports UHD 3840 × 2160 up to 60p, H.264/H.265, four wireless viewing devices per TX plus one wired iPhone/iPad, and latency below 25 ms at 1080p60 or below 35 ms at 4K60 in low-bitrate mode excluding the camera. Each unit has six antennas, a 1.05″ colour LCD, an aluminium housing and NP-F or 7.4–16.8 V DC power. The manufacturer’s 2.5 km measurement applies to 1080p60 low-bitrate mode under FCC conditions with clear line of sight and no interference; actual permitted operation and range depend on location. Batteries, power supplies and monitors are purchased separately.

ACCSOON CINEVIEW MASTER 4K · 1TX + 1RX

4K video for your crew

A one-transmitter, one-receiver kit for wireless UHD monitoring via HDMI and Full HD via SDI.

UHD 4K602.4 / 5 / 6 GHzHDMI + SDI

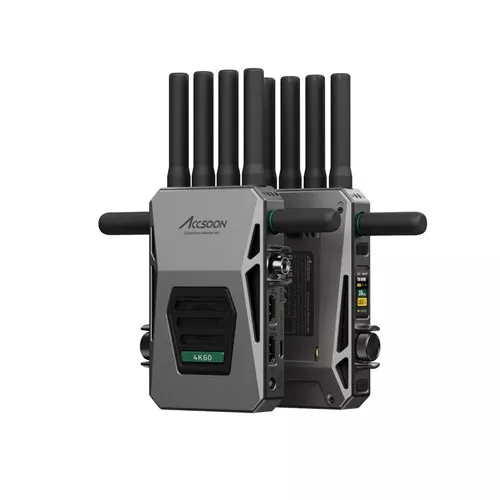

Accsoon CineView Master 4K 1TX + 1RX
A remote view for your crew · Accsoon CineView Master 4K

A remote view for your crew

The manufacturer photograph shows Master 4K on set. UHD up to 60p helps the director or focus puller assess detail without running a video cable across the set. Cameras, monitors and batteries shown are separate equipment.

Three bands, coordinated streams

RTMS 4.0 coordinates transmission across 2.4, 5 and 6 GHz with DFS. The 8K-capable processor manages simultaneous streams; actual video remains UHD 4K60. Attach the six antennas correctly: four long 2.4/5 GHz antennas and two short 6 GHz antennas per unit.

Three bands, coordinated streams · Accsoon CineView Master 4K
One camera, several viewing paths · Accsoon CineView Master 4K

One camera, several viewing paths

The diagram shows TX input, wireless RX, TX HDMI loop output and USB-C video to iOS. One TX feeds four wireless viewing devices in total, mixing compatible receivers and mobiles, plus one wired iPhone/iPad. Each RX uses one wireless slot. RX HDMI outputs UHD up to 60p; SDI remains Full HD up to 60p. Mobile recording and Internet streaming run in Accsoon SEE. Match TX/RX group numbers. Extra devices shown are purchased separately.

Match the port to the signal

Above: TX with 3G-SDI input up to 1080p60, HDMI input/loop-out up to UHD 4K60, USB-C video to iPhone/iPad and DC input. Below: RX with 3G-SDI output up to 1080p60, HDMI output up to UHD 4K60 and DC input. RX has no USB video output. SDI input supports A/B; RX output uses A. HDMI loop-out follows the HDMI input format.

Match the port to the signal · Accsoon CineView Master 4K
Keep the 4K detail · Accsoon CineView Master 4K

Keep the 4K detail

The 4K stream serves wireless and wired iOS monitoring. This photograph shows Master 4K RX feeding a monitor via HDMI.

A separate wired stream

TX provides a dedicated high-bitrate 1080p USB-C stream to iPhone/iPad. Its bitrate is adjusted separately from wireless video in Accsoon SEE.

A separate wired stream · Accsoon CineView Master 4K
A mobile view over Wi-Fi · Accsoon CineView Master 4K

A mobile view over Wi-Fi

The 1080p wireless stream serves mobile monitoring via Accsoon_XXXX Wi-Fi. Each wireless mobile uses one of TX’s four wireless viewing slots.

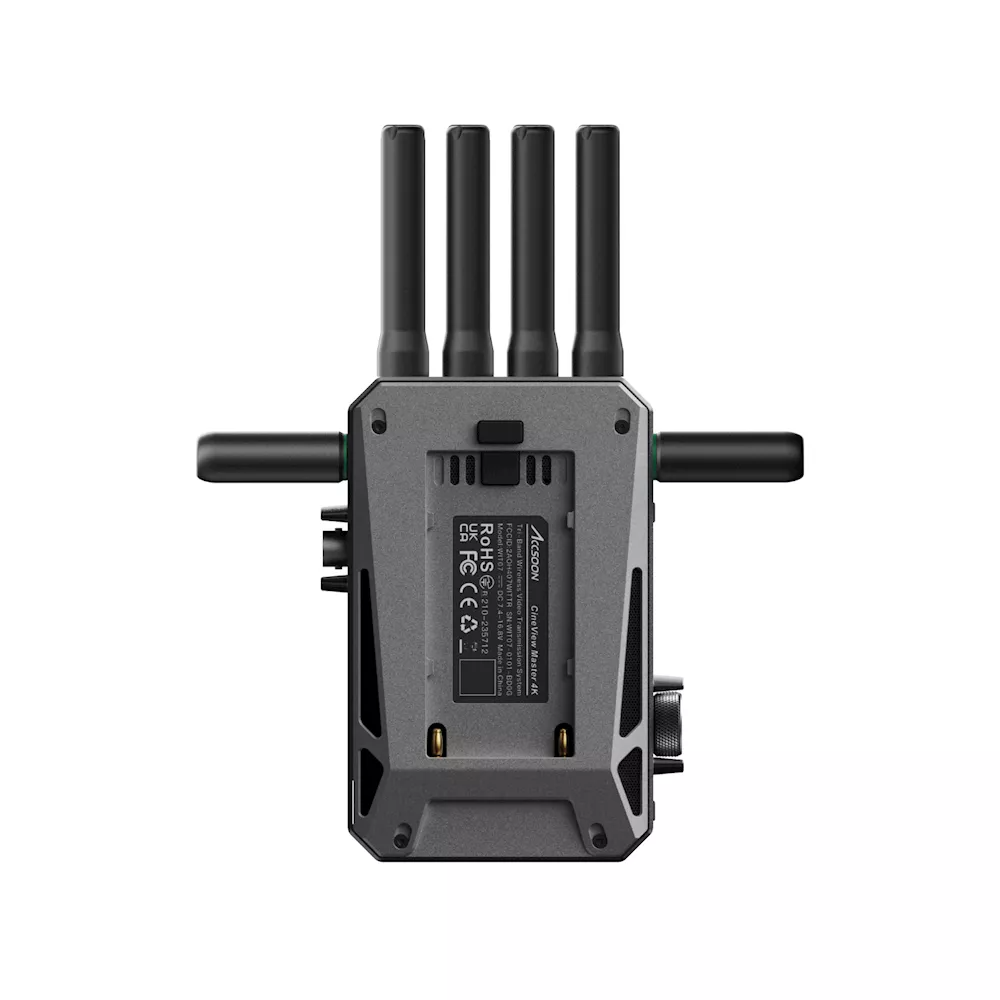

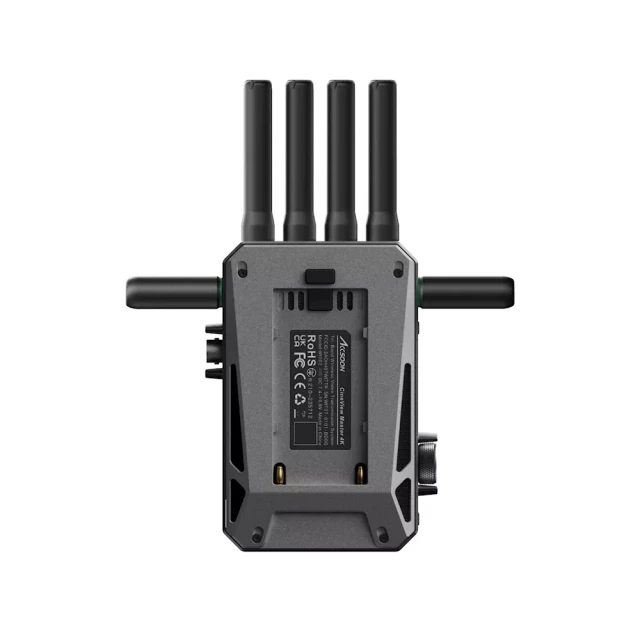

NP-F or external DC power

Use NP-F550/750/970 or 7.4–16.8 V DC, 5.5 × 2.1 mm centre positive, from a source rated at least 2 A. Hot swapping requires the alternate supply to stay connected. Typical consumption: TX 6.5 W excluding mobile charging; RX 5 W. The illustrated optional V-Lock adapter fits Master 4K TX, not RX; it is purchased separately.

NP-F or external DC power · Accsoon CineView Master 4K
Set cooling for the location · Accsoon CineView Master 4K

Set cooling for the location

The aluminium unit has an active fan with Standard, Quiet and Off modes. Standard adjusts speed with temperature; Quiet limits its maximum speed. The 1.05″ colour LCD and rotary control show and adjust connection, format, channel and group settings. The anti-rotation 1/4″ mount secures the unit to a suitable rig. Body dimensions are 130 × 95 × 32 mm excluding antennas.

Judge the intended look

This official Accsoon SEE split-screen example compares the LUT preview with the original picture. The app supports 3D .cube LUTs and monitoring aids such as waveform, false colour and focus peaking. A viewing LUT helps assess Log footage; app options can also apply it to mobile recording or streaming. Check the selected mode before recording.

Judge the intended look · Accsoon CineView Master 4K
Prepare a mobile recording · Accsoon CineView Master 4K

Prepare a mobile recording

The illustrated SEE control panel distinguishes LUT, rotation and wired USB bitrate. Rotate the mobile recording/stream by 90°, 180° or 270° as required for delivery. App recording is a monitoring copy; retain the camera’s master files. Features depend on device and app version.

Stream from Accsoon SEE

The app provides RTMP/SRT streaming through the mobile device’s own Internet connection. Configure the service URL and stream key and provide cellular Internet while receiving video over Wi-Fi. Frame.io cloud workflows require a suitable account and Internet connection. The graphic uses technical labels as an explanatory illustration, rather than promising a localized app interface.

Stream from Accsoon SEE · Accsoon CineView Master 4K

Prepare the system

TX’s MFi-certified USB-C output sends video and 5 V/3 A power to one supported iPhone/iPad; it is not a USB-C power input or generic PC capture output. For Lightning use Accsoon’s dedicated cable. Compatible mobile examples include iPhone 12 or later, iPad Pro 12.9″ generation 3 or later, iPad Pro 11″ generation 3 or later, iPad generation 9 or later, Air generation 4 or later and mini generation 6 or later. Wireless monitoring also supports Android and supported M1/M2/M3 Macs. Use current firmware and app. Wireless bitrate affects RX and wireless app views; the independent wired setting affects USB video. CBR/VBR options allow the bitrate behaviour to be selected. TX weighs 322 g without antennas.

PACKAGE CONTENT

  • Transmitter CineView Master 4K TX ×1
  • Receiver CineView Master 4K RX ×1
  • Cold shoe adapter ×2
  • Long 2.4/5 GHz antenna ×8
  • Short 6 GHz antenna ×4
  • USB-C → USB-C cable ×1
  • USB-C → Lightning cable ×1
  • Allen key ×1
  • User manual ×1

SPECIFICATIONS

  • Package: 1TX + 1RX
  • Wireless video: UHD 3840 × 2160; ≤60p; H.264/H.265
  • Bands / protocol: 2.4 + 5 + 6 GHz; DFS; RTMS 4.0
  • Processor: 8K-capable A/V processor; 4K60 video path
  • Range measurement: 2.5 km; 1080p60 low bitrate; FCC; clear LOS without interference
  • Latency: <25 ms 1080p60 / <35 ms 4K60; low bitrate; camera excluded
  • Viewing devices per TX: 4 wireless + 1 wired iPhone/iPad
  • Audio: Embedded HDMI/SDI; 48 kHz; 16/20/24 bit
  • Battery: NP-F550/750/970
  • DC: 7.4–16.8 V; ≥2 A; 5.5 × 2.1 mm; centre positive
  • LCD: 1.05″; full colour
  • Body dimensions: 130 × 95 × 32 mm; antennas excluded
  • Housing: Grey aluminium

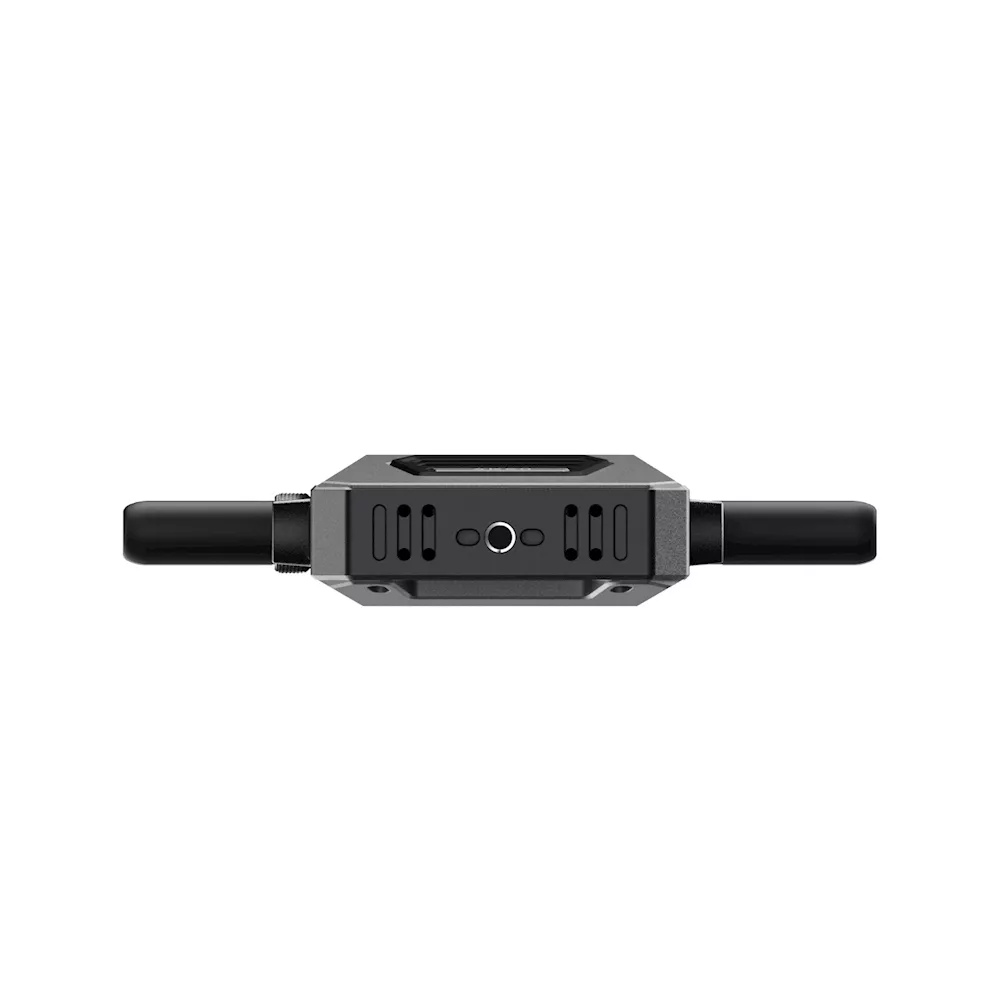

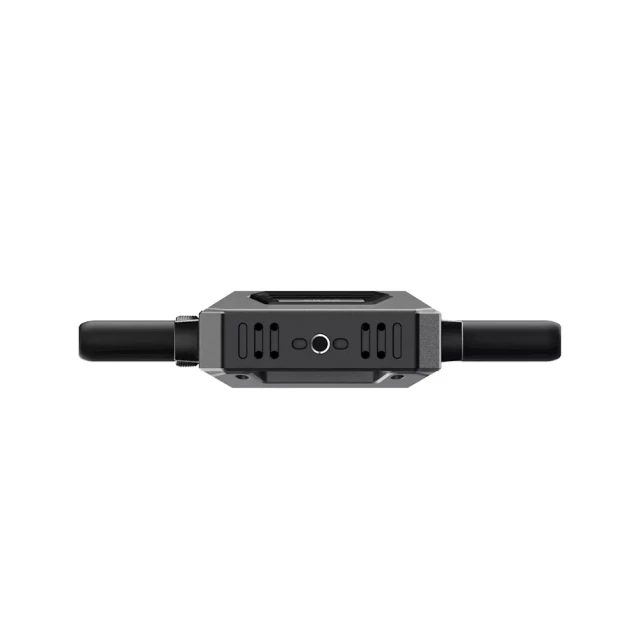

  • Mount: 1/4″; anti-rotation
  • Antennas per unit: 6 detachable: 4 long + 2 short
  • Cooling: Active fan: Standard / Quiet / Off
  • Operating temperature: −10–40 °C
  • TX inputs: HDMI / 3G-SDI
  • TX HDMI IN: UHD / 1080p: 23.98/24/25/29.97/30/50/59.94/60p; 1080i50/59.94/60; 720p50/59.94/60
  • TX SDI IN: 1080p: 23.98/24/25/29.97/30/50/59.94/60; A/B; 1080i50/59.94/60
  • TX HDMI loop-out: Identical to HDMI input
  • TX USB-C: Video to iPhone/iPad; MFi; 5 V / 3 A power output
  • TX typical consumption: 6.5 W; mobile charging excluded
  • TX weight: 322 g; antennas excluded
  • RX outputs: HDMI / 3G-SDI
  • RX HDMI OUT: UHD / 1080p: 23.98/24/25/29.97/30/50/59.94/60p; 720p50/60
  • RX SDI OUT: 1080p: 23.98/24/25/29.97/30/50/59.94/60; A; 720p50/60
  • RX typical consumption: 5 W
  • RX weight: 320 g; antennas excluded

WE RECOMMEND

The Accsoon CineView Master 4K is a professional system for wireless video transmission at 4K60 resolution, which requires a reliable NP-F power source and high-quality connection cables for operation. For effective use in production, it is essential to mount the system securely on rigs, enable monitoring via mobile devices using special cages, and ensure crew communication through compatible intercom systems.

Power and Batteries - Accessories for powering both the transmitter and receiver using the NP-F standard.

Mounting and Installation - Adapters and mounts for securely attaching CineView units to cameras, gimbals, and monitors.

Monitoring and Cages for Tablets - Mounts and power cages for the iPad that allow you to use your tablet as a professional viewfinder.

Communication and Intercom - Wireless systems for communication between the director and cameraman during video transmission.

Cabling and transport - Essential connection cables and protective cases for safe handling.

Rigs and Stabilization - Components for building camera rigs and capturing smooth footage during monitoring.

Parameters

Parameters

Manufacturer: Accsoon
Category: Wireless video transmission

Main parameters

Line-of-sight range2500m
Unit dimensions without antennas130x95x32mm
Transmitters in package1
Receivers in package1
Maximum receiving devices5
Maximum transmission resolution3840x2160px
Maximum frame rate60fps
DC input voltage range7.4x16.8V
Operating temperature-10x40°C
Typical transmitter power consumption6.5W
Typical receiver power consumption5W
Frequency band2.4 GHz · 5 GHz · 6 GHz
Power supplyDC · NP-F550 · NP-F750 · NP-F970
MaterialAluminium alloy
ColourGrey
Mounting interface1/4″-20
Functions3D LUT in Accsoon SEE · Active cooling: Standard / Quiet / Off · Automatic channel selection · Battery hot swap with DC connected · False colour in Accsoon SEE · Focus peaking in Accsoon SEE · Frame.io C2C in Accsoon SEE · HDMI loop-out · Mobile recording in Accsoon SEE · Recording / stream rotation in Accsoon SEE · RTMP streaming in Accsoon SEE · SRT streaming in Accsoon SEE · USB-C video output to iPhone/iPad · Waveform in Accsoon SEE
DC power connector5.5 × 2.1 mm socket, centre positive
Audio sampling frequency48 kHz
Audio bit depth16-bit · 20 bit · 24-bit
Input connectorBNC – female · HDMI type A – female
Output connectorBNC – female · HDMI type A – female · USB-C – female
3G-SDI input levelA · B
3G-SDI output levelA
Maximum HDMI Input Resolution3840x2160px
Maximum HDMI Input Frame Rate60fps
Status Display TypeColour LCD
Compatible Wireless SystemCineView M7 Pro · CineView Master 4K
Video codecH.264 / H.265
Number of antennas per unit6
Colour LCD diagonal1.05″
Transmitter weight without antennas322g
Receiver weight without antennas320g
Maximum wireless receiving devices4
Maximum wired monitoring devices1
USB output voltage5V
Maximum USB output current3A
Minimum DC source current2A
Transmission protocolRTMS 4.0
Latency<25 ms (1080p60) / <35 ms (4K60)
InputHDMI · SDI
Output3G-SDI · HDMI · USB-C (video to iOS)
