PortKeys BM7 II DS

+2
  • SHOWROOM PRAHA
SKU: PK_BM7IIDS

The PortKeys BM7 II DS is a rugged 7-inch touchscreen monitor with 2,200 nits of brightness, a 10-bit Full HD panel, two 3G-SDI inputs, and both wired and wireless camera control. It allows you to display two video signals simultaneously, convert HDMI to SDI, and control supported cameras from RED, Sony, Blackmagic Design, Canon, Panasonic,…

More information

999 € with VAT 825.62 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
PK_BM7IIDS
Add to Compare Price history

Top accessories for PortKeys BM7 II DS

K&F NP-F970 Digital Camera Dual Battery with Dual Channel Charger, Two batteries + charger + Type C

2 Sony NP-F970 6600 mAh batteries with a 2-slot charger. Fully decoded chip — the
49 €
Backordered 1 pcs

Viltrox Battery NP-F750

The Viltrox NP-F750 is a high-capacity rechargeable lithium-ion battery designed
32 €
In stock > 5 pcs

Viltrox Battery NP-F970 - USB-C

The Viltrox NP-F970 is a high-capacity lithium-ion battery designed for cameras,
39 €
To be sent 4 pcs

Infinitek L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 5m

Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
31 €
To be sent 2 pcs

Viltrox NP-F550

Battery compatible with SONY NP with a capacity of 2200mAh. Suitable for example
28 €
In stock > 5 pcs

Infinitek L-4.5CHWS Flexible 4K UHD, 12G-SDI Cable, BNC-BNC 10m

  • LAST PIECE
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
50 €
In stock 1 pcs

Portkeys 8K HDMI cable A to A 0,3m

The Portkeys 8K HDMI Cable A to A (0.3m) Dual Cable Set features a slim, flexible
19 €
In stock 3 pcs

Portkeys 8K HDMI cable A to A Combo Pack (1m + 0,3m)

The Portkeys 8K HDMI Cable A to A Combo Pack includes two high-quality cables (1m
33 €
In stock 2 pcs

Portkeys 40cm USB-C(Type-C) Control Cable

  • SHOWROOM PRAHA
Portkeys 40cm USB-C(Type-C) Control Cable
28 €
In stock > 5 pcs

Portkeys Screen Protector

This Portkeys Screen Protector for BM5WR/BM5III/LH5P UltraBright monitors is flexible
33 €
In stock 5 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

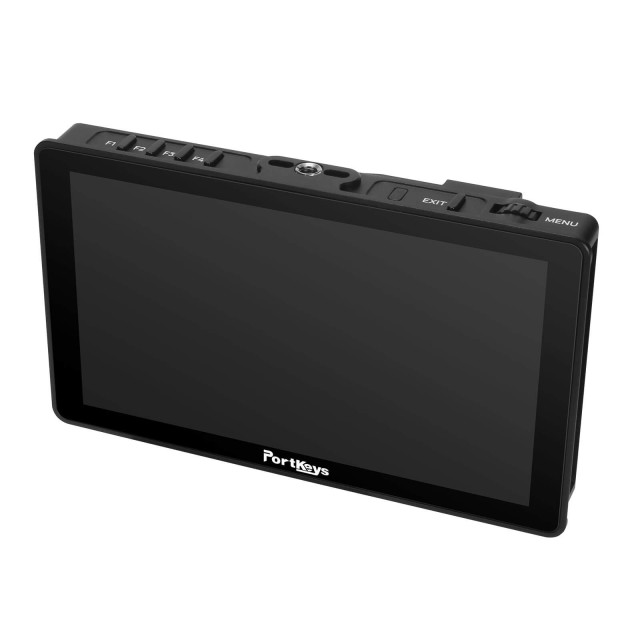

The PortKeys BM7 II DS is a rugged 7-inch touchscreen monitor with 2,200 nits of brightness, a 10-bit Full HD panel, two 3G-SDI inputs, and both wired and wireless camera control. It allows you to display two video signals simultaneously, convert HDMI to SDI, and control supported cameras from RED, Sony, Blackmagic Design, Canon, Panasonic, and Z CAM.

PortKeys BM7 II DS

Durable 7" monitor weighing just 460 g

The all-aluminum body with tempered glass is ready for on-set use. 1/4"‑20 threads with locking holes on the top and bottom allow for secure mounting in various positions.

PortKeys BM7 II DS

2,200 nits and precise 10-bit colors

The 1920 × 1080 panel with a 1000:1 contrast ratio is readable even in direct sunlight. Factory calibration provides 100% Rec.709 coverage and 85% DCI‑P3 coverage, while 10-bit display (8+2 FRC) minimizes color banding.

PortKeys BM7 II DS

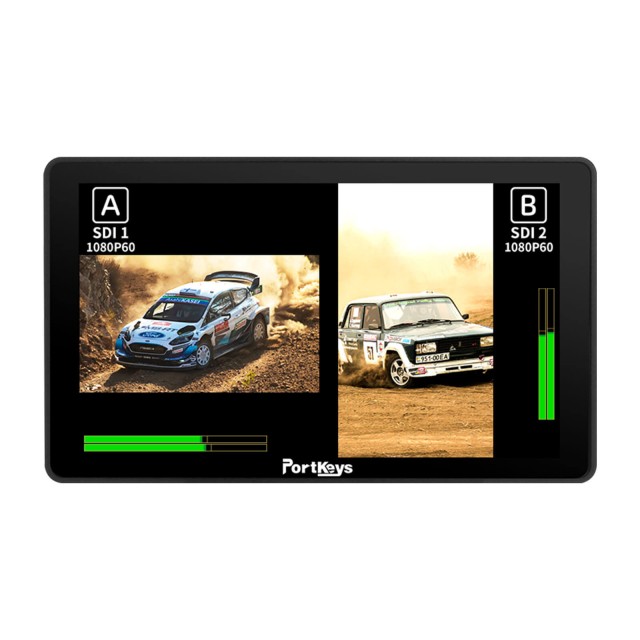

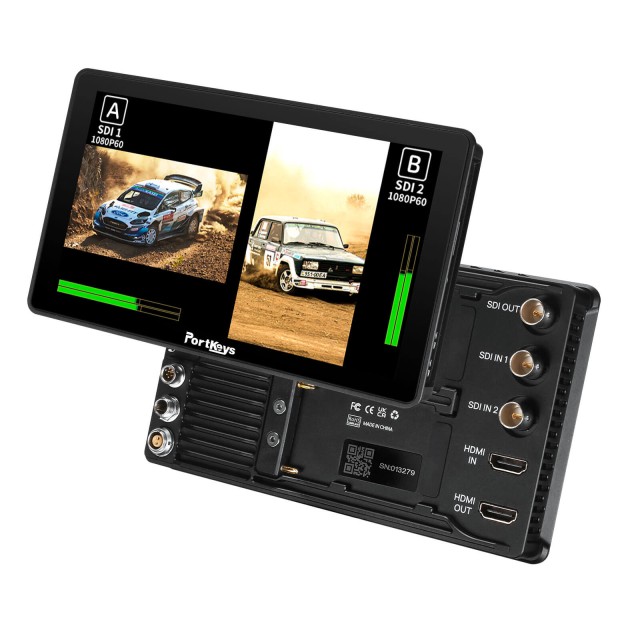

Two 3G-SDI Inputs and Split-Screen

A pair of 3G-SDI inputs allows you to monitor two sources simultaneously. An HDMI input and output, a 3G-SDI output, and HDMI-to-SDI conversion are also available. Custom 3D LUTs can also be applied to the SDI output signal.

PortKeys BM7 II DS

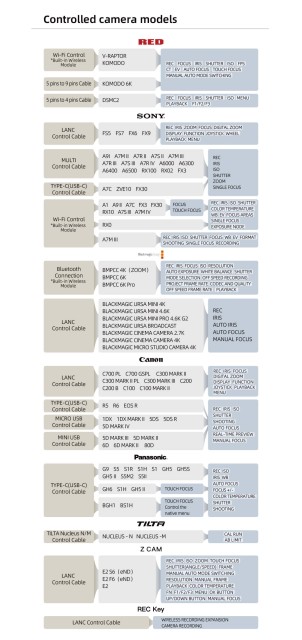

Wireless and Wired Camera Control

Built-in Wi-Fi supports RED KOMODO and V-RAPTOR; select Sony cameras can also be controlled wirelessly, and Blackmagic Design cameras via Bluetooth. Optional cables extend support to RED DSMC2/3, Canon, Panasonic, Z CAM, and other models.

PortKeys BM7 II DS

Control of Tilt Focus Motors

A dedicated motor port allows for wired control of the Tilta Nucleus-N and Nucleus-M systems. A focus scale can also be displayed on the screen, simplifying the focus puller’s workflow.

PortKeys BM7 II DS

Complete Set of Monitoring Tools

The BM7 II DS offers waveform, vectorscope, histogram, zebra, peaking, ARRI and custom False Color, anamorphic de-squeeze, zoom, custom reference JPG, 3D LUT, audio meters, and other CINENORM operating system tools.

Dual NP-F Power Supply with Hot-Swap Capability

Two Sony NP-F battery slots support hot-swapping; a single battery is sufficient for full operation. External power supply (7.4–24 V) is available via a 2-pin LEMO connector and a lockable 5.5 × 2.1 mm connector. Power consumption is a maximum of 15 W.

PortKeys BM7 II DS

PACKAGE CONTENT

  • 1× PortKeys BM7 II DS monitor
  • 1× BM7IIDS sunshade
  • 1× screw-in DC power cable
  • 1× safety box
  • 1× micro USB flash drive
  • 1× Y-type wrench
  • 1× L-type antenna
  • 1× left and 1× right protective rubber cover

SPECIFICATIONS

  • Display: 7", touchscreen, 10-bit (8+2 FRC)
  • Resolution: 1920 × 1080
  • Brightness: 2200 nits
  • Contrast: 1000:1
  • Colour gamut: 100% Rec.709, 85% DCI-P3
  • Viewing angle: 85 / 85 / 85 / 85°
  • Inputs: 2× 3G-SDI, 1× HDMI
  • Outputs: 1× 3G-SDI, 1× HDMI
  • Conversion: HDMI to SDI

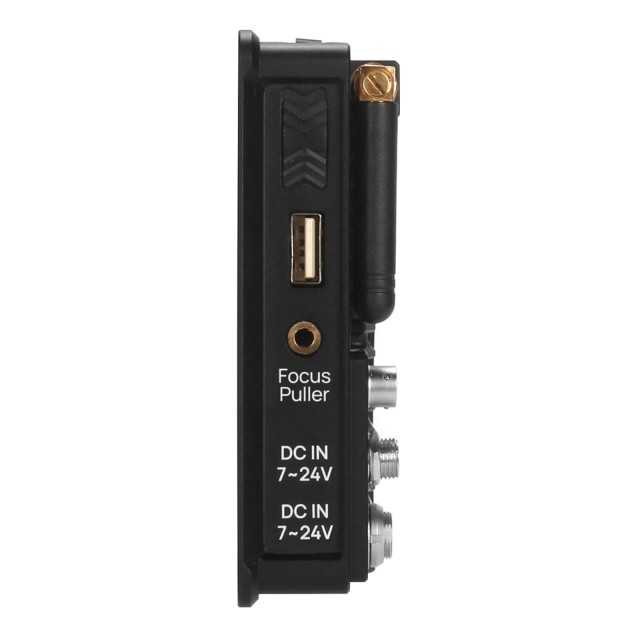

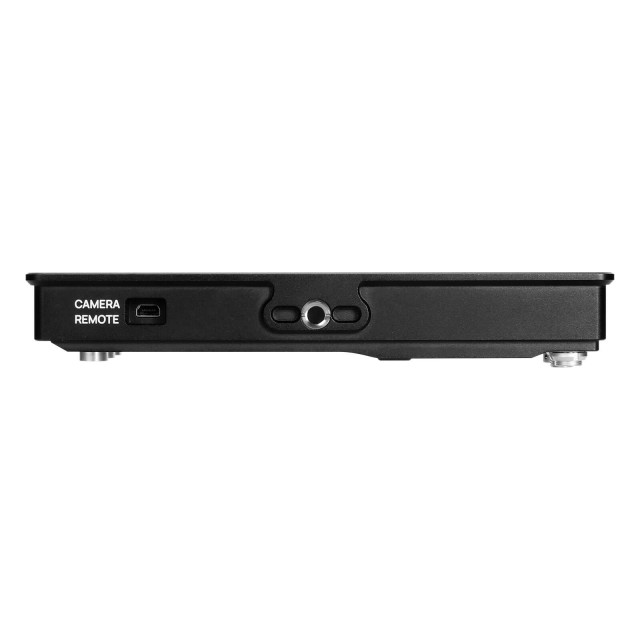

  • Camera control: Focus Puller / CAMERA REMOTE port, 2.4 GHz antenna
  • USB: USB-A for firmware and 3D LUTs
  • Audio: 3.5 mm headphone output
  • Power: 2× Sony NP-F (F970 / F960 / F750 / F550), 2-pin LEMO 7.4–24 V, DC 5.5 × 2.1 mm
  • Power draw: 15 W max
  • Cooling: built-in fan
  • Dimensions: 179.3 × 106.8 × 31 mm
  • Weight: 460 g
  • Material: aluminium alloy

WE RECOMMEND

The PortKeys BM7 II DS is a professional 7-inch monitor with an extreme brightness of 2,200 nits, featuring integrated camera control functions and extensive HDMI/SDI connectivity. For maximum efficiency during filming, it is essential to equip the monitor with the right power cables, control interfaces, and protective accessories for use in challenging lighting conditions.

Power Supplies and Adapters - Accessories to ensure a stable power supply to the monitor from various sources, including D-Tap and AC adapters.

Camera Control and Modules - Cables and modules that allow you to use the monitor’s advanced features for remote control of camera settings.

Video cables - High-quality HDMI cables with high-resolution support for reliable signal transmission to the monitor.

Protection and Ergonomics - Accessories for screen protection and improved monitor handling during production.

Parameters

Parameters

Manufacturer: PortKeys
Category: Camera monitors

Main parameters

Size7"
Monitor inputsHDMI · 3G-SDI
Luminosity2200cd/m2
Panel resolution1920x1080
Monitor power supplySony NP-F · DC 7-24V

Other parameters

Other featuresTouchscreen · Camera control · 3D LUT correction · Wireless · Multiview · 10-bit IPS
High Brightness (NITS)Yes
