Lilliput RM-0208S 8× 2" 1RU Rackmount Monitor with 3G-SDI

With eight 2″ monitors in a 1U rack-mountable chassis, the Lilliput RM-0208S is designed for monitoring multiple 3G-SDI sources in a compact form factor – in OB trucks, live broadcasts and on site. Each display has its own 3G-SDI input with equalization and re-clocking plus a loop output for further devices. UMD, time code and audio meter are set via software…

More information

1 819 € with VAT 1 503.31 € without VAT
-+
Availability
14-30 days
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

With eight 2″ monitors in a 1U rack-mountable chassis, the Lilliput RM-0208S is designed for monitoring multiple 3G-SDI sources in a compact form factor – in OB trucks, live broadcasts and on site. Each display has its own 3G-SDI input with equalization and re-clocking plus a loop output for further devices. UMD, time code and audio meter are set via software over RS422.

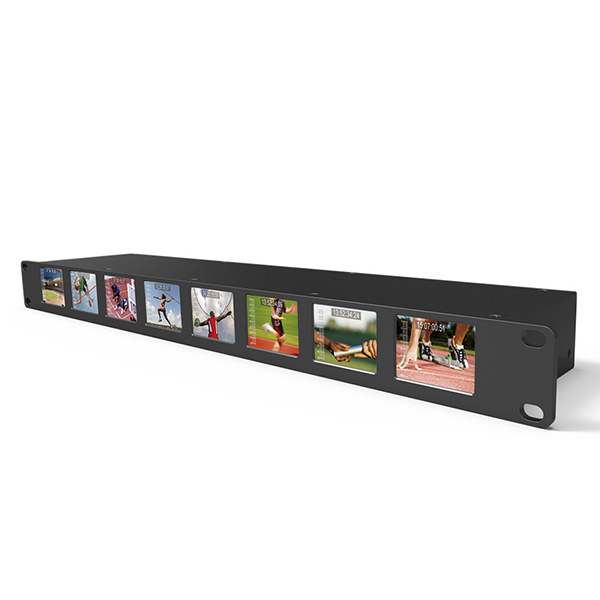

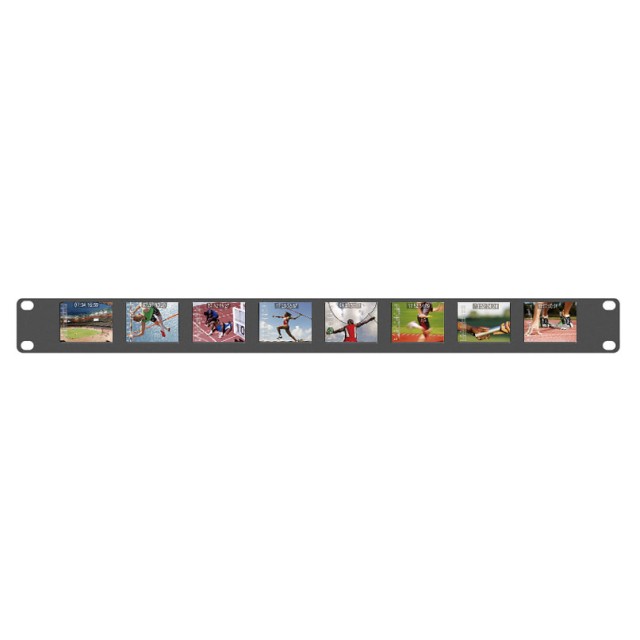

Eight SDI previews in a single rack unit

Eight 2" displays with 3G-SDI loop outputs for an overview of every source in the control room or OB van.

Lilliput RM-0208S
8× 2" displays8× 3G-SDIEqualization & re-clockingUMD & time code1U rackmount

RS422 smart control

With the relevant software you set the functions of each monitor from a laptop, PC or Mac – UMD, audio level meter and time code – and can even control multiple monitors at the same time.

Equalization & re-clocking

Every SDI input features signal equalization and re-clocking.

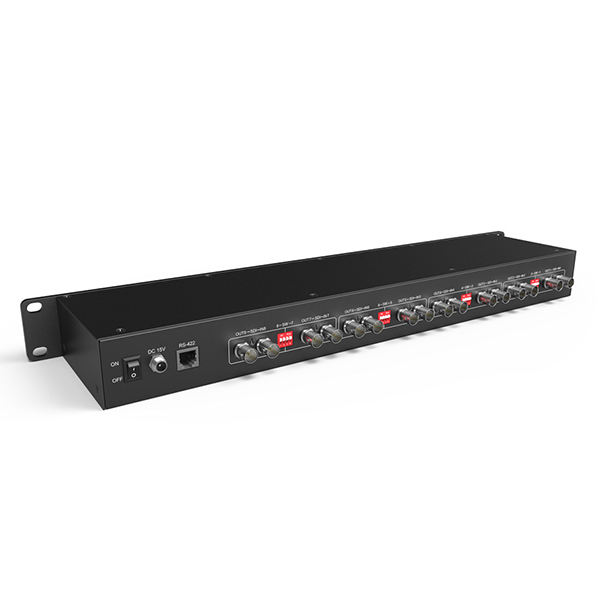

Loop outputs

Eight 3G-SDI outputs pass the signals on to other devices.

UMD & time code

32-character source names, time code and audio meter.

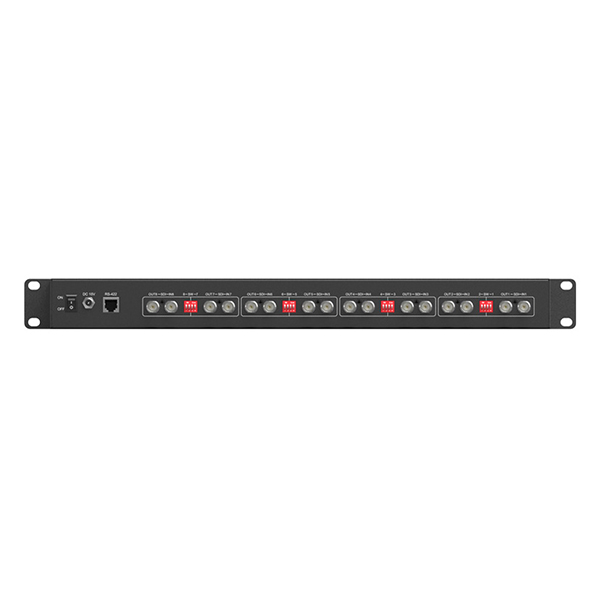

DIP switches

Time code and audio meter can also be enabled by rear switches.

Lilliput RM-0208S – infographic 1Lilliput RM-0208S – infographic 2Lilliput RM-0208S – infographic 3Lilliput RM-0208S – infographic 4Lilliput RM-0208S – infographic 5

More information

About the monitor

With eight 2" monitors in a 1U chassis, the RM-0208S is designed for monitoring multiple 3G-SDI sources within a compact form factor, suiting it for mobile trucks, live broadcasts and on-site use. Each LCD screen has a resolution of 640 × 240 and features SDI equalization and re-clocking, and the monitor offers a 3G-SDI output for each display.

It supports various mounting methods for broadcast, on-site monitoring and live broadcast vans, and rack monitors can be combined into a video wall in the control room to see all scenes at once.

PACKAGE CONTENT

  • 1× monitor Lilliput RM-0208S
  • 1× 15 V DC power adapter
  • 1× driver CD
  • 1× user manual

SPECIFICATIONS

  • Brand: Lilliput
  • Model: RM-0208S
  • Display: 8× 2"
  • Resolution: 640 × 240 (per display), 4:3
  • Brightness: 250 cd/m²
  • Contrast: 300:1
  • Viewing angle (H/V): 80° / 70°
  • Video inputs: 8× 3G-SDI
  • Video outputs: 8× 3G-SDI (loop)
  • SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
  • Audio: SDI 12 ch 48 kHz/24-bit
  • Remote control: RS422
  • Functions: SDI equalization and re-clocking, UMD (32 half-width characters), time code, audio level meter, DIP switches
  • Power: DC 12–24 V
  • Power consumption: ≤ 23 W
  • Operating temperature: -20 to 60 °C
  • Storage temperature: -30 to 70 °C
  • Dimensions (L × W × D): 482.5 × 105 × 44 mm
  • Weight: 1,555 g
  • Mounting: 1U 19" rack
Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Supported video signal modes (resolution / frame rate)1080i up to 60i · 1080p up to 60p · 720p up to 60p
Size2"
Monitor inputs3G-SDI · SDI
Luminosity250cd/m2
Panel resolution640x240
Monitor power supplyDC 12–24 V

Other parameters

Other featuresRack-mountable
High BrightnessNo
