TVLogic R-5T Rackmount LCD Monitors

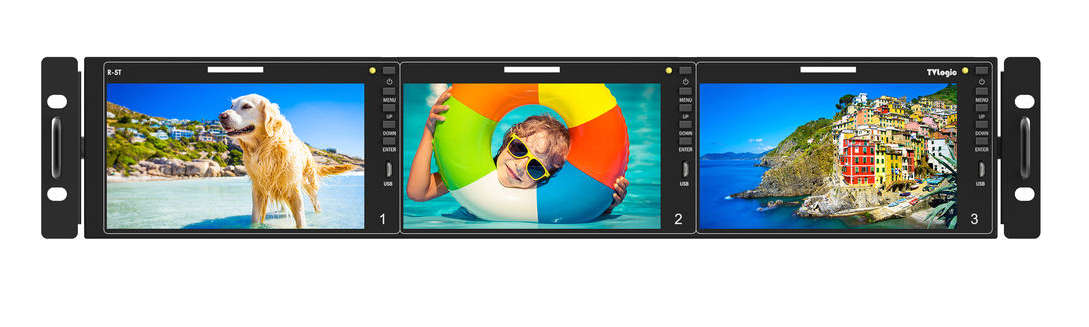

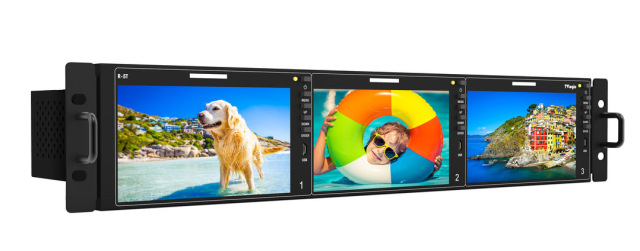

The TVLogic TVL-R-5T is a professional 2U rackmount kit featuring three 5.5" Full HD monitors with 12G-SDI, 3G-SDI, and HDMI 1.3 inputs. Each monitor delivers crisp 1920 x 1080 resolution at up to 500 cd/m² brightness, with advanced video tools including waveform, vectorscope, timecode display, and audio level monitoring for precise multi-camera setups.

The TVLogic TVL-R-5T 3 x 5.5" Rackmount LCD Monitors provide a compact, high-performance solution for multi-camera monitoring in broadcast, production, or post-production environments. Each of the three 5.5" monitors features Full HD resolution (1920 x 1080) with up to 500 cd/m² brightness and 1000:1 contrast, offering clear and accurate image monitoring. Supporting multi-format inputs, including 12G-SDI, 3G-SDI, and HDMI 1.3, the monitors handle video up to UHD 4K.

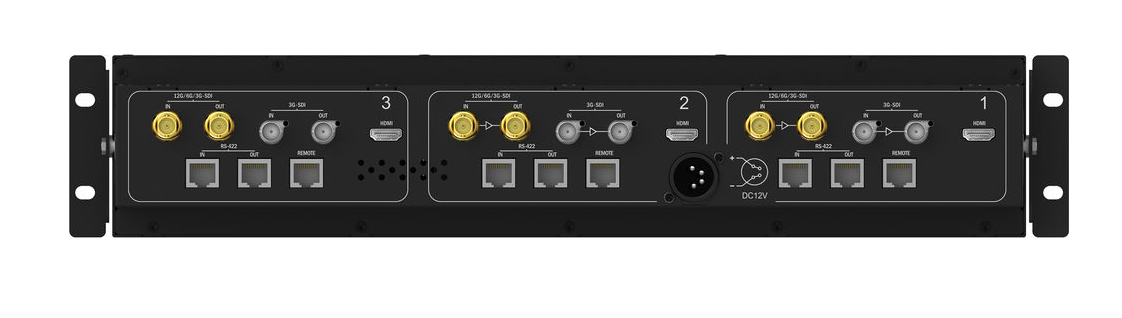

The TVL-R-5T comes with advanced monitoring tools for professional use, including waveform, vectorscope, blue-only, focus assist, pixel-to-pixel zoom, H/V delay, and image flip. Additional features such as timecode display, UMD, and audio level metering enable precise and synchronized monitoring of multiple feeds. The monitors are controlled via RS-422, GPI, and Micro-USB firmware inputs, while each unit fits neatly into a 2U rack form factor for space-efficient deployment. This rackmount solution is ideal for OB vans, live productions, or studio environments where multiple feeds require simultaneous monitoring.

Key Features

• Three 5.5" Full HD 1920 x 1080 LCD monitors in a 2U rackmount configuration

• Supports 12G-SDI, 3G-SDI, and HDMI 1.3 inputs

• Maximum brightness: 500 cd/m²; contrast ratio: 1000:1

• Professional video tools: waveform, vectorscope, pixel-to-pixel zoom, H/V delay, blue-only, focus assist

• Timecode display, UMD, and audio level meter for multi-feed monitoring

• Control via RS-422, GPI, and Micro-USB firmware

• Compact and lightweight (6.31 lb / 2.86 kg) for easy rack integration
