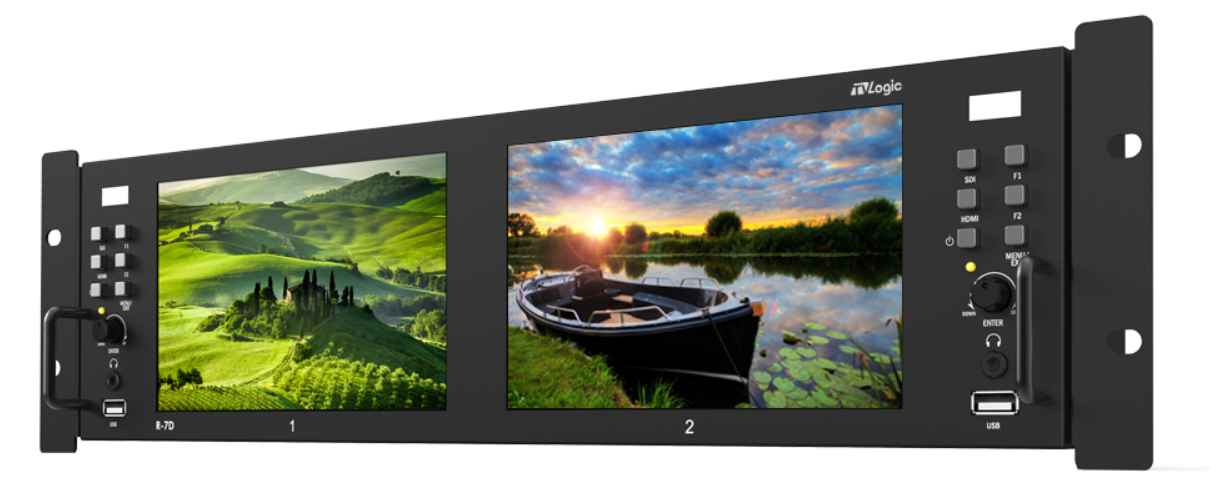

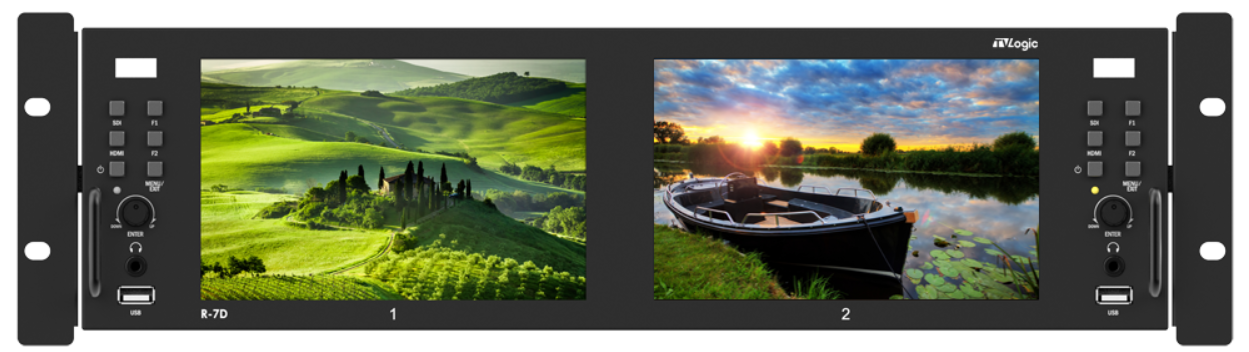

TVLogic R-7D rack-mount monitor

The TVLogic TVL-R-7D is a dual 7-inch Full HD rack-mount monitor featuring advanced 12G-SDI input/output support. It delivers precise HDR emulation, extensive monitoring tools, and customizable 3D LUTs, ideal for professional broadcast and production environments requiring high-performance multi-screen monitoring.

Designed for demanding broadcast and production workflows, the TVLogic TVL-R-7D combines two 7-inch Full HD LCD screens into a compact rack-mount form factor. Equipped with versatile 12G/6G/3G-SDI inputs and outputs, this monitor supports high-bandwidth 4K signals and seamless switching between formats. The R-7D offers advanced HDR emulation including PQ, HLG, and S-Log3, enabling accurate real-time visualization of HDR content.

The monitor supports custom 3D LUT imports via USB flash drive and includes a variety of built-in camera LUTs to match your shooting profile. For comprehensive image analysis, it features waveform and vectorscope displays, 16-channel audio level meters, focus assist, luma zone checks, and tally indicators. Dynamic UMD, timecode display, and marker overlays help streamline live production management.

The compact and robust design fits easily into standard rack systems, making the R-7D a versatile choice for live broadcast trucks, post-production suites, and studio monitoring setups.

Key Features:

• Dual 7” Full HD LCD screens

• 12G/6G/3G-SDI input and output support for high-bandwidth video signals

• HDR emulation with PQ, HLG, and S-Log3 profiles

• Custom 3D LUT import via USB flash drive

• Built-in camera LUTs for quick calibration

• Waveform and vectorscope for accurate video analysis

• 16-channel audio level meter

• Markers, tally indicators, and dynamic UMD for live production

• Timecode display and focus assist functions

• Luma (Y’) zone check and 1:1 scan/zoom modes

• Blue/Mono only and H/V delay options
