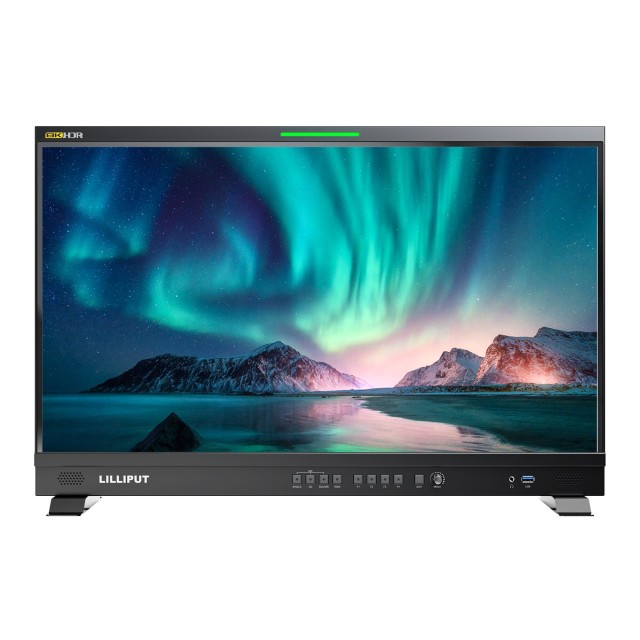

Lilliput Q28 8K

Lilliput Q28-8K is a 28″ production monitor with a 3840 × 2160 resolution that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It also has HDMI 2.0, a slot for a 12G SFP+ optical module, loop outputs, HDR, 3D LUTs, quad split and remote control via LAN, RS422 and GPI.

More information

2 669 € with VAT 2 205.79 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Lilliput Q28-8K is a 28″ production monitor with a 3840 × 2160 resolution that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It also has HDMI 2.0, a slot for a 12G SFP+ optical module, loop outputs, HDR, 3D LUTs, quad split and remote control via LAN, RS422 and GPI.

8K over four 12G-SDI on a 28″ panel

Lilliput Q28-8K combines four 4K 60p signals into one 8K 60p picture and adds HDMI 2.0, 12G SFP+ optical input and a set of tools for checking picture and sound.

Lilliput Q28-8K
28″3840 × 2160300 cd/m²4× 12G-SDIHDMI 2.090% DCI-P3

Four 4K signals, one 8K picture

Quad-link 12G-SDI to ST 2082-12 combines four 4K 60p signals into one 8K 60p picture; a single 12G-SDI cable (ST 2082-10) carries 4K 60p.

Colour calibration

Colour space 90% DCI-P3, selectable Rec.709, NTSC and DCI-P3, support for ColourSpace CMS PRO/LTE.

3D LUT

17 default and 6 user LUTs for log footage from common cameras.

Quad split

Four inputs on one screen, marked by coloured borders.

Remote control

Application via LAN or RS422, RS422 in/out for synchronising several monitors.

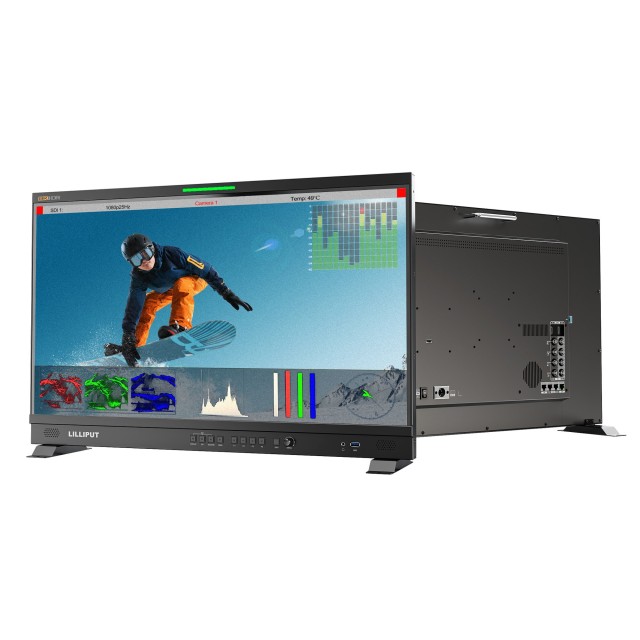

Tools for checking picture and sound

Waveform, vectorscope, histogram, false color, exposure, focus peaking, check field, colour bars, pixel to pixel and zoom, markers, image freeze and H/V delay. For sound there are audio meters and audio vector (Lissajous), plus timecode and UMD. Buttons F1–F4 take your favourite functions, and the dial adjusts sharpness, saturation, tint and volume.

Lilliput Q28-8K – Tools for checking picture and sound

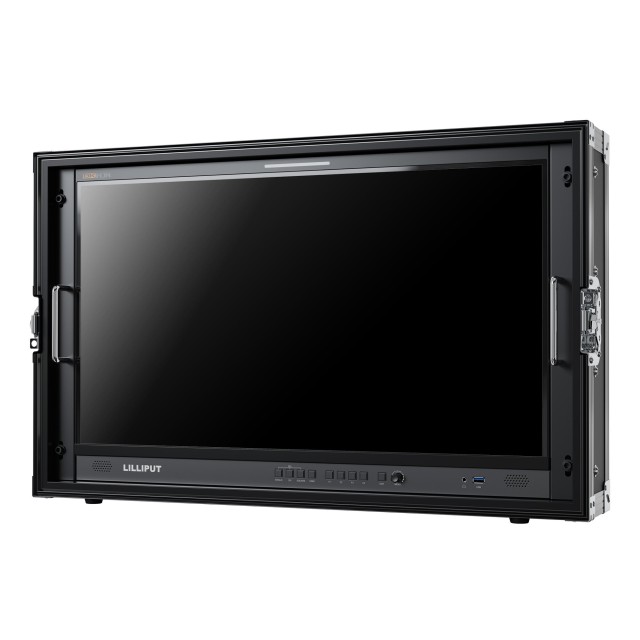

Base, VESA and carrying case

The monitor stands on a base or mounts on an arm or wall via the VESA 75/100 mm holes. A carrying case is available for location work. With quad split it watches several cameras at once in the control room and on set.

Lilliput Q28-8K – Base, VESA and carrying case

Control via LAN, RS422 and GPI

The monitor connects to a computer via LAN or RS422 and is controlled by an application; RS422 in and out allow several monitors to be controlled in sync. Before control, select the LAN or RS422 port in the user interface so that the application can identify the monitor. Power is 12–24 V DC.

Lilliput Q28-8K – Control via LAN, RS422 and GPI

Connectors on the back

The numbers in the picture match the legend below it.

Lilliput Q28-8K – Connectors on the back

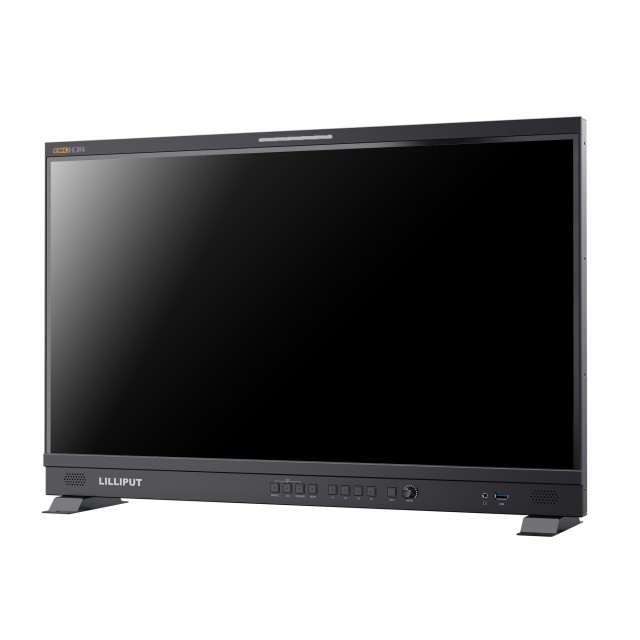

Views and mounting options

The base comes with the monitor; the other mounting methods are optional accessories.

Lilliput Q28-8K – Views and mounting options

More information

Lilliput Q28-8K is a 28″ monitor with a 3840 × 2160 resolution and 300 nits of brightness that delivers a clean, detailed picture. It is designed for professionals and offers advanced connectivity: 4× 12G-SDI, 12G SFP+ and HDMI 2.0 inputs. Additional RS422, GPI and LAN ports make it easy to integrate into various setups. Quad view, 3D LUT, HDR, gamma, remote control and audio vector give precise control over the picture and let you adapt it to your own workflow.

Key features

  • 28″, 3840 × 2160, 300 nits
  • inputs: 4× 12G-SDI, 12G SFP+, HDMI 2.0
  • outputs: 4× 12G-SDI, HDMI 2.0
  • RS422, GPI, LAN
  • quad view, 3D LUT, HDR, gamma, remote control, audio vector and more

PACKAGE CONTENT

  • Lilliput Q28-8K monitor
  • Base (2 feet)

SPECIFICATIONS

  • Screen size: 28″
  • Resolution: 3840 × 2160
  • Aspect ratio: 16:9
  • Brightness: 300 cd/m²
  • Colour space: 90% DCI-P3
  • HDR: ST 2084, HLG
  • 3D LUT: 17 default and 6 user, .cube format
  • Calibration: Rec.709, NTSC, DCI-P3; ColourSpace CMS PRO/LTE
  • SDI inputs: 4× 12G-SDI (quad link 8K)
  • SFP: 1× 12G SFP+ (optical module optional)
  • HDMI input: 1× HDMI 2.0
  • SDI loop outputs: 4× 12G-SDI
  • HDMI loop output: 1× HDMI 2.0
  • Remote control: LAN, RS422 in/out, GPI
  • Power: DC 12–24 V
  • Functions: quad split, waveform, vectorscope, histogram, audio vector, audio meters, false color, exposure, focus peaking, check field, colour bars, pixel to pixel, markers, freeze, H/V delay, UMD, timecode
  • Mounting: VESA 75/100 mm, base; optional carrying case
  • Housing: metal
Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Size28"
Monitor inputs12G SDI · HDMI · HDMI 2.0 · LAN · SDI · SFP
Luminosity300cd/m2
Panel resolution3840x2160
Monitor power supplyDC 12–24 V

Other parameters

Other features3D LUT correction · HDR · Quad split
High BrightnessNo
