Lilliput Q31 8K

Experience unparalleled visual clarity with the Lilliput Q31 8K monitor. This professional grade display, catalog number Q31-8k, boasts stunning 8K resolution for incredibly detailed images and vibrant colors. Perfect for demanding creative workflows and immersive viewing, the Q31-8k delivers exceptional performance and precision for photographers, videographers, and content creators seeking the ultimate visual experience.

Lilliput Q31 8K Professional Broadcast Monitor

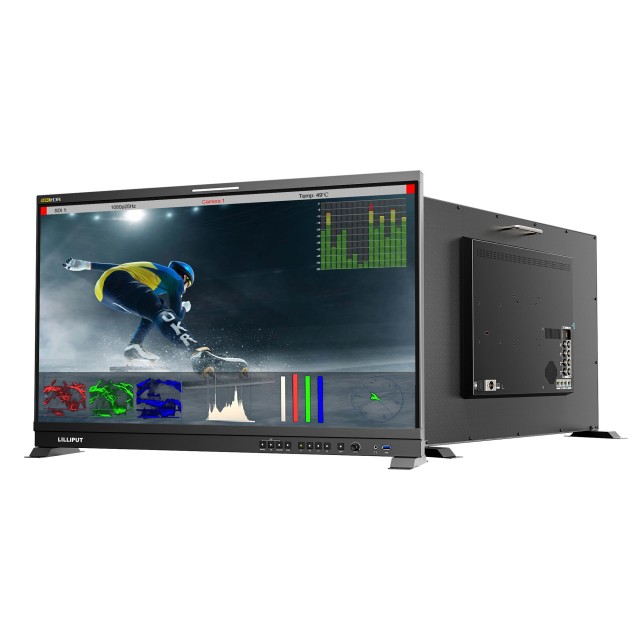

The Lilliput Q31 8K is a flagship production monitor designed for high-end broadcast and studio environments. It features a 31.5 inch display with a native resolution of 3840 x 2160 pixels, providing a sharp and detailed image suitable for critical monitoring tasks. The panel delivers a brightness of 350 cd/m² and a contrast ratio of up to 1300:1, ensuring excellent visibility and deep blacks even in challenging lighting conditions. The wide viewing angle of 178 degrees horizontally and vertically allows for consistent color and contrast across multiple viewing positions.

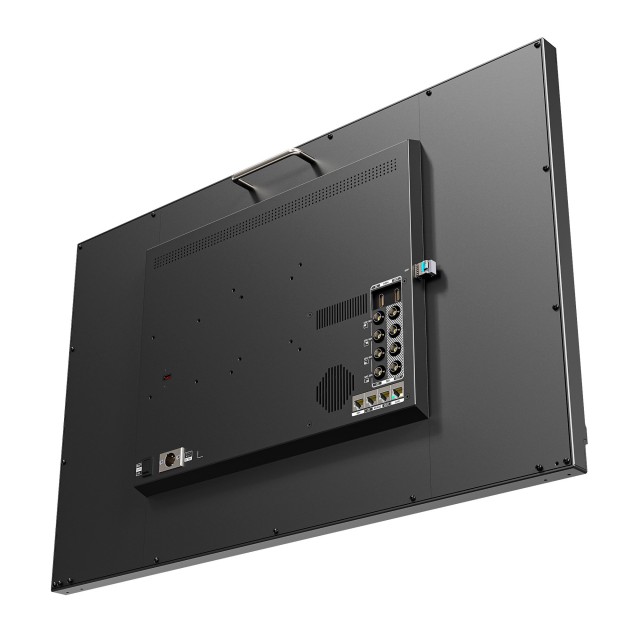

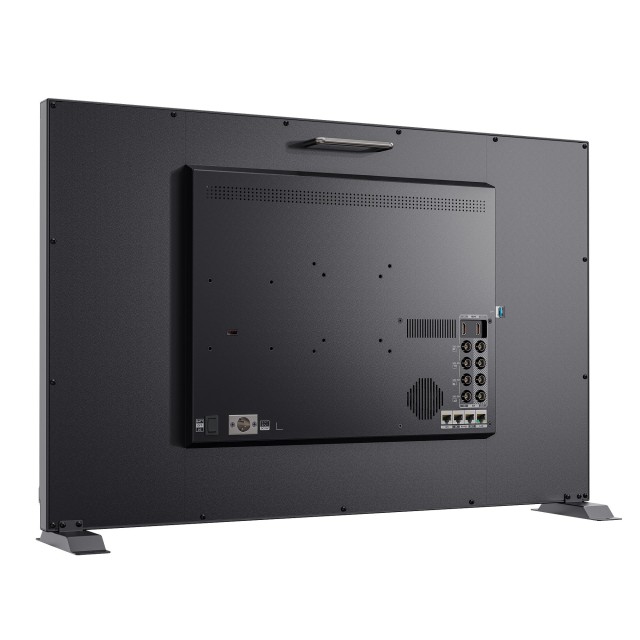

This monitor is engineered to support 8K video signals by combining four 4K 60Hz feeds via quad-link 12G-SDI, in compliance with the ST2082-12 video protocol. It also accepts HDMI 2.0 and 12G SFP+ inputs, making it compatible with a wide range of professional video sources. The monitor provides four 12G-SDI outputs and one HDMI 2.0 output for loop-through or daisy-chaining multiple displays. An integrated SFP+ cage allows for optional fiber connectivity, expanding its versatility in large-scale production setups.

The Q31 8K supports HDR formats including ST2084 and Hybrid Log Gamma, enabling accurate reproduction of high dynamic range content. It covers 90 percent of the DCI-P3 color space and supports standard color spaces such as Rec.709. The monitor allows loading of custom 3D LUTs in .cube format via a front panel USB port, giving users precise control over color grading and calibration. Preset log formats such as SLog2, SLog3, CLog, NLog, ArriLog, and JLog are also supported for direct compatibility with various camera systems.

Advanced monitoring tools are built into the monitor, including peaking, check field, image freeze, pixel-to-pixel, false color, exposure, histogram, timecode display, screen markers, and color space analysis. Four assignable front panel buttons allow quick access to essential monitoring functions, streamlining workflow during production. The monitor also features a dial for adjusting sharpness, saturation, tint, and volume, as well as options for image flip, picture-in-picture, and underscan.

For remote operation, the monitor supports LAN and RS422 control via discrete RJ45 connectors, enabling integration with computer applications and multi-monitor setups. Color calibration can be performed using an optional professional calibration software package to ensure display accuracy. The monitor includes a V-Mount or Gold Mount battery plate, allowing for portable operation in field environments.

The Q31 8K is housed in a durable metal chassis and comes with a carrying case for transport and protection. Its compact dimensions make it suitable for both studio and on-location use. The monitor is equipped with a 3.5mm headphone input for audio monitoring, and supports quad-split multiview mode with customizable borders for simultaneous display of multiple input signals.

• Screen Size: 31.5 inches
• Resolution: 3840 x 2160
• Aspect Ratio: 16:9
• Brightness: 350 cd/m²
• Contrast Ratio: 1200:1 to 1300:1
• Viewing Angle: 170° / 170° to 178° / 178°
• Color Space: Rec.709, DCI-P3 (90%)
• HDR Support: ST2084, HLG
• LUT Support: 3D LUT (.cube format)
• Video Inputs: 4x 12G-SDI, 1x HDMI 2.0, 1x SFP+ (12G-SDI)
• Video Outputs: 4x 12G-SDI, 1x HDMI 2.0
• Remote Control: LAN, RS422
• Battery Plate: V-Mount or Gold Mount
• Audio: 3.5mm Headphone Input
• Monitoring Tools: Peaking, False Color, Histogram, Timecode, Screen Markers, Color Space, Exposure, Image Freeze, Pixel-to-Pixel, Check Field
• Additional Features: Quad-Split Multiview, Picture-in-Picture, Underscan, Image Flip, Customizable Aspect Ratios

The Lilliput Q31 8K is a versatile and powerful solution for broadcast, studio, and field production, offering advanced connectivity, accurate color reproduction, and a comprehensive suite of monitoring tools for professional video workflows.
