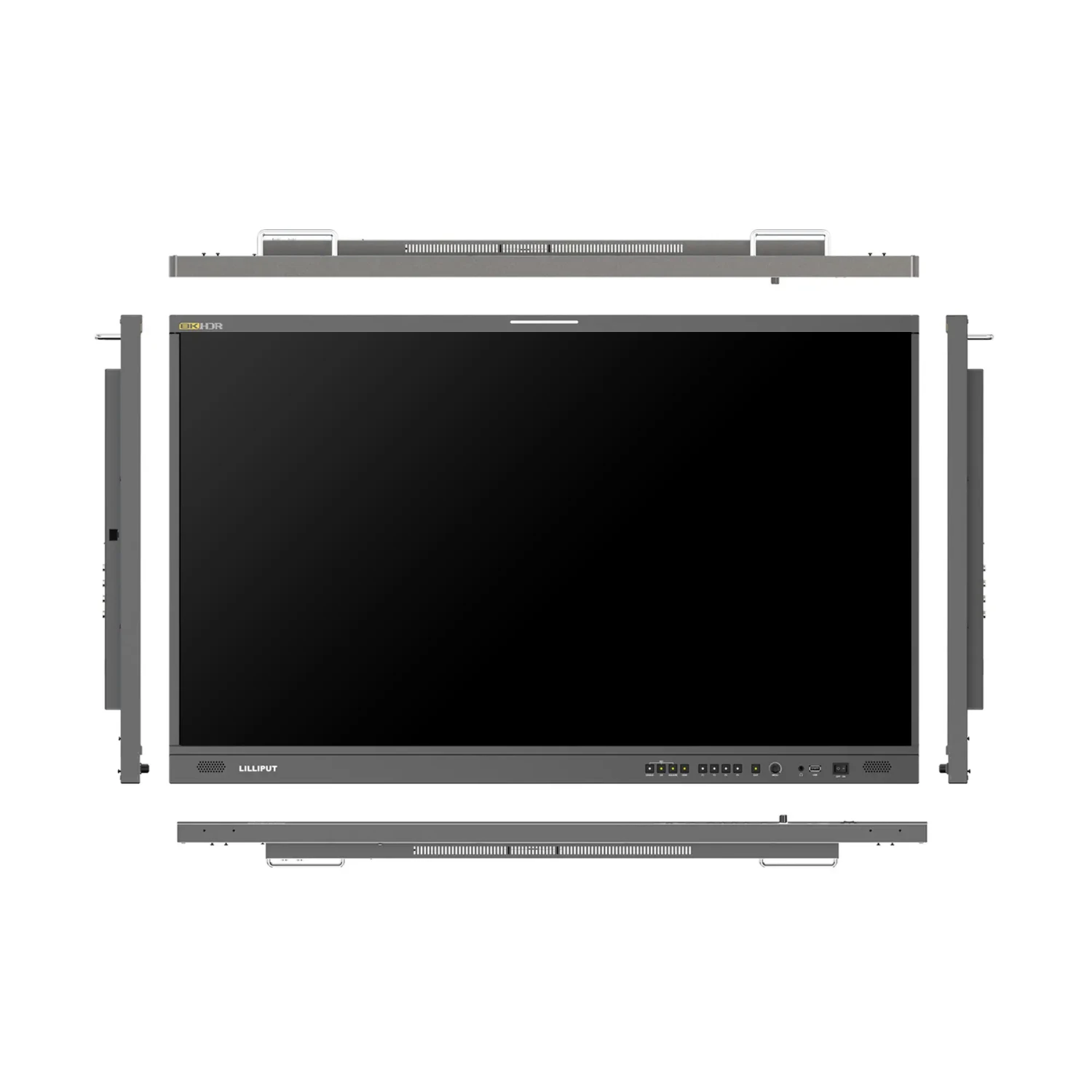

Lilliput Q43-8K is a 43″ production monitor with a 3840 × 2160 resolution and 400 cd/m² brightness that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It has HDMI 2.0, a 12G SFP+ slot, loop outputs, HDR, 3D LUTs, quad split and remote control, and suits control rooms, studios and the wall of an OB van.
Lilliput Q43-8K is a 43″ production monitor with a 3840 × 2160 resolution and 400 cd/m² brightness that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It has HDMI 2.0, a 12G SFP+ slot, loop outputs, HDR, 3D LUTs, quad split and remote control, and suits control rooms, studios and the wall of an OB van.
Lilliput Q43-8K combines four 4K 60p signals into one 8K 60p picture and adds HDMI 2.0, 12G SFP+ optical input and a set of tools for checking picture and sound.

Quad-link 12G-SDI to ST 2082-12 combines four 4K 60p signals into one 8K 60p picture; a single 12G-SDI cable (ST 2082-10) carries 4K 60p.
Colour space 100% Rec.709, selectable Rec.709, NTSC and DCI-P3, support for ColourSpace CMS PRO/LTE.
17 default and 6 user LUTs for log footage from common cameras.

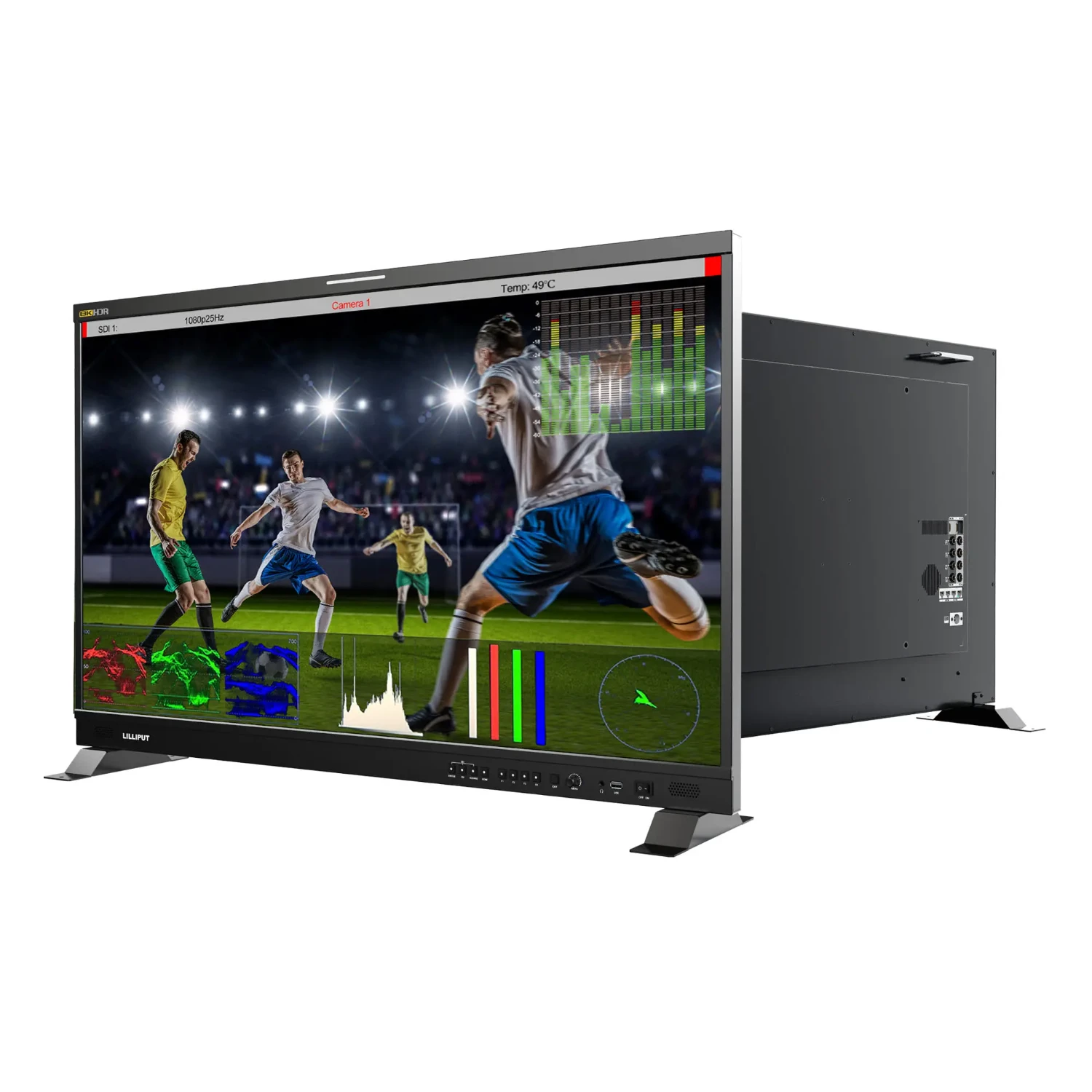

Four inputs on one screen, marked by coloured borders.
Application via LAN or RS422, RS422 in/out for synchronising several monitors.
Waveform, vectorscope, histogram, false color, exposure, focus peaking, check field, colour bars, pixel to pixel, markers, image freeze and H/V delay, and for sound audio meters and audio vector (Lissajous). Buttons F1–F4 take your favourite functions, and the dial adjusts sharpness, saturation, tint and volume.

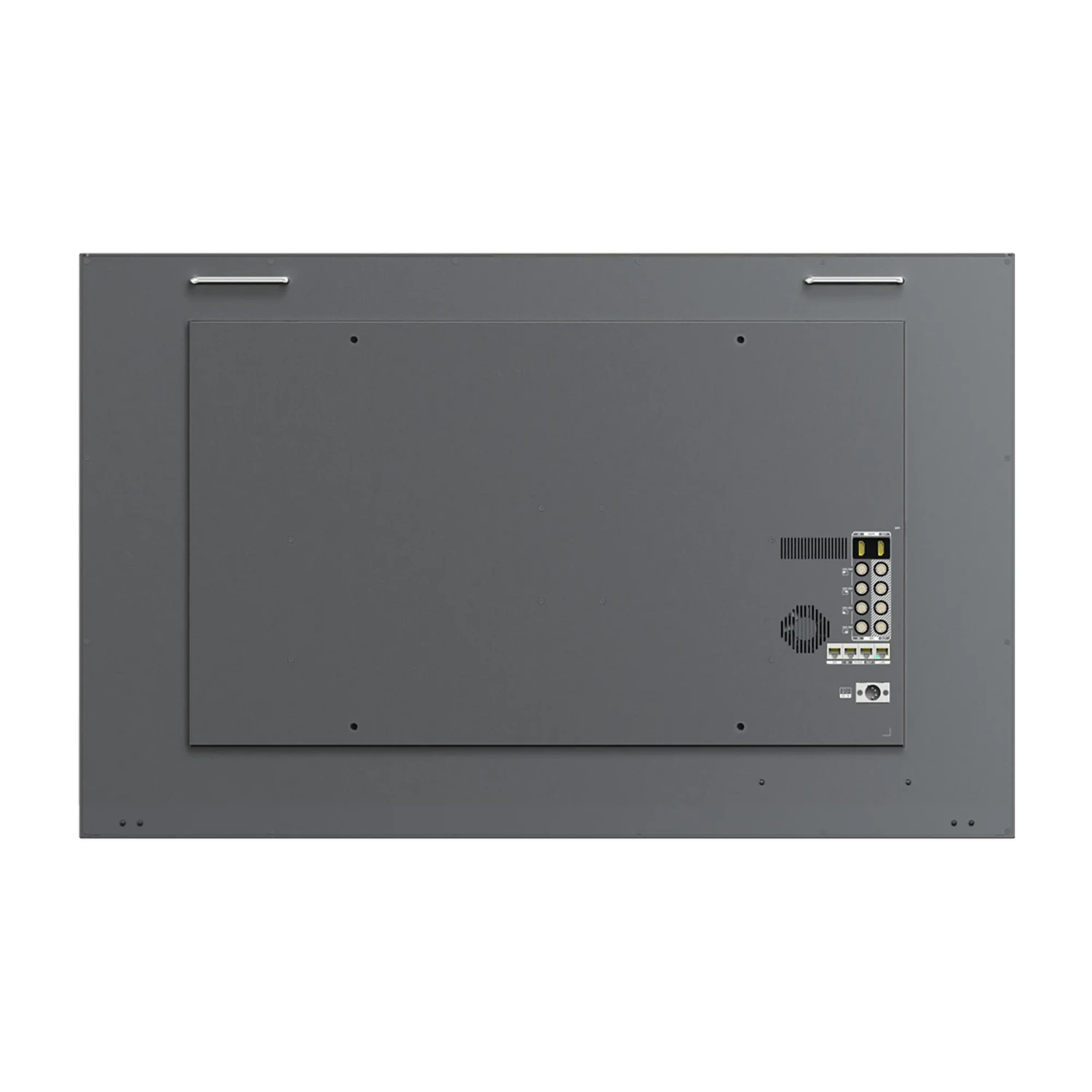

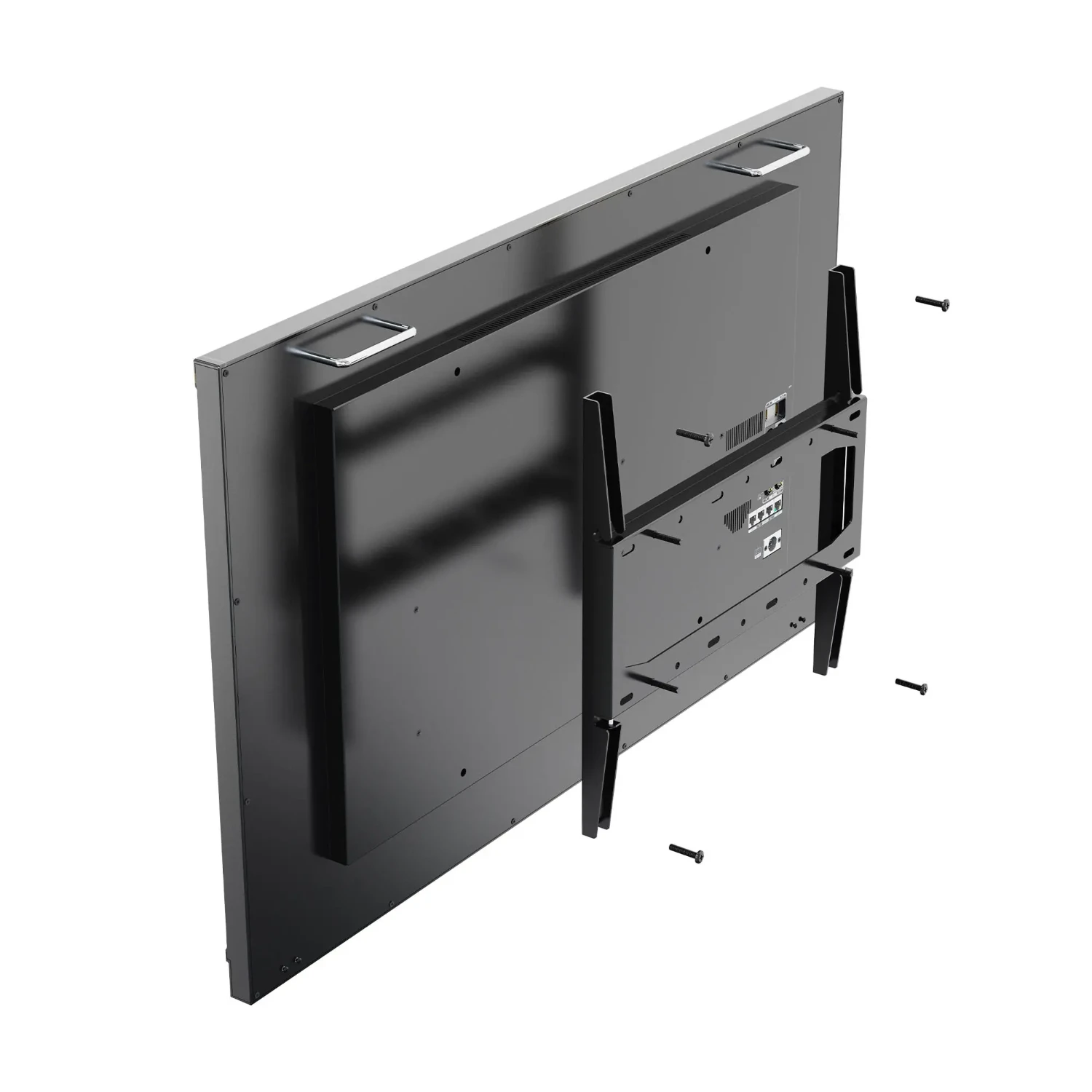

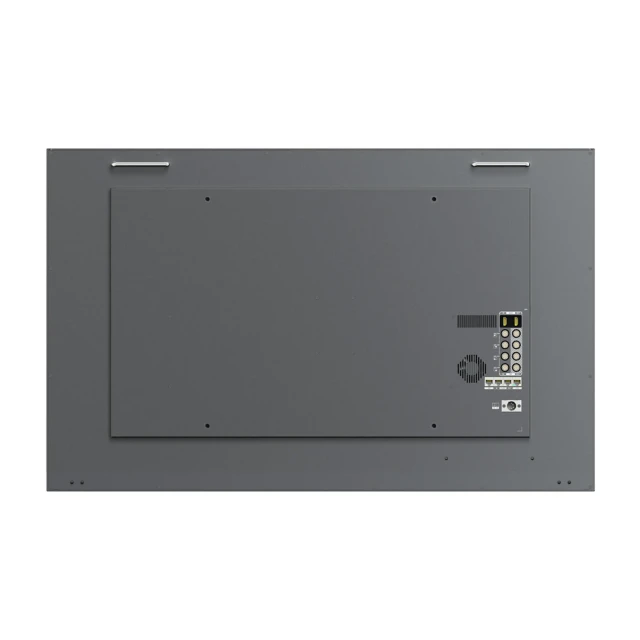

Wall mount holes and a base let you hang the 43″ monitor in the control room or stand it on a desk. The large screen shows a quad split of four cameras that the whole crew can read, and it also works as a preview monitor in the studio.

Four 12G-SDI inputs and loop outputs, HDMI 2.0 in and out, a 12G SFP+ slot for an optional optical module, LAN, RS422 in/out and GPI. 24 V DC power arrives via a 4-pin XLR from the supplied adapter.

The numbers in the picture match the legend below it.

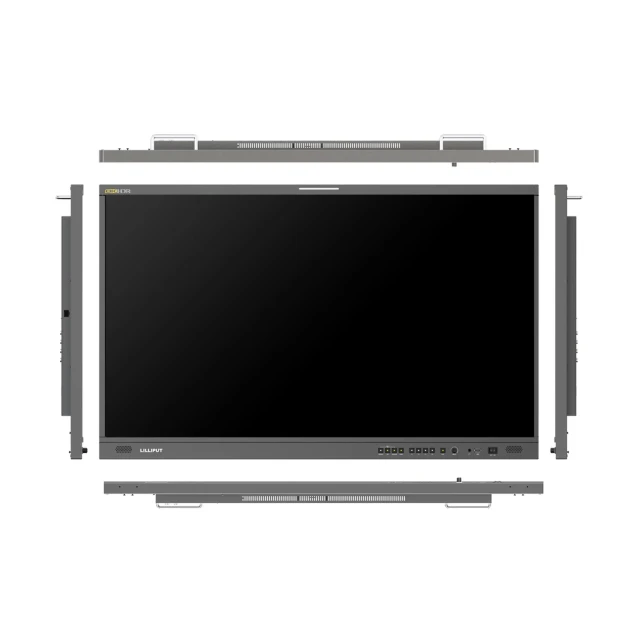

Lilliput Q43-8K is a professional 43″ 4K reference monitor for high-end studios, broadcast and live production. The 3840 × 2160 panel offers 400 cd/m² brightness, 1200:1 contrast, a 178° viewing angle and HDR (HLG and PQ ST 2084 300/1000/10000) with all major log profiles (SLog2/3, CLog, NLog, ArriLog, JLog). 8K ready: 4× 12G-SDI (quad link 8K60), optional 12G SFP+ optical input and HDMI 2.0 (4K60), all with loop outputs. Quad split shows four independent sources at once, marked by coloured borders. Tools include waveform, vectorscope, histogram, false color, exposure, focus peaking, audio vector and import of custom 3D LUTs (.cube via USB). Remote control via RS422 in/out, GPI or LAN allows several units to be daisy-chained and controlled centrally. The monitor in an aluminium chassis with wall mount holes runs on 24 V DC (≤ 77 W) and weighs 14.5 kg. It suits colourists, directors and live switcher operators working with signals from cameras such as ARRI Alexa, RED V-Raptor, Sony Venice or Blackmagic URSA.
Main features
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
| Size | 43" |
| Monitor inputs | 12G SDI · HDMI · HDMI 2.0 · LAN · SDI · SFP |
| Luminosity | 400cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | DC 24 V (XLR) |
| Other features | 3D LUT correction · HDR · Multiview · Quad split |
| High Brightness | No |
