Lilliput Q15 8K
SKU: Q15-8k
Lilliput Q15-8K is a 15.6″ production monitor with a 3840 × 2160 resolution that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It also has HDMI 2.0, a slot for a 12G SFP+ optical module, loop outputs, HDR, 3D LUTs, quad split and remote control via LAN, RS422 and GPI.
Promotion: -42% ends in: 27d: 17h: 40m
2 055.79 €
1 198.14 € with VAT
990.2 € without VAT
Personal pickup within 90 minutes
Shipment day: Today
Shipment day: Today
In stock 2 pcs
Praha 2 pcs
Praha 2 pcs
Top accessories for Lilliput Q15 8K
Infinitek L-4.5CHWS 1m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
15 €
In stock > 5 pcs
Infinitek L-4.5CHWS 3m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
23 €
In stock > 5 pcs
PremiumCord Ultra High Speed HDMI 2.1 cable 8K@60Hz, 4K@120Hz length 1.5m metallic gold plated connectors
High-end ULTRA HDMI 2.1 interconnect cable for the highest resolution 8K@60Hz and
9.3 €
In stock > 5 pcs
Infinitek L-4.5CHWS 2m FLEX 12G-SDI cable BNC-BNC
Canare L-4.5CHWS flexible and durable 75 ohm 4,2 mm "Low Loss" koaxial SD/HD/3G/12G-SDI
19 €
To be sent > 5 pcs
Lilliput 12 Gb/s Video SFP+ Optical Receiver
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI
252 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
Lilliput Q15-8K is a 15.6″ production monitor with a 3840 × 2160 resolution that accepts an 8K 60p signal through four 12G-SDI inputs in quad link. It also has HDMI 2.0, a slot for a 12G SFP+ optical module, loop outputs, HDR, 3D LUTs, quad split and remote control via LAN, RS422 and GPI.
8K over four 12G-SDI on a 15.6″ panel
Lilliput Q15-8K combines four 4K 60p signals into one 8K 60p picture and adds HDMI 2.0, 12G SFP+ optical input and a set of tools for checking picture and sound.
15.6″3840 × 2160600 cd/m²4× 12G-SDIHDMI 2.090% DCI-P3
Four 4K signals, one 8K picture
Quad-link 12G-SDI to ST 2082-12 combines four 4K 60p signals into one 8K 60p picture; a single 12G-SDI cable (ST 2082-10) carries 4K 60p.
Colour calibration
Colour space 90% DCI-P3, selectable Rec.709, NTSC and DCI-P3, support for ColourSpace CMS PRO/LTE.
3D LUT
17 default and 6 user LUTs for log footage from common cameras.
Quad split
Four inputs on one screen, marked by coloured borders.
Remote control
Application via LAN or RS422, RS422 in/out for synchronising several monitors.
Tools for checking picture and sound
Waveform, vectorscope, histogram, false color, exposure, focus peaking, check field, colour bars, pixel to pixel and zoom, markers, image freeze and H/V delay. For sound there are audio meters and audio vector (Lissajous), plus timecode and UMD. Buttons F1–F4 take your favourite functions, and the dial adjusts sharpness, saturation, tint and volume.

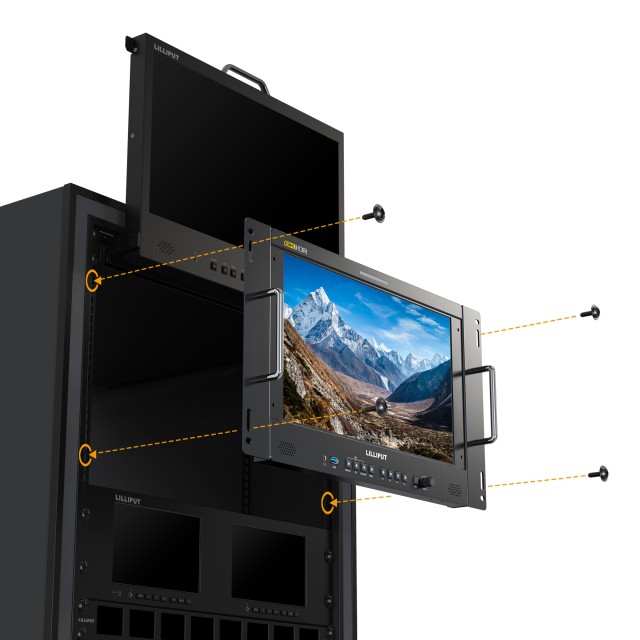

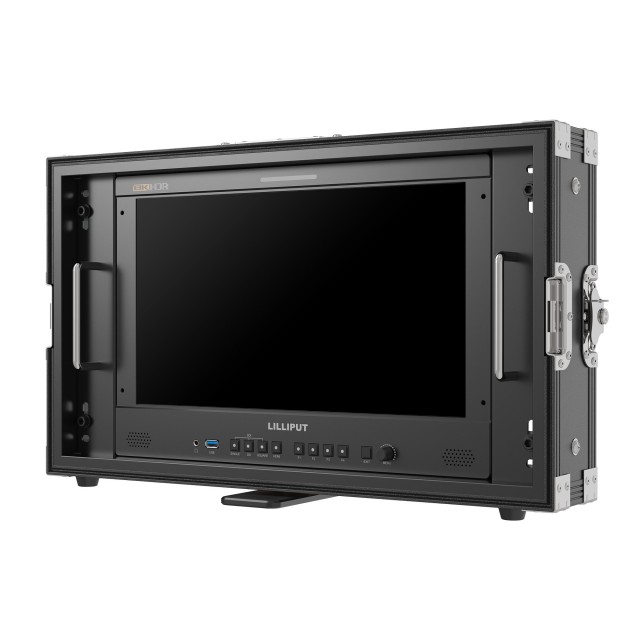

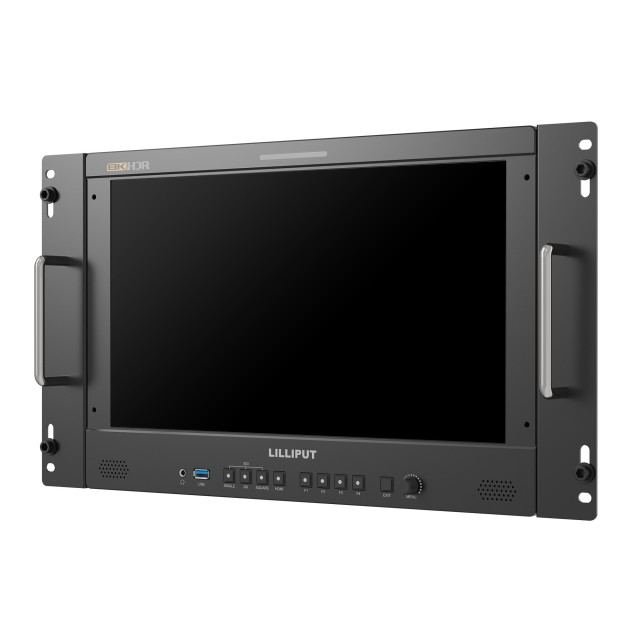

In a rack, on a gimbal bracket or in a case
The monitor stands on a base and its body can be built into a 19″ rack (optional brackets, height 267 mm), fixed in a gimbal bracket or mounted via the VESA 75/100 mm holes. It suits broadcast, on-set monitoring and OB vans, and with quad split it watches several cameras at once.
Control via LAN, RS422 and GPI
The monitor connects to a computer via LAN or RS422 and is controlled by an application; RS422 in and out allow several monitors to be controlled in sync. Before control, select the LAN or RS422 port in the user interface so that the application can identify the monitor. Power is 12–24 V DC.

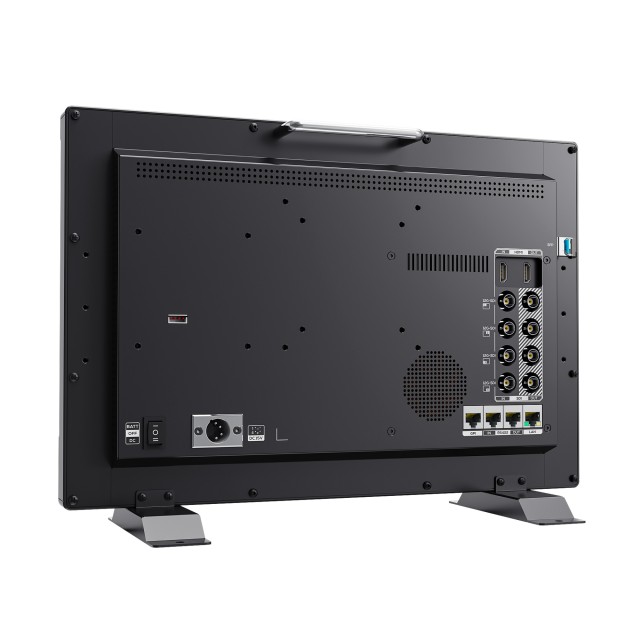

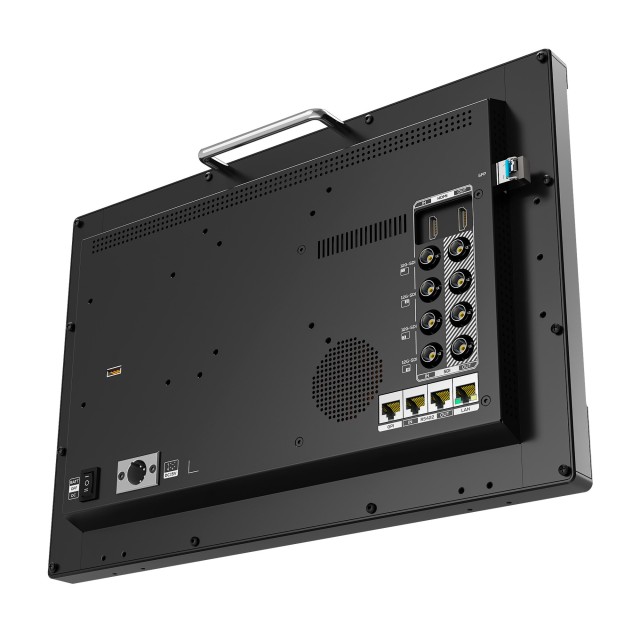

Connectors on the back
The numbers in the picture match the legend below it.

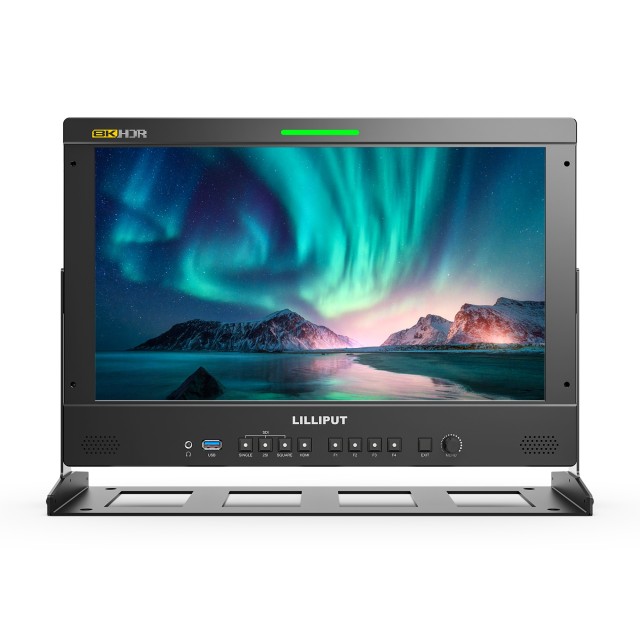

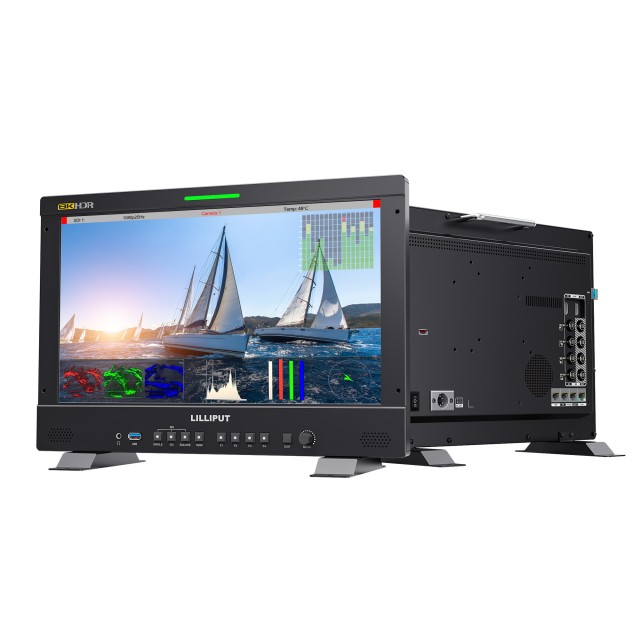

Views and mounting options
The base comes with the monitor; the other mounting methods are optional accessories.
More information
Lilliput Q15-8K is a 15.6″ monitor with a 3840 × 2160 resolution and 600 nits of brightness that delivers a clean, detailed picture. It is designed for professionals and offers advanced connectivity: 4× 12G-SDI, 12G SFP+ and HDMI 2.0 inputs. Additional RS422, GPI and LAN ports make it easy to integrate into various setups. Quad view, 3D LUT, HDR, gamma, remote control and audio vector give precise control over the picture and let you adapt it to your own workflow.
Key features
- 15.6″, 3840 × 2160, 600 nits
- inputs: 4× 12G-SDI, 12G SFP+, HDMI 2.0
- outputs: 4× 12G-SDI, HDMI 2.0
- RS422, GPI, LAN
- quad view, 3D LUT, HDR, gamma, remote control, audio vector and more
PACKAGE CONTENT
- Lilliput Q15-8K monitor
- Base (2 feet)
SPECIFICATIONS
- Screen size: 15.6″
- Resolution: 3840 × 2160
- Aspect ratio: 16:9
- Brightness: 600 cd/m²
- Colour space: 90% DCI-P3
- HDR: ST 2084, HLG
- 3D LUT: 17 default and 6 user, .cube format
- Calibration: Rec.709, NTSC, DCI-P3; ColourSpace CMS PRO/LTE
- SDI inputs: 4× 12G-SDI (quad link 8K)
- SFP: 1× 12G SFP+ (optical module optional)
- HDMI input: 1× HDMI 2.0
- SDI loop outputs: 4× 12G-SDI
- HDMI loop output: 1× HDMI 2.0
- Remote control: LAN, RS422 in/out, GPI
- Power: DC 12–24 V
- Functions: quad split, waveform, vectorscope, histogram, audio vector, audio meters, false color, exposure, focus peaking, check field, colour bars, pixel to pixel, markers, freeze, H/V delay, UMD, timecode
- Mounting: VESA 75/100 mm, base; optional rack (height 267 mm), gimbal bracket
- Housing: metal
Parameters
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 15.6" |
| Monitor inputs | HDMI · SDI · 12G SDI · SFP · HDMI 2.0 · LAN |
| Luminosity | 600cd/m2 |
| Panel resolution | 3840x2160 |
| Monitor power supply | DC 12–24 V |
Other parameters
| Other features | Quad split · HDR · Rack-mountable · 3D LUT correction |
| High Brightness | No |
