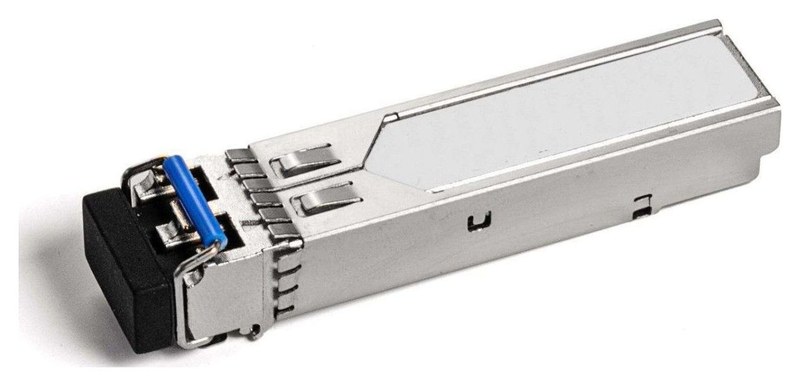

Lilliput 12 Gb/s Video SFP+ Optical Receiver
SKU: 12G-SFP-LC-RX
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI signal from optical fibre and converts it back to an electrical signal. It supports SD, HD, 3G, 6G and 12G-SDI including pathological patterns and, paired with the matching transmitter, carries video over single-mode fibre at 11.88 Gb/s for up to 6.2 miles (10 km) – 4K60 inc…
252 € with VAT
208.26 € without VAT
Availability
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput 12G-SFP-LC-RX optical receiver is an SFP+ module that accepts an SDI signal from optical fibre and converts it back to an electrical signal. It supports SD, HD, 3G, 6G and 12G-SDI including pathological patterns and, paired with the matching transmitter, carries video over single-mode fibre at 11.88 Gb/s for up to 6.2 miles (10 km) – 4K60 included.
12G-SDI from optical fibre, up to 6.2 miles

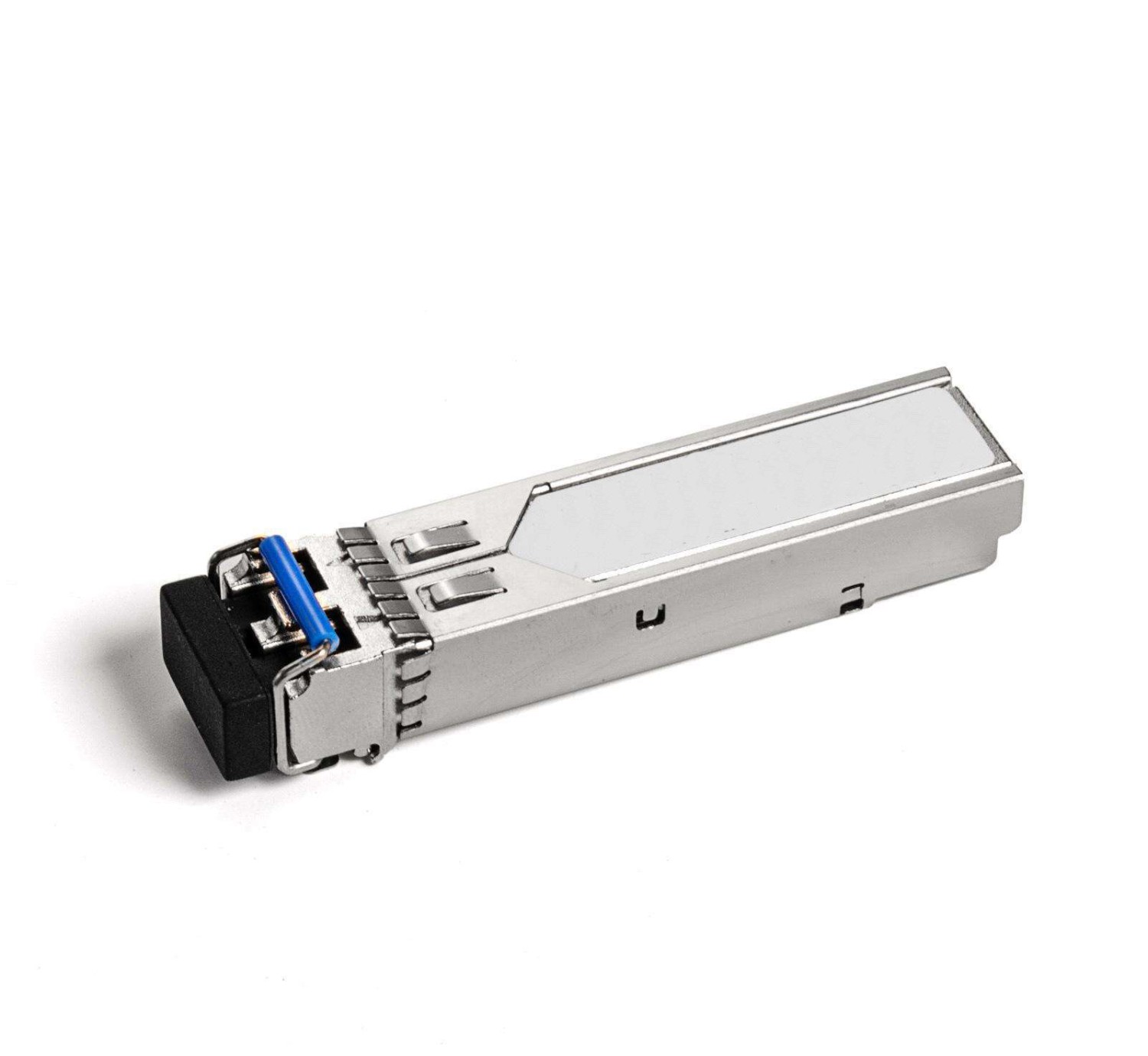

A hot-pluggable SFP+ module with an LC connector and a PIN photodiode that converts optical signals up to 12G-SDI back to electrical – for 4K60 over long distances.
SFP+ · LCSD to 12G-SDIup to 11.88 Gb/sup to 6.2 miles4K60
4K60 over a single fibre
Paired with an optical transmitter, it carries signals up to 12G-SDI (SMPTE ST-2082, 4K60) over single-mode fibre for up to 6.2 miles (10 km).
PIN photodiode with TIA
The receiver features a PIN photodiode with an integrated trans-impedance preamplifier.

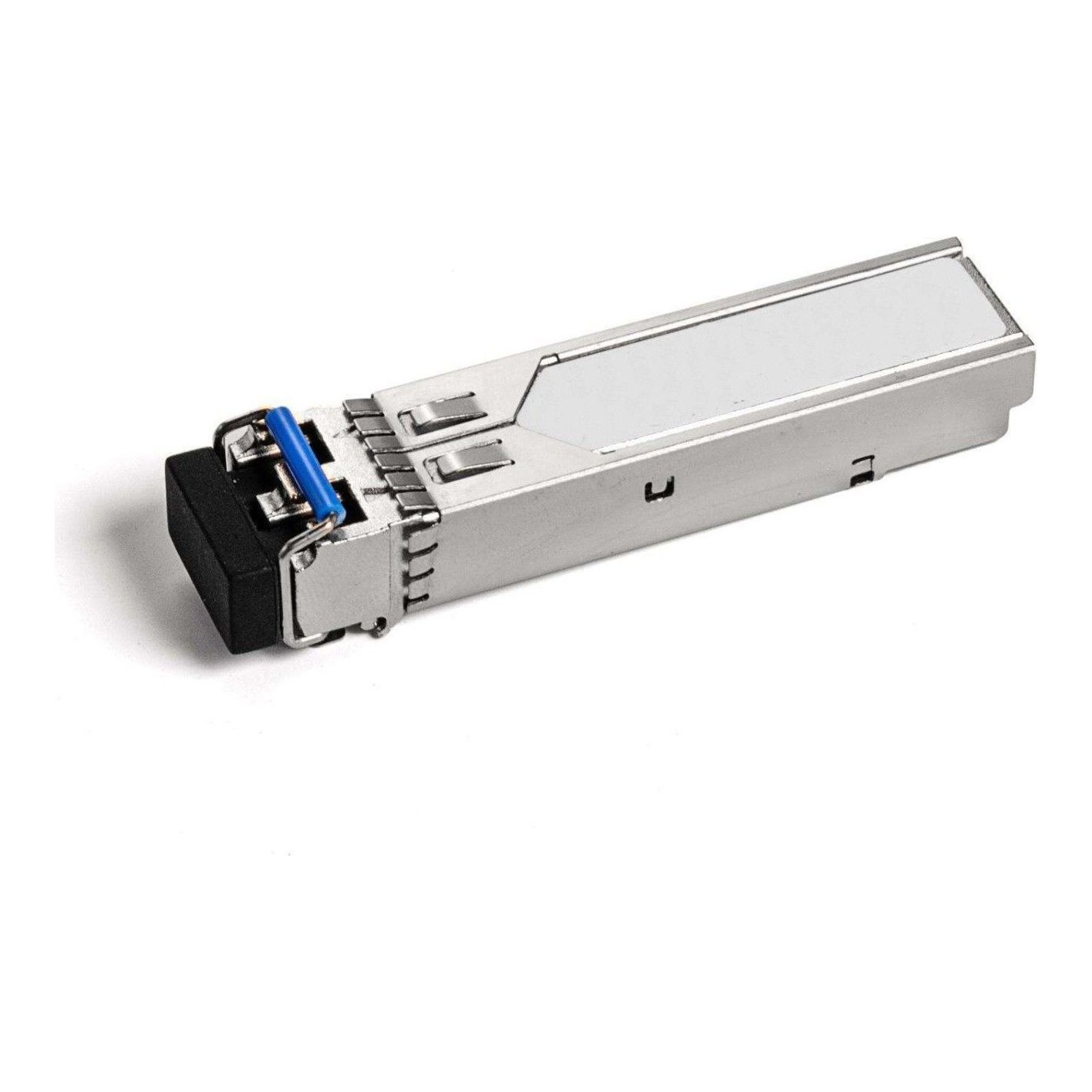

Hot-pluggable
The SFP+ footprint with LC connector can be plugged in and removed while the equipment is running.
More information
About the product
Additional features: hot-pluggable SFP+ footprint with LC connector interface; operating data rate up to 11.88 Gb/s; receives single-mode fibre transmission over distances up to 6.2 miles (10 km).
Standards and compliance: compatible with SFP+ MSA / SFF-8472; RoHS compliant; SMPTE 424M/297M (2.97 Gb/s, 1080p60/59.94/50); SMPTE 292M/297M (1.485 Gb/s); SMPTE 259M/297M (270/360 Mb/s); SMPTE ST-2081 (6 Gb/s, 4K30); SMPTE ST-2082 (12 Gb/s, 4K60).
PACKAGE CONTENT
- Lilliput 12G-SFP-LC-RX 12 Gb/s video SFP+ optical receiver
SPECIFICATIONS
- Brand: Lilliput
- Model: 12G-SFP-LC-RX
- Type: 12 Gb/s video SFP+ optical receiver
- Form factor: SFP+, hot-pluggable
- Optical connector: LC
- Fibre: single-mode, up to 6.2 miles (10 km)
- Data rate: 11.88 Gb/s
- Signals: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
- Standards: SMPTE 259M, 292M, 424M, 297M, ST-2081, ST-2082
- Photodetector: PIN photodiode with trans-impedance preamplifier (TIA)
- Compliance: SFP+ MSA, SFF-8472, RoHS
