Datavideo TLM-170KM 17.3-inch 4K UHD pull-out production monitor

+2
  • Free transport
SKU: 2100-0162

The Datavideo TLM-170KM is a pull-out 17.3-inch 4K UHD production monitor with a 3840 × 2160 IPS panel. Its 1U pull-out chassis brings a clear monitoring surface to a control room, OB van or studio rack. Inputs include 12G-SDI and HDMI 2.0, each with a loop-through output; the monitor supports DCI 4K and UHD up to 60p. The panel offers a 178° viewing angle,…

More information

3 939 € with VAT 3 255.37 € without VAT
Add to Compare Price history
Availability
on request
SKU:
2100-0162
Add to Compare Price history

Datavideo TLM-170FM 17.3" Full HD Pull-Out Production Monitor

3 109 €without VAT 2 569.42 €

Datavideo TLM-170FR

2 659 €without VAT 2 197.52 €

Datavideo TLM-170KR 17.3″ 4K/UHD Rack-Mount Production Monitor

3 559 €without VAT 2 941.32 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo TLM-170KM is a pull-out 17.3-inch 4K UHD production monitor with a 3840 × 2160 IPS panel. Its 1U pull-out chassis brings a clear monitoring surface to a control room, OB van or studio rack. Inputs include 12G-SDI and HDMI 2.0, each with a loop-through output; the monitor supports DCI 4K and UHD up to 60p. The panel offers a 178° viewing angle, 300 cd/m² brightness and 1000:1 contrast.

Built-in tools include waveform, vector scope, audio vector, focus peaking, false color, histogram, exposure, timecode, HDR/SDR, camera log, zoom and screen markers. It supports HLG and SMPTE ST 2084 HDR as well as Rec. 709 and DCI-P3 color spaces. The integrated tally light indicates Live in red and Cue in green.

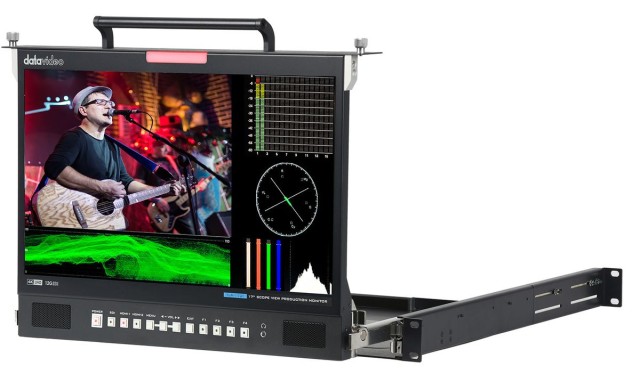

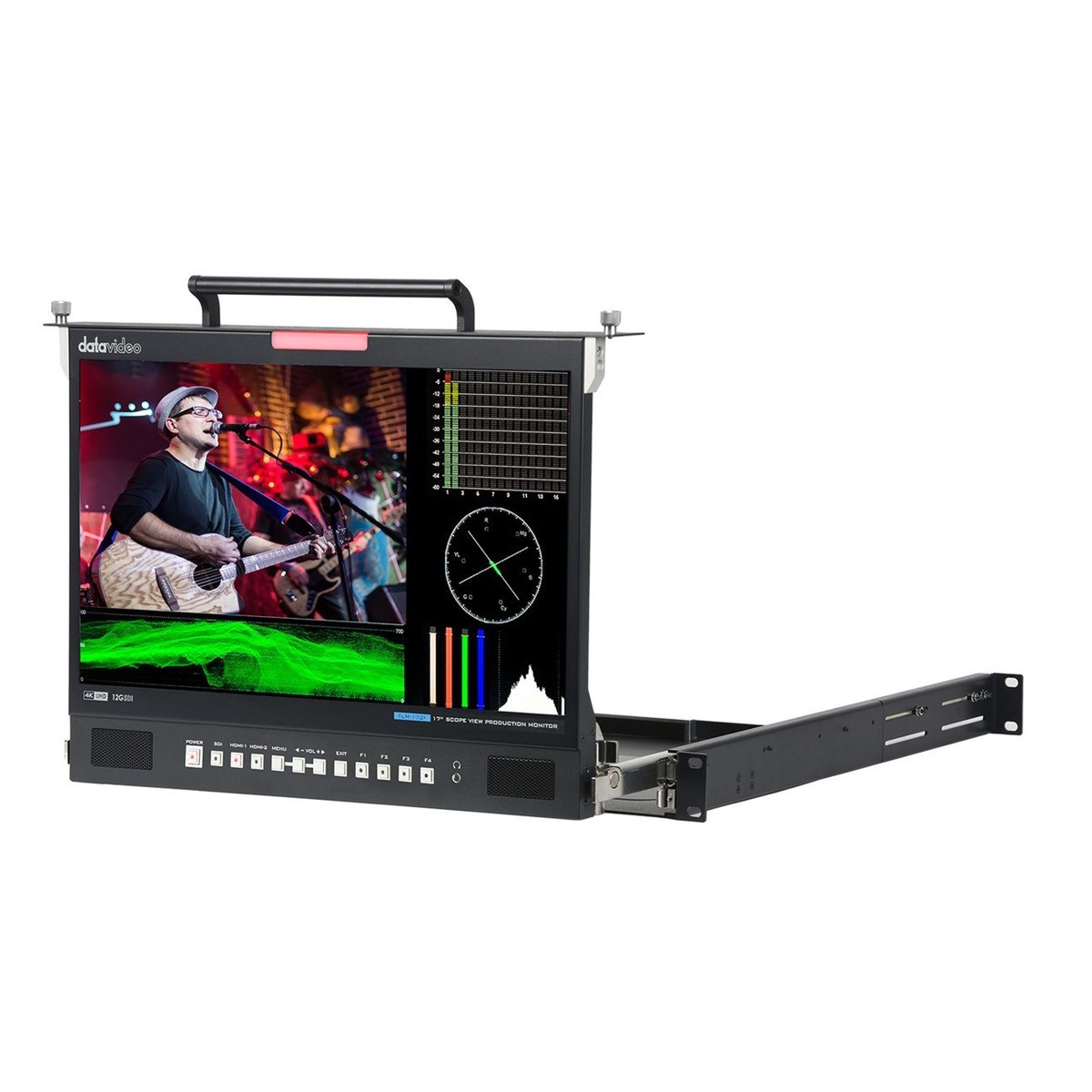

4K UHD monitoring in a pull-out 1U chassis

The pull-out Datavideo TLM-170KM brings 4K picture monitoring into a 1U rack. Its 3840 × 2160 IPS panel, 12G-SDI/HDMI 2.0 loop-through and built-in picture-analysis tools let crews check production signals without a separate desktop monitor.

4K UHD picture detail

The 3840 × 2160 IPS panel displays detailed UHD and DCI 4K images up to 60p. A 178° viewing angle helps the crew check the picture from different positions in the control room. Brightness is 300 cd/m² with 1000:1 contrast; HDR support includes HLG and SMPTE ST 2084.

Inputs and loop-through outputs

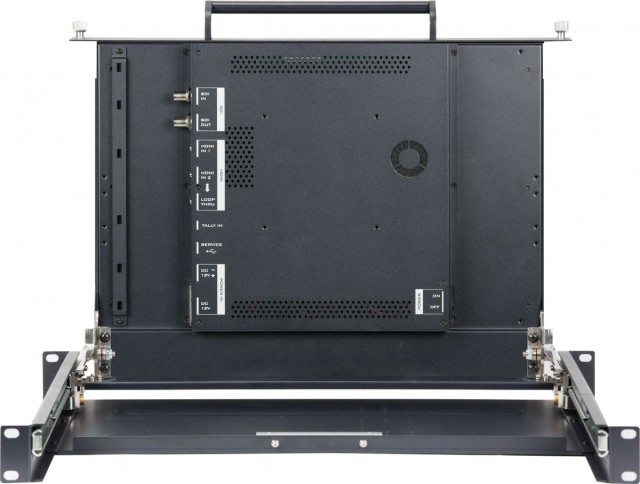

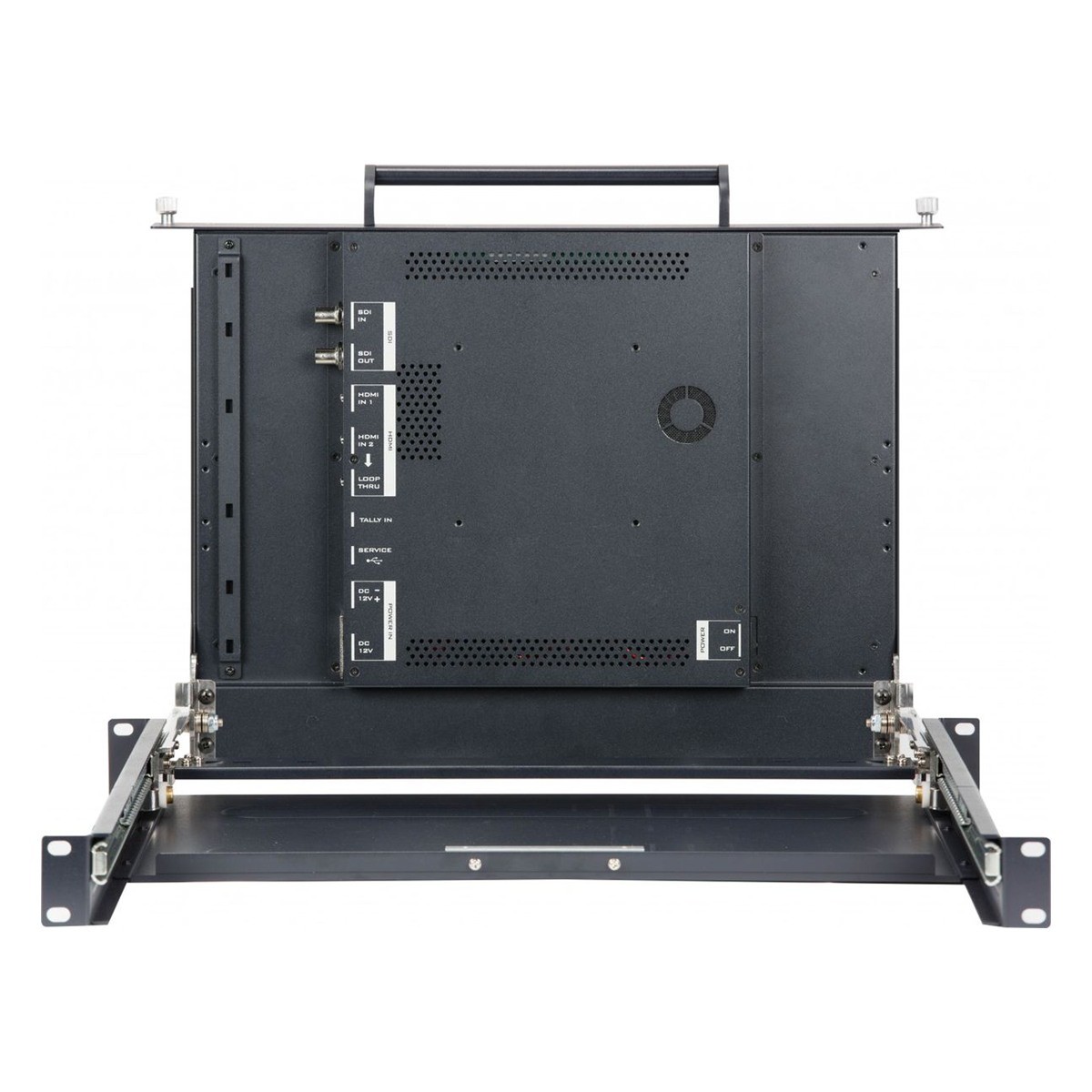

One 12G-SDI input and two HDMI 2.0 inputs are complemented by 12G-SDI and HDMI 2.0 loop-through outputs. The incoming signal can be monitored and passed on to another device in the chain. Supported input formats include DCI 4K 4096 × 2160p and UHD 3840 × 2160p up to 60p.

Tools for production monitoring

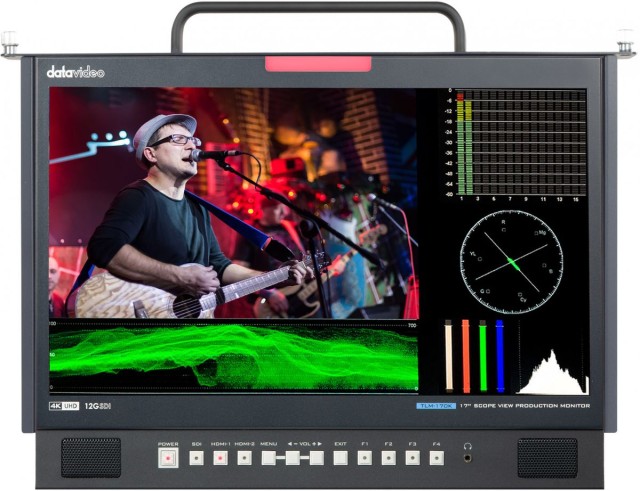

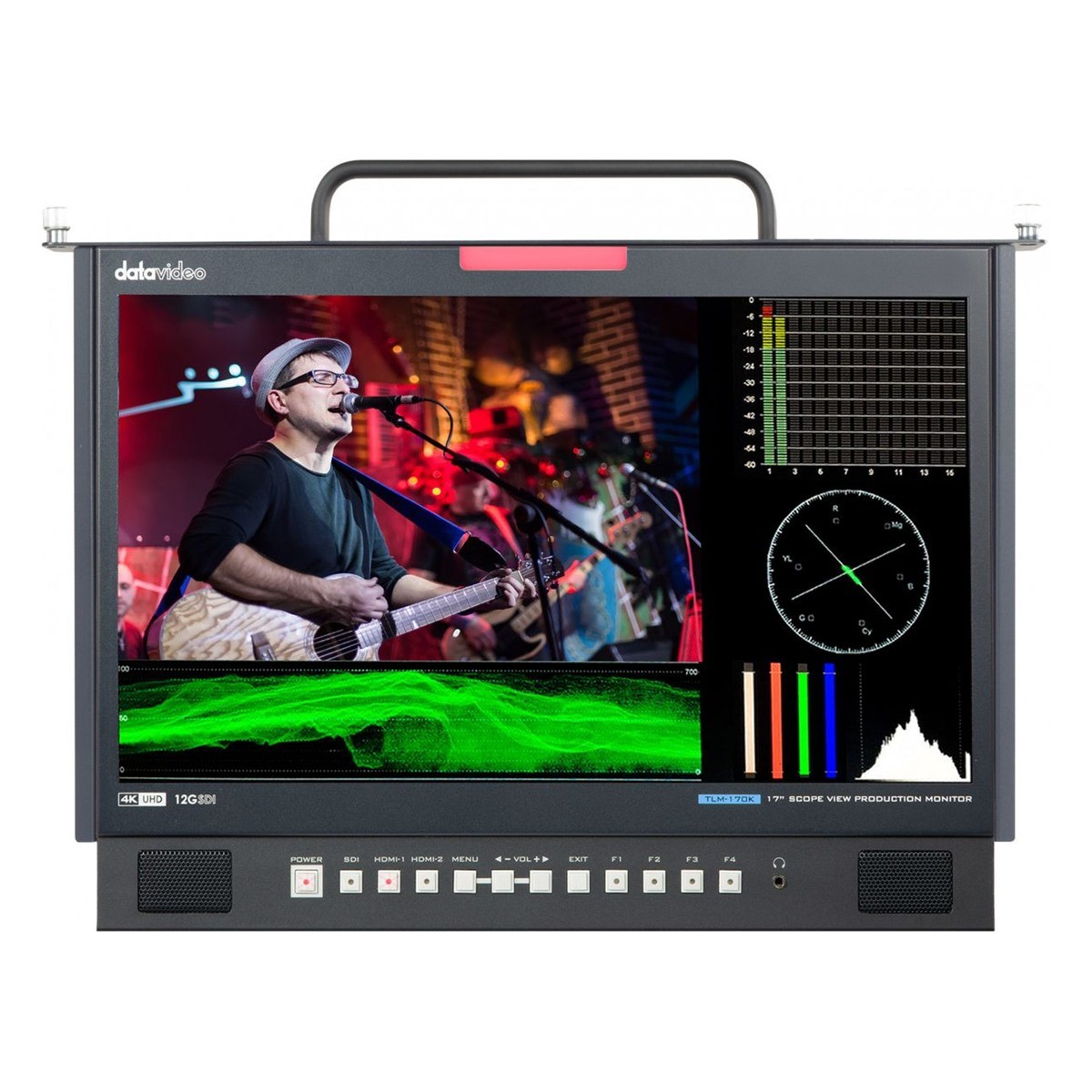

Waveform, vector scope, audio vector, focus peaking, false color, histogram, exposure and timecode give production teams tools for checking picture and audio. Additional functions include HDR/SDR, camera log, zoom, image flip, markers and more. The tally light distinguishes Live (red) and Cue (green).

PACKAGE CONTENT

In the box

  • 1× Datavideo TLM-170KM monitor
  • 1× DC 12 V power adapter
  • 4× φ4.0 × 6 mm screw
  • 8× φ3.0 × 6 mm screw
  • 8× M5 × 10 mm screw
  • 5× cable tie

SPECIFICATIONS

Specifications

  • Model: Datavideo TLM-170KM
  • Type: 1U pull-out rack monitor
  • Panel: 17.3-inch LED-backlit IPS panel
  • Resolution: 3840 × 2160 (4K UHD)
  • Viewing angle: 178° (H/V)
  • Brightness / contrast: 300 cd/m² / 1000:1
  • Inputs: 1× 12G-SDI; 2× HDMI 2.0
  • Loop-through outputs: 1× 12G-SDI; 1× HDMI 2.0
  • Supported resolutions: SDI/HDMI: DCI 4K 4096 × 2160p až 60p; UHD 3840 × 2160p až 60p; dále 1080p/i/Psf a 720p
  • Aspect ratio: 16:9, 4:3
  • HDR and color spaces: HLG, SMPTE ST 2084; Rec. 709, DCI-P3
  • Tally LED: Live červená; Cue zelená
  • Audio: Vstup: vestavěný zvuk SDI/HDMI 48 kHz; výstup: analogové stereo (sluchátkový konektor); 2× reproduktor 3 W
  • Tools: Waveform, vectorscope, audio vector, focus peaking, false color, expozice/zebras, histogram, časový kód, camera log, HDR/SDR, gamma/markers, pixel-to-pixel, zoom, H/V delay, DSLR, freeze, image flip, check field, level meter, color bar, color calibration
  • Dimensions (W × H × D): 403 × 305 × 37 mm
  • Weight: 5,2 kg
  • Operating temperature: 0–40 °C
  • Power / consumption: DC 12 V, 40,1 W

WE RECOMMEND

The Datavideo TLM-170KM is a professional 17-inch 4K/UHD rack-mount monitor that, thanks to its 12G-SDI and HDMI 2.0 inputs, is ideal for demanding studio and broadcast applications. For optimal integration into the production workflow, we recommend accessories for signal distribution, intercom communication, and studio work.

Converters and Signal Distribution - Devices for converting and extending signal paths compatible with the monitor’s 12G-SDI and HDMI interfaces.

Intercom and Communication - Systems for ensuring communication between the control room and camera operators, utilizing the monitor's integrated signaling functions.

Audio accessories - Tools for audio processing and synchronization that complement visual monitoring.

Prompter systems and accessories - Compatible studio equipment for working with text and presenters near monitoring stations.

Production Control and Installation - Main control elements and installation kits for complete workstation equipment.

Parameters

Parameters

Manufacturer: Datavideo
Category: Studio Monitors

Main parameters

Size17.3"
Monitor inputsHDMI
Luminosity300cd/m2
