Datavideo TLM-170FM 17.3" Full HD Pull-Out Production Monitor

  • Free transport
SKU: 2100-0152

The Datavideo TLM-170FM is a 17.3-inch production monitor with a Full HD 1920 × 1080 IPS panel in a metal pull-out chassis for a 1U position in a 19-inch rack. It also accepts DCI 4K and UHD signals up to 60p; the display panel itself remains Full HD. Inputs include one 12G-SDI and two HDMI 2.0 connections, with one matching SDI and HDMI loop-through output.…

More information

3 109 € with VAT 2 569.42 € without VAT
Add to Compare Price history
Availability
on request
SKU:
2100-0152
Add to Compare Price history

Datavideo TLM-170FR

2 659 €without VAT 2 197.52 €

Datavideo TLM-170KM 17.3-inch 4K UHD pull-out production monitor

3 939 €without VAT 3 255.37 €

Datavideo TLM-170KR 17.3″ 4K/UHD Rack-Mount Production Monitor

3 559 €without VAT 2 941.32 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo TLM-170FM is a 17.3-inch production monitor with a Full HD 1920 × 1080 IPS panel in a metal pull-out chassis for a 1U position in a 19-inch rack. It also accepts DCI 4K and UHD signals up to 60p; the display panel itself remains Full HD. Inputs include one 12G-SDI and two HDMI 2.0 connections, with one matching SDI and HDMI loop-through output. A 178° viewing angle, 300 cd/m² brightness and 700:1 contrast support image checks in a studio or mobile production rack.

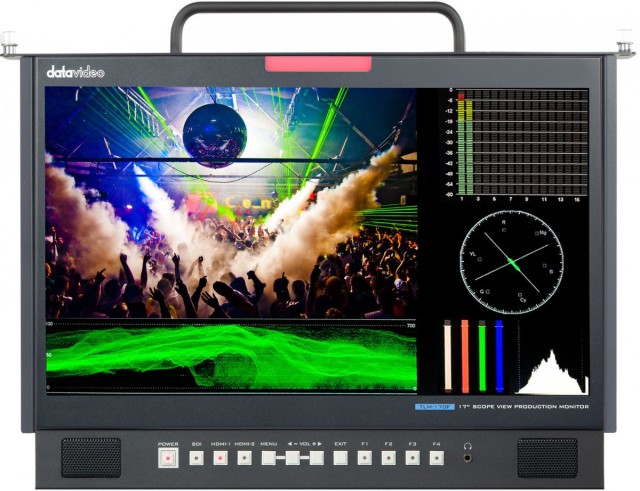

  • Monitoring tools include waveform, vectorscope, audio vector, histogram, zebra, false colour and focus peaking
  • HDR/SDR, timecode, camera log, pixel-to-pixel, zoom, image flip and markers
  • Built-in tally LED, stereo headphone output and two 3 W speakers

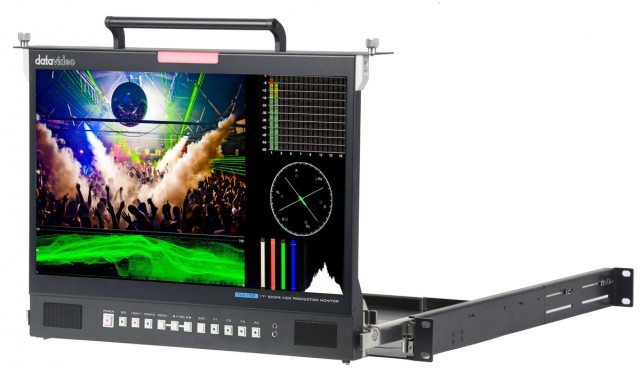

A PULL-OUT MONITOR FOR MOBILE PRODUCTION

The TLM-170FM's pull-out metal chassis occupies 1U in a rack and brings the screen forward for use. Its Full HD panel is designed for picture monitoring, while the inputs also accept DCI 4K/UHD signals. SDI and HDMI loop-through outputs pass the signal on to another device.

PACKAGE CONTENT

  • 1× Datavideo TLM-170FM monitor
  • 1× AD Switch DC 12 V
  • 4× φ4.0 × 6 mm screws
  • 8× φ3.0 × 6 mm screws
  • 8× M5 × 10 mm screws
  • 5× cable ties

SPECIFICATIONS

  • Display: 17.3-inch LED-backlit
  • Chassis: Pull-out 1U rack tray
  • Panel resolution: 1920 × 1080 (Full HD)

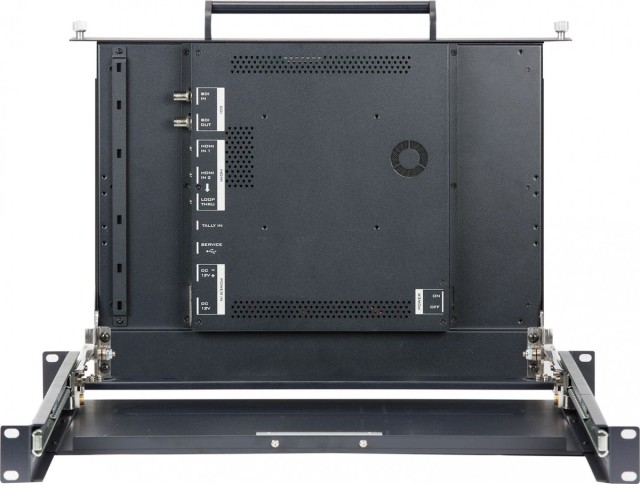

  • Inputs: 1× 12G-SDI; 2× HDMI 2.0
  • Loop-through outputs: 1× 12G-SDI; 1× HDMI 2.0
  • Supported input formats: DCI 4K and UHD up to 60p; Full HD 1080p/i; HD 720p; SD formats (per input interface)
  • Aspect ratio: 16:9 and 4:3
  • Viewing angle: Horizontal +89°/−89°; vertical +89°/−89°
  • Brightness / contrast: 300 cd/m²; 700:1
  • Monitoring tools: Waveform, vectorscope, focus peaking, false colour, exposure/zebra, histogram, audio vector, timecode, camera log, pixel-to-pixel, zoom, H/V delay, freeze, image flip, check field, level meter, colour bar and colour calibration
  • HDR: HDR / SDR; supports HLG and SMPTE 2084
  • Tally: Live (red) / Cued (green)
  • Audio: Embedded audio input (48 kHz); analogue stereo phone-jack output; 2× 3 W speakers
  • Dimensions (W × H × D): 403 × 305 × 37 mm
  • Weight: 4.7 kg
  • Power: DC 12 V, 34.6 W
  • Operating temperature: 0–40 °C

WE RECOMMEND

The Datavideo TLM-170FM is a professional 17" 4K/UHD monitor with 12G-SDI and HDMI 2.0 interfaces, designed for precise monitoring in studio environments. For optimal integration into the production workflow, it is recommended to supplement it with compatible signal converters, intercom systems for crew coordination, and rack-mounting components.

Signal Converters and Distribution - Devices for converting and extending signal paths compatible with the monitor’s 12G-SDI and HDMI interfaces.

Intercom and Communication - Systems for two-way communication and Tally signaling, which the TLM-170FM monitor fully supports.

Audio and sound processing - Accessories for audio synchronization and mixing within studio monitoring.

Reading devices and accessories - Compatible teleprompters and their accessories for professional studio production.

Production Equipment and Mounting - Control Room Workstations and Mounting Kits for Installing Monitors and Other Equipment in a 19" Rack.
