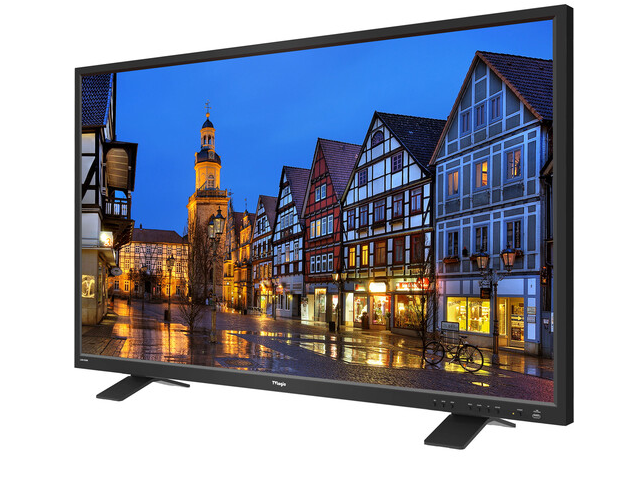

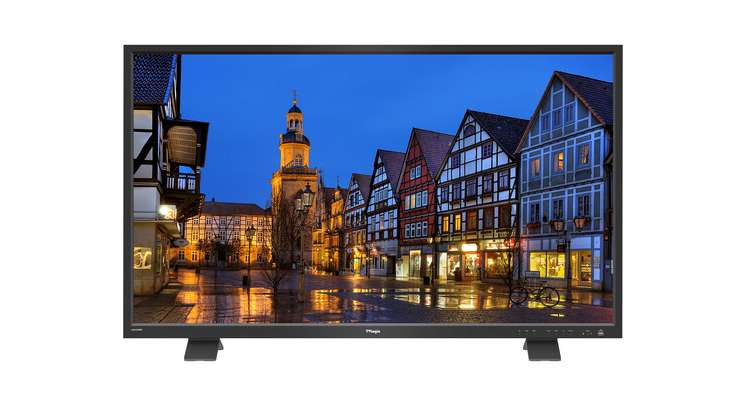

TVLogic LUM-550M3

The TVLogic LUM-550M3 is a 54.6-inch UHD 4K LCD monitor designed for professional video production and broadcast applications. Supporting multiple SDI and HDMI inputs, HDR workflows, and custom 3D LUTs, it delivers precise color monitoring with a wide 178° viewing angle and 700 cd/m² brightness, making it ideal for field monitoring, post-production, and studio environments.

The TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor is a professional-grade solution for high-end video production and broadcast monitoring. With four SDI inputs (supporting 12G-SDI and 3G-SDI) and one HDMI output, it allows simultaneous monitoring of multiple video sources up to UHD 4K resolution. The monitor supports camera LUTs and custom 3D LUT imports for precise color management, making it perfect for on-set or studio environments.

Featuring a 178° horizontal and vertical viewing angle and a maximum brightness of 700 cd/m², the LUM-550M3 ensures accurate image visibility even in challenging lighting conditions. The monitor also supports HDR formats including PQ, HLG, and SLOG3, while providing waveform, vectorscope, and other video assist functions. Control is available via onboard buttons or an IR remote for flexible operation.

Key Features:

• 54.6" UHD 4K LCD monitor with 3840 × 2160 resolution

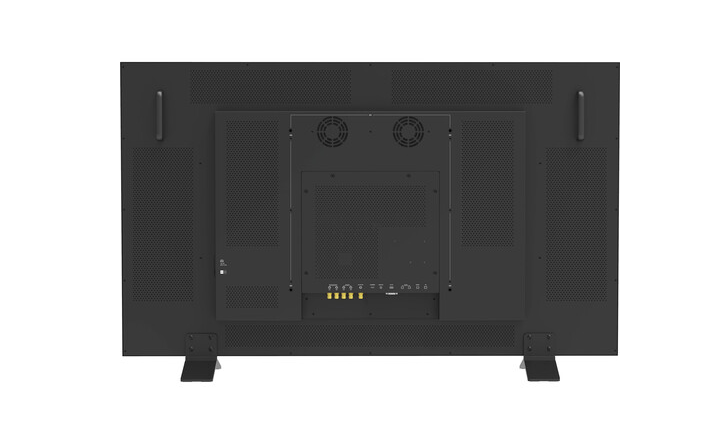

• 4 x SDI inputs (12G-SDI / 3G-SDI), 1 x HDMI output

• Supports up to UHD 4K video input

• Custom 3D LUT import and camera LUTs (ARRI, Sony, Canon, RED)

• HDR monitoring with PQ, HLG, SLOG3, and EOTF gamma

• Wide 178° horizontal and vertical viewing angles

• Maximum brightness: 700 cd/m²

• 10-bit color, 1.07 billion colors

• Video assist functions: waveform, vectorscope, markers, timecode display, audio level meter, closed captioning

• Control via buttons or IR remote
