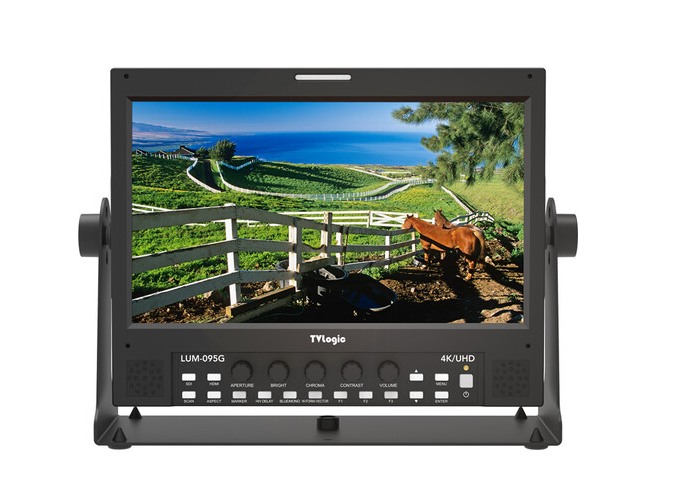

TVLogic LUM-095G LCD Monitor

The TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor (LUM-095G) delivers crisp full HD visuals with support for UHD 4K inputs. Featuring 4 SDI ports, 1 HDMI port, a 178° viewing angle, and 400 cd/m² brightness, this compact 9" monitor is ideal for field monitoring, camera setups, and professional video production. With versatile…

More information

5 929 € with VAT 4 900 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor (LUM-095G) delivers crisp full HD visuals with support for UHD 4K inputs. Featuring 4 SDI ports, 1 HDMI port, a 178° viewing angle, and 400 cd/m² brightness, this compact 9" monitor is ideal for field monitoring, camera setups, and professional video production. With versatile image controls, 3D LUT support, and RS-422 or remote control, it ensures precise color monitoring and reliable performance on set.

The TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor (LUM-095G) is designed for professional field monitoring and on-set video applications. Its 9-inch IPS-type LCD display delivers a native 1920 x 1080 resolution with vibrant 16.7 million colors and a wide 178° viewing angle. Supporting SDI and HDMI inputs up to UHD 4K, the monitor includes 4 SDI ports and 1 HDMI 2.0 input, making it compatible with a wide range of cameras and video sources.

This monitor features high dynamic range (HDR) support, allowing simultaneous monitoring of black and highlight details, and supports HDR EOTF gamma modes including PQ, HLG, and S-Log3. Image monitoring tools include waveform, vectorscope, focus assist, range error, H/V flip, and customizable aspect ratios. Users can upload custom 3D LUTs or view cine camera LUTs for accurate color evaluation. ARRI camera metadata can also be displayed, including lens and camera status.

The LUM-095G is controlled via onboard buttons, RS-422, or remote control over RJ45, offering maximum flexibility. Audio monitoring is available via embedded HDMI/SDI or 3.5 mm I/O, with a built-in mono speaker. Its durable design operates in temperatures from -20°C to 40°C (-4°F to 104°F) and includes a stand for desktop use.

Key Features:

  • 9" Full HD IPS LCD with 1920 x 1080 native resolution
  • Supports UHD 4K video input via SDI and HDMI
  • 4 x SDI ports, 1 x HDMI 2.0 input
  • 178° viewing angle, 400 cd/m² brightness
  • High Dynamic Range (HDR) support with PQ, HLG, S-Log3
  • 3D LUT support, ARRI, Sony, Canon, RED LUT compatibility
  • Onboard buttons, RS-422, and remote control via RJ45
  • Image monitoring tools: waveform, vectorscope, focus assist, zoom, markers, freeze, H/V flip, aspect ratio controls
  • Audio monitoring: embedded HDMI/SDI, 3.5 mm I/O, mono speaker
  • Operating temperature: -20°C to 40°C, storage: -30°C to 50°C

PACKAGE CONTENT

  • TVLogic 9" LUM-095G Monitor
  • Stand
  • Power cable / adapter
  • User manual

SPECIFICATIONS

  • Display: 9" IPS LCD, 1920 x 1080, 16:9, 400 nits, 178° viewing angle
  • Video Formats: SDI/HDMI up to UHD 4K, multiple frame rates
  • Power: 12–24 VDC, 30 W
  • Dimensions: 223 x 175 x 60 mm (monitor), 260 x 194.2 x 90 mm (with stand)
  • Weight: 2.14 kg / 4.72 lb (including stand)
  • I/O: 1x HDMI 2.0 input, 1x 12G-SDI input/output, 1x 3G-SDI input/output, 1x XLR 4-pin power input, 2x RJ45 RS-422, 1x RJ45 GPI, 1x USB-A for firmware
Parameters

Parameters

Manufacturer: TVLogic
Category: Studio Monitors

Main parameters

Size9.7"
Monitor inputs12G SDI · 3G-SDI · Ethernet · HDMI · HDMI 2.0 · SDI
Luminosity400cd/m2
Panel resolution1920x1080
Monitor power supply12V XLR
