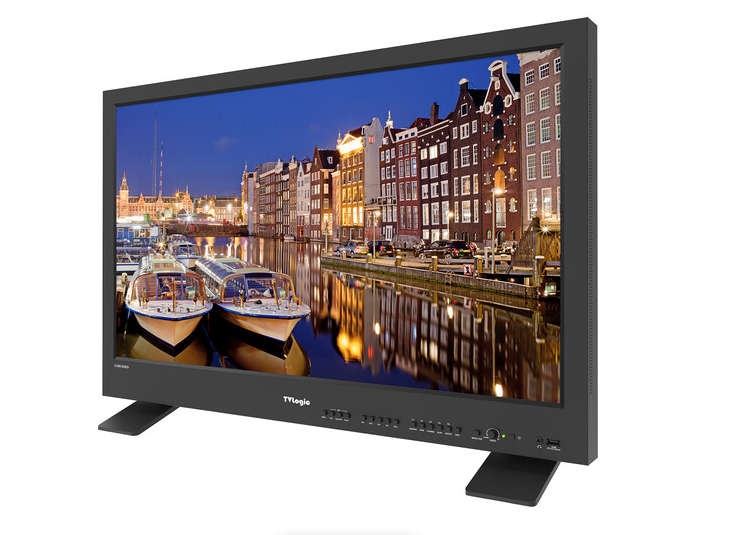

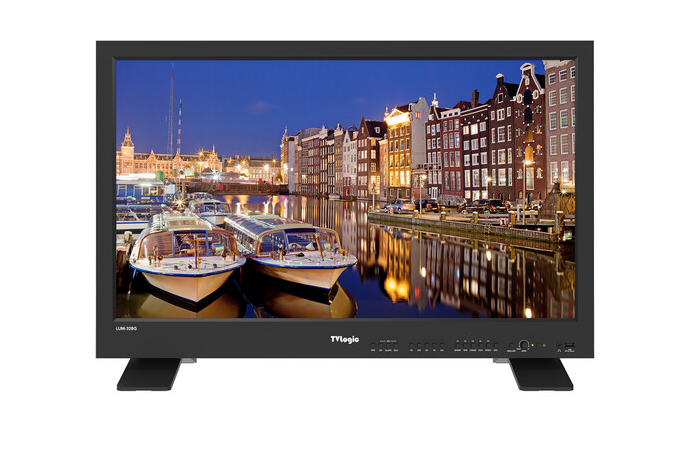

TVLogic LUM-328G LCD Monitor

The TVLogic LUM-328G 31.5" UHD 4K SDI/HDMI LCD Monitor delivers professional 4K monitoring with 1.07 billion colors, 1000 cd/m² brightness, and a wide 178° viewing angle. Featuring four SDI inputs, one HDMI input, and multiple SDI outputs, this monitor supports HDR workflows (PQ, HLG), waveform, vectorscope, and advanced image monitoring controls, making it ideal for broadcast, post-production, and field monitoring applications.

The TVLogic LUM-328G is a high-performance 31.5" UHD 4K LCD monitor designed for professional video monitoring. With a native resolution of 3840 x 2160, 1.07 billion colors, and 1000 cd/m² maximum brightness, it provides precise, vibrant images with a 178° wide viewing angle. The monitor supports up to UHD 4K input via 12G-SDI, 3G-SDI, and HDMI 2.0, while dual SDI outputs allow flexible signal routing for multi-monitor setups or broadcast workflows.

Equipped for HDR workflows, the LUM-328G supports PQ and HLG gamma, wide color gamut, and precise color reproduction. Advanced video assist tools include waveform, vectorscope, luma zone check, H/V delay, focus assist, markers, tally, timecode display, UMD, blue/mono only, and closed caption monitoring. Control can be performed via onboard buttons, RS-422, remote, or LAN/GPI interfaces. Firmware updates are supported via USB-A.

Key Features:

• 31.5" UHD 4K LCD monitor, 3840 x 2160 native resolution, 16:9

• 1000 cd/m² brightness, 178° viewing angle, 1.07 billion colors (10-bit)

• HDR support: PQ and HLG, wide color gamut

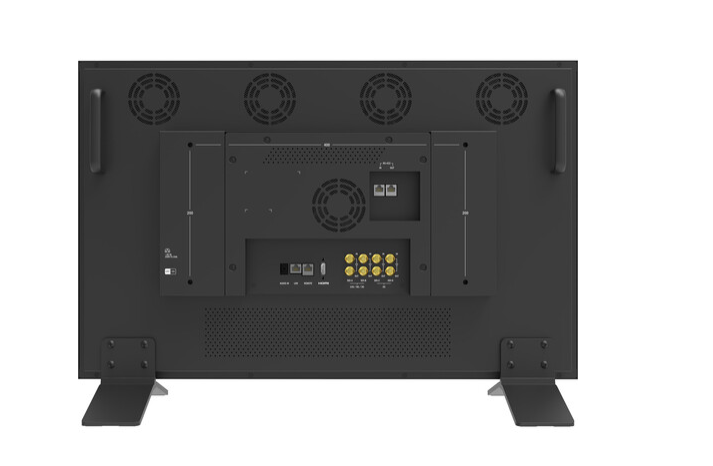

• 2x 12G-SDI and 2x 3G-SDI inputs, 1x HDMI 2.0 input

• 2x 12G-SDI and 2x 3G-SDI outputs

• Image tools: waveform, vectorscope, luma zone check, focus assist, markers, tally, timecode display, blue/mono only, closed caption

• Audio I/O: 3.5 mm line input and headphone output

• Control: buttons, RS-422, remote, LAN, GPI

• Supports LUTs via USB, precise color calibration
