RGBlink mini-pro 2022

  • New
SKU: 230-0003-02-4

The RGBlink mini-pro 2022 is a portable all-in-one live production switcher designed for professional streaming, recording, and video mixing. Featuring four 4K HDMI inputs, a built-in LCD preview screen, joystick-based PTZ camera control, and T-bar transitions, it enables smooth multi-camera switching, USB live streaming, and USB recording…

More information

325 € with VAT 268.6 € without VAT
Add to Compare Price history
Availability
on request
SKU:
230-0003-02-4
Add to Compare Price history

RGBLink mini-pro v3

In stock > 5 pcs325 €without VAT 268.6 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The RGBlink mini-pro 2022 is a portable all-in-one live production switcher designed for professional streaming, recording, and video mixing. Featuring four 4K HDMI inputs, a built-in LCD preview screen, joystick-based PTZ camera control, and T-bar transitions, it enables smooth multi-camera switching, USB live streaming, and USB recording with synchronized audio in a compact, easy-to-carry form factor.

The RGBlink mini-pro 2022 is a powerful yet compact mini switcher built for content creators, educators, houses of worship, and live event producers who need professional-grade control in a portable device. It supports four HDMI 2.0 inputs up to 4K@60, allowing seamless integration of cameras, laptops, and media players. A built-in LCD screen provides real-time video preview and menu navigation, eliminating the need for an external monitor during setup.

The mini-pro 2022 features a classic T-bar switch, joystick camera control with VISCA PTZ support, and 14 transition effects, making live switching smooth and intuitive. It supports USB 3.0 live streaming, where the device is recognized as a webcam by popular platforms, and USB 2.0 recording directly to FAT32 or exFAT storage (up to 2TB). Advanced audio handling allows mixing of embedded HDMI audio with external audio inputs, maintaining audio-video sync with adjustable delay.

Creative production tools such as Chroma Key, Picture-in-Picture (PIP) overlays, and multi-input audio mixing enable polished, broadcast-style outputs. With LAN connectivity for control, PD-powered USB-C input, and low video latency under four frames, the RGBlink mini-pro 2022 is an ideal solution for reliable, high-quality live production anywhere.

Key Features:
  • Compact and portable mini switcher design

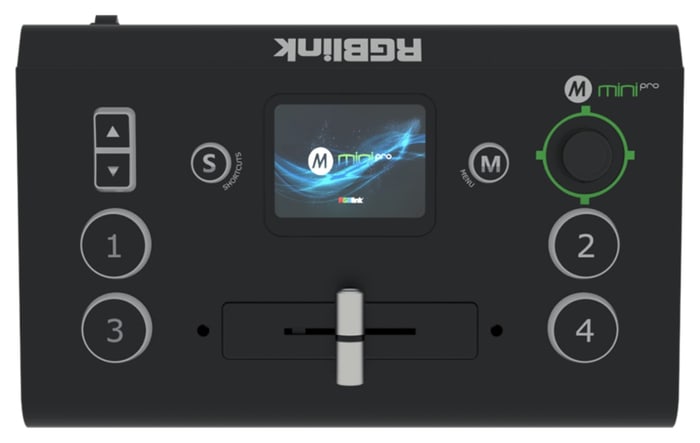

  • Built-in LCD screen for video preview and touch operation
  • Four 4K HDMI 2.0 inputs (HDCP 2.2 supported)
  • USB 3.0 live streaming (webcam output)
  • USB 2.0 internal recording to external storage
  • T-bar switching with 14 transition effects
  • Joystick PTZ camera control (VISCA protocol)
  • Chroma Key with configurable key color
  • Picture-in-Picture (PIP) video overlays
  • Embedded and external audio mixing with sync control

PACKAGE CONTENT

  • RGBlink mini-pro 2022 Switcher
  • USB-C Power Adapter (PD)
  • Power Cable
  • User Manual

SPECIFICATIONS

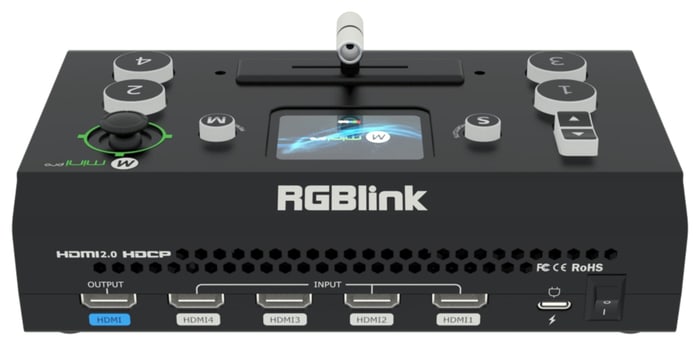

  • Video Inputs: 4 × HDMI-A (HDMI 2.0, up to 4K@60)
  • Video Outputs: 1 × HDMI-A (up to 1080p60)
  • Streaming Output: 1 × USB-A (USB 3.0)
  • Recording Port: 1 × USB-A (USB 2.0)

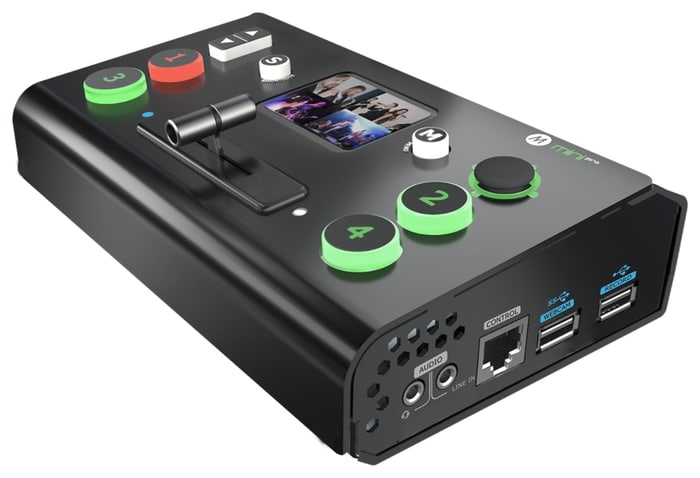

  • Audio Input: 2 × 3.5 mm stereo jack
  • Audio Output: 1 × 3.5 mm stereo jack
  • Audio Formats: LPCM, 2-channel, 16/24-bit, 48 kHz
  • Control & Communication: 1 × RJ45 LAN
  • PTZ Control: VISCA
  • Supported Input Resolutions: HDMI 720p@50/60, 1080i@50, 1080p@24/30/50/60, 2160p@60; VESA up to 4096 × 2160 @ 60
  • Output Resolutions: HDMI up to 1080p@60; USB up to 1080p@60
  • Recording Formats: Video MP4, Audio WAV
  • Disk Format: FAT32 (≤32GB), exFAT (64GB–2TB)
  • Power: USB-C PD 12V / 1.5A
  • Max Power Consumption: 20 W
  • Operating Temperature: 0°C – 60°C
  • Operating Humidity: 10% – 85%
  • Dimensions: 180 × 118.3 × 58.4 mm
  • Weight: 0.42 kg (net)

WE RECOMMEND

The RGBlink mini-pro 2022 is a powerful streaming control room featuring four HDMI 2.0 inputs and an integrated joystick for controlling PTZ cameras. To maximize its potential, it is essential to pair it with compatible PTZ cameras, wireless video transmission systems, and external monitoring devices.

PTZ Cameras - Cameras fully compatible with the mini-pro control room’s integrated control protocol and joystick.

Wireless Video Transmission - Systems for wirelessly connecting HDMI sources to control room inputs without the need for cabling.

Monitoring and Conversion - External monitors and converters for previewing and processing the output signal.

Mounting accessories - Mounts and brackets for stable mounting of PTZ cameras in production environments.

Parameters

Parameters

Manufacturer: RGBlink
Category: Video switchers

Main parameters

Video input4× HDMI 2.0
Streaming service typesUSB webcam streaming, RTMP(S) via external platform
Internal RecordingYes
