Datavideo HDR-1 Standalone H.264 USB Recorder/Player

SKU: 2600-0212

The Datavideo HDR-1 is a standalone USB recorder and player that records HD video from its HDMI input directly to USB storage and plays finished files back over HDMI. It works without a connected computer, making it suitable for recording conferences, lectures, school events and concerts, as well as playing prepared announcements on its own.…

More information

769 € with VAT 635.54 € without VAT
Add to Compare Price history
Availability
14-30 days
SKU:
2600-0212
Add to Compare Price history

Top accessories for Datavideo HDR-1 Standalone H.264 USB Recorder/Player

Canare HDMI Cable 0.6 m

  • New
Canare HDMI cable, 0.6 m long, with gold-plated HDMI Type A connectors on both ends.
9.5 €
In stock > 5 pcs

Canare HDMI Cable 5 m

  • New
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs

Canare HDMI Cable 3 m

  • New
Canare HDMI cable, 3 m long, with gold-plated HDMI Type A connectors on both ends.
14 €
In stock 4 pcs

Canare HDMI Cable 2 m

  • New
Canare HDMI cable, 2 m long, with gold-plated HDMI Type A connectors on both ends.
12 €
In stock 4 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Datavideo HDR-1 is a standalone USB recorder and player that records HD video from its HDMI input directly to USB storage and plays finished files back over HDMI. It works without a connected computer, making it suitable for recording conferences, lectures, school events and concerts, as well as playing prepared announcements on its own. It stores H.264 video with AAC audio in MP4 at up to 1080p30; recordings can be shared after an event without transcoding. HDR-1 also has an HDMI output and supports GPI and RS-232 control. A 12 V AC adapter is included. An optional power bank can provide emergency backup when the main DC supply fails; it is not included and is not intended as the recorder’s normal power source.

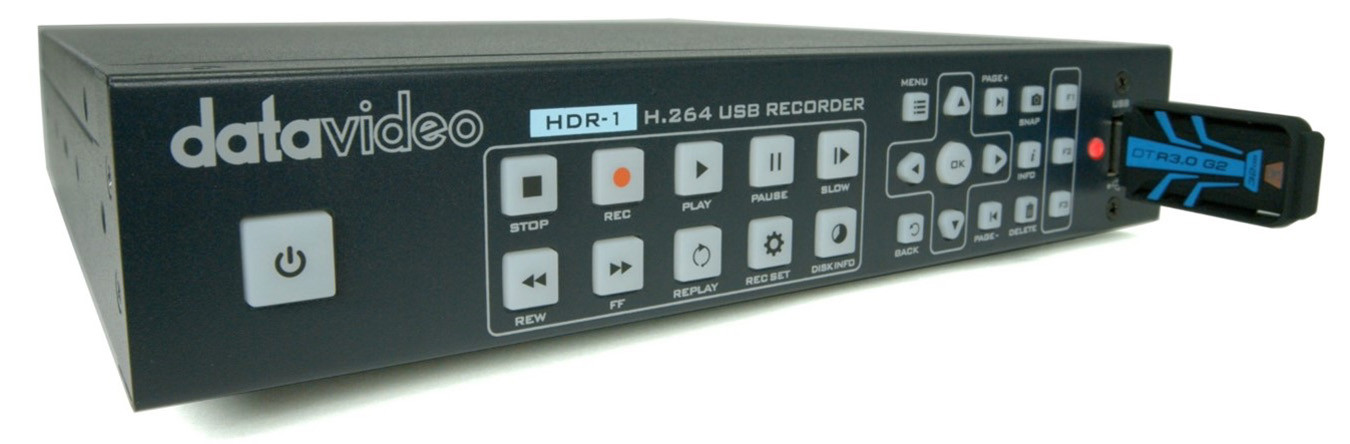

Datavideo HDR-1 with a USB flash drive connected

Standalone recording without a computer

Record HDMI directly to USB

HDR-1 records video and audio from HDMI to an MP4 file on USB storage. After recording, the file can be played back over HDMI or shared without transcoding. The unit works standalone and is operated with the front-panel buttons.

Recording up to 1080p30

One HD channel is stored as an MP4 file with H.264 video and AAC audio.

Immediate or timer recording

Start recording immediately or schedule it with the timer. Record/Pause makes operation during an event easier.

Control and playback

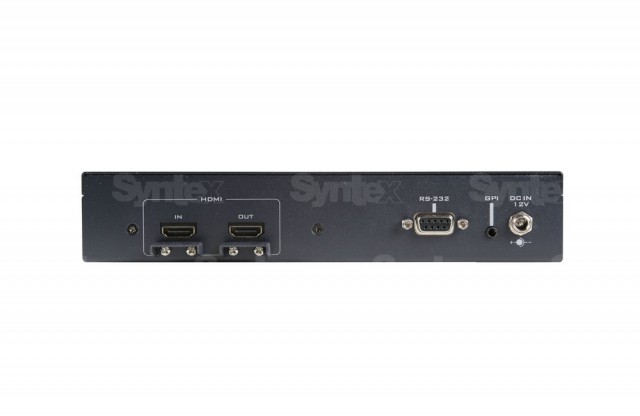

GPI and RS-232 interfaces are available in addition to the front-panel buttons. HDR-1 plays supported MP4 files over HDMI.

Storage and power

Recordings are stored on USB storage formatted as NTFS. Files on an SD card connected through a USB adapter and on external HDD or SSD drives are also supported; media compatibility and speed should be checked for each device. A 12 V power adapter is included. An optional power bank can provide emergency backup when the main DC supply fails; it is not included and is not intended as the recorder’s normal power source.

The player also supports 3D files in Top-and-bottom and Side-by-side Half modes and includes basic video editing functions. HDMI 1.4b compatibility describes the device’s signal interface.

PACKAGE CONTENT

  • 1× Datavideo HDR-1
  • 1× DC 12 V power adapter
  • 1× USB flash drive

SPECIFICATIONS

  • Typ: standalone HD USB recorder and player
  • Video input: 1× HDMI 1.4b
  • Video output: 1× HDMI 1.4b
  • Recording: 1 HD channel, up to 1080p30
  • File format: MP4 (H.264 video + AAC audio)
  • Storage: USB flash drive, SD card via adapter, HDD or SSD; NTFS
  • Control: GPI, RS-232
  • Power: DC 12 V / 0.5 A
  • Dimensions: 220 × 211 × 42 mm
  • Weight: 1.3 kg
  • Operating temperature: 0 to 40 °C
  • Form factor: half-width 1RU

WE RECOMMEND

The Datavideo HDR-1 is a compact H.264 recorder with an HDMI interface that saves recordings to USB storage devices. For professional use, it is recommended to supplement it with converters for integration into SDI chains, preview monitors, and rack-mount kits for a stable installation.

Mounting Accessories - Accessories for permanently installing the recorder in studio racks.

Converters and signal processing - Devices for signal conversion and audio processing prior to input into the HDMI recorder.

Monitors - External monitors for monitoring recorded footage and playback from the recorder.

Video Production and Signal Sources - Compatible HDMI signal sources suitable for recording on HDR-1.

Parameters

Parameters

Manufacturer: Datavideo
Category: Field recorders / Monitors

Main parameters

Video outputsHDMI 1.4
Format/codecMP4 · H.264
Supported resolution1080/50p, 60p · 1080/50i, 60i · 720/50p, 60p · 480i/576i
InputHDMI 1.4
Recording mediumSD card · HDD · SSD

Other parameters

Weight1300g
Dimensions (W × H × D)220x42x211mm
Other featuresRemote
