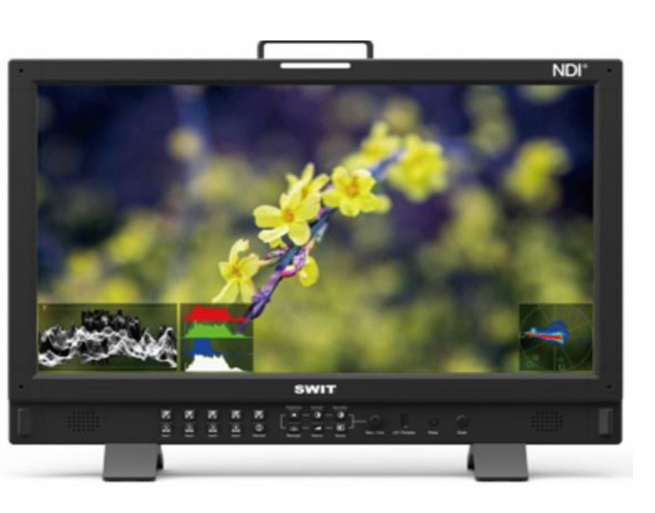

SWIT BM-215-NDI | 21.5" 4K-NDI QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Cal

The SWIT BM-215-NDI 21.5" Professional NDI Monitor is a 4K QLED HDR FHD monitor with 100% DCI-P3 color coverage, zero-delay SDI output, and NDI® decoding. It features automatic source detection, low-bandwidth NDI® support, PC-free 3DLUT auto-calibration, and professional video monitoring tools for broadcast and production workflows.

The SWIT BM-215-NDI is a 21.5-inch professional NDI® monitor designed for high-quality IP video workflows. Featuring a 1920×1080 FHD LCD with 400 nits LED backlighting, 178° H/V viewing angles, and 100% DCI-P3 color gamut, this monitor delivers accurate color reproduction and broadcast-grade video quality.

Built on the latest NDI® 5 SDK, the BM-215-NDI supports automatic detection and rapid selection of NDI® sources, including high-bandwidth and low-bandwidth modes. It decodes NDI® streams to 3G-SDI outputs, enabling seamless integration into SDI workflows. The monitor also supports NDI® Discovery Server for multi-segment IP network source retrieval.

Professional monitoring tools include waveforms, vector scopes, false color, focus assist, blue-only mode, zebra stripes, color gamut displays, pointer signals, and audio meters. The BM-215-NDI supports USB-based 3DLUT auto-calibration with X-Rite i1 or Jeti Specbos 1211 probes for precise color accuracy (ΔE < 1.0).

Connectivity includes RJ45 for NDI® input, dual BNC for 3G/HD/SD-SDI, HDMI 2.0, RS485 for TSL UMD and GPI tally, and decoded NDI® SDI output. It supports a wide range of video formats from 720p to 4K NDI®, with zero-latency SDI output for accurate monitoring and lip-sync.

Powered by 12–17V DC or AC 100–240V, the monitor consumes 45W and operates reliably in 0–50°C with 10–90% humidity. Its compact and durable form factor (530.6 × 364.3 × 74.2 mm, 6.05 kg) makes it suitable for studio, field, and live production environments.

Key Features

• 21.5" FHD QLED monitor, 1920×1080 resolution

• 100% DCI-P3 wide color gamut

• NDI® decoding with automatic source detection

• Low-bandwidth NDI® mode supported

• Zero-delay SDI output, HDMI 2.0 input, RJ45 NDI® input

• Professional monitoring tools: waveform, vector, focus assist, zebra, false color, audio meters, pointer signals

• PC-free 3DLUT auto-calibration via USB

• Supports TSL UMD and GPI tally via RS485

• Wide viewing angle: 178° H/V

• Power: DC 12–17V or AC 100–240V, 45W consumption

• Operating temperature: 0–50°C, humidity 10–90%
