SWIT BM-U325HDR | 31.5" QLED 8K High-Bright 4x12GSDI HDR Zero-Delay DCI-4K Monitor with AI-Calibrati

The SWIT BM-U325HDR is a 31.5" QLED 4K/8K UHD HDR studio monitor featuring 1000 nits brightness, 100% DCI-P3 color gamut, and 12G-SDI inputs with zero latency. Designed for professional post-production and broadcast, it supports advanced HDR formats, multi-camera workflows, AI-driven 3DLUT self-calibration, and flexible connectivity including optional fiber SFP inputs and IP streaming control.

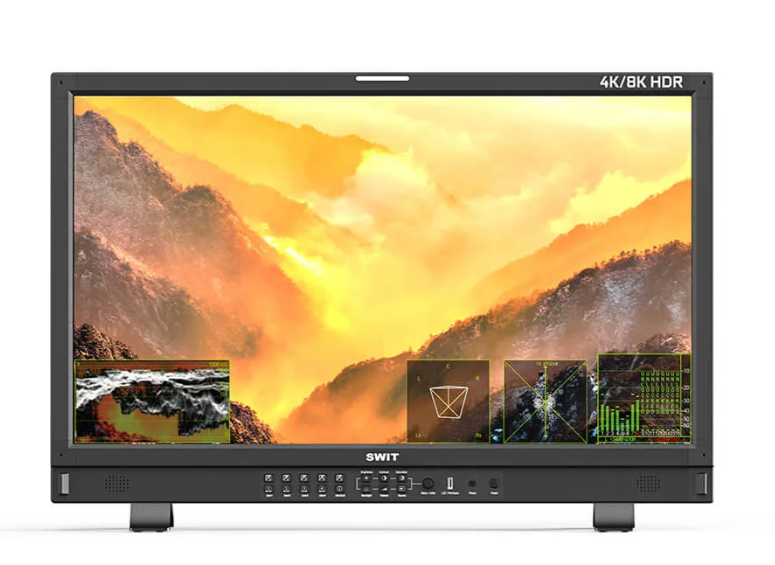

The SWIT BM-U325HDR 31.5" QLED 8K High-Bright Studio Monitor is a cutting-edge professional display designed for demanding 4K and 8K broadcast, post-production, and color grading workflows. Featuring a 31.5-inch UHD 3840×2160 resolution quantum dot LED panel with 10-bit color depth, it delivers stunning image quality with a 1000-nit high-bright LED backlight and a wide 100% DCI-P3 color gamut for true-to-life, vibrant visuals.

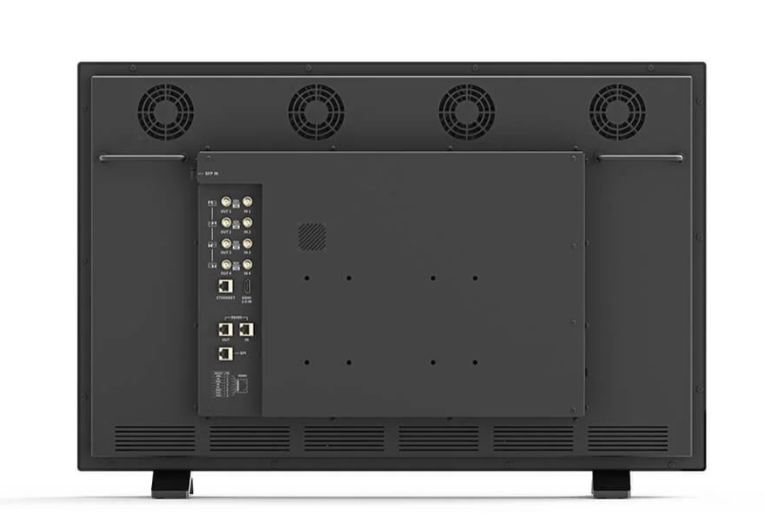

The monitor offers versatile 12G-SDI connectivity with 4 inputs and 4 outputs, supporting 8K input-ready workflows, plus HDMI 2.0 input. Optional SFP fiber modules enable 12G-SDI and ST2110 IP signal inputs, with conversion from fiber 12G to 12G-SDI output. The display supports advanced HDR formats including HLG, PQ, and S-log3, featuring auto payload ID detection for seamless HDR playback.

Designed to enhance color accuracy and efficiency, the BM-U325HDR incorporates AI-driven 3DLUT auto self-calibration eliminating the need for a PC, and allows users to upload custom 3DLUTs via USB. The built-in multi-camera Delog LUTs convert log signals to Rec.709, HLG, or PQ for easy monitoring.

Multi-view functionality offers quad-view with four inputs or dual input PBP/PIP modes. Professional monitoring tools include waveform, vector, histogram, eye pattern, focus assist, false color, zebra, audio meters, Lissajous patterns, and surround sound phase analysis for 5.1 and 7.1 audio.

The VICO 1.97 A-class eye-protecting LCD technology ensures reduced eye strain during extended use. With a wide 178° viewing angle and zero audio/video latency, this monitor is ideal for live broadcast, post-production, and grading applications.

Additional features include IP webserver remote control, making the BM-U325HDR a comprehensive, high-performance solution for modern studio environments.

Key Features

• 31.5" QLED 10-bit UHD (3840×2160) panel

• 1000 nits high brightness LED backlight

• 100% DCI-P3 wide color gamut coverage

• 12G-SDI 4-in / 4-out, 8K input ready

• HDMI 2.0 input

• Optional 12G-SDI & ST2110 IP via SFP fiber input

• Zero audio/video latency for post-production

• AI-powered 3DLUT auto self-calibration without PC

• User 3DLUT upload via USB

• Multi-camera Delog LUTs for Rec.709/HLG/PQ conversion

• Quad-view and dual-view (PBP/PIP) display modes

• HDR support: HLG, PQ, S-log3 with auto payload ID

• Professional monitoring tools: waveform, vector, histogram, eye pattern, focus assist, false color, zebra

• 16-channel audio meters, Lissajous pattern

• 5.1 & 7.1 surround sound phase pattern display

• VICO 1.97 A-class eye protection technology

• IP webserver for remote control

• Wide 178° viewing angle
