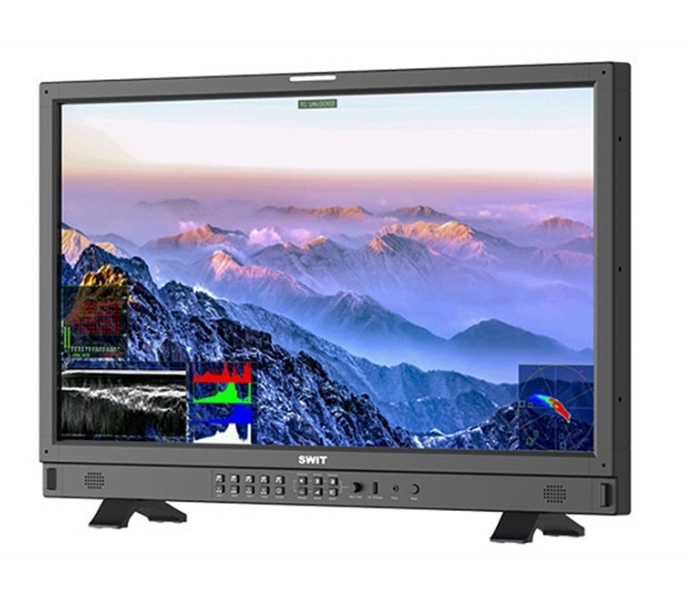

SWIT BM-U325 | 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration

The SWIT BM-U325 is a 31.5-inch 4K UHD HDR studio reference monitor with 4×12G-SDI (8K-ready) connectivity, 10-bit panel, 99.4% DCI-P3 coverage, and AI-powered 3DLUT auto-calibration. Designed for high-end broadcast and post-production, it delivers zero-latency monitoring and advanced waveform, HDR, and IP control features.

The SWIT BM-U325 is a flagship 31.5-inch UHD HDR reference monitor engineered for demanding broadcast, live production, grading, and studio workflows. It features a 10-bit LCD panel with 3840 × 2160 resolution, 300 nits brightness, an impressive 3000:1 contrast ratio, and 99.4% DCI-P3 color gamut, ensuring highly accurate color reproduction and deep contrast performance.

With 4×12G-SDI inputs and 4× loop outputs, the BM-U325 supports single-link 4K, quad-link 4K, and quad-link 8K (SQD / 2SI) workflows. Additional connectivity includes HDMI 2.0, optional 12G-SDI via SFP fiber, and optional ST2110 IP via SFP, providing flexible integration into modern IP and SDI infrastructures.

The monitor supports HLG, PQ, and S-Log3 HDR EOTFs, along with automatic Payload ID detection, which intelligently configures HDR/SDR parameters, color space, and input range based on the incoming signal.

AI 3DLUT Auto Self-Calibration

The BM-U325 features integrated 3DLUT self-calibration without a PC, enabling precise color accuracy directly from the monitor. Users can also upload custom 3DLUT files via USB for tailored workflows.

Advanced Monitoring Tools

Professional image analysis tools include:

• Waveform (Y/Cb/Cr/R/G/B)

• Vectorscope

• Histogram

• Focus Assist

• False Color

• Zebra

• 16-channel audio meters

• Lissajous pattern monitoring

The monitor ensures zero audio/video latency, making it ideal for lip-sync critical environments such as live production and OB vans.

Network & Broadcast Integration

• IP Webserver remote control via Ethernet (RJ45)

• TSL UMD 3.1/4.0 display and TALLY text

• USB firmware upgrades

• RS485 GPI/Tally support

With robust metal construction and professional-grade connectivity, the BM-U325 is a powerful monitoring solution for UHD and 8K production environments.

Key Features

• 31.5" 10-bit LCD panel, 3840 × 2160 UHD

• 99.4% DCI-P3 wide color gamut

• 3000:1 high contrast ratio

• 4×12G-SDI in / 4× loop out (8K-ready)

• HDMI 2.0 input

• Optional 12G-SDI & ST2110 IP via SFP

• AI 3DLUT auto self-calibration (no PC required)

• HDR: HLG / PQ / S-Log3

• Payload ID auto setting

• Built-in multi-camera DeLog LUTs

• User LUT upload via USB

• Zero A/V latency

• Waveform / Vector / Histogram

• Focus assist / False color / Zebra

• 16-channel audio meters & Lissajous

• IP webserver remote control

• TSL UMD & text TALLY display
