DZOFILM Marlin 1.4× Expander PL to Nikon Z
SKU: DZO-EXP2PL-Z
DZOFILM Marlin 1.4× Expander PL → Nikon Z is an optical expander for using PL cine lenses on Nikon Z cameras. It magnifies the image by 1.4×, helps Super35 lenses cover full-frame sensors and limits light loss to under one stop. Integrated back-focus adjustment enables fast calibration without removing the lens or using shims.
849 € with VAT
701.65 € without VAT
Availability
on request
Top accessories for DZOFILM Marlin 1.4× Expander PL to Nikon Z
K&F Concept 23-in-1 Camera Lens Cleaning Kit
K&F Concept 23-in-1 Camera Lens Cleaning Kit with Replacement Cleaning Pen, 15ml
55 €
In stock > 5 pcs
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
DZOFILM Marlin 1.4× Expander PL → Nikon Z is an optical expander for using PL cine lenses on Nikon Z cameras. It magnifies the image by 1.4×, helps Super35 lenses cover full-frame sensors and limits light loss to under one stop. Integrated back-focus adjustment enables fast calibration without removing the lens or using shims.
Marlin 1.4× Expander PL → Nikon Z
An optical adapter for expanding the image circle and using PL cine lenses on Nikon Z cameras. The 1.4× magnification changes the effective focal length; this is not a mechanical adapter without optics.
- PL lens → Nikon Z camera
- 1.4× optical magnification
- 6 elements / 4 groups
- Light loss less than 1 EV
Optics and Settings
Coverage Expansion
The expander helps Super35 lenses cover a full-frame sensor and expands the capabilities of your existing lens set.

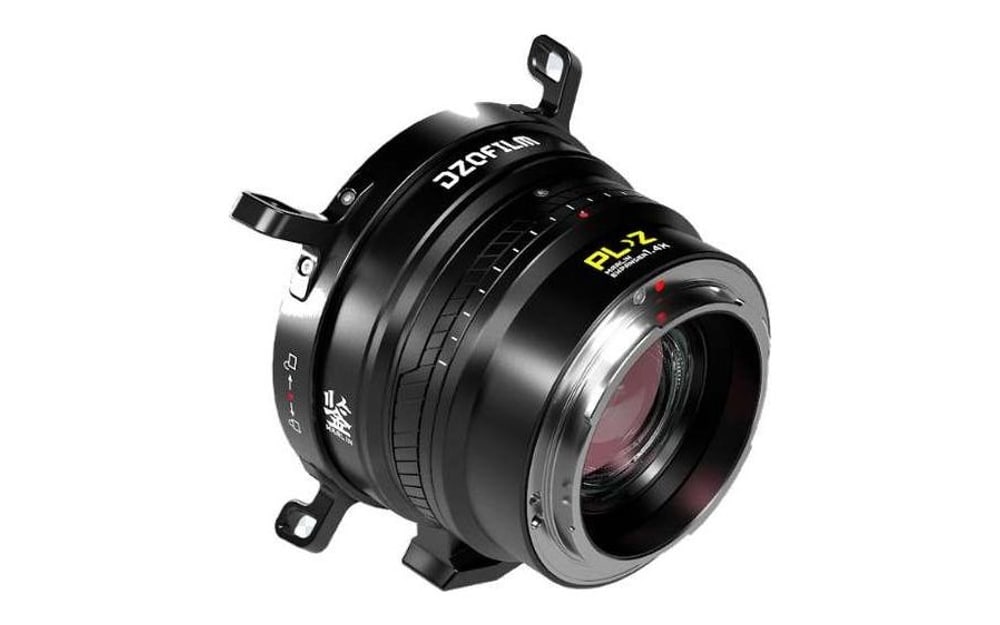

Back focus without shims
The integrated mechanism allows for calibration when switching lenses or camera bodies without disassembly.
Durable Mounts
Both the front and rear mounts are made of CNC-machined stainless steel; the inner surface minimizes reflections.
OFFICIAL MARLIN 1.4× MATERIAL
The manufacturer presents this visual for the Marlin 1.4× series. It illustrates the expander design; the sold configuration on this page remains PL to Nikon Z.
OFFICIAL RIG EXAMPLE
This manufacturer illustration shows Marlin 1.4× in a camera setup. It is a series-use example, not a photograph or image output from this specific PL to Nikon Z unit.
PACKAGE CONTENT
- 1× DZOFILM Marlin 1.4× Expander PL → Nikon Z
- 1× front cap
- 1× rear cap
- 1× T5 screwdriver
- 1× sticker with the DZOFILM logo
SPECIFICATIONS
- Lens mount: ARRI PL
- Camera mount: Nikon Z
- Type: 1.4× optical expander
- Optical design: 6 elements in 4 groups
- Image circle: Ø 31–43.27 mm (Super 35 to full-frame)
- Maximum supported aperture: T2.8
- Light loss: Less than 1 EV
- Materials: Aluminum alloy and stainless steel
- Weight: Approximately 535 g
Parameters
Parameters
| Manufacturer: | DZO Optics |
| Category: | Wide-angle forearms and Tele |
Main parameters
| Bayonet | PL · Z-mount |
| Weight | 535g |
| Optical elements | 6 |
| Optical groups | 4 |
