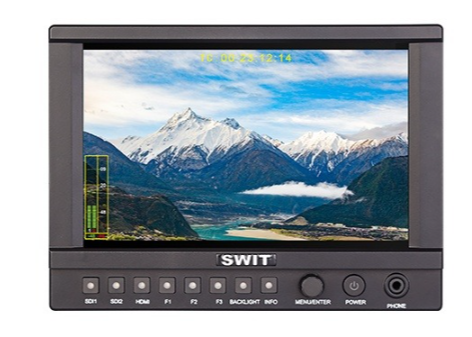

SWIT CM-S73H(LUX) | 7" Super Bright 3000nits 4K Monitor (LUXURY PACK), no-plate

The SWIT CM-S73H(LUX) is a 7-inch ultra-bright 3000nits 4K LCD monitor designed for professional video production. Featuring 1920×1200 resolution, HDR support, SDI/HDMI inputs and loop outputs, embedded audio meters, focus assist, and on-screen TALLY/GPI, it provides full monitoring control for studio and field use.

The SWIT CM-S73H(LUX) 7" Super Bright 4K Monitor delivers 3000cd/m² brightness, making it ideal for outdoor and high-ambient-light shooting conditions. Its 1920×1200 FFS LCD panel offers excellent color fidelity with 16.77 million colors, wide 160° viewing angles, and adjustable 16:9/4:3 aspect ratios.

Designed for professional monitoring, the CM-S73H(LUX) features:

• 2K/3G/HD/SD-SDI input & loop output and HDMI 2.0 (4K60p) input & loop output
• 16-channel embedded audio meters with selectable audio output
• Focus assist, Peaking, Zebra stripes, False color, R/G/B/Mono display
• Timecode, H/V delay, AFD, multi-camera Rec.709 logs
• 9-step zoom, aspect ratio markers (4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1)
• User-importable 3D LUT via USB, TALLY display, and GPI control

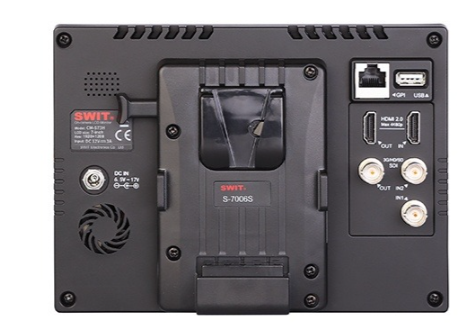

• Supports V-Mount, Gold-Mount, or DV battery plates

With a robust DC/battery 6.5–17V input and low power consumption (≤26W), the monitor is suitable for handheld rigs, studio setups, and field production. Weighing 500g and measuring 187×137×41mm, it is compact yet feature-packed for directors, cinematographers, and camera operators who demand high brightness, precise monitoring, and full HDR workflow support.

Key Features

• 7" FFS LCD, 1920×1200 resolution
• Super bright 3000cd/m² panel for outdoor use
• HDR compatible (PQ / HLG / S-log3)
• SDI & HDMI input/output with loop-through
• Embedded 16-channel audio meters with selectable output
• Focus assist, Peaking, Zebra, False color, R/G/B/Mono
• On-screen TALLY display & GPI interface
• User 3DLUT import via USB
• Zoom, aspect ratio markers, H/V delay, AFD, Timecode
• Supports V-Mount, Gold-Mount, or DV battery plates
