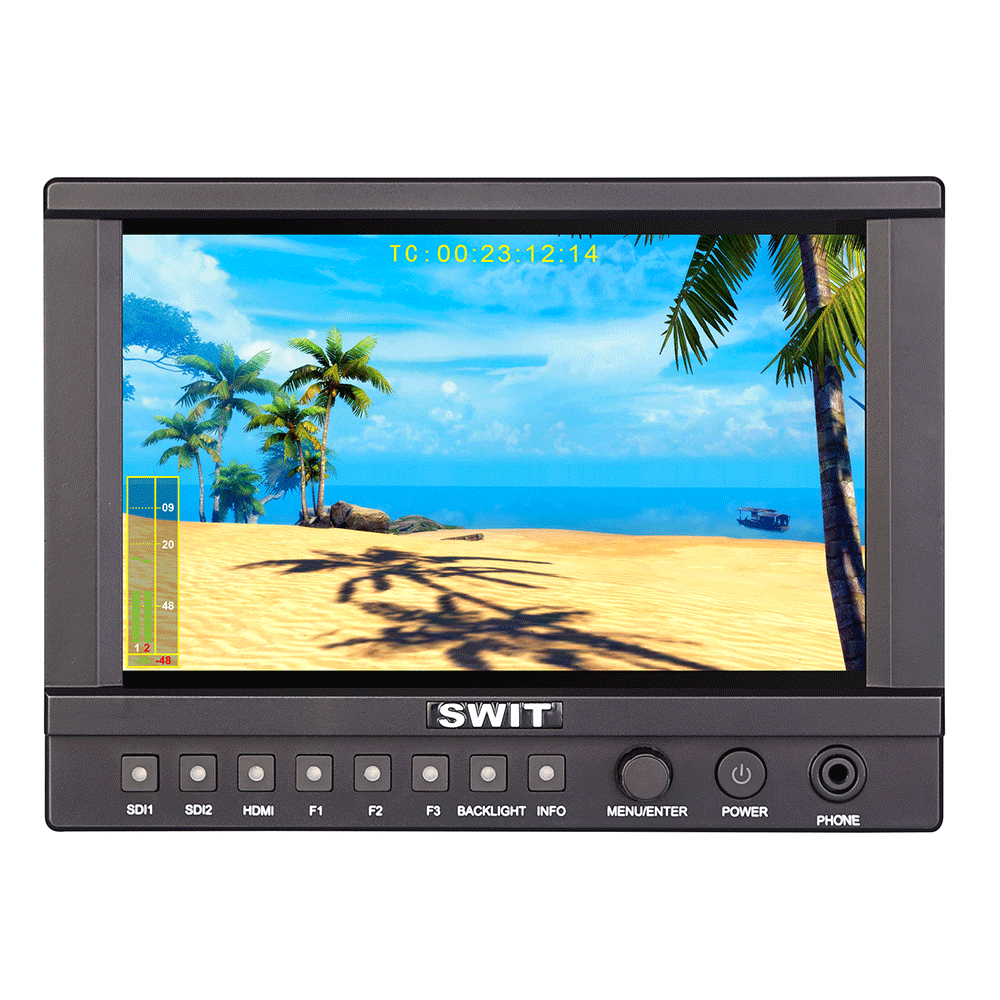

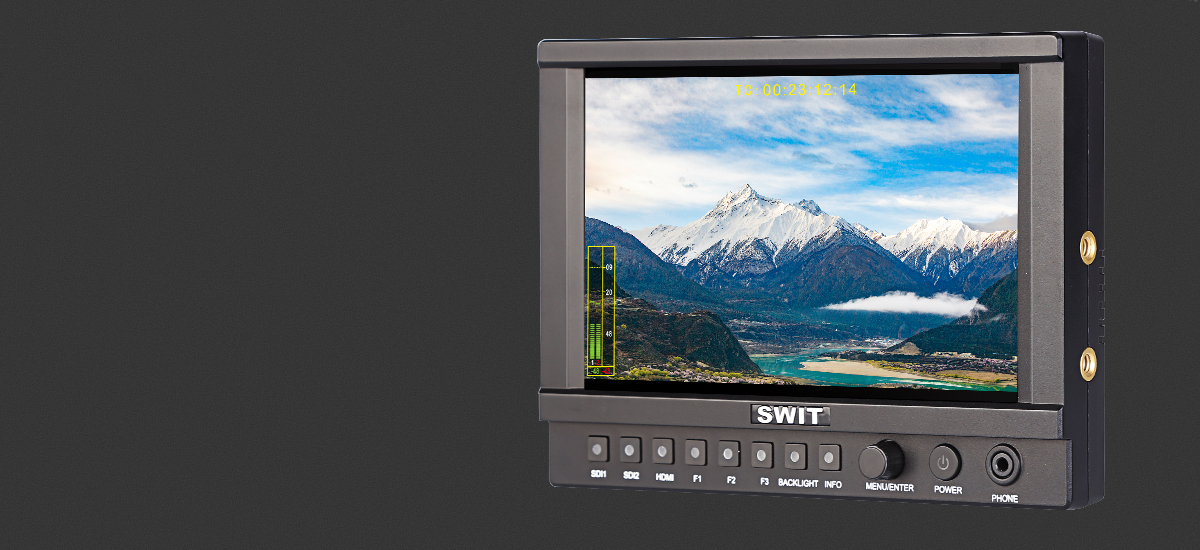

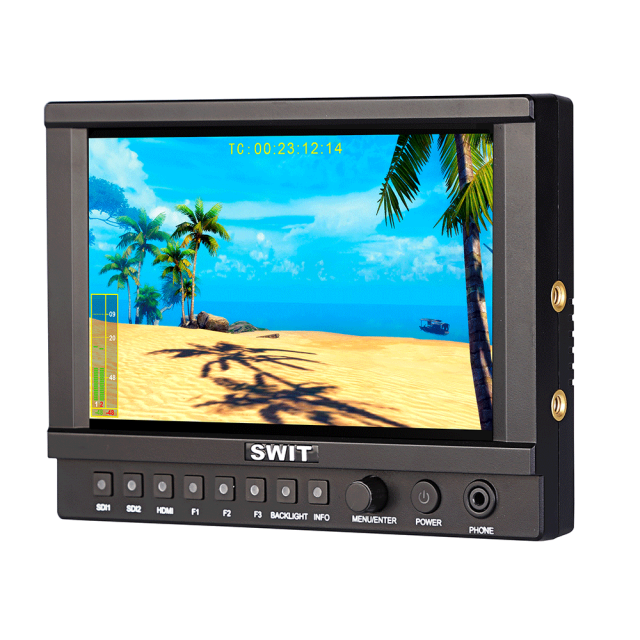

Swit CM-S73H

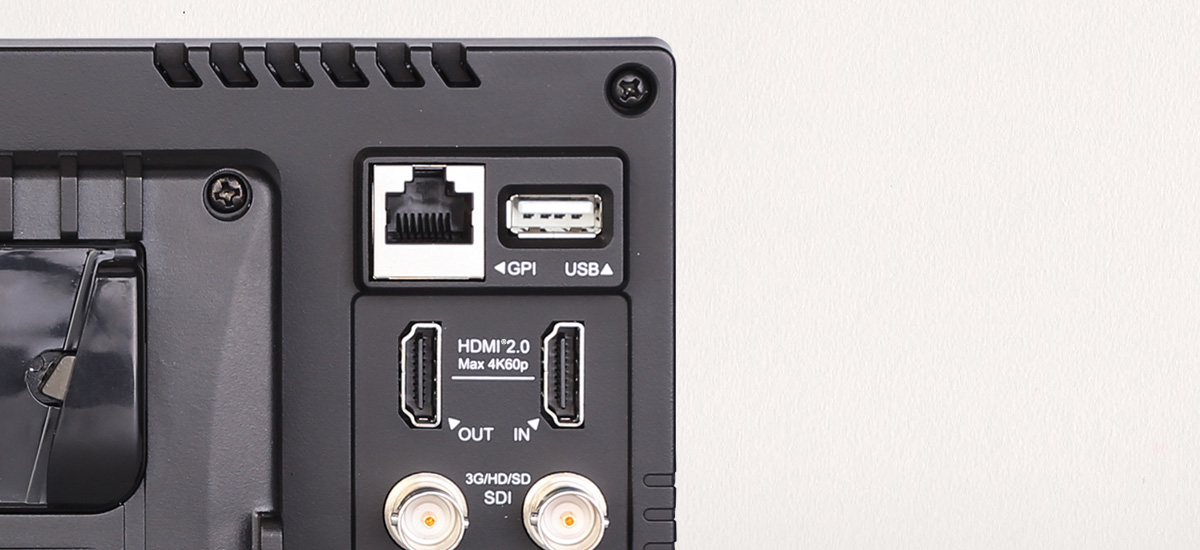

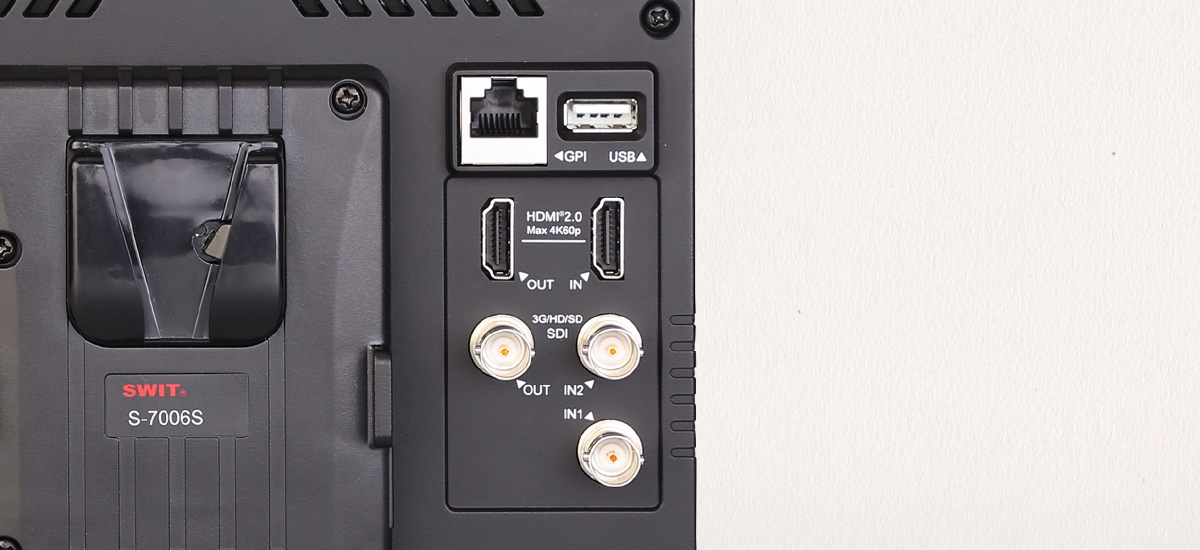

Input/Output Interfaces

3G-SDI、4K-HDMI®

CM-S73H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI® 2.0 (4K60p) input × 1
HDMI® 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI® embedded audio output

3DLUT Log to Rec709

User LUT cube import

CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

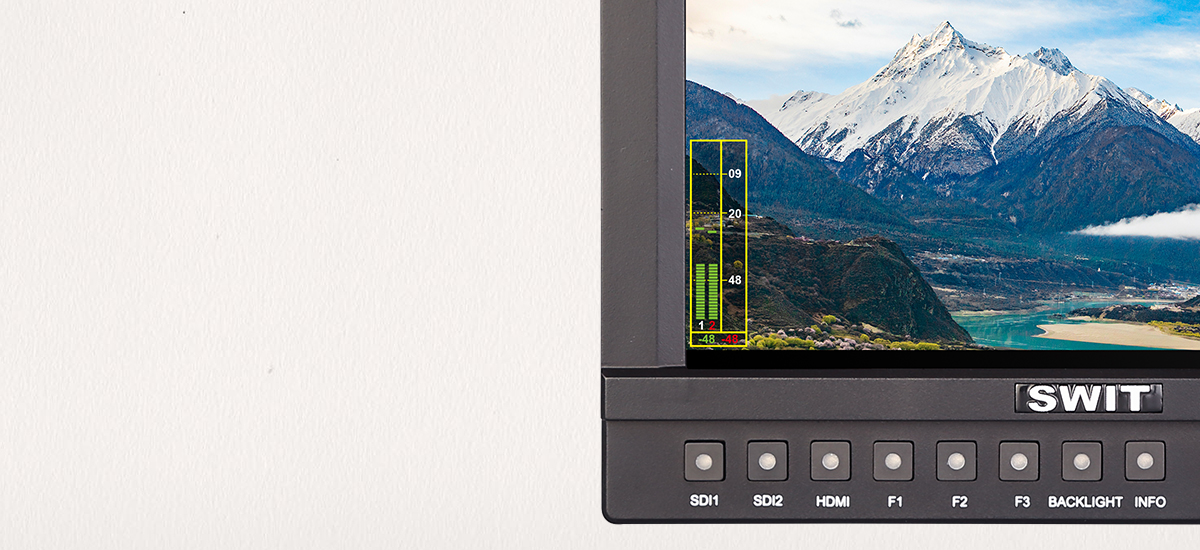

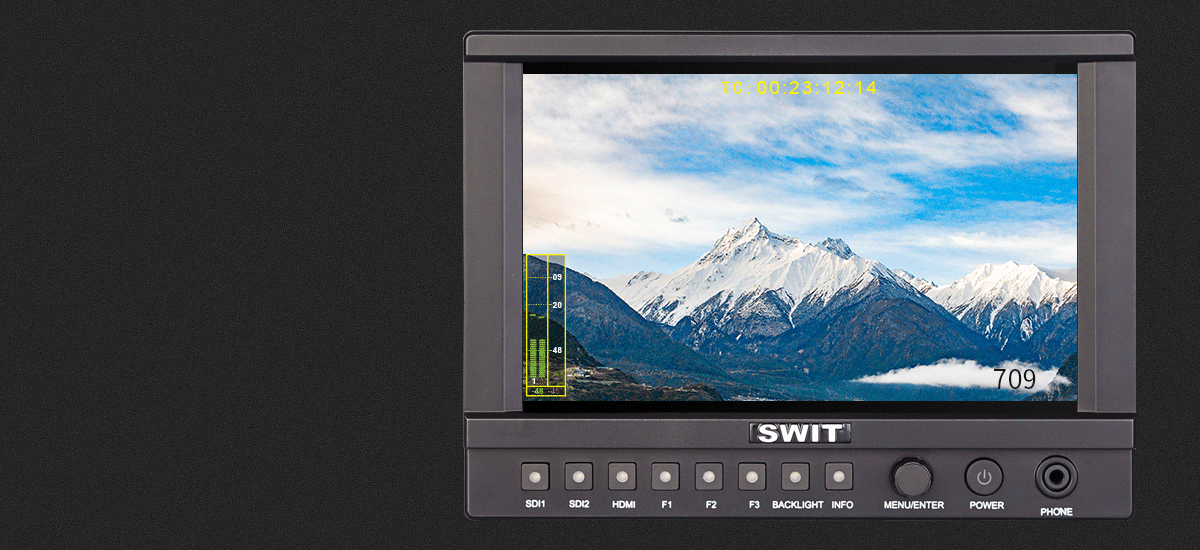

Embedded audio monitoring

Up to 16-ch meters with alert and select output

CM-S73H supports SDI-16ch and HDMI®-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

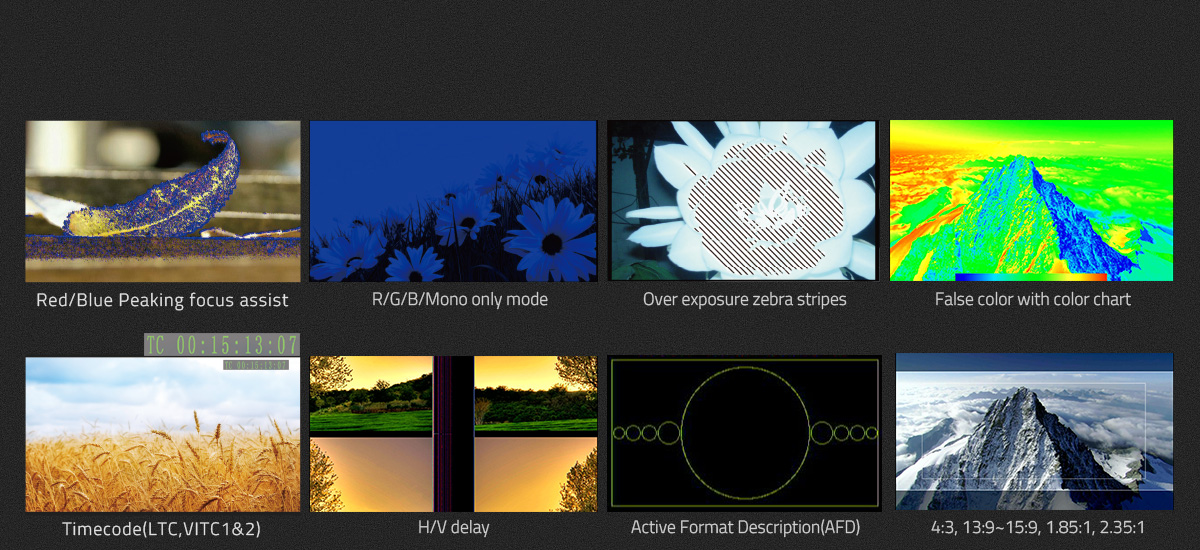

Peaking, R/G/B/Mono only, Zebra, False color

Timecode, H/V delay, AFD, Scale Markers

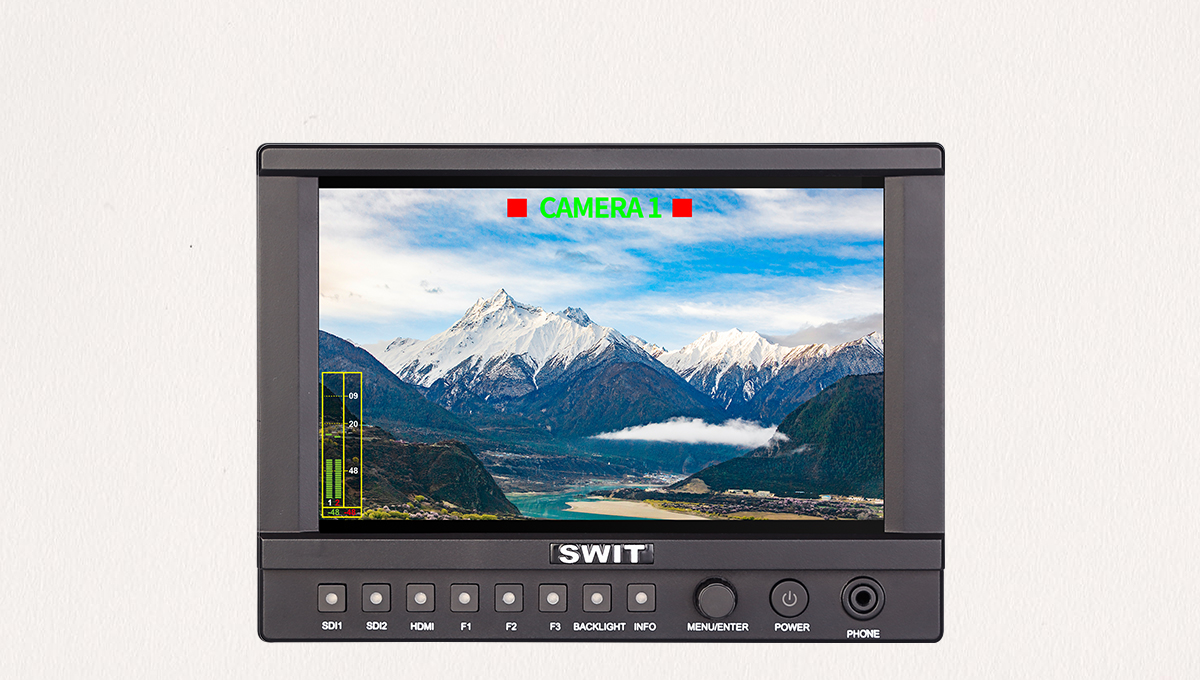

On-screen Tally

CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.

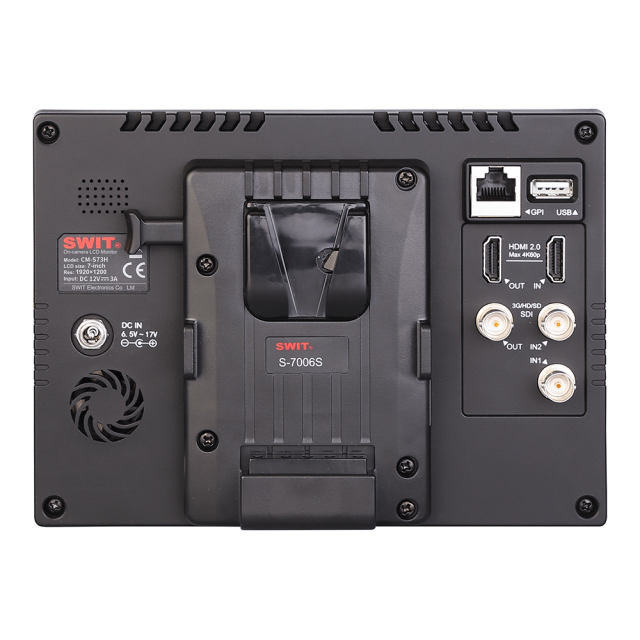

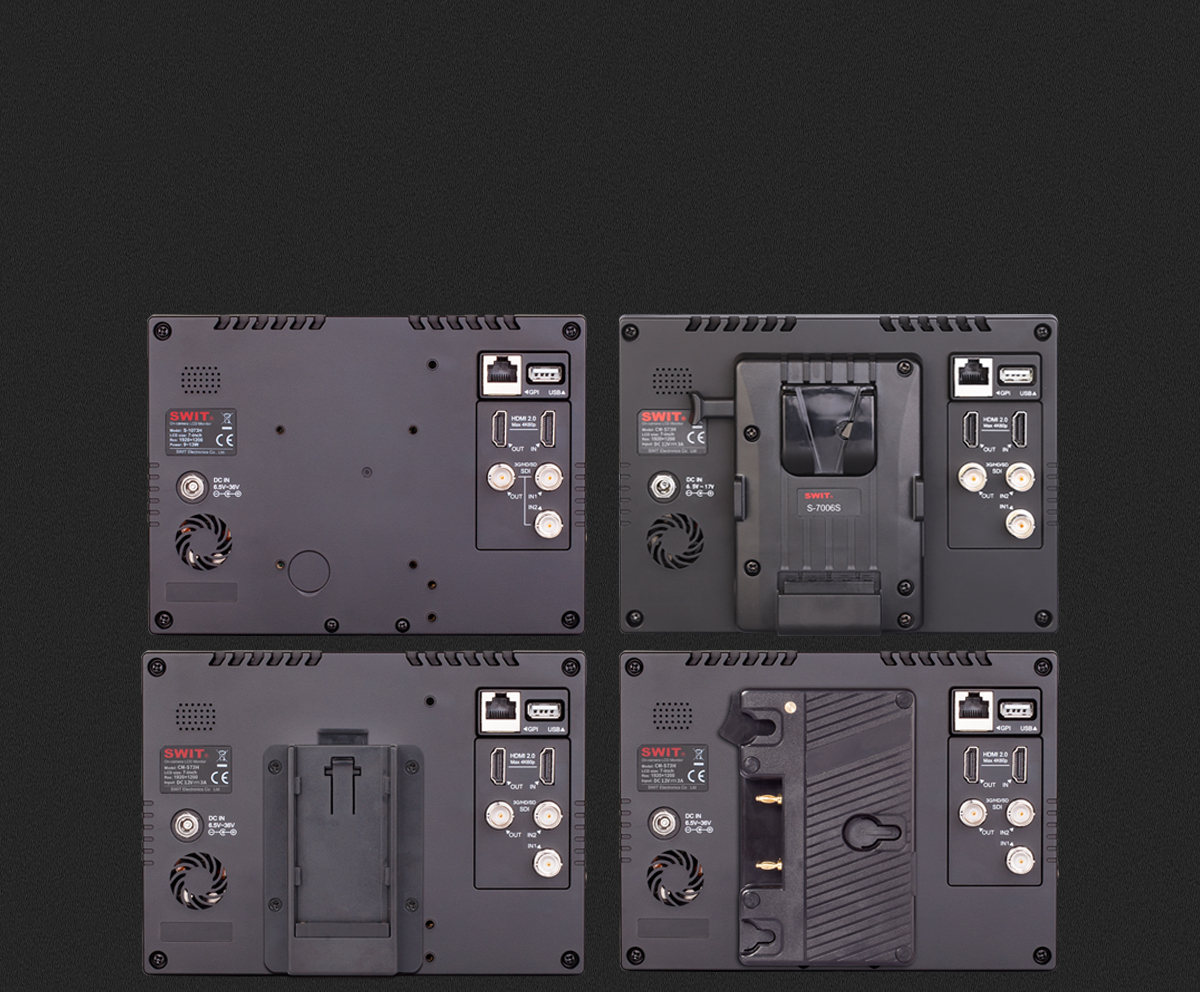

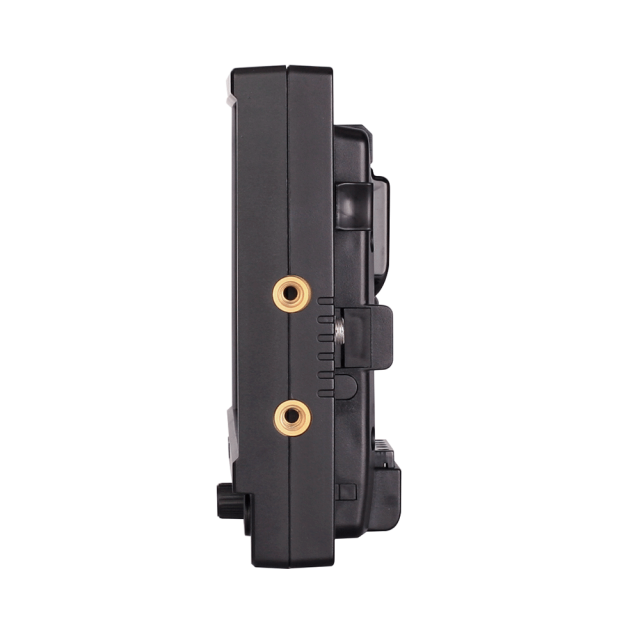

Various DV Plate Install

V-mount / Gold mount / DV mount

CM-S73H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power.

*Using S-7006F/D/B/I/C, the Max brightness will be reduced to 2000nit.
